50T 100T 200T 300T 500T 1000T 2000T welding or bolted type cement fly ash storage silo tank customization supported
- Category: >>>
- Supplier: Henan Shengmao Machinery Co. Ltd.
Share on (1601279206331):
Product Overview
Description
Product Description

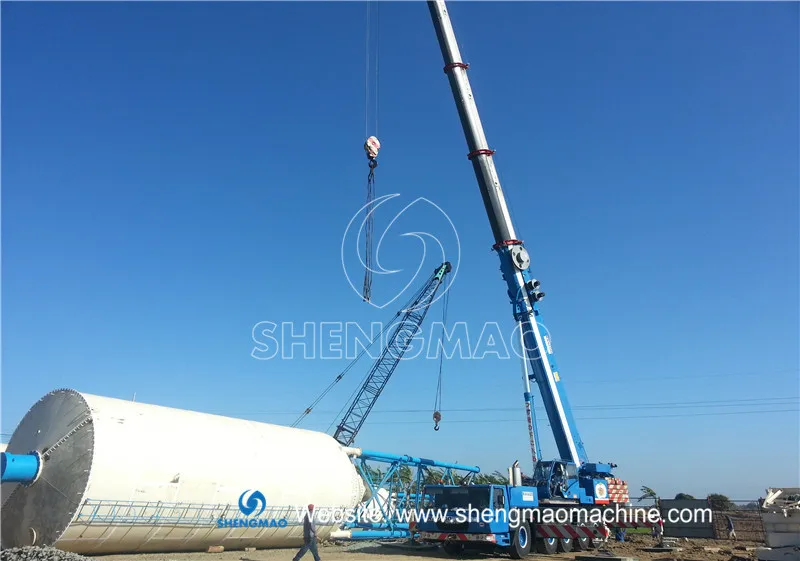

Installation picture of our 1000T cement silo in Ethiopia

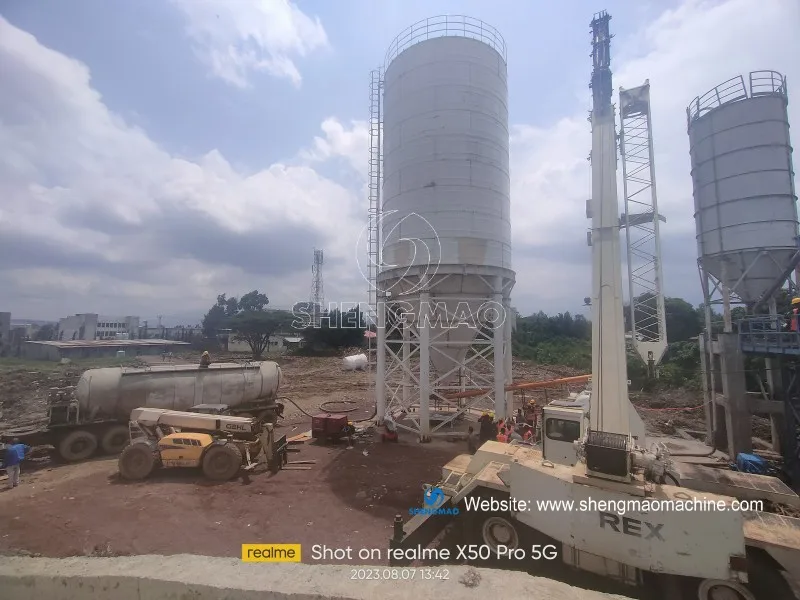

One set of our 1000T cement silo was finished installation in Ethiopia in August, 2023.

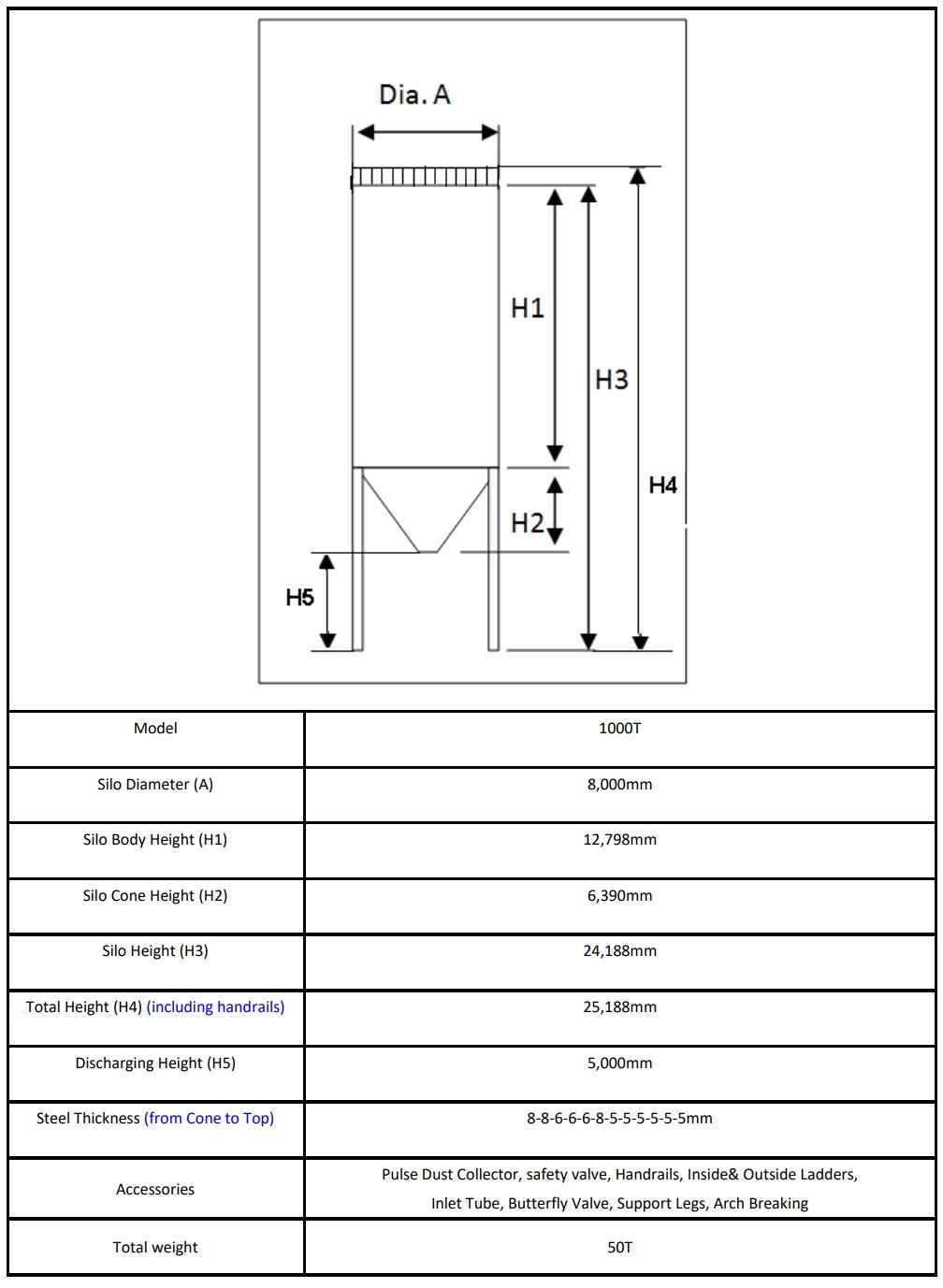

Specification of our 1000T cement silo

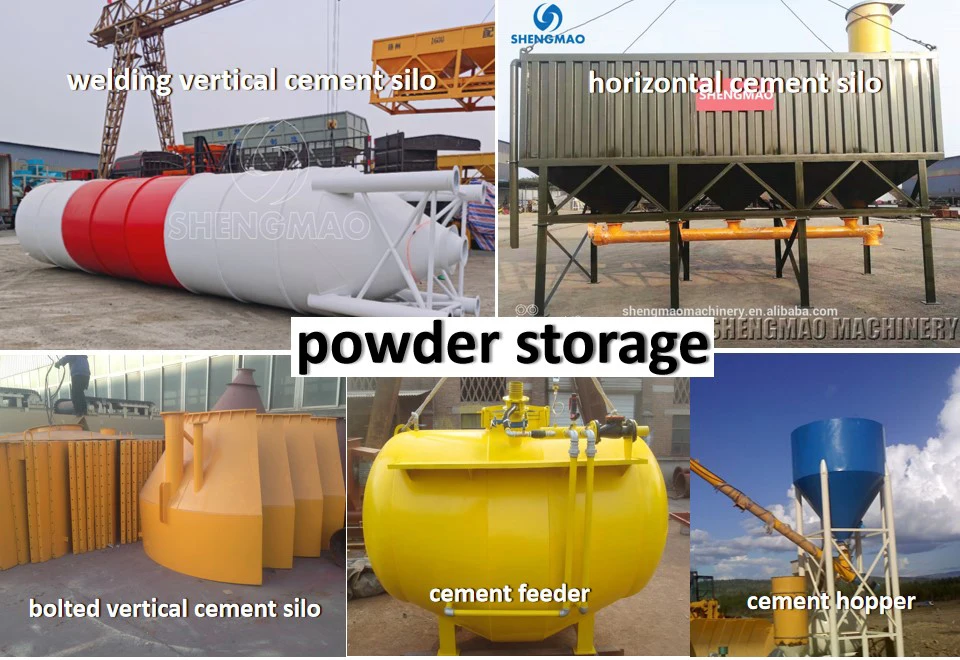

Vertical Cement silo
Traditionally, we use vertical cement silo to store dry powder material like cement, fly ash etc. It is usually equipped with
accessories like filter, level indicator, flow promotion device, safety valve to ensure it works efficiently and environment
friendly.
Currently, we can produce 20T to 2000T vertical cement silo in welding type or bolted type. Welding type cement silo is easy to install but inconvenient for transportation; While bolted type cement silo is convenient for transportation but time-consuming for installation. Welcome to contact us for details and quotations.
Traditionally, we use vertical cement silo to store dry powder material like cement, fly ash etc. It is usually equipped with
accessories like filter, level indicator, flow promotion device, safety valve to ensure it works efficiently and environment
friendly.
Currently, we can produce 20T to 2000T vertical cement silo in welding type or bolted type. Welding type cement silo is easy to install but inconvenient for transportation; While bolted type cement silo is convenient for transportation but time-consuming for installation. Welcome to contact us for details and quotations.
Horizontal cement silo
Horizontal cement silo is also a storage tank for dry powder material like cement, fly ash etc. It is designed to avoid the
inconvenience of vertical silo. Compared with vertical cement silo, it has the following advantages:
1. No big reinforced concrete foundation is needed, so we can save much time and cost to prepare the foundation;
2. It is much lower in height, so it is very convenient for maintenance;
3. Easy to install and move to other job sites.
Horizontal cement silo is also a storage tank for dry powder material like cement, fly ash etc. It is designed to avoid the
inconvenience of vertical silo. Compared with vertical cement silo, it has the following advantages:
1. No big reinforced concrete foundation is needed, so we can save much time and cost to prepare the foundation;
2. It is much lower in height, so it is very convenient for maintenance;
3. Easy to install and move to other job sites.
Vertical cement silo | ||||
Item | Welding type cement silo | Bolted type cement | ||
Storage capacity we have | 30T to 300T | 30T to 2000T | ||
Max. capacity of silo can be put into one 40HQ container | 50T | 2000T | ||
Material | Carbon steel | |||
Accessories | Silo top filter, safety valve, level indicator, flow promotion device, inside and outside ladders, butterfly valve. | |||

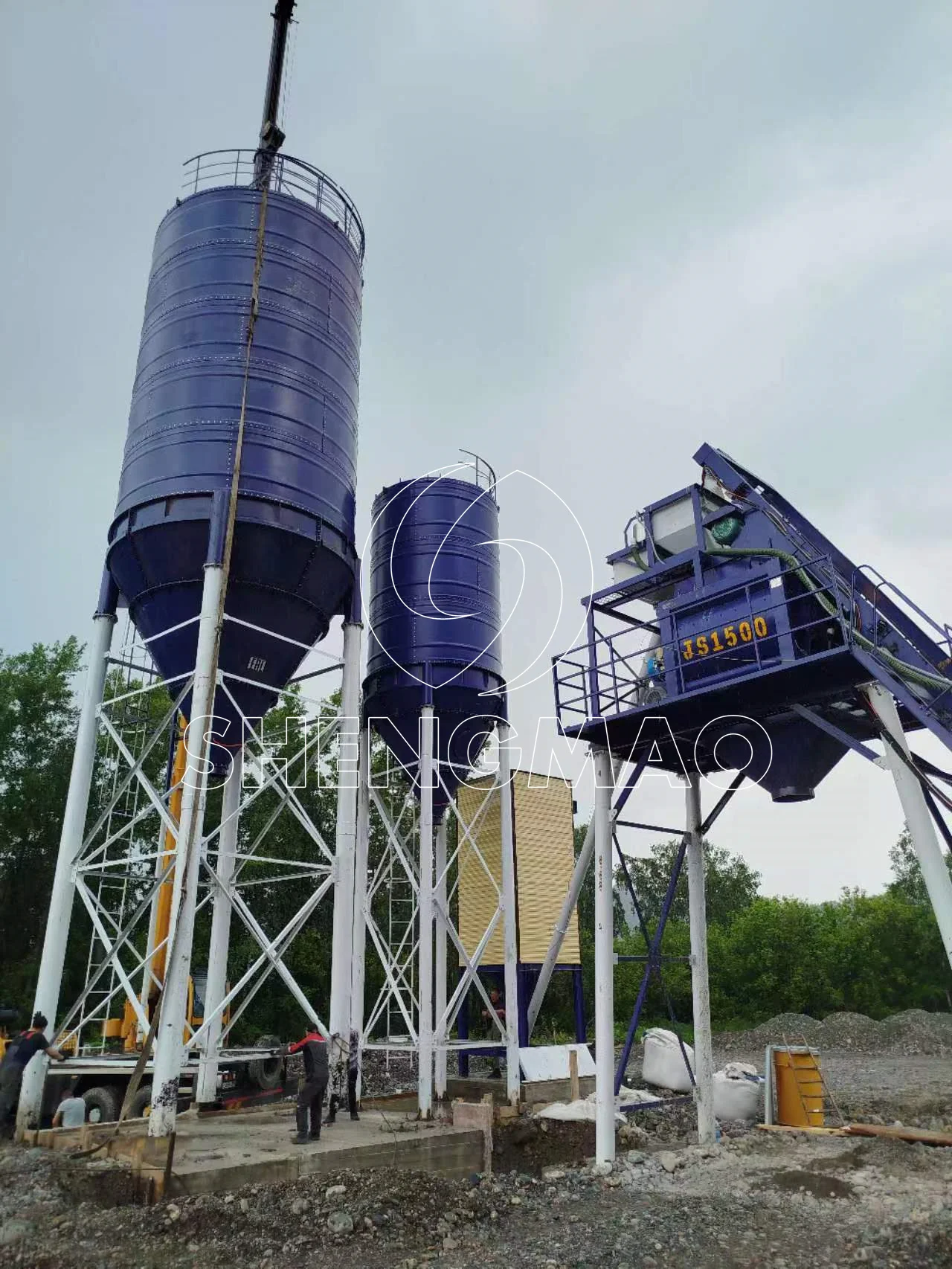

Vertical cement silo--welding type
Features compared with bolted type:
1. low cost and easy to install;
2. Saving Labour;
2. Taking up more shipping space; It can not be put into container if it is more than 50t.
Vertical cement silo--bolted type
Features compared with welding type:
1. Saving shipping space; even 2000T cement silo can be put into container;
2. More expensive and time-consuming for installation;
3. Need more labour.
Horizontal cement silo | ||||
Item | Stationary type | Mobile type | ||
Storage capacity we have | 30T to 300T | |||
Max. capacity of silo can be put into one 40HQ container | 70T | |||
Material | Carbon steel | |||
Accessories | Silo top filter, safety valve, level indicator, flow promotion device, inside and outside ladders, butterfly valve, vibrating motor. | |||

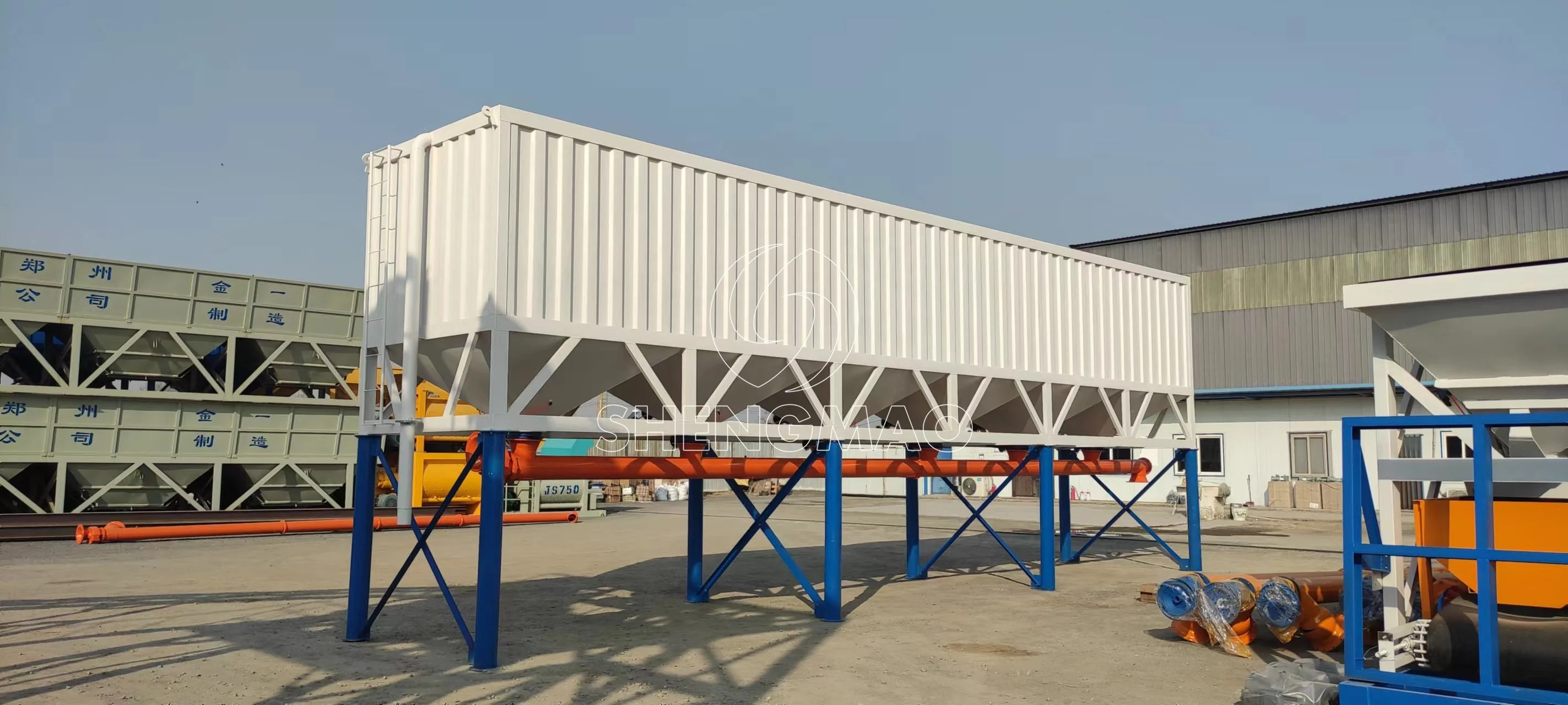

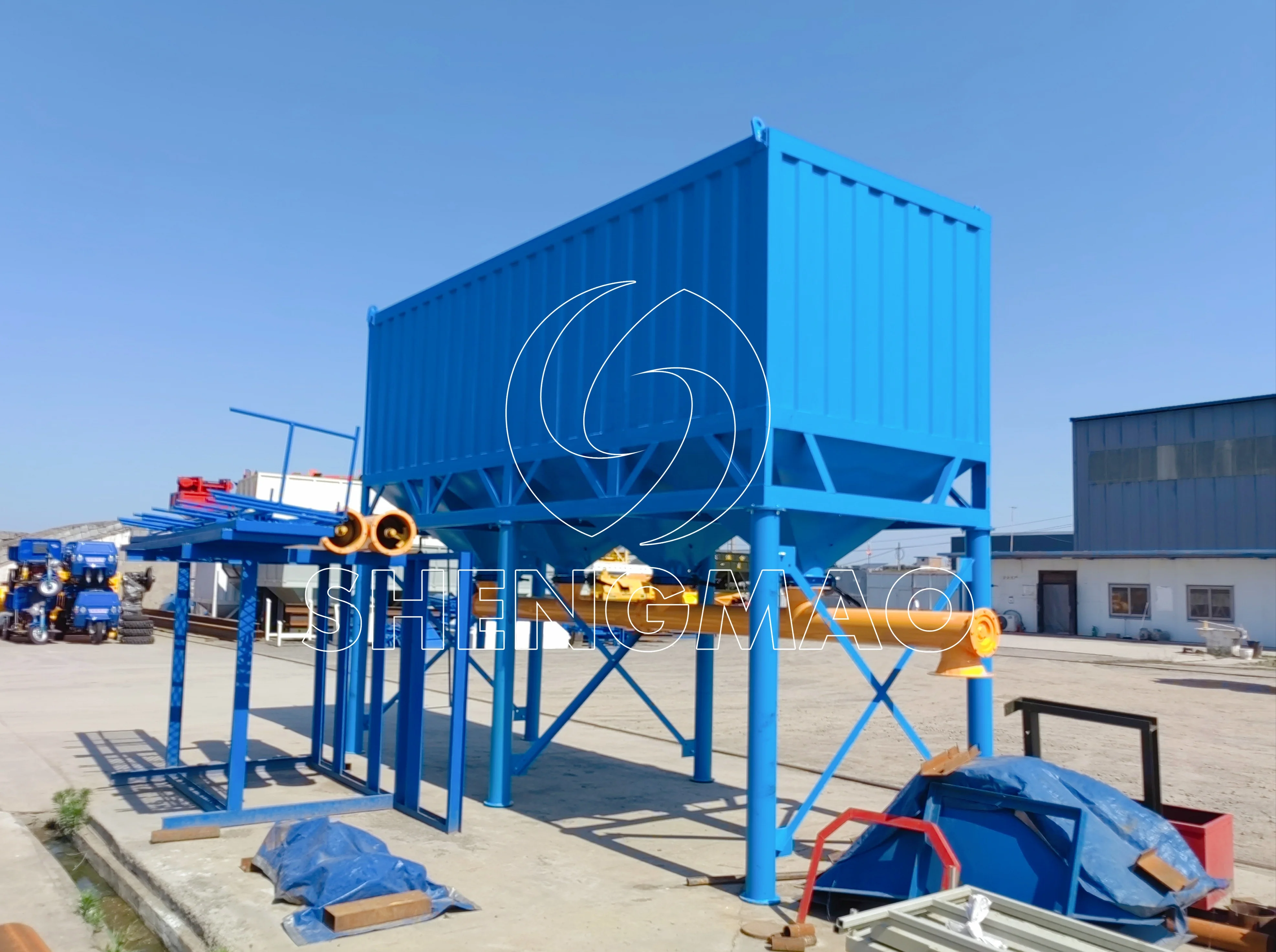

Horizontal cement silo--stationary type
Features compared with vertical cement silo:
1. no need to make foundation;
2. easy to install and maintain;
3. easy to move to other job site.

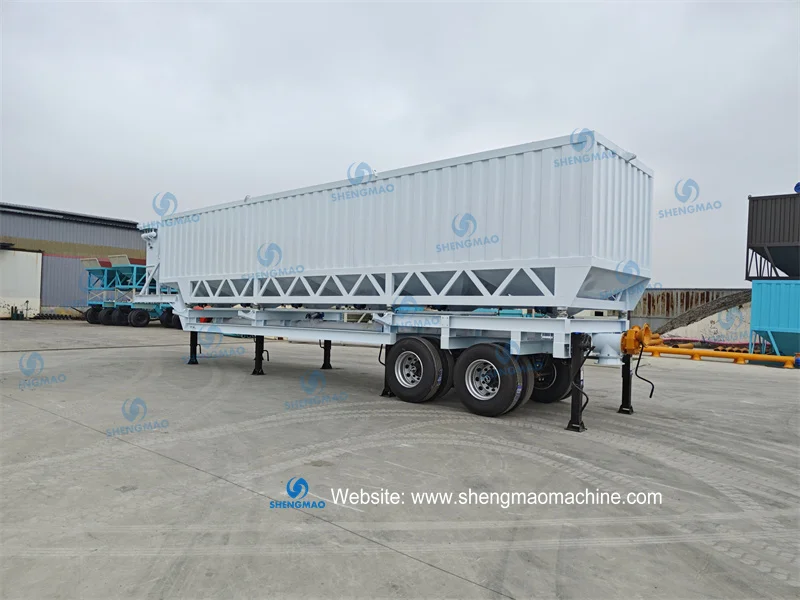

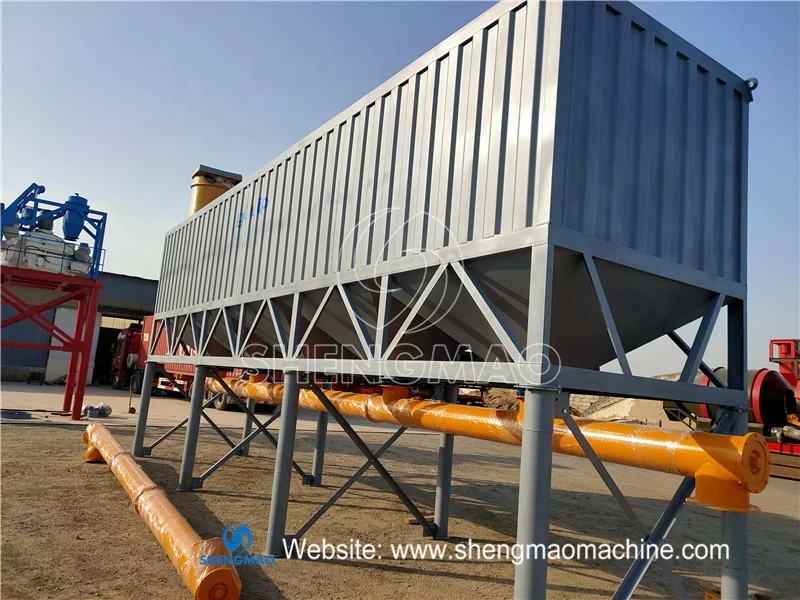

Horizontal cement silo--mobile type
Features compared with vertical cement silo:
1. no need to make foundation;
2. easy to install and maintain;
3. easy to move to other job site, it is usually used to work with mobile concrete batching plant.
Spare parts of cement silo
Dust catcher
manual valve
Resistance rotary level meter
Flow promotion device
Weighing sensor
Radar sensor

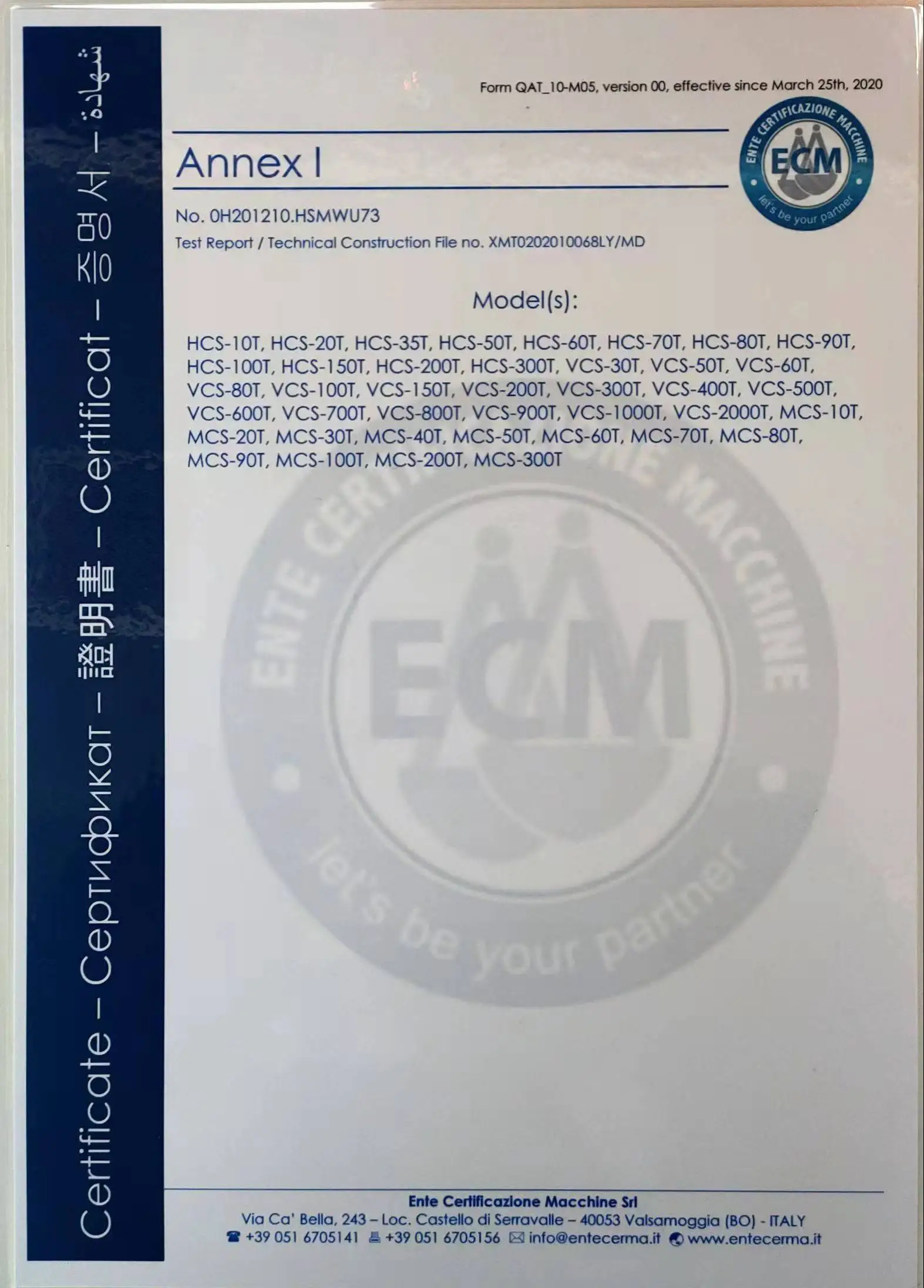

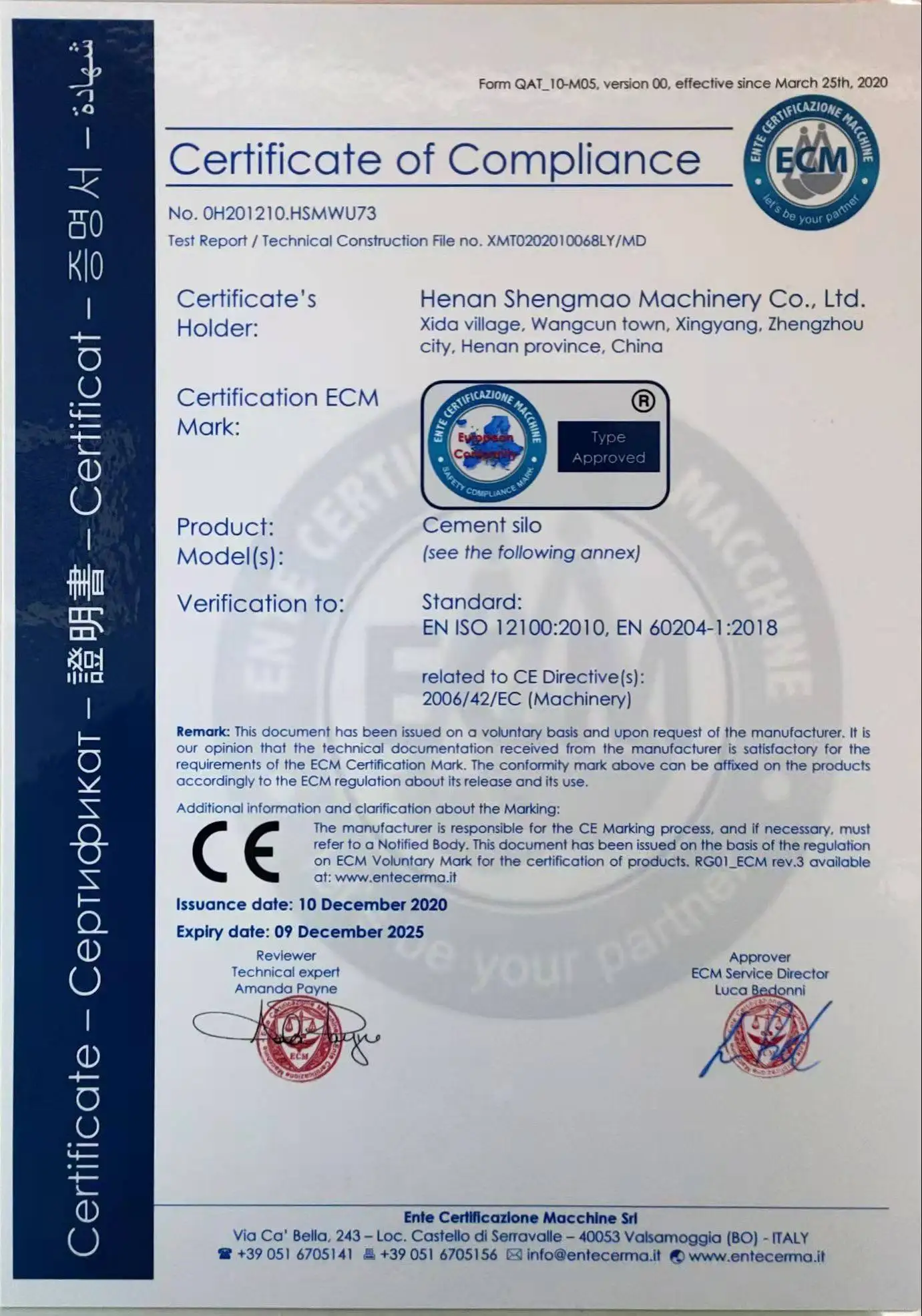

Certificates

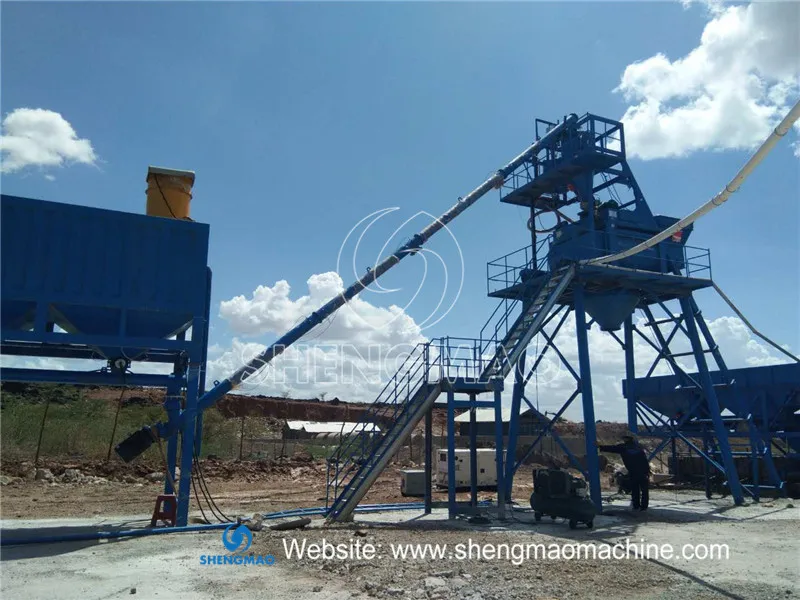

Our Projects

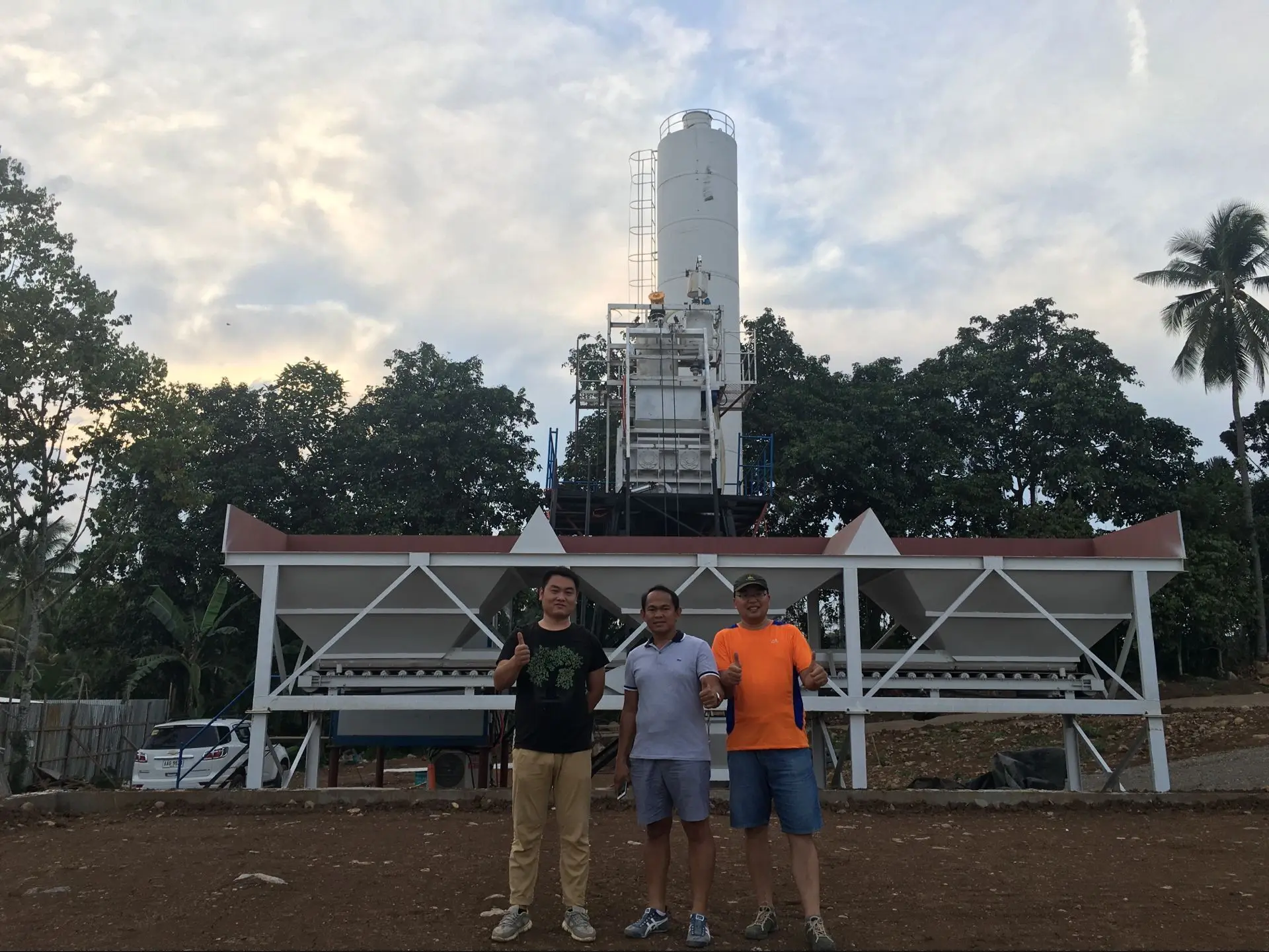

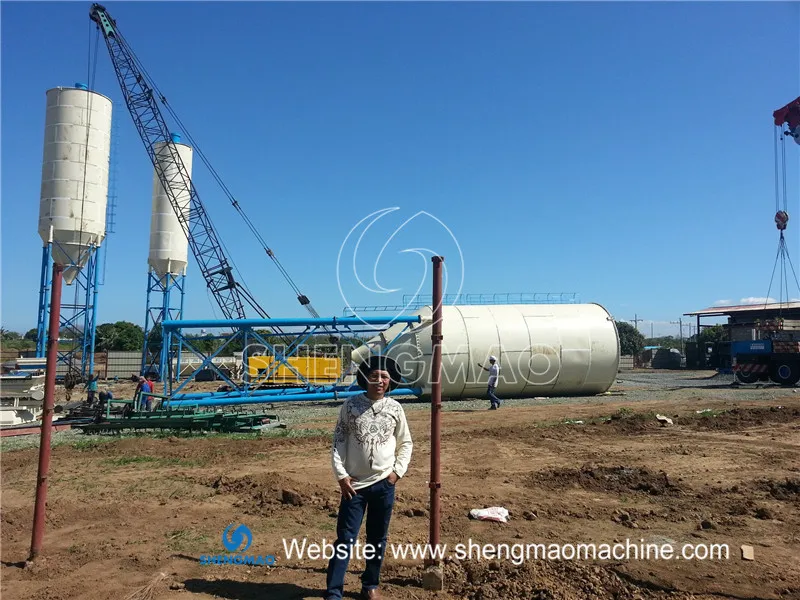

100T, 200T and 300T bolted type vertical cement silo for our Philippine client.

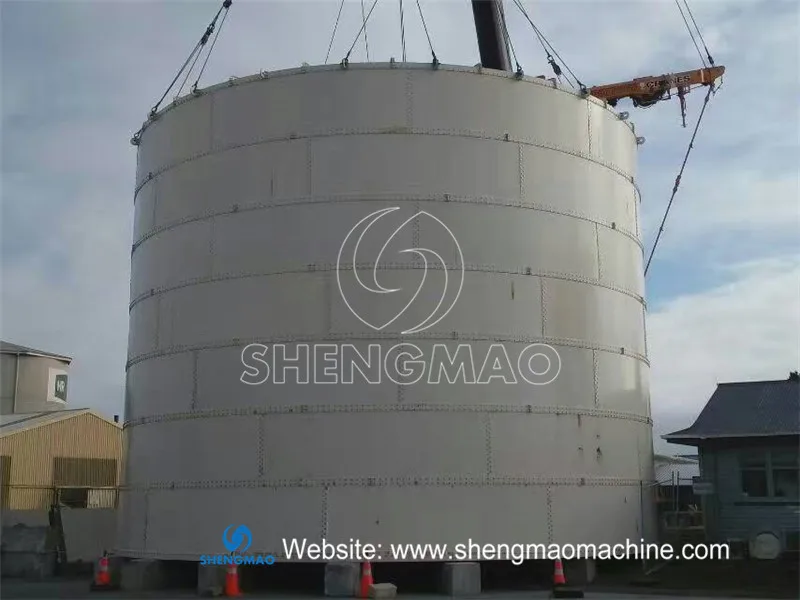

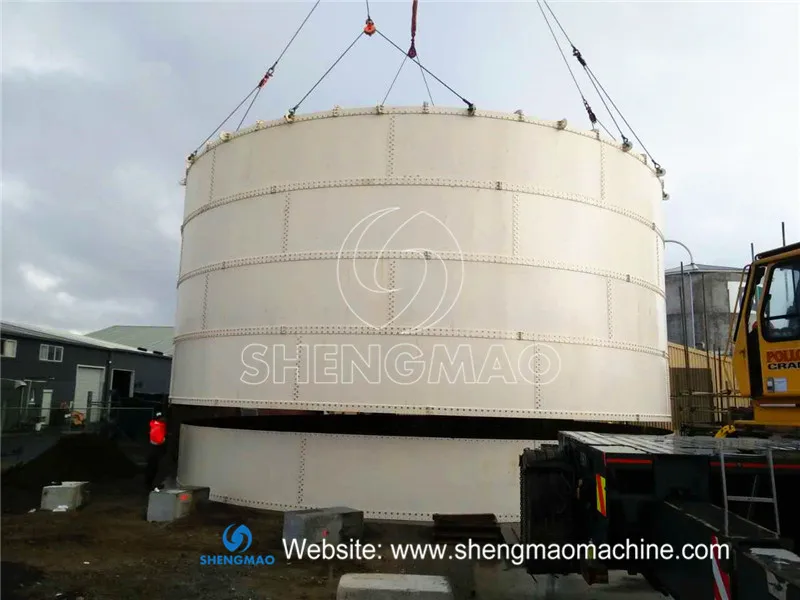

2000T bolted type vertical cement silo for our New zealand client.

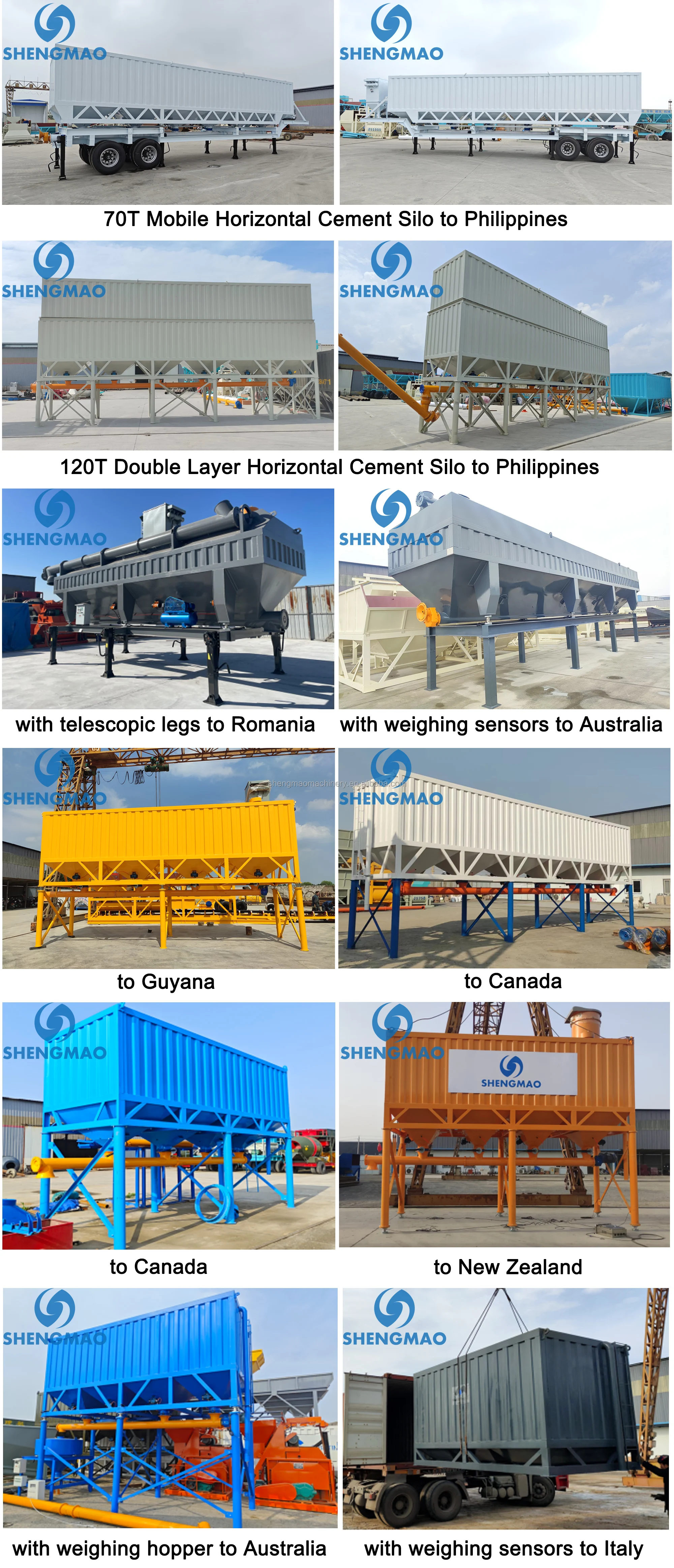

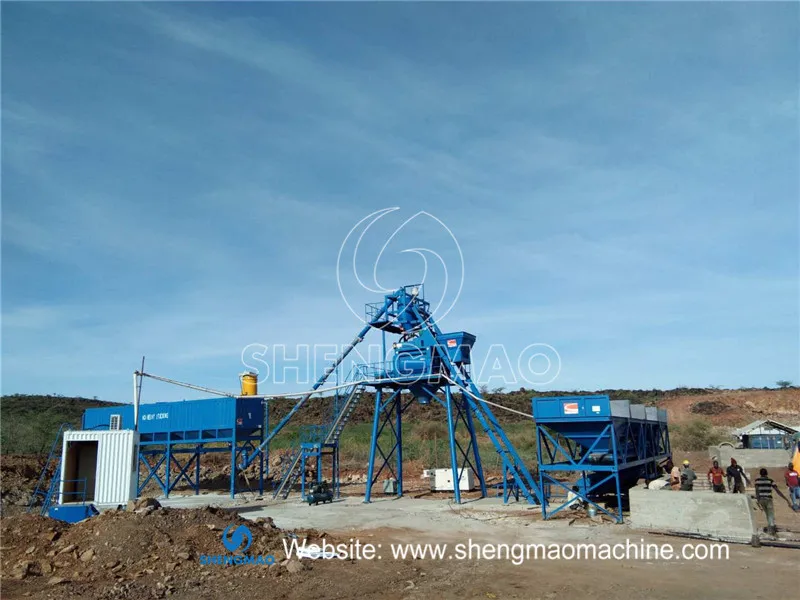

70T horizontal cement silo for our Kenya client.

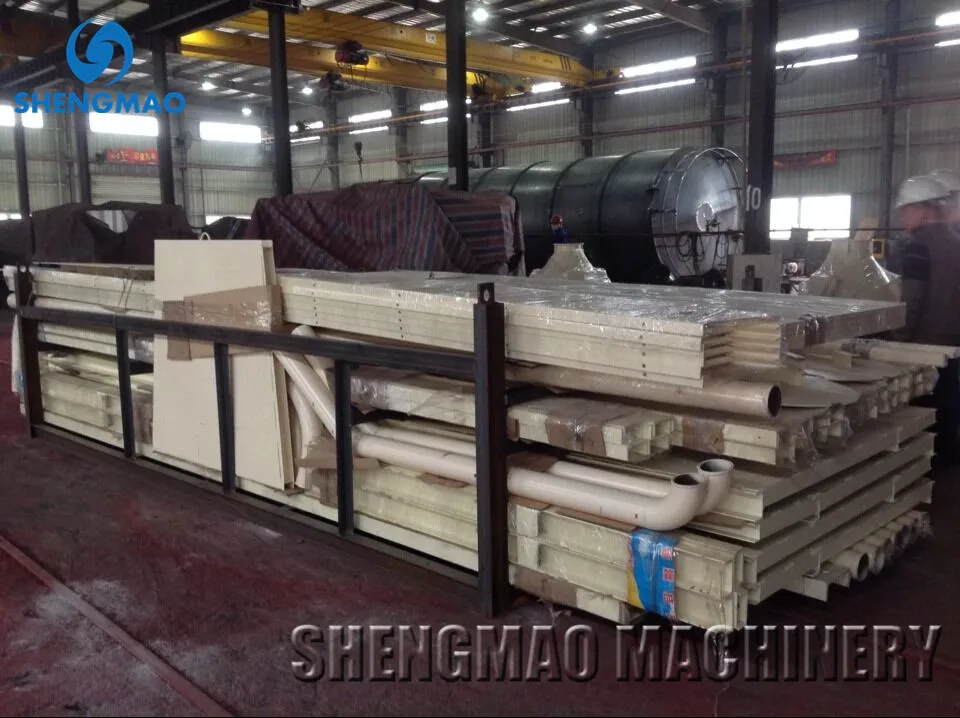

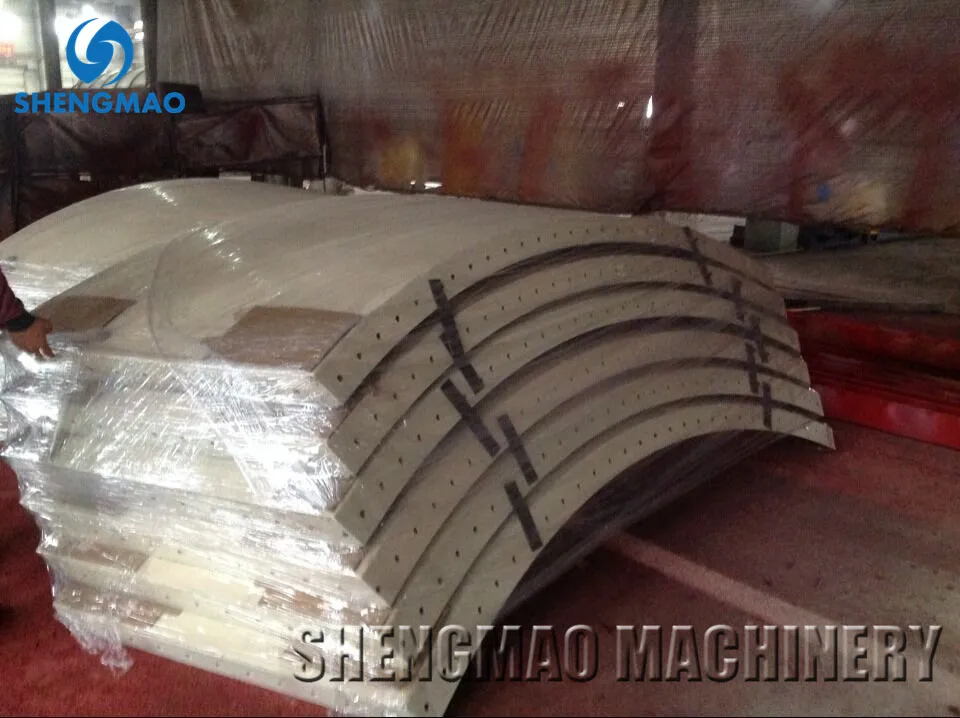

Packing&Shipping
After Sales Service
After-sales service
1. 7 * 24 hours online after-sales service every week;
2. Provide relevant certificates, customs clearance documents, operation and maintenance instructions, installation videos etc.
3. Dispatch after-sales engineers to install and commission equipment abroad, and provide free training for operators and maintenance personnel for operation and maintenance;
4. Establish a complete customer profile, regular inspections, regular jobsite visiting, free maintenance services and technical improvements;
5. All spare parts supplying.
