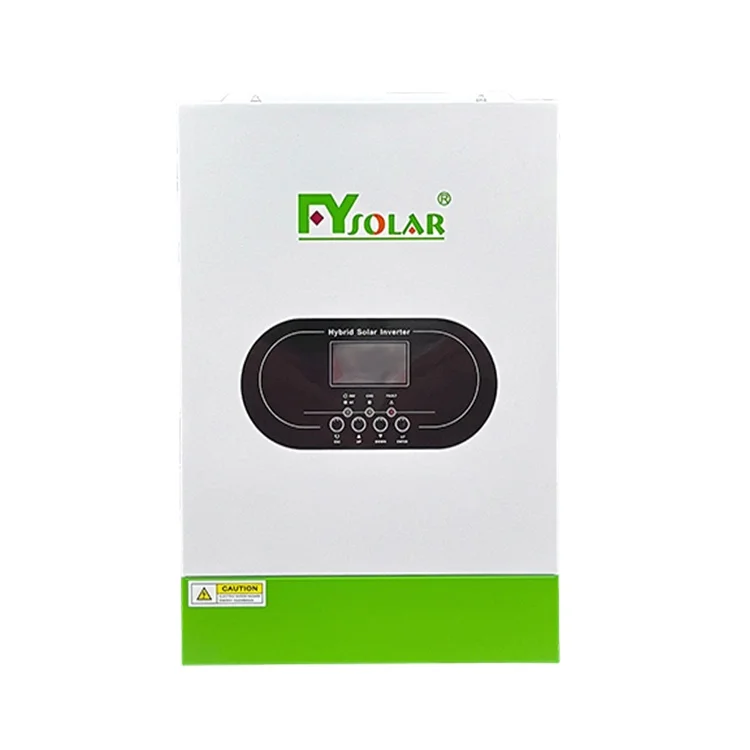

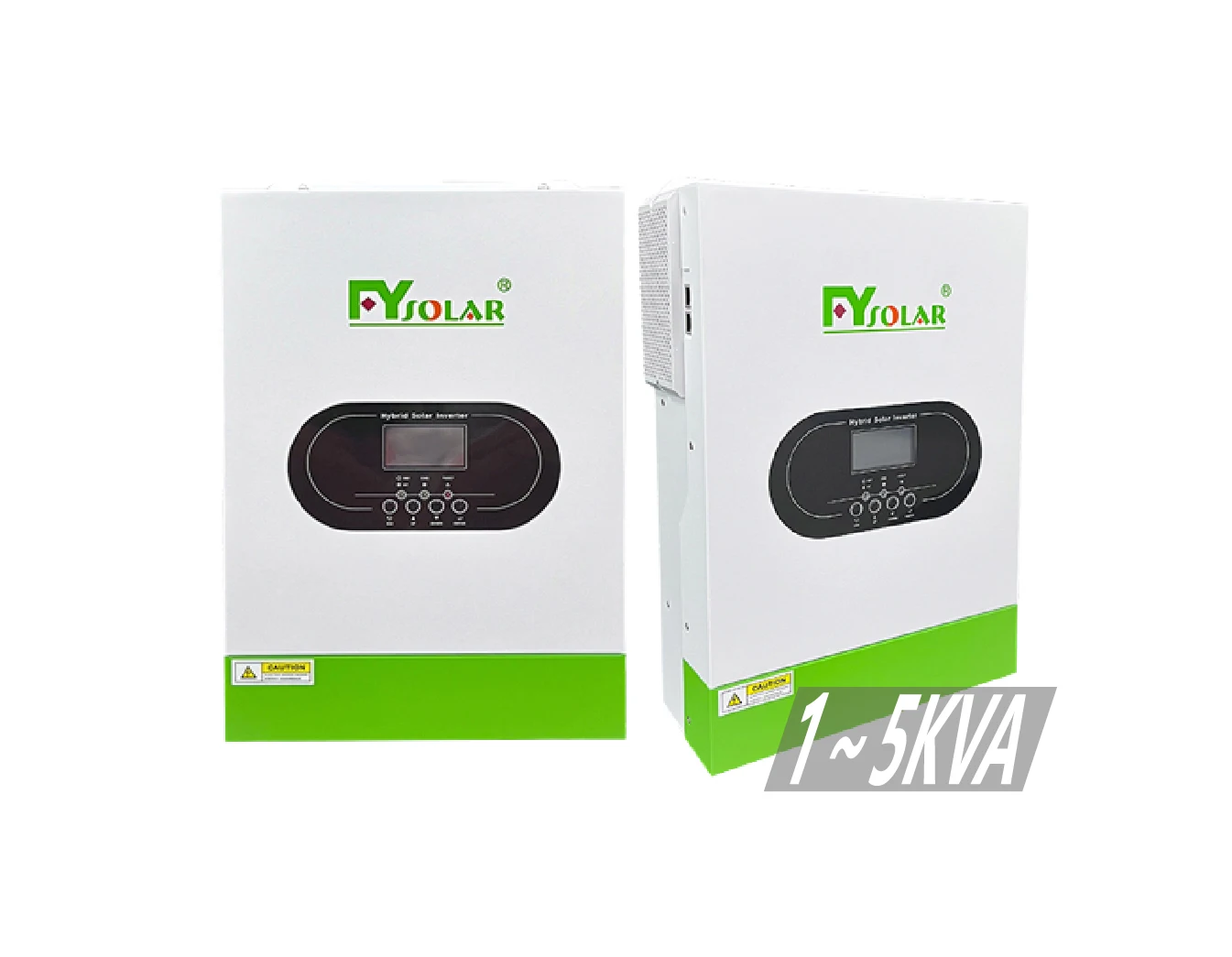

Hybrid Solar Power Inverter 5.5KW Single Phase DC AC Inverter 50/60hz Hybrid Solar System 100V Start Volta Lead Acid Stock
- Category: >>>
- Supplier: Jiaxing Botao Trading Co. Ltd.
Share on (1601279243124):
Product Overview
Description
Product description
Features
*Pure sine wave solar inverter
*Output power factor 1
*High PV input volage range
*Built-in MPPT solar controller
*Battrey equalization function to optimize battery performance and exrend lifecycle
*Inveter running without battery
*Built-in anti-dusk kit for harsh environment
*Parallel operation with up to12 units
*Output power factor 1
*High PV input volage range
*Built-in MPPT solar controller
*Battrey equalization function to optimize battery performance and exrend lifecycle
*Inveter running without battery
*Built-in anti-dusk kit for harsh environment
*Parallel operation with up to12 units

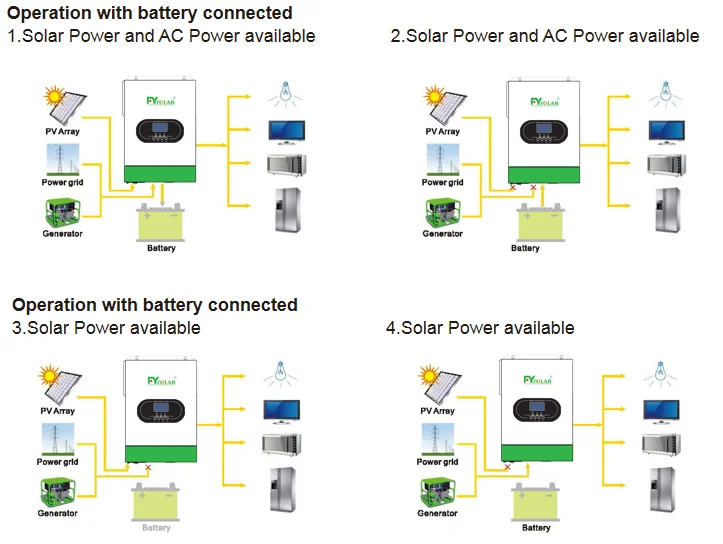

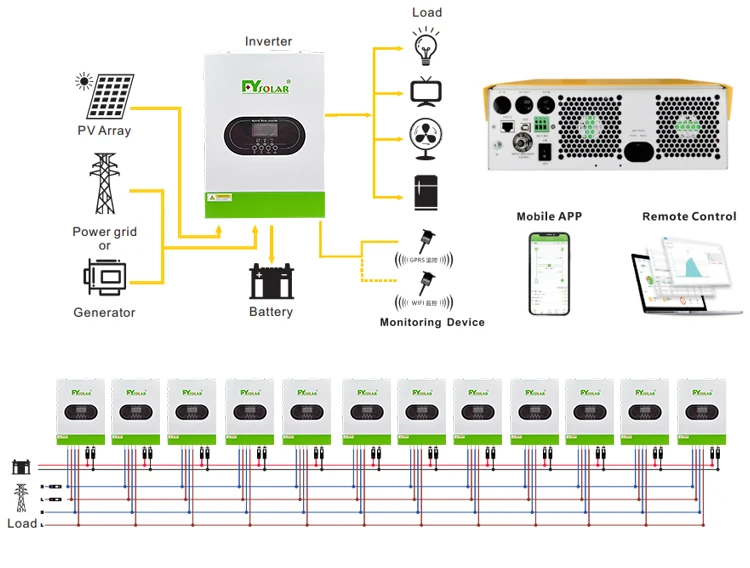

System Diagram
Main specifications
Model | FY 3502-3.5kw | FY 3502-5.5KW | FY 3502-5.5KW-PC | |||
CAPACITY | 3.5KVA/3.5KW | 5.5KVA/5.5KW | 5.5KVA/5.5KW | |||
Parallel Capability | NO | NO | YES,12 units | |||
INPUT | ||||||
Nominal Voltage | 230VAC | |||||
Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280vac(For Home Appliances) | |||||
Frequency | 50/60 Hz(Auto sensing) | |||||
OUTPUT | ||||||
Nominal Voltage | 220/230VAC±5% | |||||
Surge Power | 7000VA | 11000VA | 11000VA | |||
Frequency | 50/60Hz | |||||
Waveform | Pure Sine wave | |||||
Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) | |||||
Peak Efficiency(PV to INV) | 96% | |||||
Peak Efficiency(Battery to INV) | 94% | |||||
Overload Protection | 5s@>=150% load; 10s@110%~150% load | |||||
Crest Factor | 2:1 | |||||
Admissible Power FACTOR | 0.6~1（inductive or capacitive) | |||||
BATTERY | ||||||
Battery Voltage | 24VDC | 48VDC | 48VDC | |||
Floating Charge Voltage | 27VDC | 54VDC | 54VDC | |||
OverCharge Protection | 33VDC | 63VDC | 63VDC | |||
Charging Method | CC/CV | |||||
Solar Charger & AC Charger | ||||||
Solar Charger TYPE | MPPT | |||||
Max.PV Array Power | 4000W | 5500W | 5500W | |||
Max.PV Array Open Circuit Voltage | 500VDC | |||||
PV Array MPPT Voltage Range | 120VDC~450VDC | |||||
Max.Solar Input Current | 15A | 18A | 18A | |||
Max.Solar Charge Current | 100A | 100A | 100A | |||
Max.AC Charge Current | 60A | 60A | 60A | |||
Max.Charge Current | 100A | 100A | 100A | |||
PHYSICAL | ||||||

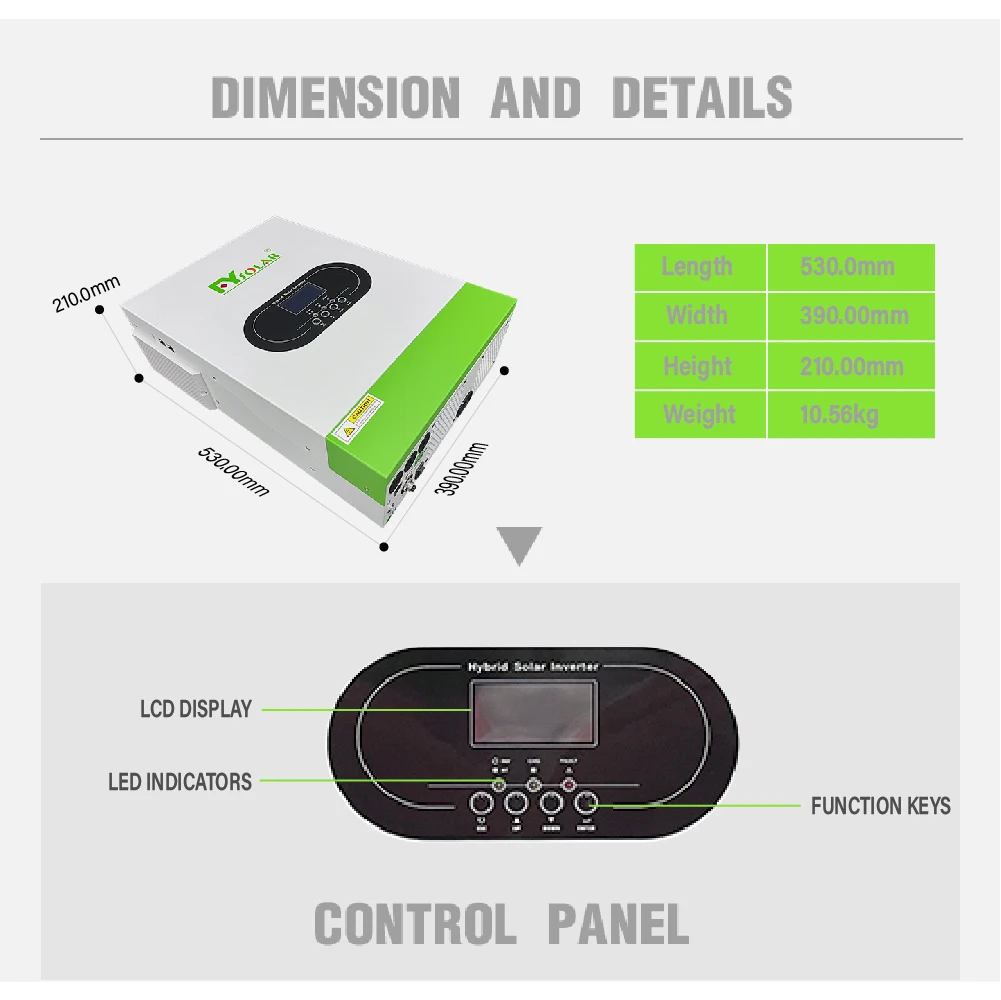

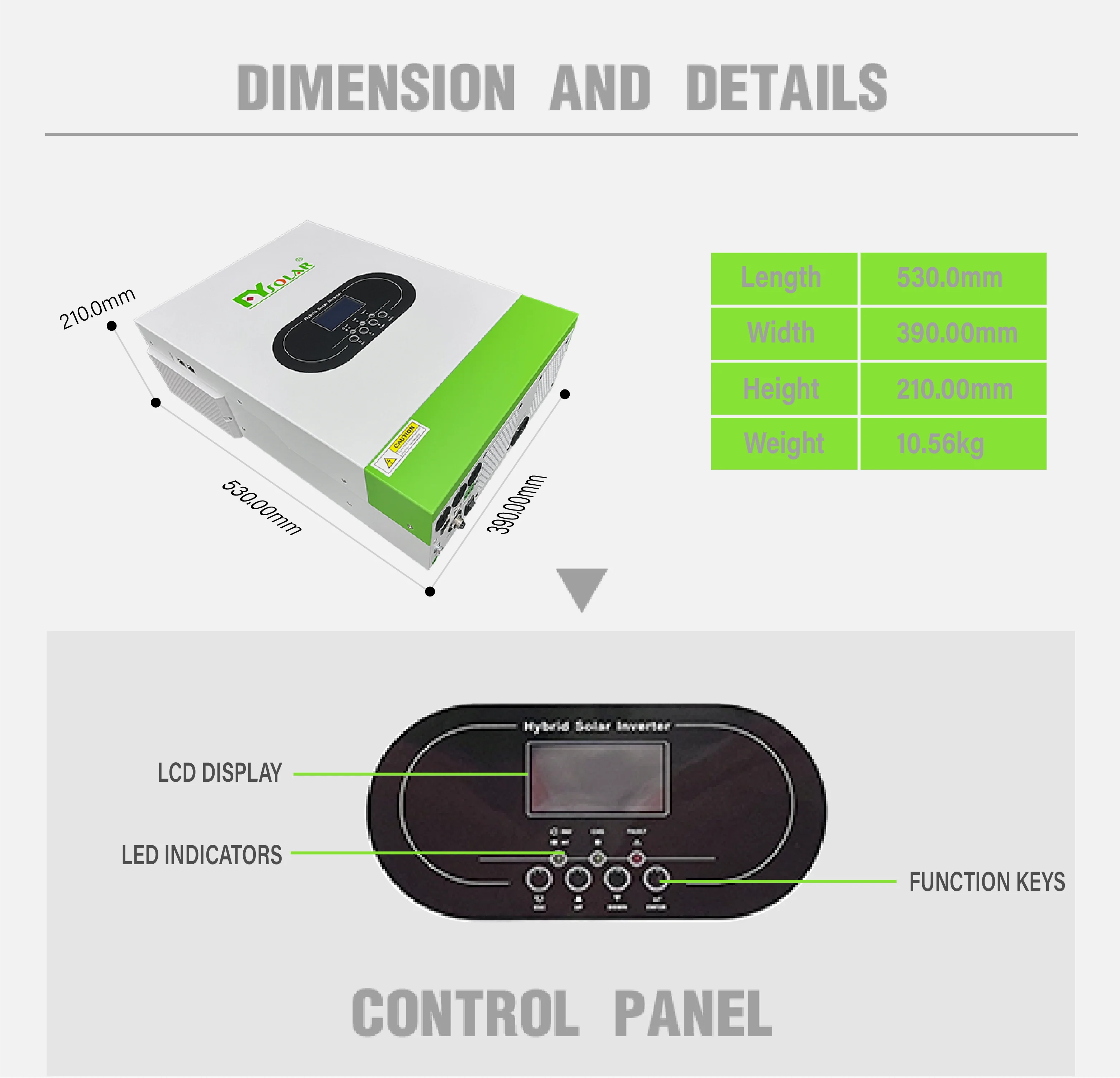

Dimensions,D x W x H(mm) | 448x295x120 | |||||
Package Dimensions,D x W x H(mm) | 560x375x190 | |||||
Net Weight(Kg) | 9 | 10 | 10 | |||

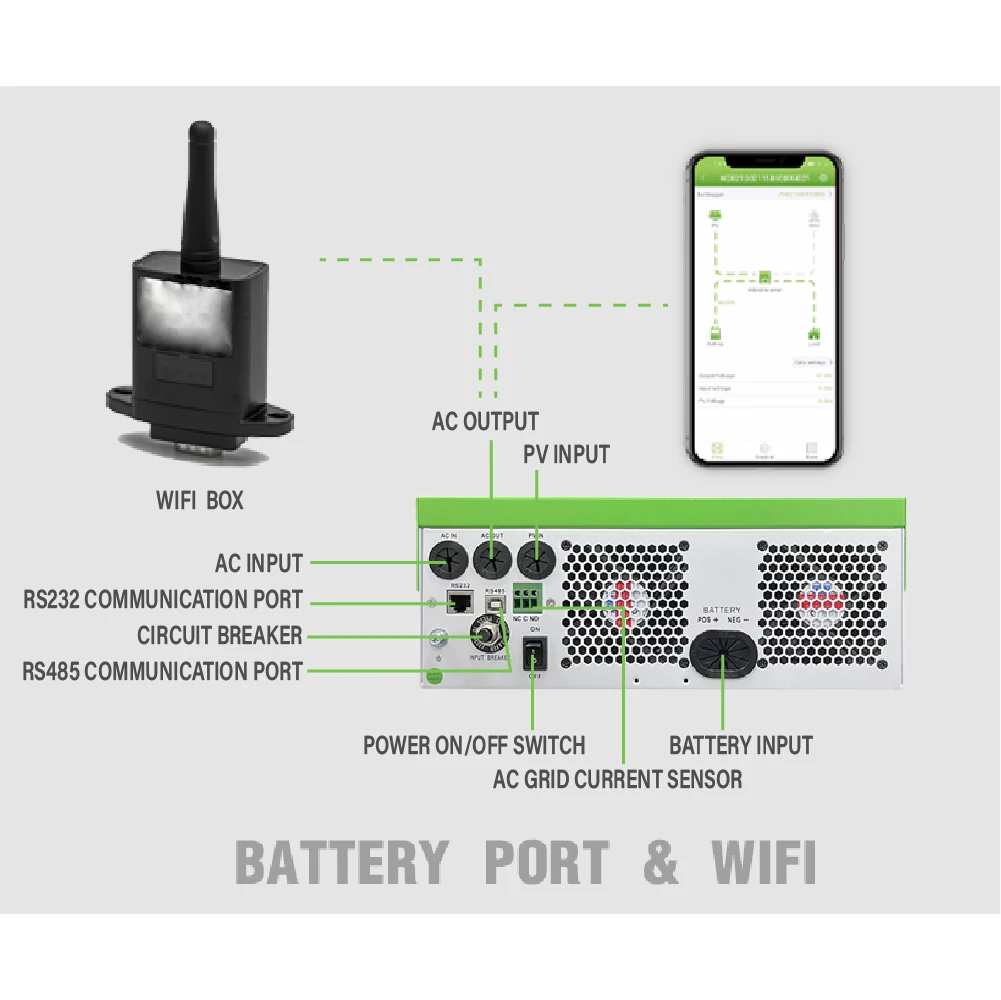

Communication Interface | USB/RS232/Dry-contact | |||||
ENVIRONMENT | ||||||
Operating Temperature Range | （-10℃ to 50℃） | |||||
Storage temperature | （-15℃ ~ 60℃） | |||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||
