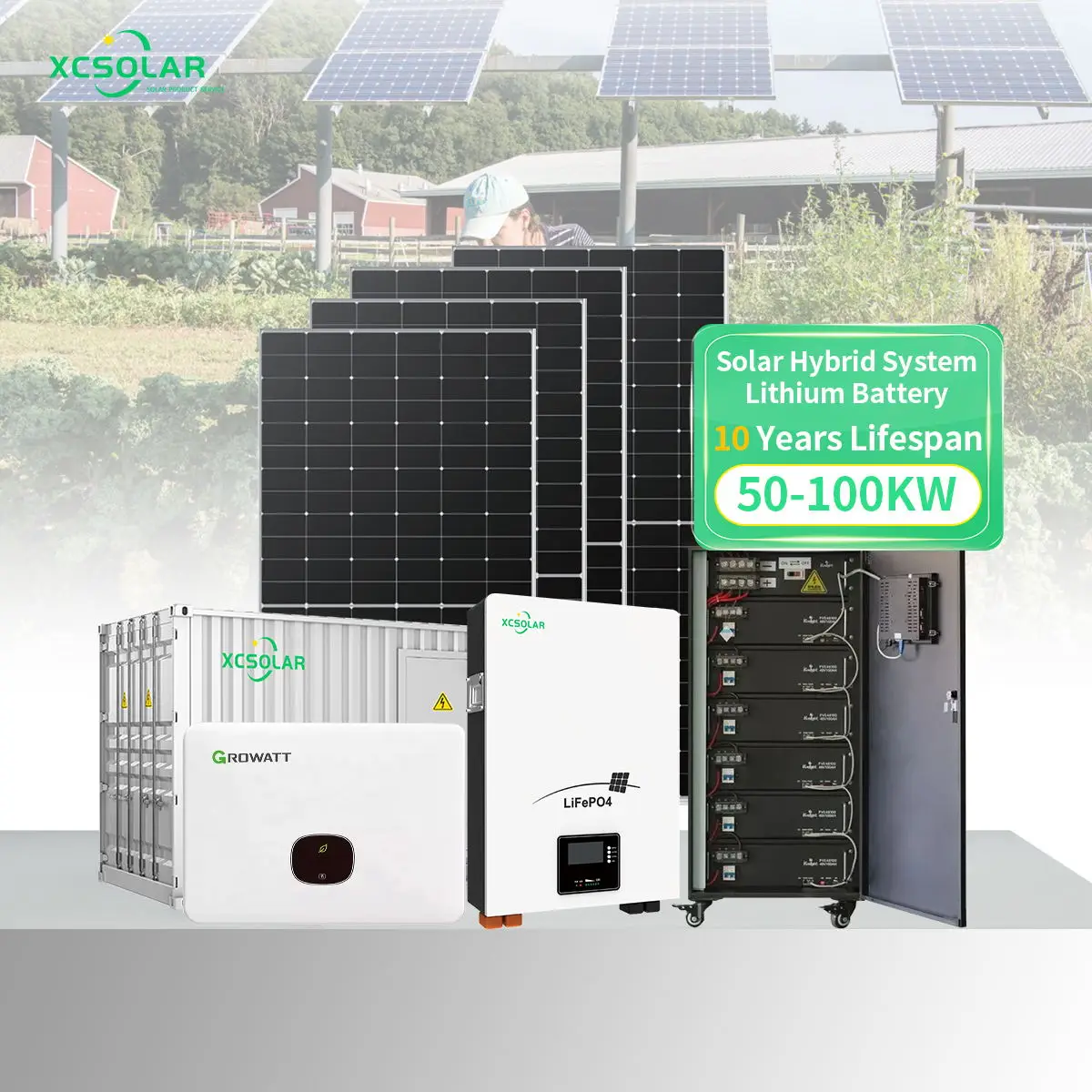

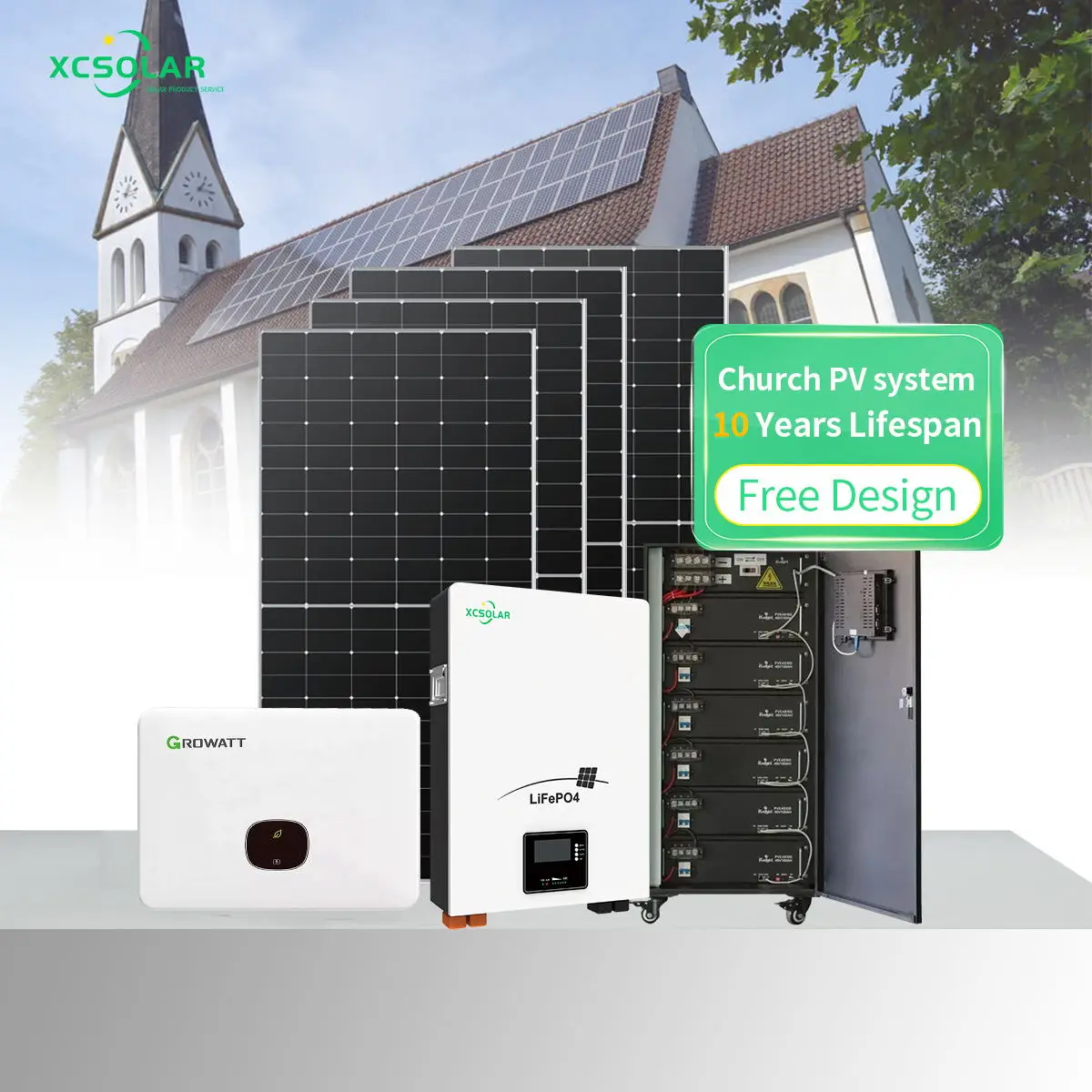

Complete Home Solar System Kit 5kw 6kw 8kw 10kw 12kw Hybrid Solar Battery Energy System10kwh 20kwh 30kwh Lithium Batteries
- Category: >>>
- Supplier: XC Technology Co. Ltd.XC Ltd.
Share on (1601279271736):
Product Overview
Description
Configuration of Home Use 3KVA Off Grid Solar Energy Systems | ||||||
Item | Model | Description | Quantity | |||
1 | Mono Solar Panel 550w | Half Cut MBB Solar Panel | 6pcs | |||
2 | Off Grid Inverter built-in 60A MPPT Controller | Load Power:3KVA DC Voltage:24V/48V | 1pc | |||
3 | Gel or Lithium Battery (Optional) | 12V/24V/48V 6KWH | 1set | |||
4 | PV Cable | 200m PV 4mm² | 200m | |||
5 | PV Combiner Box | With Switches, Breaker,SPD | 1pc | |||
6 | MC4 Connector | Rate Current:30A | 10pairs | |||
7 | Mounting System (including all parts) | Whole set for 6pcs solar panel | 1set | |||
Configuration of Home Use 5KW Off Grid Solar Energy Systems | ||||||
Item | Model | Description | Quantity | |||
1 | Mono Solar Panel 550w | Half Cut MBB Solar Panel | 10pcs | |||
2 | Off Grid Inverter built-in 80A MPPT Controller | Load Power:5KW DC Voltage:48V | 1pc | |||
3 | Gel or Lithium Battery (Optional) | 12V/24V/48V 12KWH | 1set | |||
4 | PV Cable | 200m PV 4mm² | 200m | |||
5 | PV Combiner Box | With Switches, Breaker,SPD | 1pc | |||
6 | MC4 Connector | Rate Current:30A | 10pairs | |||
7 | Mounting System (including all parts) | Whole set for 12pcs solar panel | 1set | |||
Configuration of Home Use 10KW Off Grid Solar Energy Systems | ||||||
Item | Model | Description | Quantity | |||
1 | Mono Solar Panel 550W | Half Cut MBB Solar Panel | 20pcs | |||
2 | Off Grid Inverter built-in 80A MPPT Controller | Load Power:5KW DC Voltage:48V | 2pcs | |||
3 | Gel or Lithium Battery (Optional) | 12V/24V/48V 24KWH | 1set | |||
4 | PV Cable | 200m PV 4mm² | 200m | |||
5 | PV Combiner Box | With Switches, Breaker,SPD | 2pcs | |||
6 | MC4 Connector | Rate Current:30A | 10pairs | |||
7 | Mounting System (including all parts) | Whole set for 24pcs solar panel | 1set | |||
Configuration of Home Use 15KW Off Grid Solar Energy Systems | ||||||
Item | Model | Description | Quantity | |||
1 | Mono Solar Panel 550W | Half Cut MBB Solar Panel | 28pcs | |||
2 | Off Grid Inverter built-in 80A MPPT Controller | Load Power:5KW DC Voltage:48V | 3pcs | |||
3 | Gel or Lithium Battery (Optional) | 12V/24V/48V 36KWH | 1set | |||
4 | PV Cable | 200m PV 4mm² | 200m | |||
5 | PV Combiner Box | With Switches, Breaker,SPD | 3pcs | |||
6 | MC4 Connector | Rate Current:30A | 10pairs | |||
7 | Mounting System (including all parts) | Whole set for 36pcs solar panel | 1set | |||
Solar panel
1. Positive power tolerance:0~+5w
2. 100%EL Double-inspection ensures modules are defects free
3. 6BB, 9BB, 10BB, 12BB, 16BB Available
2. 100%EL Double-inspection ensures modules are defects free
3. 6BB, 9BB, 10BB, 12BB, 16BB Available
4. 158.75mm, 166mm, 182mm, 210mm Size
5. Full Cell, Half Cut, 3-Cut
6. Perc/Hjt/All Black/Frameless Tech
7. Sunway Solar Brand or Tier 1 Optional
8. Waterproof Label on Back of Panel
5. Full Cell, Half Cut, 3-Cut
6. Perc/Hjt/All Black/Frameless Tech
7. Sunway Solar Brand or Tier 1 Optional
8. Waterproof Label on Back of Panel
Competitive pricing from our own component factory: In addition to partnering with renowned brand component manufacturers, we have our own component factory, which gives us a pricing advantage. Through vertical integration and efficient production processes, we are able to offer competitive prices, helping customers lower costs and achieve higher returns on investment.
1.Pure sine wave inverter2.Parallel operetion with up to 9 units
3.Auto restart while AC is recovering
4.Built-in MPPT solar charge controller
5.Compatible to mains voltage or generator power
6. Selectable input voltage range for home appliances and personal computers
7. Configurable AC/Solar input priority via LCD setting
3.Auto restart while AC is recovering
4.Built-in MPPT solar charge controller
5.Compatible to mains voltage or generator power
6. Selectable input voltage range for home appliances and personal computers
7. Configurable AC/Solar input priority via LCD setting

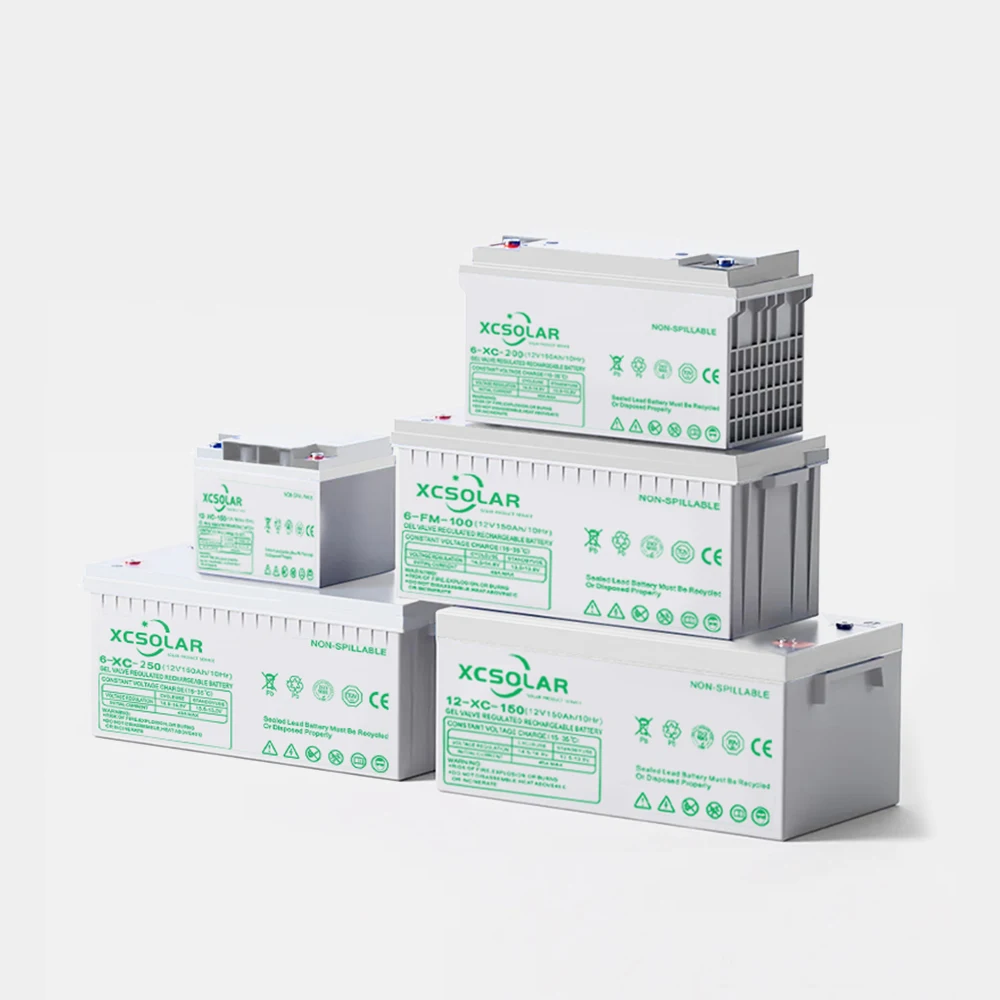

Solar energy storage battery
1. Deep cycle long lifespan2. High discharge performance
3. Easy installation and Maintenance-free
4. Agm/Gel/Lithium Ion Battery Type
5. 2V/12V/48V/High Voltage Battery
6. More than 6000 times, up to 90% DOD
7. Wide suitability of ambient temperature range
8. Maintenance is simple, reducing deep discharge.
3. Easy installation and Maintenance-free
4. Agm/Gel/Lithium Ion Battery Type
5. 2V/12V/48V/High Voltage Battery
6. More than 6000 times, up to 90% DOD
7. Wide suitability of ambient temperature range
8. Maintenance is simple, reducing deep discharge.
Mounting System
Customized design with CAD drawing
for flat/pitched roof, cement ground
for flat/pitched roof, cement ground
Solar Panel Optimizer
450W/650W/850W • The short pair cables of the optimizers connect PV panel(s), and the long pair cables to link the adjacent optimizer(s), finally
connect to inverter
connect to inverter
PV Cable
4mm2, 6mm2 Optional.
Rated Volt:600VDC/1000VDC
Rated Volt:600VDC/1000VDC
4 STEP SOLAR DESIGN PROCESS
STEP 1: Project Requirements✔ Analysis or estimate of monthly energy use (kWh) and costs for most recent 12 months
✔ Assessment of roof or property site, including dimensions, shading, obstructions, slope, tilt, azimuth direction toward Sun,local snow load, wind speed, and exposure category
✔ Evaluation of current electrical setup, including the location and size of circuit breaker box(s) and existing wires
✔ Review of local permit or utility requirements, including homeowner association HOA
✔ Owner requirements for aesthetics or location of the system
STEP 2: System Size and Layout
✔ Solar PV system sizing options (e.g. how many watts of solar are needed now and desired in the future)
✔ Estimated solar energy production scenarios (e.g. how many kWh or kilowatts hours will be produced using PVwatts)
✔ Solar array site plan, including the location of all components
✔ Design layout options and preliminary engineering for rooftop or ground mount configuration
STEP 3: Compare Solar Panel Systems
✔ Solar panel and inverter compatibility options
✔ Best price wholesale cost estimates for all equipment from your choice of manufacturers
✔ Easily compare systems side-by-side to evaluate price, performance, quality and compatibility
✔ Tax credit, rebate, and incentive summary
✔ Calculate expected payback, lifetime savings, and ROI
STEP 4: Final Plan
✔ Site plan, including the location of all components and setbacks
✔ Electrical specifications, single-line drawing - wiring diagram, with NEC required labels and calculations
✔ Engineering specifications for layout and mounting with all required calculations
✔ Product specifications for solar panels, inverters, mounting and electrical components
✔ Final purchase order and list of materials
✔ 10 to 20 page Solar PV System Permit Plan, printable on 11x17 paper
✔ OPTIONAL: Electrical or structural engineer review and stamps as required by building department or utility.
Our Factory
FAQ
Q: Can you offer On Grid and Off Grid solar power systems?
A: Yes, we produce On Grid solar power systems, Off Grid solar power systems and also provide Hybrid solar power systems.
Q: What certificate do you offer?
A: CE, IEC, CEC, ISO, TUV. RoHS
Q: what can you buy from us?
A: Solar Panel,Solar System,Battery,Inverter,Mobile power station, solar mounting system
Q: What is the mode of transport?
A: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q: what services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,German,Russian
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,German,Russian
Q: How to become your agent?
A: Contact us through Alibaba, we will give you the best price and look forward to your greetings.
