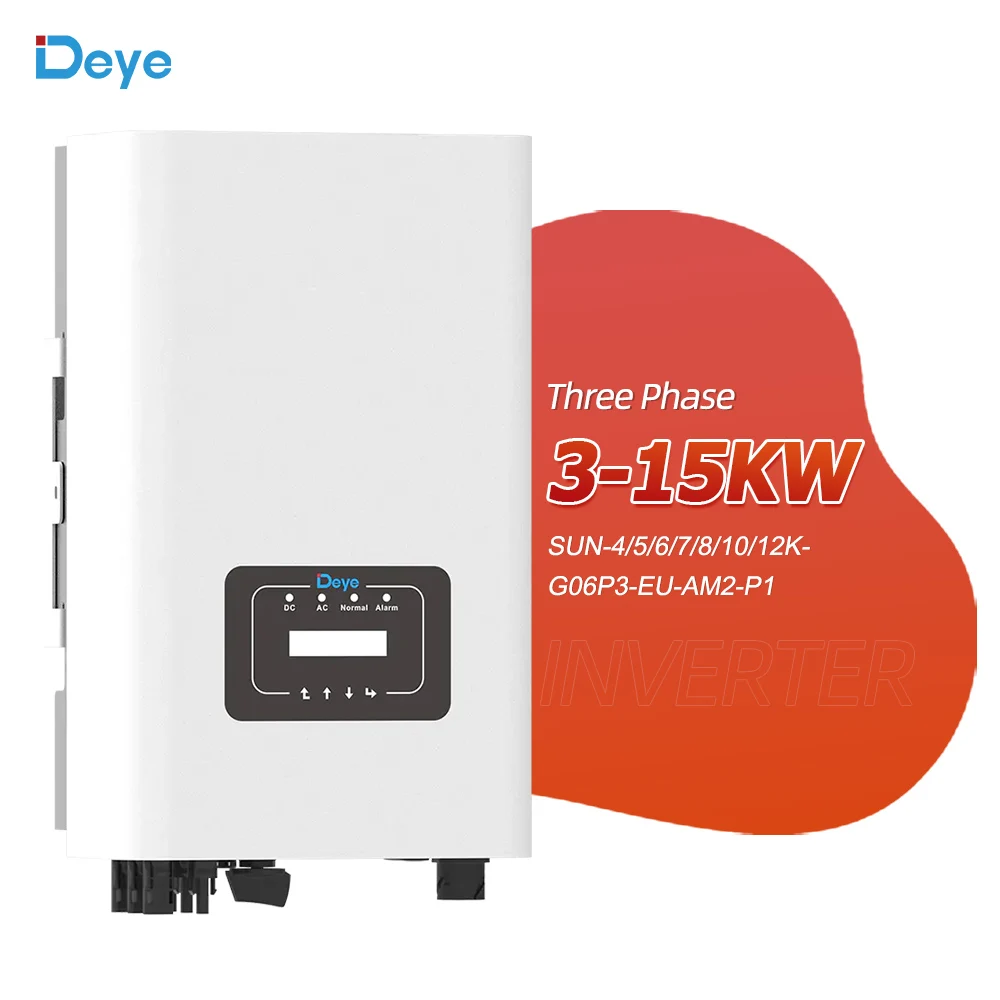

Deye Three Phase On Grid String Inverter
The Deye SUN-(3-15)K-G06P3-EU-AM2-P1 series is designed to cater to the needs of modern solar energy systems with its cutting-edge technology and advanced features.These three-phase string inverters are capable of delivering high efficiency,flexibility,and reliability,making them suitable for a wide range of applications,including residential,commercial, and industrial settings.The series offers a maximum efficiency of up to 98.5%,ensuring optimal energy conversion from solar panels to the electrical grid.
Specification
SUN-4/5/6/7/8/10/12K-G06P3-EU-AM2-P1 | ||||||||||||||
Models | 4K | 5K | 6K | 7K | 8K | 10K | 12K | |||||||
PV String Input Data | ||||||||||||||
Max. PV Input Power (kW) | 6 | 7.5 | 9 | 10.5 | 12 | 15 | 18 | |||||||
Max. input voltage | 1100 V | |||||||||||||
Rated voltage | 600 V | |||||||||||||
Start-up voltage | 140 V | |||||||||||||
MPPT voltage | 120- 1000 V | |||||||||||||
Max. Operating PV Input Current (A) | 20+20 | |||||||||||||
Max. Input Short Circuit Current (A) | 30+30 | |||||||||||||
MPPT/Max. input strings number | 2/1+1 | |||||||||||||
Output AC | ||||||||||||||
Rated output power | 4 kW | 5 kW | 6 kW | 7 kW | 8 kW | 10 kW | 12 kW | |||||||
Max. apparent output power | 4.4 kVA | 5.5 kVA | 6.6 kVA | 7.7 kVA | 8.8 kVA | 11 kVA | 13.2 kVA | |||||||
Rated AC Output Current (A) | 6.1/5.8 | 7.6/7.3 | 9.1/8.7 | 10.7/10.2 | 12.2/11.6 | 15.2/14.5 | 18.2/17.4 | |||||||
Max. AC Output Current (A) | 6.7/6.4 | 8.4/8 | 10/9.6 | 11.7/11.2 | 13.4/12.8 | 16.7/16 | 20/19.2 | |||||||
Grid Connection Form | 3L/N/PE | |||||||||||||
Power factor | > 0.99 (0.8 leading - 0.8 lagging) | |||||||||||||
THDi | < 3% | |||||||||||||
DC Injection Current | <0.5%ln | |||||||||||||
Efficiency | ||||||||||||||
Max. efficiency | 98.1% | 98.2% | 98.3% | |||||||||||
CEC efficiency | 97.5% | 97.6% | 97.8% | |||||||||||
MPPT Efficiency | >99% | |||||||||||||
Protection | ||||||||||||||
DC reverse-polarity protection | Yes | |||||||||||||
AC Output Overcurrent Protection | Yes | |||||||||||||
AC Output Overvoltage Protection | Yes | |||||||||||||
AC Output Short Circuit Protection | Yes | |||||||||||||
Thermal Protection | Yes | |||||||||||||
DC Terminal Insulation Impedance Monitoring | Yes | |||||||||||||
DC Component Monitoring | Yes | |||||||||||||
Ground Fault Current Monitoring | Yes | |||||||||||||
Arc Fault Circuit Interrupter (AFCI) | Optional | |||||||||||||
Power Network Monitoring | Yes | |||||||||||||
Island Protection Monitoring | Yes | |||||||||||||
Earth Fault Detection | Yes | |||||||||||||
Overvoltage Load Drop Protection | Yes | |||||||||||||
Residual Current (RCD) Detection | Yes | |||||||||||||
Surge protection | DC Type II / AC Type II | |||||||||||||
General Data | ||||||||||||||
Inverter Topology | Non-Isolated | |||||||||||||
Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | |||||||||||||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||||||||

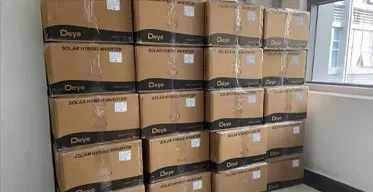

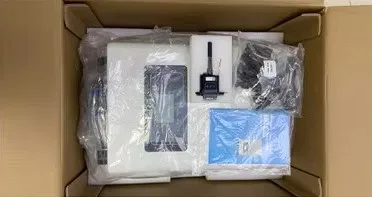

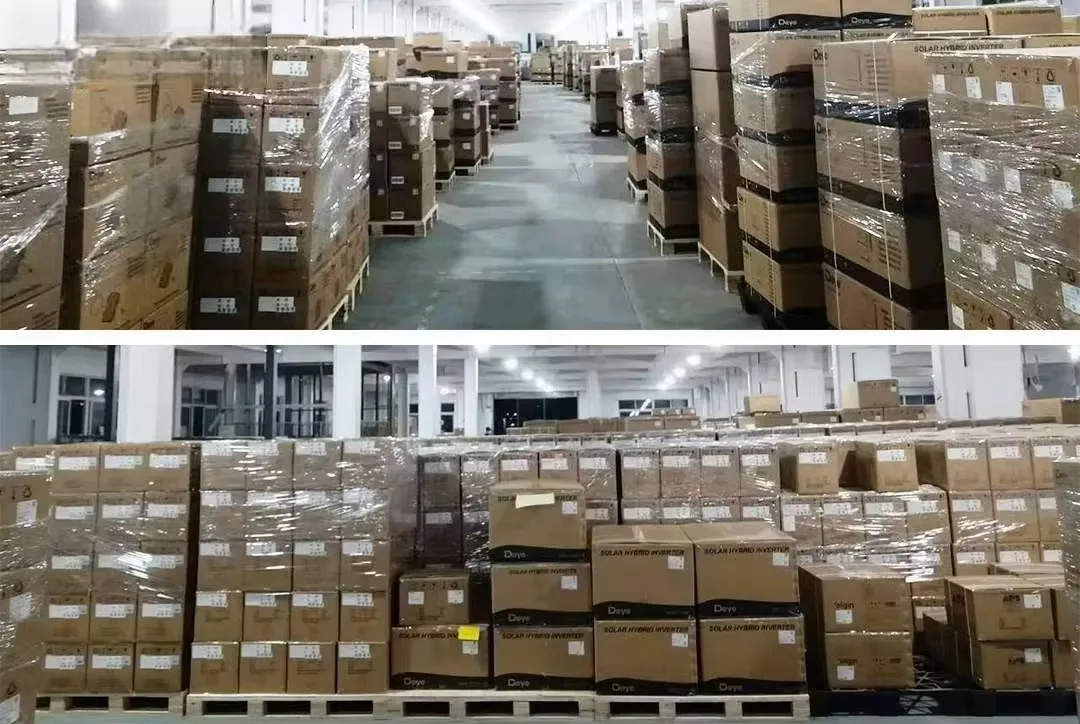

Packing & Delivery

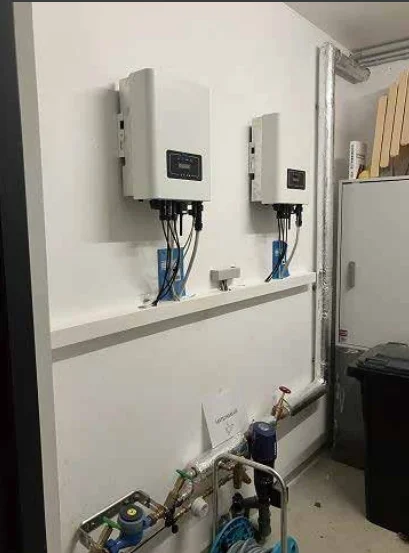

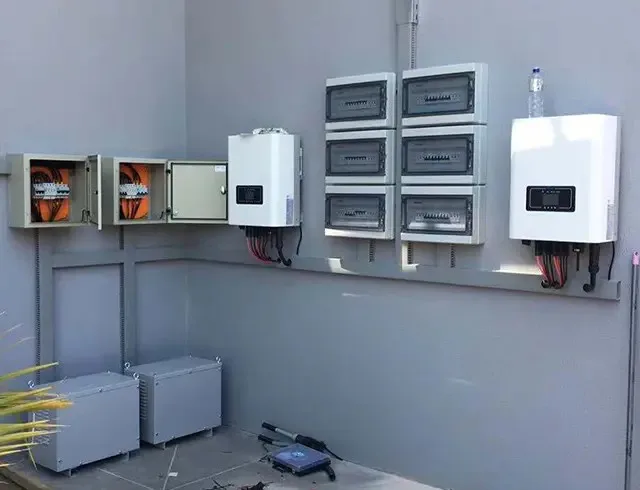

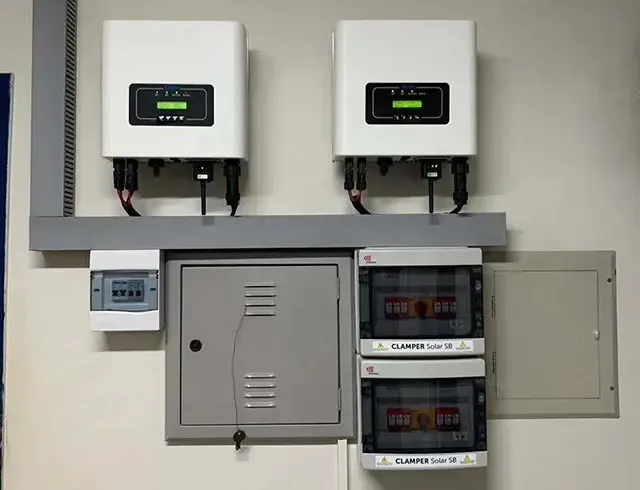

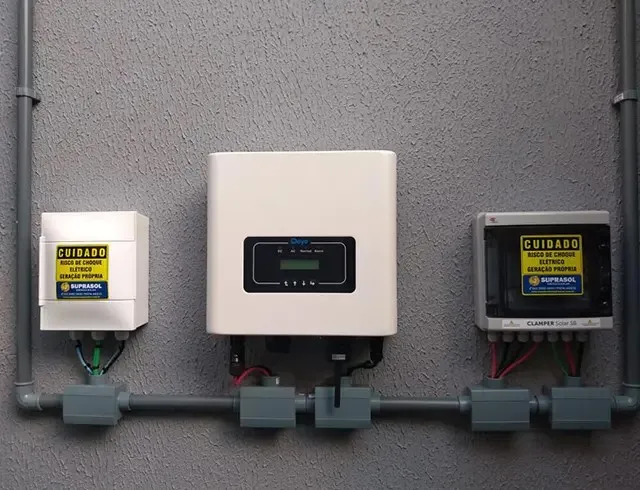

Projects

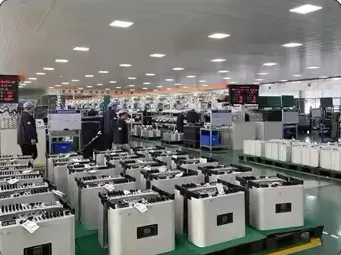

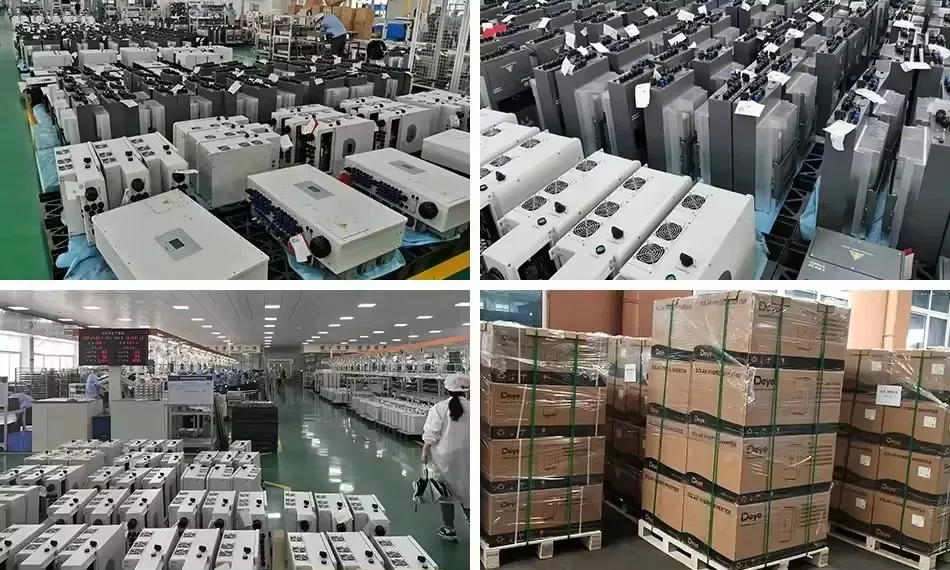

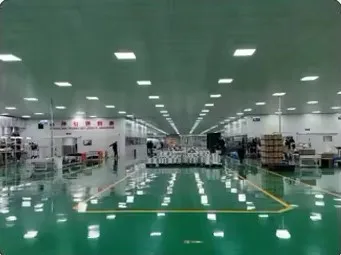

Company Profile
