Professional Manufacturing Mining Machinery Underground Tunnel Boring Machine Hydraulic Anchor Drilling Rig
- Category: >>>
- Supplier: Yimei Machinery Equipment Manufacturing Co. Ltd.Yimei Ltd.
Share on (1601279390712):
Product Overview
Description
This price is the deposit price for product production
Products Description

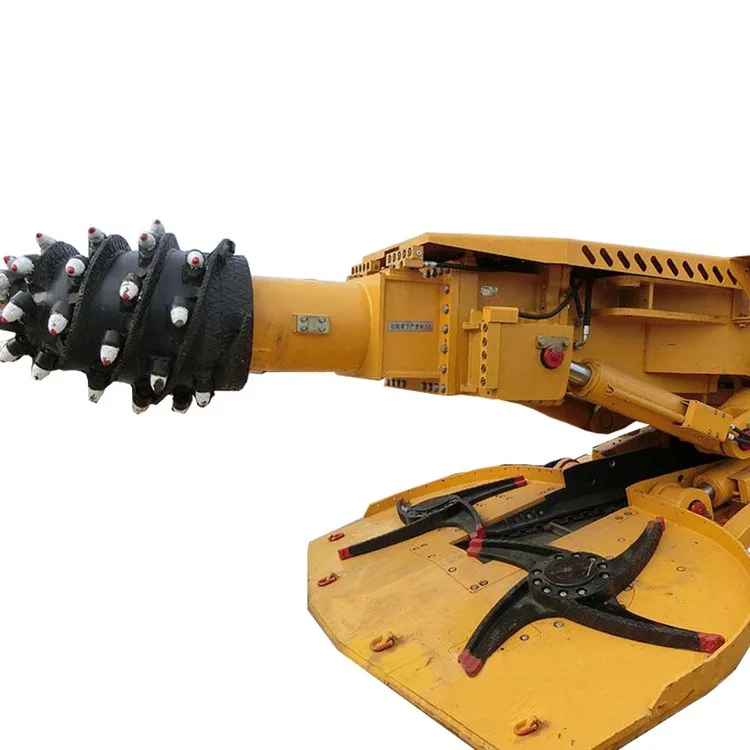

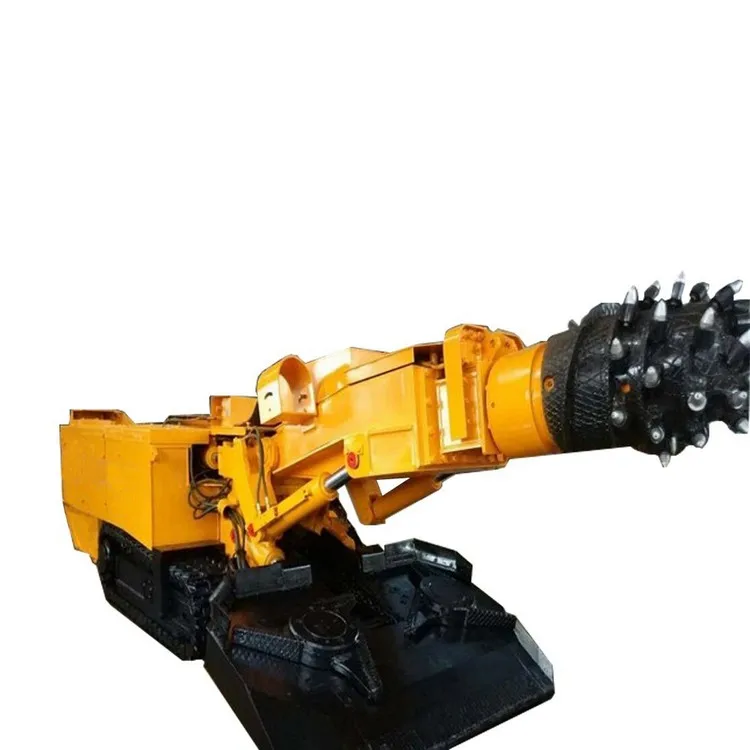

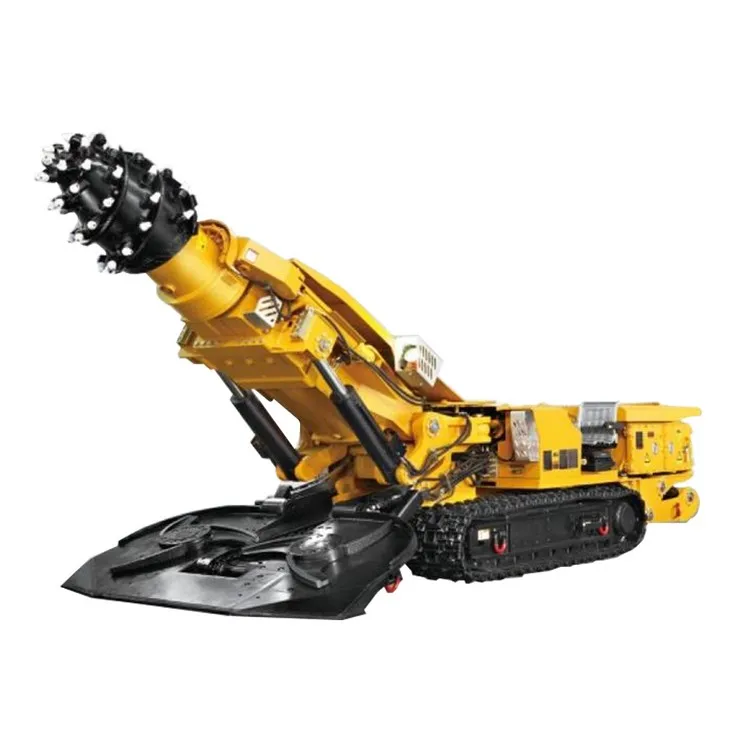

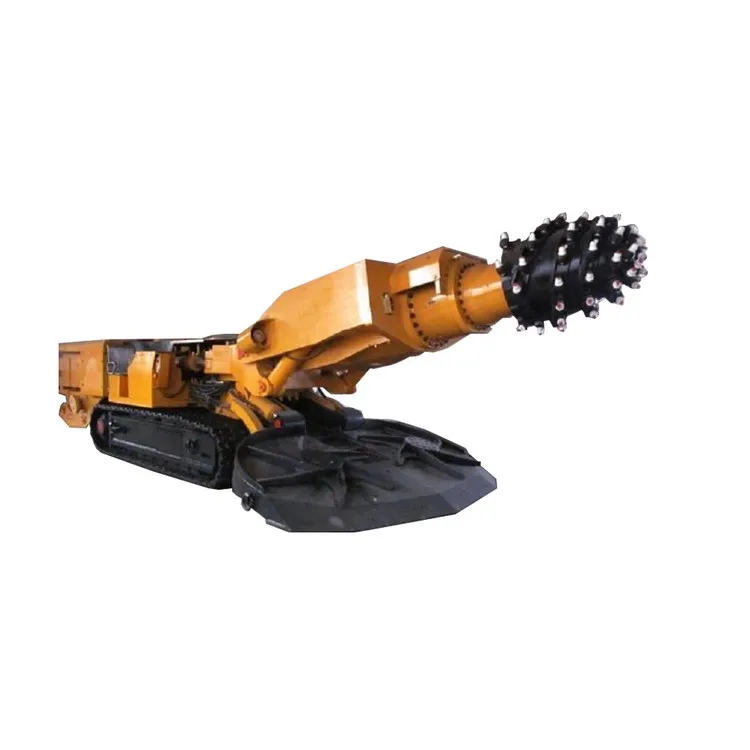

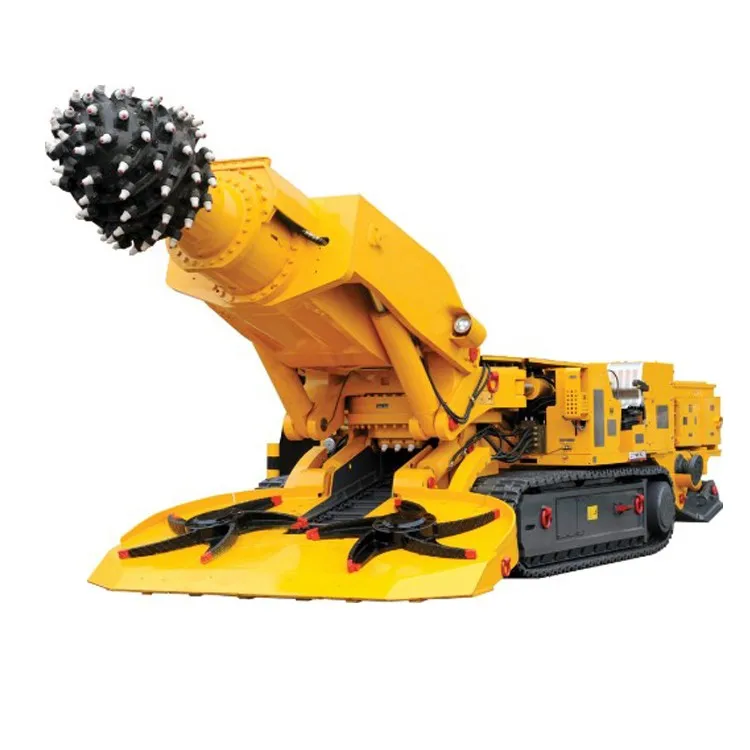

Introduction of The Whole Machine Of Coal Mining Cantilever Boring Machine Has High Working Efficiency And Strong Safety Performance
1.Adopt international technology, the machine has long service life and high cutting power.
2. The shovel plate adopts locking connection, SA1750CR for the surface panel, more appropriate to the hard rock conditions.
3. The PLC system has dynamic display, faultdiagnosis, warning and memory function.
4.Increase work efficiency, reduce expense.
Parameter of Roadheader Mac. zmwm24
2. The shovel plate adopts locking connection, SA1750CR for the surface panel, more appropriate to the hard rock conditions.
3. The PLC system has dynamic display, faultdiagnosis, warning and memory function.
4.Increase work efficiency, reduce expense.
Parameter of Roadheader Mac. zmwm24
Product Paramenters
Items | Parameters | ||||
Gross vehicle mass | 54t | ||||
External Dimensions | Length | 10440mm | |||
Width | Shovel board | 3200mm | |||
Body | 2520mm | ||||
Height | Highest point of the cutting head when placed horizontally | 2135mm | |||
Body | 1720mm | ||||
Dinting depth (extensible/inextensible) | 520/200mm | ||||
Ground clearance | 250mm | ||||
Positioning cutting Scope | Height (extensible/inextensible) | 5100/4460mm | |||
Width (extensible/inextensible) | 6500/5670mm | ||||
Area (extensible/inextensible) | 33/25m² | ||||
Gantry height | 400mm | ||||
Compressive strength in coal-rock cutting | ≤90/70MPa | ||||
Gradeability | ±18° | ||||
Travel speed | 7m/min | ||||
Ground pressure | 0.132Mpa | ||||
Total power | 290KW | ||||
Cutting motor power | 200/110KW | ||||
Pump station motor power | 90KW | ||||
Details Images
FAQ
Q: What Payment terms would you accept?
A: Normally we accept UC, or TAT 30% down payment, balance to be paid against BL copy and loading pictures.
Q: What is your delivery time?
A: For standard machine, the delivery time is Within 25/35 days after receiving the down payment.
Q: What services would you offer if I buy from you?
A: Our trained Professional service team offers high quality in time service in a very friendly way.
For a good customer experience, the content of presales includes the recommendation on the right products basis on physical condition. All you have to do is to inform us your needs.
For After sales, to minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 5 working days.
We have professional technician to support trouble clearing and maintenance.
A: Normally we accept UC, or TAT 30% down payment, balance to be paid against BL copy and loading pictures.
Q: What is your delivery time?
A: For standard machine, the delivery time is Within 25/35 days after receiving the down payment.
Q: What services would you offer if I buy from you?
A: Our trained Professional service team offers high quality in time service in a very friendly way.
For a good customer experience, the content of presales includes the recommendation on the right products basis on physical condition. All you have to do is to inform us your needs.
For After sales, to minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 5 working days.
We have professional technician to support trouble clearing and maintenance.
