Model | Rating |

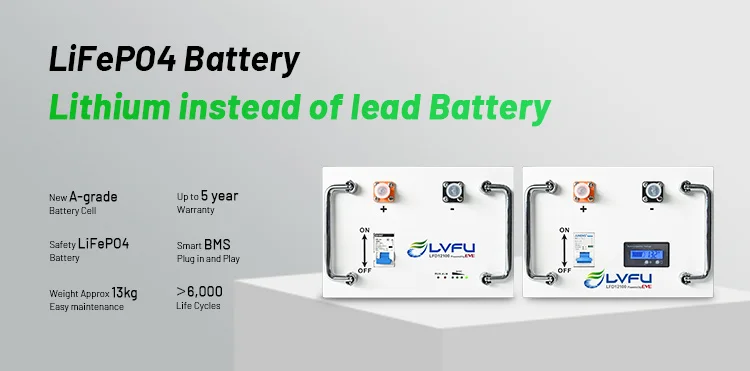

Type | LiFePO4 Battery |
Pack Method | 4S1P |
Nominal capacity | 100Ah(Min 95Ah) |
Nominal voltage | 12.8V |
Energy | 1280Wh(Min 1216Wh) |
Charge method | CC/CV |
Charge cut-off voltage | 14.6V |
Discharge cut-off voltage | 10.0V |
Standard charge current | 20A |
Max. charge current | 100A |
Standard discharge current | 20A |
Max. continues discharge current | 100A |
Cycle life | >5000 times (80%, 25℃/0.5C) |
Internal impedance | ≤30mΩ |

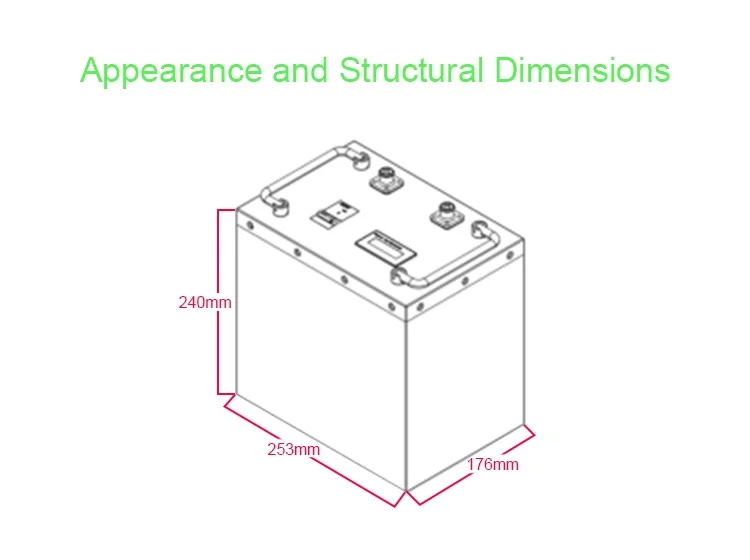

Dimension | L253*W176*H240 mm |
Weight | Approx. 13.0kg |
Working temperature range | Charge:0°C--55°C; Discharge: -20°C--55°C |
Storage Temperature | 0°C--35°C |
