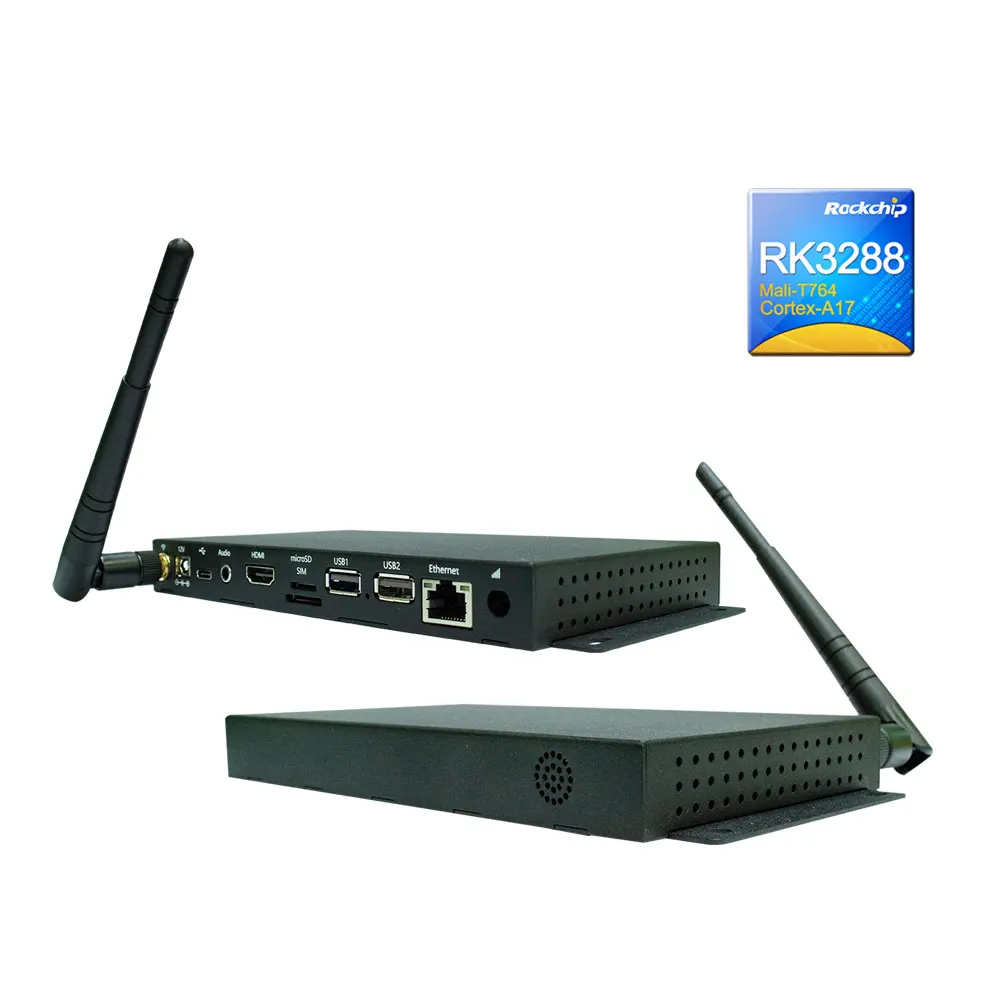

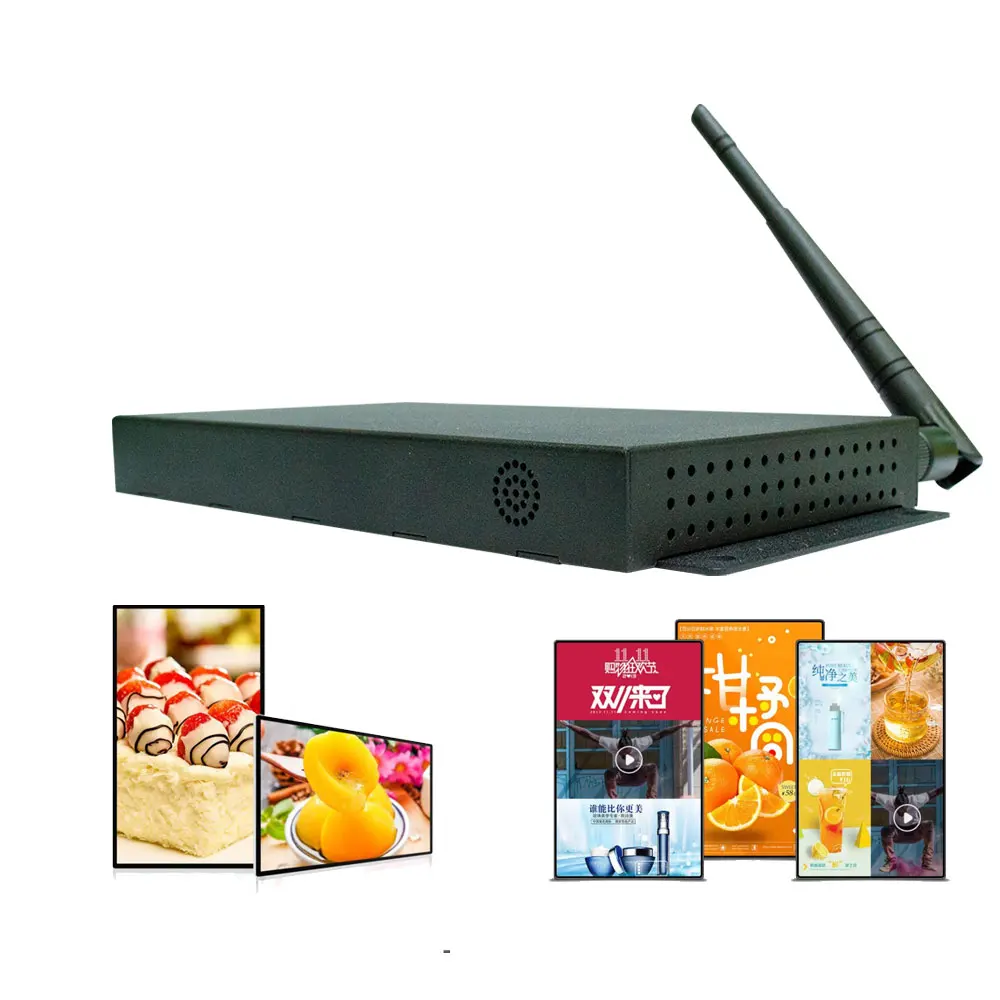

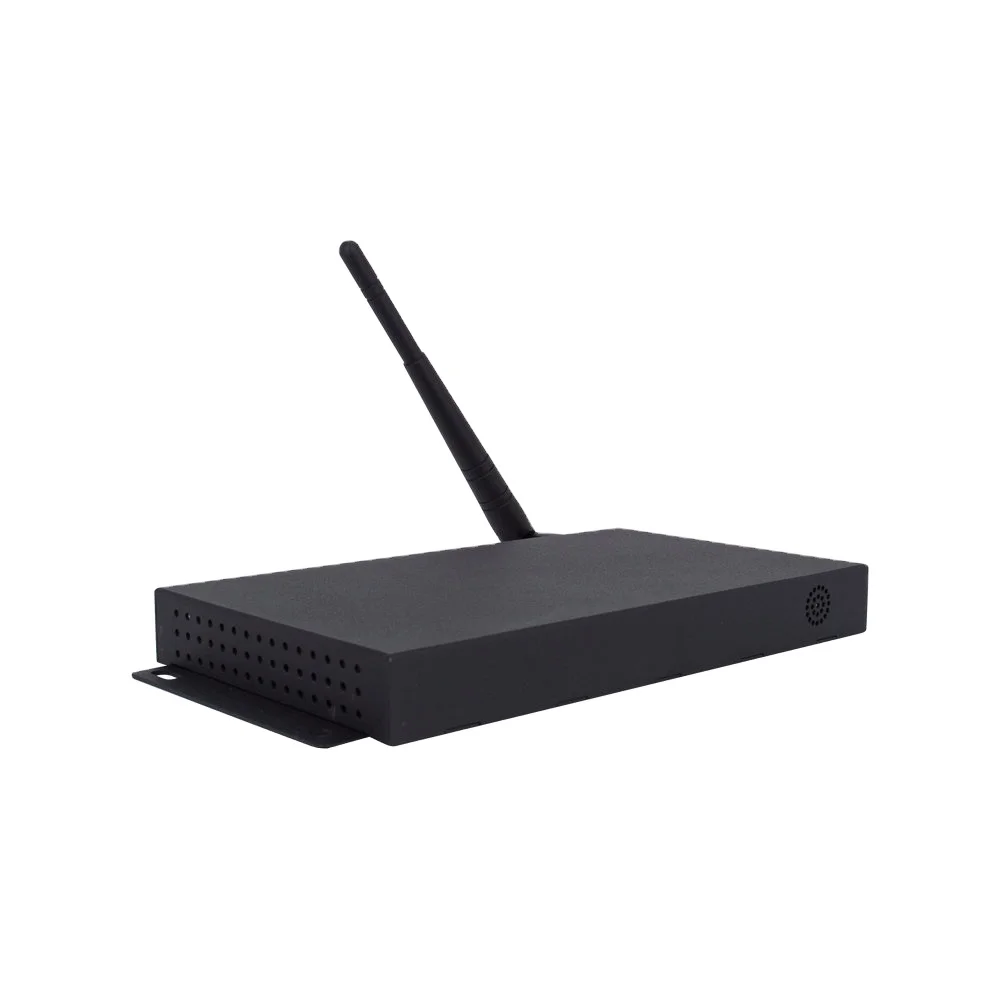

Rock chip RK3288 Quad core with Android System EDP LVDS HD 4K Ethernet Android Os Digital Signage Media Player Box
- Category: >>>
- Supplier: Shenzhen Sunchip Technology Co. Ltd.Shenzhen Ltd.
Share on (1601279433110):
Product Overview
Description
Recommend Products
Product Description
Overview:
RK3288 Android integrated board, using Rockchip RK3288 quad-core chip solution, support Android5.1 system or above. Supports the decoding of the popular audio&video formats and images. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display.
With HDMI interface, support 4K video playing. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.
With HDMI interface, support 4K video playing. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.
Products Description
Features:
\tHigh performance: The RK3288 chip uses the quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.
\tHigh stability: RK3288 Android integrated board, add their own unique technology in the hardware&software to ensure the stability of the product. To make sure the device 7*24 hours unattended.
\tHigh integration: RK3288 Android integrated board integrates Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.
\tMulti interfaces: 6*USB ports, 3*UART ports, can connect more peripheral devices.
Model No.: AD-0140(AD-B02)\t\t\t
RK3288 Quad-Core chipset
Hardware Spec:\t\t\t\t\t\t
System\t\tCPU&GPU: RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764
\t\tRAM: 2GB/4GB (optional)
\t\tMemory: 8GB/16GB/32GB(optional)
\t\tOperating system: Android 6.0(Linux optional)
Network: 802.11b/g/n(2.4G/5G optional)\t
Mobile network: Support full Netcom 4G (optional)
\t\tBluetooth: Bluetooth 4.0\t
\t\tEthernet: 10M/100/1000M Ethernet
Language: Multi-Language support\t\t

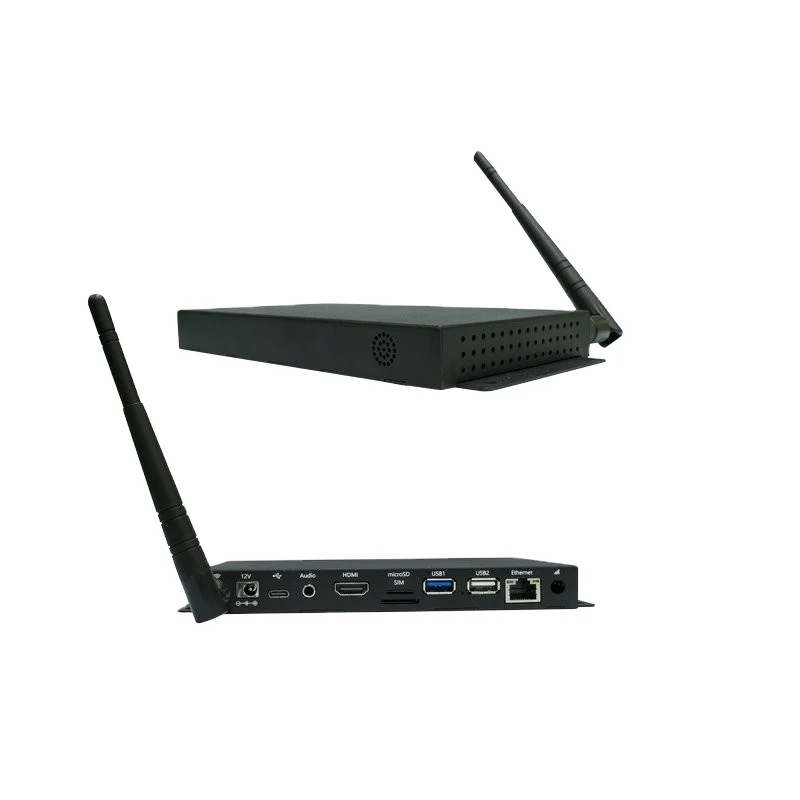

Interface:
USB interface*2: Support USB host*2
\t\tMicro USB interface: USB_Debug interface*1\t
\t\tDC: DC power 12V input\t
\t\tTF card: TF Card (micro SD card), up to 64GB\t
\t\tHDMI: Support HDMI output Support 4K 60FPS frame rate
\t\tDisplay interface: EDP screen interface / LVDS screen interface(optional)
\t\tSpeaker interface: 8Ω 5W*2(optional)\t
\t\tUART interface: UART2 interface*1(optional)\t
\t\tIR remote control: support IR Remote Control\t
\t\tUSB port extension: support USB extension host*1(optional)\t
\t\tRJ45:\t\t10/100/1000M Ethernet port\t
\t\tHeadset/AUDIO Out:\t\t3.5mm stereo headphone output*1\t
Media Parameter:
Media Playback\t\tVideo format:\t\tsupport H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.1 player\t\t
\t\tAudio format:\t\tMP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP\t\t
\t\tText processing:\t\tEPUB, WORD, EXCEL, POWERPOINT, PDF, TXT\t\t
\t\tEbook: PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2\t\t
\t\tImage Format: JPG,BMP,PNG\t\t
System Management:
System Management: APK install\t\tAPK installer\t\t
\t\tRoot permission: Original Android system, open root permissions, product customization development\t\t
\t\tRemote control: Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended\t\t
\t\tOTA upgrade: Support OTA remote upgrade\t\t
Accessories:
Adapter: Power adapter 12V/2A\t\t
\t\tUser's Guide: Standard\t\t
\t\tWarranty Card: Standard\t\t
Size(unit:mm):\t\t\t\t\t\t
Product size(L*W*H)\t\t\t\t195*100*20\t
Others Parameters:
Double display:\t\t\t\tSupport dual display different contents play(optional)\t\t
Gravity induction:\t\t\t\tSupport 0°90°180°270°manual/automatic rotation\t
Customization
1.We are a professional indoor & outdoor digital signage complete solution & mass production technoloy provider.
2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development.
3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 15 years of experience gives us the edge!
4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages.
5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength.
6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.
2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development.
3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 15 years of experience gives us the edge!
4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages.
5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength.
6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.
Ordering Tips:
1. Pricing: Contact us with your order quantity for an accurate quote and and more discounts before ordering.
2. Shipping: Freight shown is approximate. Share your delivery address for a precise shipping cost and a tailored transport solution.

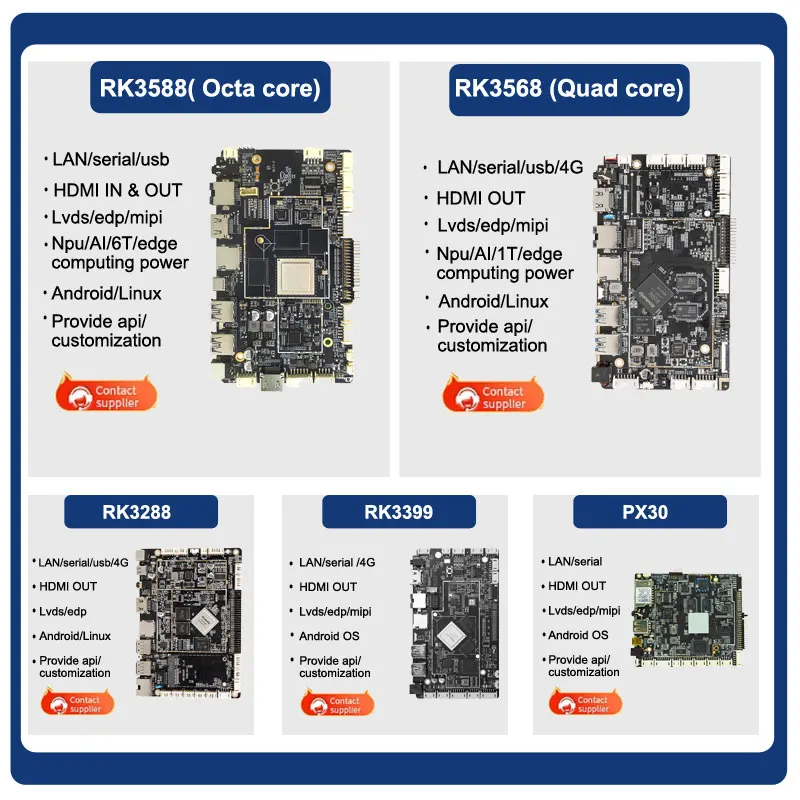

3. Options: Each product model offers diverse configurations. Additionally, we have an extensive series of ARM architecture motherboards catering to diverse applications and budgets.
1. Pricing: Contact us with your order quantity for an accurate quote and and more discounts before ordering.
2. Shipping: Freight shown is approximate. Share your delivery address for a precise shipping cost and a tailored transport solution.
3. Options: Each product model offers diverse configurations. Additionally, we have an extensive series of ARM architecture motherboards catering to diverse applications and budgets.
Packing & Delivery
1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
Company Profie
SHENZHEN SUNCHIP TECHNOLOGY CO.,LTD
Established in 2011, SUNCHIP is a high-tech engineering company specialized in designing and manufacturing Digital signage, Embedded digital signage, ARM board and Andriod-based customized products, which are compliant with CE, FCC and RoHS standards.
SUNCHIP has a long histroy of OEM and ODM service to many branded customers. With the strong R&D team, intelligent robot production line and strict QC and QA members, SUNCHIP is a technology-leading ODM factory.With more than 100 experienced R&D engineers' hard working, SUNCHIP have mastered a whole set solution of high-definition video encoding&decoding developing and mass production technology.
SUNCHIP is the strategic partner of Rochchip, Intel, Amlogic, Samsung and Allwinner, so we always have a steady supply of reliable chipsets and unlimited technical support from the partners.
Certifications
Our certified products also show how we are serious about our exports, for example, CE,UL,RoHS,FCC, ISO9001.We have invested quite a lot of money in this aspect, which is enough to show our control and confidence in quality.
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retailers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retailers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
Different methods are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
