High Frequency Induction Furnace Machine Gold Processing Plant Small Smelting Furnace for Metal Melting
- Category: >>>
- Supplier: Jiangxi Henghong International Mining Machinery Co. Ltd.Jiangxi Ltd.
Share on (1601279513013):
Product Overview
Description
Product Overview
High Frequency Induction Furnace Machine Gold Processing Plant Small Smelting Furnace for Meal Melting
Jiangxi Henghong mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed five major product lines: they are mining crushing machine, mining milling machine,mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.
Gold and Aluminum Induction Furnace Brief Introduction
Gold Induction Melting Furnace JL-15KW JL-25KW is can be used for all kinds of metals,such as gold, silver,copper, platinum, aluminum and other metal smelting ,Nonferrous and ferrous metals melting , Metal alloy melting, like aluminum alloy, zinc alloy, copper alloy, etc.It is available for infrared temperature measurement, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
Gold and Aluminum Smelting Furnace Main Features
1.It adopts the most advanced MOS, IGBT frequency conversion control technologies to realize automatic tracking of frequency.
2.It has the constant current and power control function, which can significantly optimize metal heating process, realize the high
efficiency and fast heating and bring into play the superior performance of the products.
efficiency and fast heating and bring into play the superior performance of the products.
3.About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
4.It is safe and reliable, and requires no equipment of ten thousand voltage, and thus can ensure the safe operation.
5.It is available for infrared temperature measurement, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
Smelting Furnace Keywords: gold smelting furnace,silver smelting furnace,copper ore smelting furnace,Induction smelting furnace,portable small smelting furnace,1 kg smelting furnace, 2 kg smelting furnace, 3 kg smelting furnace,5 kg smelting furnace, induction heating equipment,electric furnace,gold smelter,electric smelting induction furnace etc
Product Parameter
Model | HH-25KW | ||
Crucible | Pure Graphite with ceramic crucible | ||
Melting speed | 3-5mins/pot | ||
Input power desire | 3 phase 380V 50/60HZ | ||
Oscillate power max | 25KW | ||
Max input current | 24A | ||
Max input real power | 15KW | ||
Oscillate frequency | 30-100KHZ | ||
Cooling water desire | >0.2MPa 2-6L/Min ≤40°C | ||
Duty cycle | 100% | ||
Dimensions(L*W*H) | 550*240*480mm | ||
Net weight | 28kg | ||
Cable length | 2-6(Meters) | ||

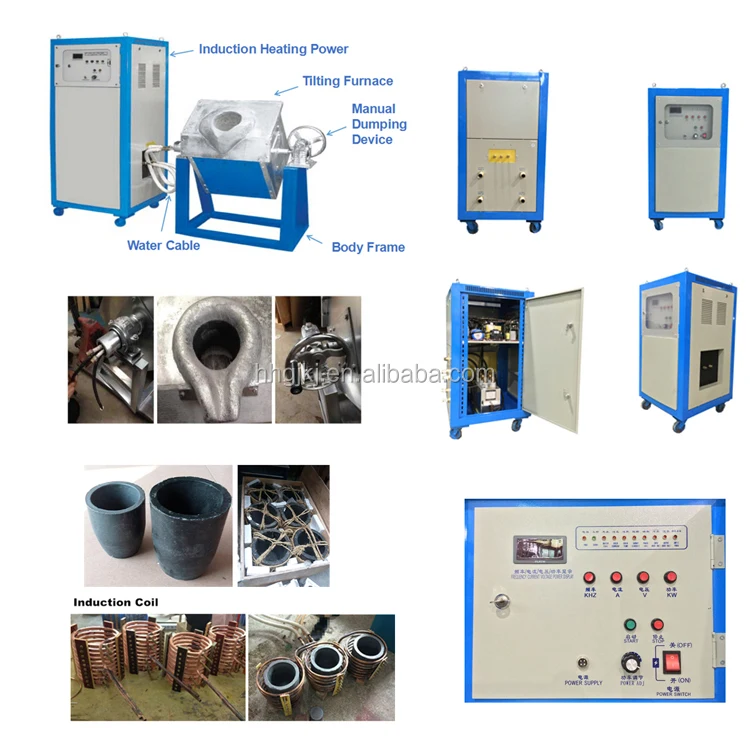

Standard Accessories In the Package with Machine: | ||||||
Item | Name of machine or parts | Specification | Amount | |||
1 | HH-25KW Induction heating power | - | 1 set | |||
2 | Induction Coil | - | 1 set | |||
3 | Crucible | - | 1 set | |||
4 | Foot Pedal | 3 core | 1 pcs | |||
5 | Instruction Manual | - | 1 pcs | |||
6 | Product Catalog | - | 2 sets | |||
Details Image
Our Successful Cases

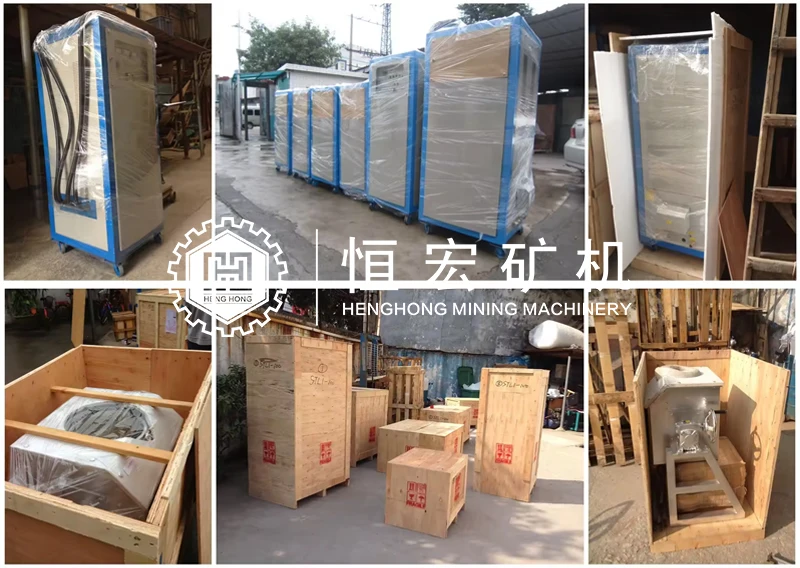

Packing & Delivery
FAQ
Q1: Are you manufacturer or trade company?
A1: We are original manufacturer with One-stop service has more than 40 years history in China.
Q2: What's your major products?
A2: Our products have been sold to all over the world, they are ball mill, wet pan mill, jaw crusher, hammer crusher, shaking table, centrifugal concentrator, jig machine, spiral chute, flotation machine, magnetic separator, sand washing machine, gold smelting furnace, belt conveyor, slurry pump etc.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: What about after-sale service?
A4: 18 months warranty for all kinds of products.
Q5: How long is your delivery time?
A5: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: What about the payment method?
A6: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment.
A1: We are original manufacturer with One-stop service has more than 40 years history in China.
Q2: What's your major products?
A2: Our products have been sold to all over the world, they are ball mill, wet pan mill, jaw crusher, hammer crusher, shaking table, centrifugal concentrator, jig machine, spiral chute, flotation machine, magnetic separator, sand washing machine, gold smelting furnace, belt conveyor, slurry pump etc.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: What about after-sale service?
A4: 18 months warranty for all kinds of products.
Q5: How long is your delivery time?
A5: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q6: What about the payment method?
A6: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment.
