Product Overview

Description



Product Description

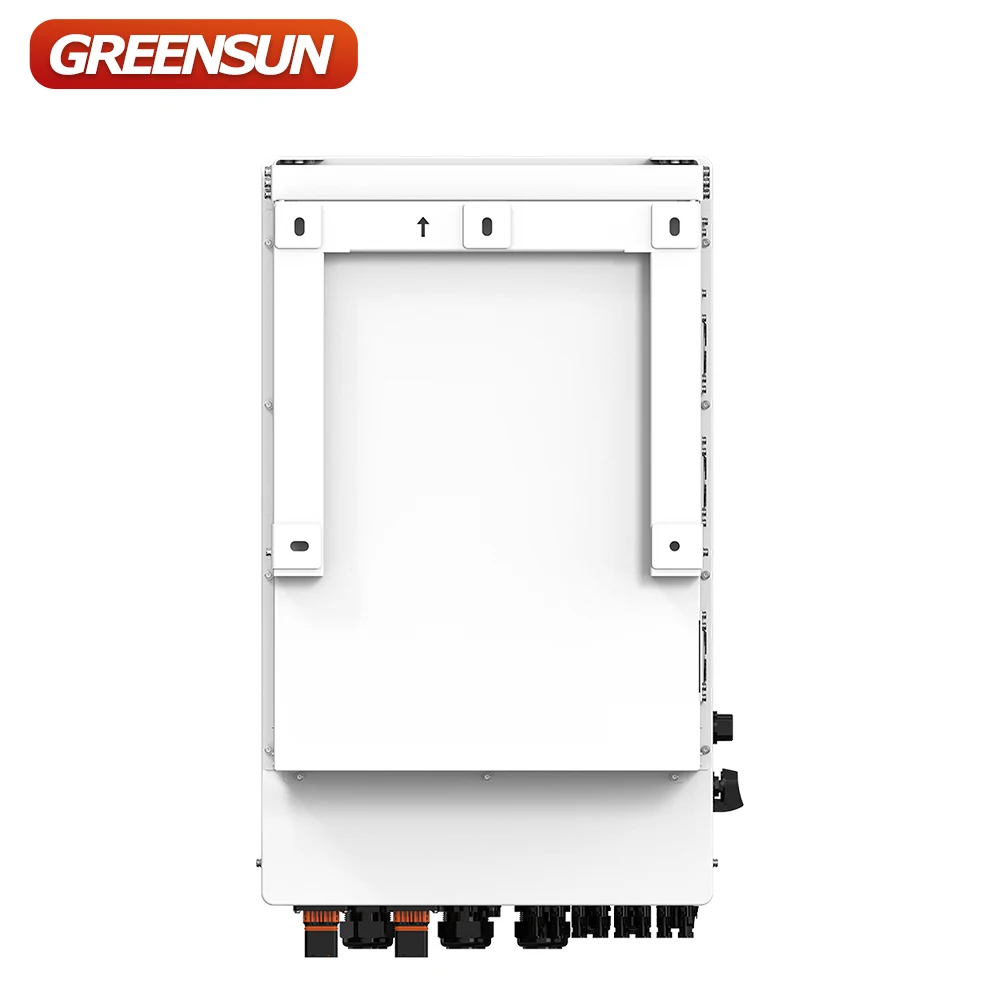

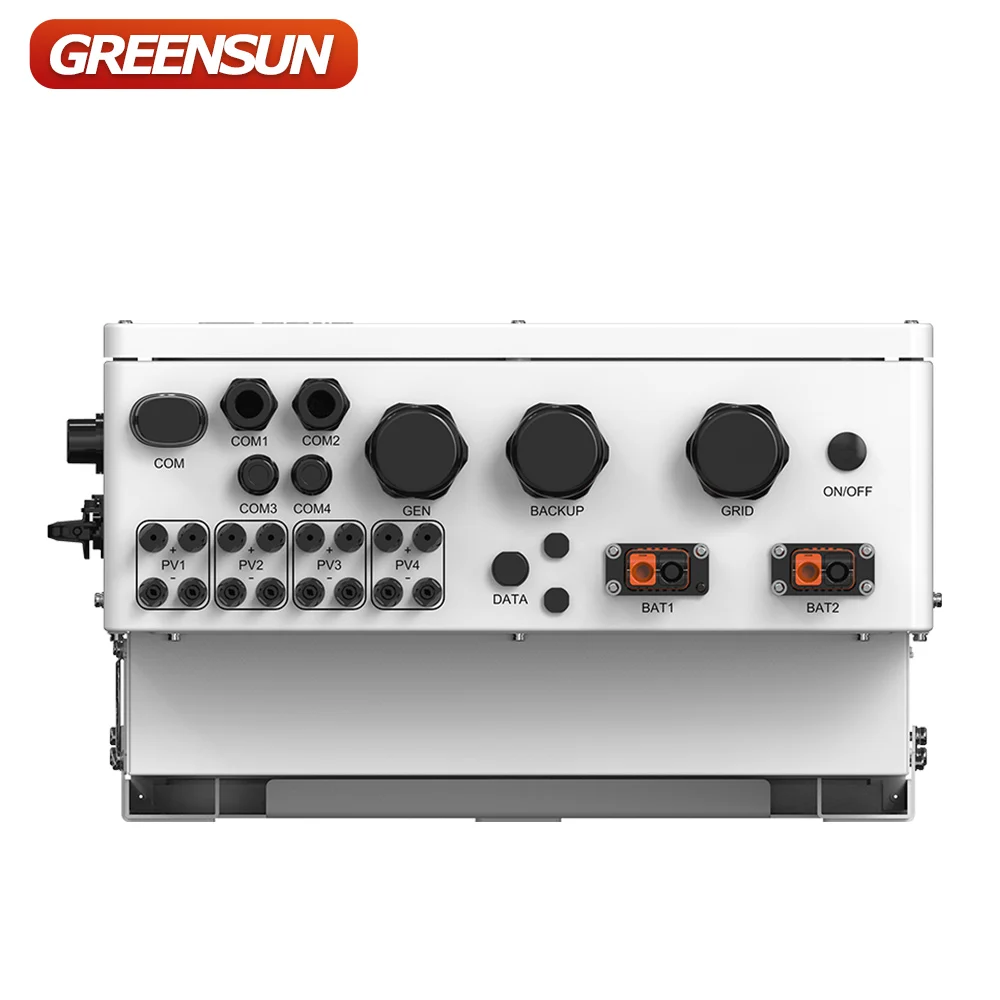

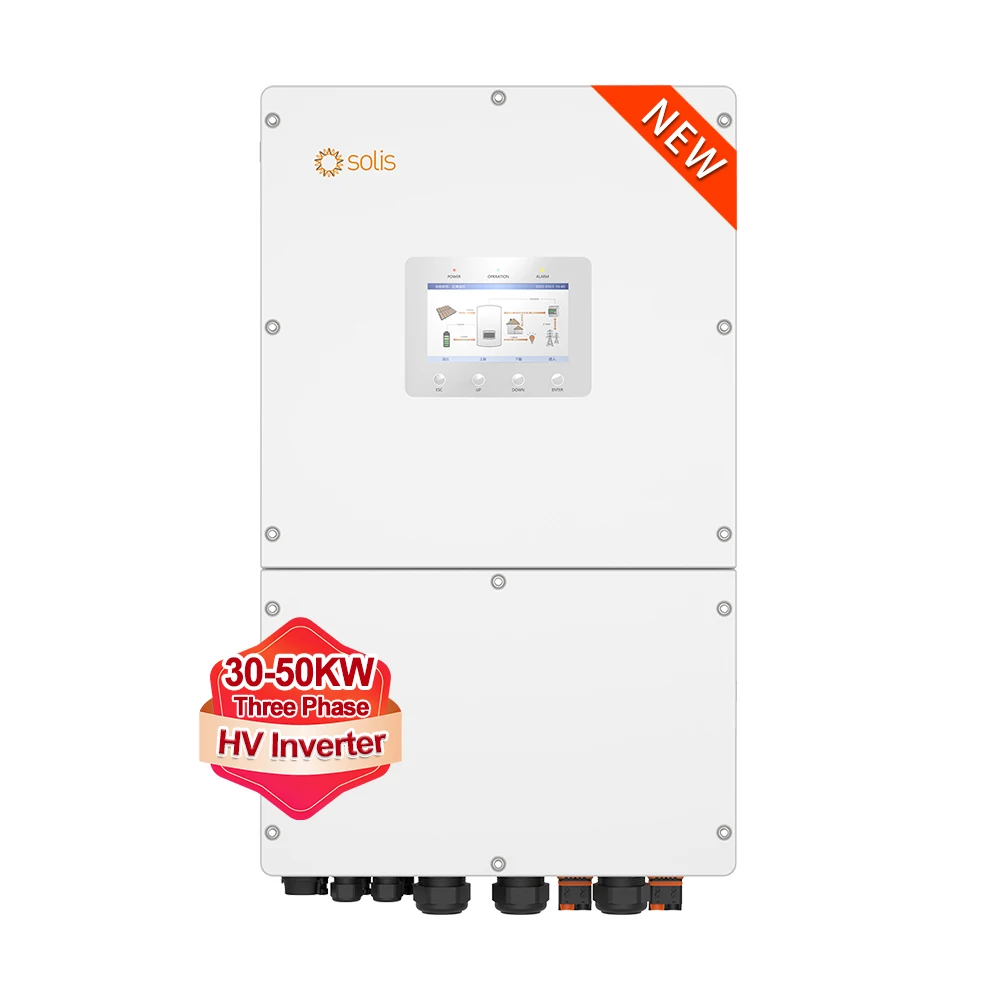

Solis Three Phase High Voltage Energy Storage Inverters
Introducing the S6-EH3P(29.9-50)K-H Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(29.9-50)K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.




Specification


S6-EH3P(29.9-50)K-H
Models
29.9K
30K
40K
50K
Input DC (PV side)
Recommended max. PV array size
59.8 kW
60 kW
80 kW
100 kW
Max. usable PV input power
59.8 kW
60 kW
80 kW
96 kW
Max. input voltage
1000V

Start-up voltage
180 V

MPPT voltage range
150 - 850 V

Max. input current
40 A / 40 A / 40 A

4 × 40 A
Max. short circuit current
60 A / 60 A / 60 A

4 × 60 A
MPPT number / Max. input strings number
3 / 6

4 / 8
Battery
Battery type
Li-ion

Battery voltage range
150 - 800 V



Max. charge / discharge power
32.1 kW
33 kW
44 kW
55 kW
Max. charge / discharge current
70 A × 2

No. of battery inputs
2

Max. charge / discharge power of each input
32.1 kW
33 kW
35 kW
35 kW
Output AC (Grid side)
Rated output power
29.9 kW
30 kW
40 kW
50 kW
Max. apparent output power
29.9 kVA
30 kVA
40 kVA
50 kVA
Rated grid/Max.output current(A)
45.4  / 43.2
45.6  / 43.3
60.8 / 57.7
76  / 72.2
Power factor
> 0.99 (0.8 leading - 0.8 lagging)

THDi
< 3%

Input AC (Grid side)
Max. AC passthrough current(A)
90.8 / 86.4
91.2 / 86.6
121.6 / 115.4
152 / 144.4
Input Generator
Max. input power
29.9 kW
30 kW
40 kW
50 kW
Rated input current(A)
45.4 / 43.2
45.6 / 43.3
60.8 / 57.7
76 / 72.2
Output AC (Back-up)
Rated output power
29.9 kW
30 kW
40 kW
50 kW
Max. apparent output power
1.6 times of rated power, 2 s

Back-up switch time
< 10 ms

Rated output current(A)
45.4 / 43.2
45.6  / 43.3
60.8  / 57.7
76  / 72.2
Efficiency
EU efficiency
97.4%
BAT charged by PV max. efficiency
98.5%

BAT charged / discharged to AC max. efficiency
97.5%

Protection
Anti-islanding protection
Yes

Output over current protection
Yes

Short circuit protection
Yes

Integrated DC switch
Yes

DC reverse-polarity protection
Yes

Surge protection
DC Type II / AC Type II

Integrated AFCI 2.0
Optional



Packing & Delivery

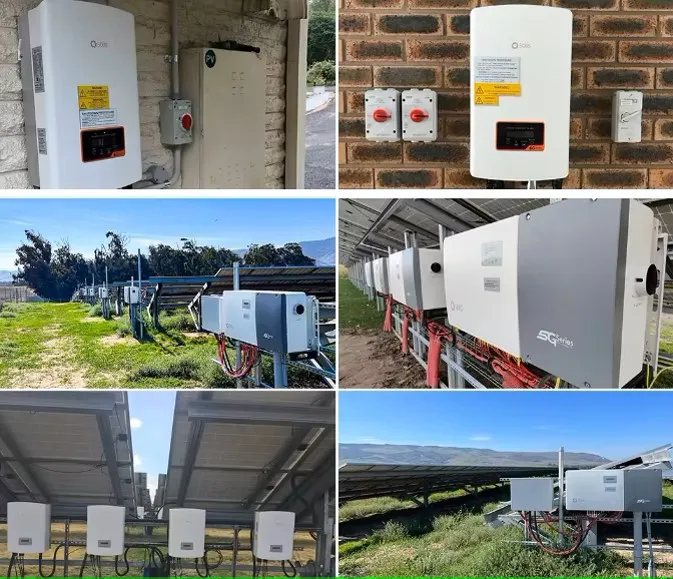

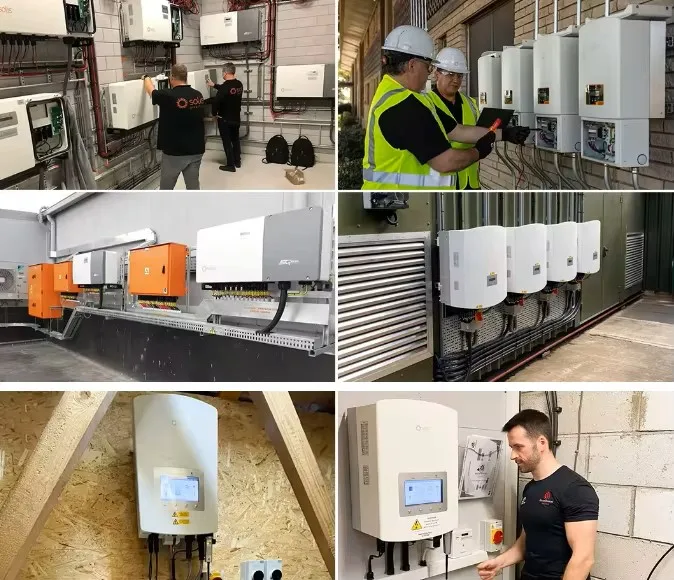

Projects

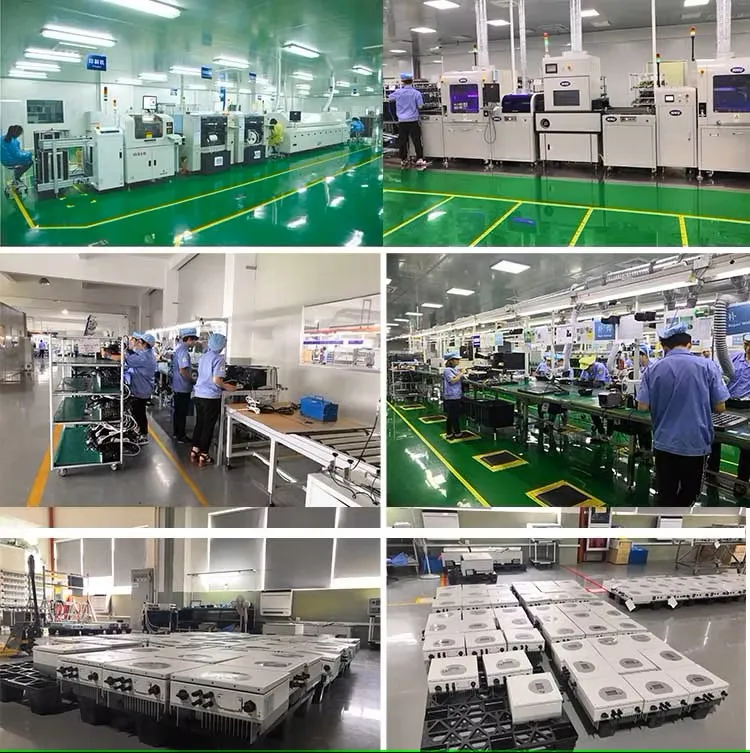

Company Profile
