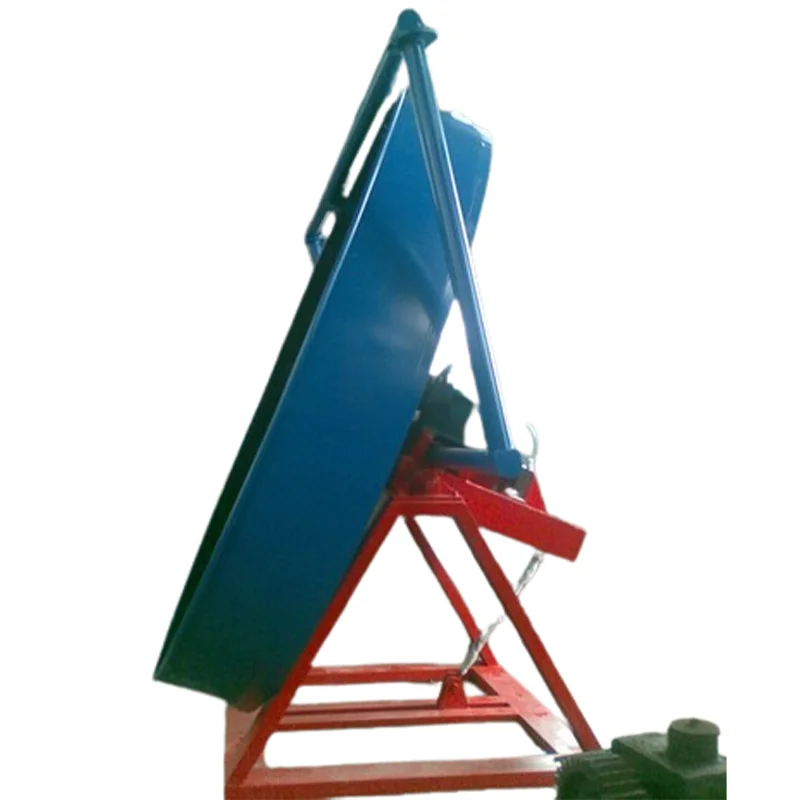

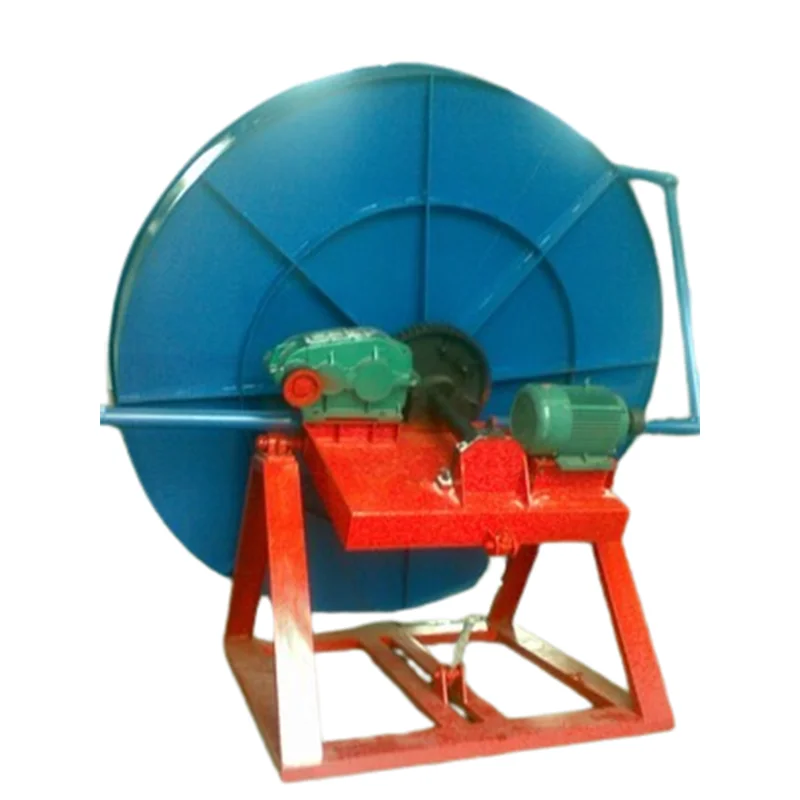

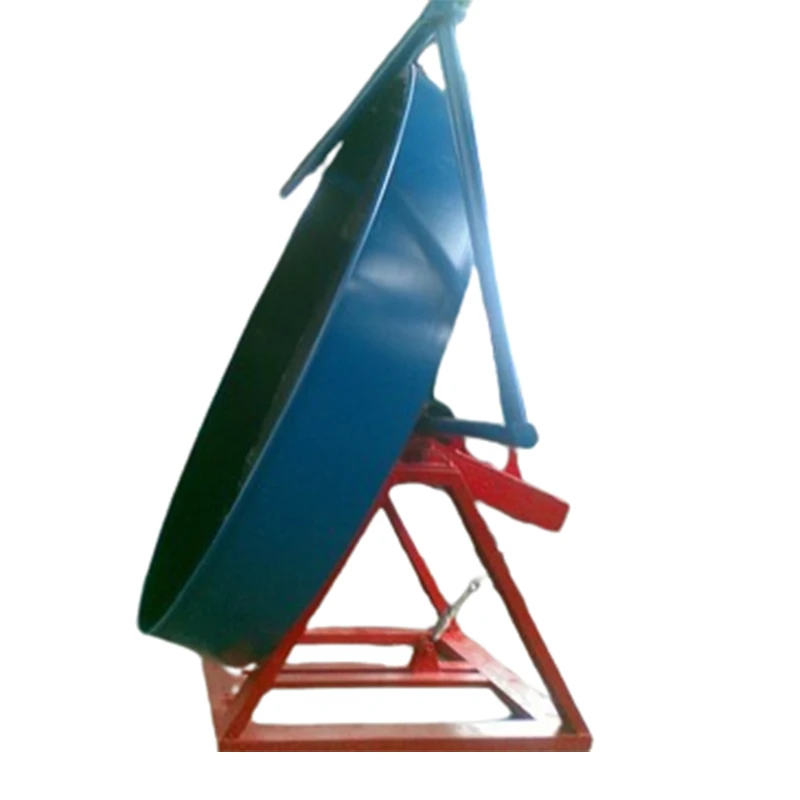

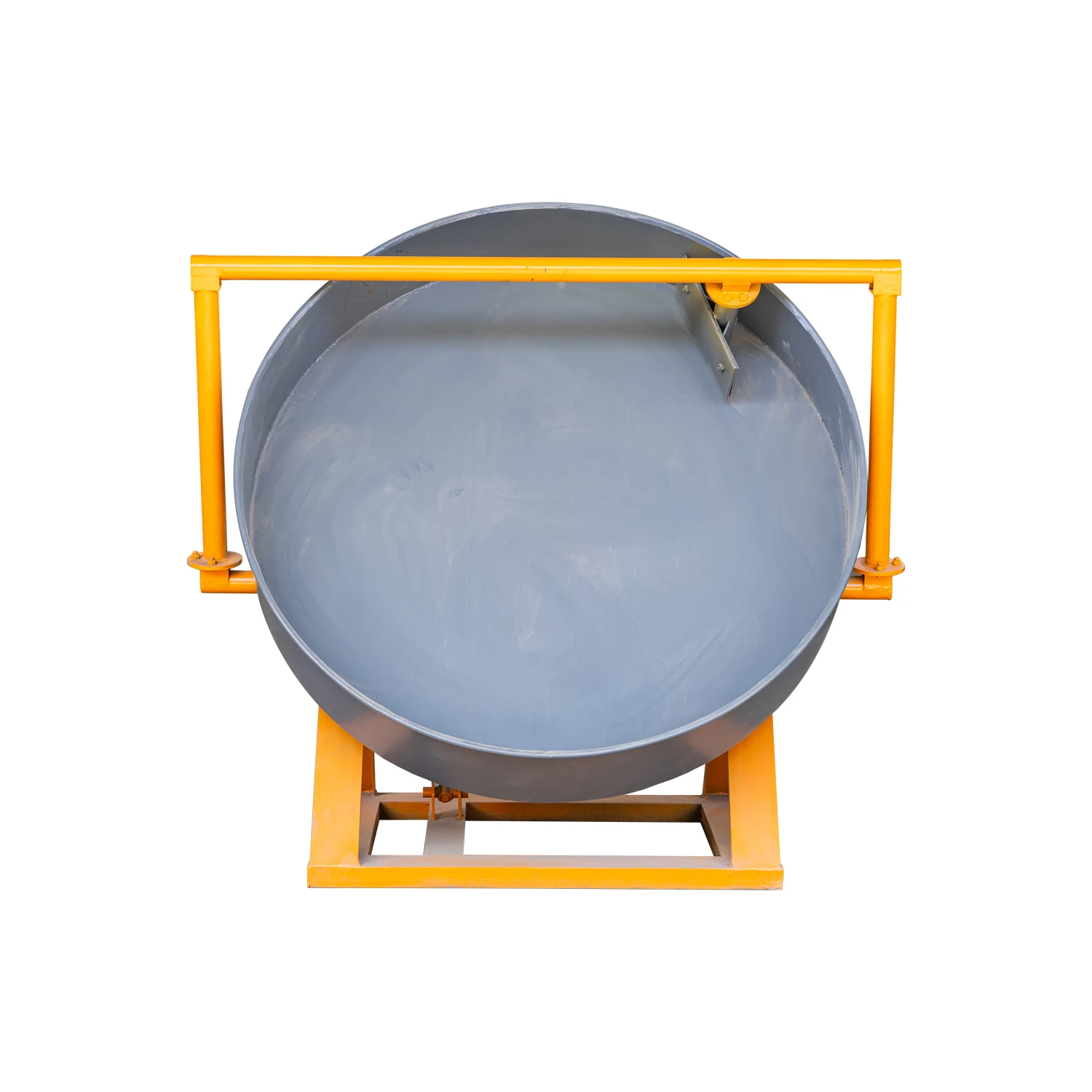

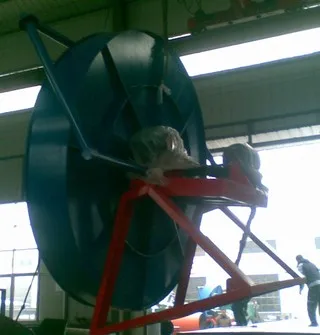

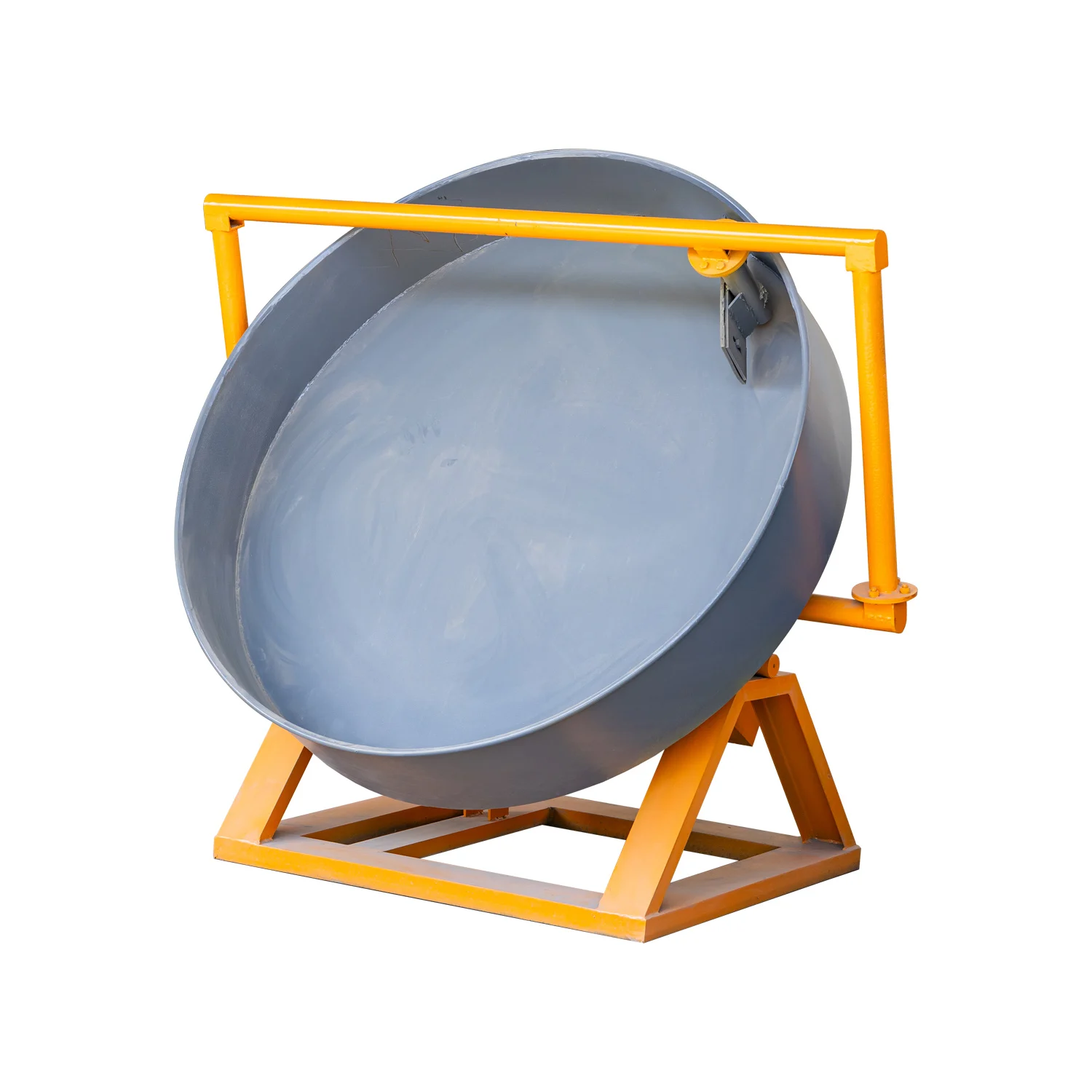

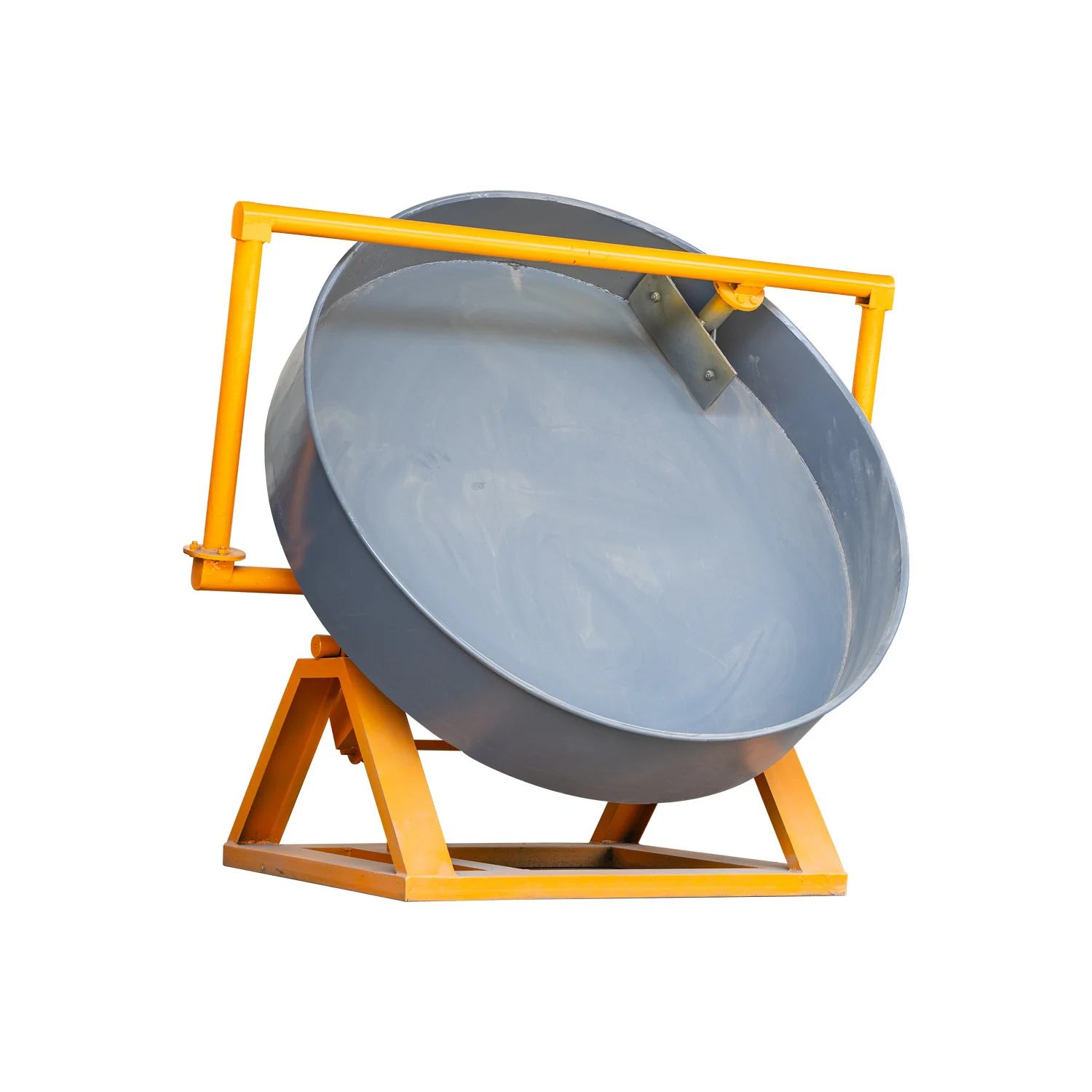

Commercial Disc Fertilizerizer Pelletizer Machine Straw Animal Manure Organic Fertilizer Making Machine

Product Overview

Description

The disc fertilizer pellet machine is a commonly used fertilizer processing equipment, which is mainly used to produce various organic fertilizers, compound fertilizers, microbial fertilizers, etc. It can dry, crush, mix and process various organic substances, and then make these substances into particles of appropriate size through the pressure and rotation of the machine, which is convenient for transportation and use.

Working principle of disc organic fertilizer making machine

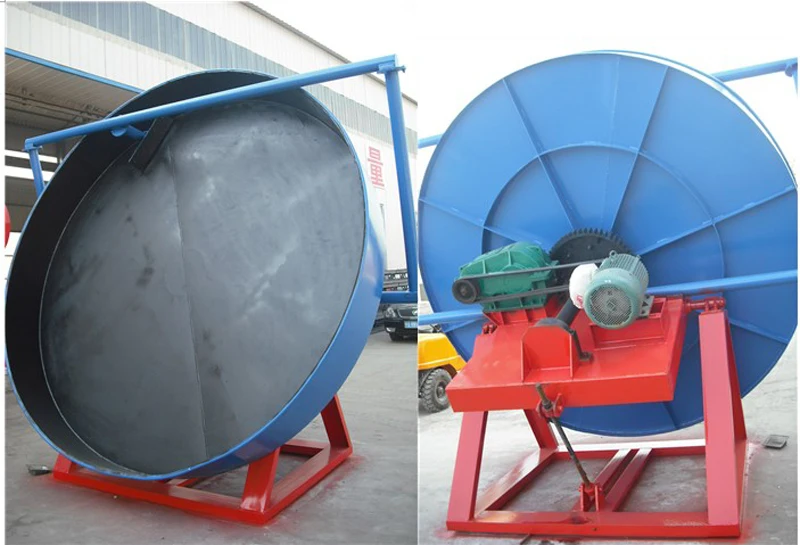

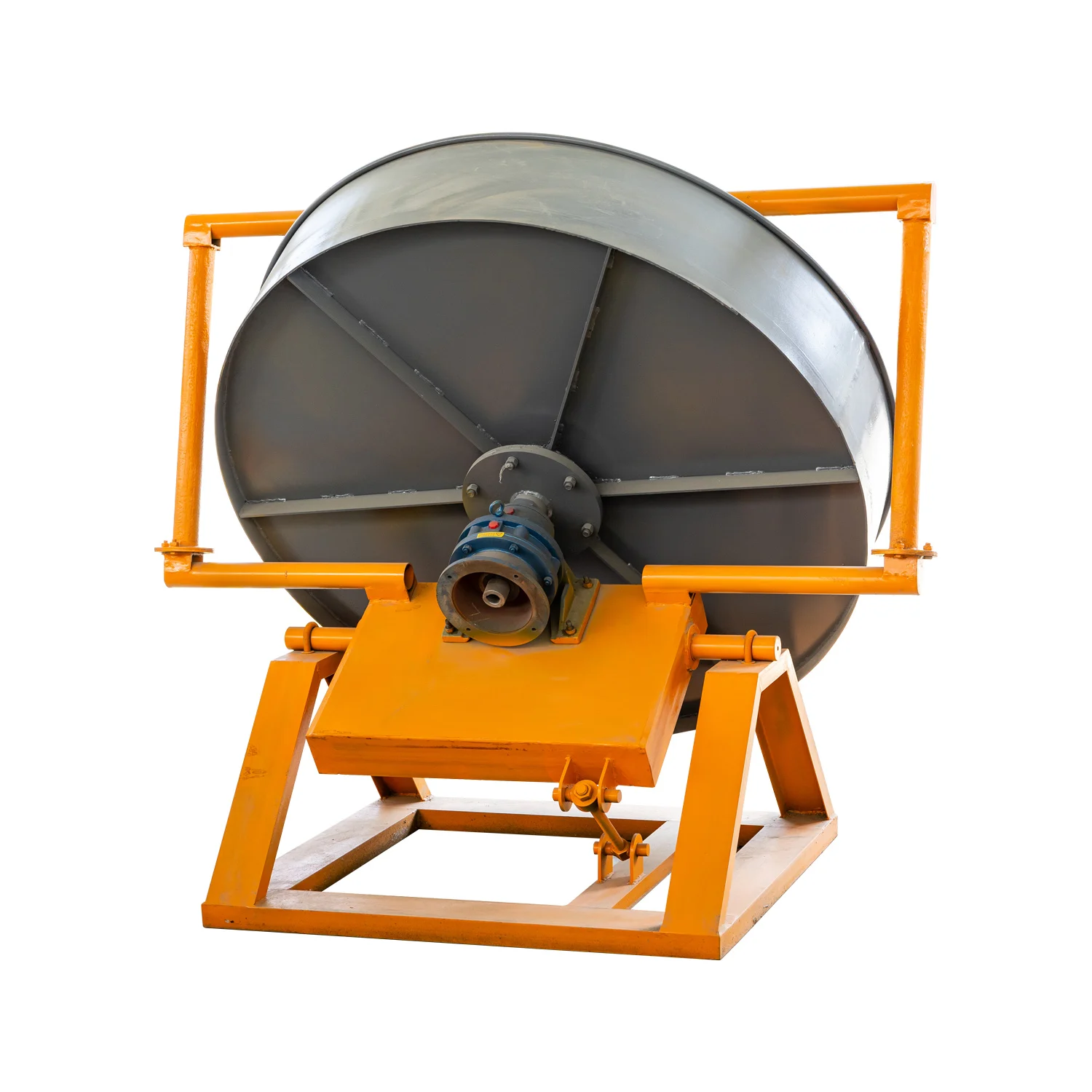

The disc fertilizer pellet machine is mainly composed of a disc, and there are pouring and discharge pipes inside the machine, as well as a disc roller grinder, a disc roller mixer and a disc pellet machine.

When working, put the raw materials into the grinder for grinding, and then add a certain proportion of water for mixing, adjust the inclination angle and rotation speed of the grinding disc, so that the raw materials and water are thoroughly mixed.

Then, the mixed raw materials enter the disc pellet machine from the gate. The pressure and rotation of the machine form the raw materials into a compacted disc.

As the disc rotates, the compactor gradually moves outward, and the raw materials are subjected to the rotation pressure of the disc to form particles. The shape of the particles is adjusted by the mold, and the size of the particles is determined by the rotation speed of the disc, the thickness of the material layer and the humidity.

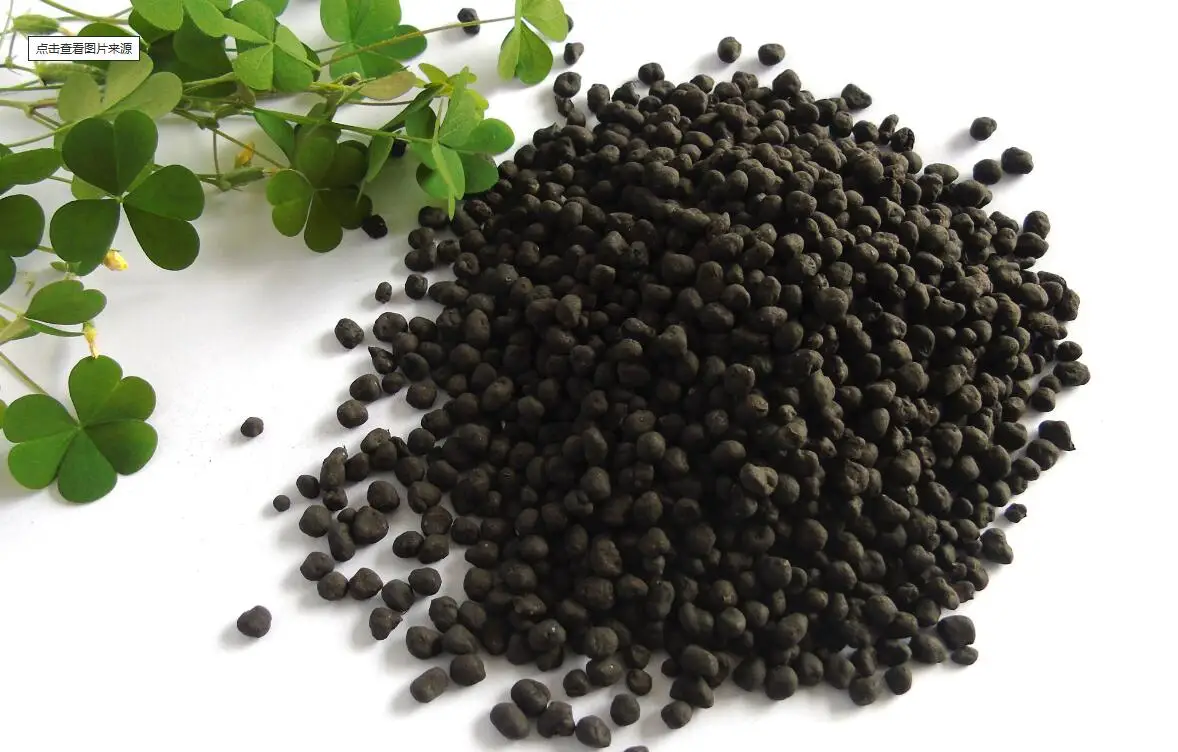

Finally, the particles are discharged from the machine through the discharge pipe and automatically unloaded by the equipment. After drying and screening, they are finally made into particles that meet the requirements.

Functional characteristics of disc fertilizer making machine



1. Energy saving and high efficiency: The machine adopts an innovative disc granulator design, which can achieve an efficient speed of 1350r/min, with an hourly production capacity of 1-10 tons, and has high production efficiency.

2. Easy to operate: Crushing and granulation can be carried out at the same time, the operation process is simple, and less manpower is required.

3. Wide application: The machine can be used in the fields of organic fertilizer, bio-organic fertilizer, compound fertilizer, microbial fertilizer manufacturing, etc., and has a wide range of applications.

4. Uniform particle size: The shape and size of the particles can be adjusted by the mold, and the particle size of the output particles is uniform.

Advantages of organic fertilizer granulator



1. Non-toxic substances: Organic fertilizers do not contain toxic substances that are harmful to the environment and human health.

2. Enhance soil fertility: Organic fertilizers provide nutrients for soil organisms, which helps to maintain and enhance soil fertility in the long term.

3. Sustainable agriculture: Organic fertilizers support sustainable agricultural practices by promoting soil health, reducing the use of chemical fertilizers, and reducing greenhouse gas emissions.

4. Economical and efficient: Organic fertilizers are an economical and efficient alternative to chemical fertilizers because they are less expensive to produce.

Raw materials and applications of fertilizer pellet machines



The machine is mainly used to produce various types of organic fertilizers, microbial fertilizers, compound fertilizers, bio-organic fertilizers, etc. Commonly used raw materials include guano, chicken (duck) manure, sheep (cow) manure and other livestock and poultry manure, as well as bean dregs, kitchen waste, tea dregs, domestic garbage and other organic impurities. They can make the fertilizer processed by the machine have a higher saturation and better fertilizer efficiency, which is an environmentally friendly, economical and practical way of planting fertilizers.





Technical information



MODEL	Inner dia (mm)	Side height (mm)	Volume (m3)	Rotation speed (r/min)	Motor Power(kw)	Productivity (T/H)	Reducer model
WSJY-10	1000	300	0.23	16	4.5	0.5	BW33-23
WSJY-12	1200	300	0.33	19	7.5	0.6-0.8	BW33-23
WSJY-15	1500	300	0.53	16	7.5	0.9-1.0	BW33-23
WSJY-18	1800	300	0.76	16	7.5	1.0-1.2	BW33-23
WSJY-20	2000	350	0.94	18	7.5	1.5-2.0	BW33-23
WSJY-25	2500	360	1.48	16-18	7.5	2.0-2.5	BW33-23
WSJY-28	2800	600	3.7	13.6	11	2.5-3.0	BW33-23
WSJY-30	3000	600	4.2	13.6	11	3.0-5.0	BW33-23



Common problems and solutions during the use of the machine



1. Excavator loss: It should be checked and replaced in time to ensure the stable operation of the disc.

2. Pellet machine shutdown or performance degradation: Check whether it is caused by damage to the cylinder, thrust gauge, scraper, etc., and perform regular maintenance.

3. Too high moisture: Reasonably configure according to different raw materials, and use a cutter after mixing to avoid the problem of too high moisture.

4. Loud noise: Check whether the machine is out of oil or damaged, and replace the deficiencies to improve work efficiency.





What is the quality inspection process of our machines?



1. Machine testing: All machines are strictly tested before leaving the factory to ensure that their performance meets the manufacturer's specifications.

2. Component inspection: All machine components, including bearings, motors and electronic components, are thoroughly inspected to ensure their quality.

3. Production monitoring: Our quality control team monitors the production process to ensure that all products meet the highest quality standards.





What is the pre-sales and after-sales service of our factory?



1. Pre-sales advice: Our customer service team provides expert advice to help customers choose the machine that best suits their needs.

2. Machine customization: We provide customized machine design and manufacturing services to meet specific customer requirements.

3. Warranty and Maintenance: Our machines come with warranty and post-warranty maintenance services to ensure customer satisfaction.





Why choose a machine from our company?



1. Reliability: Our machines are carefully designed and manufactured to last. They are reliable and require little maintenance.

2. Customization: We offer custom design and manufacturing services to meet specific customer requirements.

3. Quality Control: Our machines undergo a rigorous quality control process to ensure that their performance meets the highest quality standards.

4. Pre-sales and After-sales Services: We provide customers with excellent pre-sales and after-sales services, including expert advice, machine customization, warranty and maintenance services.
