Residential High Power Wind Generator 2KW 3KW 5000W Low Speed Vertical Axis Wind Turbine with 12V 24V 48V Grid Controller
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.
Share on (1601279612190):
Product Overview
Description
You May Like
Products Description
5KW Vertical Wind Turbine
developed.Now,we strongly recommend you for as below reasons.
Firstly , We originally adopt new composite flexible material for blades,with the features of longer lifetime,Resistance to strong
winds brighter color appearance.
Secondly,Model X is made of vertical maglev generator,lighter but more powerful,more efficient,noiseless, fitting for household.
Thirdly, New patented technology for blades bracket,more stable rotating speed,more sweep wind area.
Fourth,Unique smart controller function, strongly improve the wind energy,efficiently harvest electrical energy.
Fifth:The whole body of wind turbine are coated with anti-corrosive protective coating,effectively prevent wind and rain damage.
Hope to be your trustworthy supplier in China!
Win-win cooperation!
Recommended for
--Household,Garden,Farm,Urban,Rooftop
--Telecom sites
--Rural electrification programs.Island,sentry,island,sight lighting
--Automatic speed reduction protection
--Automatic speed reduction protection
Specification
Rated Power | 1000W | 2000W | 3000W | 10000W | |||
Max Power | 1050W | 2100W | 3130W | 10200W | |||
Rated Voltage | 24V to 220VAC | ||||||
Start Up Wind Speed | 3.0m/s | ||||||
Rated Wind Speed | 10m/s | 12m/s | |||||
Survial Wind Speed | 45m/s | ||||||
Wind Wheel Diameter | 530mm | ||||||
Blades Height | 750mm | ||||||
Blades Quantity | 3 PCS | ||||||
Blades Material | Nylon Fiber | ||||||
Control System | Electromagnet | ||||||
Mount Height(m) | 3~12m | ||||||
Generator protection grade | IP54 | ||||||
Work environment temperature | -40~+40ºC | ||||||
Work environment humidity | ≤90% | ||||||
Altitude | ≤4500m | ||||||
Overspeed protection | Electromagnetic brake | ||||||
Load Name | Load’s Watt | Quantity |
lights | 10w | 10 |
fan | 80w | 2 |
computer | 150w | 2 |
printer | 250w | 1 |
Fax machine | 300w | 2 |
Refrigerator | 120w | 1 |
Washing machine | 300w | 2 |
microwave | 1000w | 1 |
Electric cooker | 300w | 1 |
Air conditioner(2HP) | 1500w | 1 |
Color TV | 100w | 2 |
Drawing
Power Curve

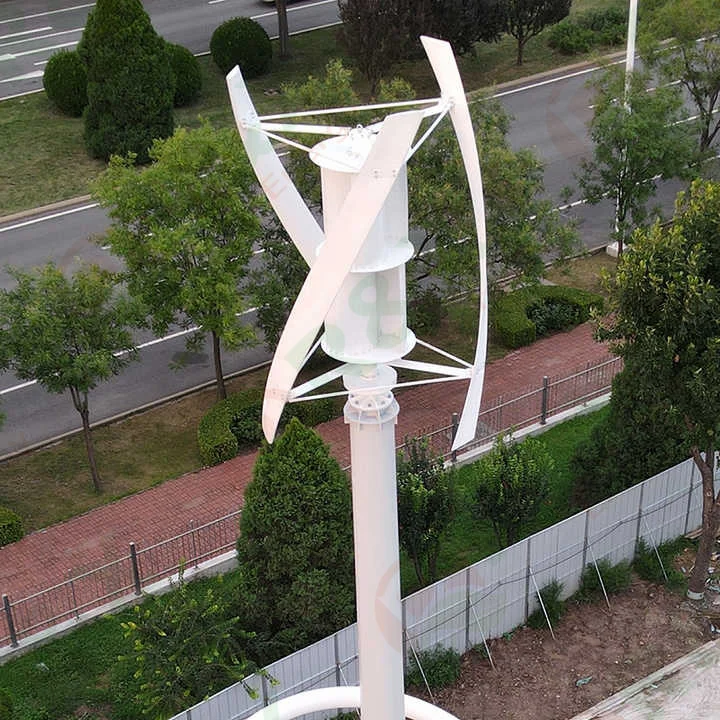

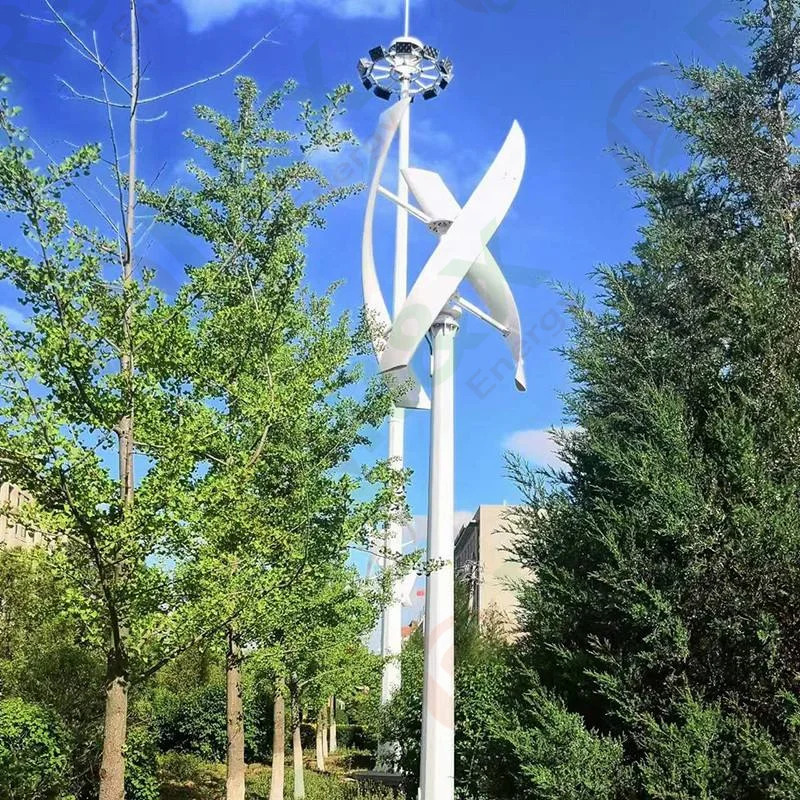

Project Photos Show
Wiring Diagram
