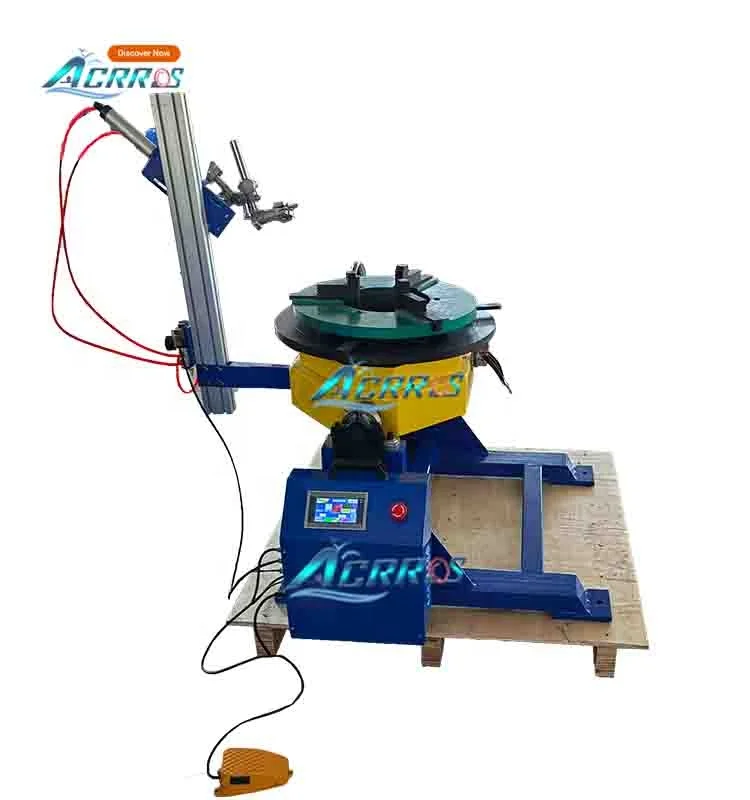

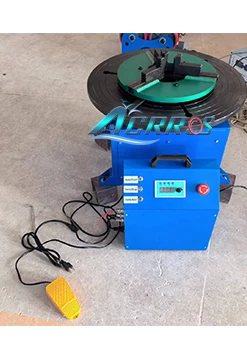

220V Welding Positioner with 240mm Center Hole 600kg Capacity 220V Pipe Rotating Table for Positioning & Welding
220V Welding Positioner with 240mm Center Hole 600kg Capacity 220V Pipe Rotating Table for Positioning & Welding
220V Welding Positioner with 240mm Center Hole 600kg Capacity 220V Pipe Rotating Table for Positioning & Welding
220V Welding Positioner with 240mm Center Hole 600kg Capacity 220V Pipe Rotating Table for Positioning & Welding
220V Welding Positioner with 240mm Center Hole 600kg Capacity 220V Pipe Rotating Table for Positioning & Welding
220V Welding Positioner with 240mm Center Hole 600kg Capacity 220V Pipe Rotating Table for Positioning & Welding
220V Welding Positioner with 240mm Center Hole 600kg Capacity 220V Pipe Rotating Table for Positioning & Welding

220V Welding Positioner with 240mm Center Hole 600kg Capacity 220V Pipe Rotating Table for Positioning & Welding

Share on (1601279667001):


Price:

Quantity:


Product Overview

Description



Product Description


Application of Welding Positioner Turntable,
This welding positioner is designed for circle welding, annular welding, cutting, polishing, assembling etc. especially suitable for under 600KG 300KG flange, steel pipe and other seam welding.
600kg welding positioner for sale






Welding Positioner TABLE Feature: Easy to Control

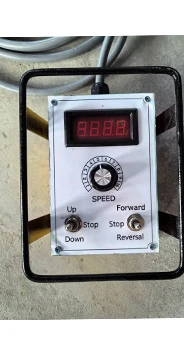

*Time and speed controllable, The time and speed is regulated by the remote on the machine

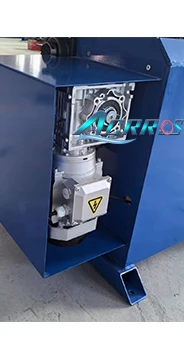

*0.5-3r/min, driven by Stepper motor, stepless speed regulation can be achieved.
*Using foot pedal (or remote) to control table rotation.

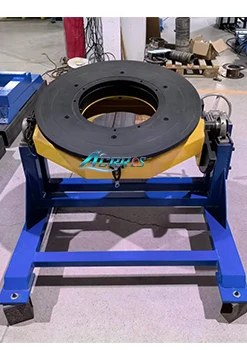

* This Turntable has the 3 types of table center through hole 85mm/ 240mm/ 365mm.




Detailed Images




Size Information

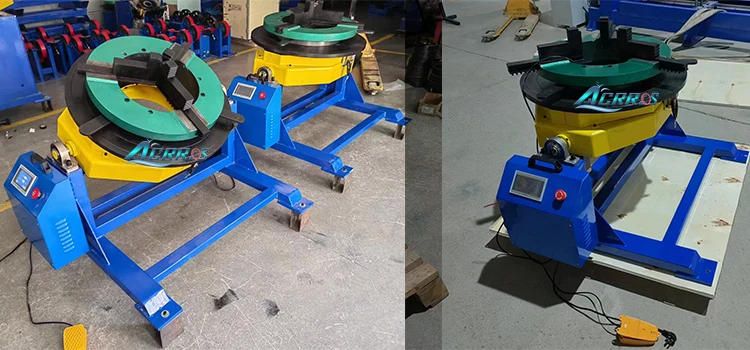

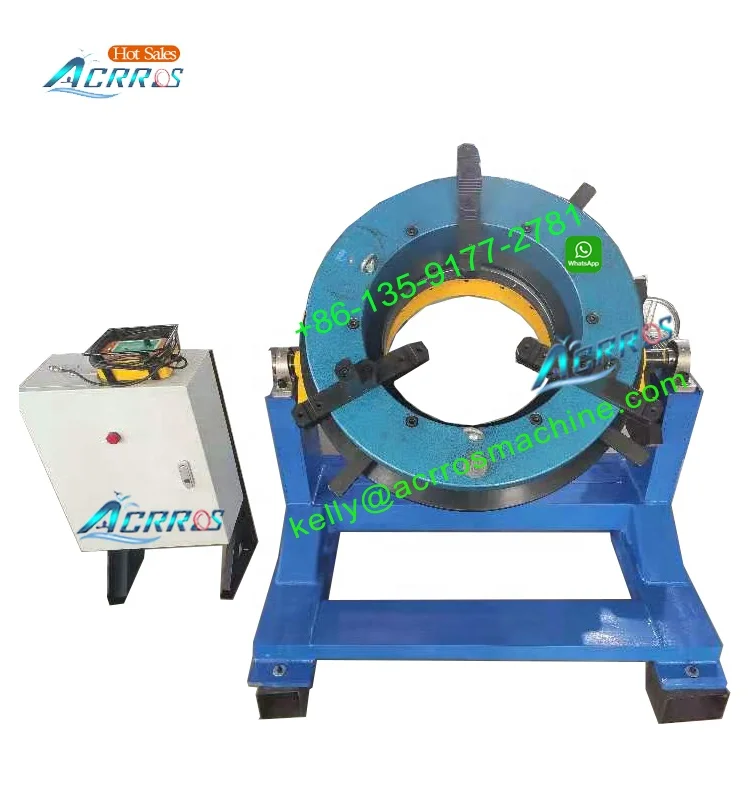

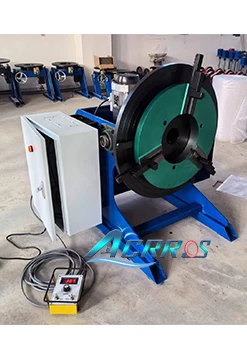

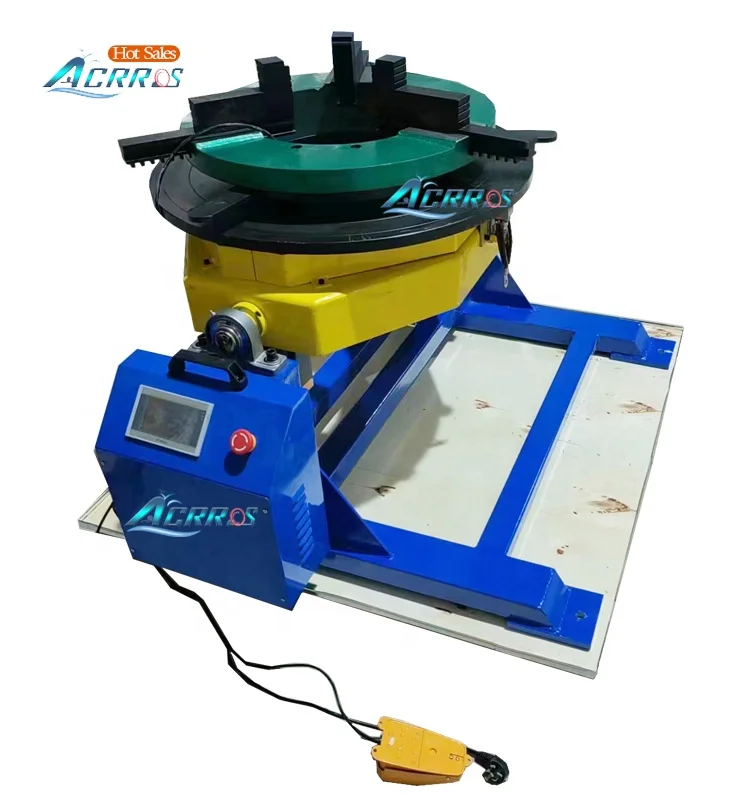

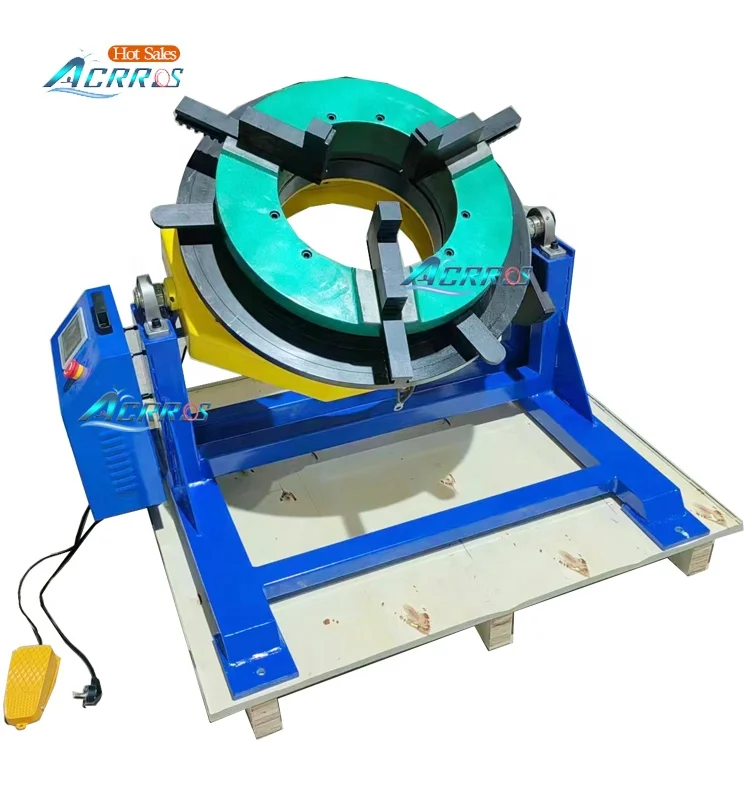

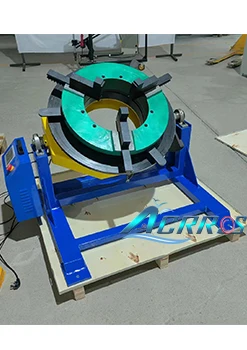

3 Jaw Lathe Chuck and Welding Table
*Chuck diameter:600mm/1000mm,
*Table diameter: 650mm,

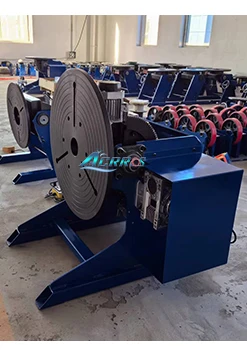

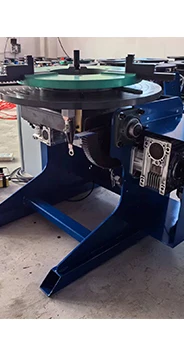

*Tilt angle: 0 degree - 90 degree, The turning structure of worm and gear has the function of self-lock.


Model
Loading
Horizontal/Vertical
Rotation Speed
Motor Power
Table Through Hole
Size
Weight
AWP-100KG
100KG/50KG
0.5-5R/MIN
120W
65MM
50*41*45 CM
75kg
AWP-30KG
30KG/15KG
1-15R/MIN
40W
25MM/65MM
38*36*40
CM
30KG
AWP-50KG
50KG/25KG
1-15R/MIN
120W
NO
38*36*40
CM
35KG
AWP-200KG
200KG/100KG
0.5-5R/MIN
125W
140MM/170MM
53*49*50
CM
80KG
AWP-300KG
300KG/150KG
0.5-2.5R/MIN
200W
140MM/170MM
65*56*60
CM
120KG
AWP-600KG
600KG/300KG
0.5-3R/MIN
550W
65MM/240MM/365MM
83*58*69
CM
260KG


Manufacture Specification




Please kindly contact us for the goods inquiries if you are interested.
DALIAN ACRROS MACHINERY CO.,LTD.
Ms.Kelly _ Manager
E-MAIL: Kelly @ acrrosmachine.com
MOB: +86-135-9177-2781
WHATSAPP:+86-135-9177-2781
WECHAT:+86-135-9177-2781

* Welding Gas : Welding positioner Support CO2 welding, MIG, MAG, TIG welding etc. Special design of anti-electromagnetic, which reduces the high frequency interference of TIG welding, and can improve the welding quality effectively.
* Application This welding positioner is designed for circle welding, annular welding, cutting, polishing, assembling etc.
especially suitable for flange, steel pipe and other seam welding.




Best Selling




Recommending Styles




Warranty Welding Positioner Rotary Turntable
We provide 1 YEAR warranty for every our customer. If you have any questions, please feel free to contact us directly. We
will give you a reply as soon as possible.




Company Introduction


Dalian Acrros Machine Co, Ltd has focused on introducing and cultivating high-tech talents and takes it as development
strategy,Acrros have been specialized in manufaturing welding positioners for more than 15 years. All of its welding positioner are certificated approved and exported all over the world. ACRROS is getting great reputation for its great
quality and service. Welding positioners are the machines be used to change the position of work piece on the welding positioner turntable and to ensure smooth rotation of the work piece at certain required speed. So welding postitioner normally means a table rotates workpiece at certain rotation speed, optional torch holder, tailstock, pipe bracket etc.
ACRROS can be your loyal friends, we can establish our own national brand and witness prosperous future harmonious world.








Our Services & Strength
This rotary welding positioner is a professional equipment for annular welding.
It is mainly used to tilt, rotate the work pieces and keep them in horizontal or ship-shape position for further welding.
You can put chuck on its working table or assemble clamping tools on this positioner, cooperate with manual welding works.
This welding positioner can also be connected to automatic welding machine to ensure auto welding process.
Circle Welding,Annular Welding, Cutting, Polishing, Assembling

If you interested in our products,Please dont hesitate to contact us for inquiry,
DALIAN ACRROS MACHINERY CO.,LTD.
Ms.Kelly _ Manager
E-MAIL: Kelly @ acrrosmachine.com
MOB: +86-135-9177-2781
WHATSAPP:+86-135-9177-2781
WECHAT:+86-135-9177-2781




FAQ


Q: Can I get some samples?
A: Yes, sample orders welcomed.

Q: Could I use my own logo or design the items?
A: Yes, customized logo and design on mass production are available,.

Q: Why do I trust you?
A: We are "Alibaba" verified supplier and we have high quality goods and service.

Q: What is your shipping item ?
A:
1. By Couriers: DHL/UPS/FEDEX/TNT to your address directly.
2. By Sea: Delivery to your sea port.
3. To your agent: Delivery to your China agent.
