Product Overview
Description
Highly Integrated Bluetooth Signal Fire AI20 AI30 ARC Optical Fiber Welder Fiber Optic Splicing Machine FTTH Fusion Splicer
Product Description
Description

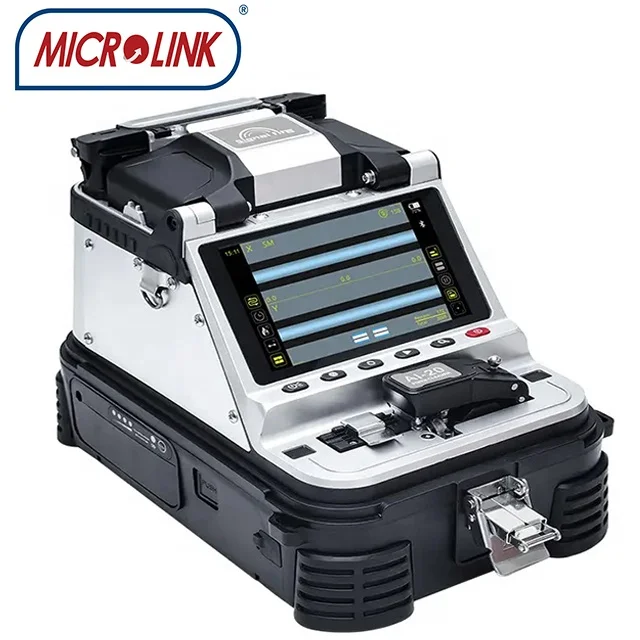

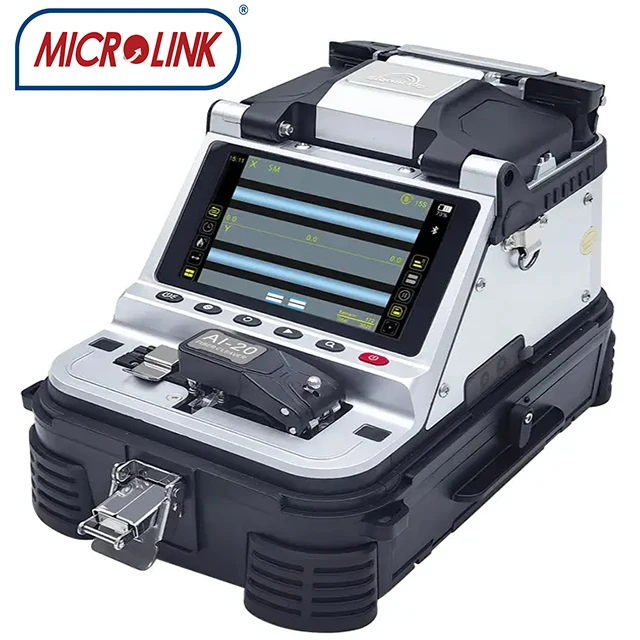

Signal Fire AI-20 use the latest core alignment technology with auto focus and six motors.It is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance,FTTH project, security monitoring and other fiber cable splicing projects.
The AI-20 fusion splicer machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications,making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.
The AI-20 has integrated function including fiber cleaver, fiber optica meter, VFL and fiber stripper. Also it can connected
with bluetooth and wifi.
Feature
Ultra fast splicing (6 sec.)

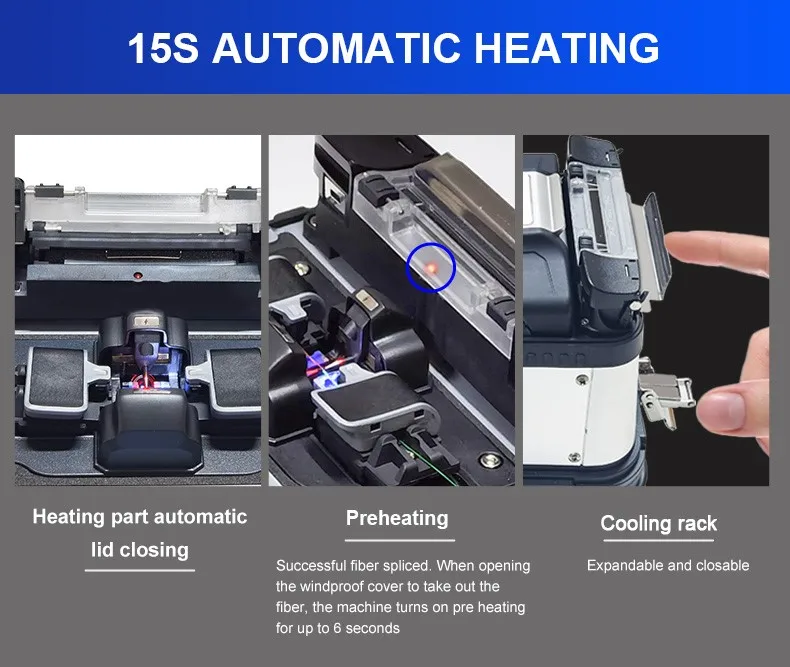

Ultra fast heating (15 sec.)
Dust-free, water resistant and shock-proof.
5-inch 800X480 high-resolution screen

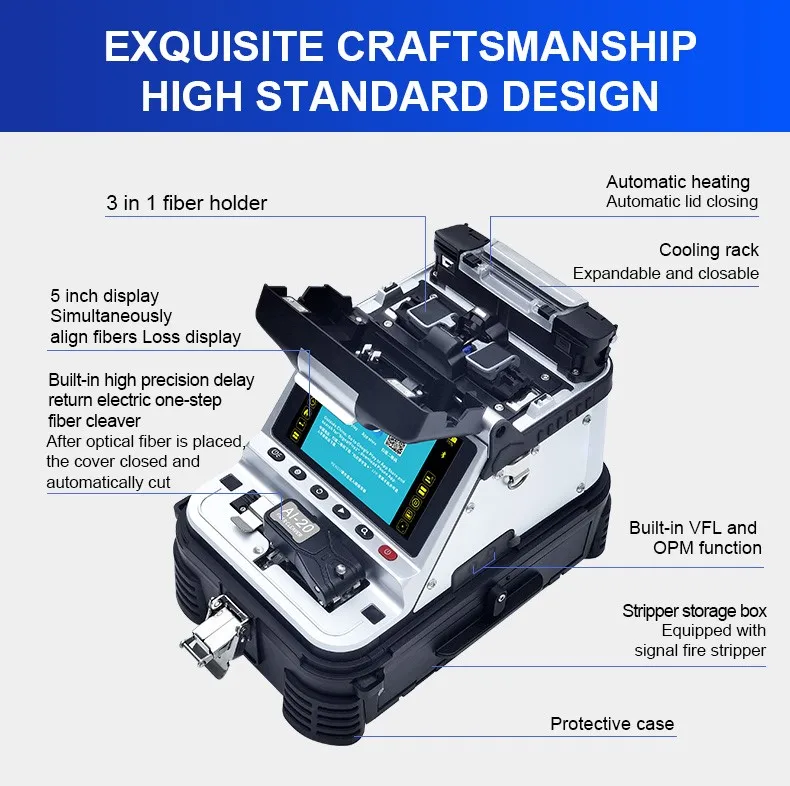

Integrated function includ fiber cleaver, OPM,VFL and fiber stripper
Upgrading via Mobile APP through internet
Enable bluetooth synchronization upgrade machine softeware
Application
Fiber Splice Tool Kits
DATESHEET
ITEM | ARC fusion splicing machine Signal Fire AI-20 optical fusion splicer | ||||||
Compatible Fiber Type | SM[G.652&G.657)、MM (G.651) 、DS(G.657)、 NZDS (G.655) | ||||||
Cleaved Length | Coating less than 250um: 8-16mm Coating less than 250-1000um:16mm | ||||||
Cladding/ Sheath Diameter | Cladding Diameter: 80-150um; Coating Diameter: 100-1000um | ||||||
Return loss | Better than 60DB | ||||||
Control technology | Real-time control and calibration of fusion ARC | ||||||
Typical Splice Loss | 0.025dB (SM)、0.01dB (MM) 0.04dB (DS/NZDS) | ||||||
Splicing Time | 6 sec | ||||||
Heating Time | 15 sec | ||||||
Results Storage | Synchronize to the phone, the server to coud storage unlimited | ||||||
Splicing Mode | Normal / high precision splicing | ||||||

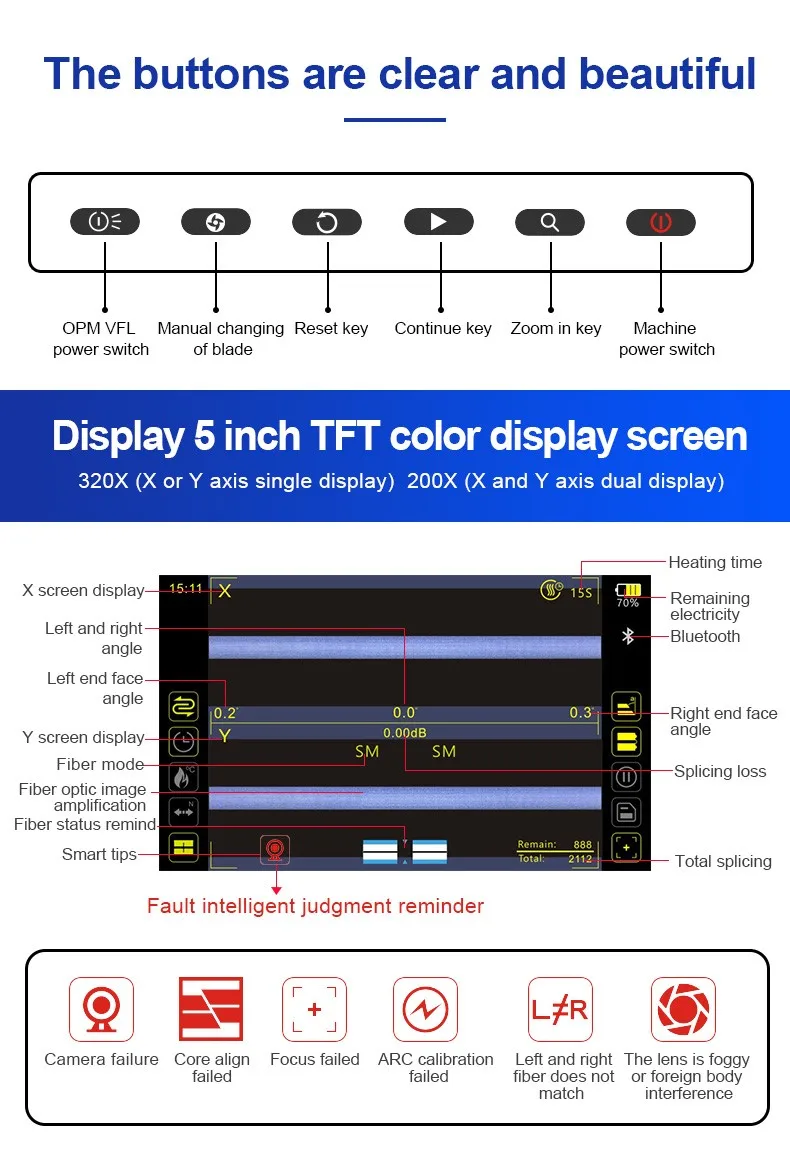

Display | 5 inch TFT color display | ||||||
Fiber View & Magnification | 300 for XorY view, 200 forX or Y view | ||||||

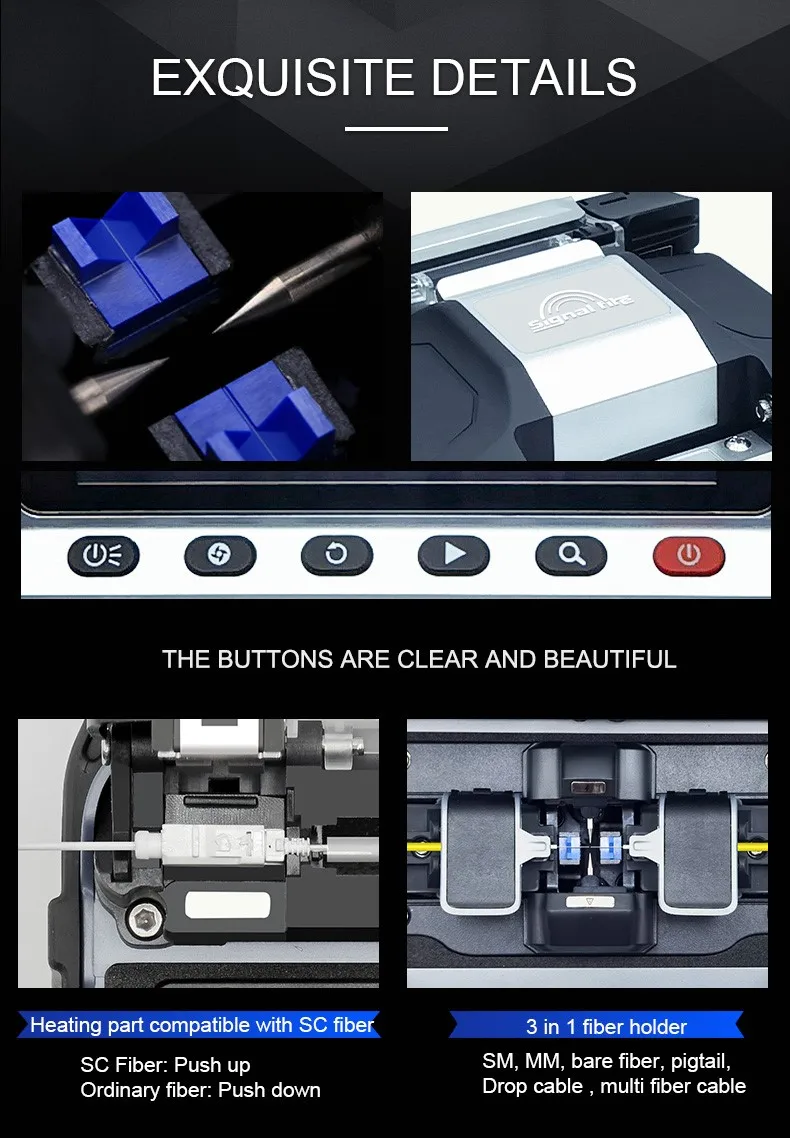

Fiber holders | 3in 1 fiber holder, SM. MM, bare fiber, pigtail, rubber-insulated, multi fiber cable | ||||||
Builtin lighting | easy for night operation | ||||||

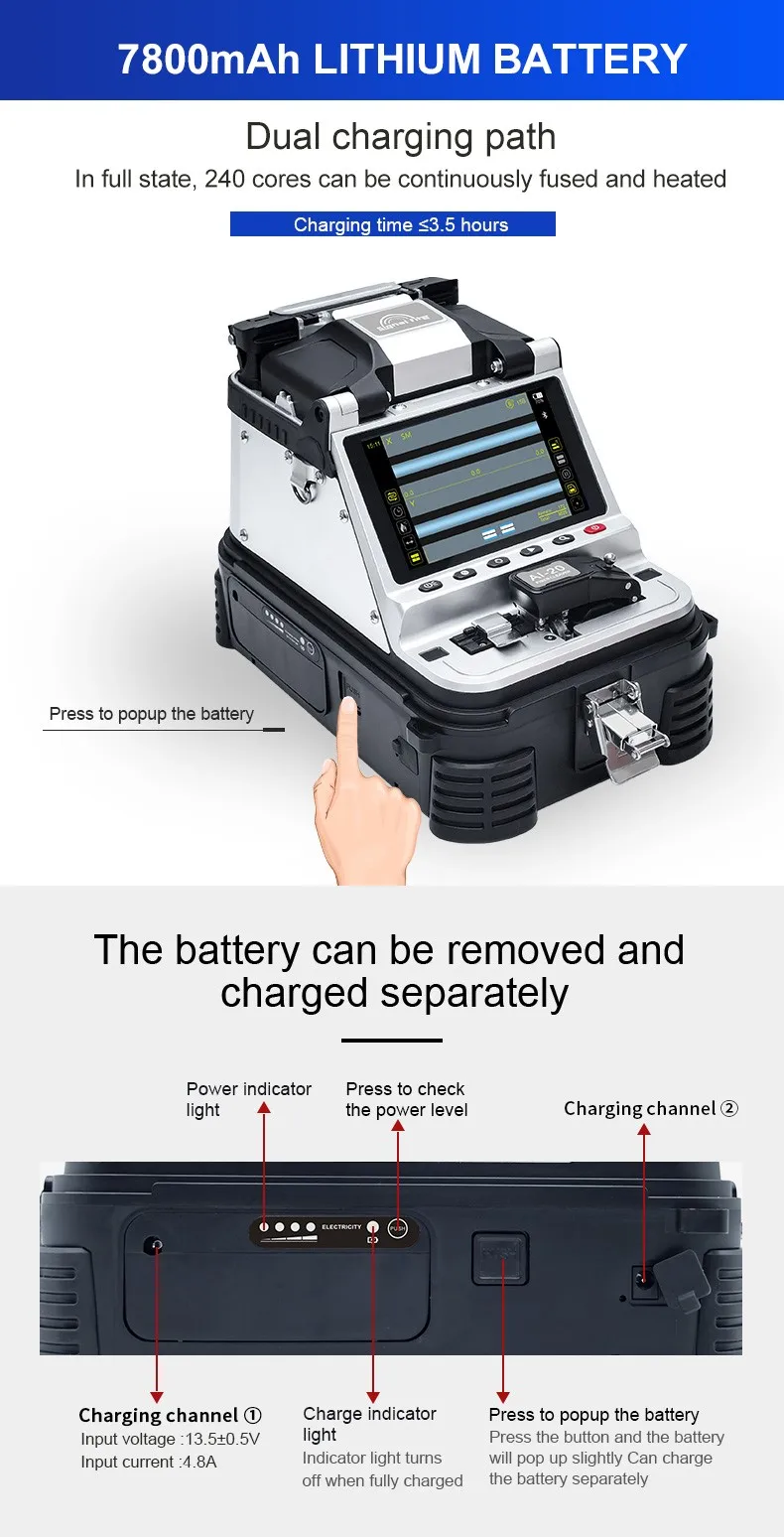

Battery | 7800 mA high-capacity lithium battery, charging time≤3.5 hours, continuous splicing and heating about 260 times | ||||||
Operating condition | Temperature -15~ +50 C,Working altitude:0 ~ 5000m, Resist max. wind speed:≤15m/s | ||||||
Shrinkable tube | 60mm,50mm,40mm,25mm | ||||||
Data Store | 1000 group stored | ||||||
Upgrading | Mobile APP via internet, support bluetooth connect for upgrading | ||||||

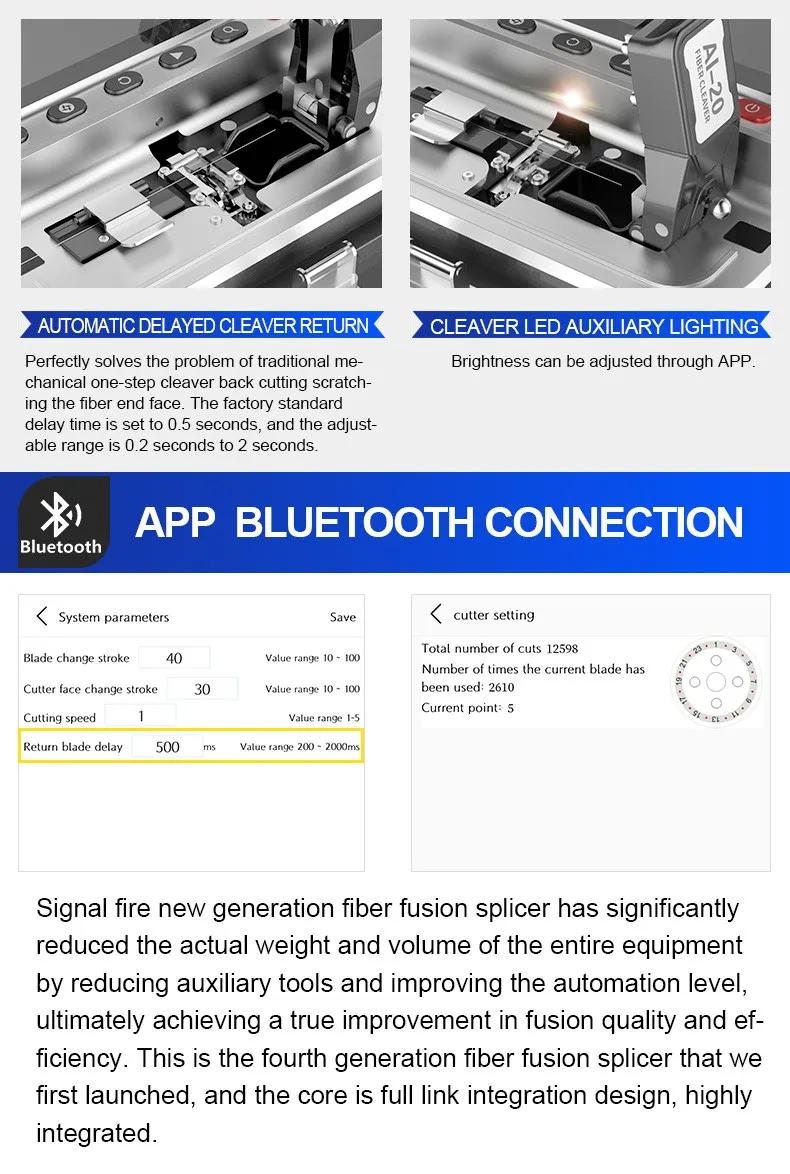

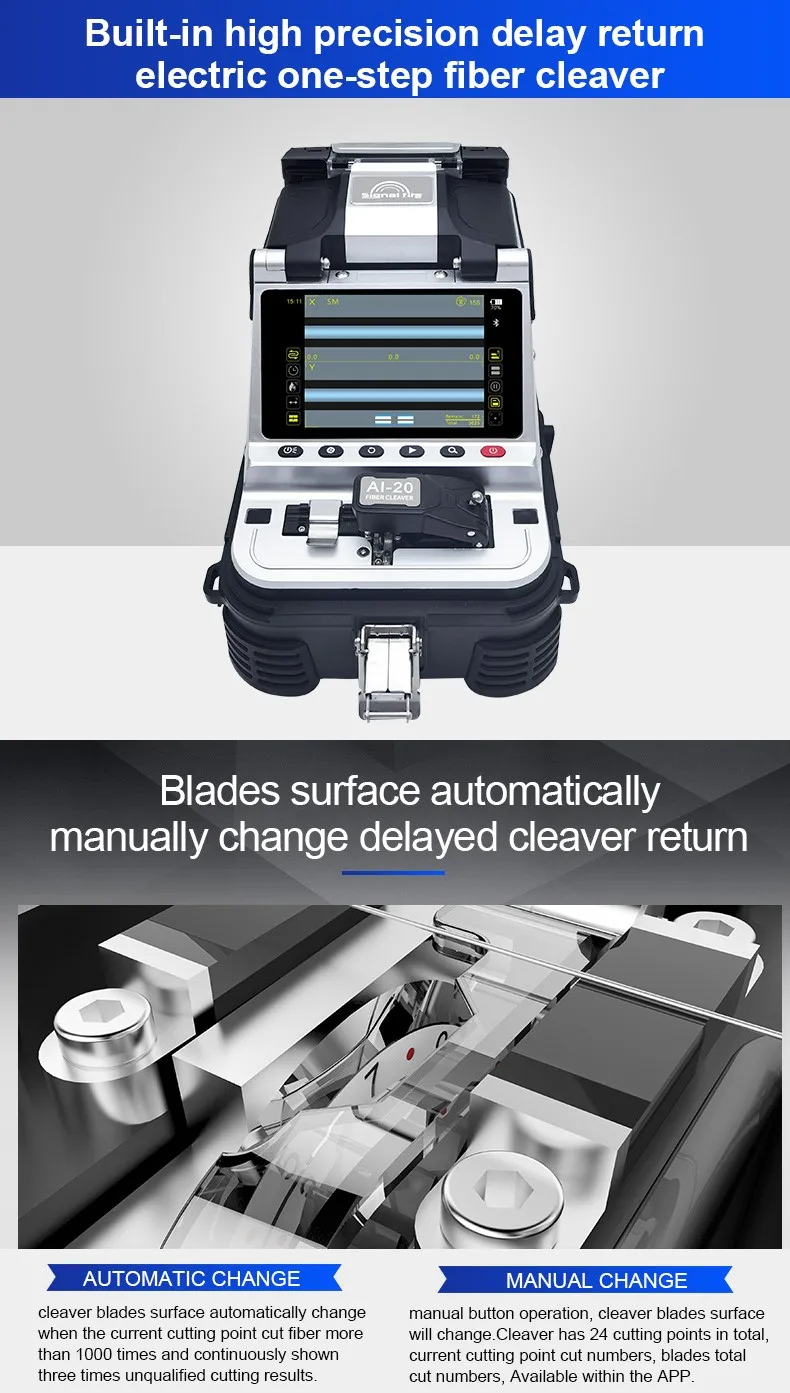

Fiber Cleaver | High precious delay return one-step electric fiber cleaver | ||||||

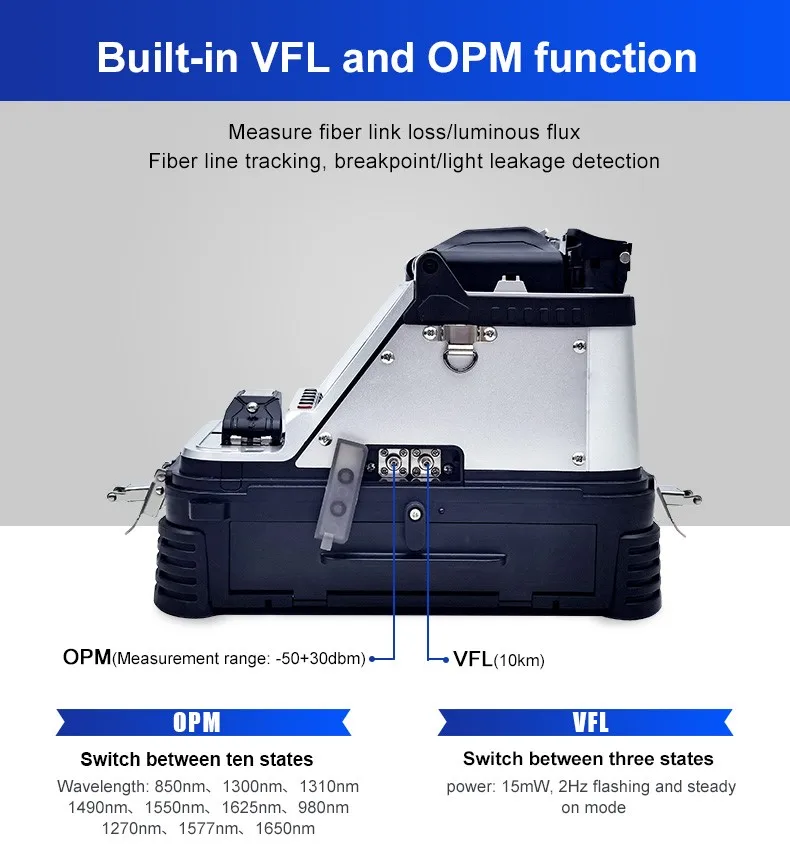

Visual Fault Locator | Power:15mw.2hzflashing And Constantly Bright Mode | ||||||
Optical Power Meter | Wavelength:850nm、1300nm、1310nm、 1 490nm、1550nm、 1 625nm Measuring Range:-70 ~ + 6db Absolute Error: | ||||||

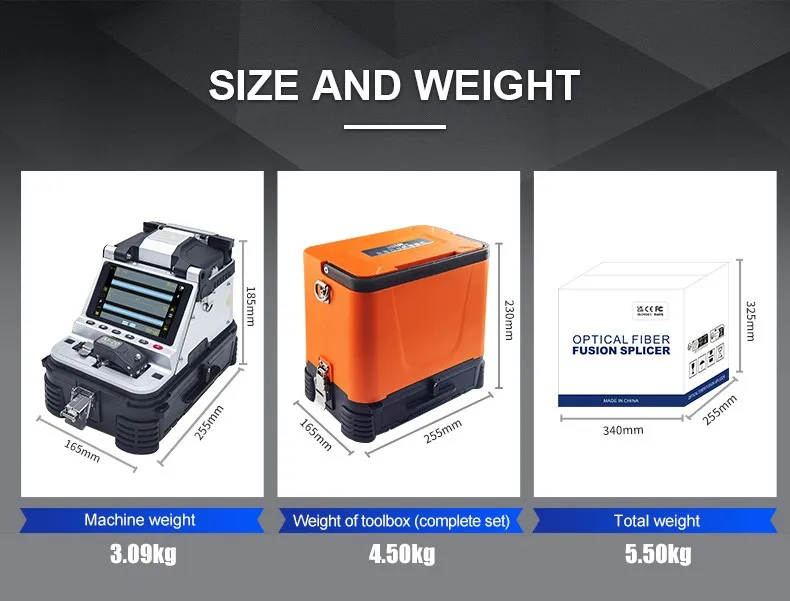

Dimension | 165W*255D*185H mm (excluding rubber bumper) | ||||||
