7 port Full Gigabit PoE Fiber Switch with watchdog for CCTV

Model

ONV-H3064PFD

ONV-H3108PFD

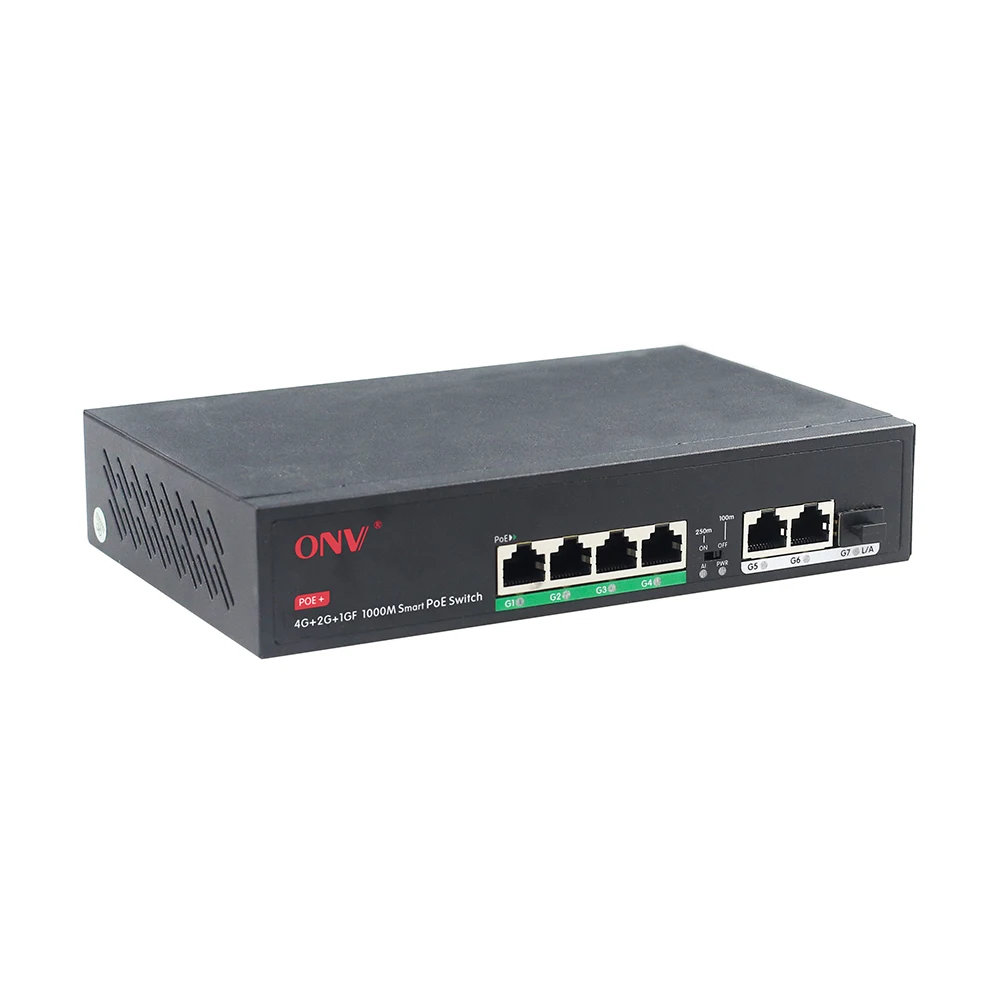

Interface Characteristics

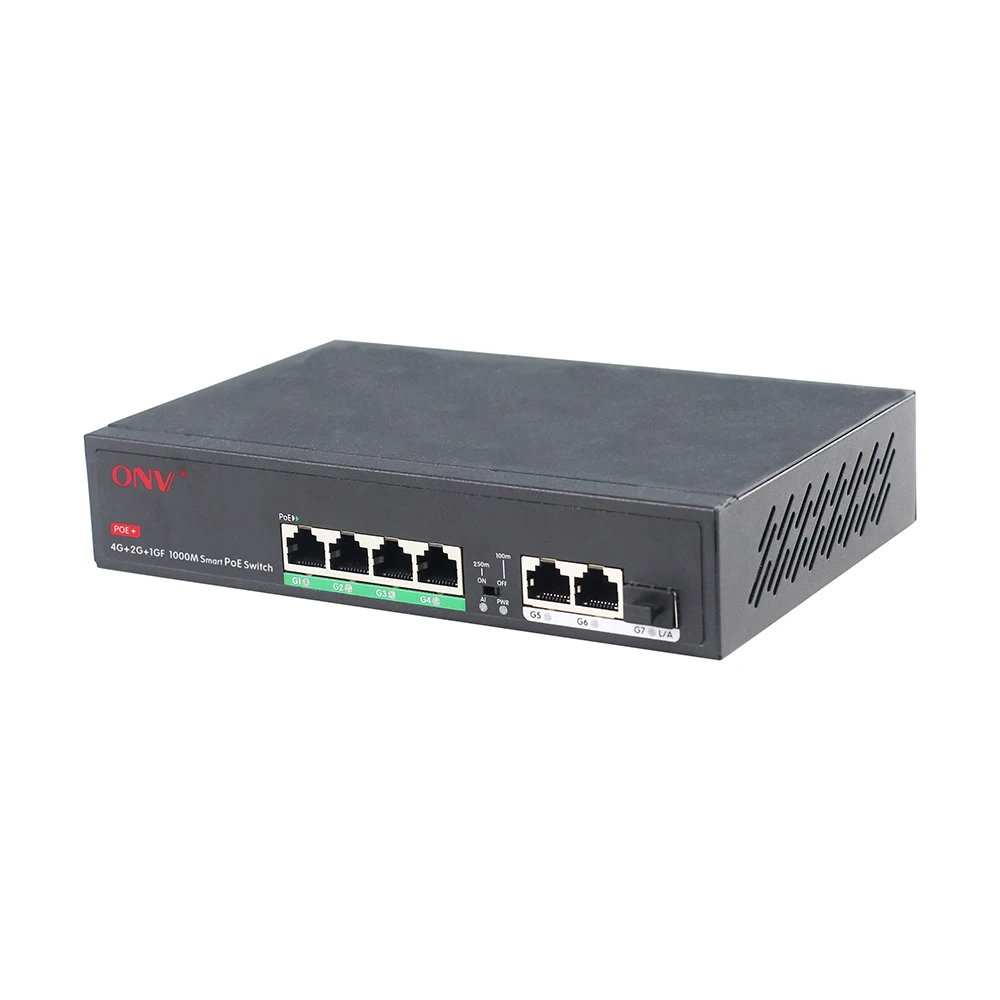

Fixed Port

1*1000Base-X uplink SFP fiber port (Data)
2*10/100/1000Base-T uplink RJ45 ports (Data)
4*10/100/1000Base-T PoE ports (Data/Power)

1*1000Base-X uplink SFP fiber port (Data)
2*10/100/1000Base-T uplink RJ45 ports (Data)
8*10/100/1000Base-T PoE ports (Data/Power)

Ethernet Port

Port 1-6/ 1-10 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤250 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)

Optical Fiber Port

Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical
module. LC)

Optical Cable/ Distance

Multi-mode: 850nm/ 0-550m
Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km

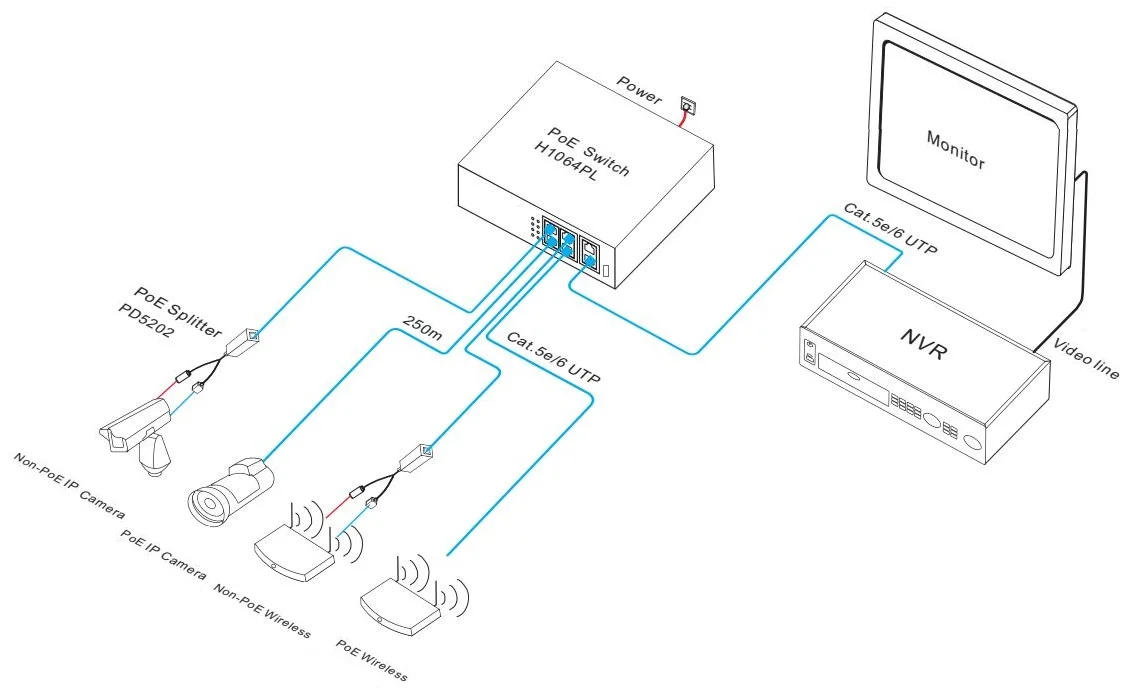

Functional Switch

250m: long-distance and VLAN isolation function (Default off, Use:on), After opening, the transmission rate of port 1-4/ 1-8 is
10M/250 meters transmission.

Chip Parameter

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x

Forwarding Mode

Store and Forward(Full Wire Speed)

Switching Capacity

14Gbps (Non-blocking)

22Gbps (Non-blocking)

Forwarding
Rate@64byte

10.4Mpps

16.37Mpps

MAC

2K

2K

Buffer Memory

2M

Jumbo Frame

9.2K

LED Indicator

Power: PWR (Green), Network: Link (Green)
PoE: PoE (Red), Functional switch: 100m/250m (Green)

PoE & Power Supply

PoE Port

Port 1-4

Port 1-8

Power Supply Pin

1/2(+) 3/6(-)

Max Power Per Port

30W, IEEE 802.3 af/at

Total PWR / Input Voltage

65W/ (AC100-240V)

120W/ (AC100-240V)

Power Consumption

Standby <3W, Full load <65W

Standby <4W, Full load <120W

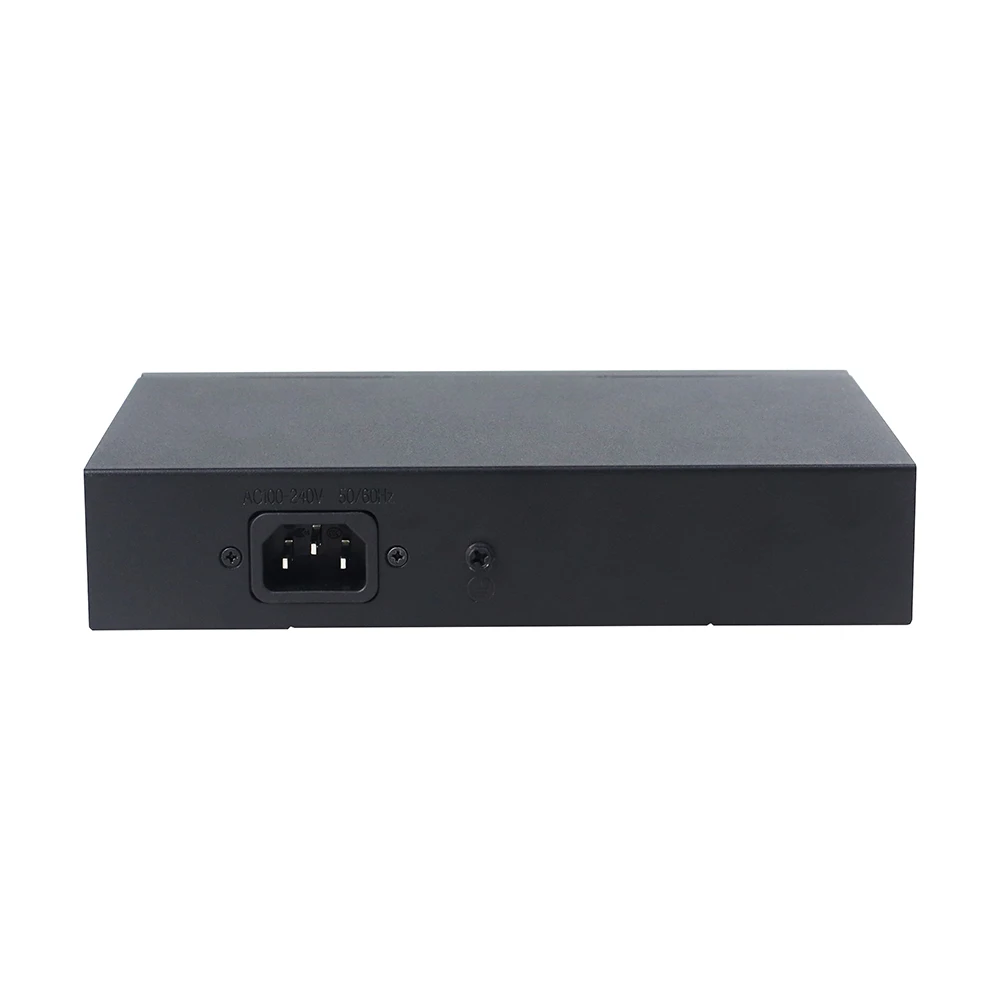

Power Supply

Built-in power supply, AC100~240V 50-60Hz, 1.0A

Built-in power supply, AC100~240V 50-60Hz, 2.2A

Physical Parameter

Operation TEMP/ Humidity

-20~+55°C, 5%~90% RH Non condensing

Storage TEMP/ Humidity

-40~+80°C, 5%~95% RH Non condensing

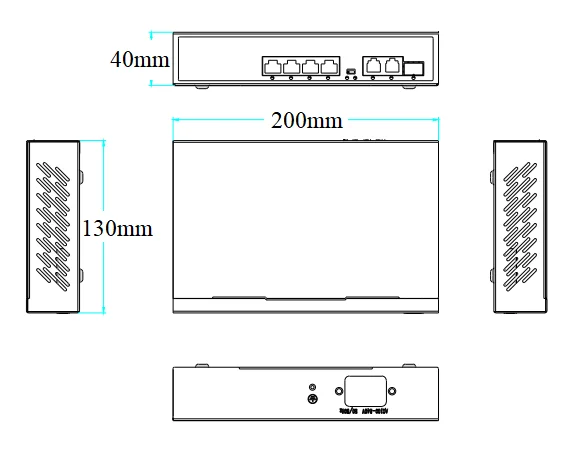

Dimension (L*W*H)

200*130*40mm

Net /Gross Weight

0.6kg / 0.9kg

0.65kg / 0.95kg

Installation

Desktop, Wall mounted

Certification & Warranty

Lightning Protection

Lightning protection: 4KV 8/20us, Protection level: IP30

Certification

CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS

Warranty
