10W 20W 30W Desktop mini Fiber Laser printer Marking Machine Many Languages Laser Engraving Machine for Plastic Metal

Product Overview

Description

Desktop 20w Optical Fiber Laser Printer Laser Marking Machine For Metal chip bottle pipe



Add to cart and "FOLLOW" our store, get more discounts and coupons!

Buy more discounts more, Please contact me! Phone/whatsap: +8615172384564



Quick Details

Please consult us for specific shipping costs



NOTE: The price of the product does not include tariffs.

If there is tariffs, the consignee should pay it.
Seller is not responsible for any tariff issues!

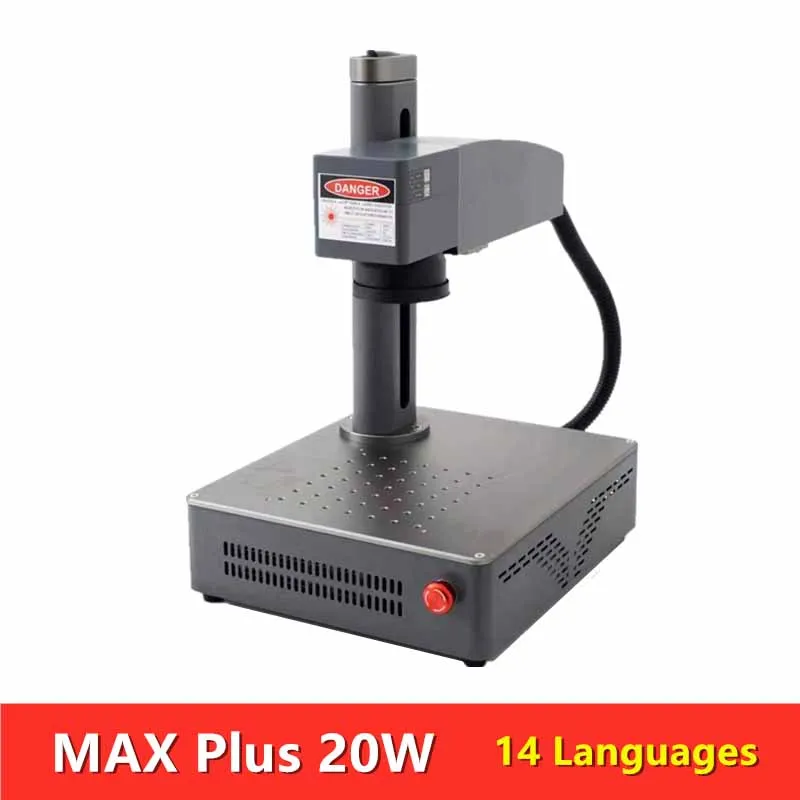

Model number: MAX Plus 20W
Laser power: ≤20W
Engraving line speed: ≤7000mm/s
Carving range: 110x110mm
Repeat accuracy: ≤0.001mm
Marking depth: 0.015-0.2mm
Marking precision: ≤0.001mm
Marking line width: 0.05-0.01mm
Laser wavelength: 1064nm
Whole machine power: ≤500w
Cooling mode: Air cooling
Supported formats: PLT. DXF. BMP
Support system: Win7/Win10/XP
The fuselage size: 380x330x510mm
Fuselage weight: Net.15.5kg/Gross. 19.8kg
Packing size: 540x430x290mm(carton package)
Support languages: Chinese, English, Korean, Japanese, Arabic, Russian, Portuguese, Vietnamese, Thai, Spanish, French, German, Turkish



Standard configuration:
Max 20x Laser
Shaftless marking card
Jinhai Chuang Galvanometer
Field mirror
Customized three-in-one power supply
Chassis hand column

Standard accessories:
power cord x1
30cm ruler x1
foot switch x1
positioning bar x2
Allen wrench x3
Fixing screw x6
U disk x1 (with marking software, driver, debugging red light parameters, area ratio parameters)



 Note:

1.Please allow 1-2mm errors due to manual measurement.

2.Due to the difference between different monitors, there are color differences, please take the real product as the standard.



For drop shipping:



1.There is to fulfill the orders on a daily basis
2.For the shipping is quickly
3.No invoice or receipt included

Intelligent

Built-In Embedded System, could edit the file on machine without connecting to a computer.

Portable

The Whole Machine weight is light, which is portable to carry and easy to operation.

Visual Operation

The New 5-inch High-definition Capactive touch screen with friendly interface. Could Operate Editing and Marking Easily.

Easy Operation

No need to adjust the focal length, Could finish editing and printing in one Step.

Worry Free

There is scale mark and red ray mark at marking area.
