Intelligent industrial all in one board adopts Rockchip RK3328 quad core chip solution and supports Android7.1 system
Intelligent industrial all in one board adopts Rockchip RK3328 quad-core chip solution and supports Android7.1 system
Intelligent industrial all in one board adopts Rockchip RK3328 quad-core chip solution and supports Android7.1 system
Intelligent industrial all in one board adopts Rockchip RK3328 quad-core chip solution and supports Android7.1 system
Intelligent industrial all in one board adopts Rockchip RK3328 quad-core chip solution and supports Android7.1 system
Intelligent industrial all in one board adopts Rockchip RK3328 quad-core chip solution and supports Android7.1 system
Intelligent industrial all in one board adopts Rockchip RK3328 quad-core chip solution and supports Android7.1 system

Intelligent industrial all in one board adopts Rockchip RK3328 quad core chip solution and supports Android7.1 system

Share on (1601279735232):


Price:$49.00 - $60.00

Quantity:


Product Overview

Description



Related products




Products Description








Overview:

Android 7.1 Industrial Control ARM mainboard from sunchip

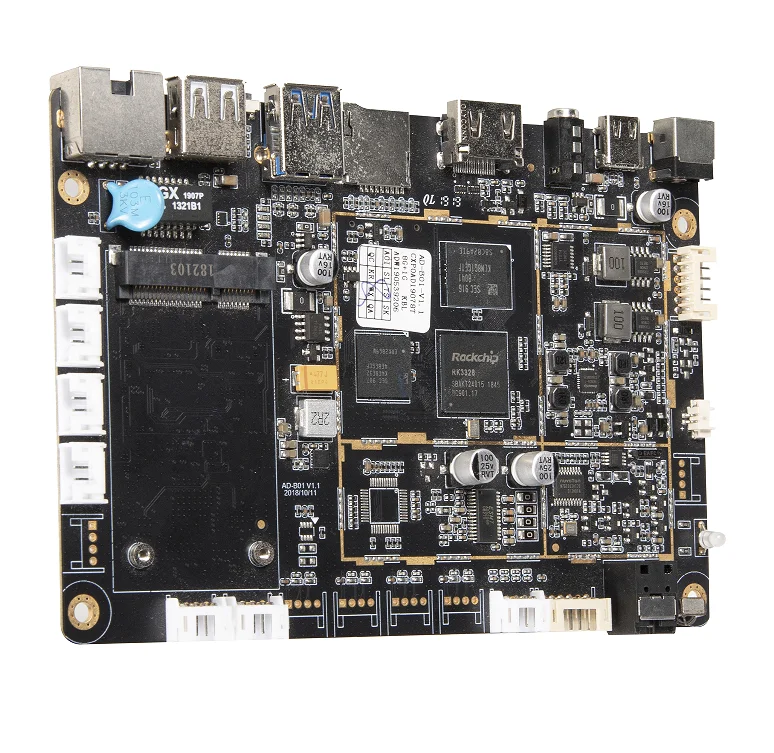

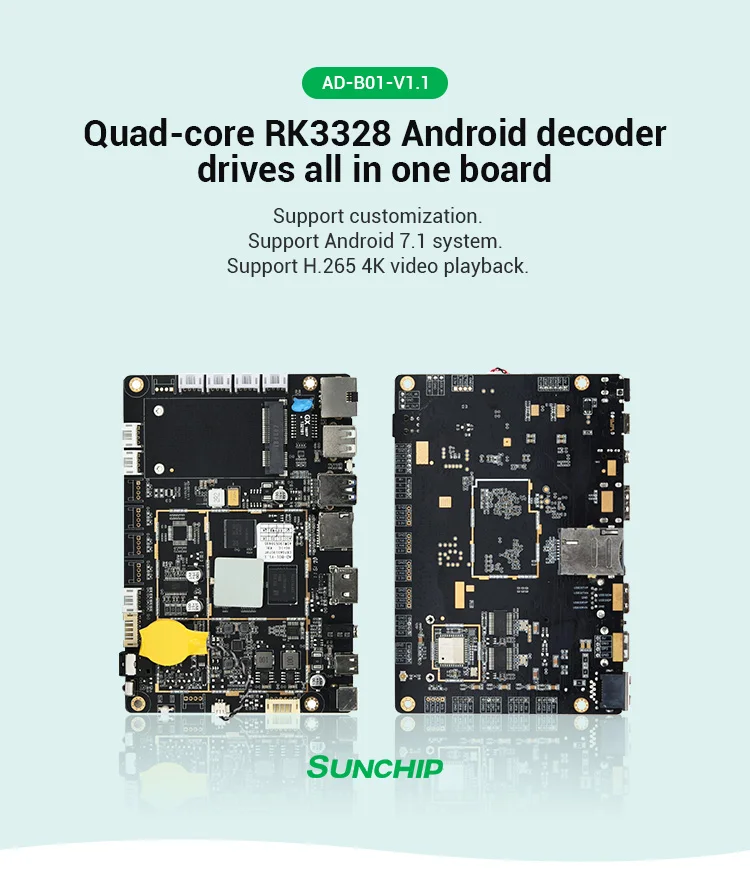

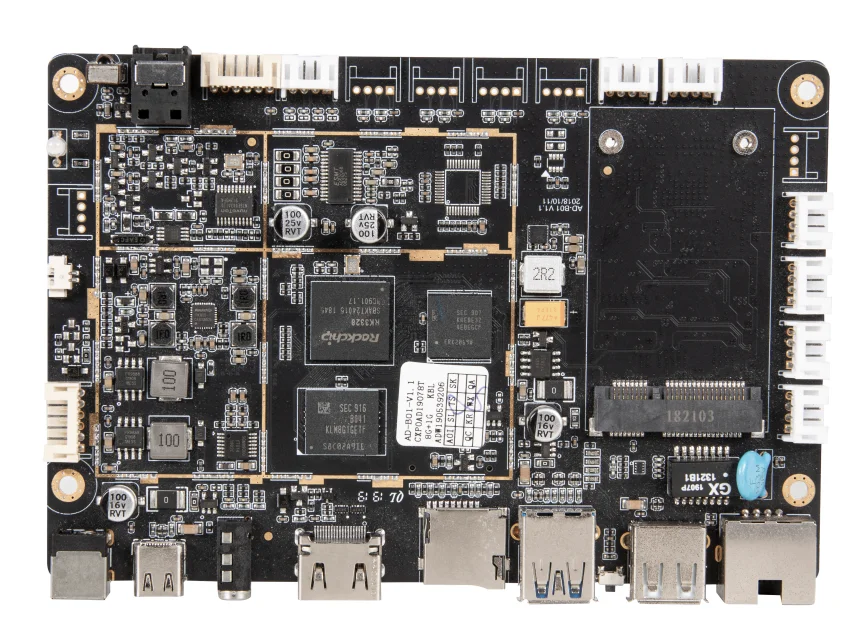

RK3328 Intelligent industrial all in one board adopts Rockchip RK3328 quad-core chip solution and supports Android7.1 system.Powerful computing power. support H.265 4K video playback. With a rich interface, the product becomes more versatile.

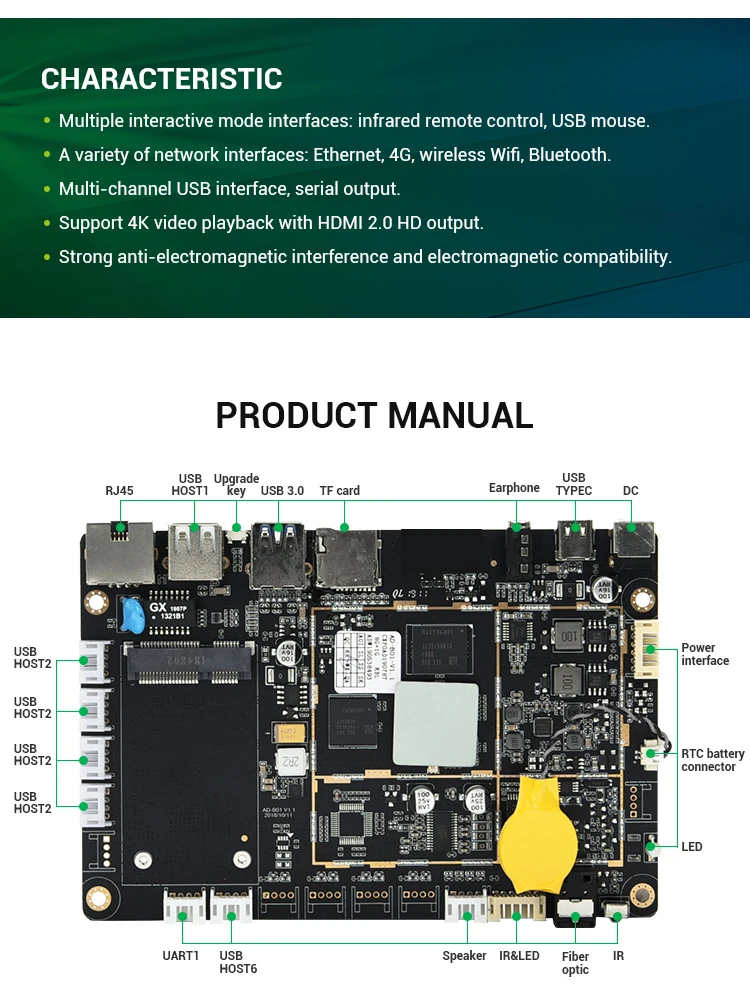

Features:

 Multiple interactive mode interfaces: infrared remote control, USB mouse.

 A variety of network interfaces: Ethernet, 4G, wireless Wifi, Bluetooth.

 Multi-channel USB interface, serial output.

 Support 4K video playback.

 Strong anti-electromagnetic interference and electromagnetic compatibility.

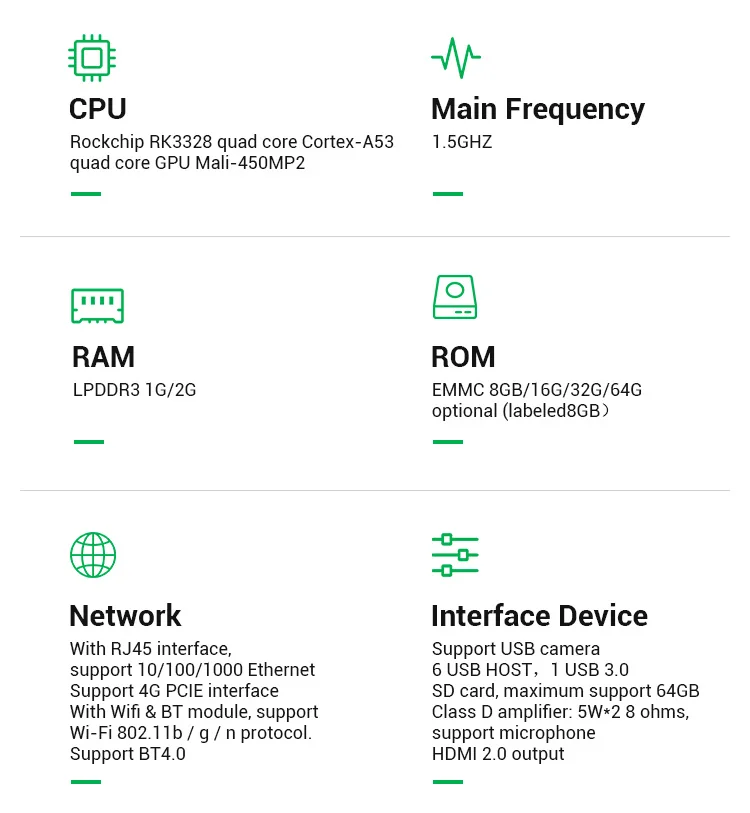

Product Parameter


CPU
Rockchip RK3328 quad core Cortex-A53 quad core GPU Mali-450MP2
Main frequency
1.5GHZ
Deposit
LPDDR3 1G/2G
Built-in storage capacity
EMMC 8GB/16G/32G/64G optional (labeled8GB）
Network
With RJ45 interface, support 10/100/1000 Ethernet
Support 4G PCIE interface
With Wifi & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0
Real Time Clock
Built-in real-time clock powered battery
Interface device
Support USB camera
6 USB HOST，1 USB 3.0
SD card, maximum support 64GB
Class D amplifier: 5W*2 8 ohms, support microphone
Audio
MP3, AAC, WMA, FLAC, OGG, Dolby Digital, Dolby Digital Plus
Video
Supports 1080P@60FPS decoding of video formats such as MPEG1, MPEG2, MPEG4, VP9, VP8, MVC, etc., and supports 4K@60FPS decoding of
H.264 and H.265 video formats.
Support JPG, BMP, PNG and other image formats to browse and support rotation / image zoom function
Power Adapter
Input：AC100-240V.50-60HZ， Output： DC12V 3A


Company Profile




Payment and Delivery


1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.






FAQ


1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.

2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.

3) Q: How long is the warranty time?
A: 1 Year.

4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.

5) Q: Do you give any discounts ? A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.

6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
