Banana Pi BPI M5 Pro AI SBC Rockchip RK3576 16GB LPDDR4x 4K Video Dual GbE WiFi 6, BT5 PCs & Edge Devices
- Category: >>>
- Supplier: Guangdong Bipai Keji Cpa. Ltd.
Share on (1601279737543):
Product Overview
Description
Product Description
Model | BPI-M5 Pro |
Brand | BPI |
POWER SUPPLY | USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A |
A classic single board computer:

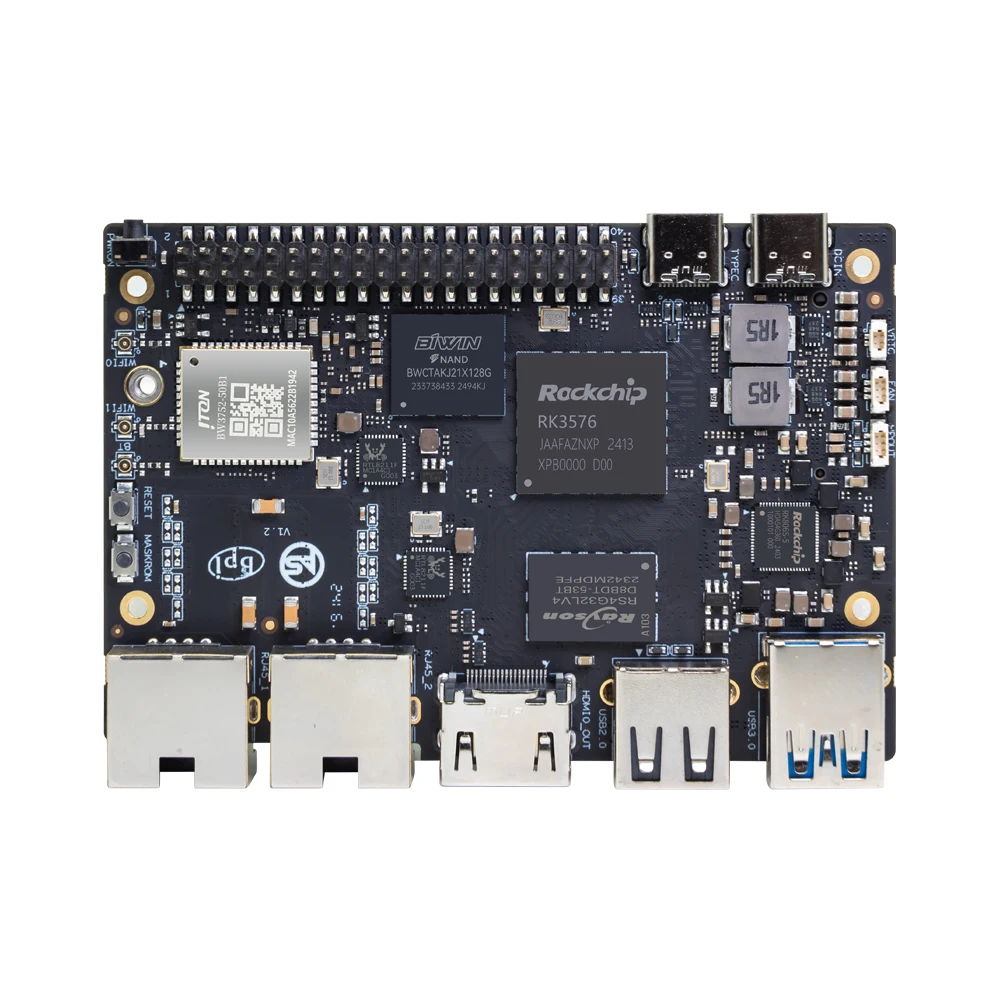

Banana PI BPI-M5 Pro
* SoC: Rockchip RK3576
* CPU: Integrated with four Cortex-A72 cores @ 2.2GHz and four Cortex-A53 cores @ 1.8GHz, along with a separate NEON
co-processor.
* GPU: ARM Mali G52 MC3 GPU
* NPU: Up to 6 TOPs computing power (INT8), supports INT4/INT8/INT16 mixed operations.
* VPU/Encoding & Decoding:
* Hardware Decoding: Supports H.264, H.265, VP9, AV1, and AVS2 up to 8K@30fps or 4K@120fps.
* Hardware Encoding: Supports H.264 and H.265 up to 4K@60fps, high-quality JPEG encoder/decoder supports up to 4K@60fps.
* RAM: 8/16GB 32-bit LPDDR4x, default is 8GB. RK3576 supports a maximum of 16GB.
* Flash: 32/64/128GB eMMC, default is 64GB eMMC.
* Operating Voltage: Wide input voltage range, from 4.5V to 23V (voltage error ±5%).
* Operating Temperature: 0°C to 80°C
* Operating Systems:
* Official Rockchip Support: Android 14, Debian 11, Buildroot
* Third-party Support: Armbian
* PCB: 8-layer PCB board design
* Weight: 43g
* Dimensions: 92mm × 62mm
* CPU: Integrated with four Cortex-A72 cores @ 2.2GHz and four Cortex-A53 cores @ 1.8GHz, along with a separate NEON
co-processor.
* GPU: ARM Mali G52 MC3 GPU
* NPU: Up to 6 TOPs computing power (INT8), supports INT4/INT8/INT16 mixed operations.
* VPU/Encoding & Decoding:
* Hardware Decoding: Supports H.264, H.265, VP9, AV1, and AVS2 up to 8K@30fps or 4K@120fps.
* Hardware Encoding: Supports H.264 and H.265 up to 4K@60fps, high-quality JPEG encoder/decoder supports up to 4K@60fps.
* RAM: 8/16GB 32-bit LPDDR4x, default is 8GB. RK3576 supports a maximum of 16GB.
* Flash: 32/64/128GB eMMC, default is 64GB eMMC.
* Operating Voltage: Wide input voltage range, from 4.5V to 23V (voltage error ±5%).
* Operating Temperature: 0°C to 80°C
* Operating Systems:
* Official Rockchip Support: Android 14, Debian 11, Buildroot
* Third-party Support: Armbian
* PCB: 8-layer PCB board design
* Weight: 43g
* Dimensions: 92mm × 62mm
Product Usage
Product usage introduction
Please refer to Banana PI WIKI page
Contact
Name: Klauschen
Mob: 18711224927
Skype: sinovoip-02
Email: klauschen(at)banana-pi.com
If you have any needs, please feel free contact me : )
Mob: 18711224927
Skype: sinovoip-02
Email: klauschen(at)banana-pi.com
If you have any needs, please feel free contact me : )
Company Introduction
Guangdong Bipai Technology Co., Ltd. was established in Shenzhen, Guangdong in 2003. In order to further expand the scale of the company, it purchased an office in Rongyi Building where in Songshan Lake High-tech Industrianl Park, Dongguan in 2016. Then moved its headquarters to the seventh floor of Rongyi Building, and set up a branch offices and operation center in Shenzhen. Guangdong Bipai Technology Co., Ltd. is a national high-tech enterprise focusing on the R&D, production and sales of ARM embedded products.The accumulation and precipitation of the past 20 years has successfully constructed a service chain from product development to mass production.The team has nearly 100 employees, of which 60% are R&D engineers, all of whom have years of development experience in network communications and embedded system software and hardware development. More than 90% of the members in the R&D team have a bachelor degree or above, and have more than 5 years of work experience in related industries. And the management team has more than 20 years of supply chain management and production experience in the communications and electronics industries. Beside, Bipai Technology have own factory. So it can provide customers with integrated services of product planning, software and hardware development, certification, supply chain management, and manufacturing. Bipai Technology's perfect supply chain management capabilities and production capabilities can provide customers with the most cost-effective product’s solutions. And provides the "one-stop" service of design, research and development, production and after-sales, and the integrated solutions from development to mass production.

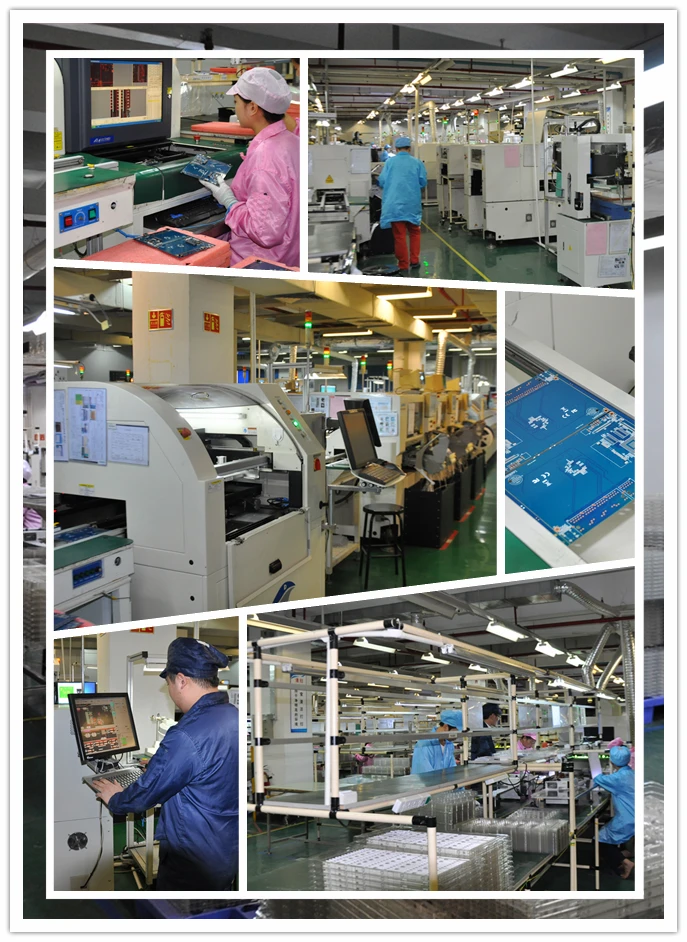

Factory
