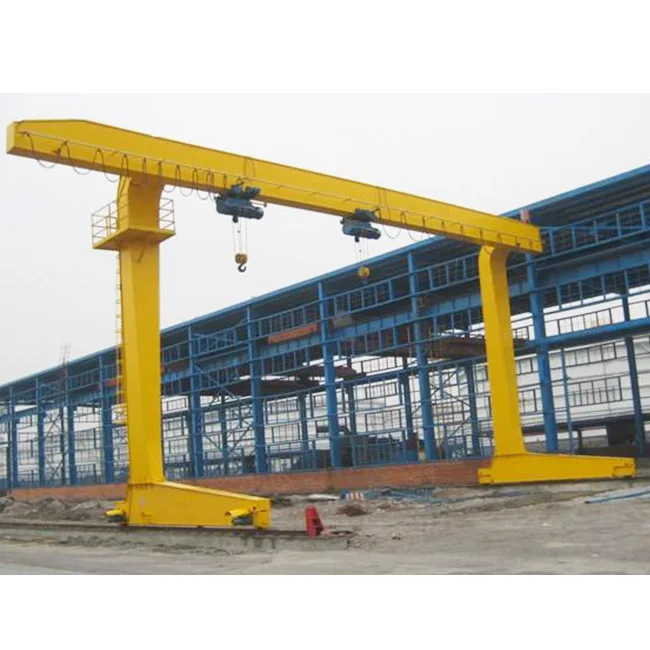

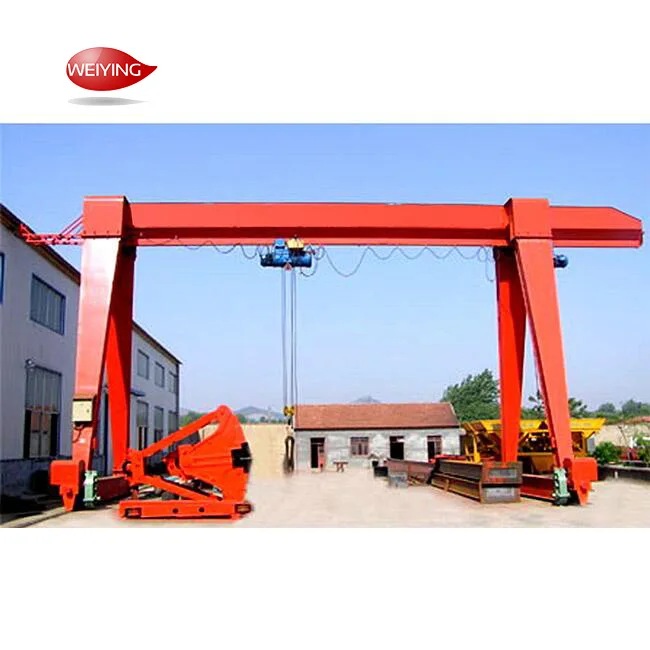

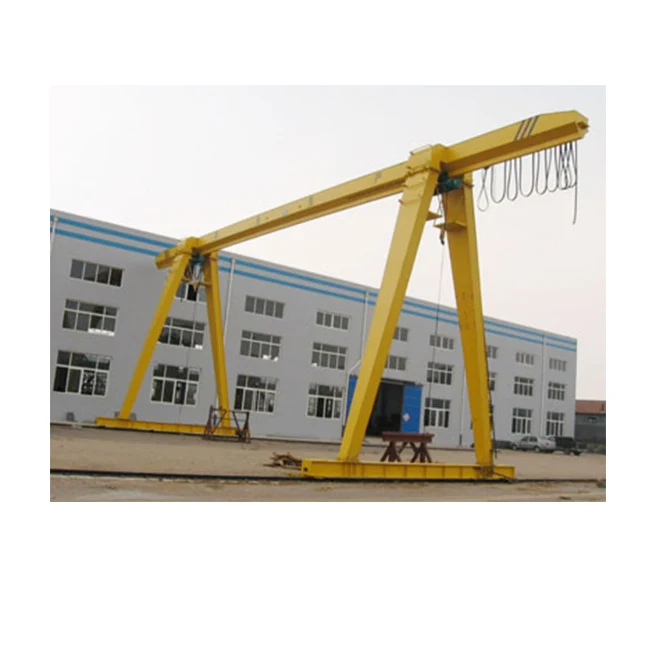

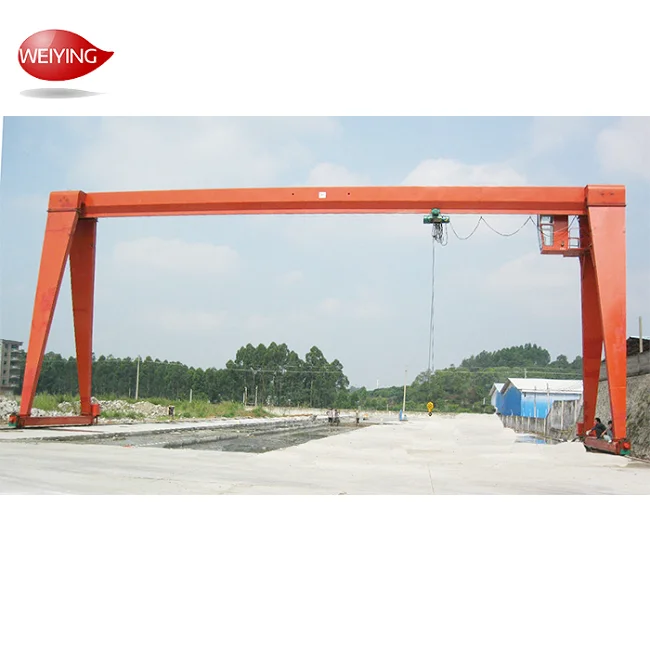

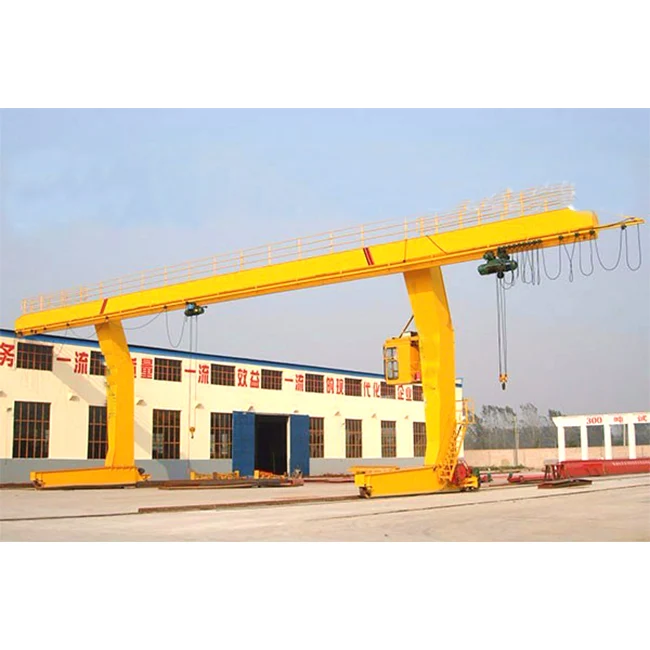

MH gantry crane
10t 15t 20t 30t gantry overhead crane mobile rail mounted electric hoist lifting mh gantry crane with cable

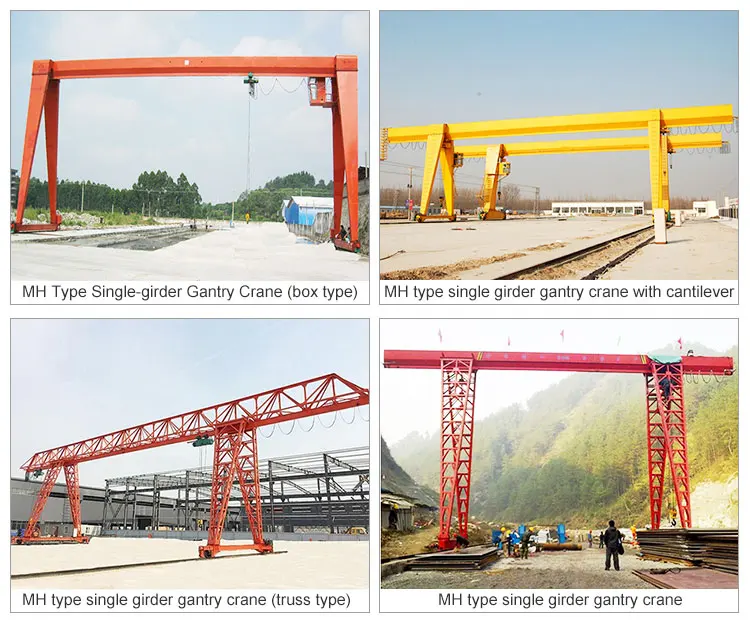

The MH type gantry crane is used with CD, MD and other types of electric hoist. It is a small and medium-sized crane with rail operation. Its applicable crane capacity is 3-32 tons, applicable span is 12-50 meters, and working environment is -20 ~ 40. ° C. This product is a general-purpose using crane,which is mostly used for loading and unloading or grasping materials in open aerial and warehouses. The crane control mode have ground control and cabin control. The crane structural frame have truss type, box type, top box with truss leg type for choose
best quality Single Girder Gantry Crane
Product technology
Product details
Lift weight(T) | 5 | 10 | 16 | 20 |
Span(m) | 8/12/16/20/24 | 8/12/16/20/24 | 8/12/16/20/24 | 8/12/16/20/24 |
Lift height(m) | 6/9/12 | 6/9/12 | 6/9/12 | 6/9/12 |
Voltage | 380/customize | 380/customize | 380/customize | 380/customize |

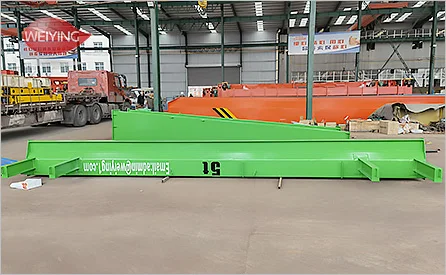

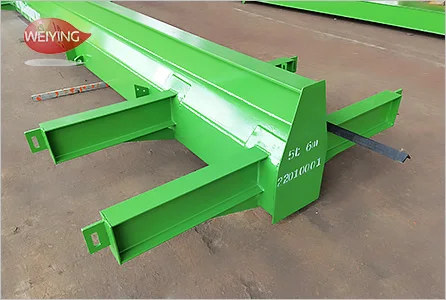

Main beam
best quality Single Girder Gantry Crane
1.Reinforcing plate design.
2. A rain cover can be installed.
3. There are bumpers at both ends.
4. Install angle iron scribing and threading pipes.
5. Corresponding number, easy to install.
6.rain cover.
2. A rain cover can be installed.
3. There are bumpers at both ends.
4. Install angle iron scribing and threading pipes.
5. Corresponding number, easy to install.
6.rain cover.

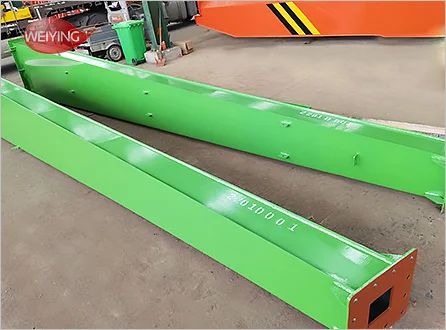

Outrigger
1. Install the ladder.
2. Install the conduit.
2. Install the conduit.

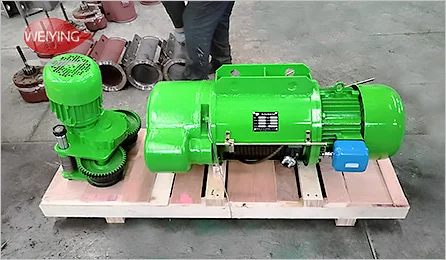

Hoist
Model CD1,MD1 wire rope electric hoist is a small-sized lifting equipment, which can be mounted on single beam, bridge ,gantry and arm cranes. lt is widely used in factories, mines, warehouse.

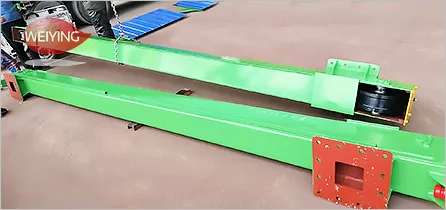

Wheel
Main beam and end carriage areproduced in our special Vacuum casting workshop (No sand inclusion technique) which makes outer surface hard-wearing and durable.

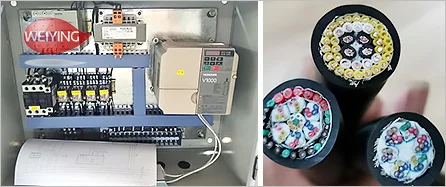

Electrical system
1. Brand electrical appliances.
2. Cable.
3. Run the slip line.
4. Cable reel or spring reel.
2. Cable.
3. Run the slip line.
4. Cable reel or spring reel.
Connecting shaft
1.Easy to install.
2.Reinforced Products.
2.Reinforced Products.

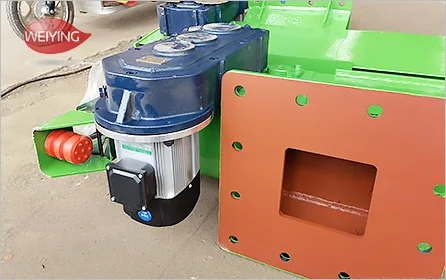

Motor
1. Vertical variable speed motor,
2.Maintenance free.
3.Insulation class F.
4.Protection class IP54.
5.Electromagnetic brake system.
2.Maintenance free.
3.Insulation class F.
4.Protection class IP54.
5.Electromagnetic brake system.
Wireless remote controller
Can be operated remotely within 200 meters, safe and convenient to use, simple to operate, and high in efficiency.

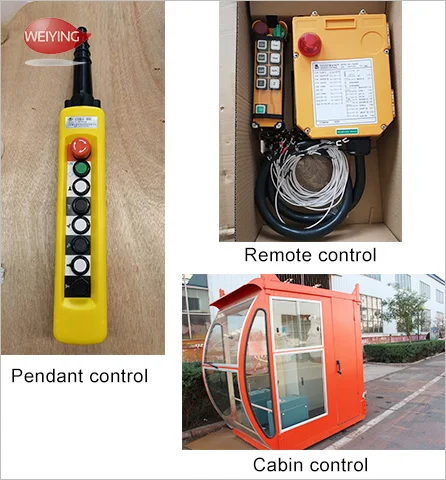

Operation
1.Ground control and cabin control.
2.The cabin has open style, close style,can fixed on left or right.
3.The open direction include end open,side open or top open.
4.The cabin includes special small room for single-girder and capsule cabin.
5.Ground control has handle and remote control, do not need to set up
special driver.
6.Users can choose as you need.
Operation
1.Ground control and cabin control.
2.The cabin has open style, close style,can fixed on left or right.
3.The open direction include end open,side open or top open.
4.The cabin includes special small room for single-girder and capsule cabin.
5.Ground control has handle and remote control, do not need to set up
special driver.
6.Users can choose as you need.

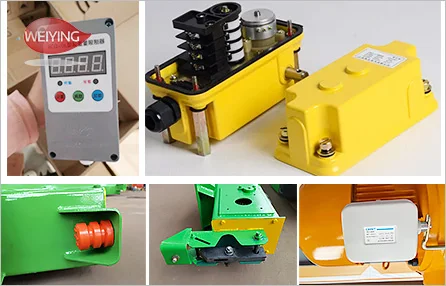

Security system
1.Lifting Limit switches.
2.Traveling Limit switches.
3. Overload limiter.
4. Buffer.
5. Rail clamp.
2.Traveling Limit switches.
3. Overload limiter.
4. Buffer.
5. Rail clamp.
