Pure Sine Wave 3000w 12v 24v 220v Convertisseur 12v 220v Pur Sinus 3000w Power Inverter Dc 12v To Ac 220v 110v 3000w
- Category: >>>
- Supplier: Shenzhen Alps Technology Co. Ltd.Shenzhen Ltd.
Share on (1601279821329):
Product Overview
Description

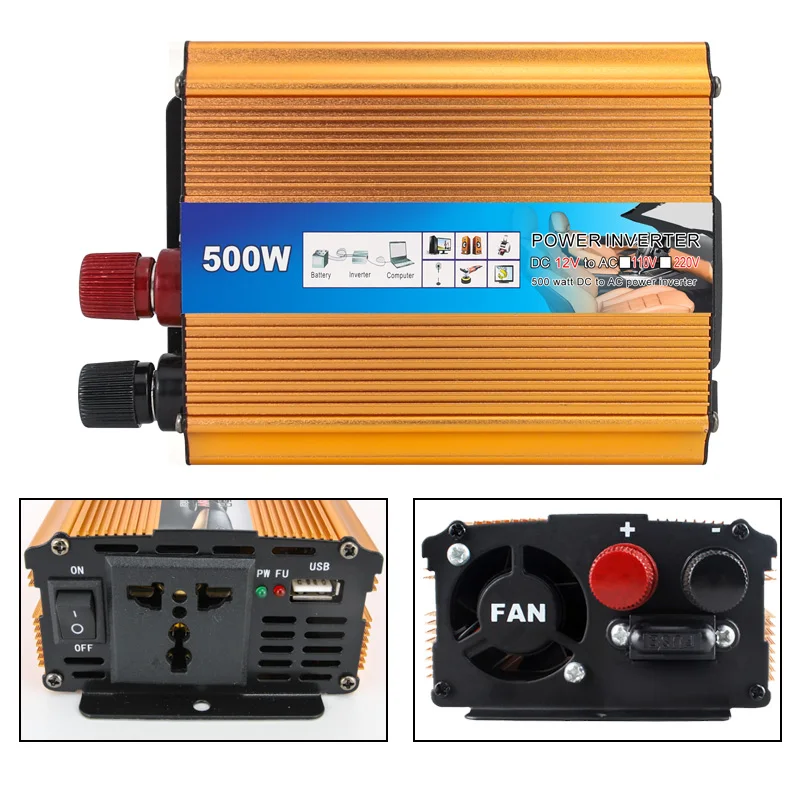

Inversor 12v 24v 48v To 110v 220v modified sine wave Off Grid Inverter 500w 1000w 1500w 2000w Dc To Ac Power Solar Inverter
Model | AL500W-003 | AL1000W-003 | AL1500W-003 | AL2000W-003 | AL3000W-003 | AL4000W-003 | |||||
Rated Power | 350w | 550w | 650w | 900w | 1500W | 2000W | |||||
Peak Power | 500w | 1000w | 1500w | 2000w | 3000W | 4000W | |||||
Overload Protection | 350±100 | 550±100 | 650±100 | 900±100 | 1500±100 | 2000±100 | |||||
Input Voltage | 12V 24V | 12V/24/48V/60V | |||||||||
Output Voltage | 220VAC 50Hz±3Hz | ||||||||||
Output Waveform | modified sine wave | ||||||||||
Overvoltage Protection | 12V(9.5V-15.8V)/24V(19.5V-29.8V)/48V(39V-60V)/60V(53V-72.5V) | ||||||||||
Efficiency | 95% or more | ||||||||||
Protective device | Start up:45℃±5℃ Shut down:38℃±5℃ Over temperature shut down:85℃±5℃， Over temperature recovery:55℃±5℃ | ||||||||||
Output Socket | The default is the national standard socket(European standard, British standard, and American standard sockets can be selected) | ||||||||||
Other protection | 1. Short circuit protection 2. Overcurrent protection 3. Overvoltage protection 4. Low voltage protection 5. Overload protection 6. Overheat protection 7. Enable reverse protection 8. Electric shock protection 9. Detect protection | ||||||||||

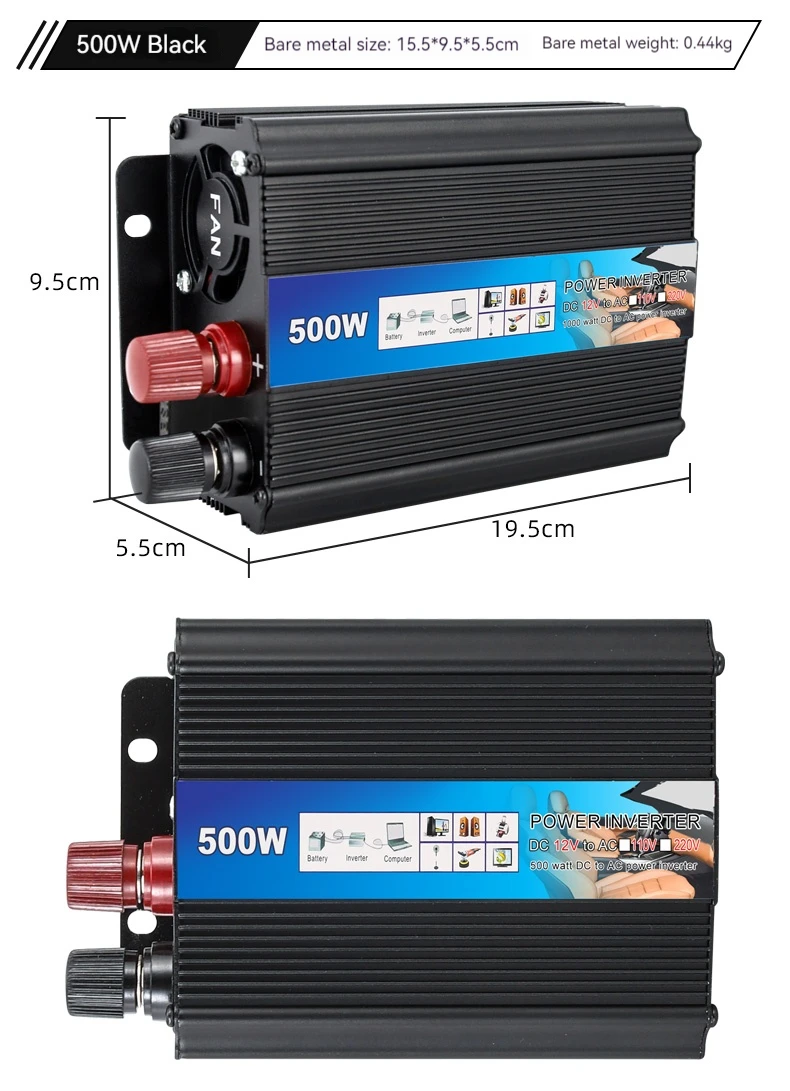

Package Size(CM) | 19.5*15*6.5cm | 23*14.5*6.5cm | 23*14.5*6.5cm | 31*15*6.5cm | 31*20.5*7.5cm | 38*20.5*9.5cm | |||||
Weight(KG) | 0.7kg | 0.85KG | 0.85KG | 1.05KG | 1.75kg | 2.25kg | |||||
When buying an inverter, you must first understand the voltage and frequency used in your country. Purchasing an inverter
according to the frequency of your country will greatly improve the conversion efficiency of the inverter. If you have any
questions, please contact us before purchasing. Thank you!
Country /Voltage/Frequency
Korea:220V/60Hz
Australia:230V/50Hz
Brazil:110V/220V/60Hz
Chile:220V/50Hz
Colombia:110V/60Hz
Denmark :230V/5oHz
Finland:230V/50Hz
France:230V/50Hz
Israel:230V/50Hz
Italy:230V/50Hz
Russia:220V/50Hz
United States:110V/120V/220V/60Hz
Turkey:230V/50Hz
Spain:230V/50Hz
Mexico:127V/60Hz
PuertoRico:120V60Hz
SaudiArabia:127V/220V/60Hz
South Africa:220V/230V50Hz
Sweden: 230V/50Hz
Switzerland:230V/50Hz
United Kingdom:230V/50Hz

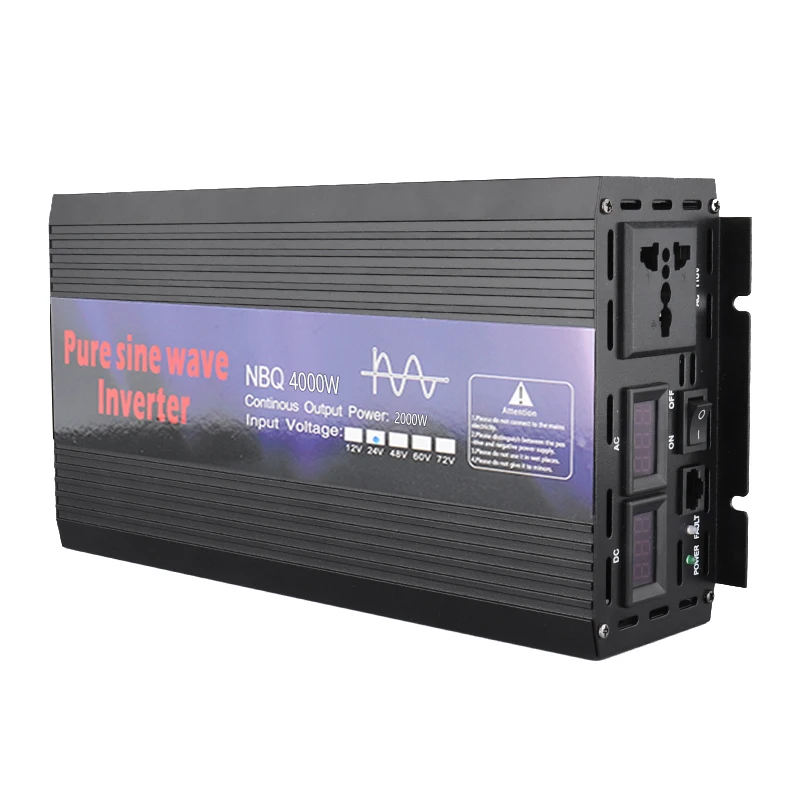

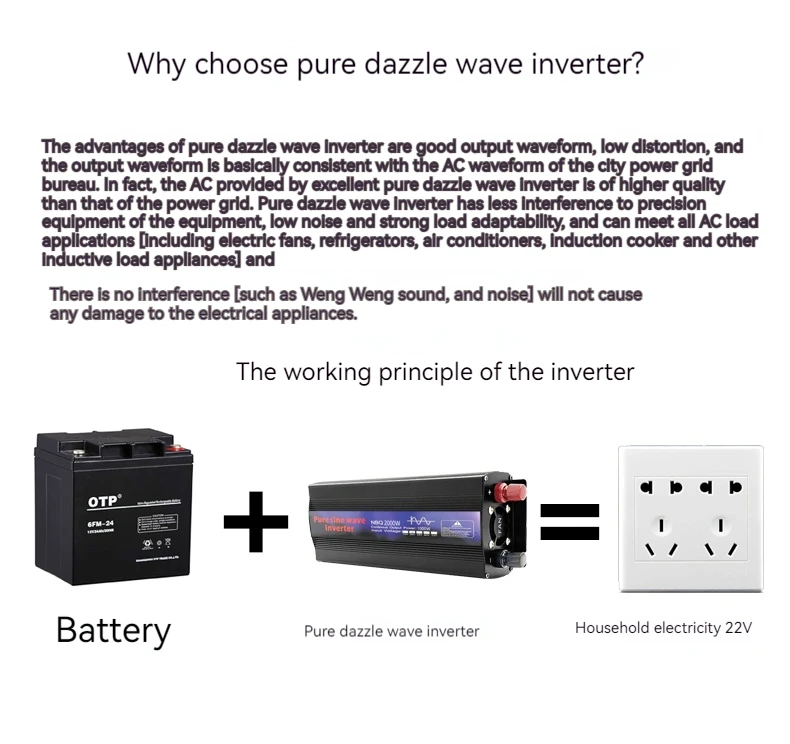

The benefits Pure Sine Wave Inverter

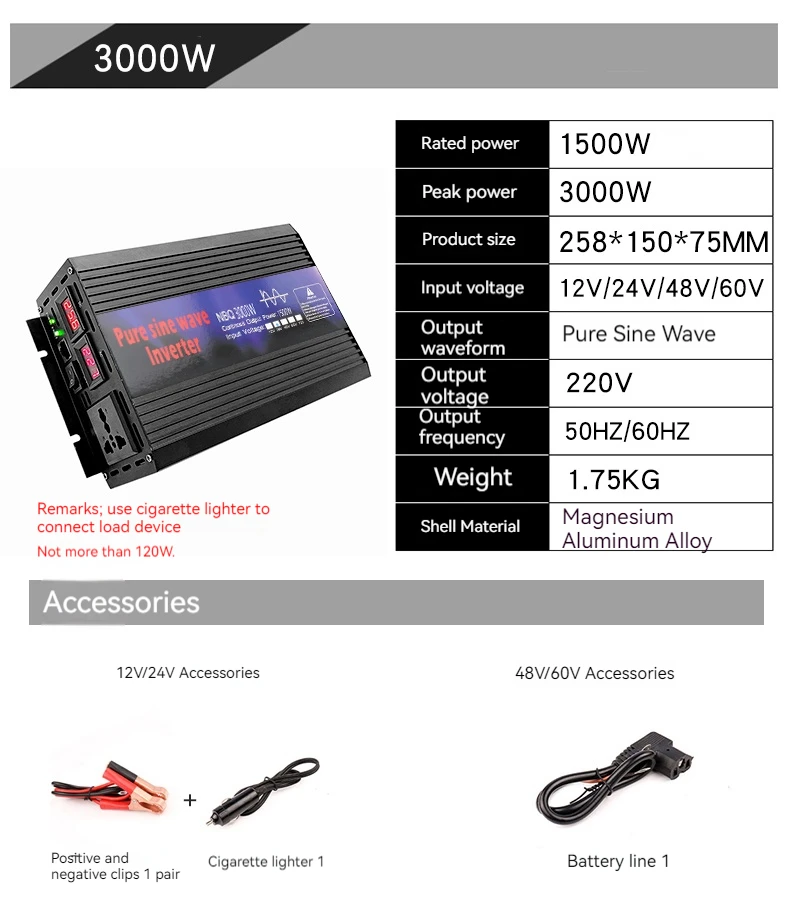

Specifications:
Type: Pure Sine Wave Inverter
Output voltage waveform: Pure sine wave
Power: 600W-12000W
Output voltage:110V/220V/230V/240V
Input voltage: 12V/24V/48V/60V/72V
Output frequency: 50Hz/60Hz
Socket: Universal(Commonly used in sockets in all countries)

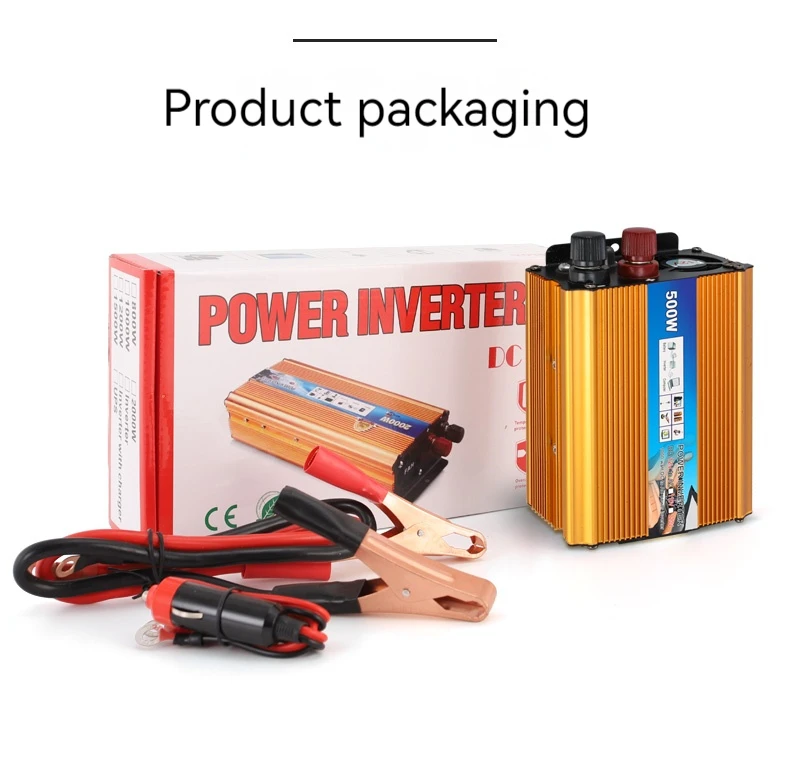

Packaged included:
1 x Pure Sine Wave Inverter
1 x English User manual

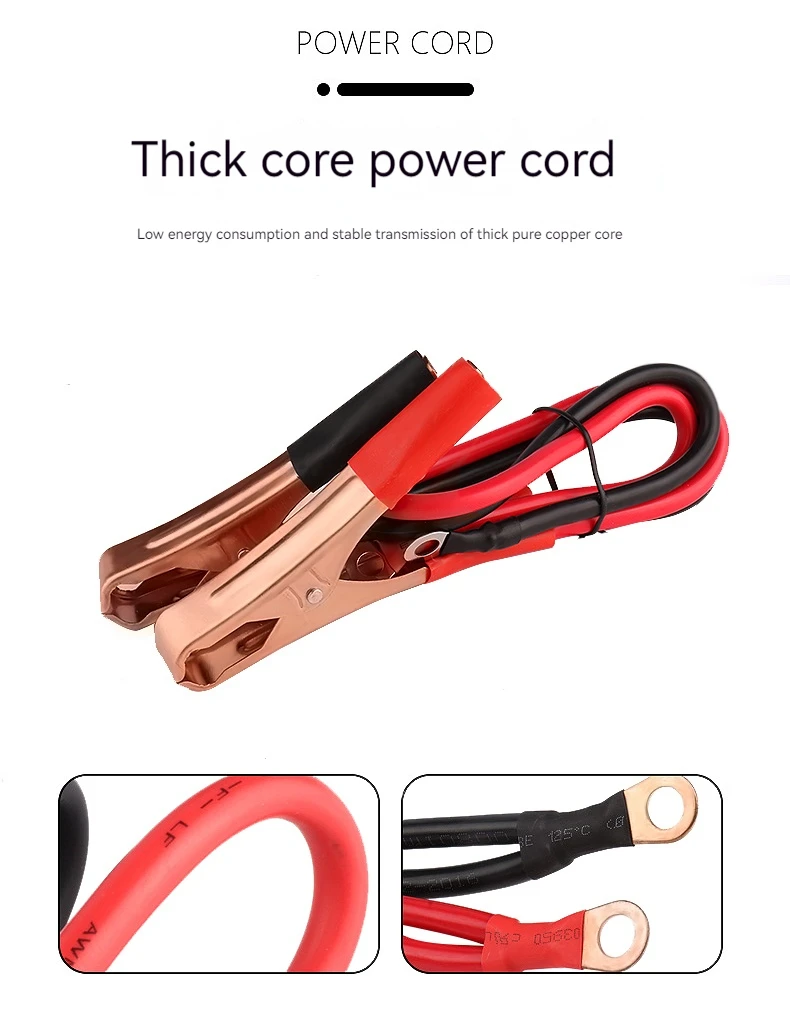

1 x Battery thick line
1 x battery clip
When using 12V/24V to connect the cigarette lighter wire in the car, please do not exceed 300W (12V car). 400W (24V truck). If this power is exceeded, please connect the battery output to the inverter, otherwise the car fuse will blow.
High voltage protection:

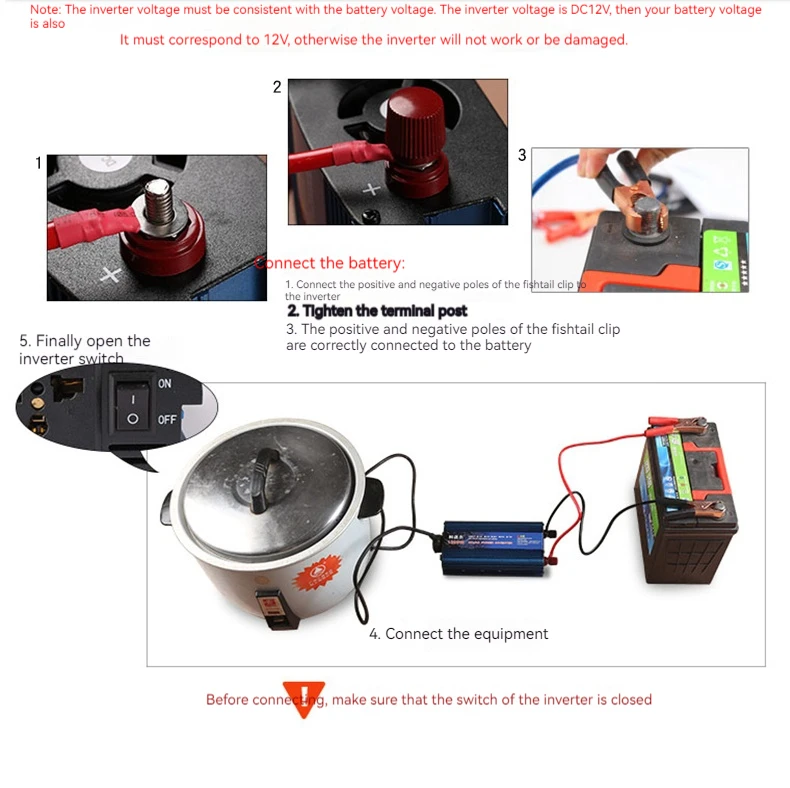

12V inverter can only connect to 12V batteries (working voltage range: 10.5V~15.5V), 24V inverter can only connect to 24V batteries (working voltage range: 19.5V~28V) 48V inverter can only connect to 48V batteries (working voltage range: 42V~53V) 60V inverter can only connect to 60V batteries (working voltage range: 57V~70V), When the voltage exceeds the working voltage range, the inverter will automatically turn off the inverter because the voltage is too low or too high. The purpose is to avoid over voltage damage to the inverter or over discharge to damage the battery.
Note:
The input voltage of 12V inverter and 24V inverter cannot be universal. If the wrong input voltage is selected, the inverter will not work. If you don't understand anything, please contact customer service, we will reply you as soon as after we see the information. Thank you!
Features:
The benefits Pure Sine Wave Inverter.
1:Aluminum-magnesium alloy shell, light weight, good thermal conductivity, can quickly reduce the temperature of components, work long hours are not affected.
2: Pure sine wave, intelligent filter, does not interfere with electrical appliances, protects electrical appliances. With high
conversion efficiency (up to 95%), the low power consumption of the product itself can greatly extend battery life.
3:You can use electrical equipment, including TV / LED lights / LCD displays, especially inductive load appliances.
4:Pure sine wave inverter, 110V / 220V for city power supply and power quality, so it has.
5: Eight-bit intelligent protection: overload protection, high voltage protection, low voltage protection, overheating protection, reverse connection protection, short circuit protection, overcurrent protection, insurance protection,Intelligent chip control, perfect protection.
6:Buzzer reminder. Once any protection of the inverter is triggered, the inverter will immediately disconnect the power, the load enters the protection mode and reminds people with a buzzer reminder.
One inverter can be used for multiple purposes: home, solar, car, outdoor
according to the frequency of your country will greatly improve the conversion efficiency of the inverter. If you have any
questions, please contact us before purchasing. Thank you!
Country /Voltage/Frequency
Korea:220V/60Hz
Australia:230V/50Hz
Brazil:110V/220V/60Hz
Chile:220V/50Hz
Colombia:110V/60Hz
Denmark :230V/5oHz
Finland:230V/50Hz
France:230V/50Hz
Israel:230V/50Hz
Italy:230V/50Hz
Russia:220V/50Hz
United States:110V/120V/220V/60Hz
Turkey:230V/50Hz
Spain:230V/50Hz
Mexico:127V/60Hz
PuertoRico:120V60Hz
SaudiArabia:127V/220V/60Hz
South Africa:220V/230V50Hz
Sweden: 230V/50Hz
Switzerland:230V/50Hz
United Kingdom:230V/50Hz
The benefits Pure Sine Wave Inverter
Specifications:
Type: Pure Sine Wave Inverter
Output voltage waveform: Pure sine wave
Power: 600W-12000W
Output voltage:110V/220V/230V/240V
Input voltage: 12V/24V/48V/60V/72V
Output frequency: 50Hz/60Hz
Socket: Universal(Commonly used in sockets in all countries)
Packaged included:
1 x Pure Sine Wave Inverter
1 x English User manual
1 x Battery thick line
1 x battery clip
When using 12V/24V to connect the cigarette lighter wire in the car, please do not exceed 300W (12V car). 400W (24V truck). If this power is exceeded, please connect the battery output to the inverter, otherwise the car fuse will blow.
High voltage protection:
12V inverter can only connect to 12V batteries (working voltage range: 10.5V~15.5V), 24V inverter can only connect to 24V batteries (working voltage range: 19.5V~28V) 48V inverter can only connect to 48V batteries (working voltage range: 42V~53V) 60V inverter can only connect to 60V batteries (working voltage range: 57V~70V), When the voltage exceeds the working voltage range, the inverter will automatically turn off the inverter because the voltage is too low or too high. The purpose is to avoid over voltage damage to the inverter or over discharge to damage the battery.
Note:
The input voltage of 12V inverter and 24V inverter cannot be universal. If the wrong input voltage is selected, the inverter will not work. If you don't understand anything, please contact customer service, we will reply you as soon as after we see the information. Thank you!
Features:
The benefits Pure Sine Wave Inverter.
1:Aluminum-magnesium alloy shell, light weight, good thermal conductivity, can quickly reduce the temperature of components, work long hours are not affected.
2: Pure sine wave, intelligent filter, does not interfere with electrical appliances, protects electrical appliances. With high
conversion efficiency (up to 95%), the low power consumption of the product itself can greatly extend battery life.
3:You can use electrical equipment, including TV / LED lights / LCD displays, especially inductive load appliances.
4:Pure sine wave inverter, 110V / 220V for city power supply and power quality, so it has.
5: Eight-bit intelligent protection: overload protection, high voltage protection, low voltage protection, overheating protection, reverse connection protection, short circuit protection, overcurrent protection, insurance protection,Intelligent chip control, perfect protection.
6:Buzzer reminder. Once any protection of the inverter is triggered, the inverter will immediately disconnect the power, the load enters the protection mode and reminds people with a buzzer reminder.
One inverter can be used for multiple purposes: home, solar, car, outdoor

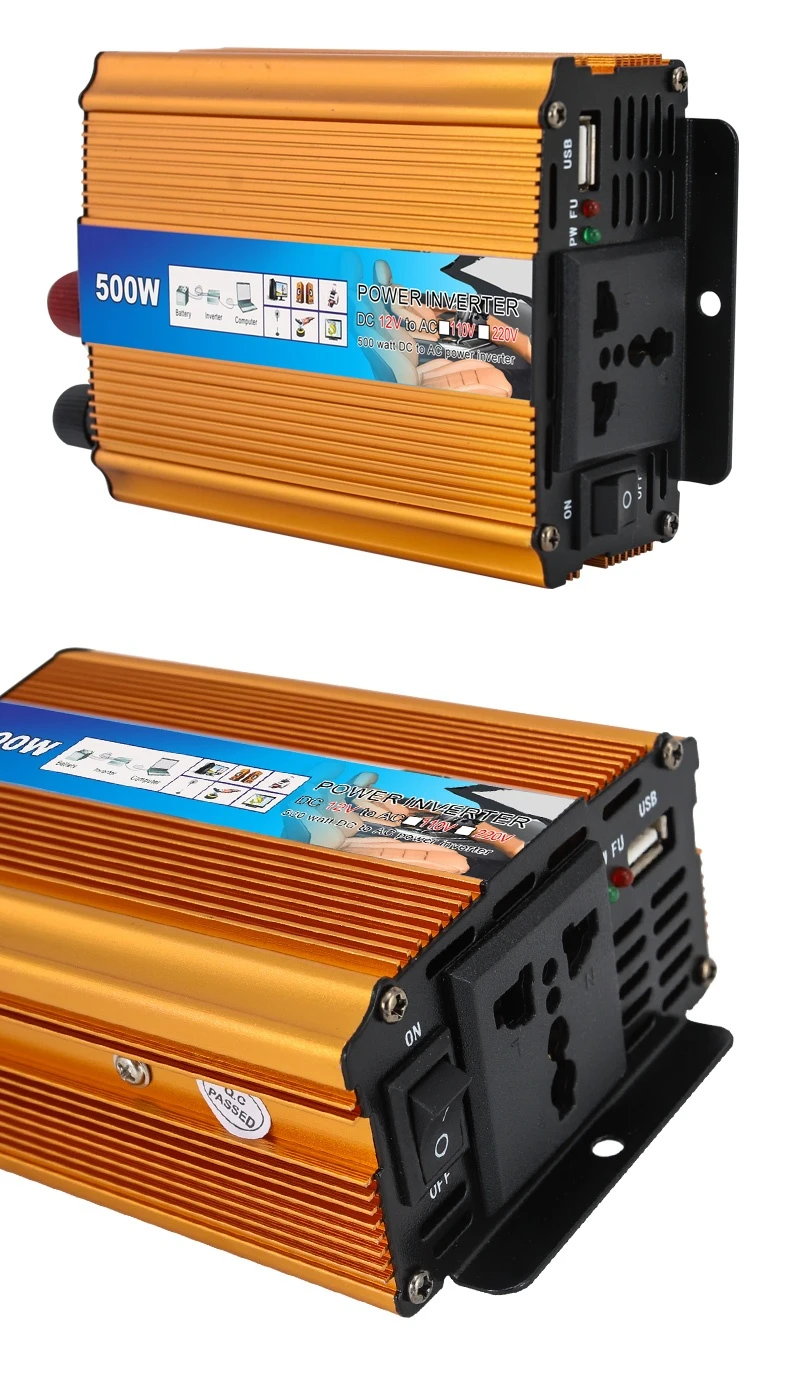

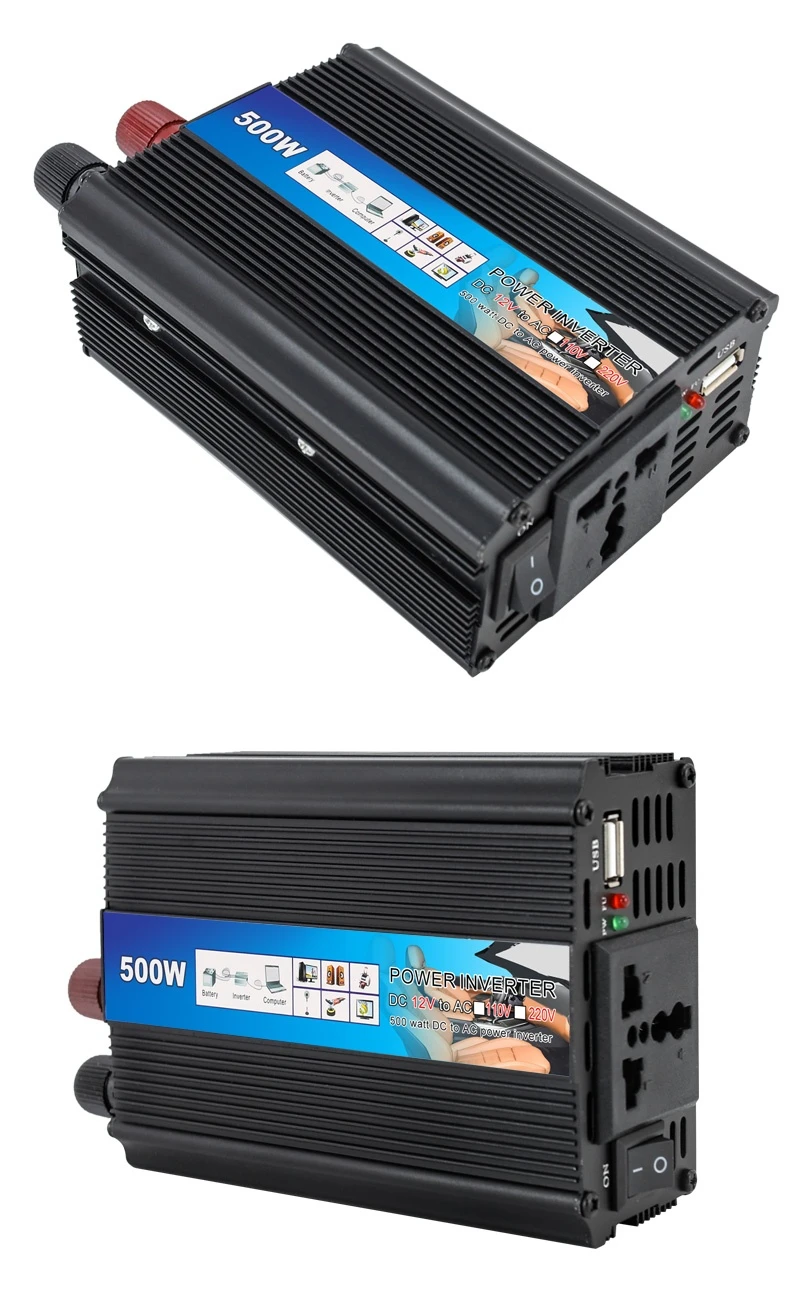

Details Images
FAQ
How to choose an inverter?

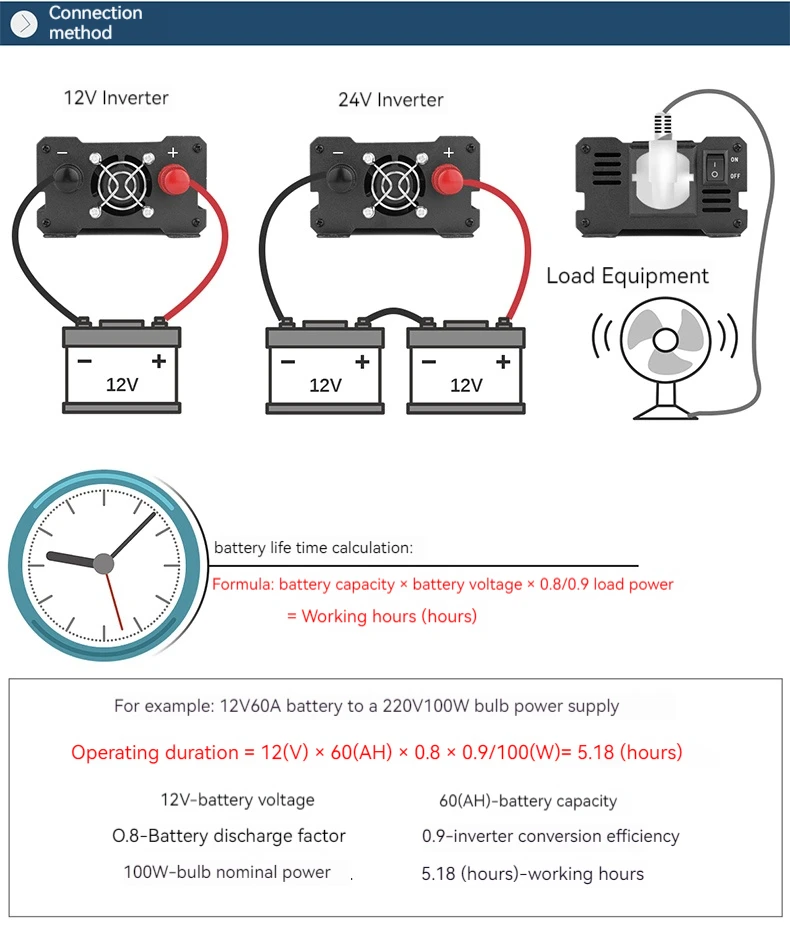

1.Determine what the battery voltage is, and what is the capacity of the battery?
If your battery output voltage is 12V.you have to choose a 12V inverter. The size of the battery will directly affect the size of the charger. The laeger the battery,the more electrical appliances it can carry.
Such as 12Vbattery *60AH capacity *0.8 conversion rate + 576W or less can be brought.
2.What kind of electrical appliances can I bring?
Electrical appliances are divided into resistive loads and inductive load appliances.
Resisstive appliances:
computers,televisions,fans,electric lights and other household appliances.
Inductive appliances:
refrigerators,washing machines,jce machines,hand drills,pumps,sanders,etc.
Resistive appliances do not have starting power,and inductive appliances have starting power,which is generally between 3 and 7 times.
Therefore, it is necessary to detemine whether the appliances is a resistive appliances or an inductive appliance.
However, the inductive load appliance has a starting power of 3-7 times, the continuous power meets the condition, and the starting power must also meet the conditions before it can be driven.
FOR EXAMPLE
If the battery is 12V/60AH,can you use a 2000W inverter with a 500W hard drill ?
1.First look at the maximum battery charger is :12*60*0.8 = 576W,>500W.
2.Determine whether the electrical appliance is a resistive electrical appliance or an inductive electrical appliance: the hand drill is an inductive electric drill.
3.The continuous power of the hand drill is 500W,and the duration of 2000W is 1000W,>500W.
The starting power is generally about 3 times (the starting power of dofferent electrical appliances is different) so 500W X 3 = 1500W, the starting power of the 2000W inverter is 2000W,>1500W Therefore,the 500W hand drill can be used with a 12V/60AH battery and a 2000W inverter.
Other appliances can also be judged by this method.
If you have problems, do not understand the operation, you can also consult customer service, thank you!
1.Determine what the battery voltage is, and what is the capacity of the battery?
If your battery output voltage is 12V.you have to choose a 12V inverter. The size of the battery will directly affect the size of the charger. The laeger the battery,the more electrical appliances it can carry.
Such as 12Vbattery *60AH capacity *0.8 conversion rate + 576W or less can be brought.
2.What kind of electrical appliances can I bring?
Electrical appliances are divided into resistive loads and inductive load appliances.
Resisstive appliances:
computers,televisions,fans,electric lights and other household appliances.
Inductive appliances:
refrigerators,washing machines,jce machines,hand drills,pumps,sanders,etc.
Resistive appliances do not have starting power,and inductive appliances have starting power,which is generally between 3 and 7 times.
Therefore, it is necessary to detemine whether the appliances is a resistive appliances or an inductive appliance.
However, the inductive load appliance has a starting power of 3-7 times, the continuous power meets the condition, and the starting power must also meet the conditions before it can be driven.
FOR EXAMPLE
If the battery is 12V/60AH,can you use a 2000W inverter with a 500W hard drill ?
1.First look at the maximum battery charger is :12*60*0.8 = 576W,>500W.
2.Determine whether the electrical appliance is a resistive electrical appliance or an inductive electrical appliance: the hand drill is an inductive electric drill.
3.The continuous power of the hand drill is 500W,and the duration of 2000W is 1000W,>500W.
The starting power is generally about 3 times (the starting power of dofferent electrical appliances is different) so 500W X 3 = 1500W, the starting power of the 2000W inverter is 2000W,>1500W Therefore,the 500W hand drill can be used with a 12V/60AH battery and a 2000W inverter.
Other appliances can also be judged by this method.
If you have problems, do not understand the operation, you can also consult customer service, thank you!
