Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Metal Stainless Steel Aluminum Galvanized Brass Copper Square Round Pipe Tube Automatic Loading Fiber Laser Cutter Machine Price
- Category: >>>
- Supplier: Wuhan BST LASER Machinery Co. Ltd
Share on (1601279825764):
Product Overview
Description
Product Overview
Metal Stainless Steel Aluminum Galvanized Brass Copper Square Round Pipe Tube Automatic Loading Fiber Laser Cutter Machine Price
Contact: BST Bonnie Mobile/Whatspp: +86 18971376270 Email: bonnie@bstlaser.com
Pipes and Profiles are widely used in many application from mechanical engineering and system construction to the furniture industry,the tube and fiber laser cutting technology allows for the automatic production of the parts designed in CAD with precision and repeatability.it's the high precision metal processing equipment for cutting various tubes and pipes like round,square ,rectangular tubes,channel,angle and special-shaped tubes .
SATNDARD COMPONENTS
CYPCUT FSCUT5000A 8000 CNC Control System
RAYTOOLS or WSX Intelligent 3D Dimension Tube Laser Cutting Head
Yaskawa®High Dynamic EtherCAT servo drive
BSTLASER®Dynamic System 4.0:1.5g Acceleration
BSTLASER®Fast Piercing 2.0:Ultra Performation
Smoke Extraction Fan System
Fiber Laser Source :Raycus/IPG/MAX/JPT
Class IV safety system and CE marking
CYPCUT®Embedded Pcs:Industrial PCs with direct ly integrated I/O level
Hiwin®high performance and high accuracy rack and pinion system

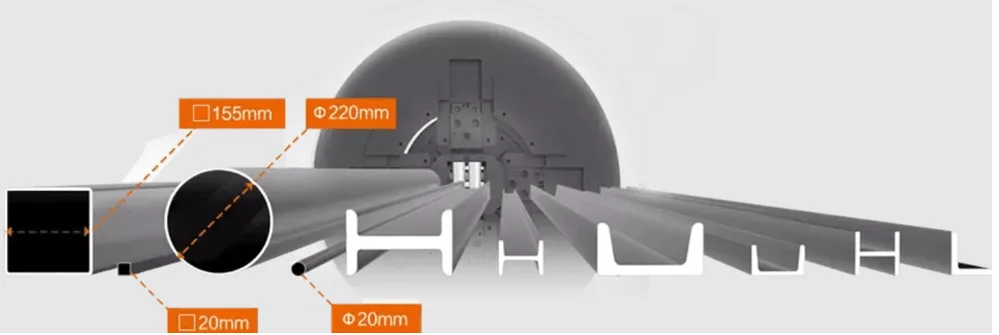

Tube Diameter:Φ220(Optional:Φ160/Φ230/Φ350)
Automatic Tube Length:6 Meters (Optional:8m,12m,16m,etc )
SATNDARD COMPONENTS
CYPCUT FSCUT5000A 8000 CNC Control System
RAYTOOLS or WSX Intelligent 3D Dimension Tube Laser Cutting Head
Yaskawa®High Dynamic EtherCAT servo drive
BSTLASER®Dynamic System 4.0:1.5g Acceleration
BSTLASER®Fast Piercing 2.0:Ultra Performation
Smoke Extraction Fan System
Fiber Laser Source :Raycus/IPG/MAX/JPT
Class IV safety system and CE marking
CYPCUT®Embedded Pcs:Industrial PCs with direct ly integrated I/O level
Hiwin®high performance and high accuracy rack and pinion system
Tube Diameter:Φ220(Optional:Φ160/Φ230/Φ350)
Automatic Tube Length:6 Meters (Optional:8m,12m,16m,etc )
Features
1)Optional three-chuck structure, double cutting position, realizing "zero" tail material by laser tube cutting processing.
2)Using pneumatic four-claw bus-mastering self-centering chuck, equipped with multi-function claws, which can hold pipes with various cross-sections.
3)Professional pipe cutting programming software supports cutting of channel, angle and H-shaped steels and special-shaped pipes, which can effectively save materials and improve cutting efficiency;
4)Using capacitive three-dimensional fiber laser cutting head, with high sensing accuracy ,high sensitive response and most reliable performance, the sharp and thin cutting nozzle part can effectively avoid the special-shaped section.
5)Adopt advanced servo auxiliary support device to ensure effective support, prevent the sagging of the pipe and ensure the processing accuracy.
6)Built-in complete cutting process parameter library with user-friendly parameter interface, realizes "one-click setting" processing technology based on pipe types, it makes the processing more intelligent and efficient.
7)Owing the control function of cutting sharp corners, seamed edges and various cutting process , ensure the smooth cutting quality and high efficiency on the sharp corner and profile section.
2)Using pneumatic four-claw bus-mastering self-centering chuck, equipped with multi-function claws, which can hold pipes with various cross-sections.
3)Professional pipe cutting programming software supports cutting of channel, angle and H-shaped steels and special-shaped pipes, which can effectively save materials and improve cutting efficiency;
4)Using capacitive three-dimensional fiber laser cutting head, with high sensing accuracy ,high sensitive response and most reliable performance, the sharp and thin cutting nozzle part can effectively avoid the special-shaped section.
5)Adopt advanced servo auxiliary support device to ensure effective support, prevent the sagging of the pipe and ensure the processing accuracy.
6)Built-in complete cutting process parameter library with user-friendly parameter interface, realizes "one-click setting" processing technology based on pipe types, it makes the processing more intelligent and efficient.
7)Owing the control function of cutting sharp corners, seamed edges and various cutting process , ensure the smooth cutting quality and high efficiency on the sharp corner and profile section.

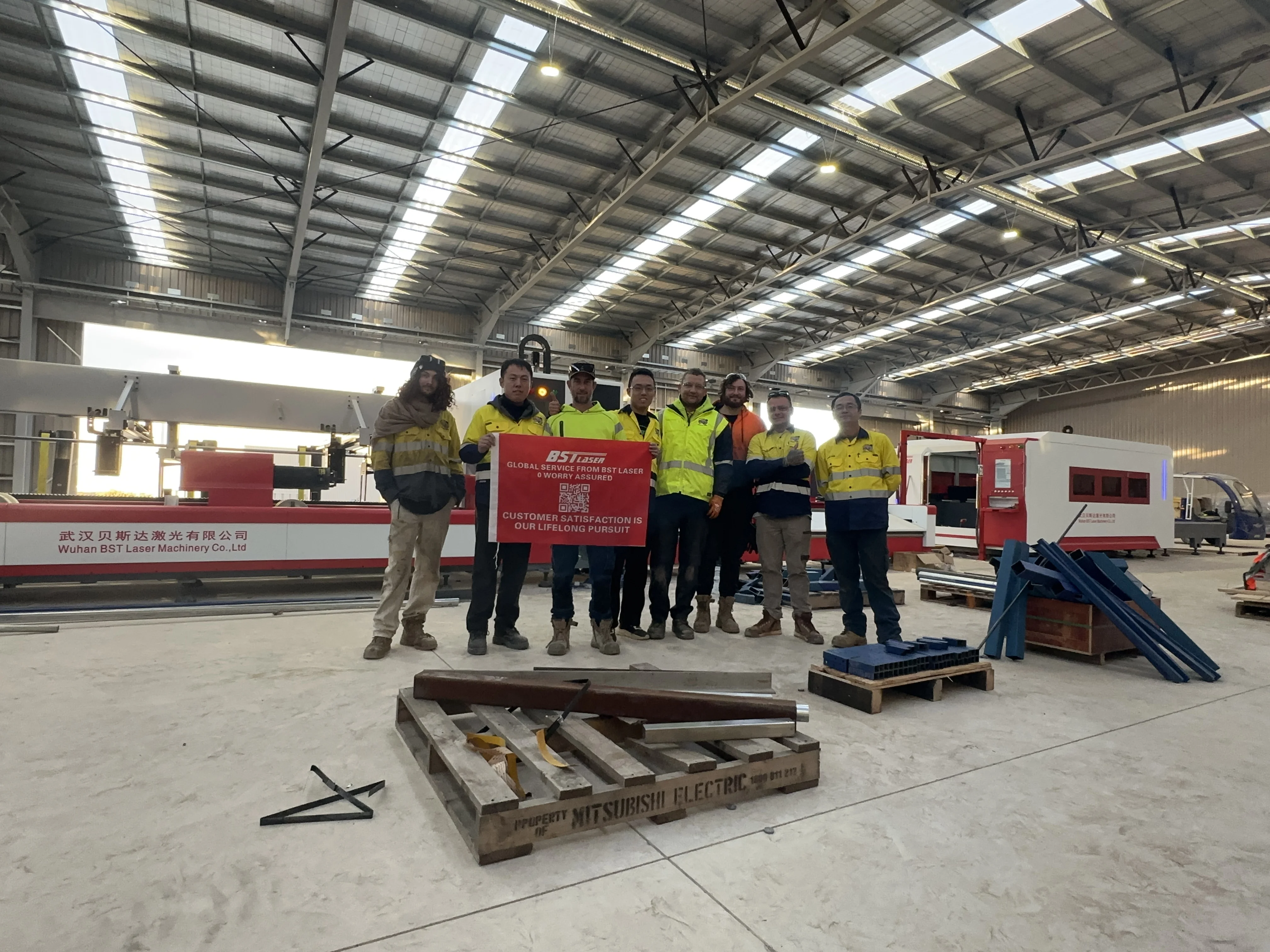

Super Service

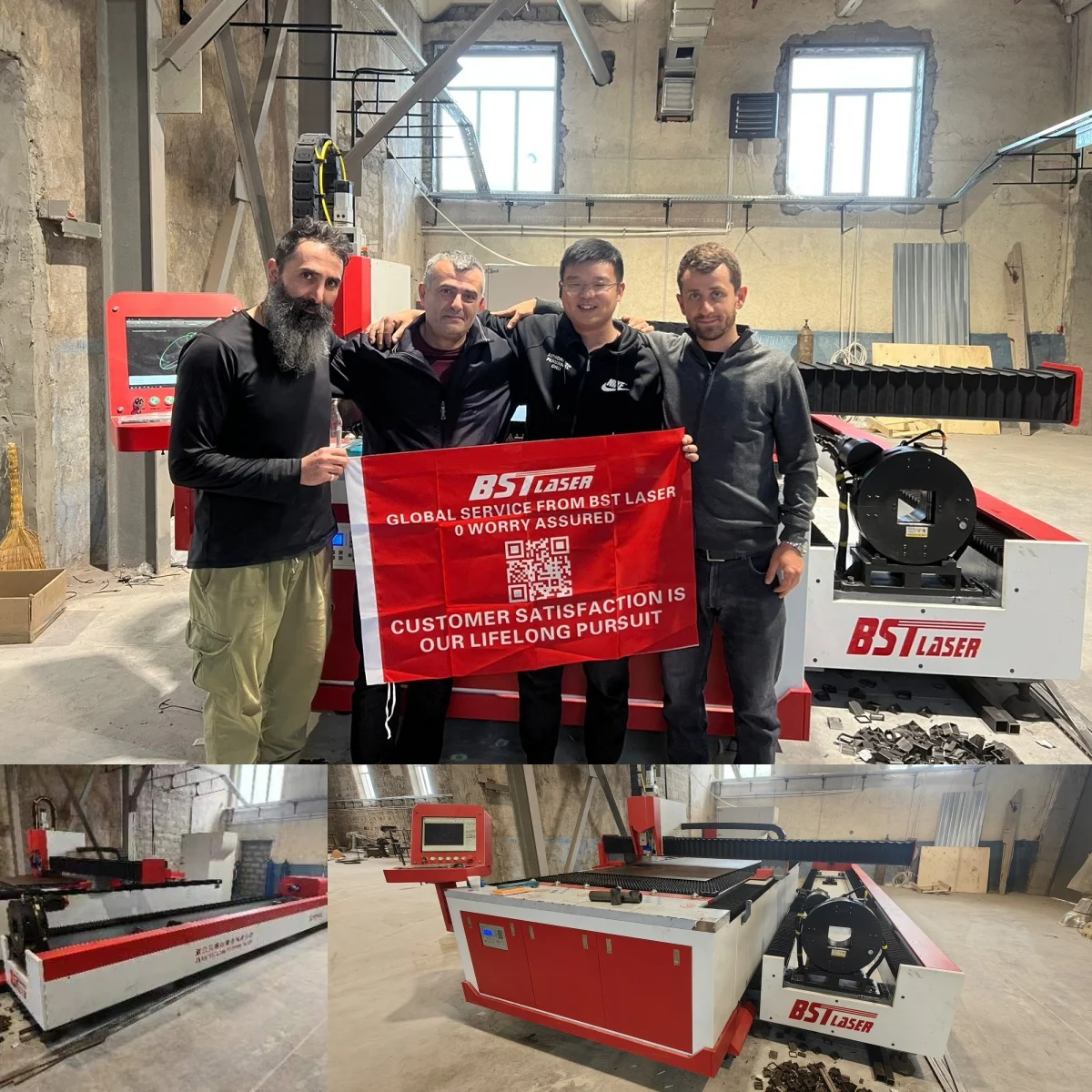

BST Laser technician provide professional on-site service for foreign customer.
0 worry. Be rest assured to work with us
PS. Two sets of 3KW plate tube pipe fiber laser cutting machines
Customer satisfaction is our lifelong pursuit!
#customerservice #fiberlasercuttingmachine #fiberlaser #platetubelasercutting #metallasercutting #bstlaser #lasercut #technicianabroadservice
BST Laser technician provide professional on-site service for foreign customer.
0 worry. Be rest assured to work with us
PS. Two sets of 3KW plate tube pipe fiber laser cutting machines
Customer satisfaction is our lifelong pursuit!
#customerservice #fiberlasercuttingmachine #fiberlaser #platetubelasercutting #metallasercutting #bstlaser #lasercut #technicianabroadservice

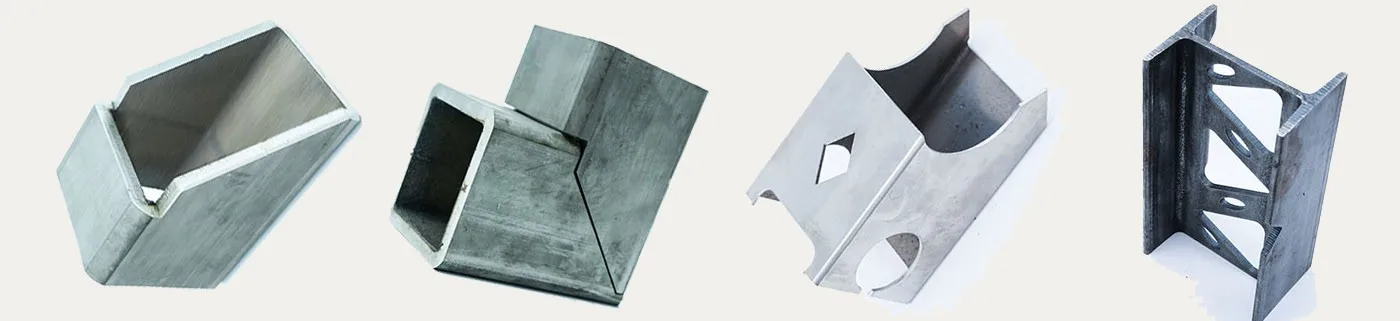

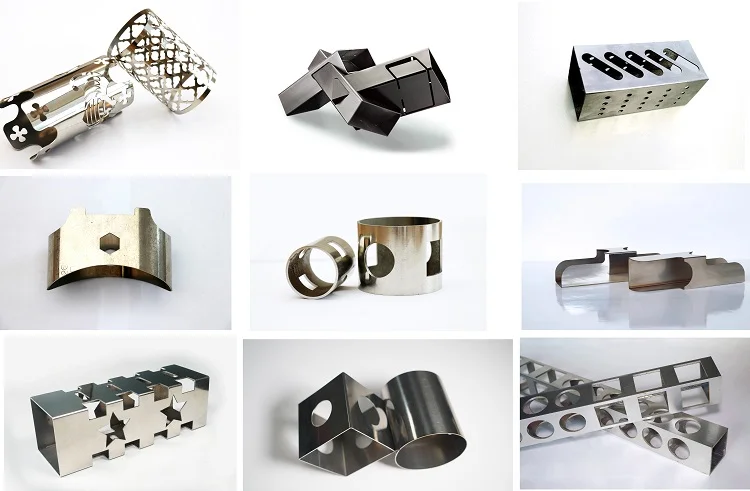

Application

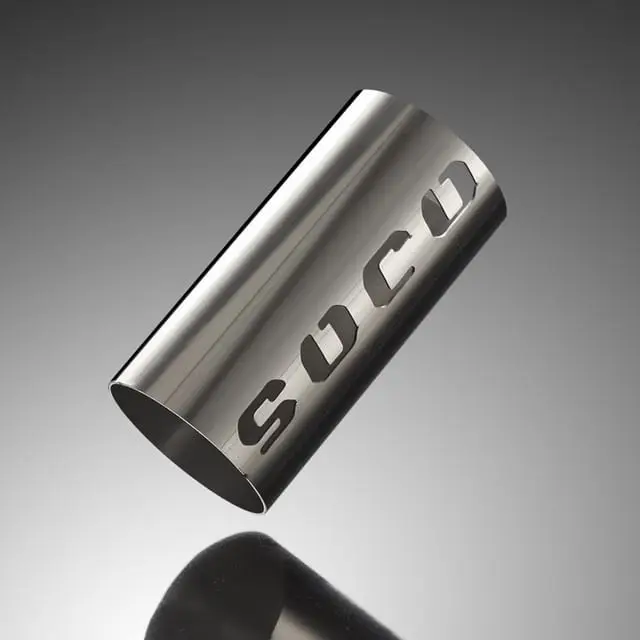

Tube laser cutting machine can be used for cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheets, metal plate, metal pipe and tube, etc. Fiber Laser Cutting Machine.

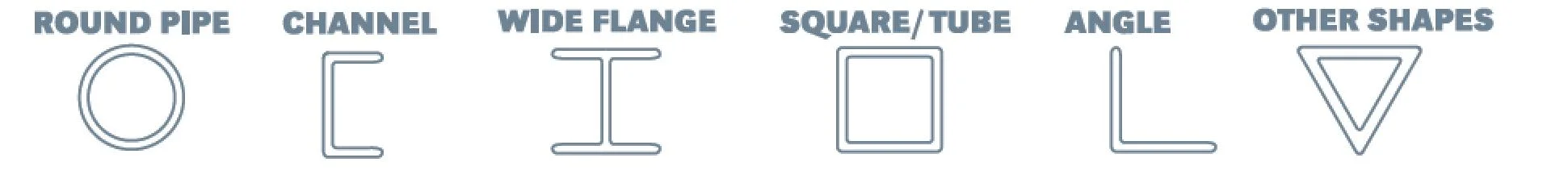

Not only cut conventional tubes like round,square and rectangular tubes and profiles like channel, angle and H-shaped steels,but also cut special-shaped tubes easily like triangular, concave,Land C-shaped tubes, etc.

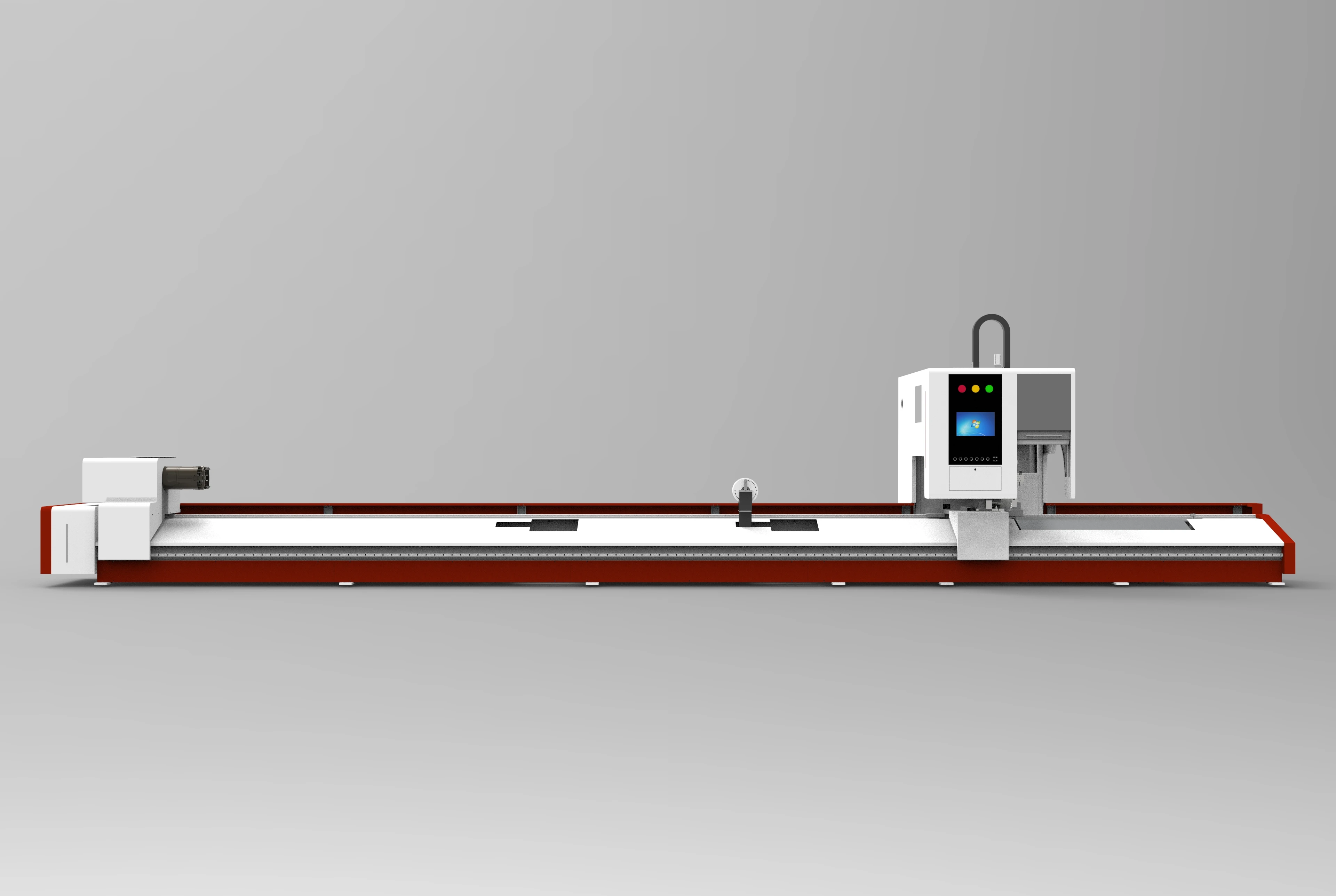

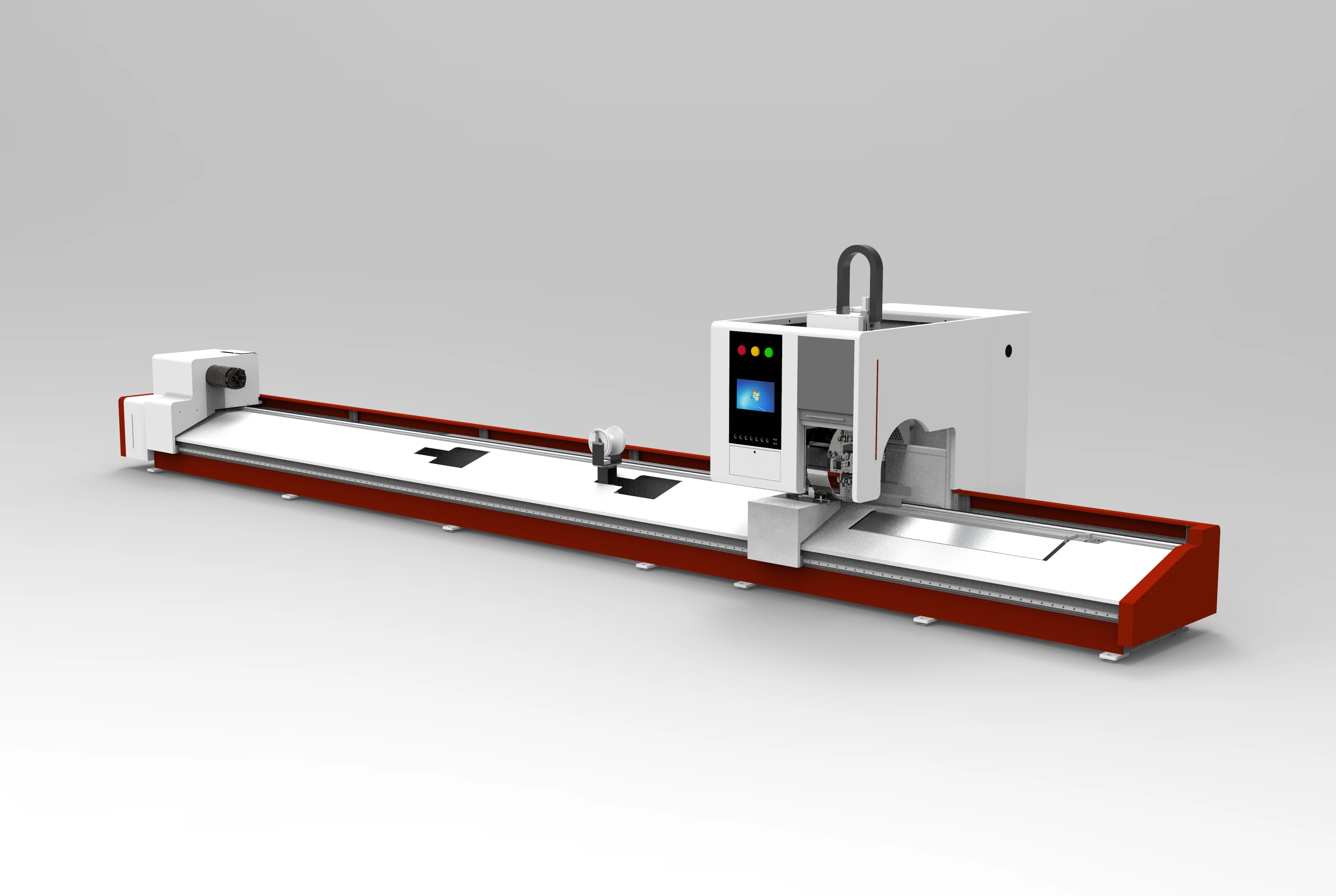

Technical Data
Item | Specification |
Type | 5axis, 6axis, 8axis, 9axis |
System | TubePro-3000S, TubePro-5000B, TubePro-5000A |
Power | 1500-20000W |
Laser wavelength | 1070nm |
Repositioning Accuracy | ±0.03mm/m |
Diameter Range | Round hole chuck: 10-120mm 10-165mm 10-220mm 10-350mm 20-520mm Square hole chuck: 10-230mm 10-280mm |
Working length range | 6m,9m,12m,14m |
Loading system | Semi-auto, Fully Auto |
Cooling Method | Water-cooling |
Item | 5 Axis | 6 Axis | 8 Axis |
Laser | MAX | MAX | MAX |
Laser head | WSX/RAYTOOL | WSX/RAYTOOL | WSX/RAYTOOL |
Cutting software system | TubePro-3000S | TubePro-5000B | TubePro-5000A |
Gear rack & Rail | ROUST | ROUST | ROUST |
Motor&Drive | YASKAWA | YASKAWA | YASKAWA |
Reducer | DESBOER | DESBOER | DESBOER |
Pneumatic system | NNT | NNT | NNT |
Chiller | Hanli | Hanli | Hanli |
Chuck exercise mode | A-B chuck linkage action | A-B chuck single action + linkage type | ABC |
Material unloading table | Yes | Yes | Yes |
Flip plate with the material moving | No | No | No |
Details Images
45 Degree Bevel Cutting Head
* AB axis 45 degree bevel cutting and straight angle cutting
* Compact size and compatible with pipe cutting machine
* High Stability, Flexibility and Accuracy
Top China Brand China Raycus Fiber Laser Device
* Produced by State-owned Listed Company
* Quality/Service Are Guaranteed(3 Years Warranty)
* Represents China R&D Highest Level with Core Technology
* Annual Sales over 25,000 Sets
* Quality/Service Are Guaranteed(3 Years Warranty)
* Represents China R&D Highest Level with Core Technology
* Annual Sales over 25,000 Sets
Pneumatic Double Action Chuck
* Full stroke clamping, automatic and precise positioning, fast automated cutting
* The bearing seat is supported by a wide seat and has high load-bearing stability.
* Optional clamping of various profiles to keep pipe fittings from slipping, such as round pipe, square pipe, irregular pipe...
* Diameter 120mm, 160mm, 220mm, 240mm and above
Back Chuck
* Motor fast acceleration
* Stable Drive
* Zero waste material cutting
* Easy for calibration
* High rigidity for different shape materials

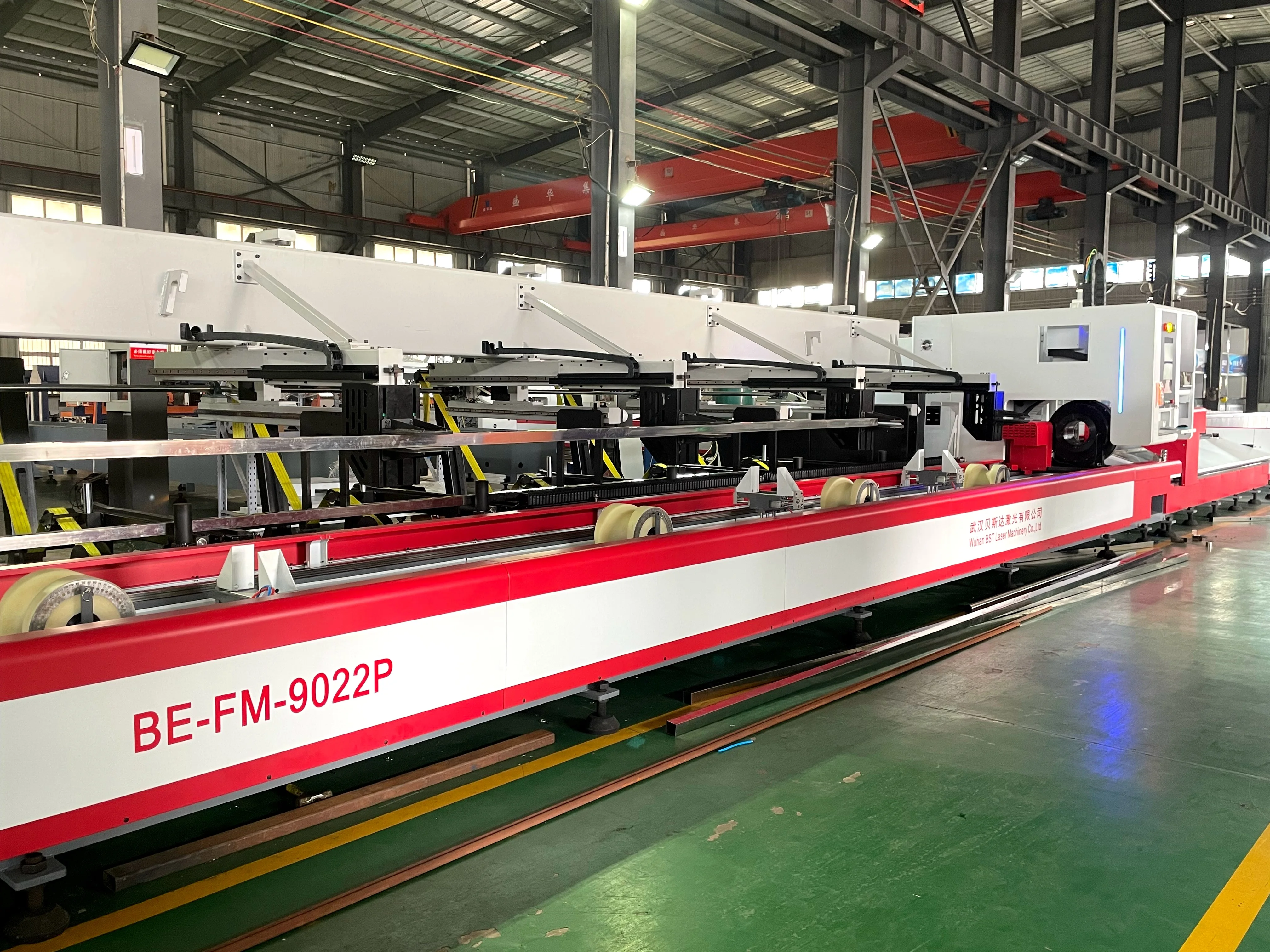

Full Automatic Loading System
* Fully automatic servo motor control loading system
* Realize different pipe, different length and different shape of materials bunch loading and inspection
* Seamless integration with cutting machine
Three Pneumatic Chucks
* It is designed with a three-chuck structure. The third chuck can clamp and pull the pipe material, thereby realizing long pipe/whole pipe feeding and cutting and cutting of zero tail material.
* It can cut round tubes, square tubes, rectangular tubes, channel steel, angle steel, I-beam, special-shaped steel, etc.
Professional Pipe Tube Cutting Cypcut Control System
FSCUT3000/5000/8000 designed for professional tube cutting, supporting standard tube (retangle,circle,oval,ellipse and obround etc.) and steel channels (T/U/H shaped) production of high precision and efficiency.

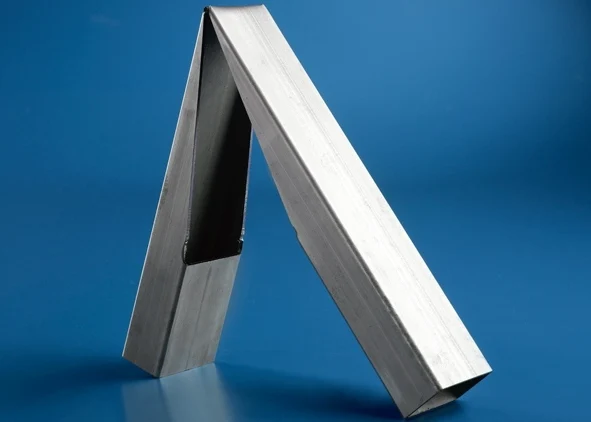

45 Degree Bevel Cutting
* Increasing efficiency and saving time for later seamless welding
* Easily realize different cutting craft requirements
* Cutting angle can adjust
Step One
Machine cleaning and lubrication, then fixed on export pallet. Thicker plastic film for protection.
Step Two
Thicker double water-proof film for protection.
Step Three
Loading into the container. Machine very long, so it needs 40HC or 45HC.
After Service
Fiber Laser Cutting Machine After-Sale Service
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Before Delivery:
* Check and test at least 10 times to make sure the machine's quality.
* Also we will send you the testing report and save the machine 's technical information for better after-sale service.
After-Sales Service:
* Training how to install the machine.
* Training how to use the machine.
* Engineers available to service machinery overseas.
* Lifetime technical support and service by free.
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Before Delivery:
* Check and test at least 10 times to make sure the machine's quality.
* Also we will send you the testing report and save the machine 's technical information for better after-sale service.
After-Sales Service:
* Training how to install the machine.
* Training how to use the machine.
* Engineers available to service machinery overseas.
* Lifetime technical support and service by free.

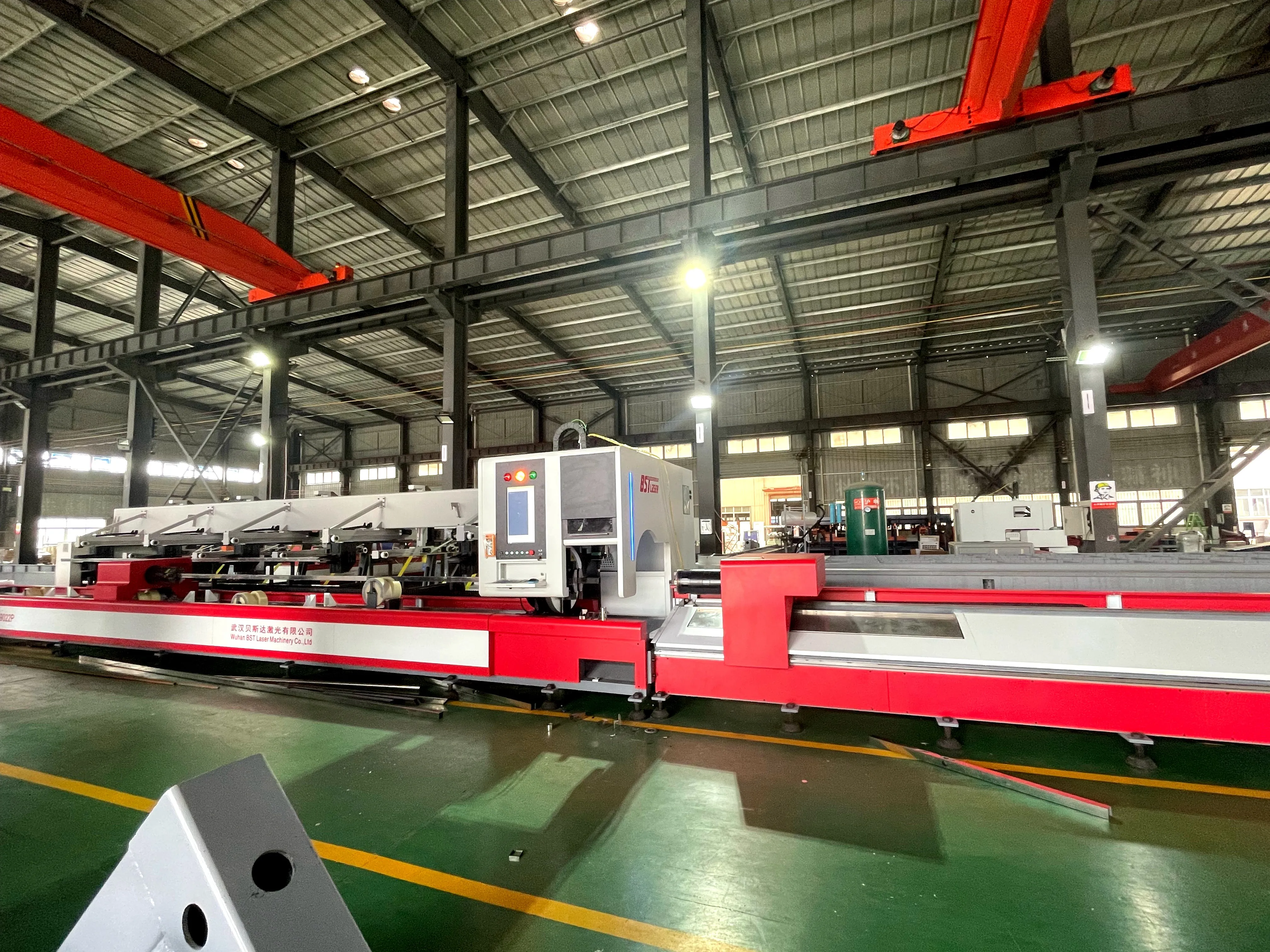

Company Profile
As 15 years fiber laser cutting machine manufacturer, BST Laser is committed to providing customers with high-quality, reliable laser machines.
As a result of our quality control measures, our welding machine laser, laser cutting machine, laser marking machine, laser engraving machine all have got CE certification.
High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
As a result of our quality control measures, our welding machine laser, laser cutting machine, laser marking machine, laser engraving machine all have got CE certification.
High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
Contact
To recommend you suitable fiber laser cutting machine, here are some questions:
1. What's your cutting material and thickness? such as stainless steel, carbon steel, aluminum...
2.What's the diameter of the cutting pipe ? (⌀120,⌀160 and ⌀220 or other )
1. What's your cutting material and thickness? such as stainless steel, carbon steel, aluminum...
2.What's the diameter of the cutting pipe ? (⌀120,⌀160 and ⌀220 or other )
3.To understand your cutting demand better,please kindly share your work piece picture for reference
