BIOBASE New Condition Vertical Freeze Dryer Lyophilizer Machine Home Use Lab Philippines Motor Engine Food Processing Drying
- Category: >>>
- Supplier: Biobase Meihua Trading Co. Ltd.
Share on (1601279828532):
Product Overview
Description
Product Description

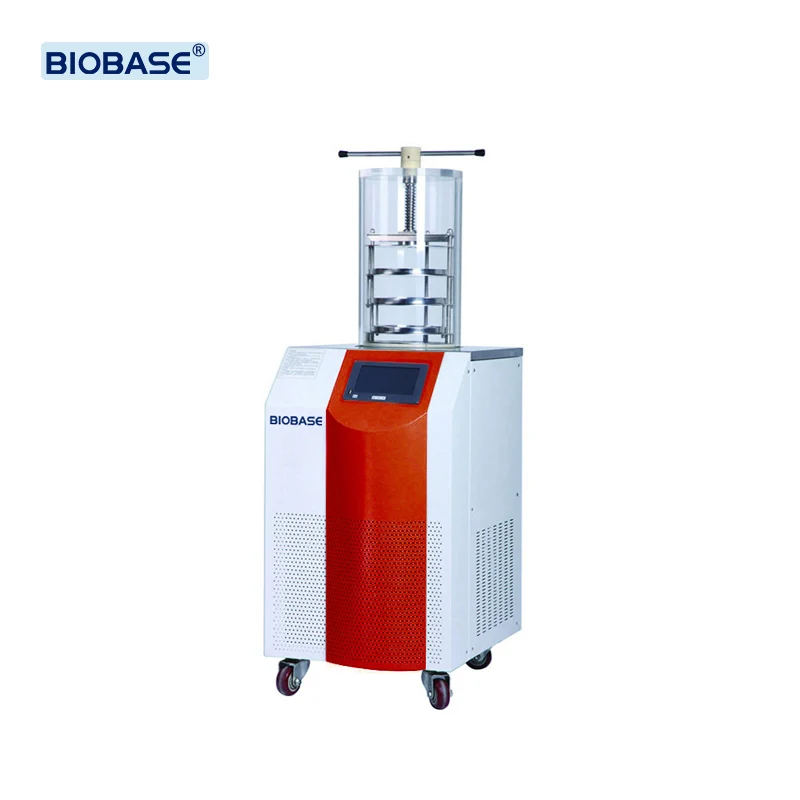

BK-FD12T(-60/-80)
The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics,
vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Specification
Model | BK-FD12S(-60/-80) | BK-FD12P(-60/-80) | BK-FD12T(-60/-80) | BK-FD12PT(-60/-80) | |||||
Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |||||
Freeze Drying Area | 0.12/0.18m² | 0.09m² | |||||||
Tray | 4/6(Optional)pcs | 3pcs | |||||||
Height Between Trays | 76/50mm | 70mm | |||||||
Cold Trap Temperature | ≤-60℃/-80℃(Optional) | ||||||||
Cold Trap Capacity | 9.3L | ||||||||
Cold Trap Size (Dr*H) | Φ217*250mm | ||||||||
Vacuum Degree | <10Pa | ||||||||
Water Capture Capacity | 4kg/24h | ||||||||
Tray Size (D*H) | Φ200*20mm | ||||||||
Freeze Drying Time | 24h | ||||||||
Loading Capacity/Shelf (Liquid) | 0.3L | ||||||||
Total Loading Capacity (Liquid) | 1.2L/1.8L | 0.9L | |||||||
Drying Chamber Size (D*H) | Lower circle Φ260mm, Upper circle Φ240mm Height 450mm | ||||||||
Can Load Vials Qty | Φ22mm | 260 | 195 | ||||||
Φ16mm | 480 | 360 | |||||||
Φ12mm | 920 | 690 | |||||||
Refrigerant | R600a+R290+R23 | ||||||||
Cooling System | Air cooling | ||||||||
Consumption | -60℃: 0.9kW,-80℃: 1.5kW(Optional) | ||||||||
Power Supply | 220V/50Hz, 60Hz (single phase); 110V/220V, 60Hz (single phase); 110V/60Hz(single phase, only for -60℃) | ||||||||
Standard Accessory | -60℃ cold trap, Vacuum pump 2L/S, 8m³/h, Material tray, Material rack, PC cover (for all models); Conical-mouth flask 500ml*8pcs, Switch valve*8pcs (only for model BK-FD12P/PT) | ||||||||
Optional Function & Accessory | -00℃ cold trap, Electric defrost function, Nitrogen gas filling valve, Oil mist filter (for all models); 800ml wide-mouth flask(for BK-FD12P/PT) | ||||||||
External Size (W*D*H) | 480*620*920/1370mm | ||||||||
Package Size (W*D*H)mm/ Gross Weight | Main Body | 730*600*1180(80kg) | |||||||
Drying Chamber | 620*400*400(15kg) | ||||||||
Vacuum Pump | 570*360*240(22kg) | ||||||||
