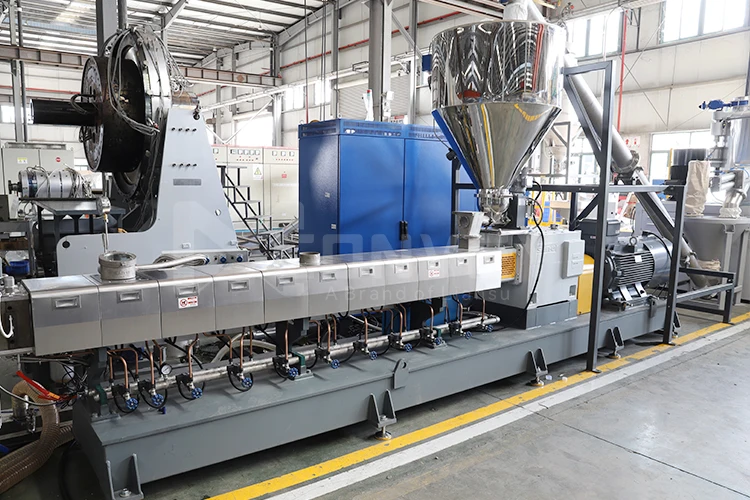

Underwater Plastic pe compounding machine color masterbatch hdpe twin screw extruder with pelletizing line
- Category: >>>
- Supplier: Guangdong Liansu Machinery Manufacturing Co. Ltd.
Share on (1601279848798):
Product Overview
Description
Products Description
LSZS Co-rotating Parallel Twin-screw
Mixing And Dosing Extrusion System
Extruder Model
C series:6-9Nm/cm³
No. | Type | L/D ratio | Screw speed (rpm) | Motor power (kw) | Throughput (kg/h) | Range of application |
1 | LSZS-52C | 40-52 | 600 | 75 | 200-300 | PP/ PE/ TPE/ TPR/ ABS/ PC |
2 | LSZS-63C | 40-52 | 600 | 132 | 300-400 | |
3 | LSZS-72C | 40-52 | 600 | 160 | 400-600 |
M series：11-15Nm/cm³
No. | Type | L/D ratio | Screw speed (rpm) | Motor power (kw) | Throughput (kg/h) | Range of application |
1 | LSZS-50M | 40-52 | 600/900 | 110/160 | 300-400 | ABS/ PC/ TPU/ PA/ PBT/ PET/ PPS/ PPA/ LCP/ PEEK/ PMMA |
2 | LSZS-58M | 40-52 | 600/900 | 110/160 | 500-600 | |
3 | LSZS-75M | 40-52 | 600/900 | 110/160 | 800-1000 |
Screw Element
The screw and barrel are the plasticizing parts of the extruder, which are the core parts related to the plasticization, dispersion, and physical properties of materials. Liansu can provide professional process suggestions and suitable screw combinations based on customers' specific production requirements. In response to the wear or corrosion environment of materials, Liansu can provide professional recommendations on screw elements/barrel sleeve materials, recommending the most cost-effective material applications.
Barrel Sleeve
The heating and cooling efficiency of the barrel is also a key performance of the extruder. especially PC and ABS materials with high whiteness requirements are very sensitive to the actual effect of temperature control!

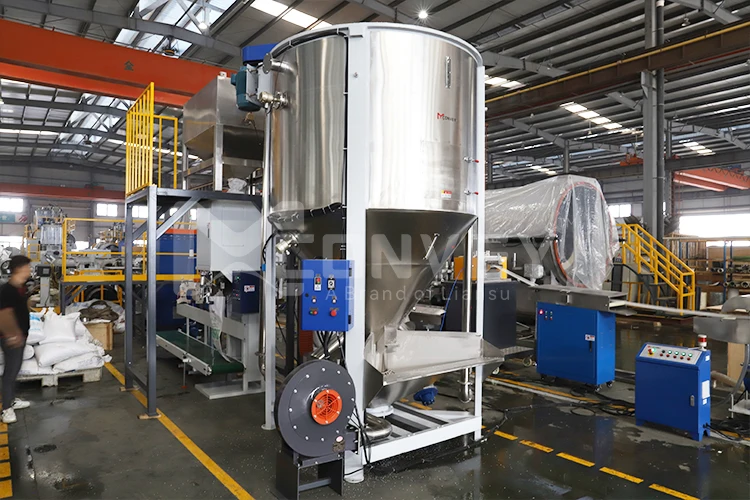

Configure online precise measurement and feeding systems for multiple materials.
* For granular or powdery materials, it can achieve multiple raw materials, and the materials can be continuously and accurately added to the extruder according to the target output of each component.
* For granular or powdery materials, it can achieve accurate measurement in batches for multiple raw materials according to the target weight of each component, and premixed before being uniformly added to the extruder.
Extrusion control system: FLEXCON flexible control system
* Full line system control of the extruder;
* Full line data collection and related data analysis;
* Closed-loop control of feeding quantity to ensure measurement accuracy;
* Intermediate or higher-order vibration detection and analysis systems can be selected for real-time predictive maintenance of key components such as the extruder gear box, screw, and main transmission motor;
Predictive maintenance of extrusion gear box
Energy consumption analysis of production line
Product display
