Product Overview

Description



OVERVIEW

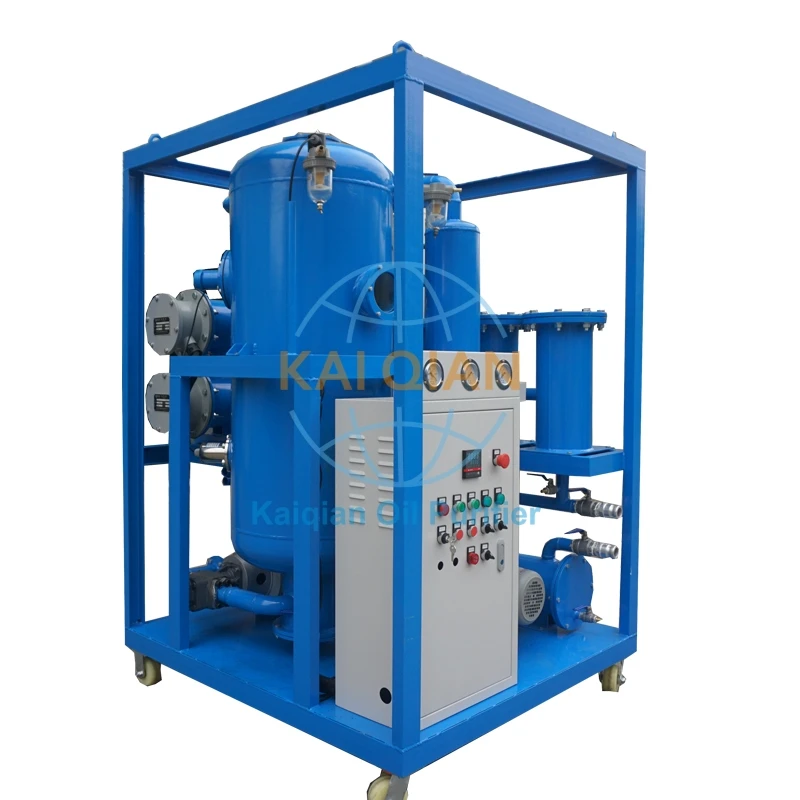

Single Stage Transformer Dielectric Oil Purifier Machine
ZL-J series insulation oil high efficient vacuum oil purifier is mainly used in power plants, transformer substation, power industry, railway, metallurgical,mining enterprises and other industries, dealing with transformer oil, insulation oil, circuit breaker oil, switch oil and so on .It can remove moisture , gas, impurities, water-soluble acid acetylene, free carbon in oil quickly and efficiently. Also It can improve breakdown voltage value ,It is a ideal equipment which is used for insulation oil in small transformer.




FEATURES AT A GLANCE



IMPROVE OIL PERFORMANCE

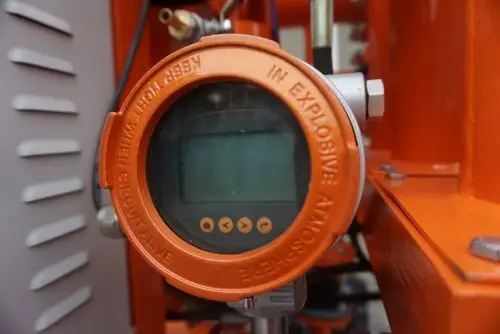

EXPLOSION PROOF TYPE OPTIONAL
FLAMMABLE PROOF TYPE OPTIONAL
ExdiaⅡ BT4 and ExdeibⅡ CT4 AVAILABLE
VACUUM DEFOAMING TECH
SIMPLE CONTROL
EASY MAINTENANCE

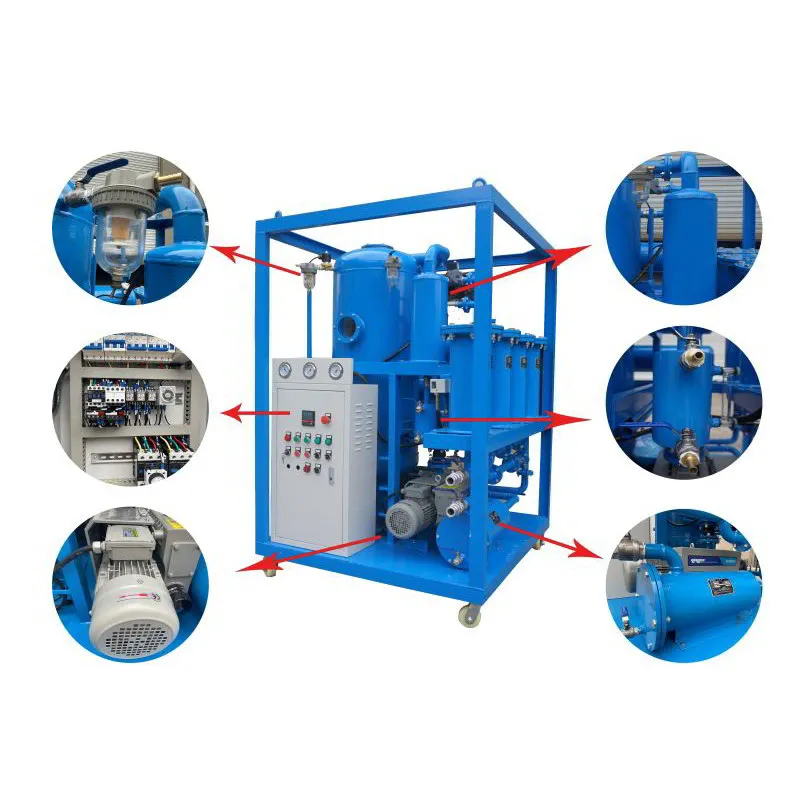

FEATURES


1. Used Oil Purifier Machine is equipped with advanced technology, connecting the hydraulic oil tank and the oil station technical, with online and off-line processing. It comes with high degree automation, compact type capacity and flexible in moving.
2. Oil-water separator : vacuum separation by using the German vacuum separation technology, three-dimensional spiral atomization evaporation rapidly technology. It can separate the water and gas in oil.
3. Filtration system: the advanced magnetic filter is used for purifying out the solid particles and micro iron substances in the oil medium, controlling the degree of iron impurity pollution in working effectively.
4. The application of high-quality filter original and connecting sealing materials can make the device durable in high - temperature, good in mechanical strength, meeting the requirement for the high viscosity demands. expanding the scope of oil purification.

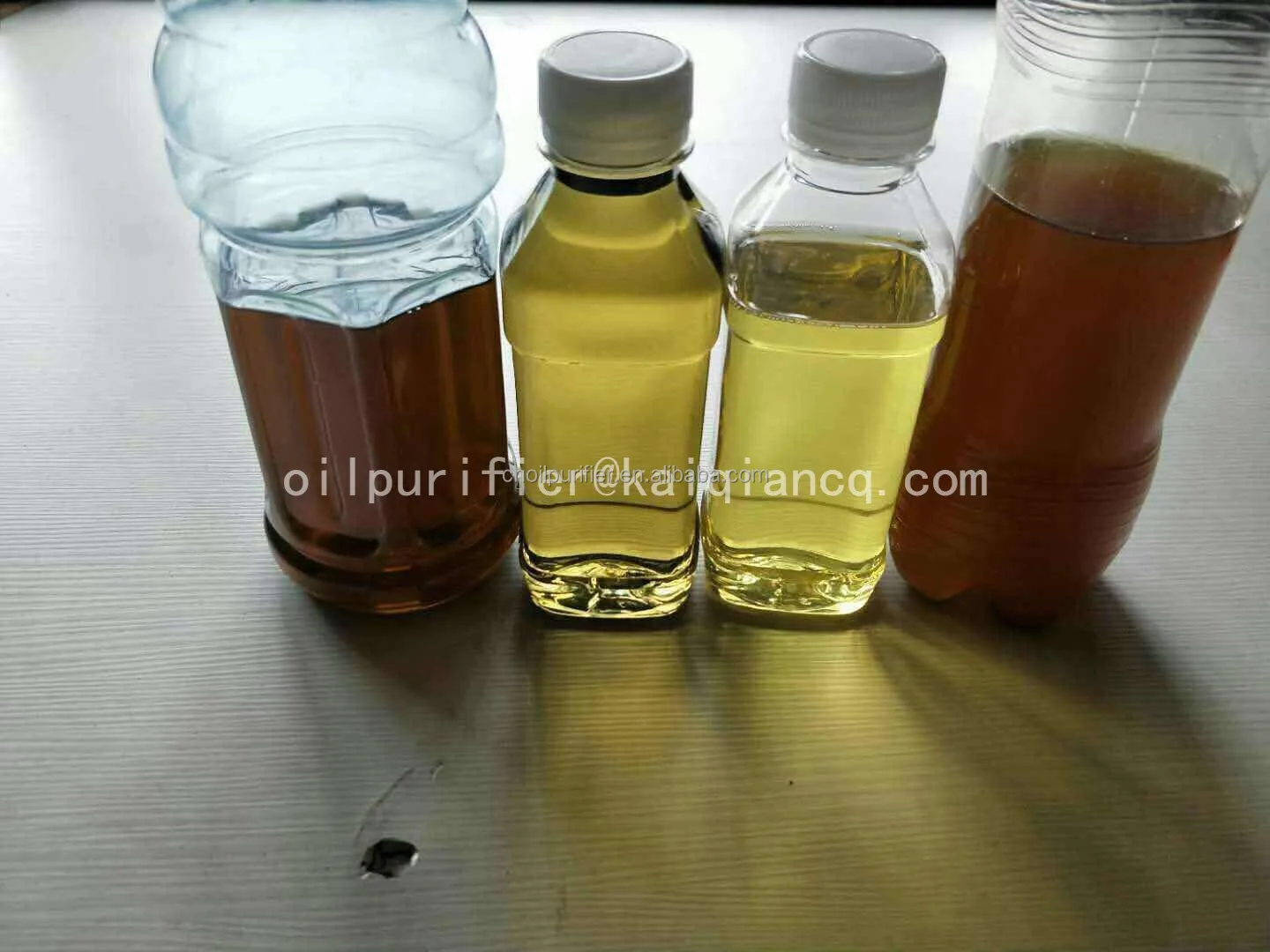

OIL COMPARISON

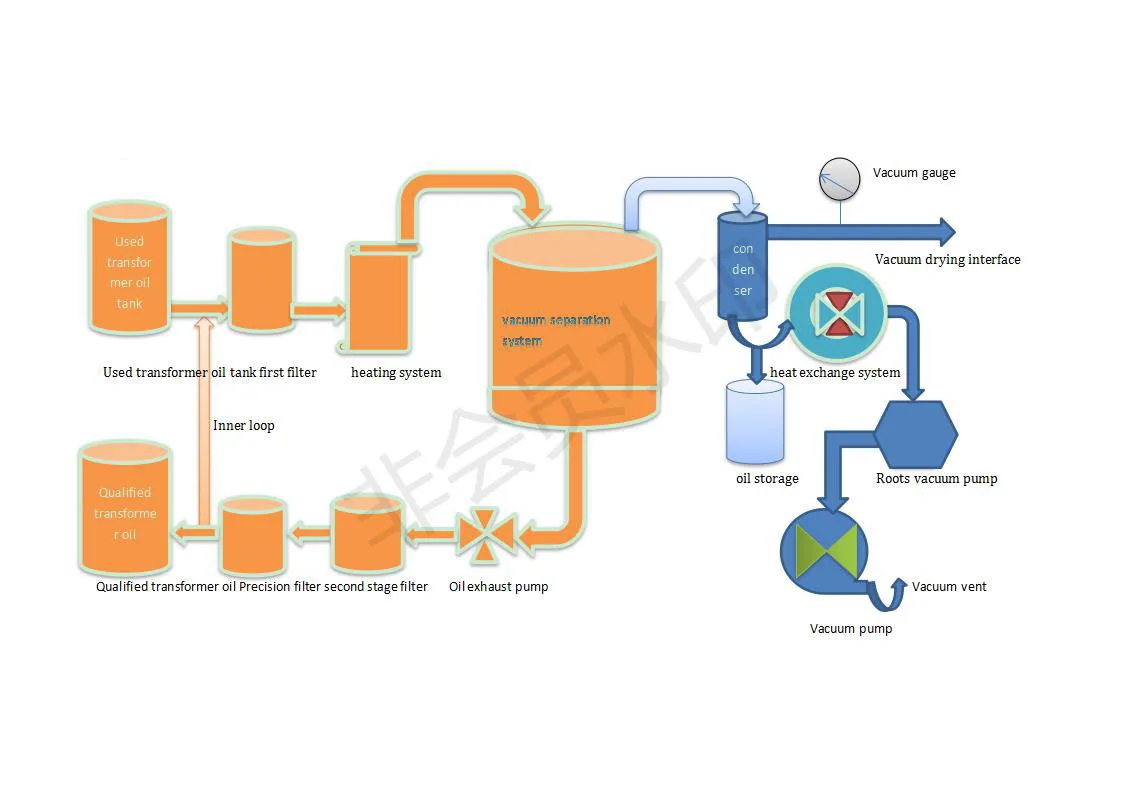

PROCESS DIAGRAM




PRODUCT PARAMETERS


Model
Unit
ZL-J30
ZL-J50
ZL-J80
ZL-J100
ZL-J150
Flow Rate
L/m
30
50
80
100
150
Work vacuum
Mpa
－0.08～0.096
Work pressure
Mpa
≤0.5
Work temperature
℃
45-65 Adjustable
Power supply
V
380-480V/50-60Hz-Three phase four wire (Customized)
Heating power
KW
30
36
42
48
60
Total power
KW
36
44
51
53
72
Inlet&outlet
mm
Φ32
Φ38
Φ42
Φ42
Φ48
Weight
Kg
485
650
950
1000
1100
Dimensions
cm
105*95*115
110*100*130
125*115*170
135*125*200
145*135*200


After Treatment
Breakdown Voltage
45-70 KV（GB/T507）
Water Content
≤5 PPM （GB/T7600）
Gas Content
≤0.1%（GB/T423）
Ethyne
0

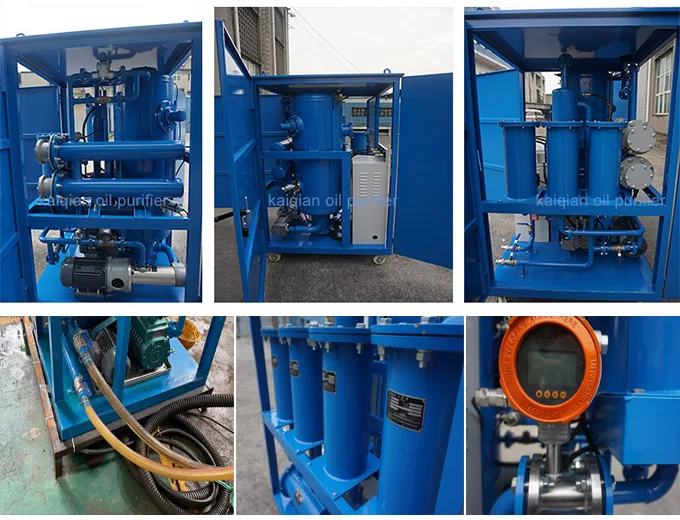

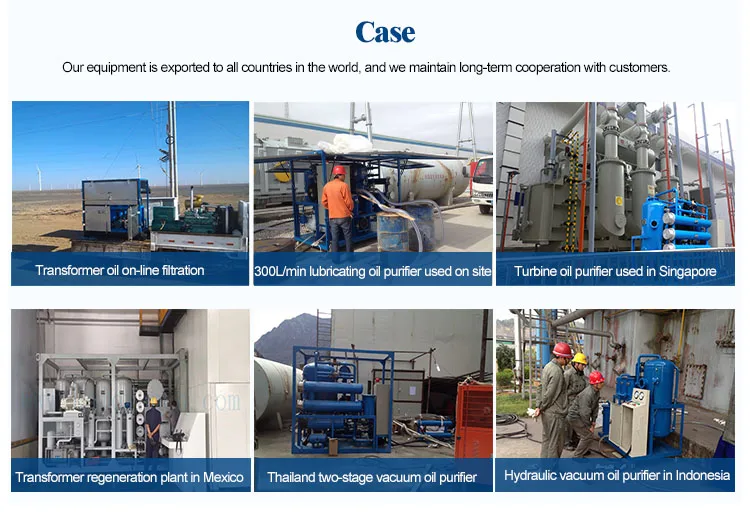

SUCCESSFUL PROJECT




















FAQ


Q1：What is the functions for oil purification machine?
A1：The purification machine adopts physical principles for purification machine, so it can remove moisture, gas, acid, and impurities from oil, and restore the oil characterstics.

Q2: Is there any consumable element by using this machine?
A2: The consumable element in this whole machine is only filter.

Q3: What is the application for this oil purification machine?
A3: It can used for transformer oil, insulation oil, turbine oil, hydraulic oil, lubricant oil, fire resistant oil and fuel oil etc.

Q4: What's the capacity of this oil purification machine?
A4: This oil purification machine have flow capacity from 10L/Min to 300L/Min.
