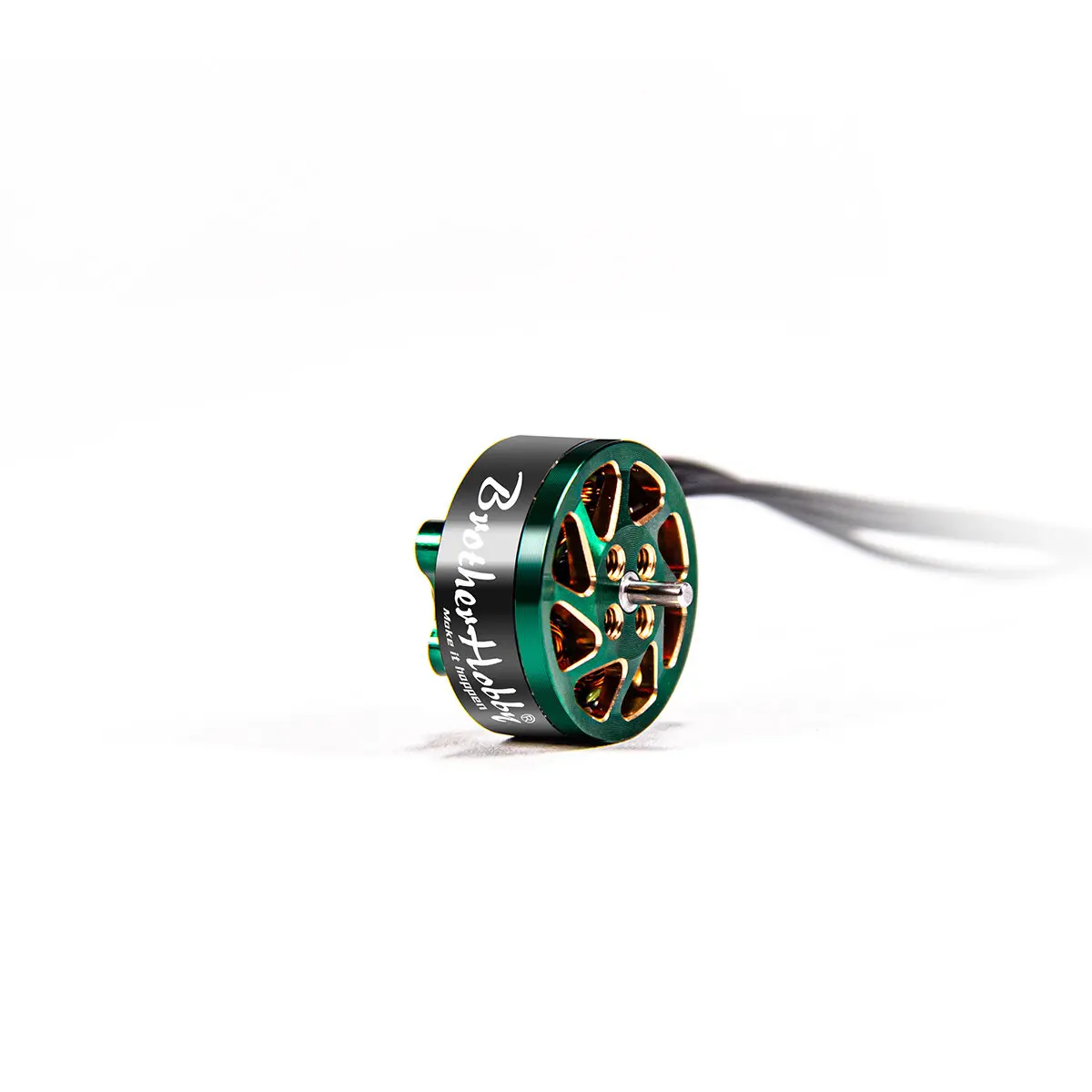

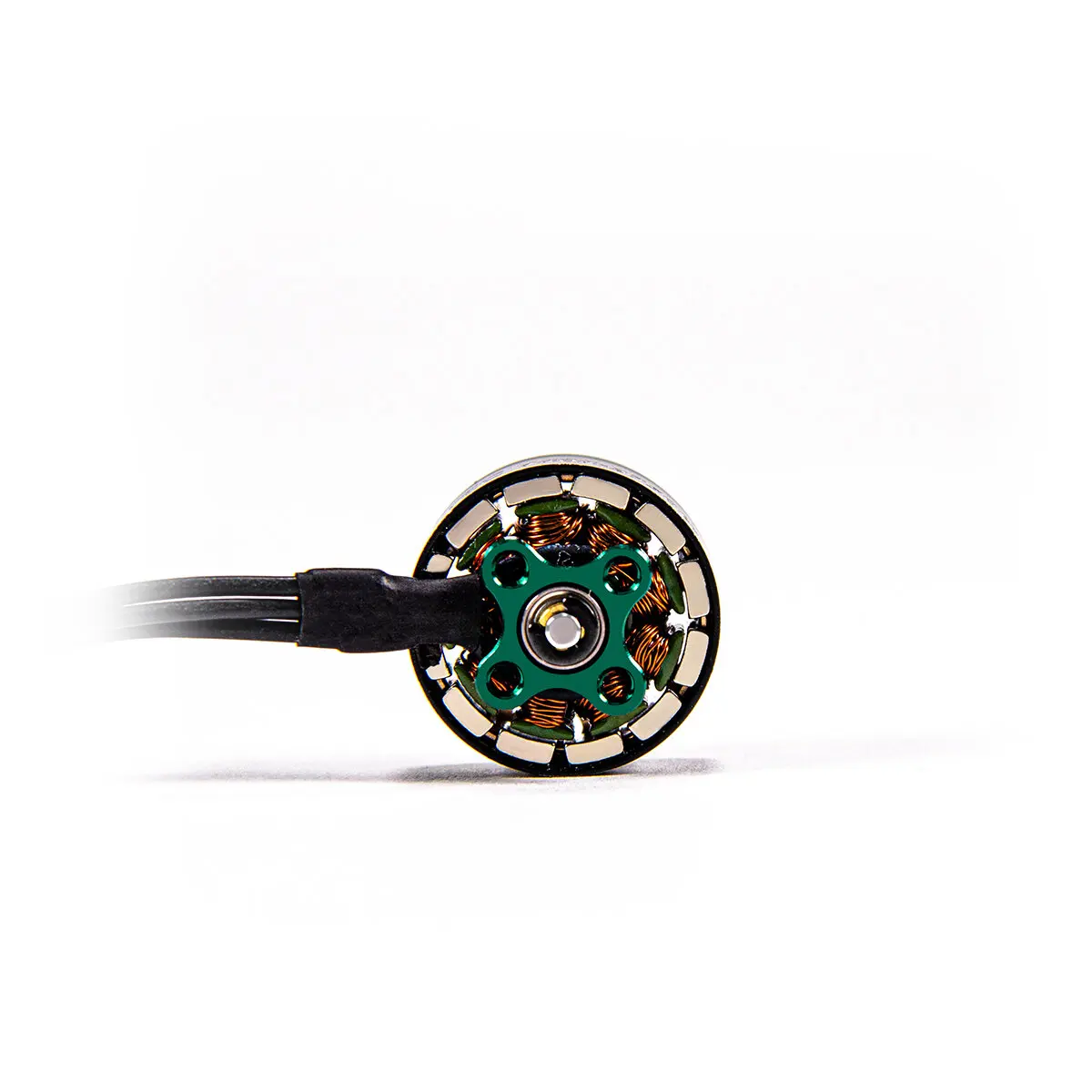

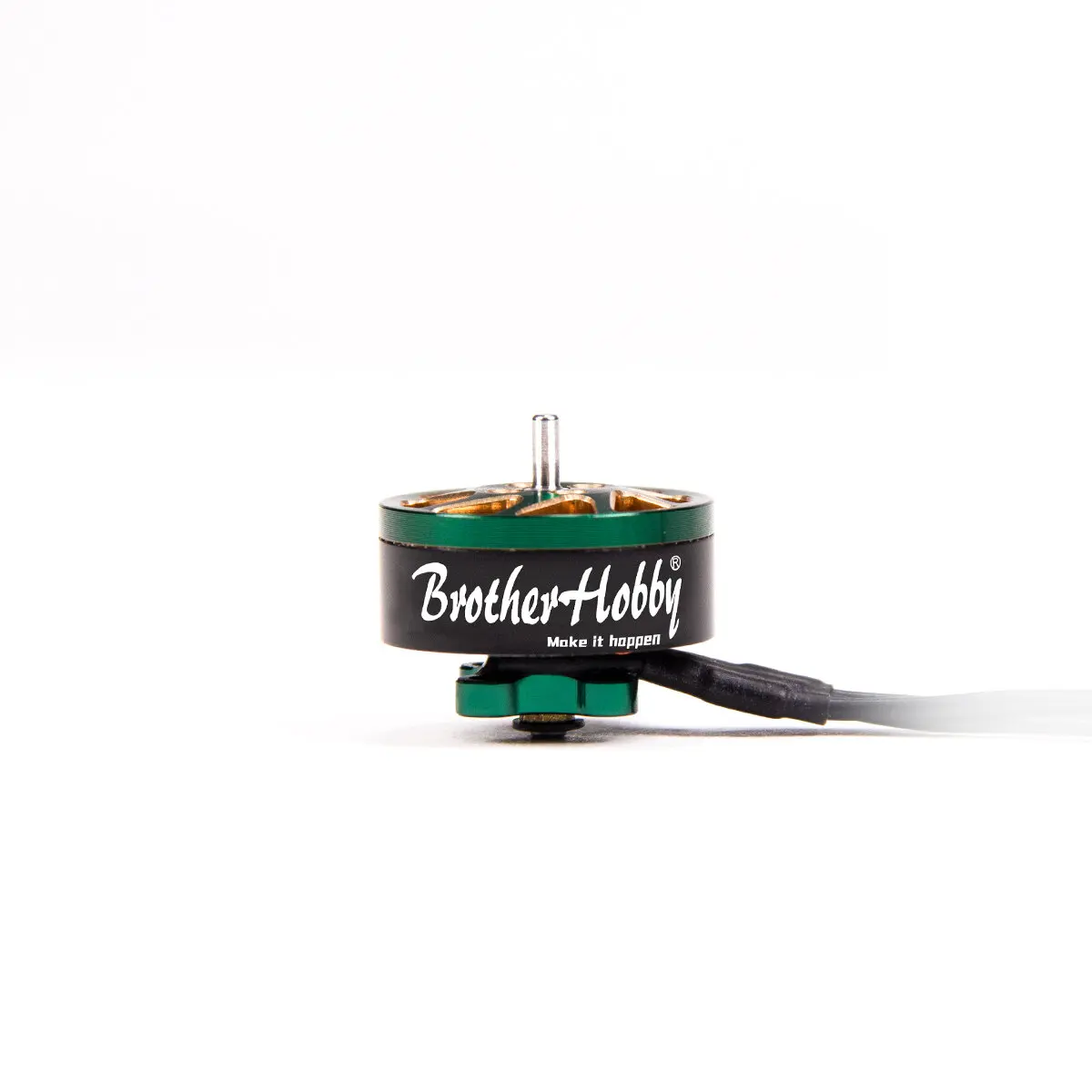

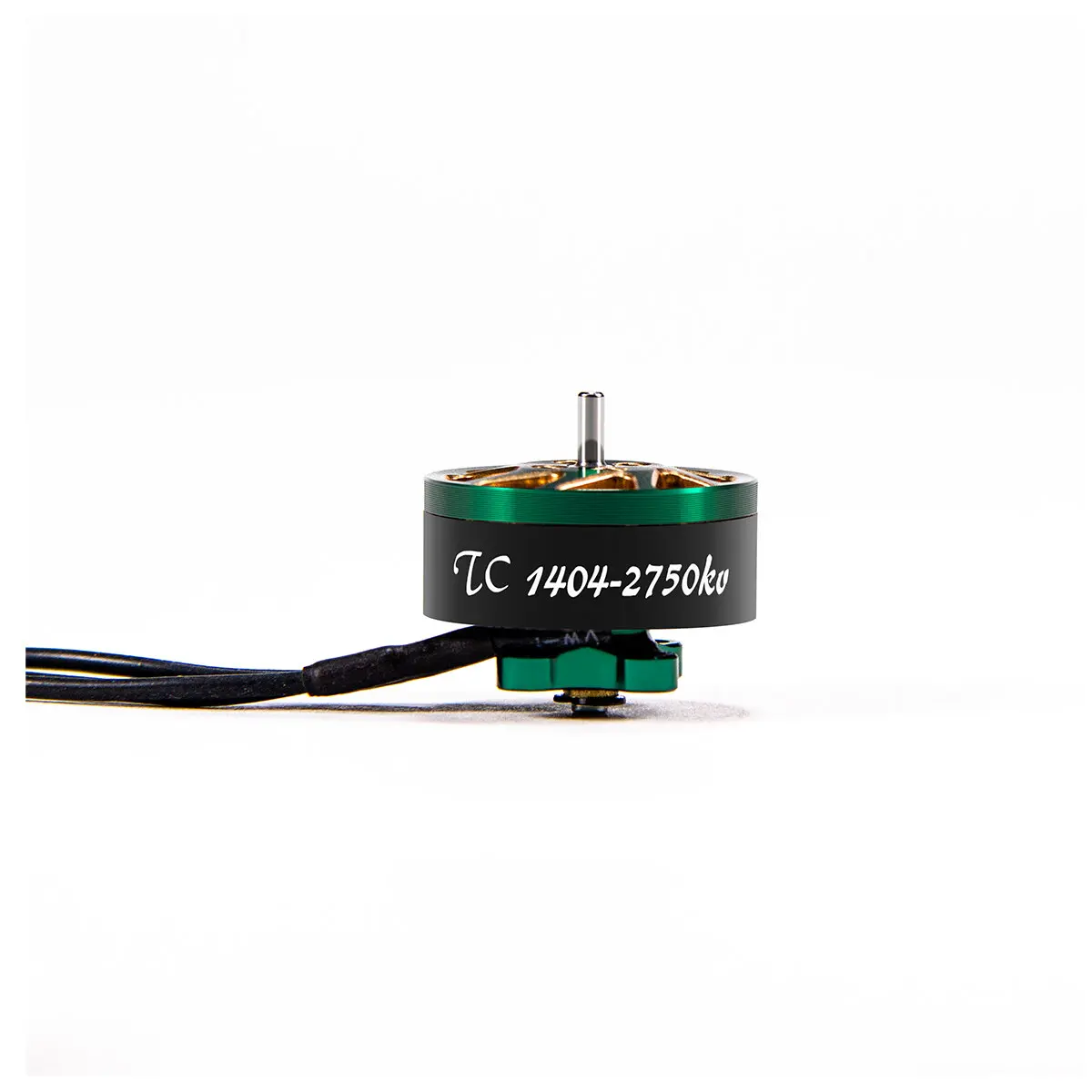

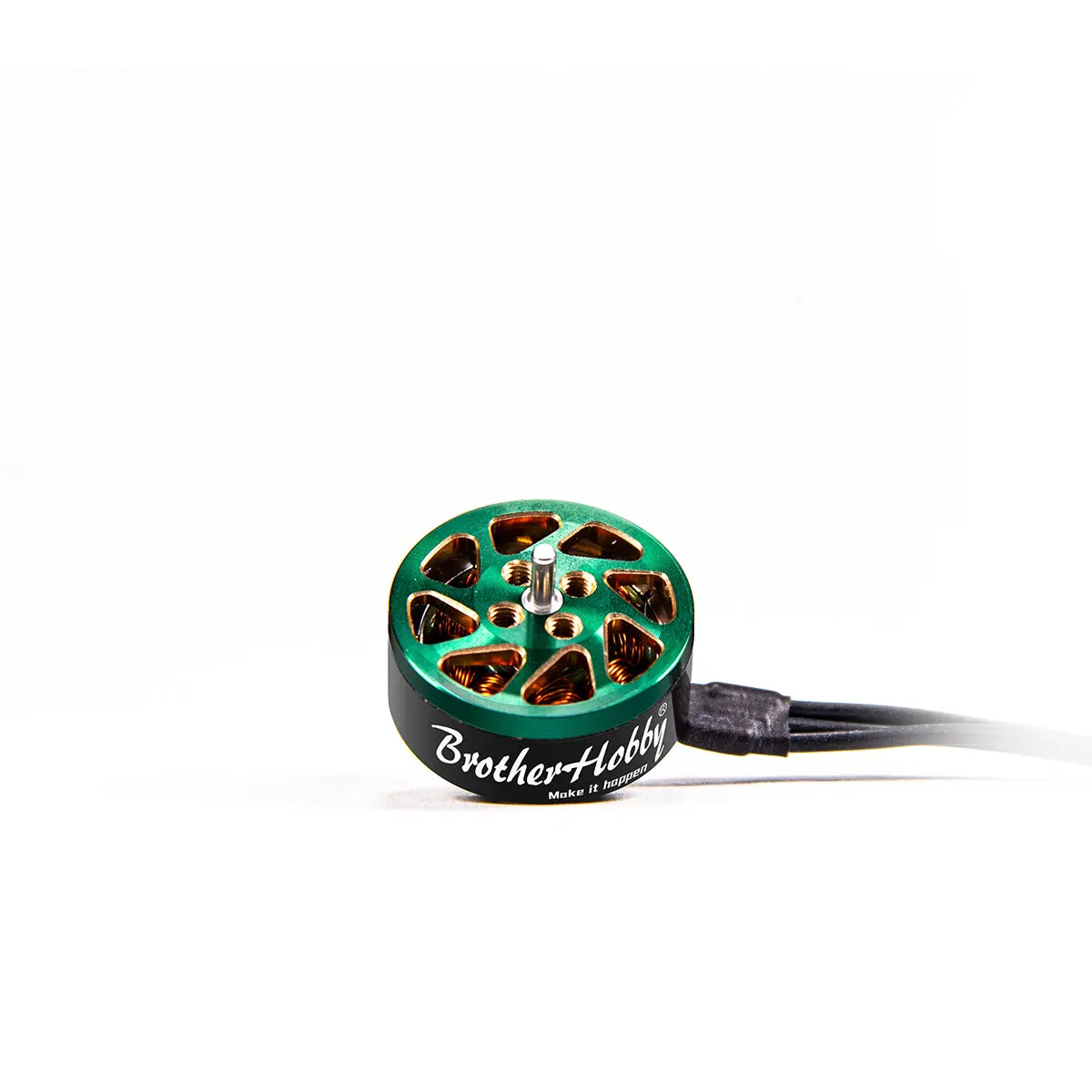

BrotherHobby TC 1404 Ultralight Motor
- Category: >>>
- Supplier: Shenzhen Tianji Model Co. Ltd.
Share on (1601279901074):
Product Overview
Description
Specifications
TC 1404
KV: 2750KV/3800KV/4600KV
Configuration: 9N12P
No.of Cells(Lipo): 3-4S
Rotor: N52H arc magnets
Wire AWG: 30AWG wire 16cm length
Stator: 0.15mm Kawasaki silicon steel
Bearings: Japanese NSK 5*2*2.5
Bell cap: Al 7075
Base casing: Al 7075
Prop shaft: 1.5mm
Mounting: T-Mount (M2 holes, 5mm eye to eye)
Bolt Pattern: M2 (9mmX9mm)
Weight: with 10cm SR wires
