Iap40 40t/h Asphalt Mobile Plant Portable Asphalt Drum Mix Plant Large Concrete Batch Mixing Plant 9 Drums Low Prices For Sale
- Category: >>>
- Supplier: Asian Construction Equipment Group Co. Ltd.
Share on (1601279908640):
Product Overview
Description
Product Overview

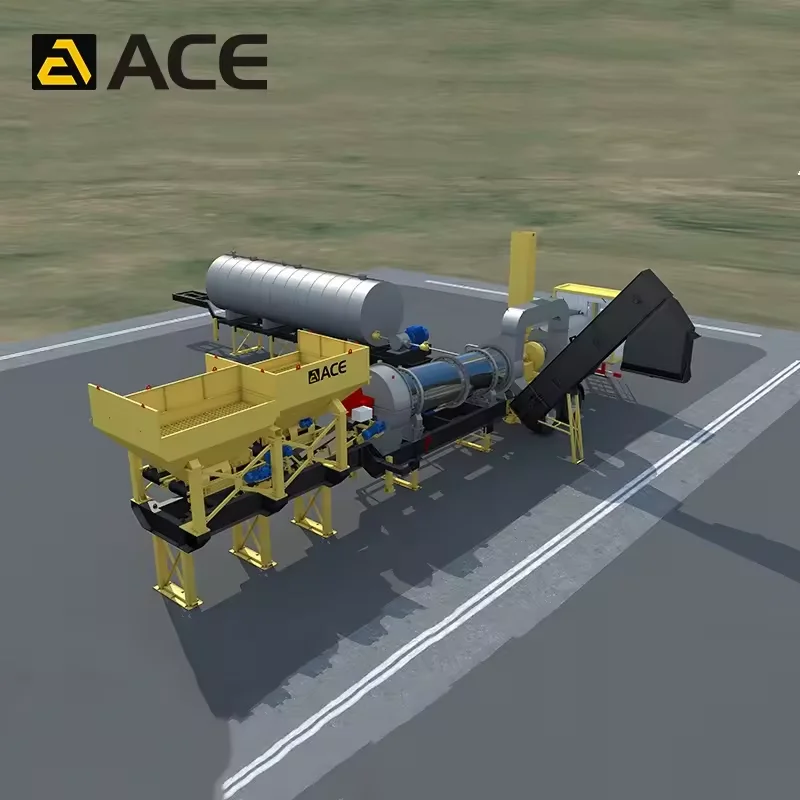

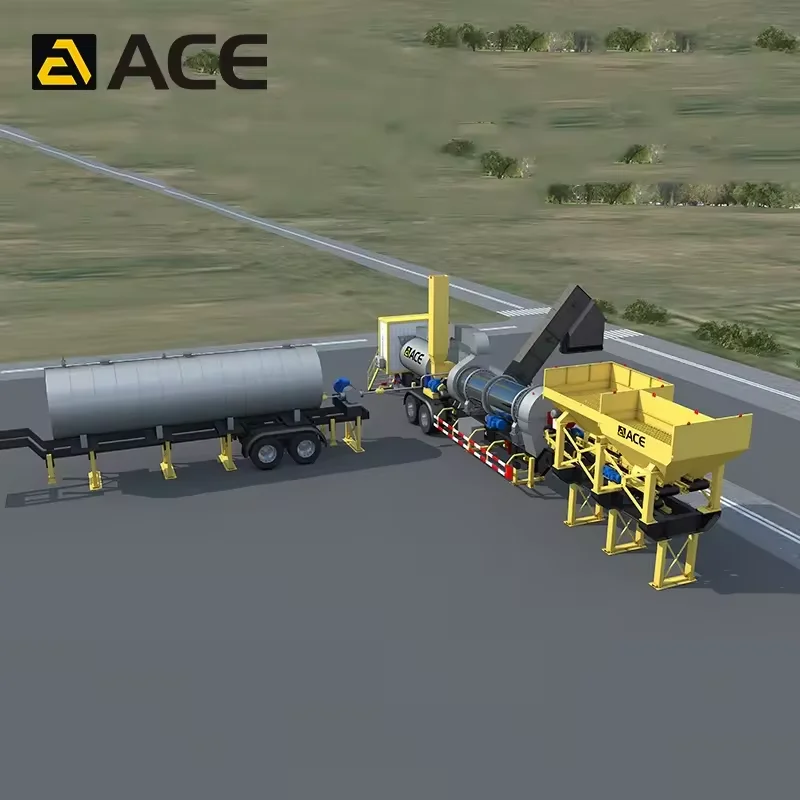

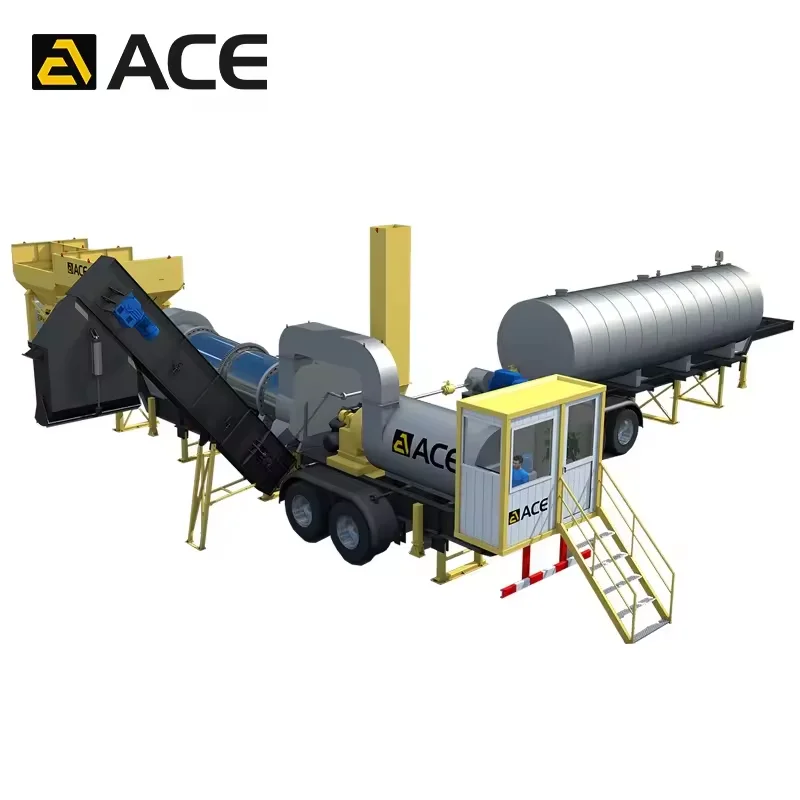

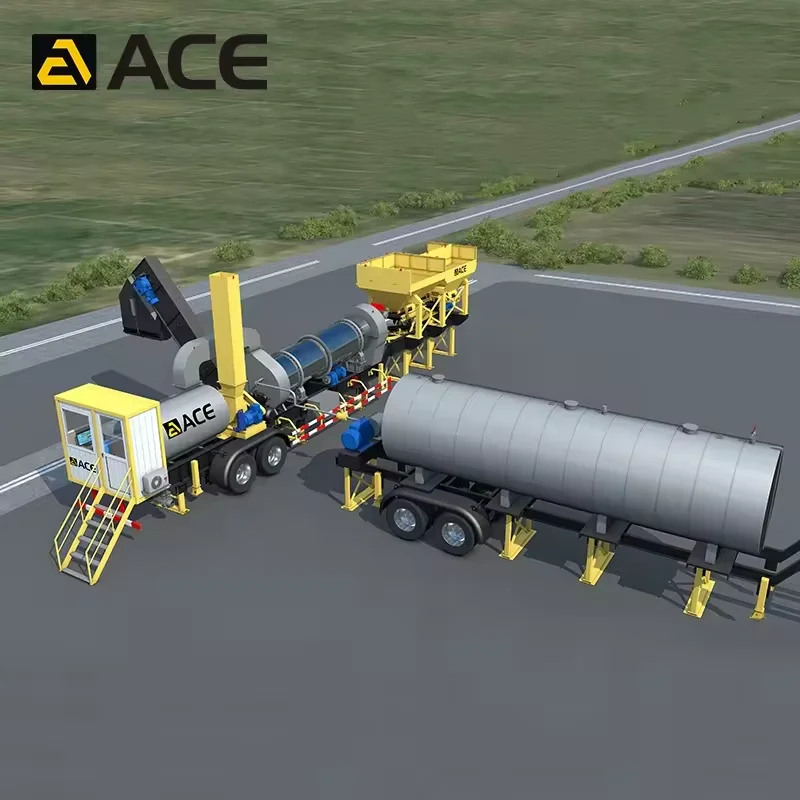

Super-mobile Asphalt Plant — IAP
IAP Series has the following characteristics: All components integrated into one or two movable units, rapid assembly (only several hours are needed), no foundation required, efficiency of fuel consumption. They are ideal for all types of road-building projects.
FEATURES AT A GLANCE
Model: IAP40 ~ IAP120
Production Capacity: 40t/h ~ 120t/h
Highlights:
All in one mobility or two, fast relocation; reassembly completed in hours, easy for installation; zero foundation required, make-ready time reduced greatly
Production Capacity: 40t/h ~ 120t/h
Highlights:
All in one mobility or two, fast relocation; reassembly completed in hours, easy for installation; zero foundation required, make-ready time reduced greatly
Front elevation
Left elevation
Righ elevation
PRODUCT SPECIFICATIONS
Model | Capacity | Drying & Mixing Drum | Installation Power | Total Weight | Transport State Dimension |
IAP40 | 40t/h | Φ1200*5000mm | 63.55kW | 26T | 17.1m*3.09m*4m |
IAP60 | 60t/h | Φ1500*6500mm | 99.5kW | 30T | 20m*3.09m*4m |
IAP80 | 80t/h | Φ1500*6650mm | 115kW | 40T | 23m*3.09m*4m |
IAP100 | 100t/h | Φ1500*7500mm | 167kW | 55T | 23m*3.09m*4m |
IAP120 | 120t/h | Φ1800*8000mm | 226kW | 70T | 23m*3.09m*4m |
PRODUCT CONFIGURATION
1. Cold Feeders
2. Drying Drum
3. Automotive Chassis
4. Dust Collector
5. Control Room
6. Bitumen Tank
Main Feature

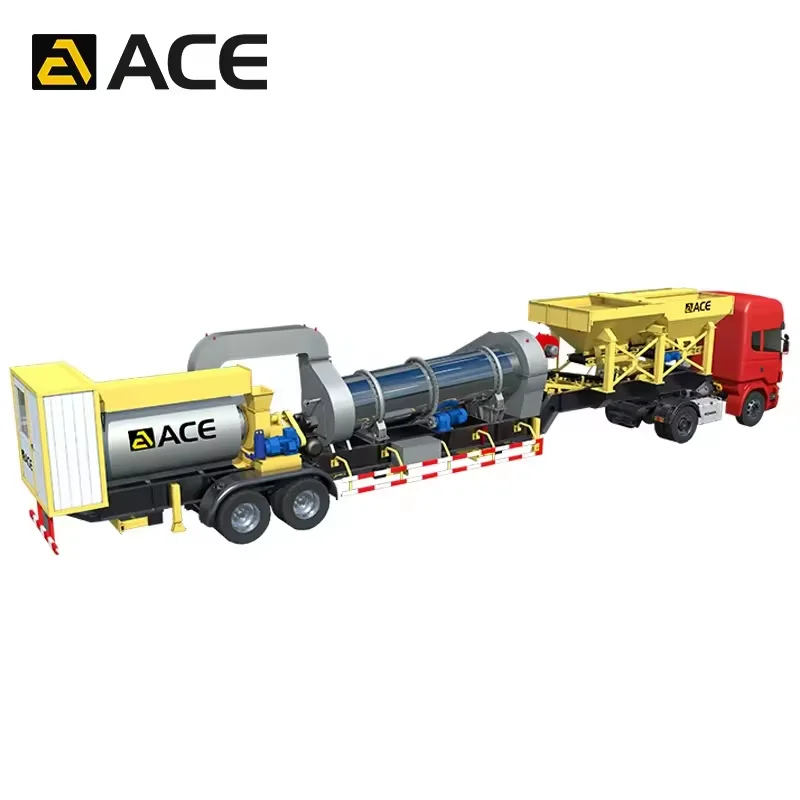

1. Whole production line in only one or two mobile unit
Lower transport costs, and lower investment of the plant and freight package; easy adaptation to different construction sites, low complexity for installation, less mobilization and assembly time.
2. Efficiency in fuel consumption
The repeatedly optimized design of the lifting blade and the stainless steel insulation layer can effectively reduce the heat loss of the drying drum; The burning zone of the drying drum adopts wear-resistant and heat-resistant materials with long service life.
3. Control system with switchable operation modes
Auto and manual operation mode are available, and the operator can switch to manual operation at any time.
4. Stronger dust filting effect
Water mist is formed inside by 6 clog-free large stainless steel spray nozzles; water film and cyclone dust filtration techniques also contribute to a very good entrapping of the dust-laden exhaust gas; The damper of the induced draft fan can be automatically adjusted to formulate the constant negative pressure, helping achieve optimum cleaning efficiency.
5. Optimized cold feeders
The underfeeding alarm, automatic wall vibrator, individual belt scale beneath each hopper, synchronous proportional automatic control, protection grid at top of each hopper, ect, make cold feeders more functional.
6. Parallel-flow drying
Continuous mixing ensures extra-high production efficiency of the whole plant; World famous dual-fuel burners are available for option, with combustion efficiency guaranteed.
7. Drag chain load-out conveyor makes secondary mixing reality
Secondary mixing can be realized thanks to the drag chain conveyor, making the asphalt mixture more uniform; it is fully enclosed to avoid heat loss and minimize the contamination of the surrounding environment caused by the asphalt fume.
8. Optional bitumen tank
Two kinds of bitumen tanks are available-the hot oil heated tanks and the direct heating tanks; Provided with automotive chassis, the bitumen tank is also easy to move as one mobile unit.
Lower transport costs, and lower investment of the plant and freight package; easy adaptation to different construction sites, low complexity for installation, less mobilization and assembly time.
2. Efficiency in fuel consumption
The repeatedly optimized design of the lifting blade and the stainless steel insulation layer can effectively reduce the heat loss of the drying drum; The burning zone of the drying drum adopts wear-resistant and heat-resistant materials with long service life.
3. Control system with switchable operation modes
Auto and manual operation mode are available, and the operator can switch to manual operation at any time.
4. Stronger dust filting effect
Water mist is formed inside by 6 clog-free large stainless steel spray nozzles; water film and cyclone dust filtration techniques also contribute to a very good entrapping of the dust-laden exhaust gas; The damper of the induced draft fan can be automatically adjusted to formulate the constant negative pressure, helping achieve optimum cleaning efficiency.
5. Optimized cold feeders
The underfeeding alarm, automatic wall vibrator, individual belt scale beneath each hopper, synchronous proportional automatic control, protection grid at top of each hopper, ect, make cold feeders more functional.
6. Parallel-flow drying
Continuous mixing ensures extra-high production efficiency of the whole plant; World famous dual-fuel burners are available for option, with combustion efficiency guaranteed.
7. Drag chain load-out conveyor makes secondary mixing reality
Secondary mixing can be realized thanks to the drag chain conveyor, making the asphalt mixture more uniform; it is fully enclosed to avoid heat loss and minimize the contamination of the surrounding environment caused by the asphalt fume.
8. Optional bitumen tank
Two kinds of bitumen tanks are available-the hot oil heated tanks and the direct heating tanks; Provided with automotive chassis, the bitumen tank is also easy to move as one mobile unit.
Professional Asphalt Mixing Plant Manufacturer
ACE is a group company with several factories to manufacture asphalt mixing plants, construction material production plants, road marking machines and other road building equipment.
ACE has established a professional team to design and manufacture mobile asphalt mixing plants for clients from all over the
world.
ACE has established a professional team to design and manufacture mobile asphalt mixing plants for clients from all over the
world.
ACE Group is able to manufacture 150 sets of asphalt plants per year, covering batch mix asphalt plants, drum mix asphalt plants and mobile asphalt plants. Lead time is short and delivery time is guaranteed.

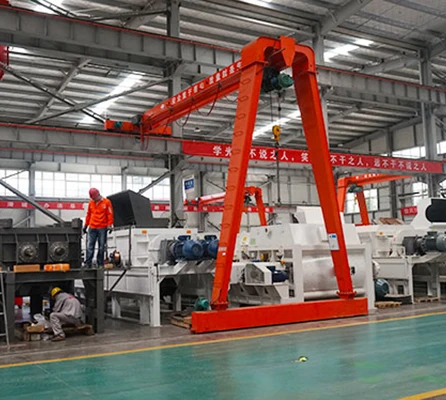

Asphalt Mixing Plant Manufacture Base
Workshop for Concrete Plant, WMM Plant Production
Workshop for Road Maintenance Machinery Production
Successful Project
BAP120 batch mix asphalt plant, 120t/h, Tanzania
BAP120batch mix asphalt plant, 120t/h, Malaysia
BAP240 batch mix asphalt plant, 240t/h, Ethiopia
CAP60 compact asphalt plant, 60t/h, Brazil
MAP60 mobile asphalt plant, 60t/h, Ethiopia
CAP40 compact asphalt plant, 40t/h, Myanmar

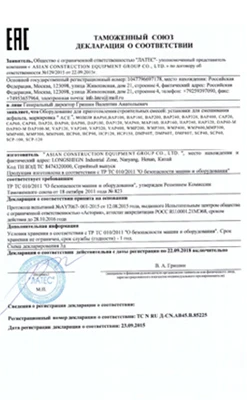

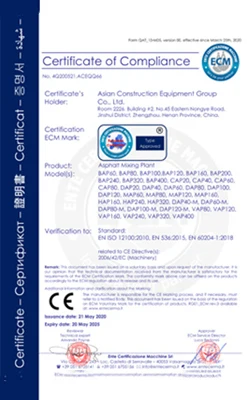

Certifications
Why Choose Us
* Advantage 1: 20 Years' Experience, Member of CCMA
* Advantage 2: Over 60 Models, With ISO, CE and EAC Certificate
* Advantage 3: 400 Sets of Asphalt Plants, Over 80 Countries
* Advantage 4: Fast, Professional, Worry-free, Thoughtful Service
* Advantage 2: Over 60 Models, With ISO, CE and EAC Certificate
* Advantage 3: 400 Sets of Asphalt Plants, Over 80 Countries
* Advantage 4: Fast, Professional, Worry-free, Thoughtful Service
