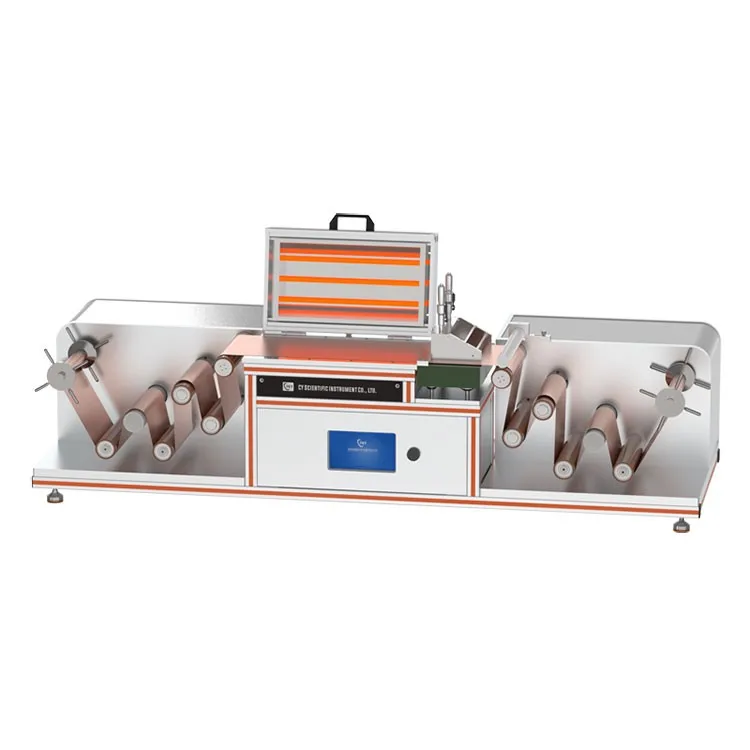

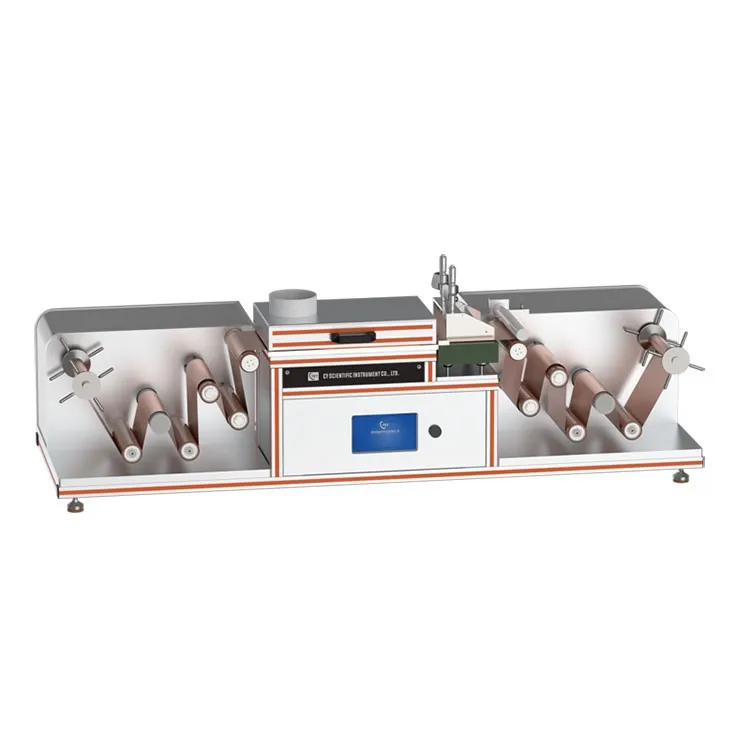

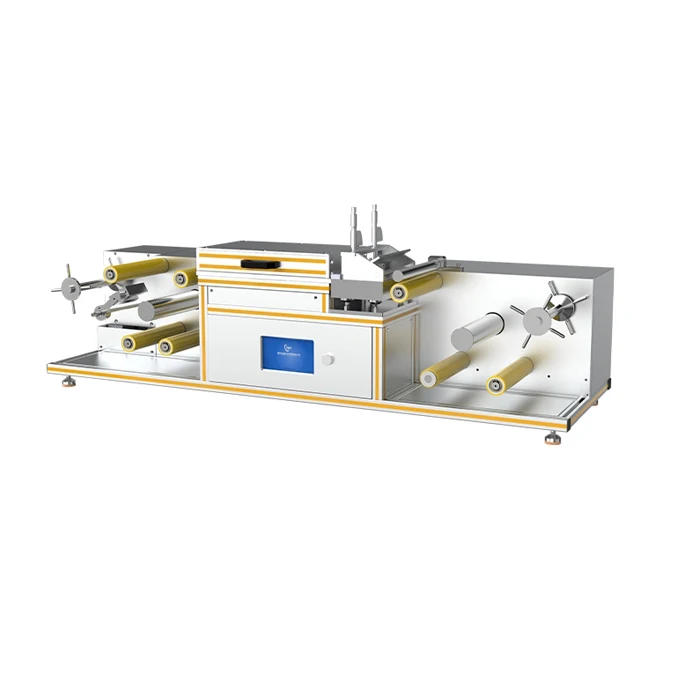

Roll to Roll Tape Casting System Roller Coating Machine for EMI/AZO Film Coating Machine Roll to Roll Flat Tape Caster
Roll-to-Roll Tape Casting System Roller Coating Machine for EMI/AZO Film Coating Machine Roll-to-Roll Flat Tape Caster
Roll-to-Roll Tape Casting System Roller Coating Machine for EMI/AZO Film Coating Machine Roll-to-Roll Flat Tape Caster
Roll-to-Roll Tape Casting System Roller Coating Machine for EMI/AZO Film Coating Machine Roll-to-Roll Flat Tape Caster
Roll-to-Roll Tape Casting System Roller Coating Machine for EMI/AZO Film Coating Machine Roll-to-Roll Flat Tape Caster
Roll-to-Roll Tape Casting System Roller Coating Machine for EMI/AZO Film Coating Machine Roll-to-Roll Flat Tape Caster
Roll-to-Roll Tape Casting System Roller Coating Machine for EMI/AZO Film Coating Machine Roll-to-Roll Flat Tape Caster

Roll to Roll Tape Casting System Roller Coating Machine for EMI/AZO Film Coating Machine Roll to Roll Flat Tape Caster

Share on (1601279916050):


Price:$12,000.00 - $16,000.00

Quantity:


Product Overview

Description

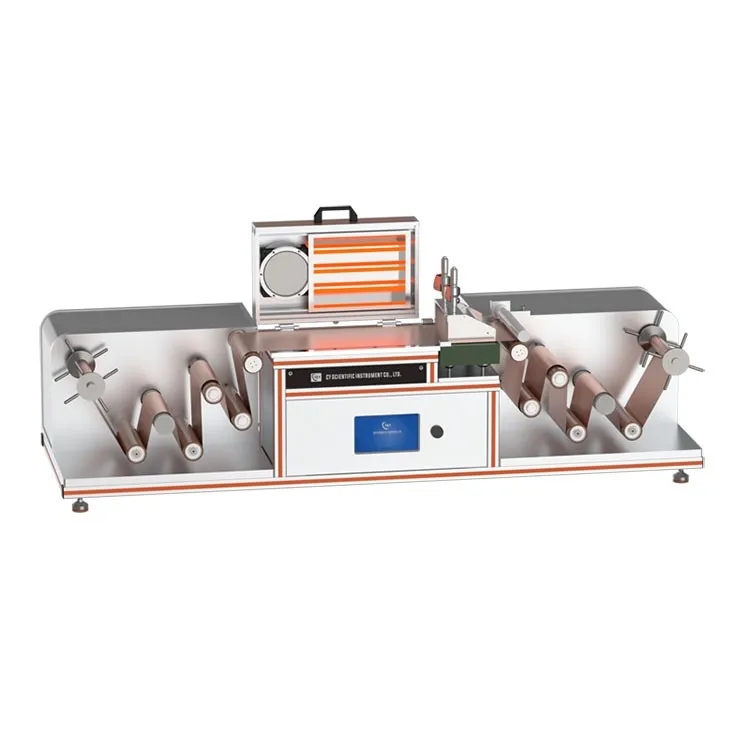

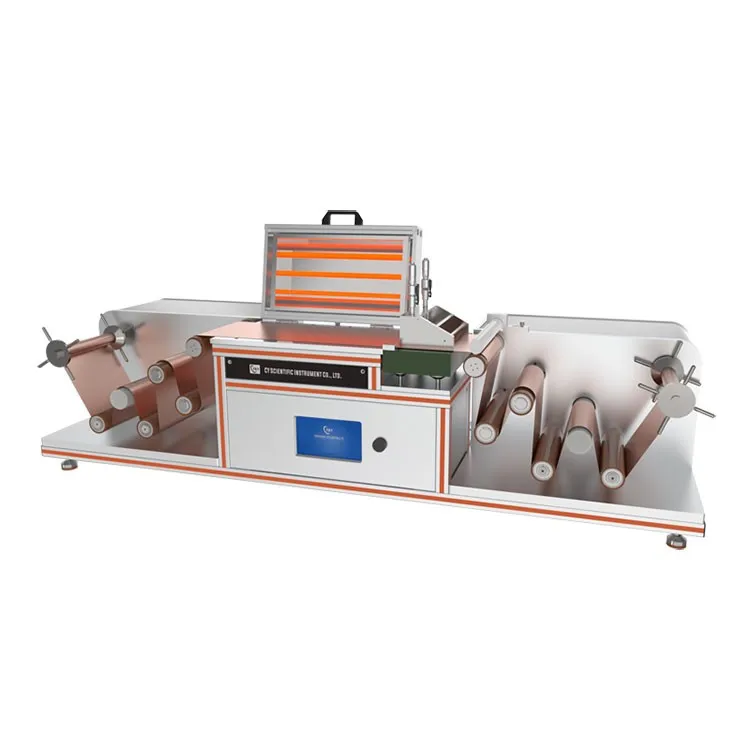

Lab Scale Roll-to-Roll Flat Tape Caster (Max.10" Width) w/ Drying Heater & Static Dust Removal


CY-AFA-EC150-LD is a compact continuous tape caster for battery electrode sheets with circulation drying heater. Such system integrates electrostatic dust removal system which enables the particle-free coating environment. It can coat thick film sheet up to 1.5 mm thickness, 254mm width and 4 meters long in a roll-to-roll type of fashion (substrate reeling out -> blade coating-> heated circulation drying-> and final electrode winding).





















































Working Voltage



208 – 240VAC, 50/60Hz, Single phase



Max. Power Consumption



1.2 KW



Coating Method & Precision






Tape casting is done with a doctor blade on a flat plate: Substrate reeling out -> blade coating-> heated circulation drying-> and final electrode winding


Doctor Blade Coating technique


Coating Thickness Precision: +/- 0.005mm



Coating Width



Max. Coating Width: 254mm



Coating Speed



0~800mm / minute



Coating Thickness



0~5mm adjustable



Rolling Diameter



160mm Max. (roller O.D is 63.5mm)



Heater



Bottom heating to  80°C Max
Top Heating:  Recirculating hot air to 120°C Max.



Drying Chamber



The casting flatbed is enclosed by an 800mm long drying chamber. A 1.5 KW heater enables continuous-flow heated circulation through the drying chamber.
(Optional: Electric resistance heaters attached to the underside of the drying chamber is available upon request)



Max. Coating Length



Depending on the coating and substrate thickness. (Typically, you can get 4 meters of electrode coated with 10um thick foil, 100um thick coating per run)



Static Dust Removal System



The use of static system helps eliminate the dust particles accumulated on the substrate and ensure a dust-free coating environment.

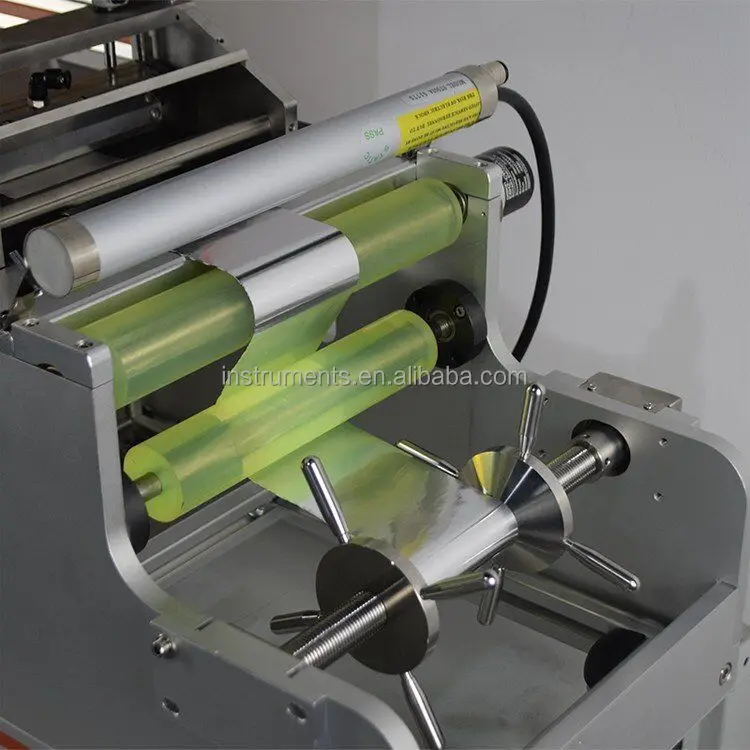

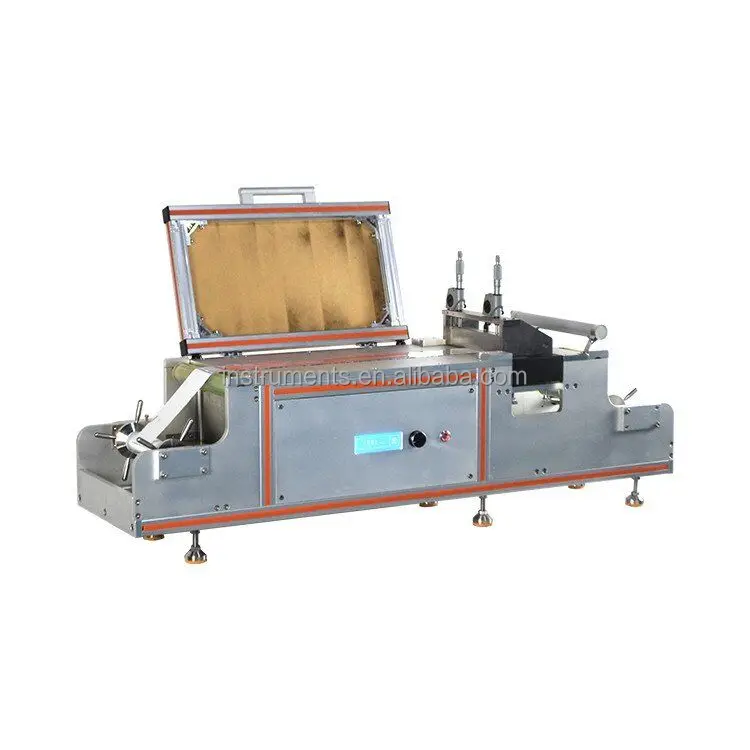

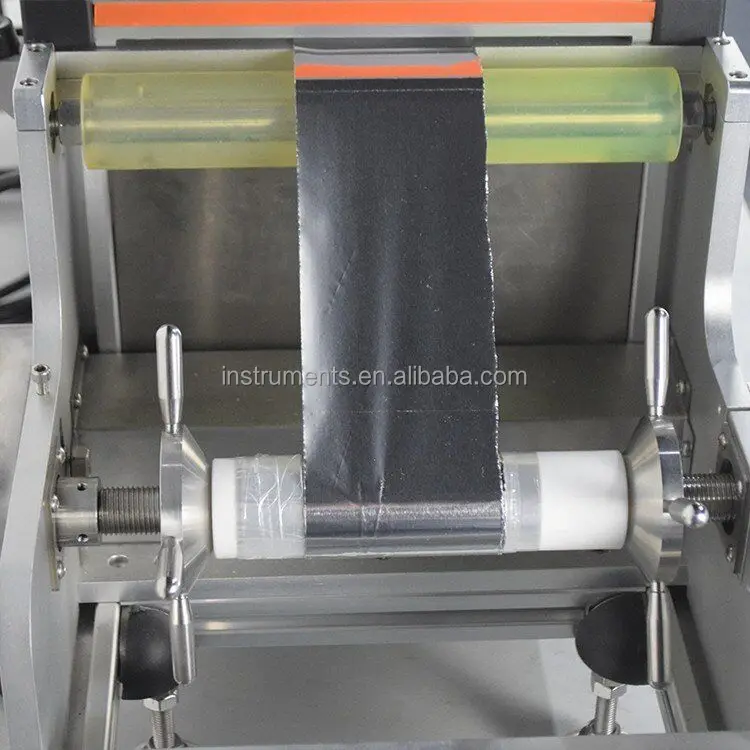

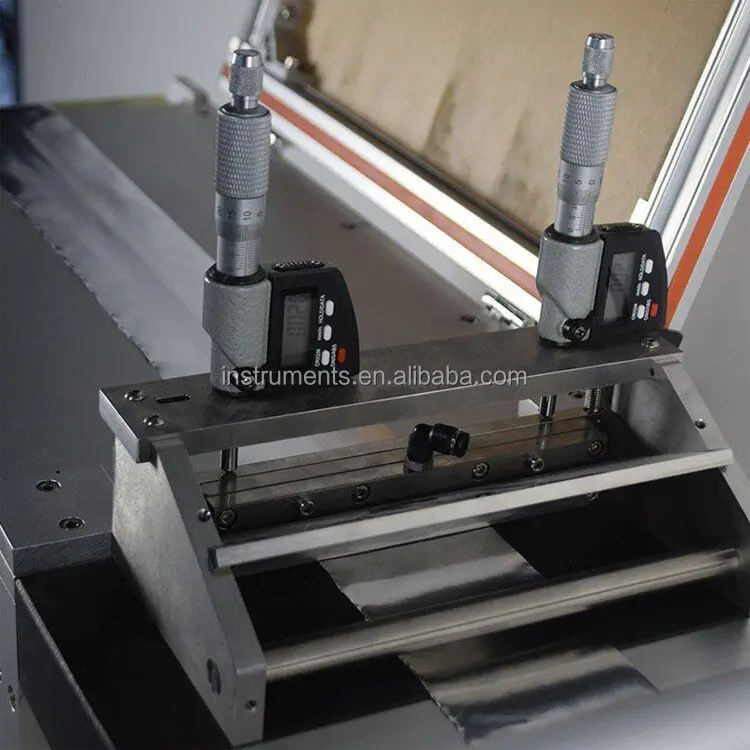

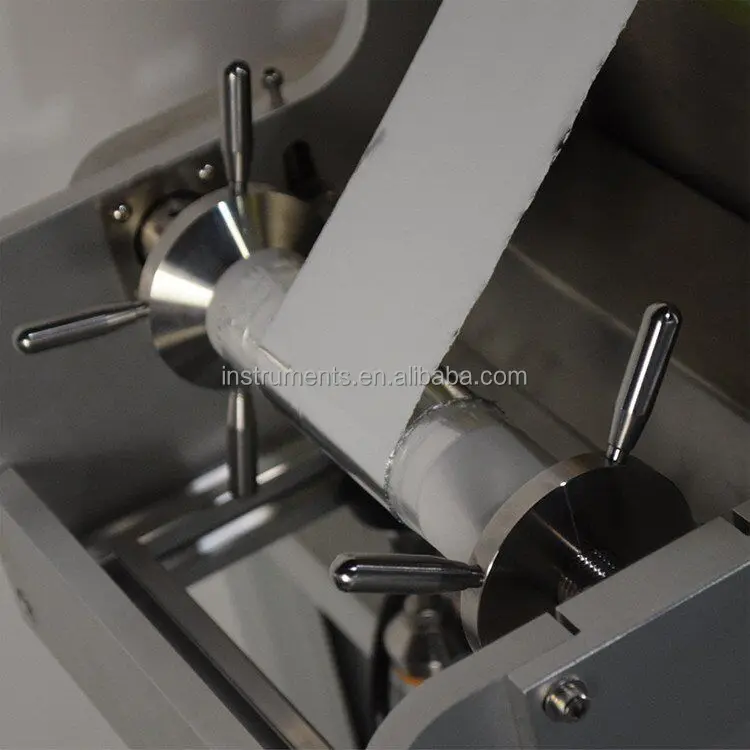

QQ20210114103018.jpgQQ20210114103048.jpgQQ20210114103051.jpgQQ20210114103053.jpgQQ20210114103057.jpgQQ20210114103059.jpg
