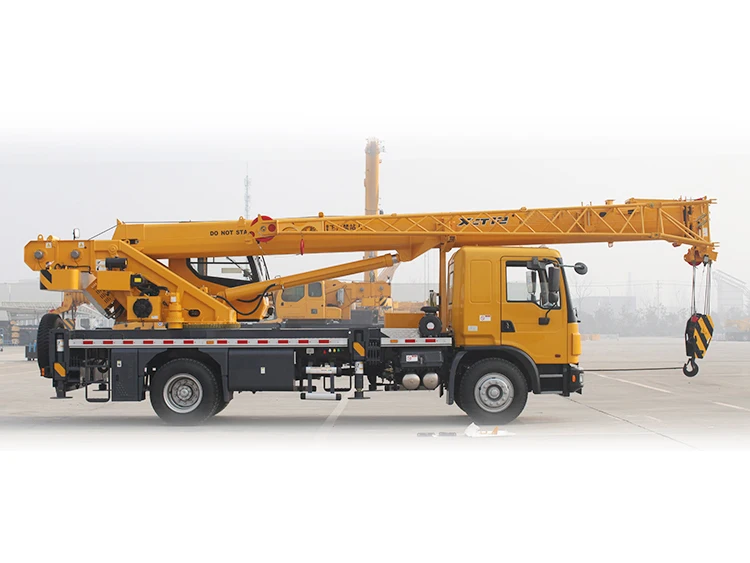

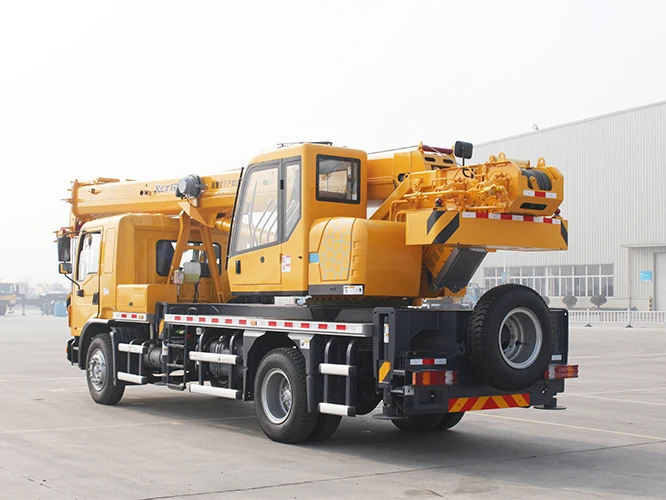

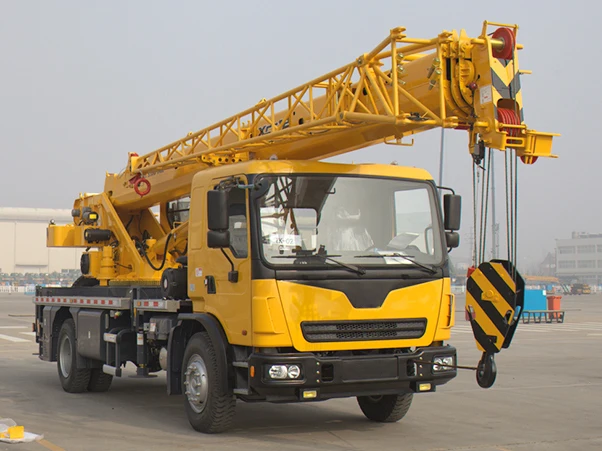

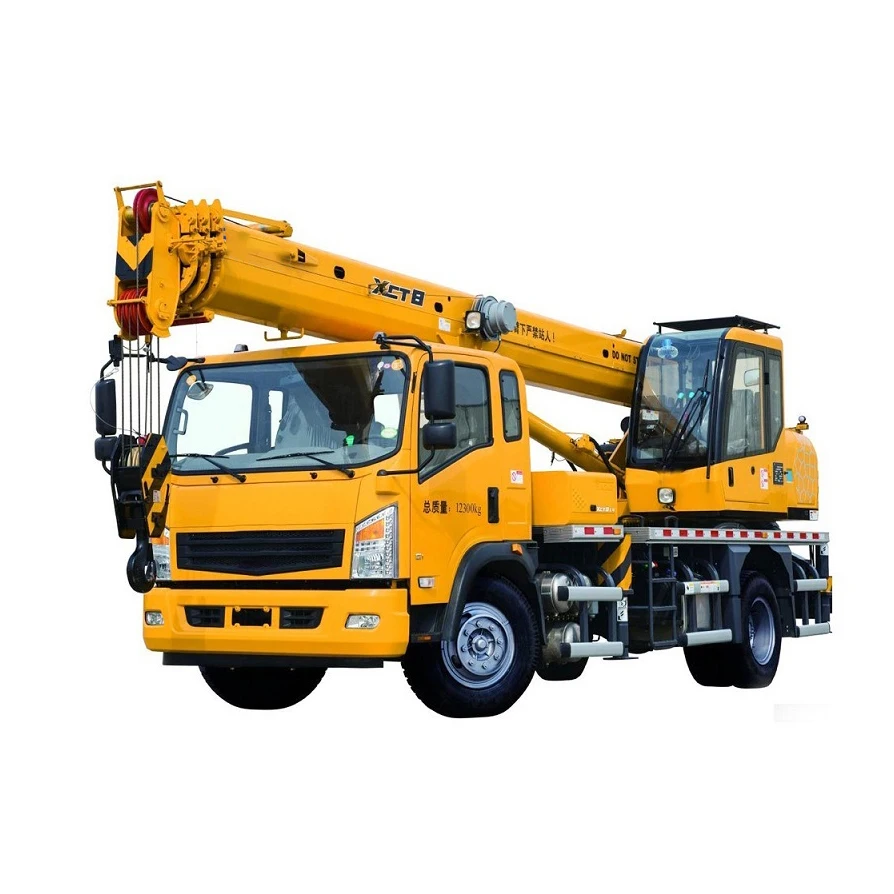

Flexible Hydraulic Truck Cranes XCT8L4 Lifting Machinery

Product Description
1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.

2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.

3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.

4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.

5. Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.


PRODUCT SPECIFICATIONS


Dimension
Unit
XCT8L4
Overall length
mm
9375
Overall width
mm
2400
Overall height
mm
3240/3170
Total weight in travel
kg
12300/12100
Engine model
YC4E140-42/BF4M2012-14E4
Engine rated power
kW/(r/min)
103/2600 106/2500
Engine rated torque
N.m/(r/min)
430/(1300-1600) 500/1500
Max. travel speed
km/h
90
Min. turning diameter
m
16
Min. ground clearance
mm
260
Approach angle
°
18
Departure angle
°
13
Max. grade ability
%
35
Fuel consumption for 100km
L
18
Max. rated total lifting capacity
t
8
Min. rated working radius
m
3
Turning radius at turntable tail
m
2.327
Max. lifting torque
kN.m
302
Base boom
m
8.5
Max.main boom
m
25.6
