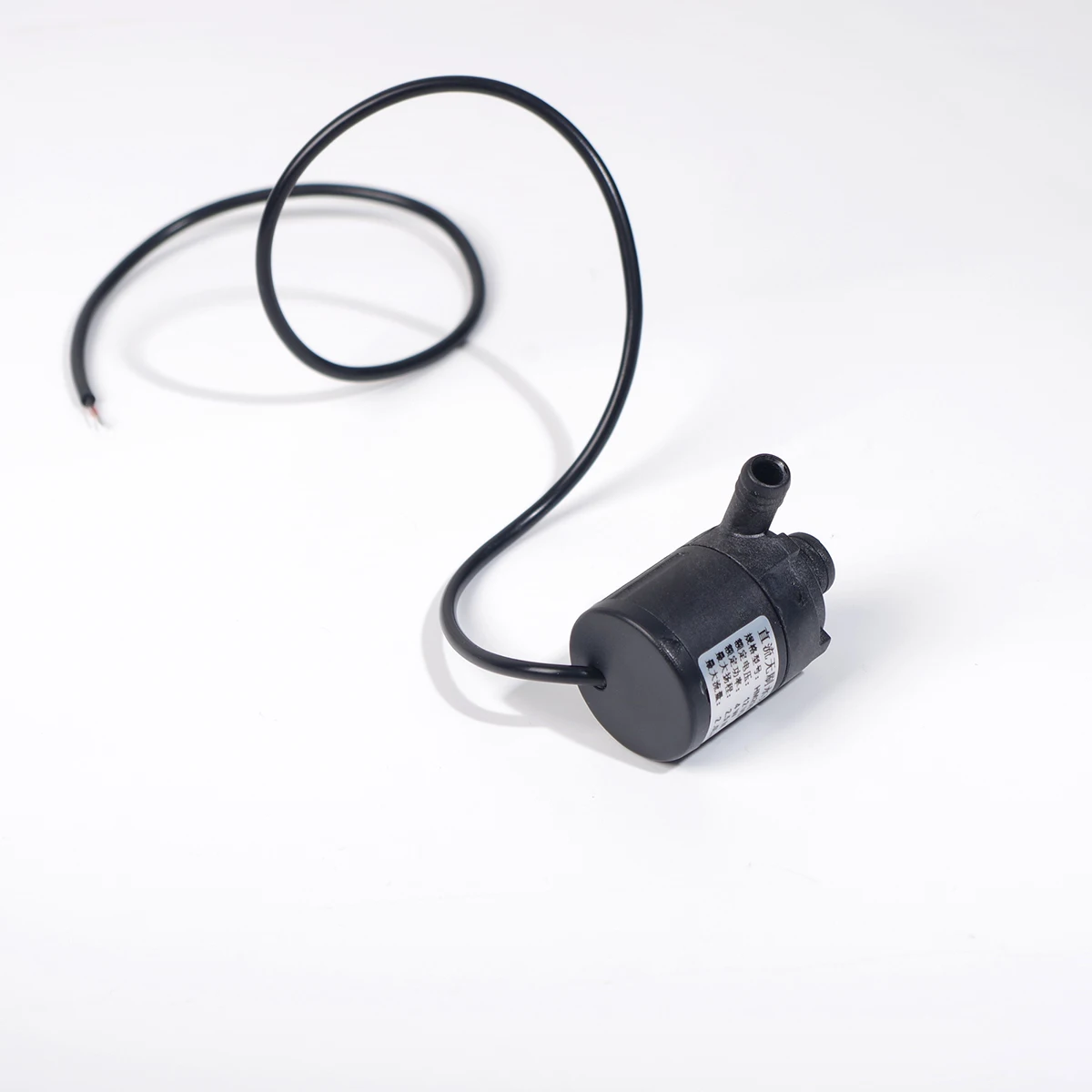

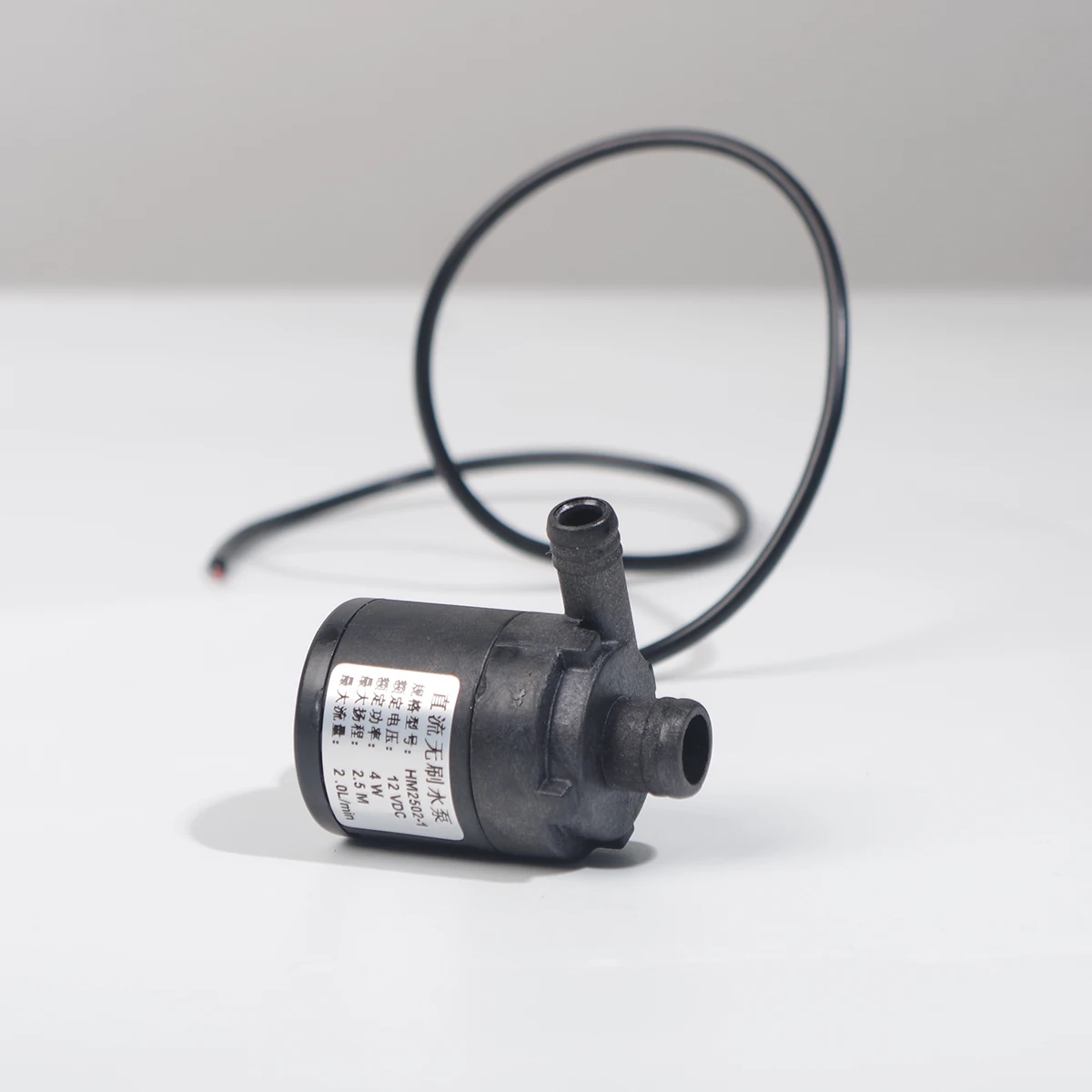

DC 6V 12V Water Pump For Household Appliance Soilless Culture Garden Irrigation Computer Water Cooling Solar Fountain
- Category: >>>
- Supplier: Foshan Jin Fu Long Technology Co. Ltd.
Share on (1601279963174):
Product Overview
Description
Product Description
| Model | AE2502-1 |
| Operating voltage range | DC4V-DC12V |
| Rated operational voltage | DC6V/DC12V(Please select one, or modulate other voltages according to customer requirements) |
| Power range | 0.5-4W |
| Maximum lift range is optional | 30-200cm |
| Optional maximum water flow range | 30-210L/H |
| Service life | 30000H |
| Liquid environment | PH value :PH5-10(weak acid and weak base range), water work, non-submersible pump |
| Level of noise | Under normal working conditions, the normal temperature state (10cm away from the tester) <30dB |
| Motor type | Brushless direct current |
| Operating fluid | Clean water |
| Environment temperature | -40℃-70℃ |
| Liquid temperature | 0℃-70℃(Operating temperature of liquid at normal temperature) |
| Customizable function | Anti-connection protection, overvoltage protection, overcurrent protection, overheat protection, short circuit protection, dry pumping protection, PWM speed regulation and so on |
| Power supply mode | Dc power supply, battery, solar panel, cigarette lighter DC voltage |
| Applied range | Fountain, aquarium, soilless culture, fish pond, garden decoration, solar fountain, humidifier, sterilizer, home refrigerator, car refrigerator, foot bath, mobile bath machine, solar water cycle system, home appliance water cycle, handicrafts, etc |
| Product size | 41.0*26.0*37.0(mm) |
| Outside diameter of inlet and outlet | ∅10.0(mm)/∅7.5 (mm)
|

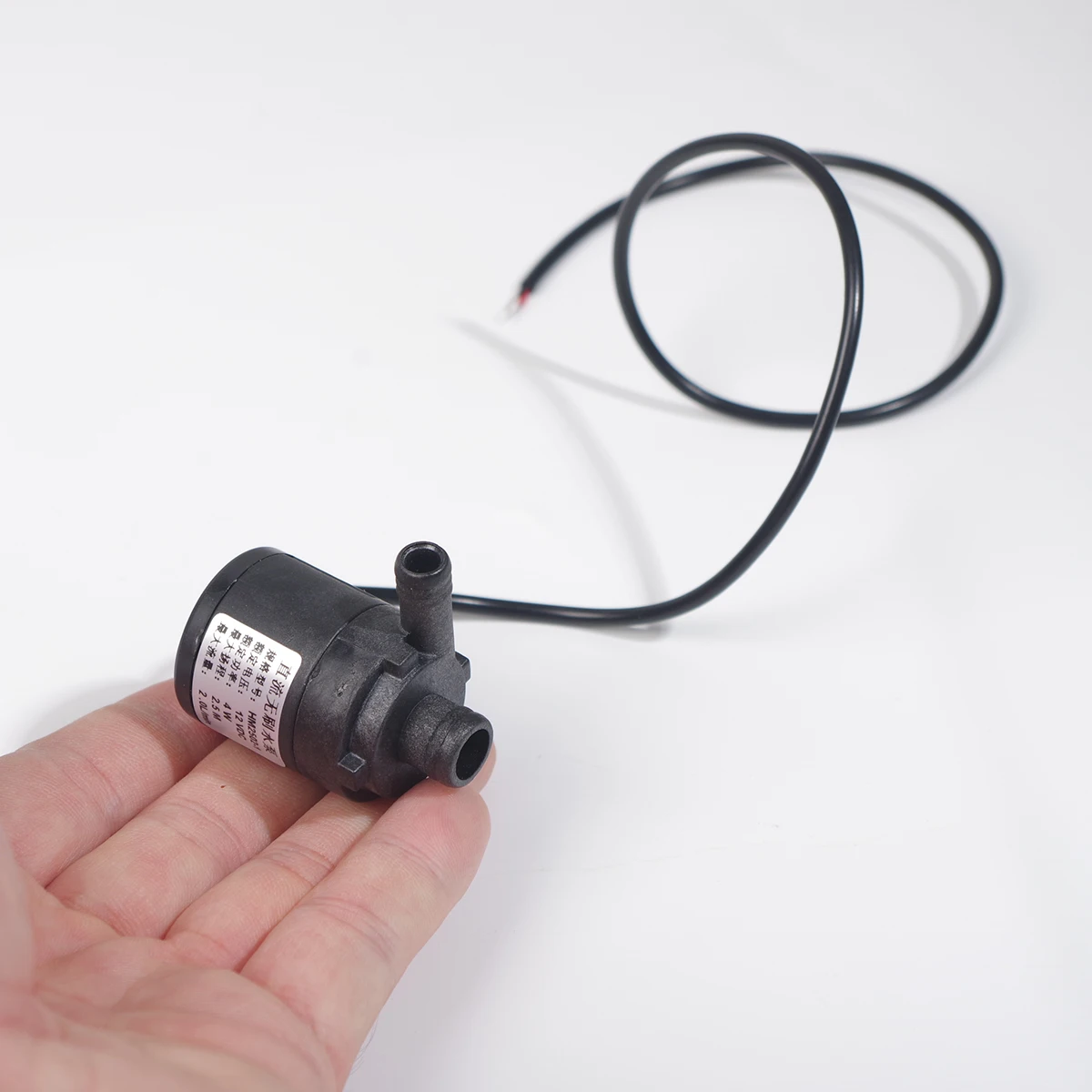

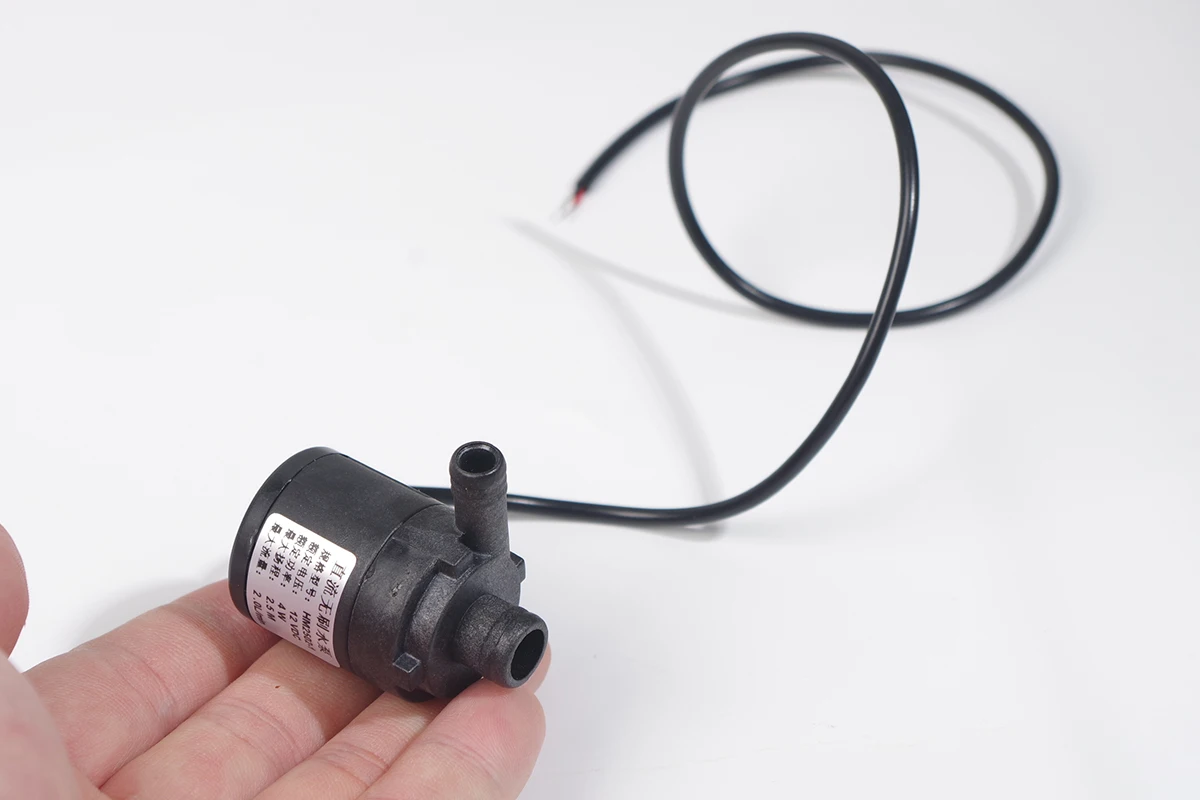

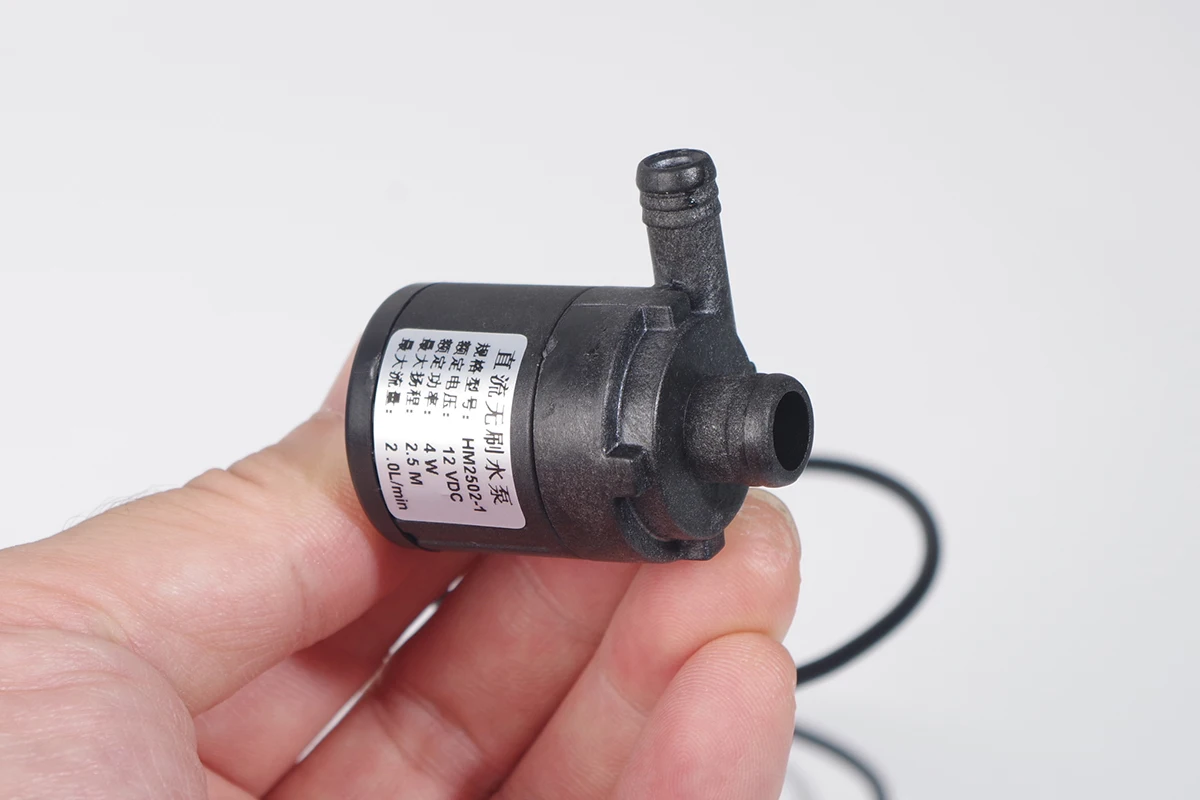

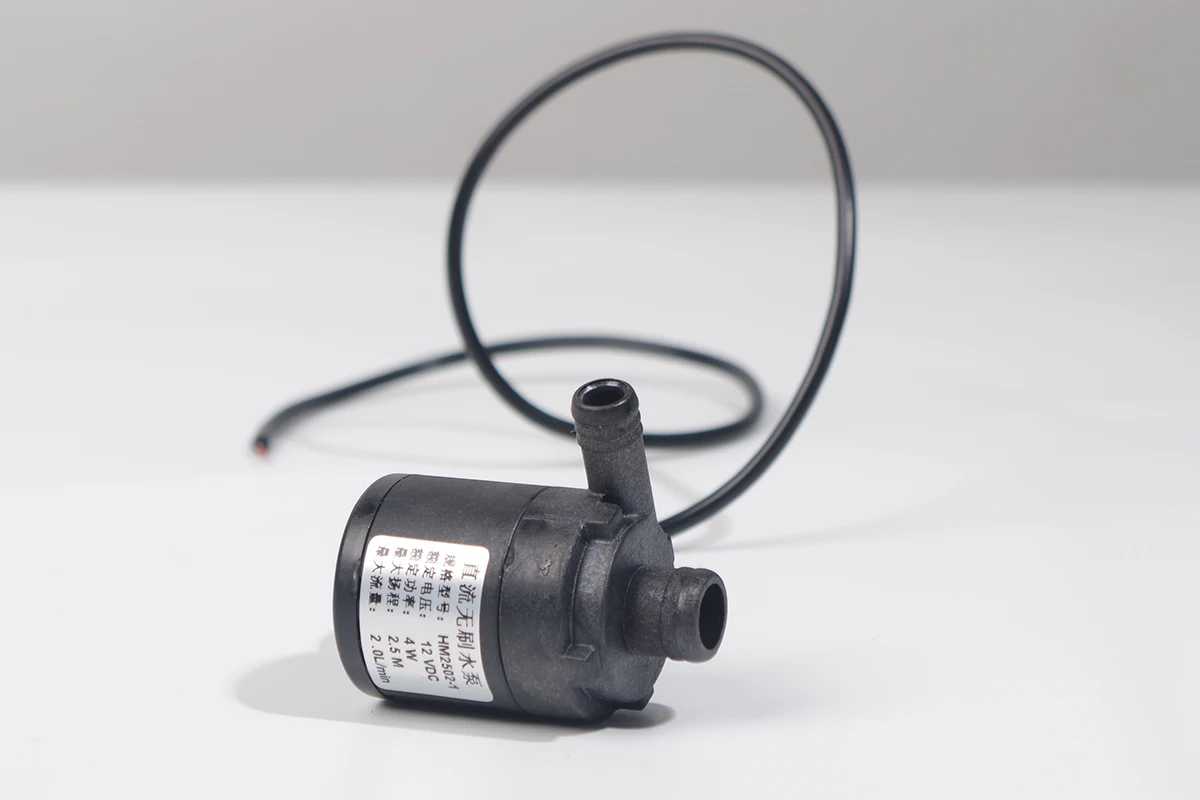

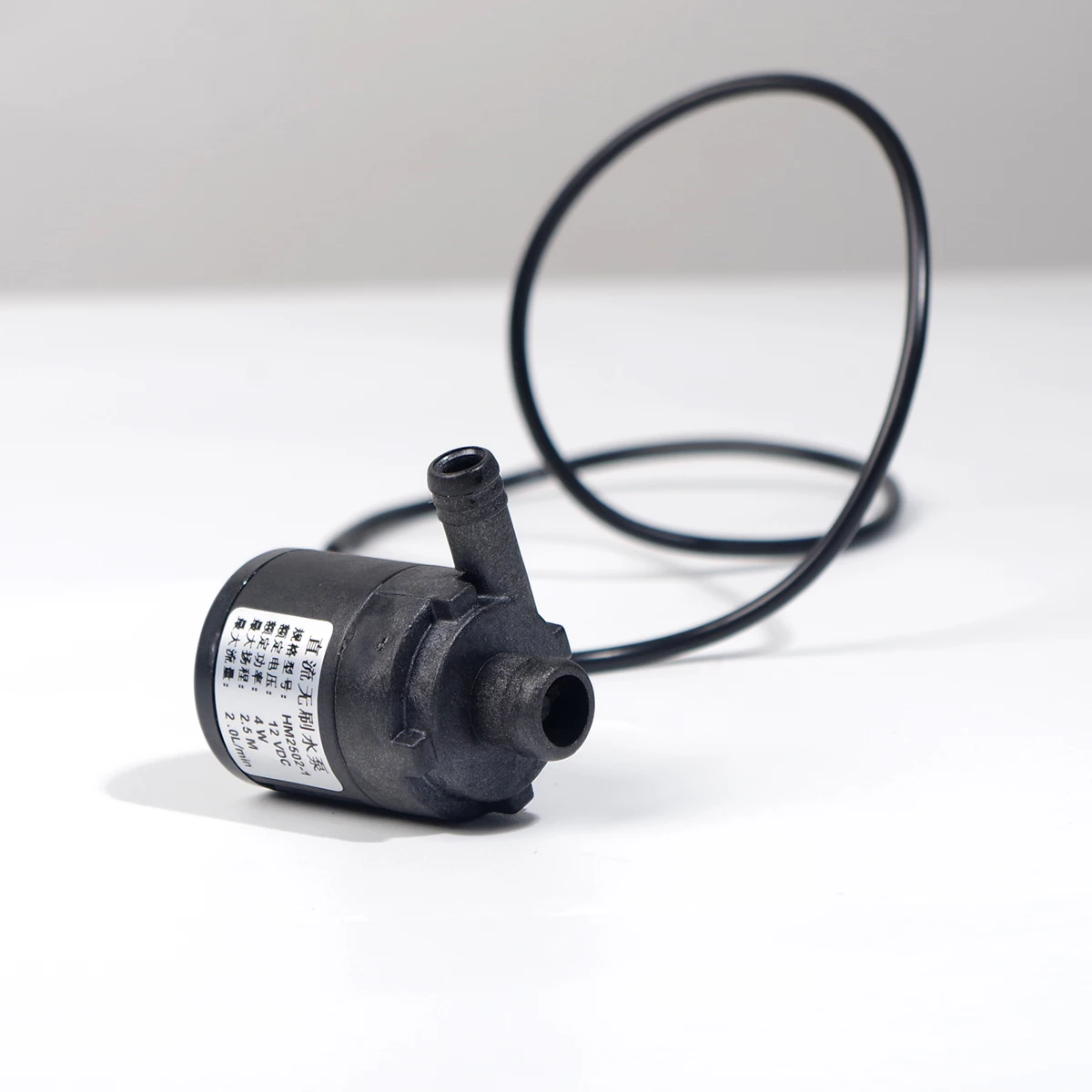

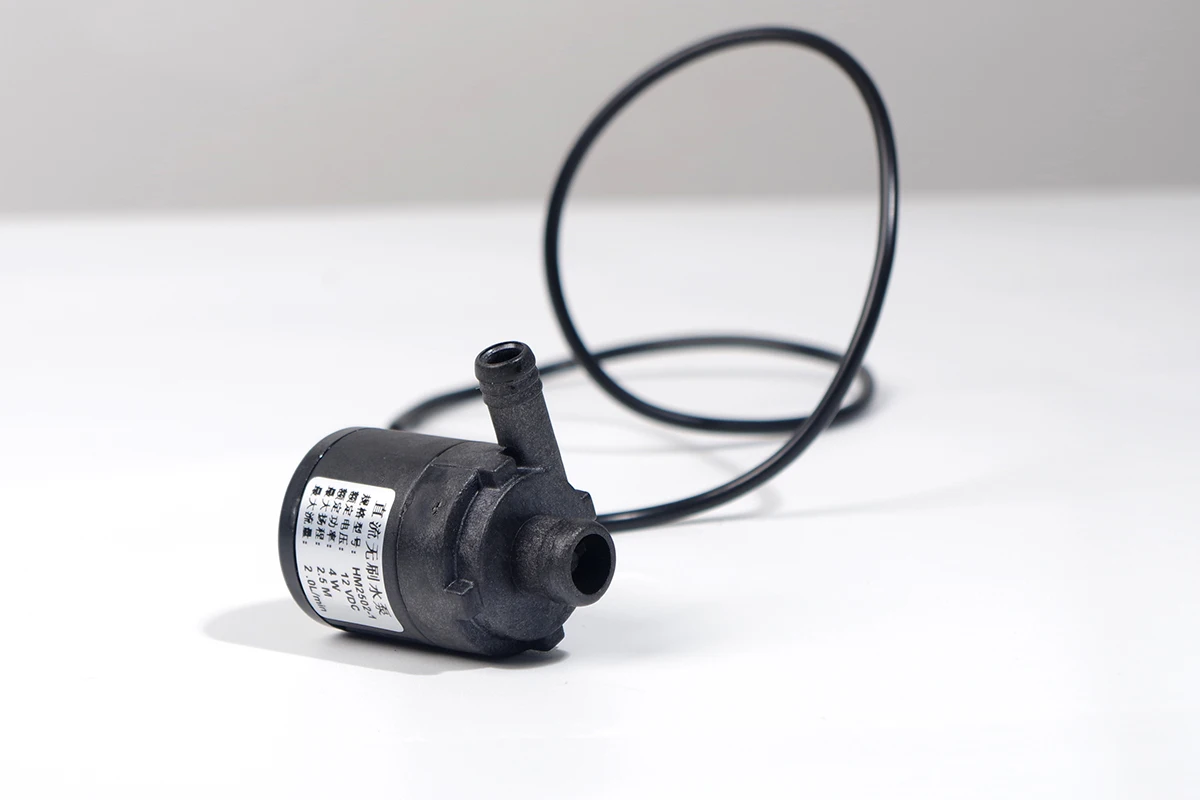

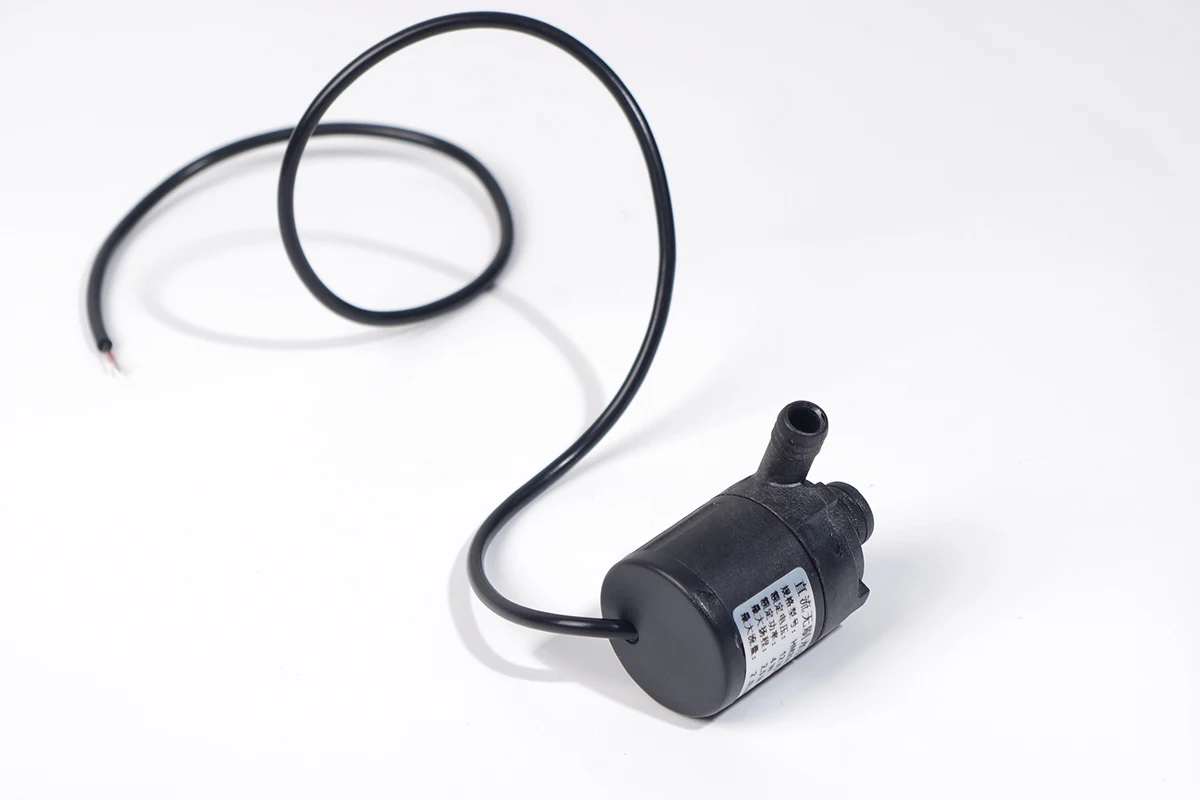

Brushless DC water pump
Stable and reliable/safe trust
Pure copper motor/Fast supercharging/low noise operation
Main performance of product
1. Compact size, light weight. Structure design is reasonable, not easy to cause the pump to be blocked.
2. Energy saving, high efficiency, safety and environmental protection, no radiation, no pollution, explosion-proof, crack proof, waterproof.
3. We can provide single-phase or three-phase mode according to customer's requirements. If customers have no requirements, we generally provide single-phase mode.
4. Safe working voltage: Optional working voltage range: 6VD-24VDC, please provide us with the rated working voltage you need.
5. The use of high efficiency and high performance brushless DC motor, life of more than 30,000 hours, is more than 60 times the life of ordinary brushed motor.
6. Can be high-intensity work, in the allowed working environment, 24 hours a day uninterrupted operation.
7. No vibration, low noise, the average noise value is within 40db.
8. The key components are imported raw materials to ensure product performance and consistency. For example, Germany BASF, DuPont and other well-known brand materials.
9. According to the customer's different product use equipment and application environment, in the food and life safety industry, our products contact the liquid part of the material to meet the food grade requirements and environmental protection requirements. Customers must inform their use of equipment and application environment when purchasing.
10. Various power supply options: DC regulated power supply, solar panels, photovoltaic panels, batteries, car cigarette lighter, etc.
11. Try to run the product in clean water to ensure the normal service life of the product. If you need to pump other special liquids, can be customized.
12. More functions can be customized according to customer requirements: overvoltage protection, overcurrent protection, overheating protection, blocking protection, anti-connection and reverse protection, water shortage and dry pumping protection, PWM speed regulation, FG signal display and other functions
2. Energy saving, high efficiency, safety and environmental protection, no radiation, no pollution, explosion-proof, crack proof, waterproof.
3. We can provide single-phase or three-phase mode according to customer's requirements. If customers have no requirements, we generally provide single-phase mode.
4. Safe working voltage: Optional working voltage range: 6VD-24VDC, please provide us with the rated working voltage you need.
5. The use of high efficiency and high performance brushless DC motor, life of more than 30,000 hours, is more than 60 times the life of ordinary brushed motor.
6. Can be high-intensity work, in the allowed working environment, 24 hours a day uninterrupted operation.
7. No vibration, low noise, the average noise value is within 40db.
8. The key components are imported raw materials to ensure product performance and consistency. For example, Germany BASF, DuPont and other well-known brand materials.
9. According to the customer's different product use equipment and application environment, in the food and life safety industry, our products contact the liquid part of the material to meet the food grade requirements and environmental protection requirements. Customers must inform their use of equipment and application environment when purchasing.
10. Various power supply options: DC regulated power supply, solar panels, photovoltaic panels, batteries, car cigarette lighter, etc.
11. Try to run the product in clean water to ensure the normal service life of the product. If you need to pump other special liquids, can be customized.
12. More functions can be customized according to customer requirements: overvoltage protection, overcurrent protection, overheating protection, blocking protection, anti-connection and reverse protection, water shortage and dry pumping protection, PWM speed regulation, FG signal display and other functions
Small and beautiful, does not take up space
Wide Application
Smart toilet booster pump, bathroom shower pump, smart toilet shower water circulation pump booster pump, kitchen bathroom equipment booster pump, medical equipment beauty instrument home appliances crafts water circulation pump, solar (gas) hot water heater water circulation or pressurization, mobile bath machine, solar water circulation system, pool Spar heating system, car engine preheating, Electric vehicle and automobile water circulation cooling, HVAC water circulation, car wash, pond, aquarium, fish tank, fountain, fish tank oxygenation, high-rise water supply pressurization, humidifier, disinfection cabinet, sewage discharge, milling machine, drilling machine, lathe, small irrigation system, household appliances water circulation system, computer heat distribution system, etc.
Brushless DC product performance characteristics
Safe low voltage, low noise, brushless motor long life, environmental protection and energy saving, no radiation, no vibration, anti-electromagnetic interference, small size and high efficiency, waterproof and explosion-proof, stable operation, easy installation and use, can provide over-voltage protection, over-current protection, overheating protection, blocking protection, water shortage and power protection, with LED lights, 0-5V potential speed regulation, PWM speed regulation, FG signal display function.

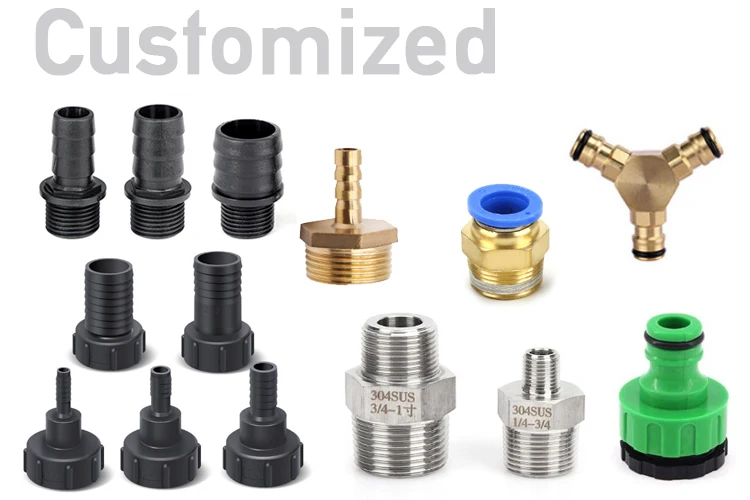

Provide customized services
The product is a non-calibrated product. Fixed style products in addition to the appearance of the same, are customized according to customer parameters performance, can also be opened according to customer requirements to make new styles.
Packaging & Shipping
Pakaging
Each product is packaged in a small box, and finally multiple small boxes are placed in a large box.
Custom packaging is accepted.
We offer a variety of packaging options:
We offer a variety of packaging options:
A: Regular bilingual packing boxes in both Chinese and English (these are always available in our warehouse and can be shipped quickly)
B: For cartons without any printing, put a self-adhesive label on the outside of the box.(these are always available in our warehouse and can be shipped quickly)
C: According to customer needs to customize the carton, printing pattern and product information, we can also provide free design solutions. Moq 1000-2000 pieces(depending on pump model)
D: Special packing requirements. Thanks to China's developed packaging industry, you can feel free to propose the packaging conditions you wish to use
Shipping
With a "one-stop" service, you can rely on us for everything from cargo to port work. We will communicate with the forwarder about all the transportation matters, and stick the shipping mark and label, film covering, waterproof and dustproof of the goods according to the requirements. Standard export wooden pallet for easy transportation. International express service: We support regular express delivery of offline small batches of goods (cheap and convenient), or international urgent mail (such as UPS,DHL,etc.). Orders can also be completed through delivery services on Alibaba's online platform.
Company Information
About us
1.We are a water pump factory with more than ten years of production experience. There are two production workshops of AC pump and DC pump. Products include all kinds of solar water pumps, aquarium pumps, USB pet water dispensers small pumps, swimming pool pumps, garden pool circulation pumps, industrial cooling pumps, cold fan atomization pumps and so on.

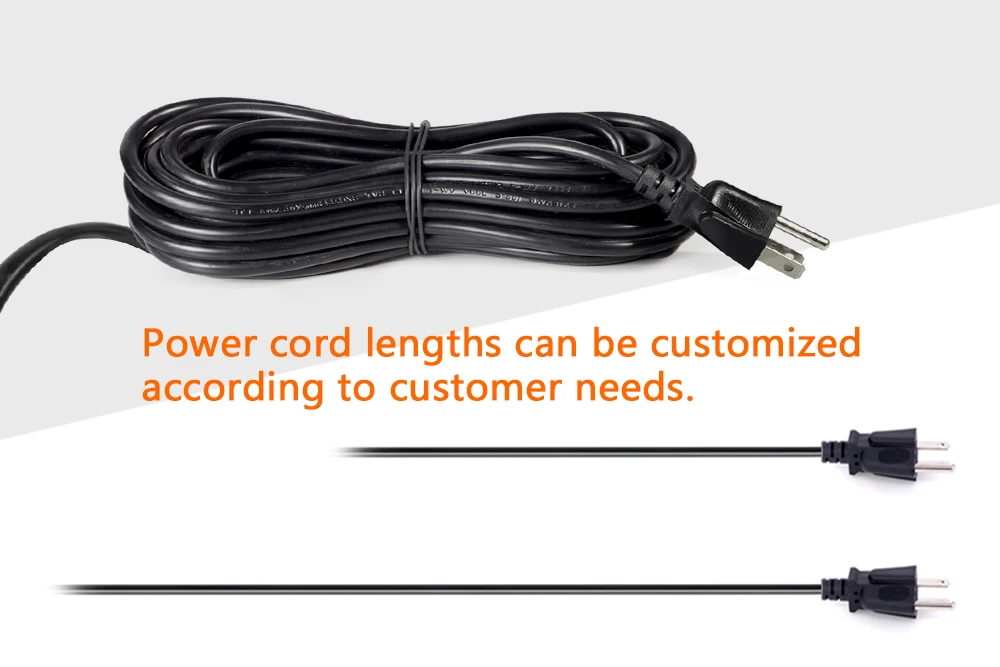

2.Our greatest strength is that we are very supportive of our customers' customized needs, including but not limited to packaging,product colors, voltages,plugs and power cords. We can also develop new products according to the needs of customers.
3.Regarding cargo transportation, we have a professional service process, one-stop for you to solve freight problems.
3.Regarding cargo transportation, we have a professional service process, one-stop for you to solve freight problems.
Manufacturer solemnly promise
1. All the raw materials produced by our company are never shoddy, and there is no need to recycle materials. The materials used have passed the ROHS environmental protection certification or met the environmental protection requirements, and some components in contact with food have met the food-grade certification requirements.
2. Product performance is not false, parameters are not false.
3. All products are tested before delivery. During the warranty period, if there is a bad product, you can contact the company's sales staff or after-sales team for processing. Our company will reply to customer complaints within 24 hours and deal with them within 72 hours.
4. All the products dedicated to customer mold opening, without customer consent, our company will not grant third party use.
Buyer's notice
About color difference:
Our products are shot in kind and carefully adjusted in the later period. Try to be consistent with the real thing, but due to the different shooting lighting, display resolution and personal understanding of color, the color difference is inevitable, and I hope you can understand more.
About delivery:
We usually send them within the specified time, and occasionally due to weather or other unforeseen reasons, please wait patiently or consult customer service in time.
About Express:
For small packages: We usually use DHL,FEDEX,TNT,UPS or EMS and other international express delivery.
For large or large orders: we will arrange a special logistics company or transport company.
Harvest reminder:
In order to ensure your interests, please check the quality of the product before signing. If there is damage or other problems in transit, please contact our after-sales service in time.
Related Products
Most styles are not shown in the pictures below, please contact us for more information.
FAQ
1. Can you customize the products according to the customer's drawings & samples?
Yes, no problem.
2. What is your terms of payment?
We accept T/T,irrevocable L/C at sight. Regularly, Terms of payment 30% deposit, balance payment before delivery the goods.
3. What is the lead time?
It usually takes 15 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of packing?
Generally, We provide packing suitable for export to your country and ensure that the goods will not be damaged. You can also customize the packaging boxes according to your needs.
5. What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
6. Is it OK to print my logo on pumps product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
7. Are you manufacturer or trading company?
We are factory in Foshan City, Guangdong Province. Welcome to visit our factory at anytime.
