Grade A Cell LiFePO4 Battery Pack 280Ah 100kWh 150kWh 200kWh Lithium Batteries Stacked Energy Storage Battery Cluster
- Category: >>>
- Supplier: Lovsun Energy Co.LtdLovsun Co.Ltd
Share on (1601280018951):
Product Overview
Description
Products Description
Specification
Model | 51.2V 280AH | 51.2V 100AH | ||||
Nominal Voltage | 51.2V | 51.2V | ||||
Nominal Capacity | 280AH | 100AH | ||||
Dimension moudle(mm) | 483*245*792mm | 440*442*133mm | ||||
Weight(kg) | 114kg | 49kg | ||||
Nominal Voltage (V) | 51.2 | 51.2 | ||||
Nominal Capacity (Wh) | 14336 | 5.12 | ||||
Discharge Voltage (V) | 44.8 | 44.8 | ||||
Charge Voltage (V) | 56.8 | 56.8 | ||||
Recommend Charge/Discharge Current (A) | 100 | 80 | ||||
Max.Charge/Discharge Current(A) | 200 | 100 | ||||
Communication | RS485/RS232/CAN | RS485/RS232/CAN | ||||
Working Temperature | 0℃~50℃ Charge | 0℃~50℃ Charge | ||||
-10℃~50℃ Disharge | -10℃~50℃ Disharge | |||||
Transport or Storage Temperature Range | -20℃~60℃ | -20℃~60℃ | ||||
Certification | CE/IEC/UL/UN38.3/MSDS | CE/IEC/UL/UN38.3/MSDS | ||||
Design Life | 15years+ | 15years+ | ||||
Cycle Life | (0.5C/0.5C-80%DOD)>6000 times | (0.5C/0.5C-80%DOD)>6000 times | ||||
Parallel Function | Support 15 units in Parallel | Support 15 units in Parallel | ||||
Certification | UN38.3/MSDS/ROHS | UN38.3/MSDS/ROHS | ||||
Product Features
Compatible Inverters

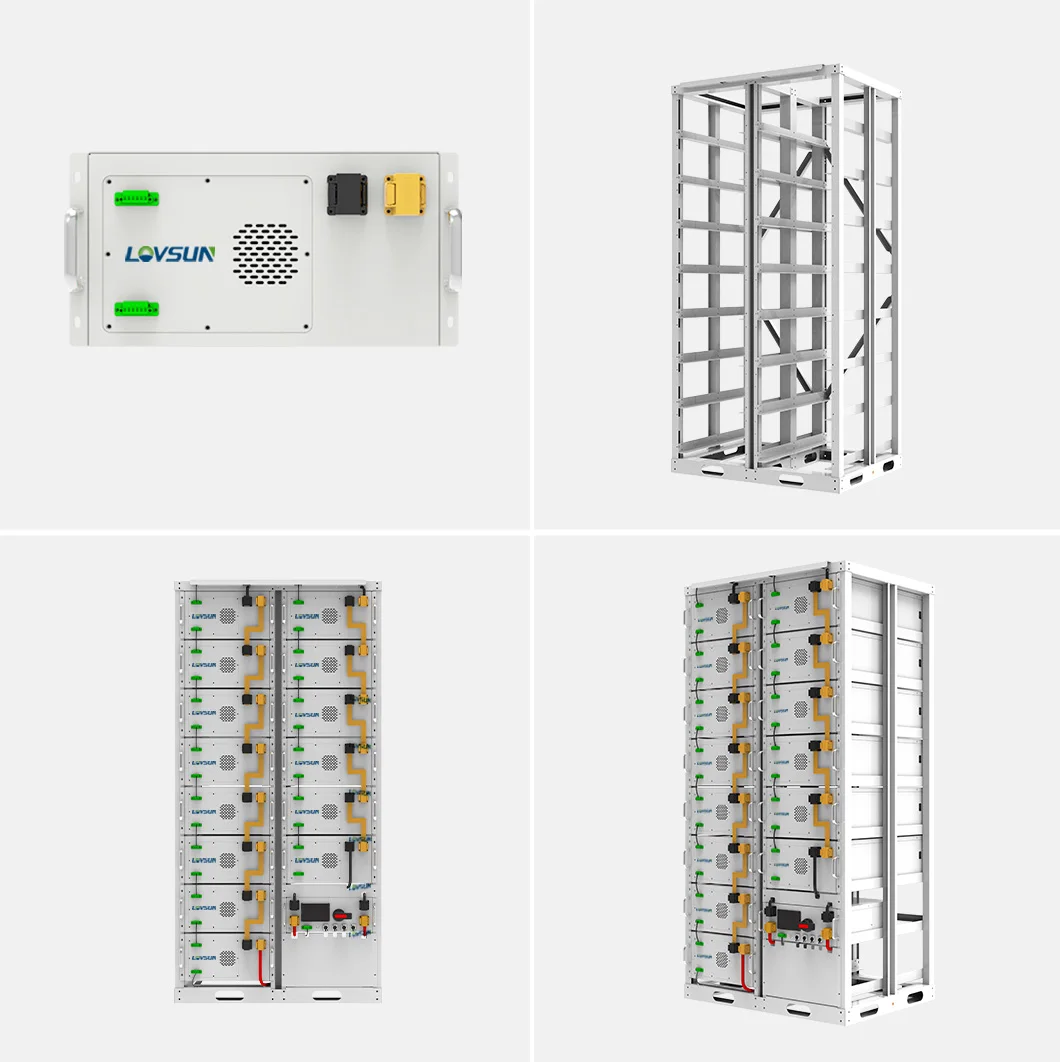

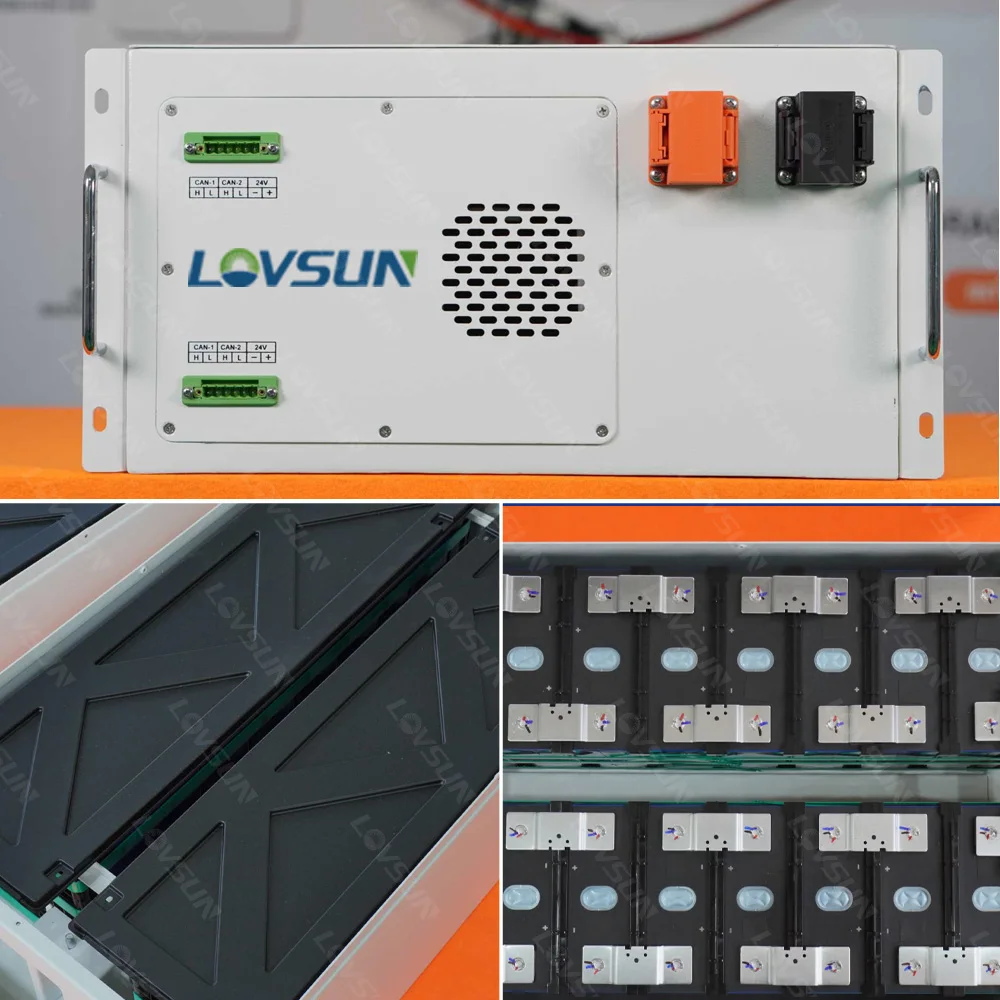

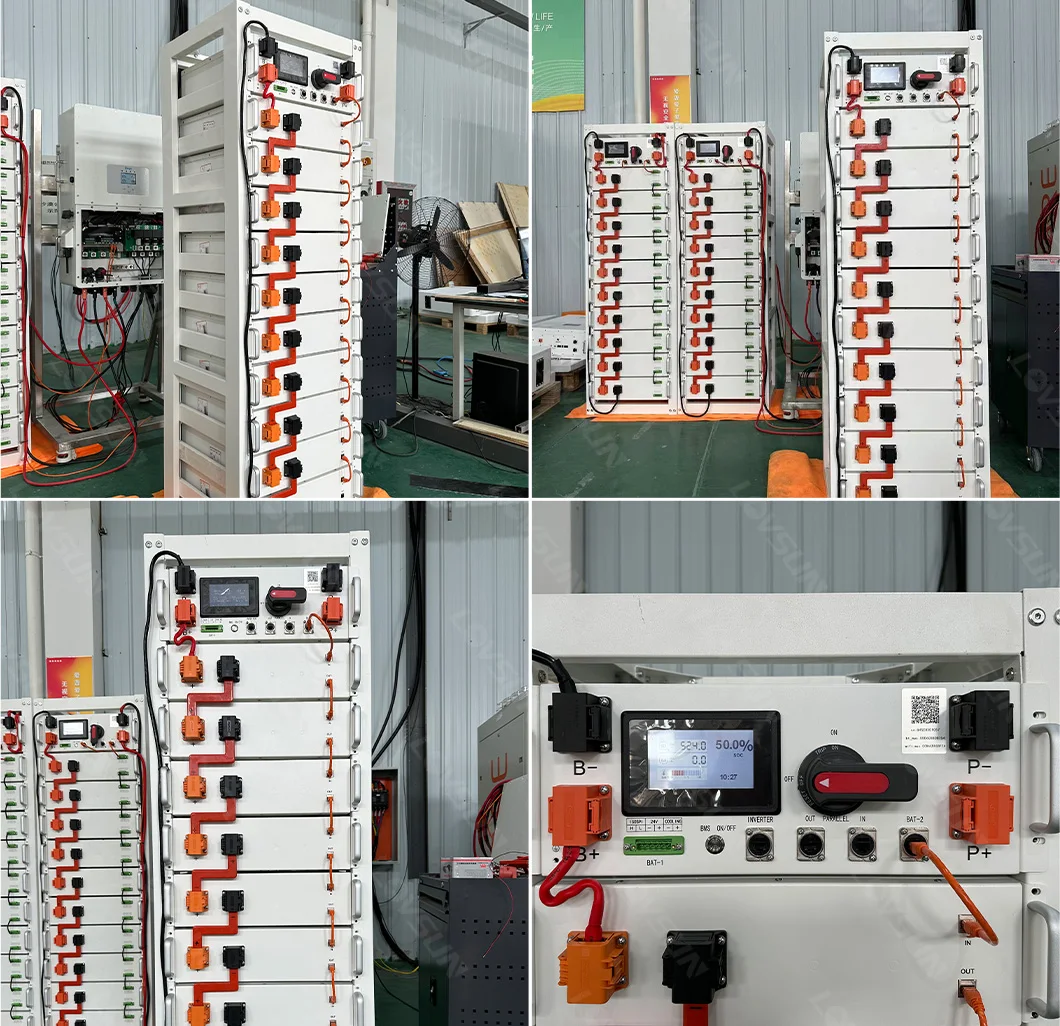

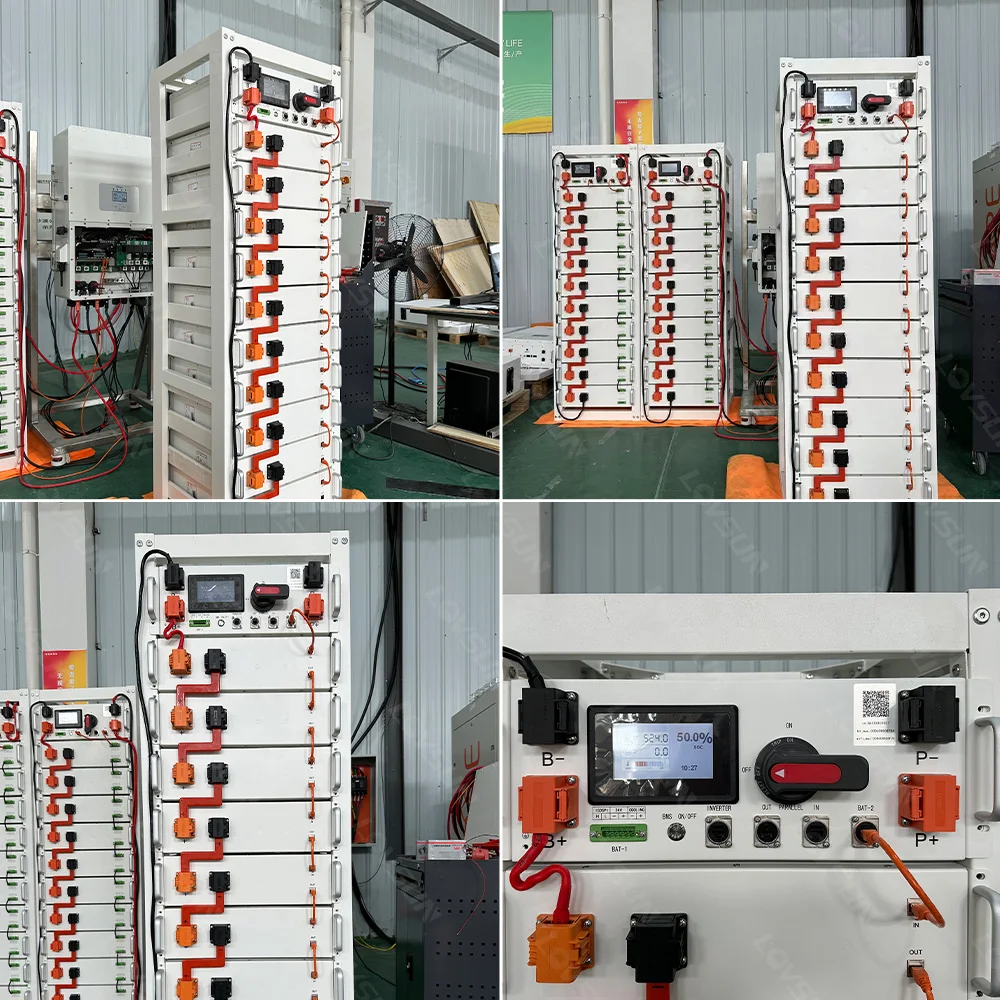

Detailed Pictures
Certifications
