logo printer for bags plastic bag non woven bags digital printer high speed single pass uv printer packaging printing machine
- Category: >>>
- Supplier: Shanghai Focus Industrial Co. Ltd.
Share on (1601280044969):
Product Overview
Description

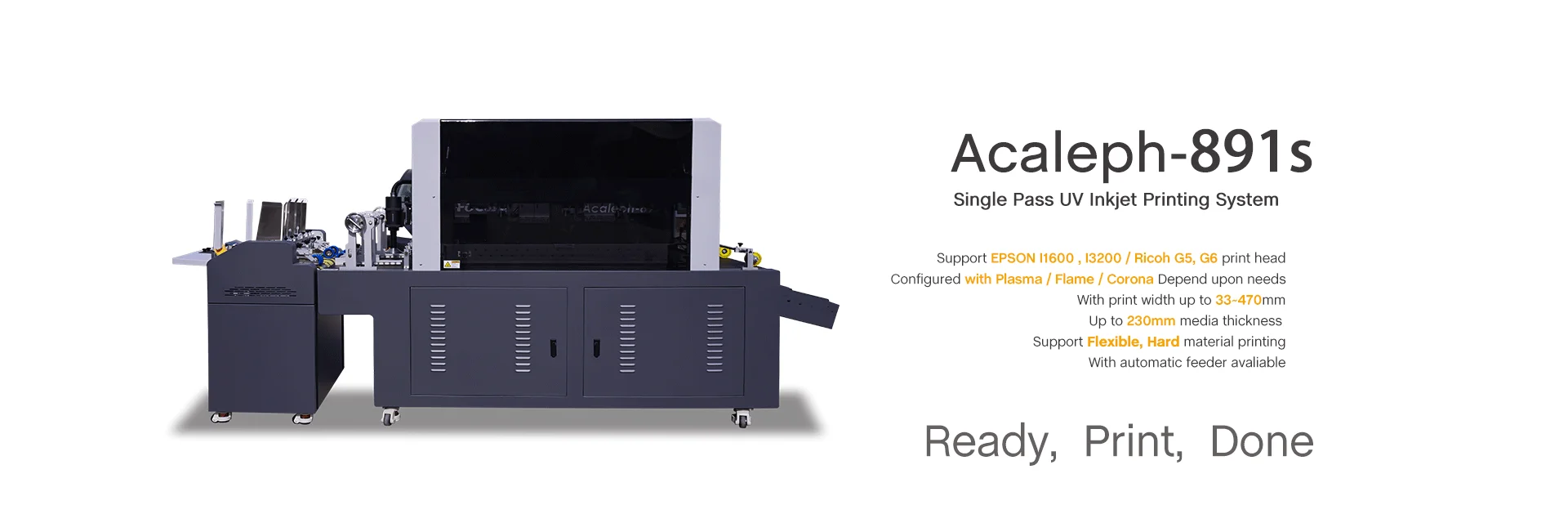

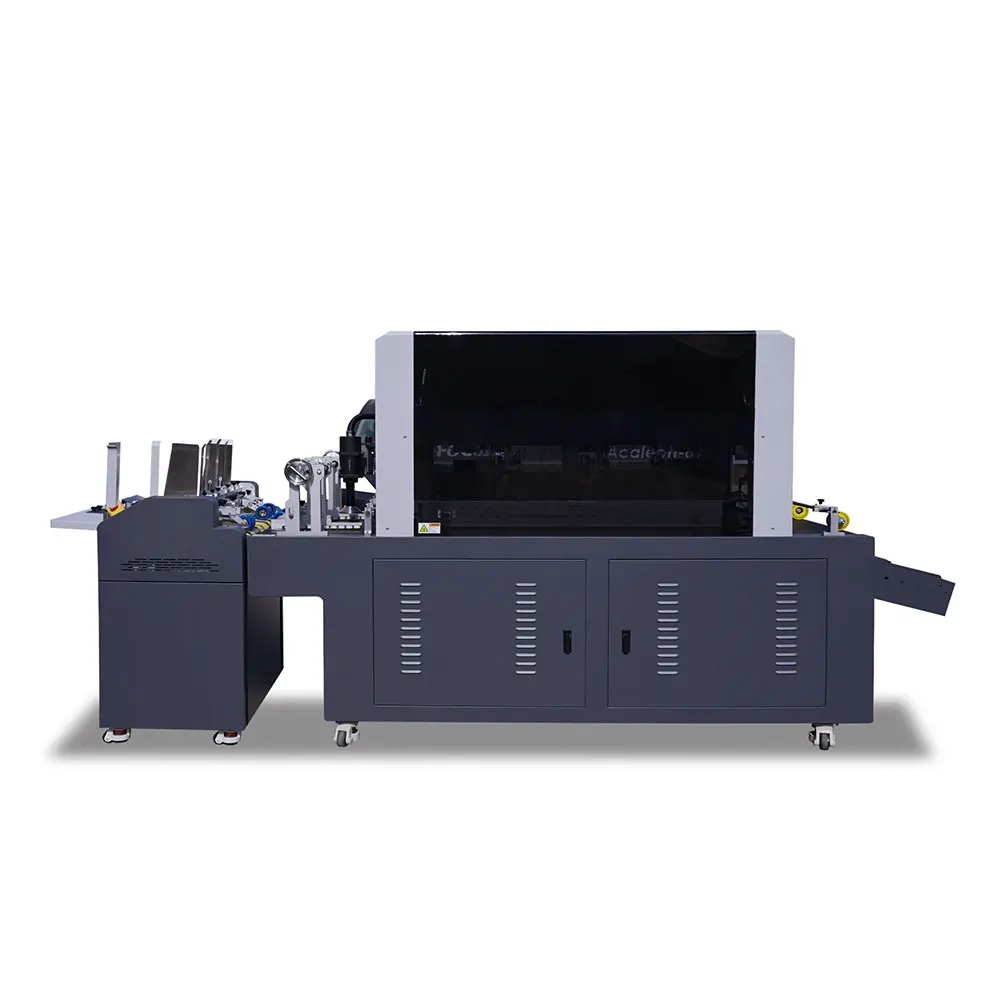

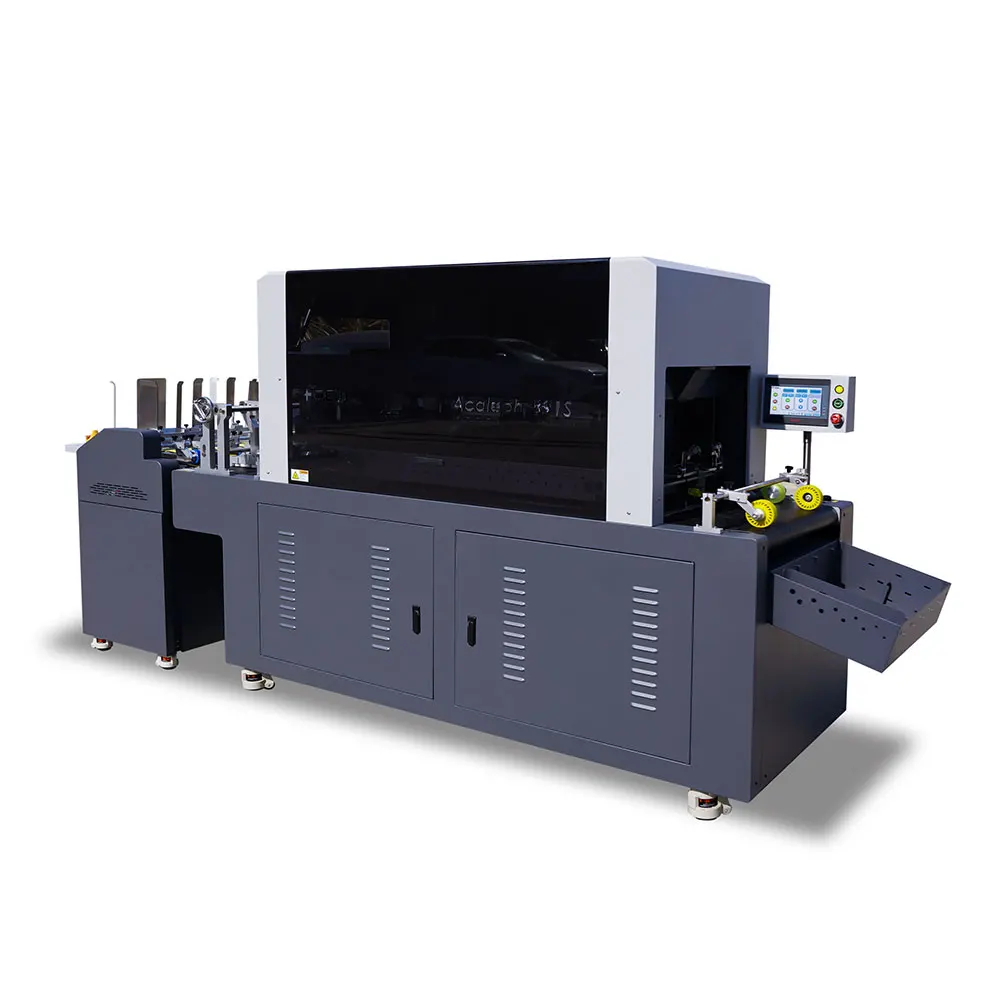

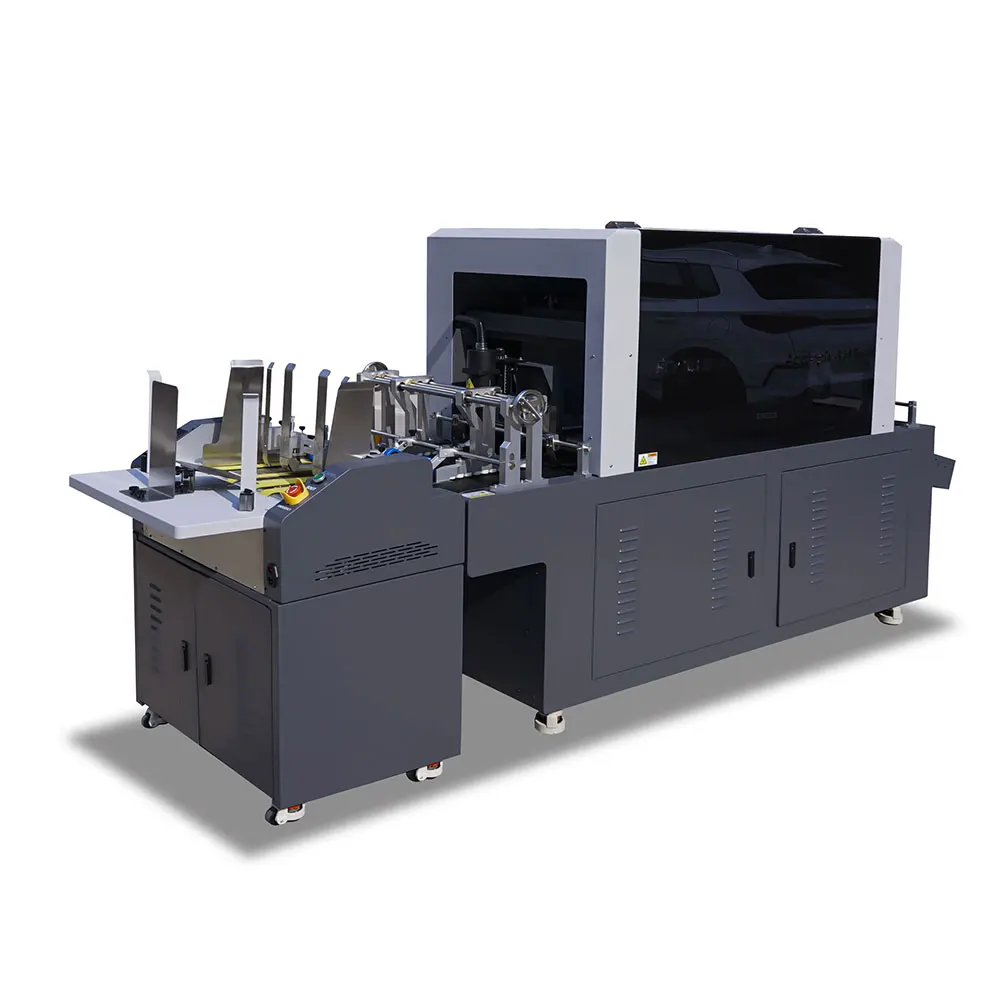

FocusInc Acaleph-891s UV single pass printer was special designed for customer who want to get a print that can print on various of hard and flexible material with high speed, such as plastic bags, non woven bags, tag...
It is a termial and profesional solution for direct to packaging printing as it is full color inkjet printing with UV curing and
automatic feeder system, it also allow to print as Primer+White+KCMY+LCLM+Varnish, to create more value for the digital inkjet printing market.
It is a termial and profesional solution for direct to packaging printing as it is full color inkjet printing with UV curing and
automatic feeder system, it also allow to print as Primer+White+KCMY+LCLM+Varnish, to create more value for the digital inkjet printing market.
PRINTING DEMO:

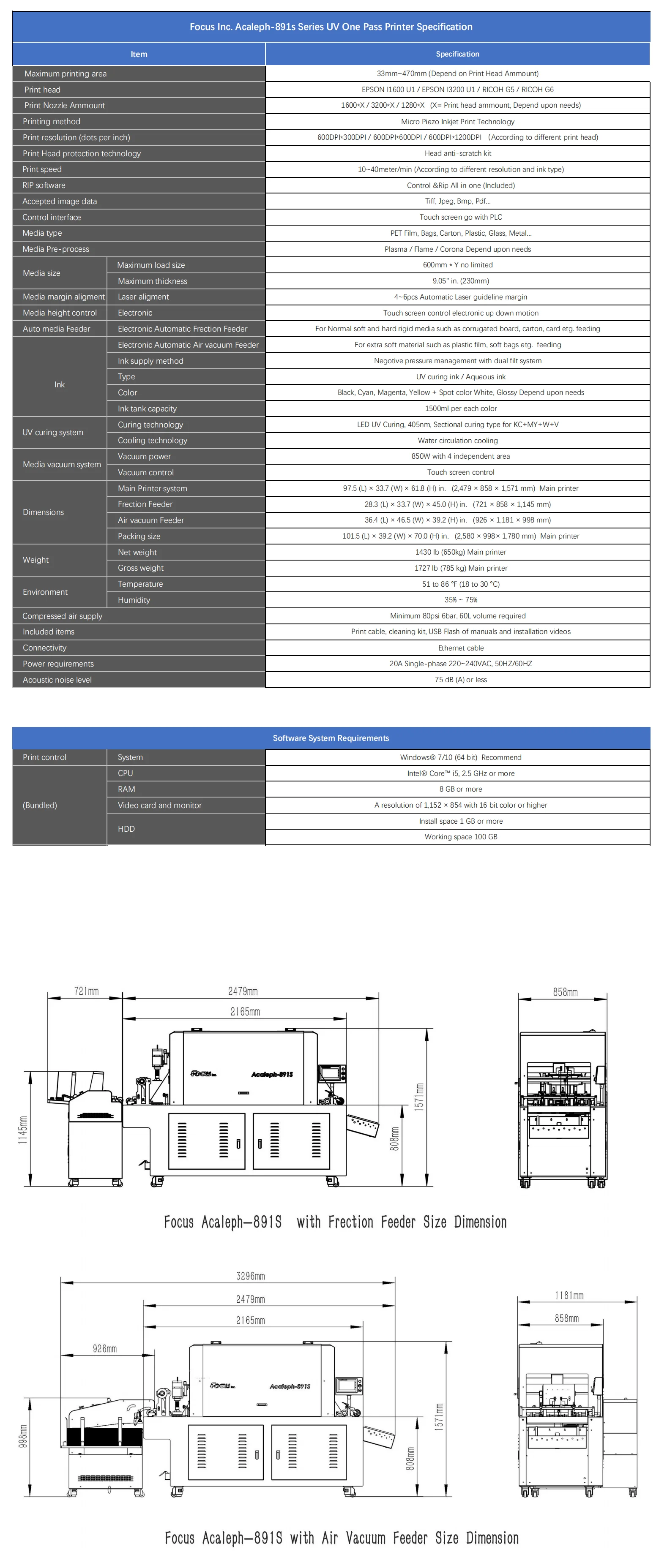

Specification
Product Specifications | ||||||||
Product Name | ACELEPH-891S UV Single Pass Printer | |||||||
Product Model | ACELEPH-891S | |||||||
Printing Method | Piezo Electronic Print Technology | |||||||
Print Head | EPS I1600 U1 / EPS I3200 U1 / RIC G5 / RIC G6 / SEK RC1536 | |||||||
Ink Colors | CMYK+W+V | |||||||
Max Printing Resolution | 1600DPI*300DPI / 600DPI*600DPI / 600DPI*1200DPI /600DPI*2200DPI | |||||||
Maximum Printing Area | Width33mm~470mm*Y no limited | |||||||
Print Speed | 10~40meter/min | |||||||
RIP Software | Control &Rip All in one | |||||||
Net & Gross Weight | 650KG & 785KG | |||||||
Machine Size | 2479mm*858mm*1571mm | |||||||
Packing Size | 2580mm*998mm*1780mm | |||||||
TECHNICAL ADVANTAGE
The FocusInc Acaleph-891s UV single pass printer was built with industrial configuration, it support to amount with different kinds of print head as EPS, RIC, SEK, TOSB, KNC for diffferent printing solution. it take vacuum adsorption, laser margin guidence, reflective laser sensor, Automatic overlap correction system, uv curing system, automatic material feeder system...
1.33~470mm large printing width design and compatible with different print heads such as EPS I3200 I1600 RIC G5
2. 42mm ultra-thick vacuum partition adsorption platform for printing soft materials
3. 60CM ultra-wide printing guide belt enables printing of different wide-width materials
4.The 65-degree moderate hardness paper discharge sun wheel makes the discharge safer and more stable without indentation.
5.850W ultra-powerful vacuum adsorption fan ensures smooth adsorption of soft materials
6.2500PIR high-precision meter wheel realizes high-precision operation and printing of Y-axis
7.The UV lamp printing signal induction sensor can delay the turning on and off of the UV lamp to prevent the print head from being cured.
8,The X-axis print head can be adjusted left and right to achieve precise printing at different positions on the material.
9.Multiple array LED headlights ensure rapid curing of ink
10.Highly sensitive paper feed sensor quickly detects printing materials
11.Laser sensor for automatically sensing printing material thickness
12.Laser wire greatly improves printing and discharging efficiency and accuracy
13.Installing a plasma processor can achieve UV printing on smooth material surfaces without fading.(Optional purcahse）
14.The width-adjustable automatic correction guide system enables precise feeding and printing of materials of different widths.
15.Automatic ink replenishment and automatic ink shortage alarm ensure timely supply of ink for printing

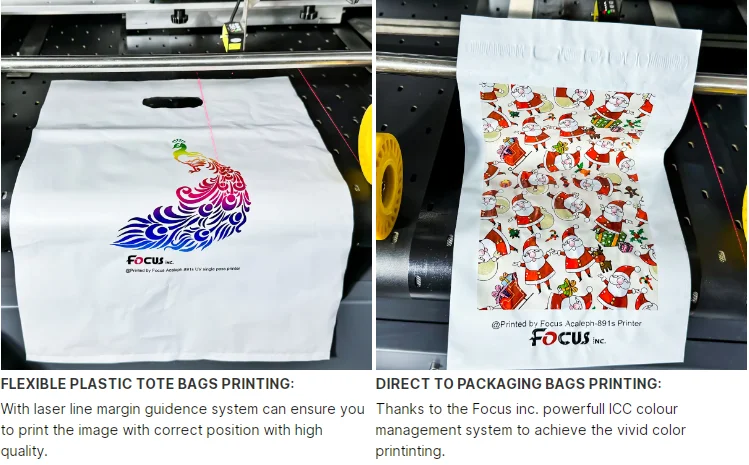

PRINTING SAMPLE:

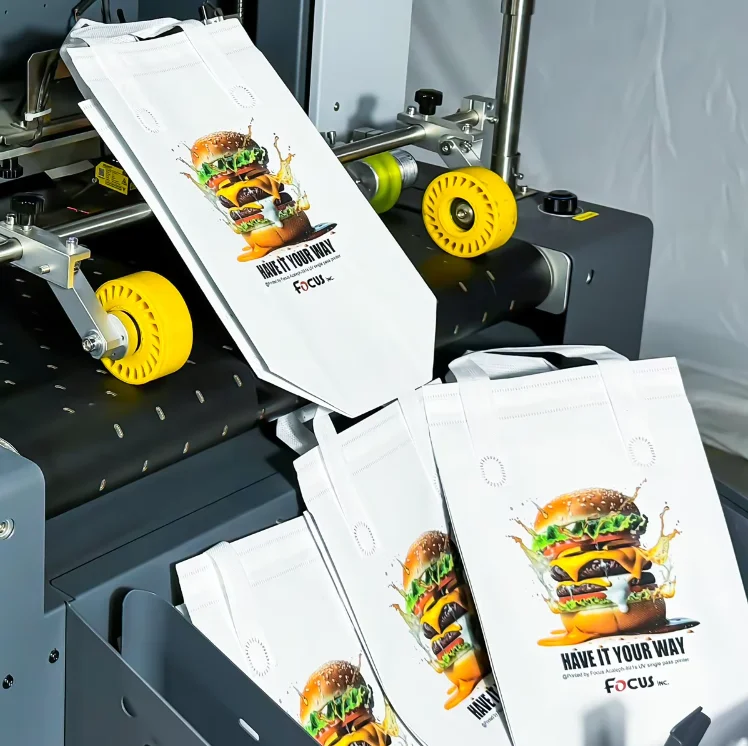

PRINT ON FAST FOOD BAGS PRINTING:
The FocusInc Acaleph-891s UV single pass printer with vacuum adsorption function allow you to print on soft flexiblematerial as fast food plastic bags.
FocusInc Acaleph-891s UV single pass printer built with max. 200mm media thickness gap motion. It means you can print on various of media except bags, such as metal , glass, wood, box, bottles...
