358 Welded Mesh Fencing High Security Prison Mesh Fence with Razor Wire Coils

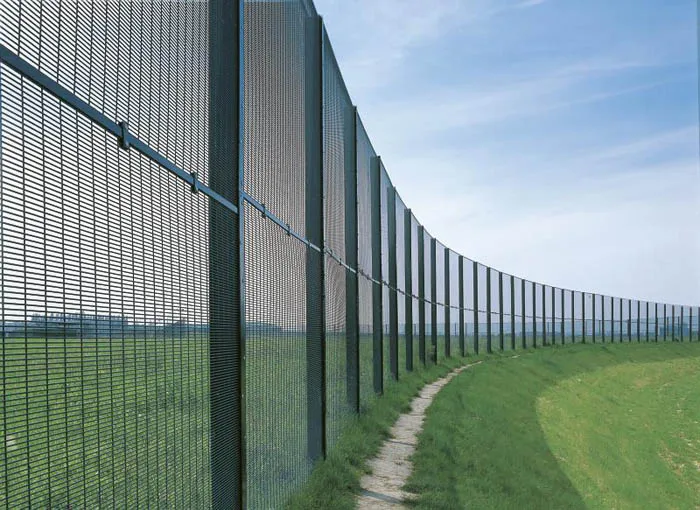

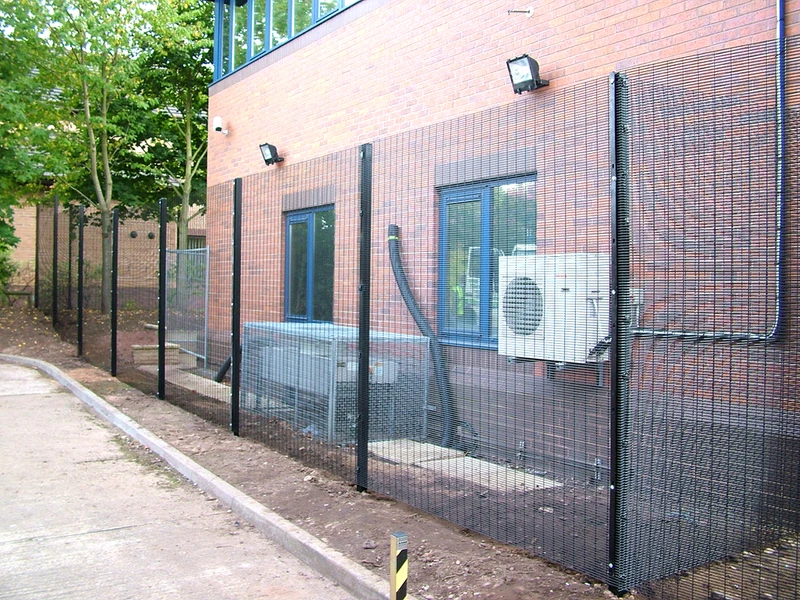

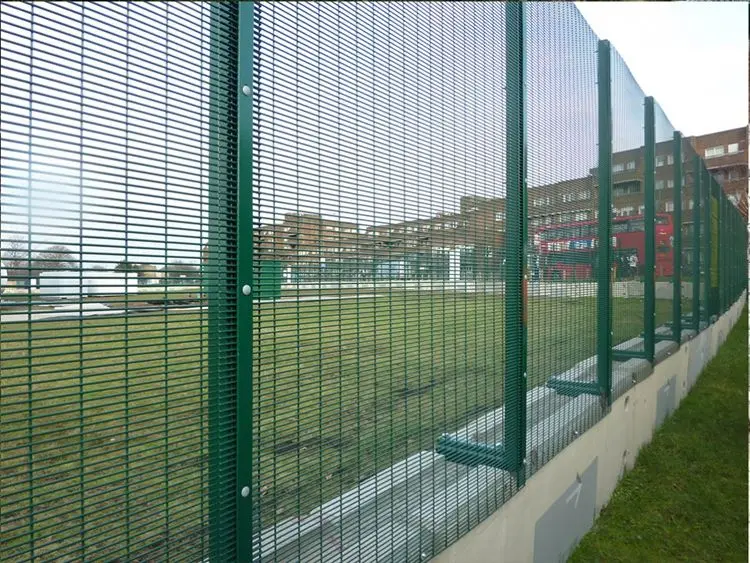

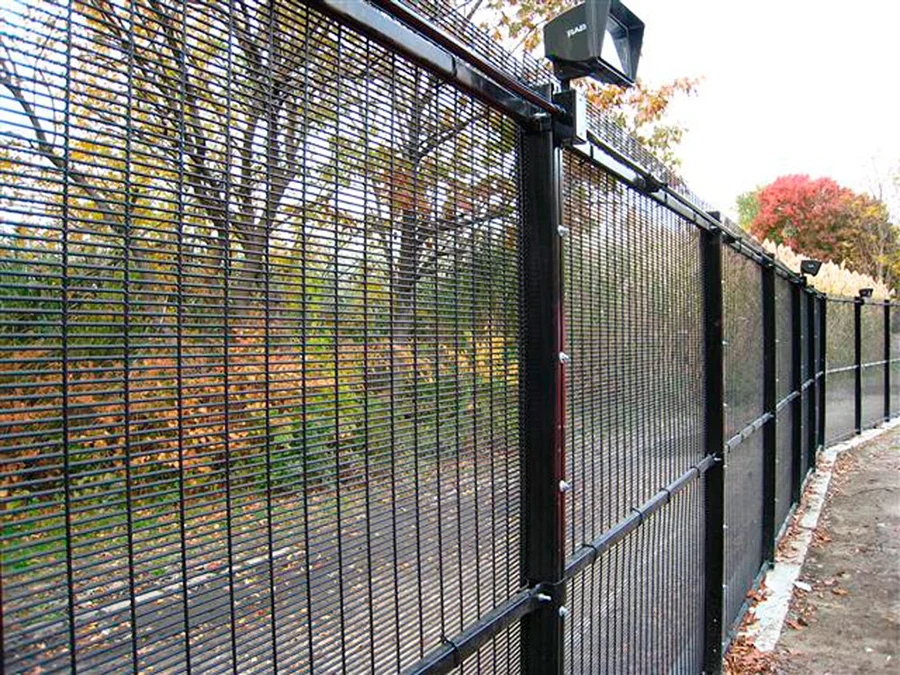

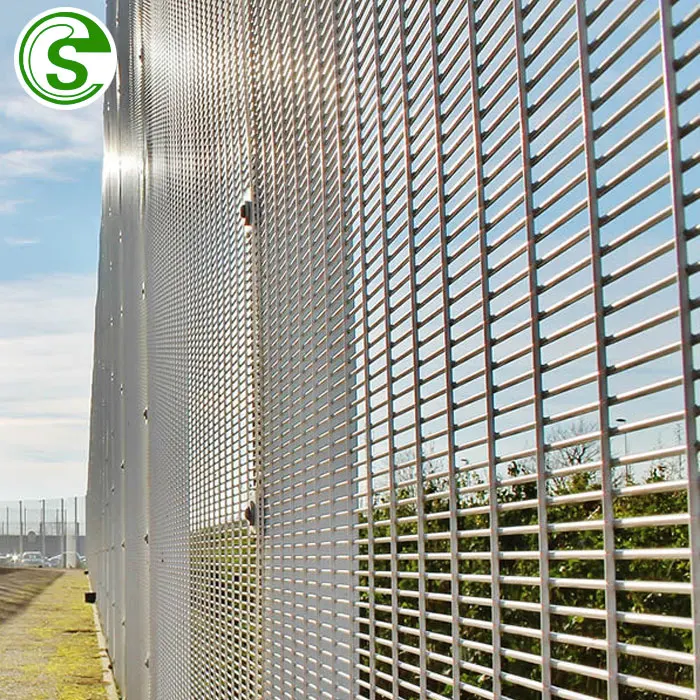

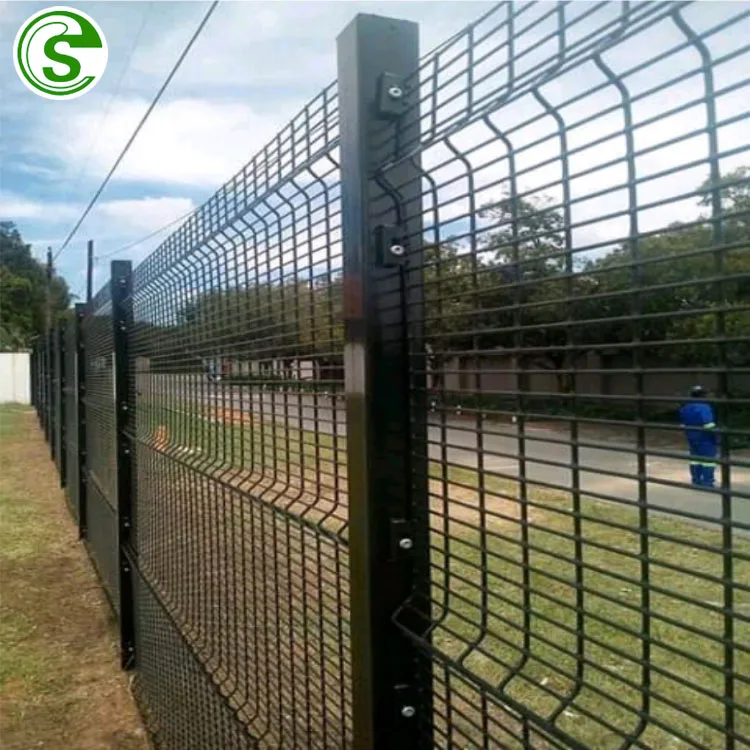

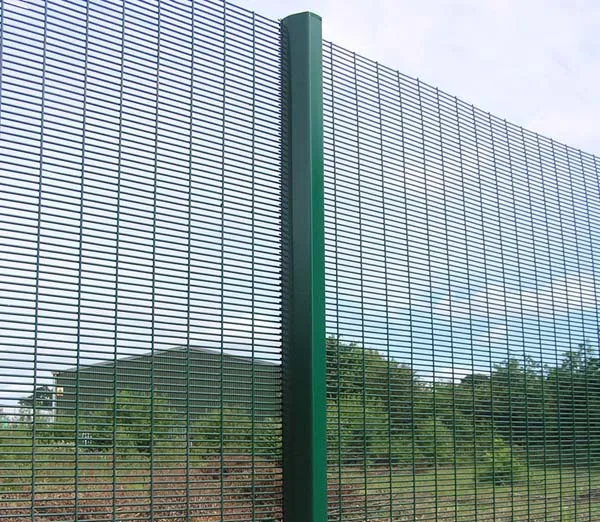

358 Clearvu fence are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. Clearvu fenceing are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing. Clearvu fencing panel can be bent in part to enhance the aesthetic effect. This type of fence is often used in high-security areas such as prisons, military bases, and airports, where perimeter security is critical. It provides a high level of protection against intrusion, vandalism, and theft, while also allowing for good visibility and air circulation.

Clearvu fencing specification:

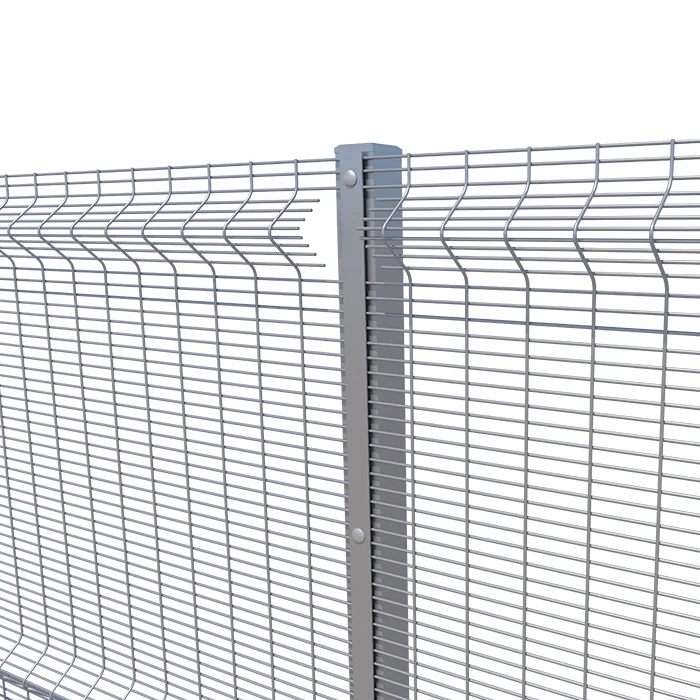

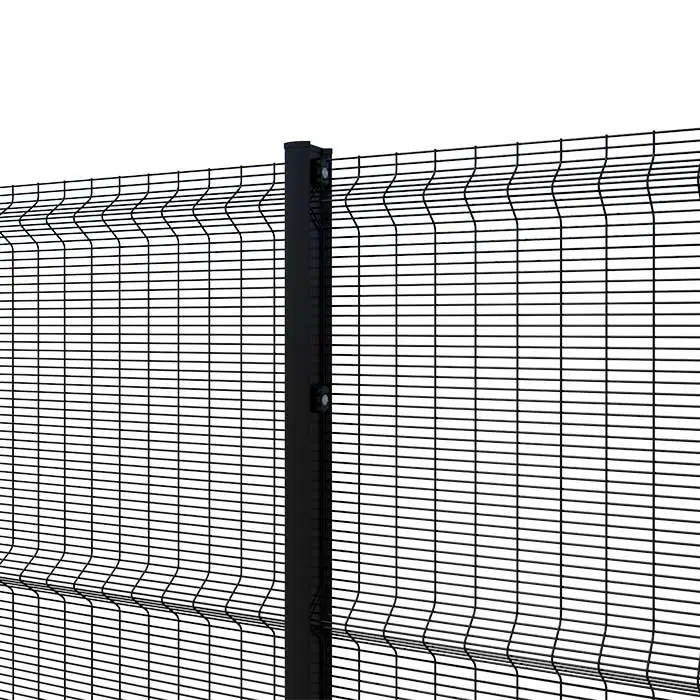

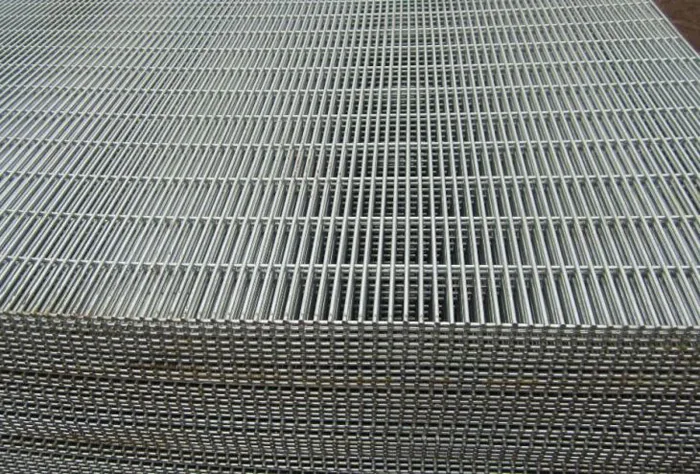

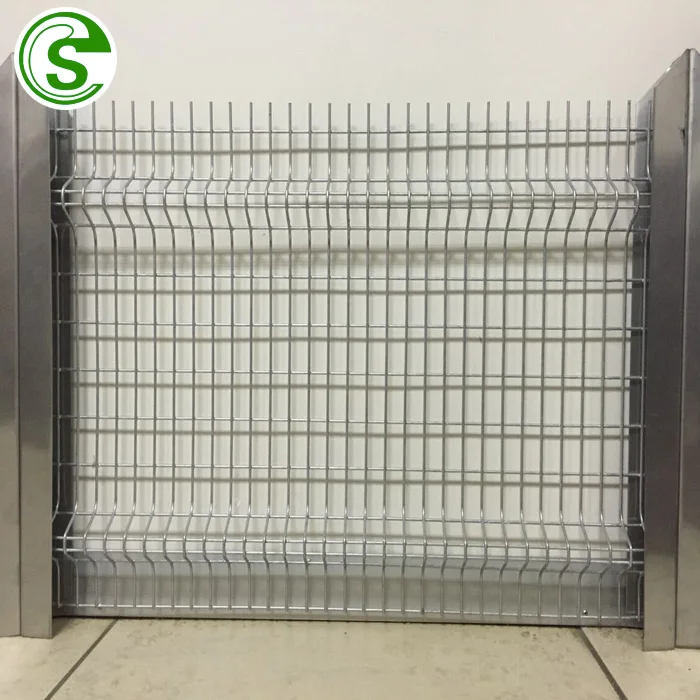

Panels

The panels are 2515mm wide and heights range from 900 to 5200mm.

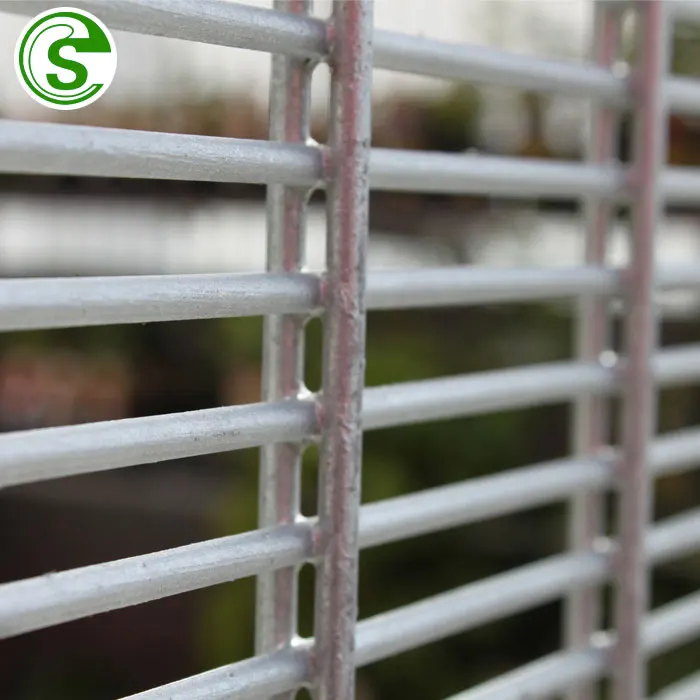

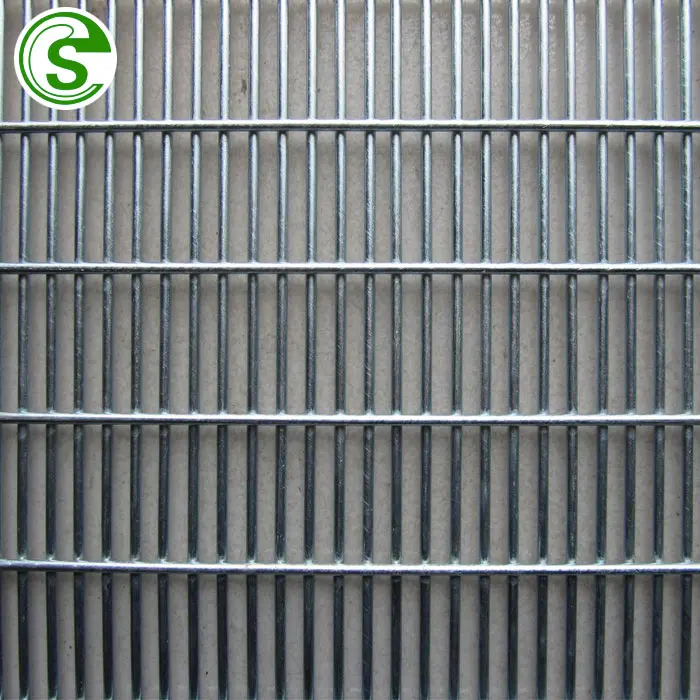

Mesh sizes are 76.2 x 12.7mm, and manufactured from 4mm wires.
Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m²).

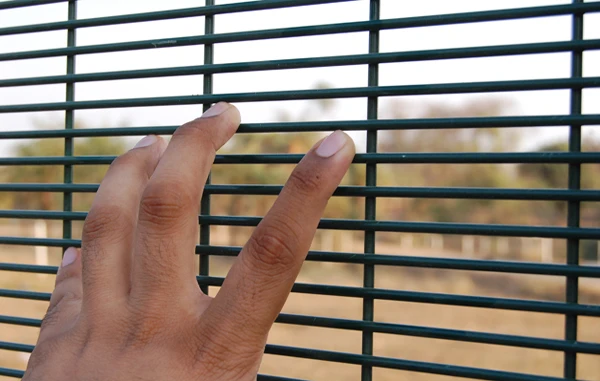

Featuring a toe and finger proof mesh aperture, this system combines an anticlimb and anticut fence with excellent through visibility and resistance to vandalism.
Extra length panels can be supplied for burying 300mm below ground to prevent burrowing.

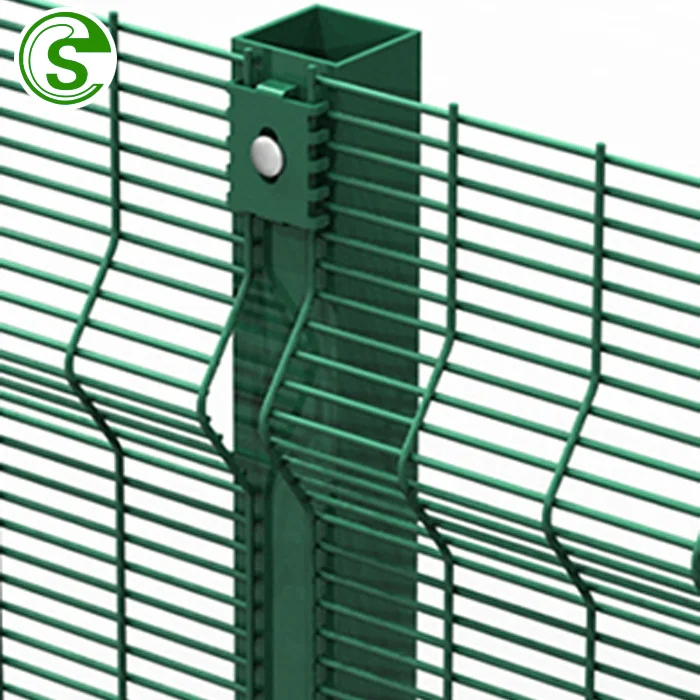

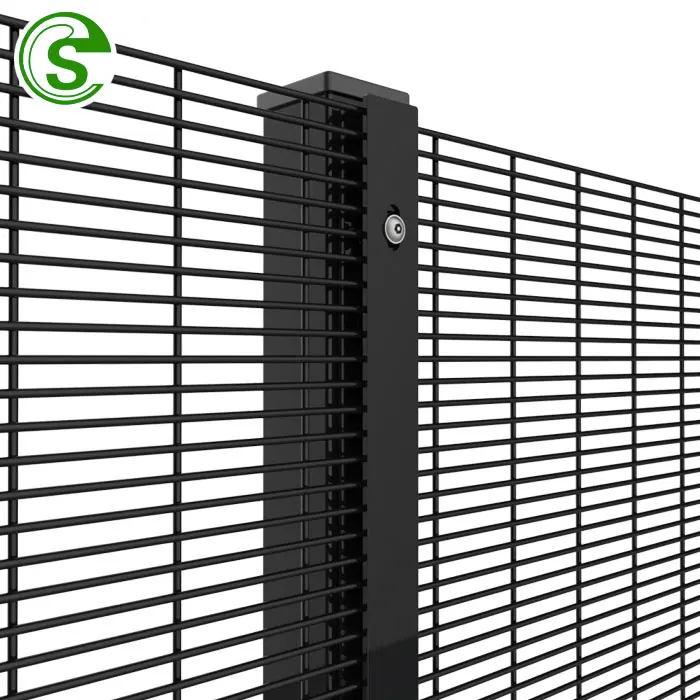

Post
Square post: 40 x 40mm; 50 x 50mm; 60 x 60mm; 80 x 80mm
Rectangle pst: 40 x 60mm; 60 x 80mm
Post thickness:1.2mm; 1.5mm; 2.0mm; 2.5mm

Coating
Panels are manufactured from pre-galvanized wires.
An adhesion coating is applied to allow perfect adhesion with the polyester coating (min. 100 micron).
Posts are polyester coated with a galvanized substrate in accordance with Euro norm 10147.
Colours
Standard colours are Green RAL6005 and Black RAL9005.
Other colours are available on request.

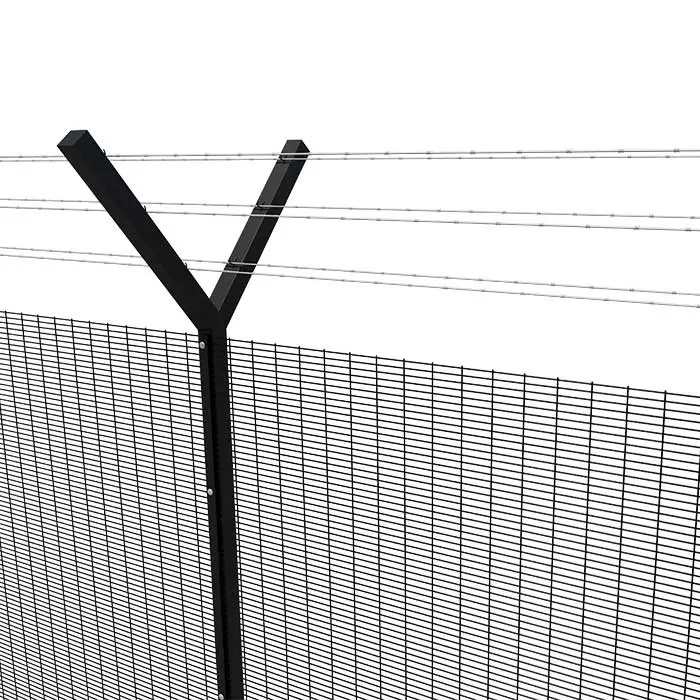

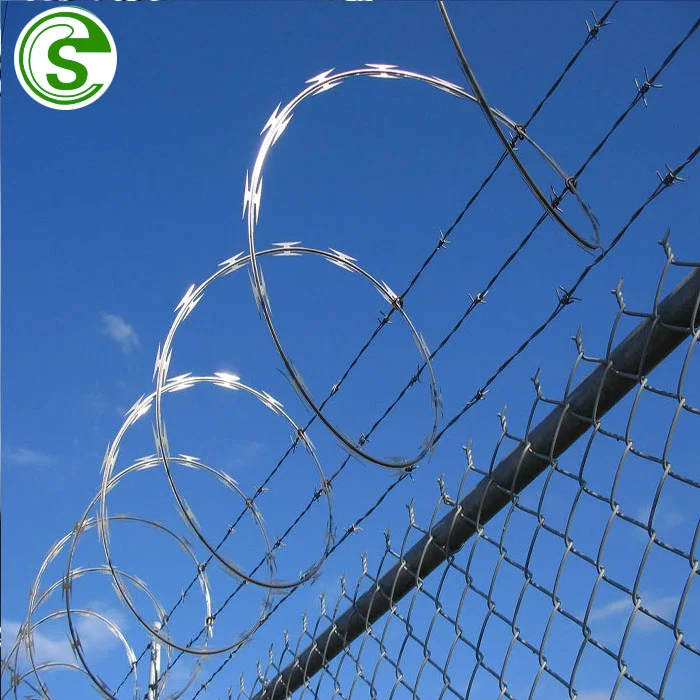

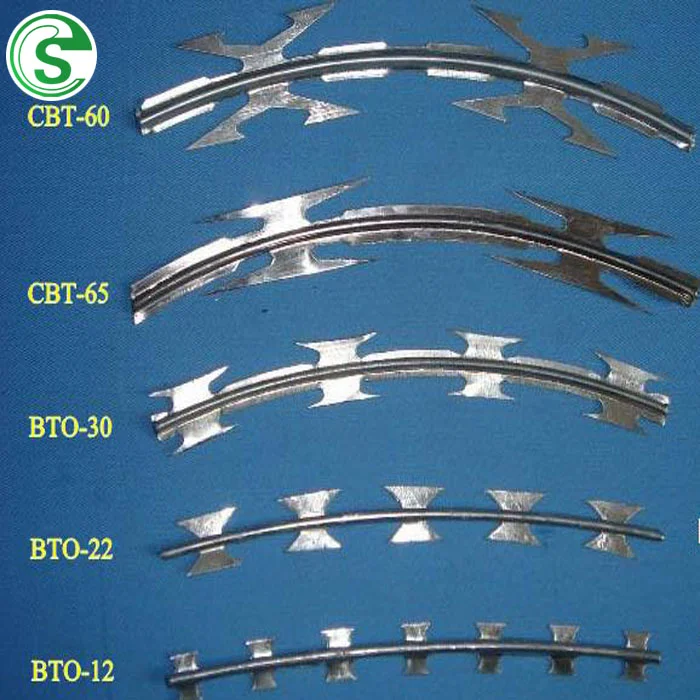

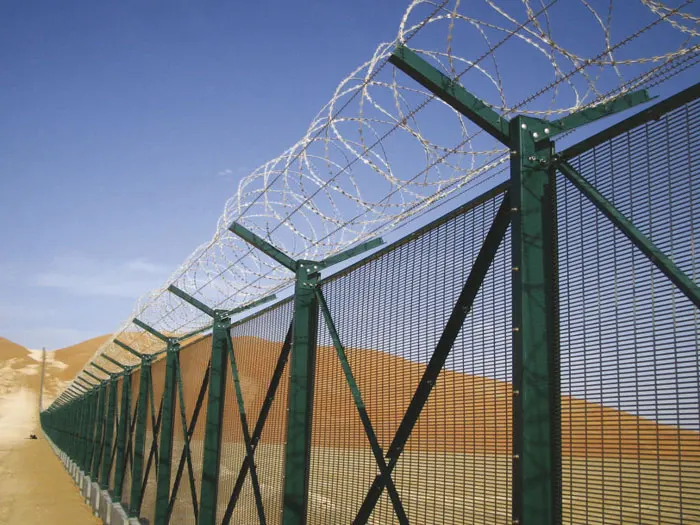

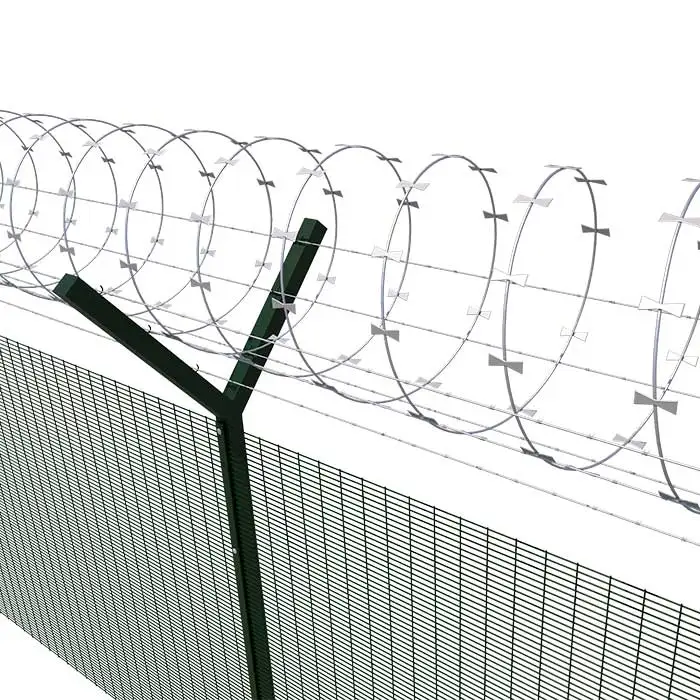

It supply more security when the Clearvu fencing add the barbe wire or razor barbe wire.

Effective Deterrence

The DutyGuard security fence system is designed to present a strong barrier against attack, featuring heavy welded wire panels that deters vandalism and break-ins, while offering critical visibility.

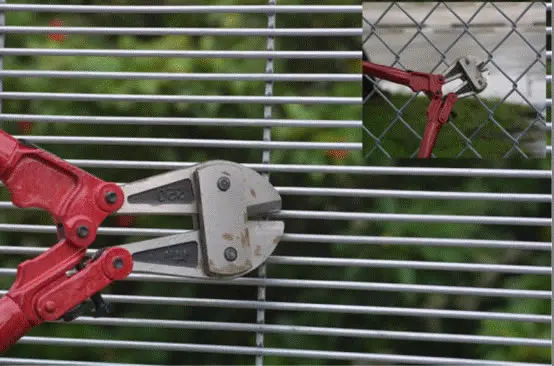

Anti-Cut & Anti-Climb
DutyGuard security mesh protects against both cutting and climbing, with heavy gauge mesh and small mesh openings that resist common cutting tools and hand or foot holds.
Long Service Life
High quality galvanized steel and aluminum components provide for a long service life. This system is also available with a super-durable, Architectural Grade Powder Coating.
Superior Coating
DutyGuard is available with Betafence USA’s exclusive super-durable powder coating, protecting the fence and gates from weather and U.V. aging. This ensures the barrier will retain its appearance and structural integrity for many years, with a minimum of upkeep or maintenance.

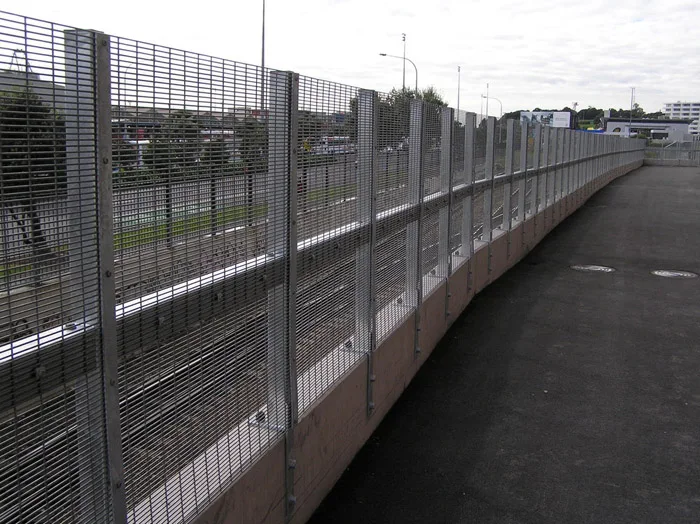

Bridge anti-climb guarding & guard safety screening Sub-station Security Fencing
Psychiatric hospital security fencing Prison Security Fencing
Factory Machine guards Walkway security fencing

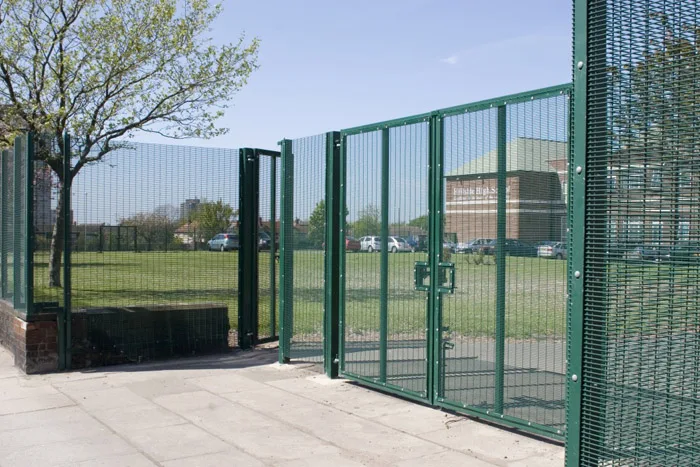

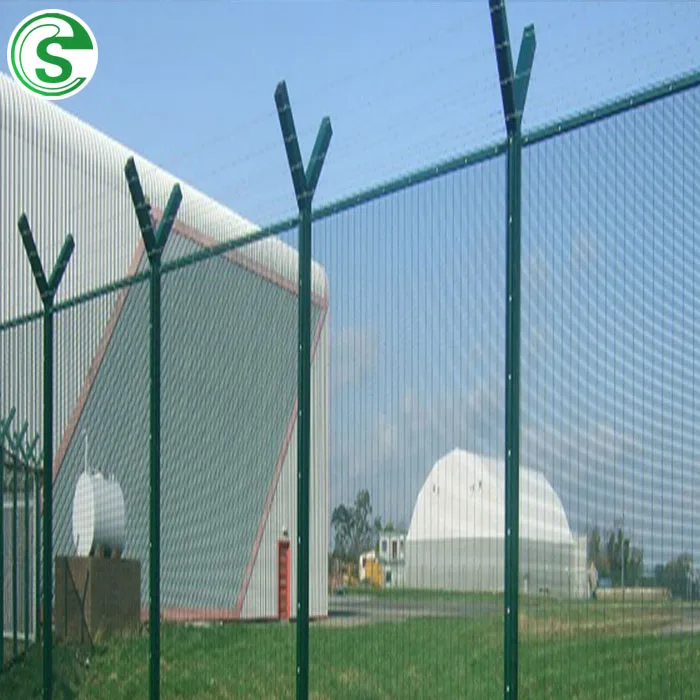

Airport security fencing 358 wire mesh fence gates
Shipping Port Security fencing Electrical sub-station fencing
Water Treatment works Gas pipelines Security Fence
High security window grilles Balustrades Security Fence

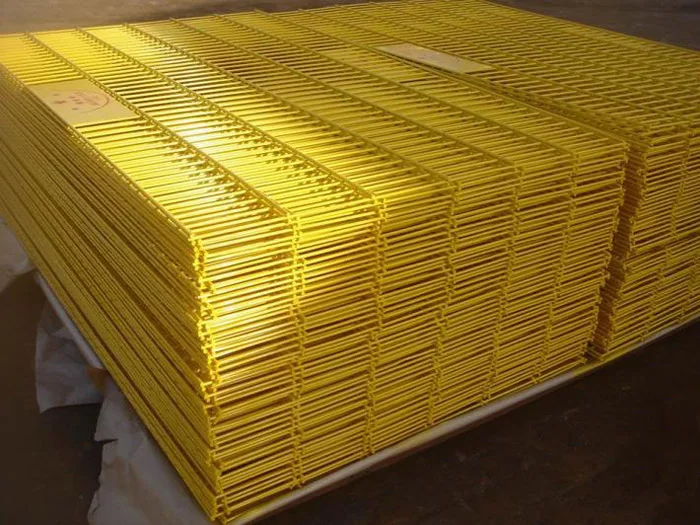

Packing details:

1>There is rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels

2>There is 4 metal corners to keep the pallet more strong.
3>There is metal plate under the plastic bandage to reduce the apressure of fence panels

4>There is wooden plate at the top of fence panel which can protect the fence panels from being crushed by other pallets.

Delivery date:

About 2 weeks as receive the deposit.

1) Customer Service will 24 hours online.

2) Any inquiries about guardrail will be replied within 12 hours.

3) Professional manufacture and reputation are cooperation basic.

4) Steady quality, reasonable and competitive price.

5) After-sale service.

6) OEM/ODM available.
