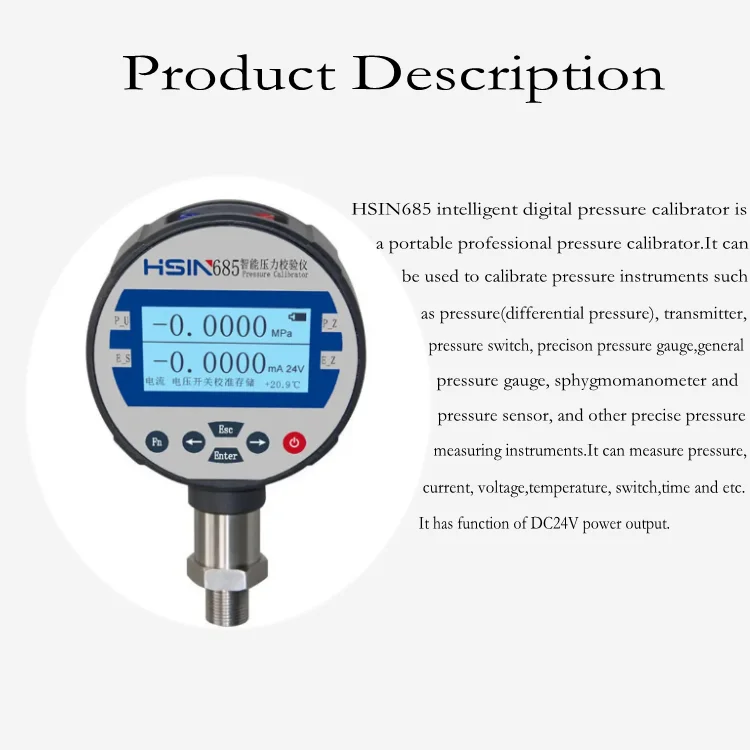

100bar Pneumatic Hydraulic HSIN685 Reference Pressure Gauge Digital Gauge Pressure Signal Test Gauges Indicator Manometer
- Category: >>>
- Supplier: Beijing Hengsheng Weiye Technology Co. Ltd.
Share on (1601280096161):
Product Overview
Description
Products Description
Specifications
Accuracy | 0.02% of full span |
0.05% of full span | |
Gauge Types | Gauge pressure, absolute pressure, differential pressure |
Preesure Range | -0.1~250Mpa(-14.5~36259.43psi) |
Display | Double LED |
Environmental | Operating temperature: -10°C-50°CHumitidy: 0-95%, Non-condensing |
Current Measurement | 0~30mA |
Voltage Measurement | 0-30V |
DC Output | DC24V±0.5V |
Swithing Value Measurement | ≤12s |
Power | Battery: Rechargeable Li-ion battery |
Li-battery life: 16 hours typical | |
Electrical Measurement Accuracy | 0.02%F.S±0.03%Rd |
Overall Dimension | 185*115*45mm |
Weight | 0.65kg |
Communication | USB Type-C, RS232 |
Compliance | CE, ISO9001 |
Warranty | 12 months |
COMMON RANGE SELECTION TABLE
Range | Range | Range | Range |
-100~0kPa | 0~100kPa | 0~2.5MPa | 0~40MPa |
0~2kPa | 0~160kPa | 0~4MPa | 0~60MPa |
0~5kPa | 0~250kPa | 0~6MPa | 0~80MPa |
0~10kPa | 0~400kPa | 0~10MPa | 0~100MPa |
0~20kPa | 0~600kPa | 0~16MPa | 0~160MPa |
0~25kPa | 0~1MPa | 0~20MPa | 0~250MPa |
0~40kPa | 0~1.6MPa | 0~25MPa | |
0~60kPa | 0~2MPa | 0~30MPa |
