Single Pass Paper Bags boxs Printing Machine label printer for duct inkjet printer code date barcode
- Category: >>>
- Supplier: Shanghai Focus Industrial Co. Ltd.
Share on (1601280096791):
Product Overview
Description

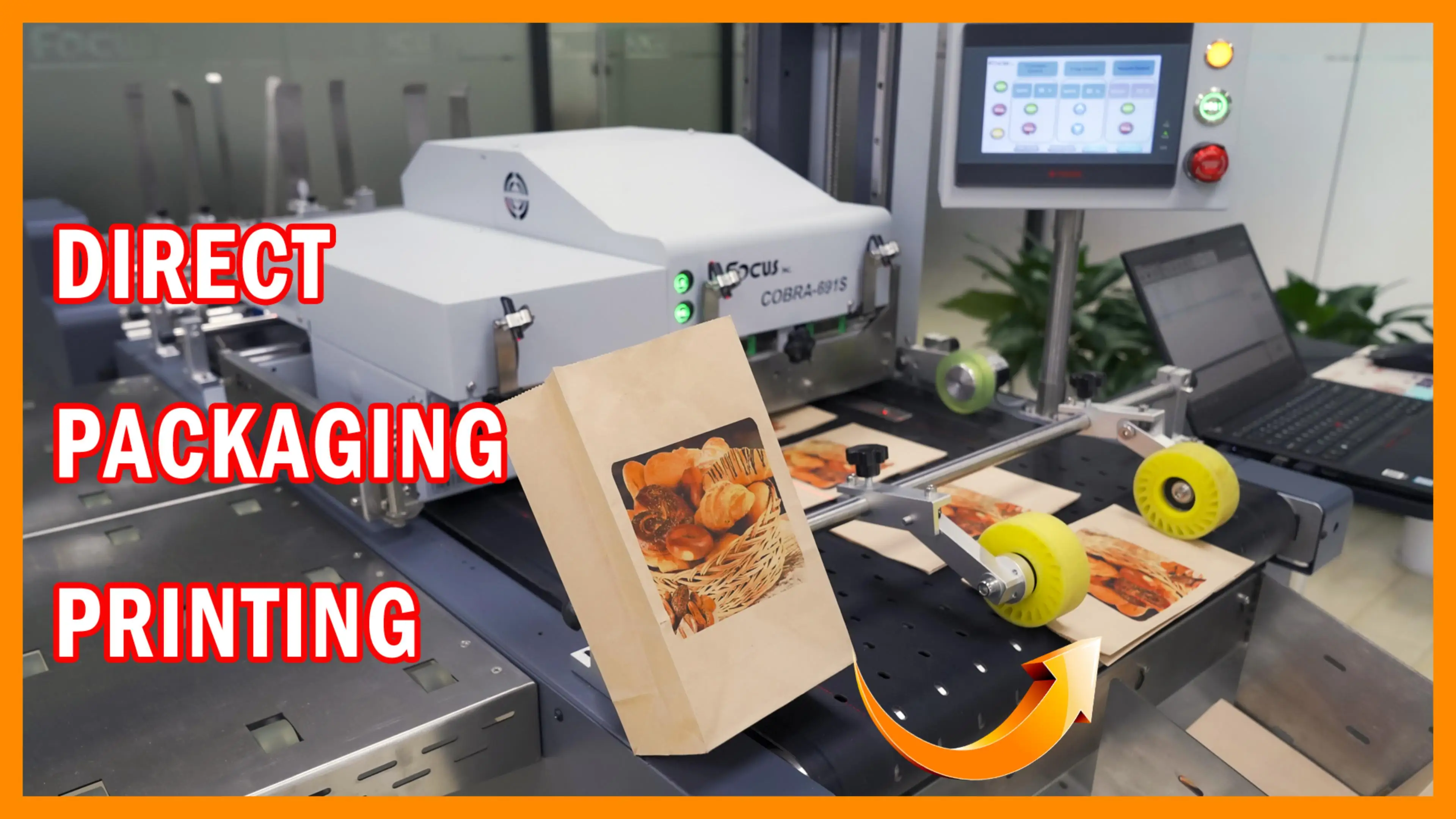

Single Pass Paper Package Printer dye pigment ink vacuum table 60cm conveyor width digital inkjet printing machine

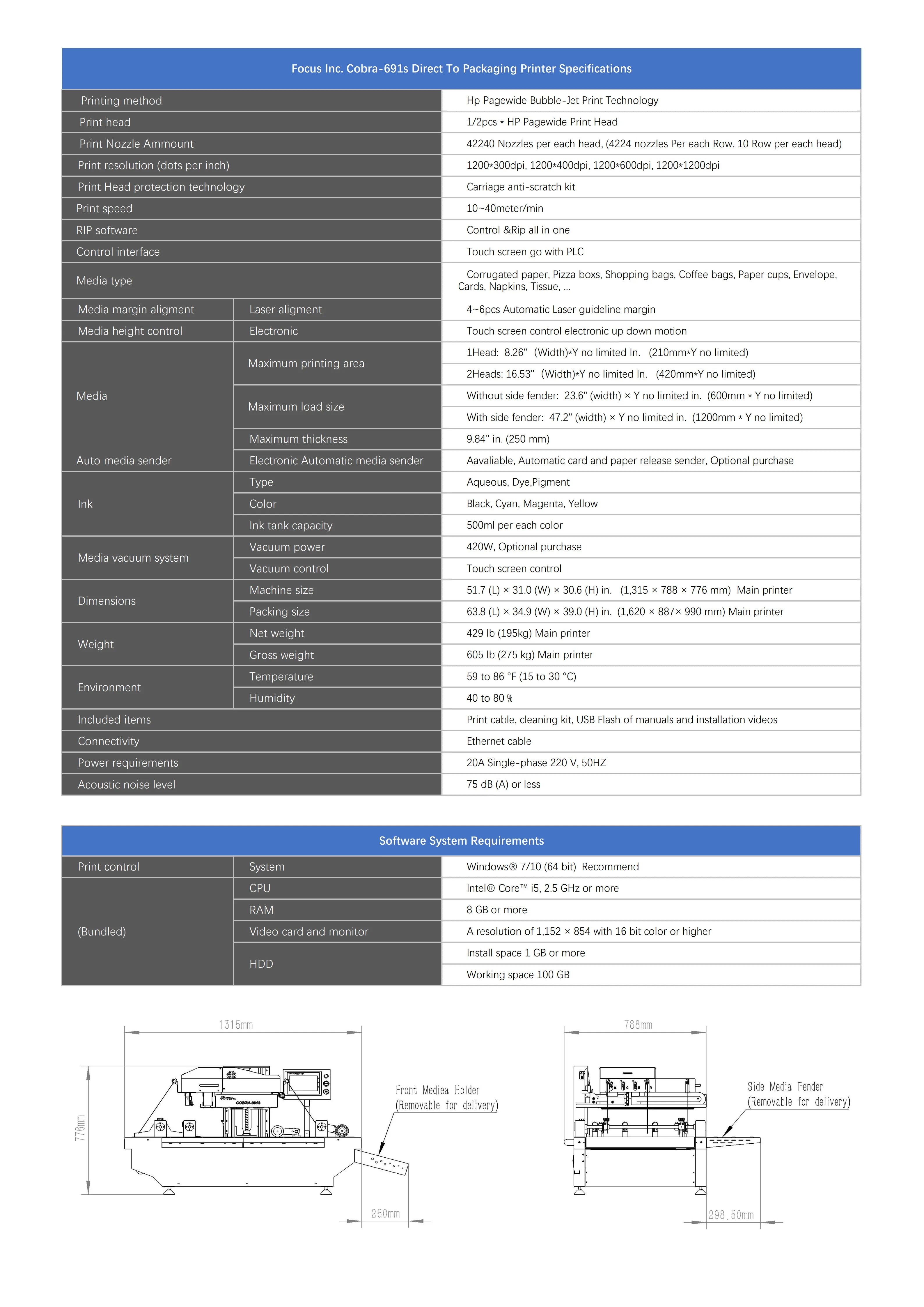

Product Specifications | ||||||||
Product name | single pass packaing printer | |||||||
Printing method | Hp Pagewide Bubble-Jet Print Technology | |||||||
Print head | 1/2pcs * HP Pagewide Print Head | |||||||
Print Nozzle Ammount | 42240 Nozzles per each head, (4224 nozzles Per each Row. 10 Row per each head) | |||||||
Print Head protection technology | Carriage anti-scratch kit | |||||||
RIP software | Control &Rip all in one | |||||||
Maximum printing area | 1Head: 8.26"（Width)*Y no limited In. (210mm*Y no limited) 2Heads: 16.53"（Width)*Y no limited In. (420mm*Y no limited) | |||||||
Maximum thickness | 9.84" in. (250 mm) | |||||||
Print speed | 10~40meter/min | |||||||
Packing size | 1620 *887*990 mm | |||||||
Net & Gross weight | 195KG &275KG | |||||||
Technical details
1
Four adjustable pressure plates prevent printing materials from curling up and scraping the printhead, thereby improving printing quality
2
large LED touch screen with integrated function design, convenient for machine operation and maintenance.
3
The 500ml large-capacity refillable ink tank with ink shortage alarm ensures continuous high-speed printing of materials
4
1200dpi high-precision real-time encoder reading of conveyer belt running speed
5
42240 ammount of high-speed inkjet nozzles enable high-speed and high resolution printing
6
HP PageWide technology can achieve single-head 210mm wide-format printing and can also choose single-head or dual-head configuration
7
The X-axis dual linear guide rail, together with 8 sliders, ensures stable and high-speed printing of the printhead.
8
Precision Control of Different Material Heights with Independent Motor Drive Configuration for Z-Axis Dual Linear Guide and Lead Screw.
9
The design of suction holes on the conveyor belt enables high-definition printing of flexible printing materials through suction
10
High-precision self-learning material feeding laser sensor can automatically sense and judge the background color of print material
11
By installing the side wing plates, it is possible to feed and print materials wider up to 1.2 meters.
12
Installing a curved protective cover for the printhead bottom plate can effectively prevent the printhead from scratching against the material
13
The fast snap-in ink stack effectively maintains the print head to prevent clogging
14
The front paper receiving slot is convenient for organizing and retrieving prints of different materials.

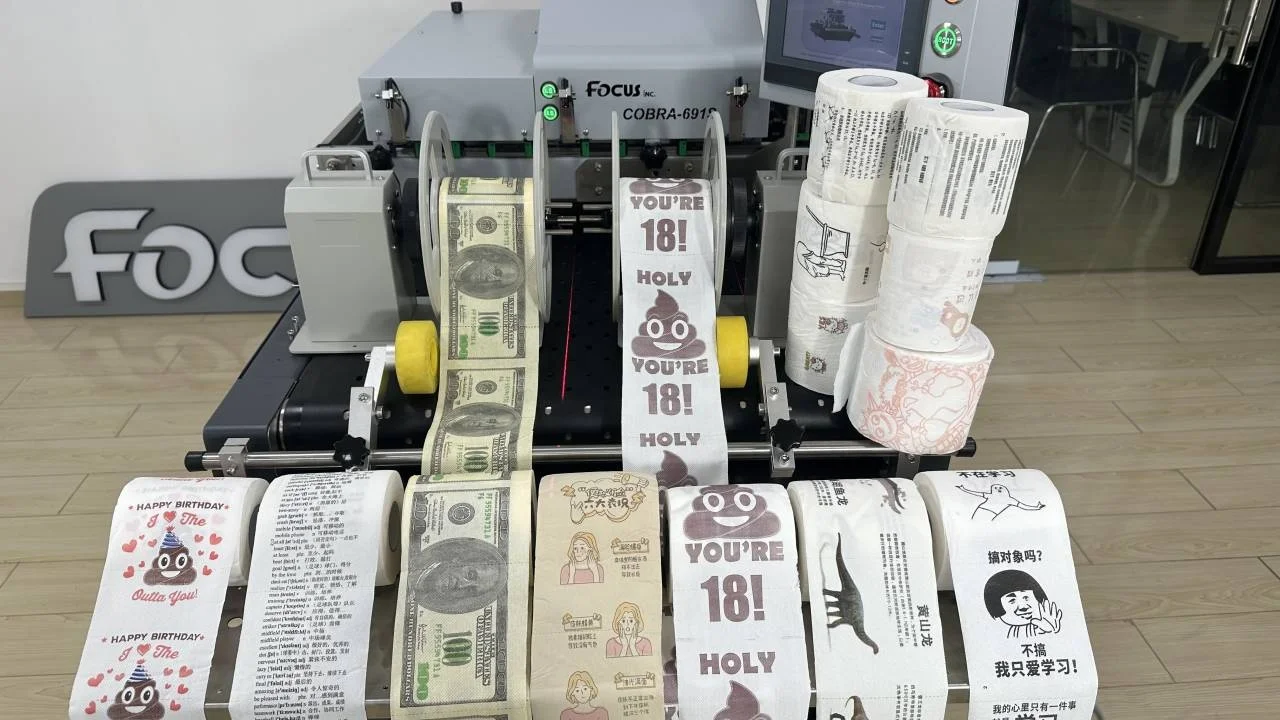

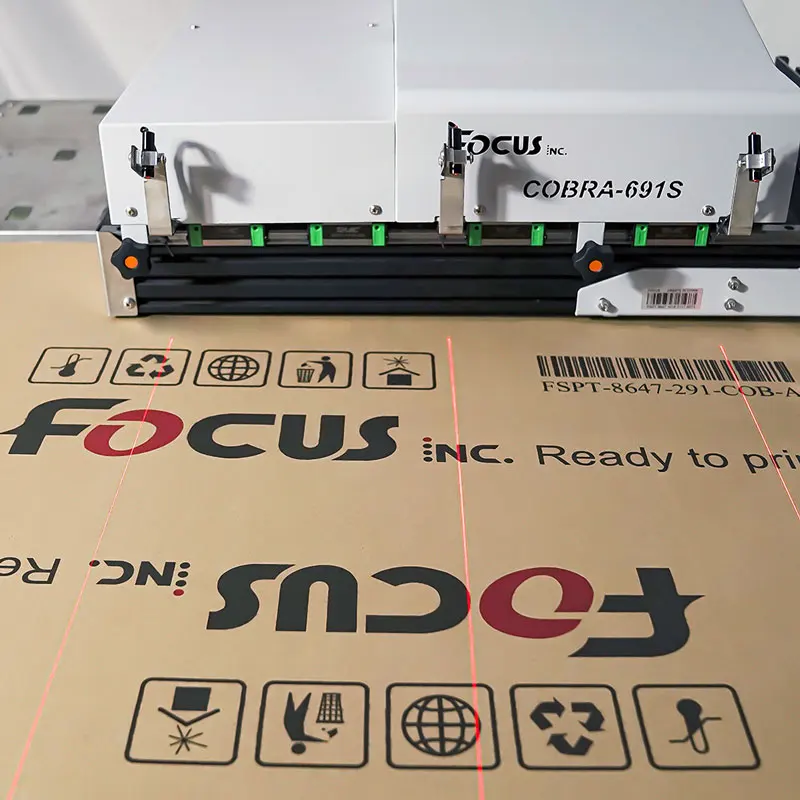

Printing sample by FocusInc
