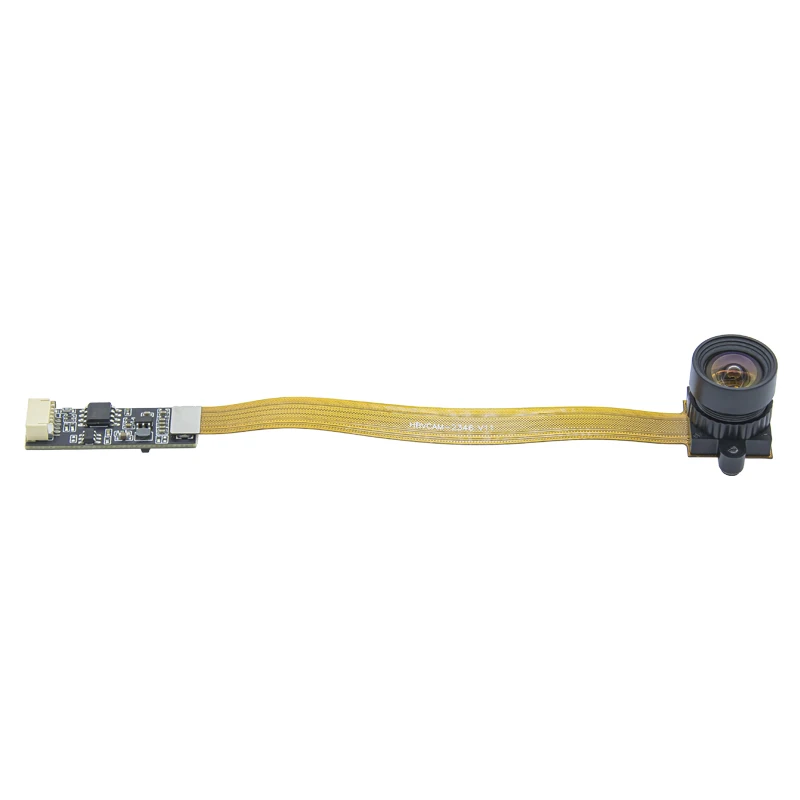

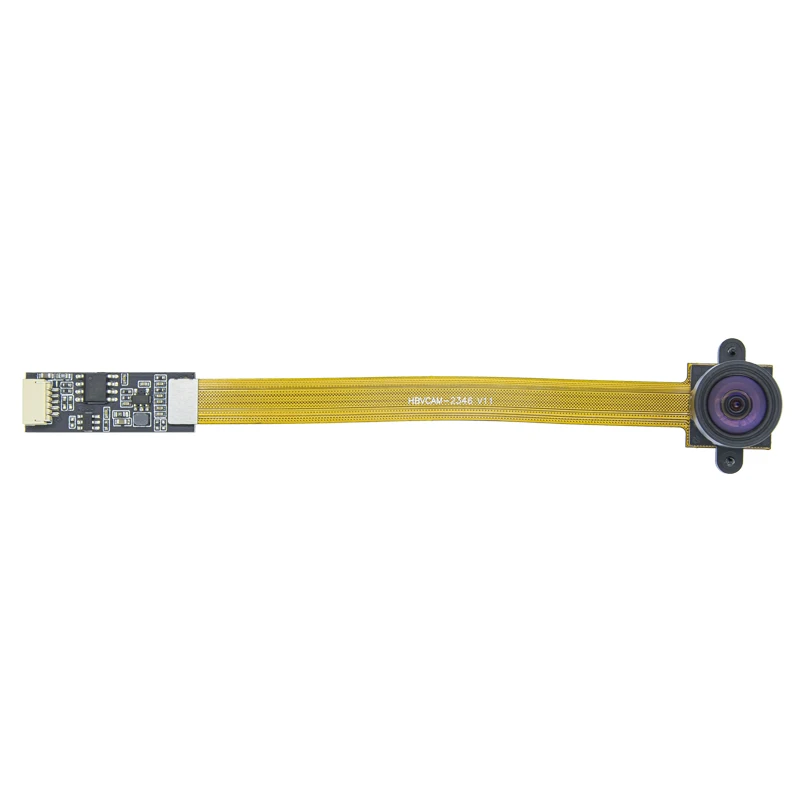

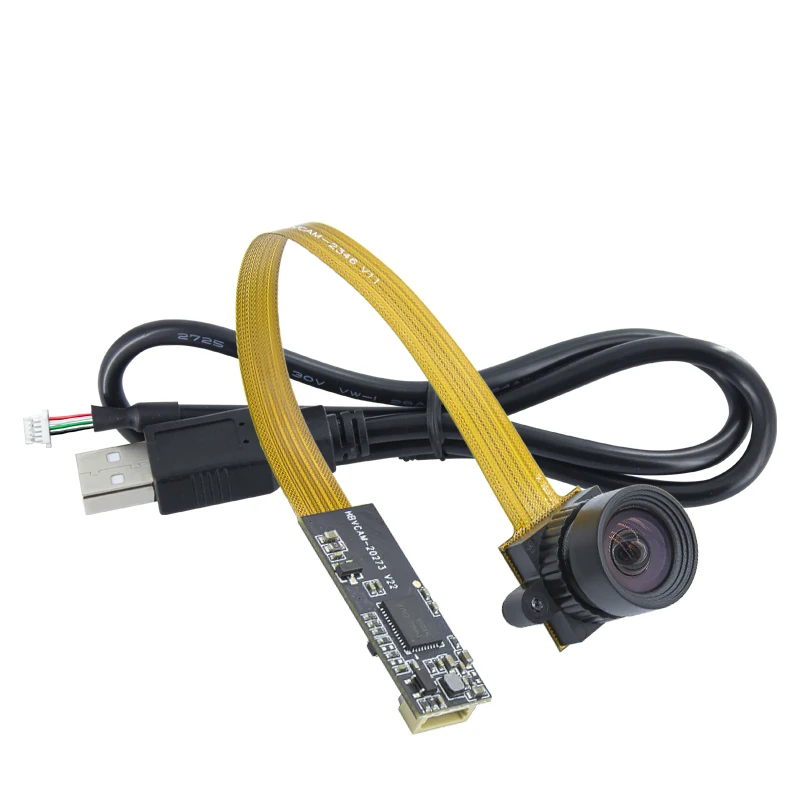

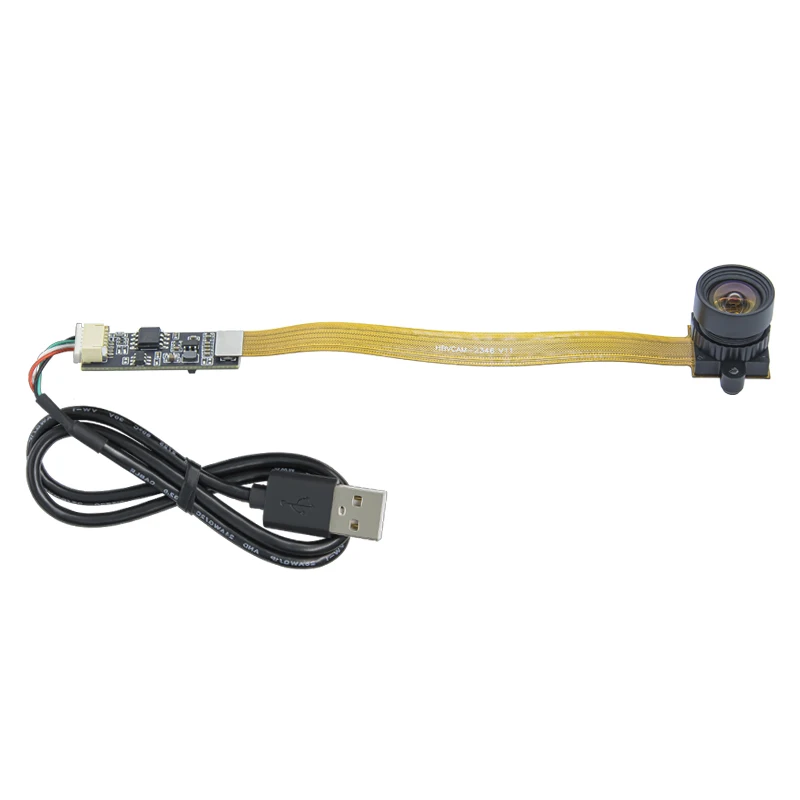

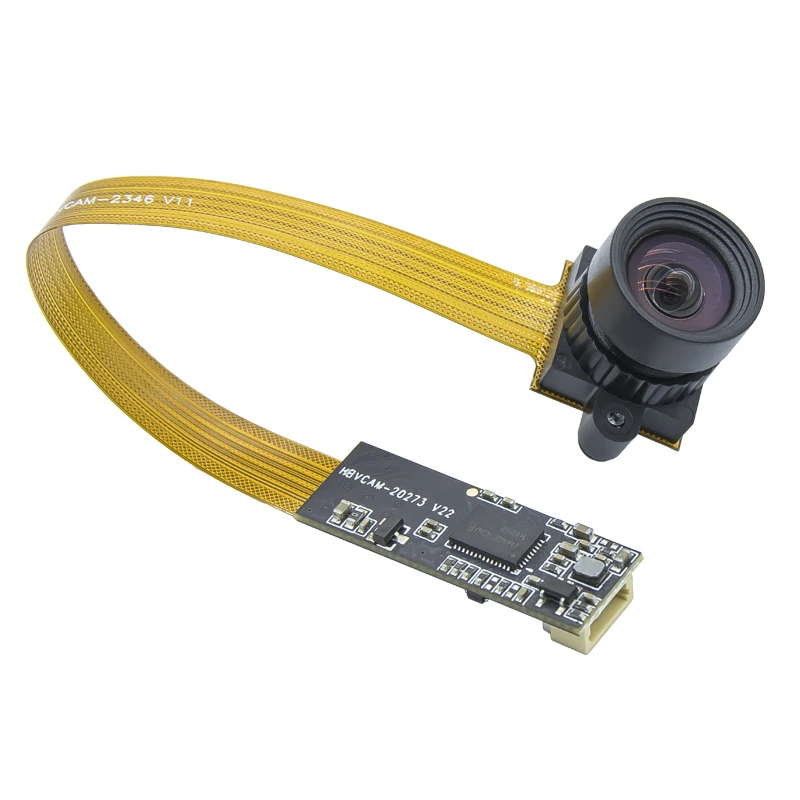

1MP 720P Full Color Global Exposure Camera Module Separate Structure Camera Module
- Category: >>>
- Supplier: Shenzhen Huiber Vision Technology Co. Ltd.
Share on (1601280100976):
Product Overview
Description
Product Parameter
Product Name | 1MP 720P Full Color Global Exposure Camera Module |
Module No | HBVCAM-2346 V11 |
Module Size | 123.5mm × 22mm × 15.2mm±0.5MM |
6specificities | 1. Flexible structure for separating soft and hard boards, flexible installation, and FPC bendable 2. Head 17 * 17mm with screw hole positioning ears, FPC part can be customized in length and shape 3. All performance as above, W23282GS split version |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROHS) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 640 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | OV9282 (1/4” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1280*720 |
Sensitivity | 1300mV /（lux-sec） |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPEG 320x240 120FPS / YUY2 320x240 30FPS MJPEG 640x480 120FPS / YUY2 640x480 30FPS MJPEG 800x600 120FPS / YUY2 800x600 15FPS MJPEG 1280x720 120FPS / YUY2 1280x720 10FPS |
S/N Ratio | 38 db |
Max Dynamic Range | 68 db |
Shutter type | Global shutter colours |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | NO |
Lens Construction | 2G2P |
F/No | 2.4 |
EFL | 3.7 mm |
FOV | 100° |
TV Distortion | <5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROHS |
