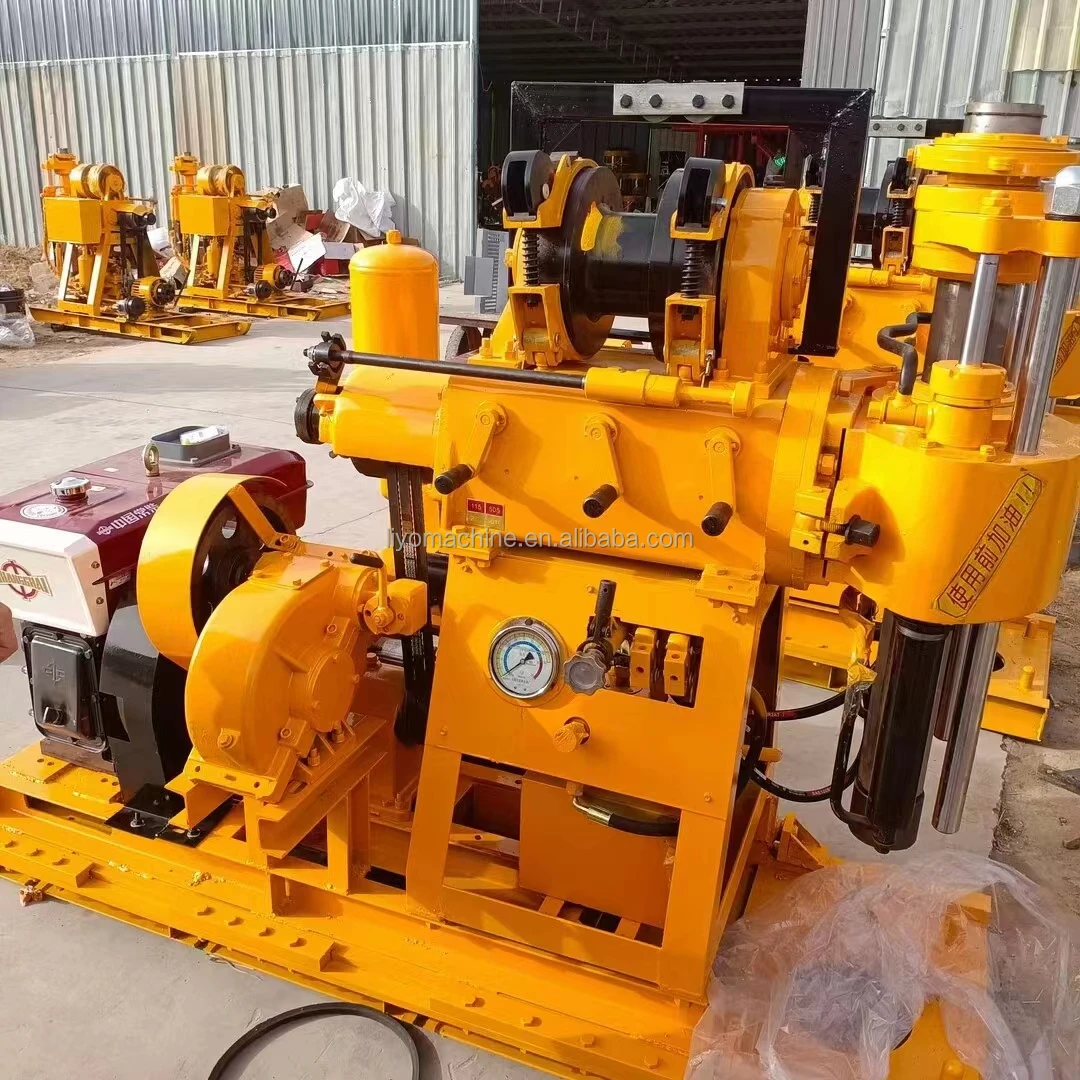

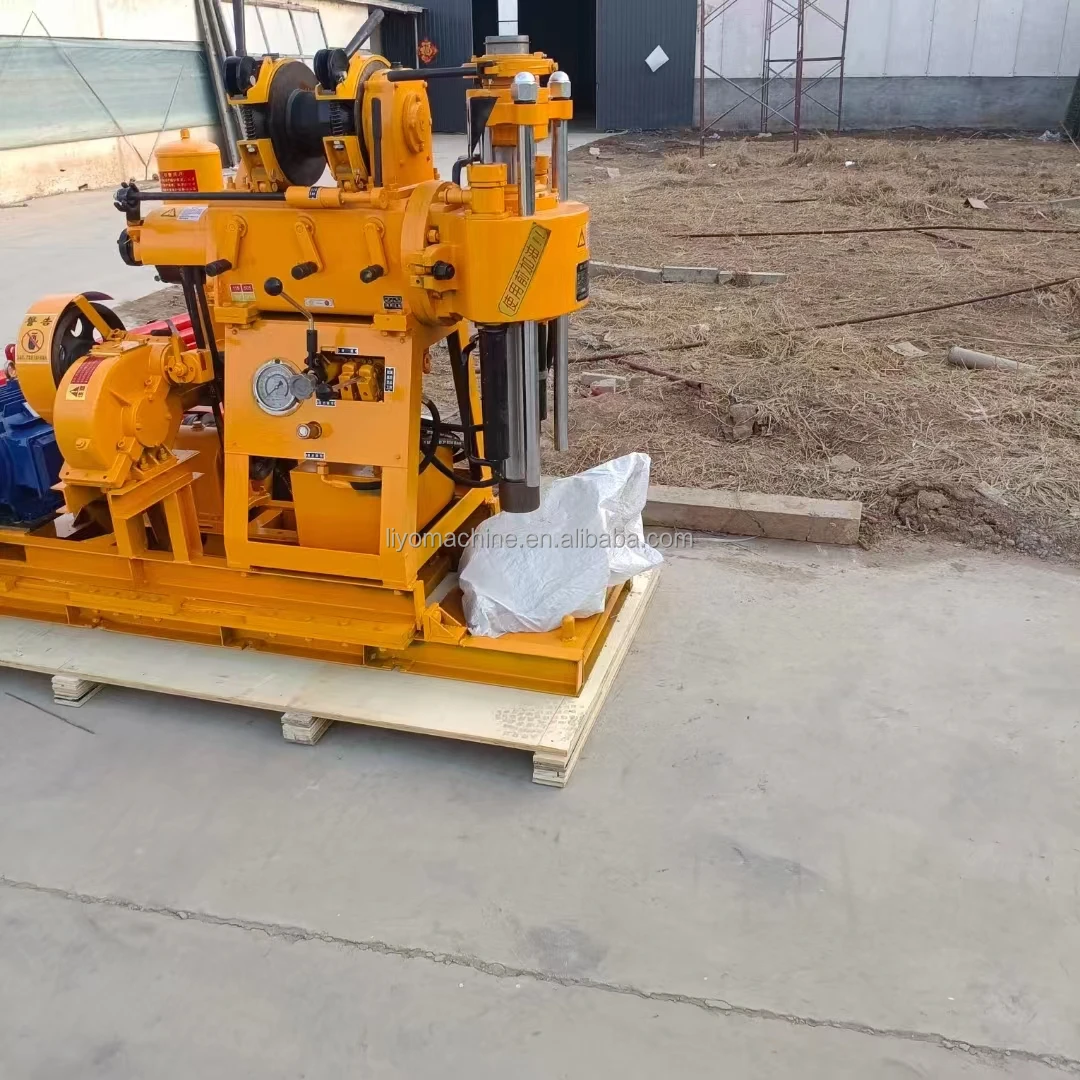

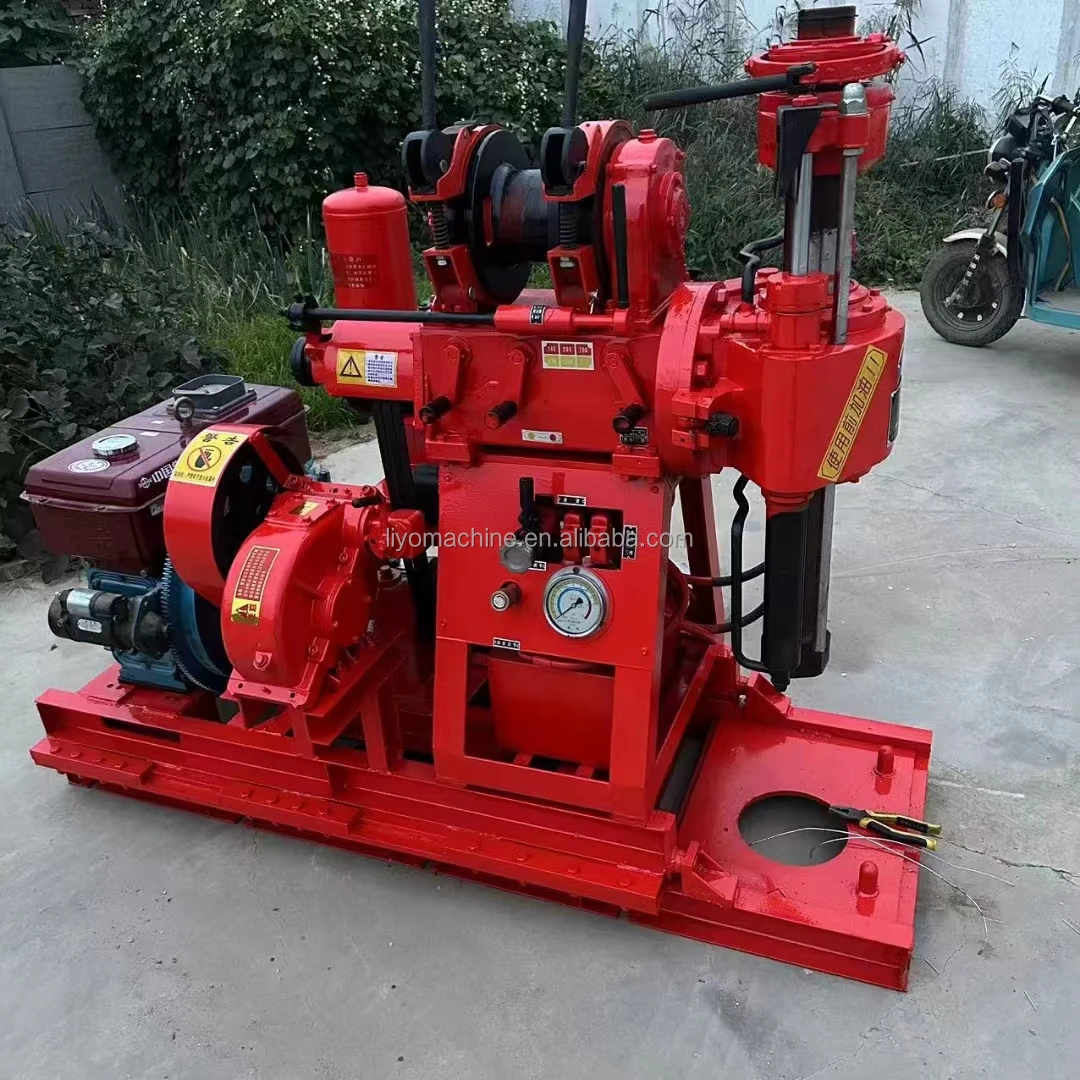

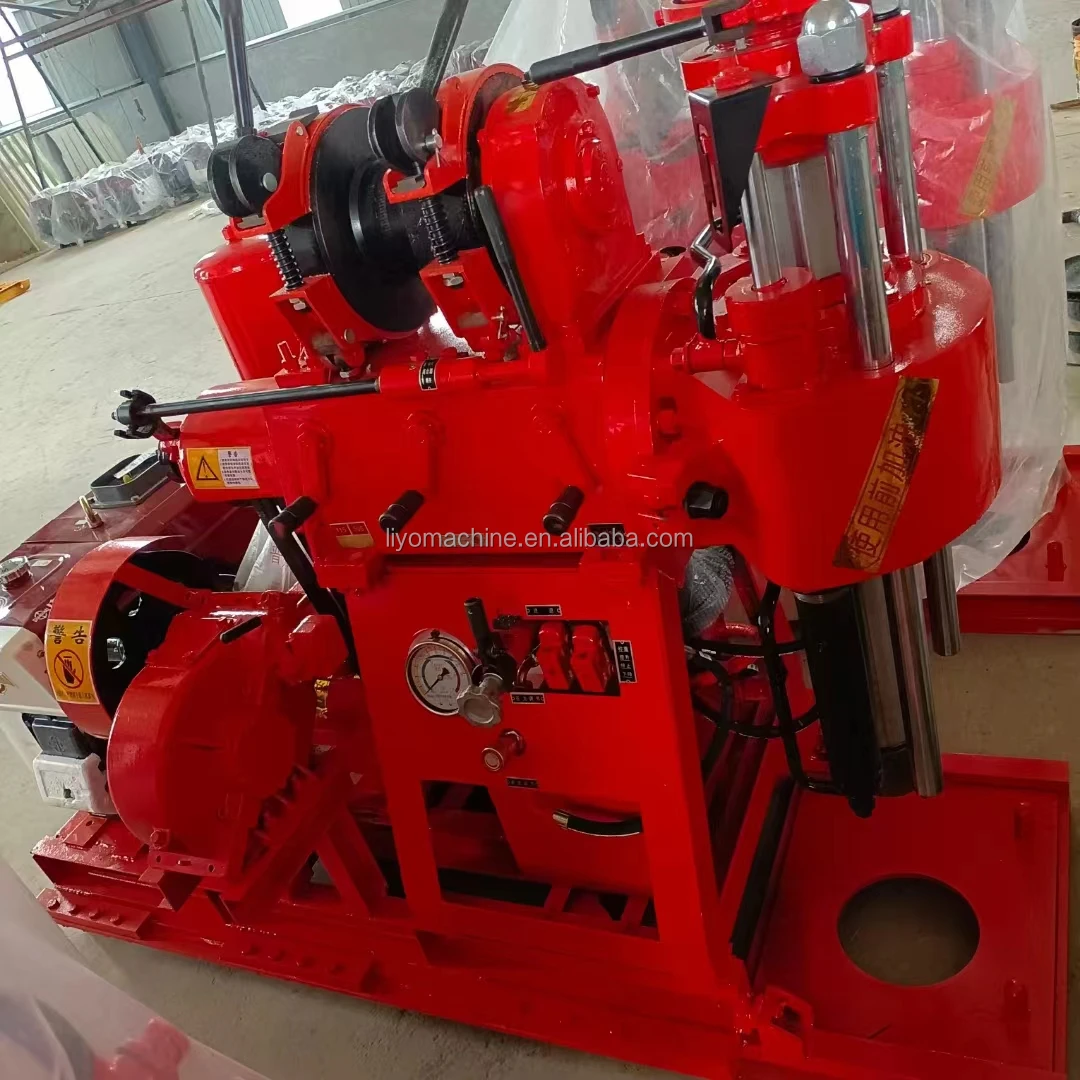

200m deep sunmoy water well drilling rig with mud pump for underground borehole machine equipments
1. This drilling rig is a high-speed drilling rig suitable for drilling projects such as census exploration, geophysical exploration, road and building exploration, and blasting holes.
2. According to the different bottom layers, drill bits such as alloy, diamond and composite pieces can be used for drilling.
3. It can drill sandy clay and rock formations of grade 2-9.


Product Description




Advantages

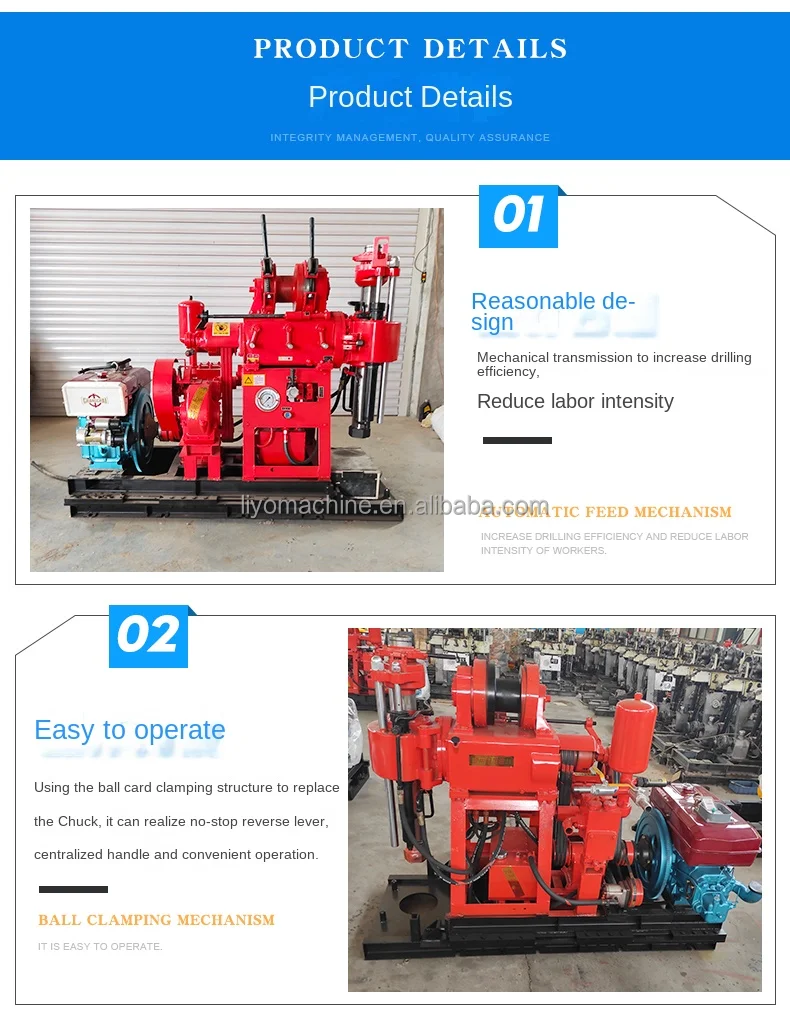

1. It enhances drilling efficiency and reduces labor intensity through the use of a hydraulic automatic feeding mechanism.
2. Changing rods can be accomplished without stopping, making it easy to operate, safe, and reliable with the ball clip holding mechanism or hydraulic chuck.

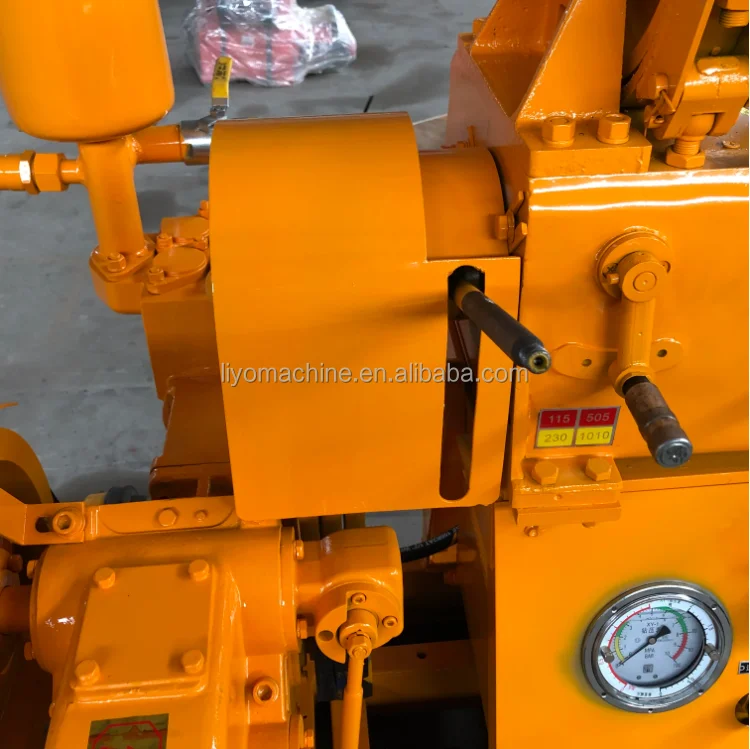

3. The inclusion of a hole bottom pressure gauge enables easy monitoring of the hole's conditions.

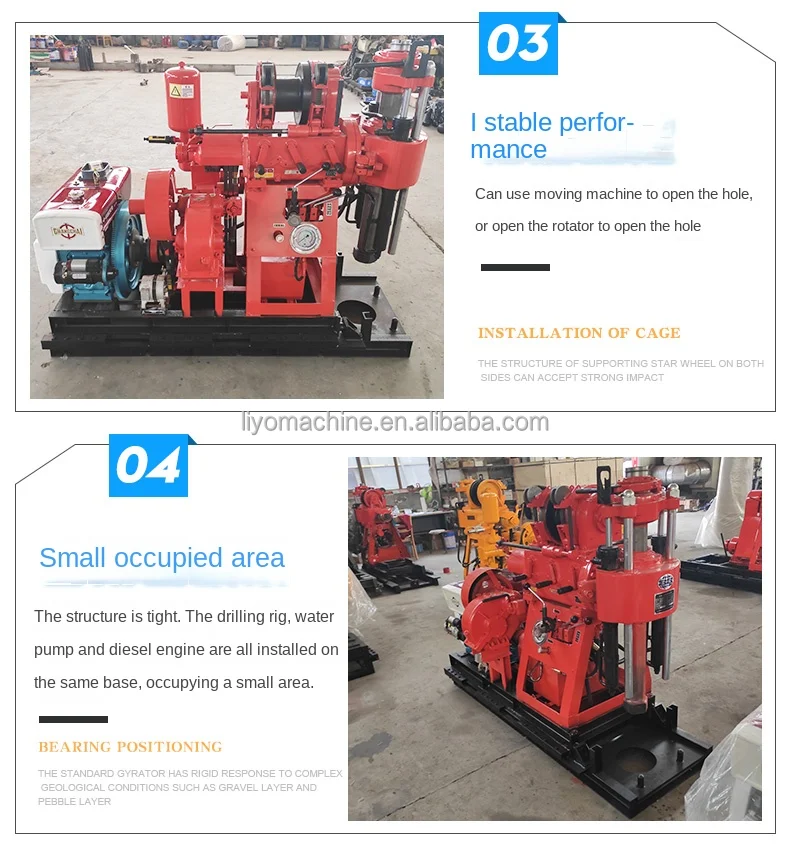

4. Additionally, the compact structure, concentrated handle, small footprint, lightweight design, strong decomposition, and ease of mobility make it suitable for operation in both plain and mountainous areas.







Specification




Basic parameters
Drilling depth
(m)
75mm diameter: max. 200m, 91mm diameter: max. 150m, 110mm diameter: max. 100m, 130mm diameter: max. 70m, 150mm diameter: max. 50m,
300mm diameter: max. 30m,
Drill pipe diameter
(mm)
60 50 42
Drilling inclination angle
75-90 degrees
Opening diameter
75-325mm
Dimensions
(mm)
1433*697*1273
Lift
Lifting capability
(kN)
15
2nd layer reel linear speed(m/s)
0.166 0.331
0.733 1.465
Reel speed(r/min)
19 3884 168
Reel diameter(mm)
140
Wire diameter(mm)
9.3
Steel wire capacity(m)
35
gyrator
Name
Parameter
Rotating speed
(r/min)
115 230
505 1010
Vertical axis travel
(mm)
450
Max. upward movement speed of vertical axis without loadm/s)
0.05
Max.downward movement speed of vertical axis without load(m/s)
0.067
Max. feed force of vertical axis(KN)
15
Max. lifting force of vertical shaft(KN)
25
oil pump
Model
gear pumps
Rated speed
(r/min)
2000
Rated pressure
(MPa)
12.5
Displacement(mL/r)
20
Motor
Model
Motor
Diesel engine
Power(KW)
11
16.2
Rotating speed(r/min)
1460
2200
