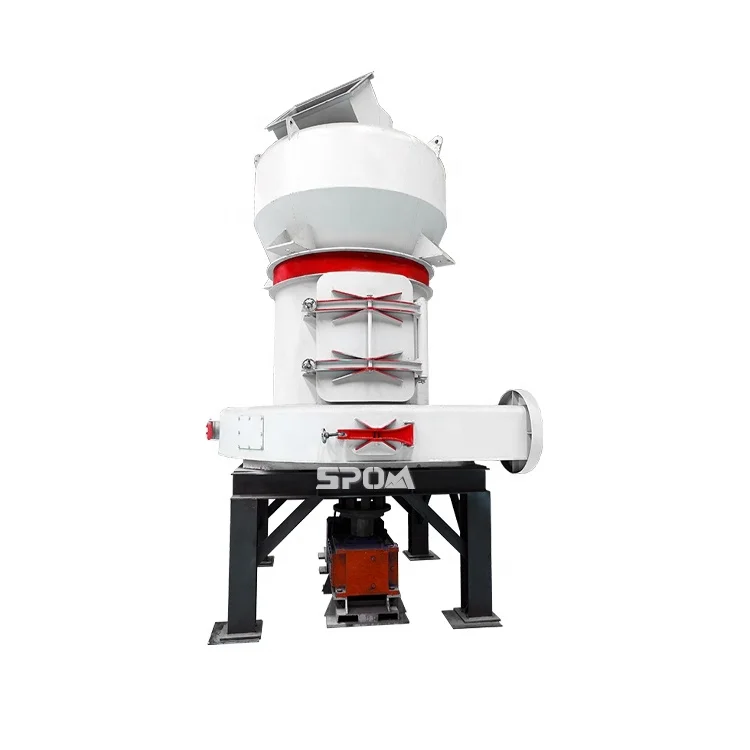

Factory price limestone feldspar grinding mill machine calcium carbonate bentonite clay micro powder grinder
- Category: >>>
- Supplier: Henan Shibo Mechanical Engineering Co. Ltd.
Share on (1601280135600):
Product Overview
Description
Calcium Carbonate CaCo3 Limestone Bentonite Powder European grinding Mill
European Type Grinding Mill--- the latest type of Raymond Mill, has become one of the most
advanced grinding mills in the world with its so many intellectual properties like bear-gear drive, inner oil lubricating system, arc air channel, etc. It takes the most advanced patent technology from European and the supply the customers with outstanding performance at low costs.
advanced grinding mills in the world with its so many intellectual properties like bear-gear drive, inner oil lubricating system, arc air channel, etc. It takes the most advanced patent technology from European and the supply the customers with outstanding performance at low costs.
Product Paramenters
Model | ZTM100 | ZTM130 | ZTM140 | ZTM160 | ZTM180 | ZTM190 |
Grinding rollers(pcs) | 4 | 4 | 4 | 4 | 4 | 4 |
Roller diameter*height(mm) | Ф360x190 | Ф410x210 | 460x240 | Ф440x270 | Ф520x280 | Ф640x330 |
Grinding ring diameter*height(mm) | Ф950x190 | Ф1280x210 | 1380x240 | 1600x270 | 1750x280 | 1950x330 |
Host speed | 132 | 106 | 105 | 92 | 78 | 72 |
Maximum feed size(mm) | ≤25 | ≤30 | ≤30 | ≤30 | ≤35 | ≤35 |
Finished particle size(mesh) | 80-600 | 80-600 | 80-600 | 80-600 | 80-600 | 80-600 |
Capacity(t/h) | 0.5-6.5 | 2.0-14.0 | 3.0-17.5 | 5.0-25 | 6.5-32 | 8.5-40 |
Dimensions L*W*H(mm) | 7350x5900x7900 | 8000x8550x9700 | 9700x8500x10200 | 9230x10116x10510 | 9368x11500x11000 | 10465x11372x11500 |
Host motor power(kW) | 37-45 | 75-90 | 90-110 | 132-160 | 185-200 | 220-250 |
Powder separator motor power(kW) | 5.5-11 | 18.5-22 | 22-30 | 30-37 | 37-45 | 45-55 |
Induced fan motor power(kW) | 30-37 | 75-90 | 110-132 | 160-200 | 200-220 | 220-250 |
Dust collector model | DMC36 | DMC36 | DMC48 | DMC64 | DMC96 | DMC96 |
Dust collector power(kW) | 3 | 3 | 3 | 5.5 | 7.5 | 7.5 |
Air compressor power(kW) | 4 | 4 | 4 | 5.5 | 7.5 | 7.5 |
Electromagnetic vibrating feeder model | GZ2F | GZ3F | GZ3F | GZ3F | GZ4F | GZ5F |
Electromagnetic vibrating feeder power(kW) | 0.15 | 0.2 | 0.2 | 0.2 | 0.45 | 0.65 |
ZTM European Type Grinding Mill
Maximum feed size(mm)：≤35
Capacity(t/h)：0.5-40Finished particle size(mesh)：80-600
Types of European type grinding mill:
——Six models: ZTM100, ZTM130, ZTM140, ZTM160, ZTM180 and ZTM190
——Finished production fineness: 80-600 mesh
——Capacity (ton/hour) ranges from 0.5T/H to 40T/H
——Finished production fineness: 80-600 mesh
——Capacity (ton/hour) ranges from 0.5T/H to 40T/H
Product Description
RAYMOND MILL ZTM EUROPEAN MILL
Performance advantages of ZTM European Type Grinding Mill
1.Good material flow
Curved air duct, small air volume loss.
2.High powder selection efficiency
The particle size of the finished product is adjustable and controllable, and the powder selection efficiency is high.
3.Low usage costs
The curved-surface replaceable blade improves grinding efficiency and reduces usage costs.
1.Good material flow
Curved air duct, small air volume loss.
2.High powder selection efficiency
The particle size of the finished product is adjustable and controllable, and the powder selection efficiency is high.
3.Low usage costs
The curved-surface replaceable blade improves grinding efficiency and reduces usage costs.

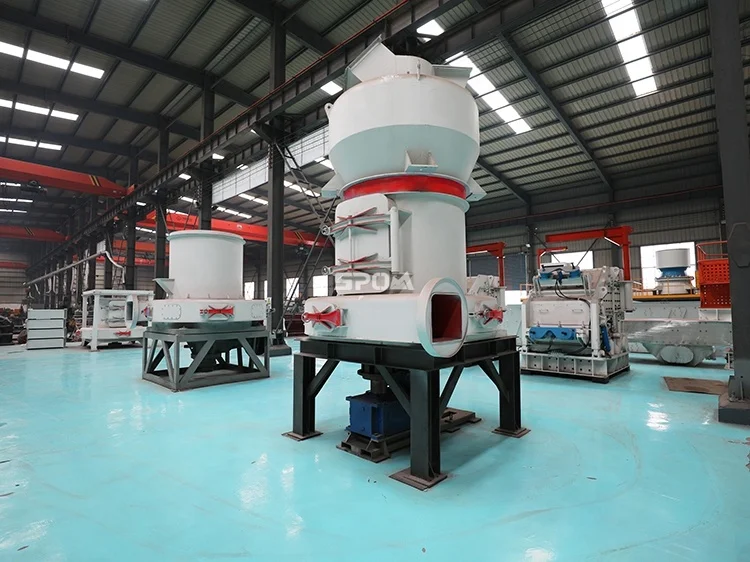

Details Images
1.This grinding mill has a compact structure, small footprint, low operating cost and improved production efficiency, widely used in the market.
2.he bevel gear is integrally driven, with a more compact structure, low energy loss and high efficiency.
3.Curved air duct, small air volume loss and good material flow.
4.Internal thin oil lubrication system, advanced and reliable.
2.he bevel gear is integrally driven, with a more compact structure, low energy loss and high efficiency.
3.Curved air duct, small air volume loss and good material flow.
4.Internal thin oil lubrication system, advanced and reliable.

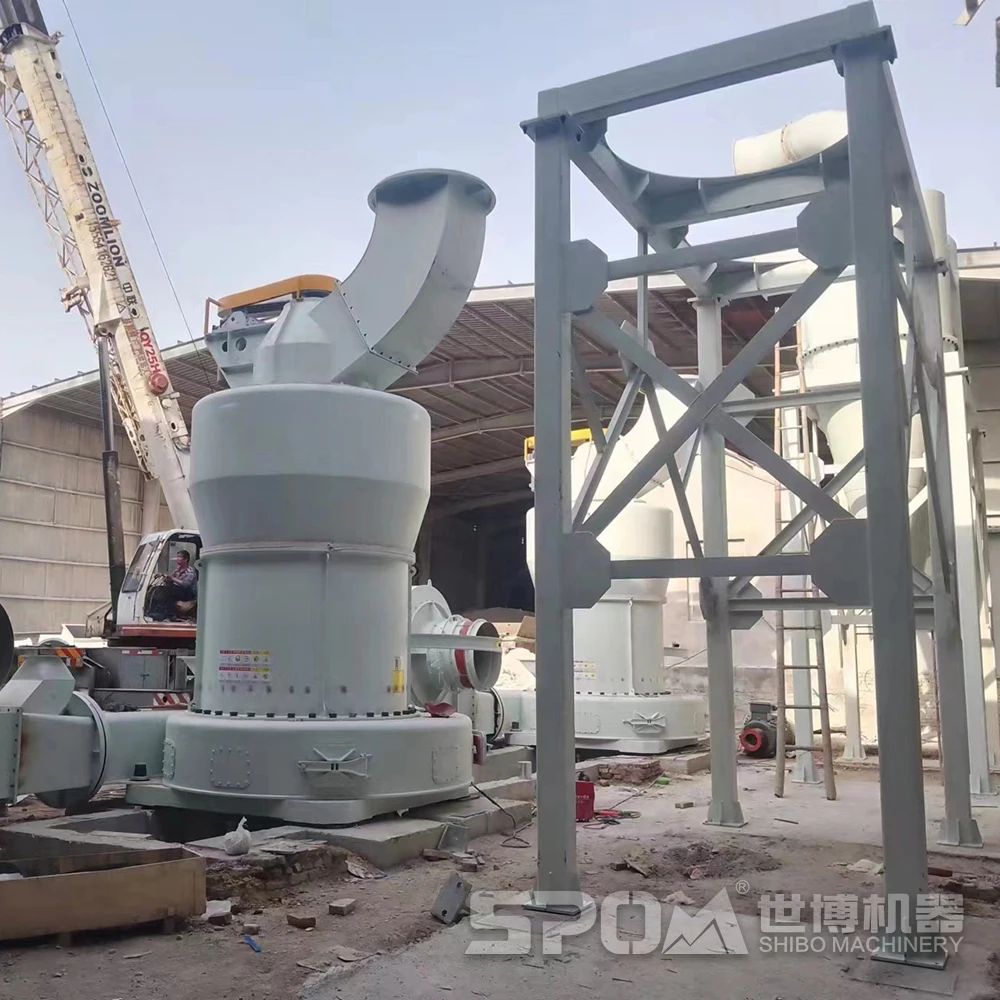

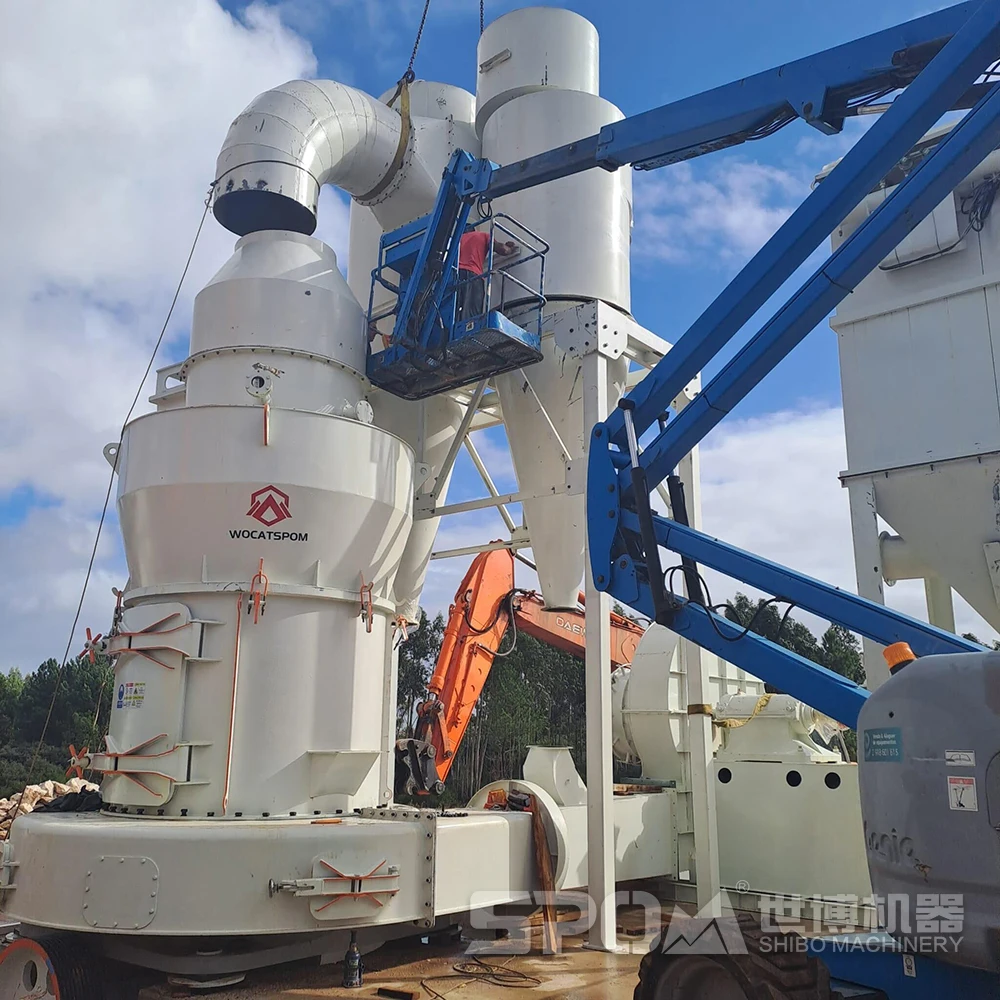

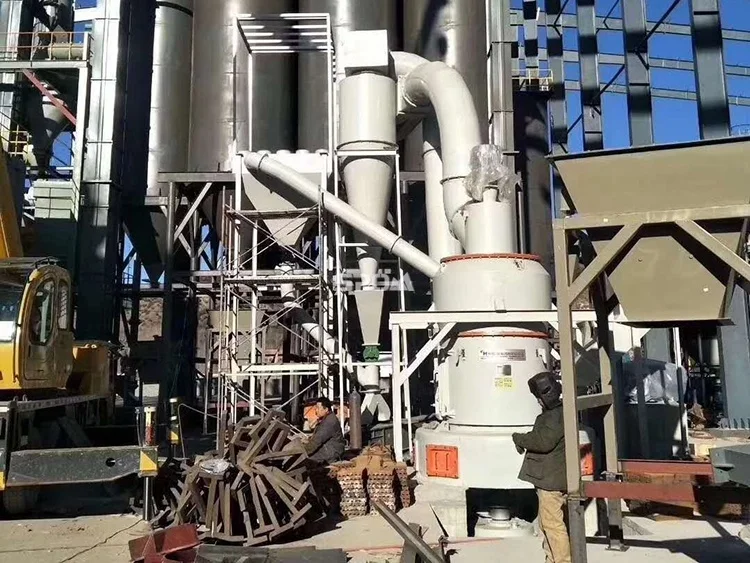

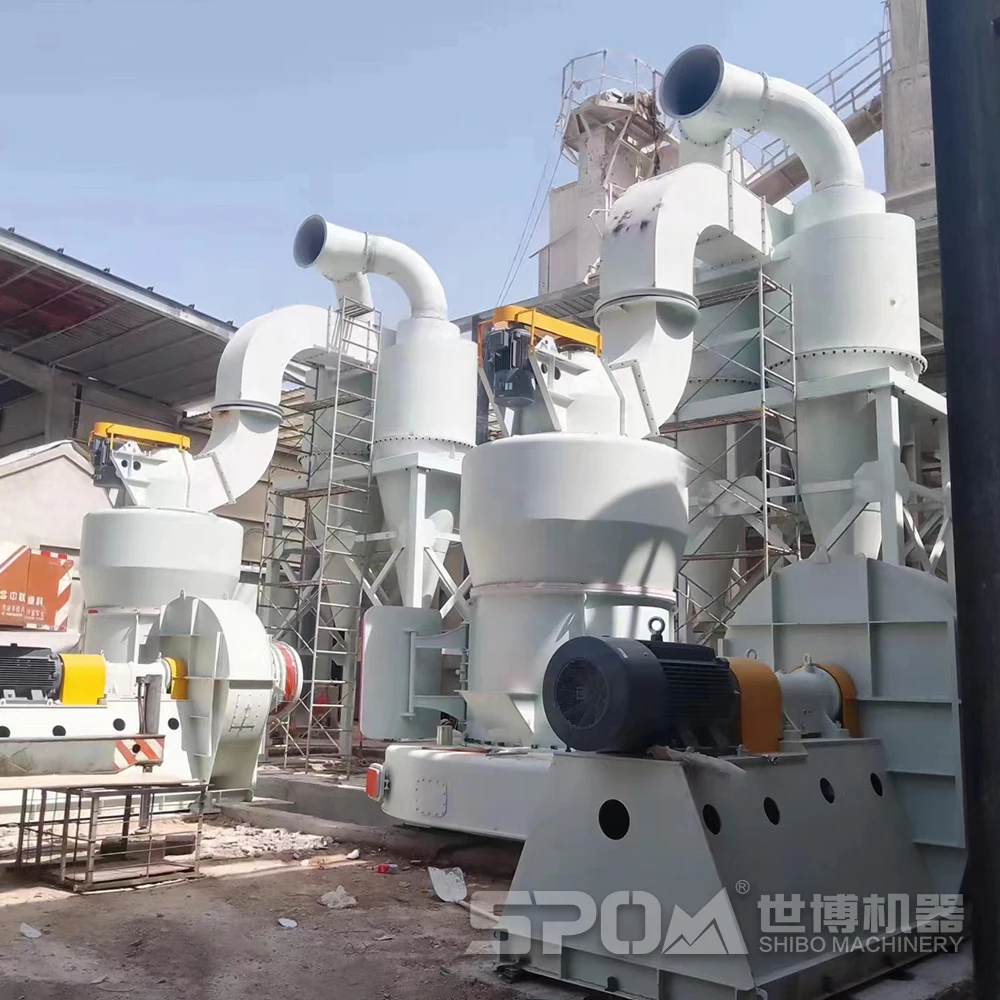

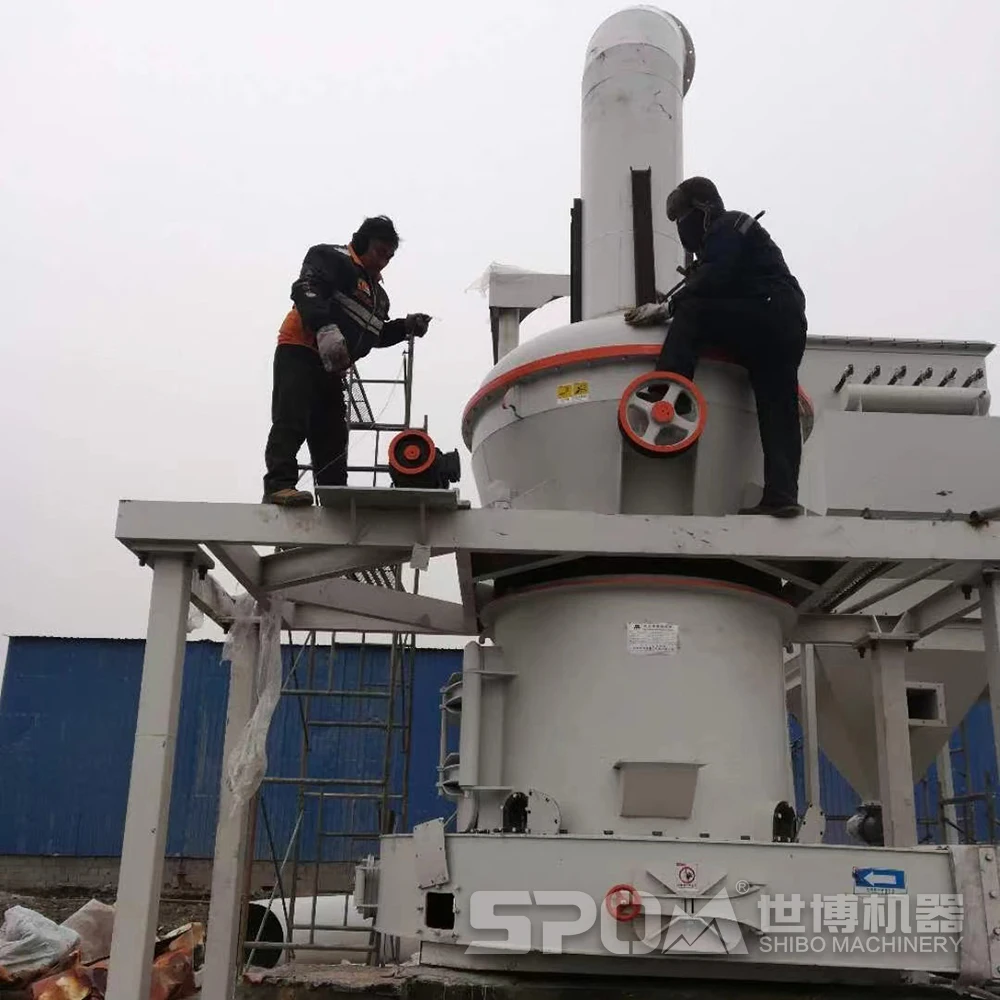

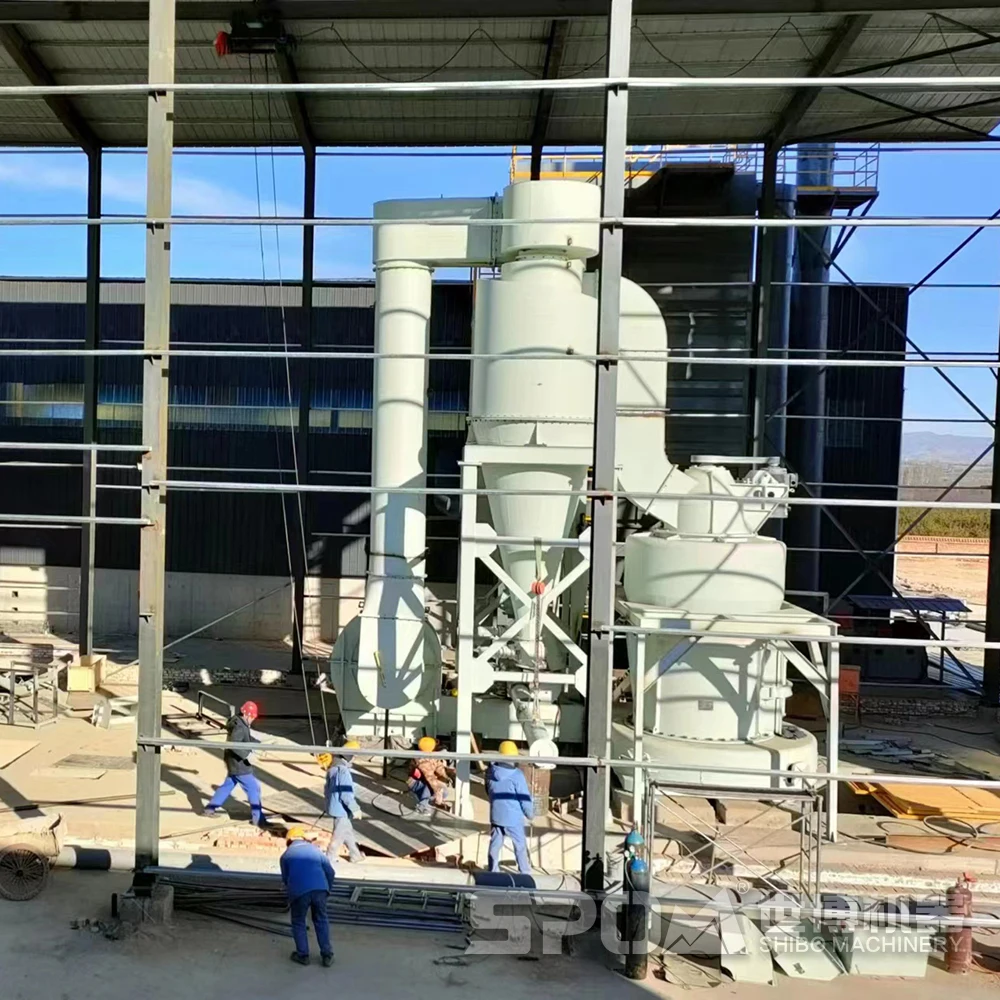

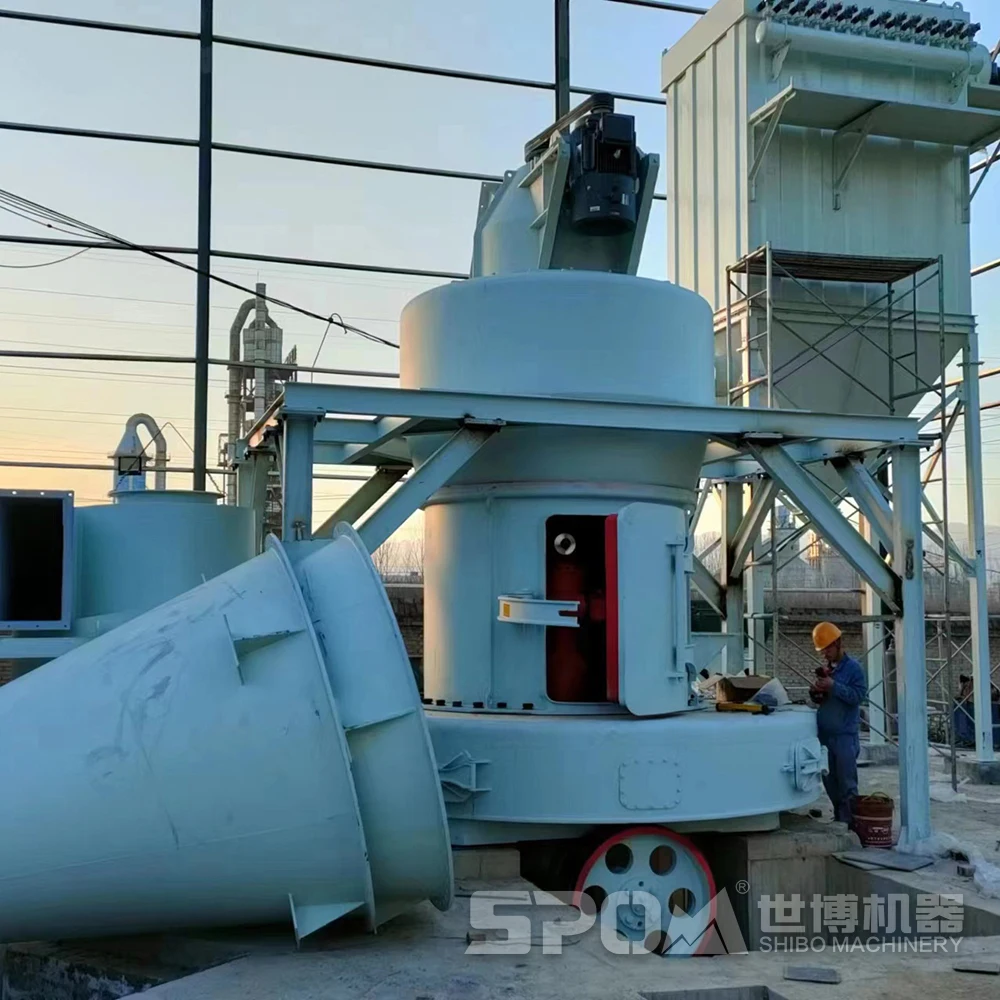

Working site
Application
European series grinding mill is mainly applied to the material processing of metallurgy,
building materials, chemical industry, mining and other industries. It can grind limestone, calcite, marble, talcum, dolomite, bauxite, barite, petroleum coke, quartz, phosphate rock, gypsum, graphite and other non-inflamma-ble and non-explosive mineral materials with Moh's hardness below 9 and humidity lower than 6%.
building materials, chemical industry, mining and other industries. It can grind limestone, calcite, marble, talcum, dolomite, bauxite, barite, petroleum coke, quartz, phosphate rock, gypsum, graphite and other non-inflamma-ble and non-explosive mineral materials with Moh's hardness below 9 and humidity lower than 6%.

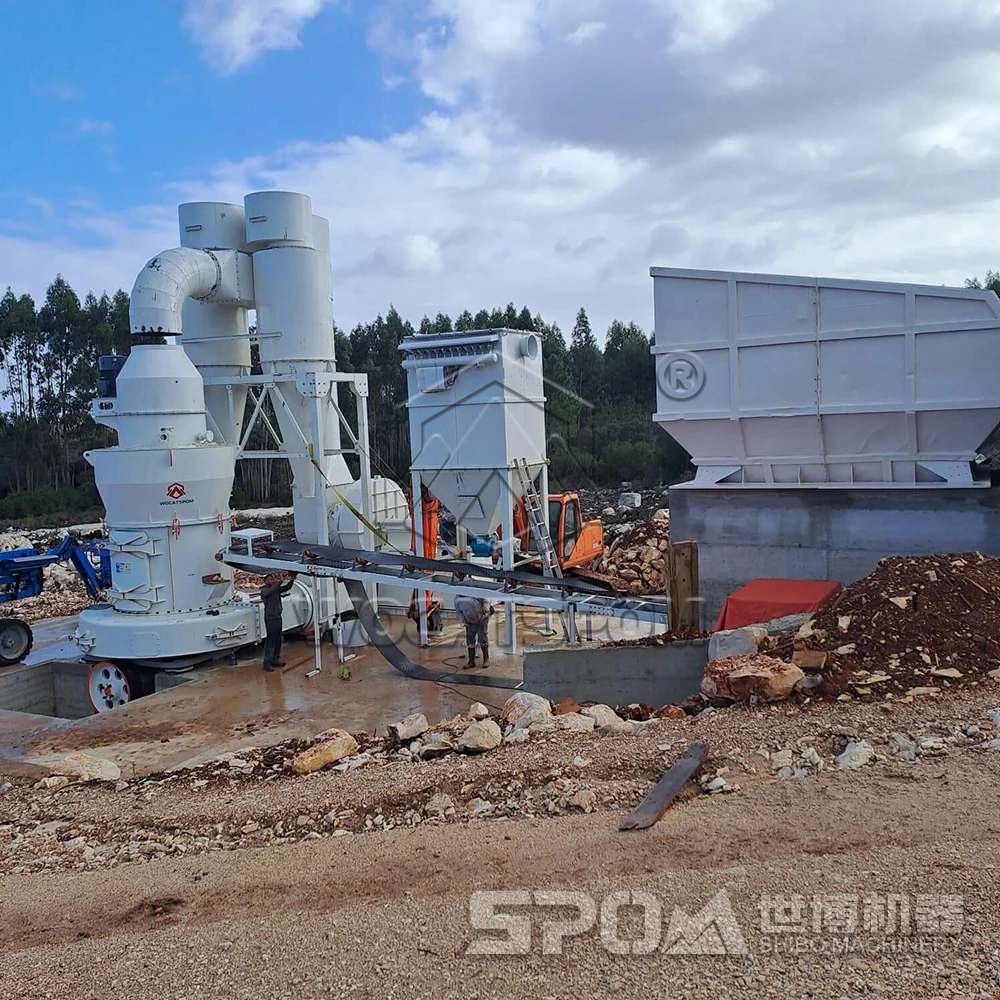

Small Model Raymond Mill Delivered to UK
Project information:
Material: Dolomite
Max feeding size: 430mm
Output size: 325mesh
Capacity: 10 ton per hour
This is a complete stone crushing and grinding production line .
Main equipment: vibrating feeder, jaw crusher, cone crusher, vibrating screen, raymond mill, belt coneyor etc.
Main equipment: vibrating feeder, jaw crusher, cone crusher, vibrating screen, raymond mill, belt coneyor etc.
Packing and delivery
The machine is nude packing , motor and other accessories are packing in wooden box
Company Profile
As a leading global manufacturer of crushing, grinding and mining equipments, Henan Shibo Mechinical Engineering Co. Ltd. (SPOM) offers advanced, reasonable solutions for any size-reduction requirements including quarry, aggregate, and different kinds of minerals. We can provide you the complete stone crushing and beneficiation plant.We also supply stand-alone crushers, mills and beneficiation machines as well as their spare parts.
Customer Photos
After more than 30 years development, now we have more than 100 world markets and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
FAQ
Q: what is the payment terms ?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the impact crusher?
A: Most model are in stock, can delivery within 10 days.
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of stone do you want to grinding ? such as limestone ? gypsum ? or ?
2. what's the size of your stone before grinding ? how many inch or mm ?
3. what's your requirements of final powder size ? how many mesh ?
4. what's your requirements of production capacity ? how many ton per hour ?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the impact crusher?
A: Most model are in stock, can delivery within 10 days.
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of stone do you want to grinding ? such as limestone ? gypsum ? or ?
2. what's the size of your stone before grinding ? how many inch or mm ?
3. what's your requirements of final powder size ? how many mesh ?
4. what's your requirements of production capacity ? how many ton per hour ?
