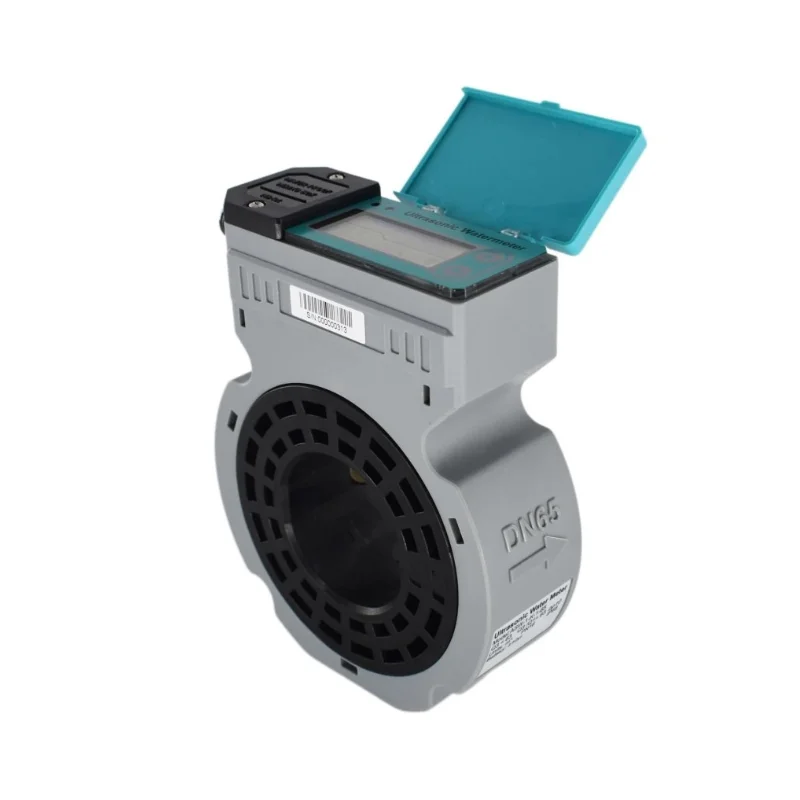

Taijia ultrasonic battery powered water meter water flow meter smart wifi cheap water meter
- Category: >>>
- Supplier: Dalian Taijia Technology Co. Ltd.
Share on (1601280148446):
Product Overview
Description
Product Description

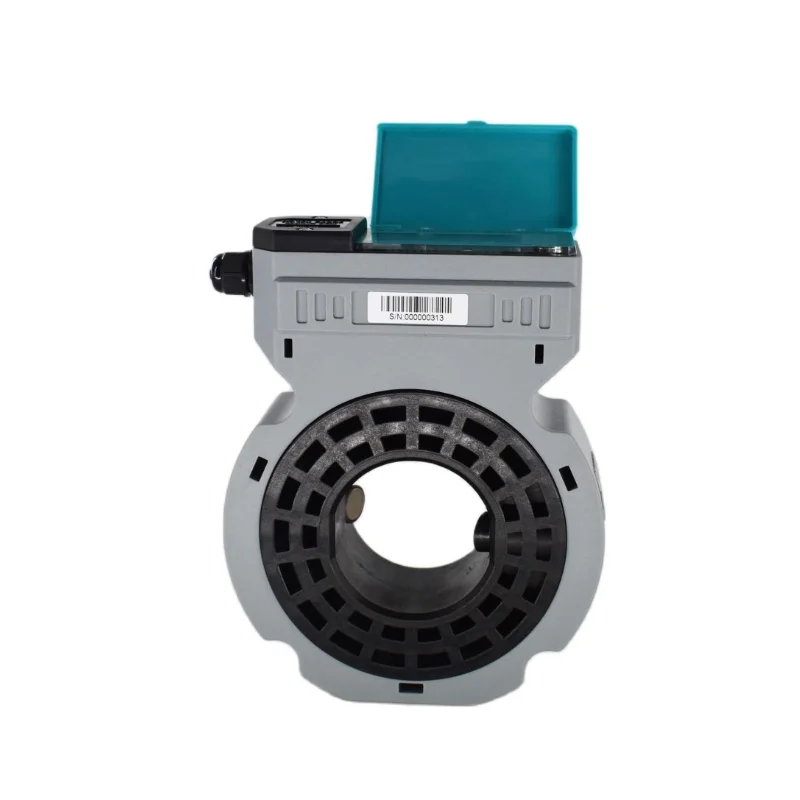

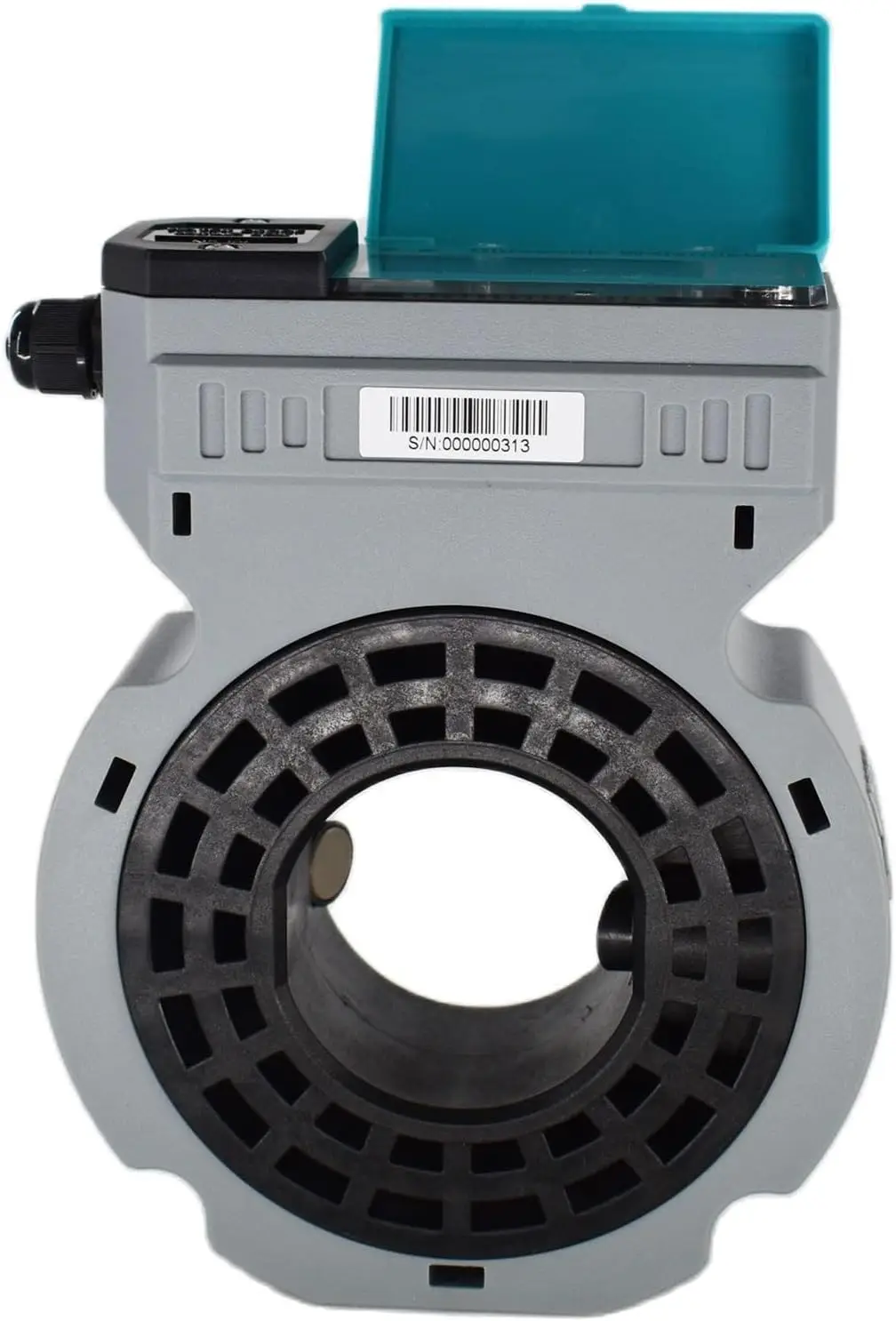

TEM-1-K Sandwich-type Water Meter
Quick Installation and Operation InstructionsWelcome to use 7(0-1-K Sandwich-type Ultrasonic Water Meter. The 7(0-1-K Sandwich-type ultrasonic water meter is a newly developed product with low cost, high measurement accuracy, small power consumption, stable and reliable characteristics, which is according to ISO4064-1:2014, GB/T778-2018 and the other standards, based on ultrasonic time-deference measurement technology.
Specification
1.1Flow Parameter
Nominal diameter (MM) | Measurement range ratio R | Flow rate（m³/h） | ||||||||
Starting Flowrate | Minimum Flowrate Q1 | Transitional Flowrate Q2 | Permanent Flowrate Q3 | Overload Flow rate Q4 | ||||||
DN50 | 63 | 0.159 | 0.635 | 1.016 | 40.000 | 50.000 | ||||
DN65 | 63 | 0.250 | 1.000 | 1.600 | 63.000 | 78.750 | ||||
DN80 | 63 | 0.397 | 1.587 | 2.540 | 100.000 | 125.000 | ||||
DN100 | 63 | 0.635 | 2.540 | 4.063 | 160.000 | 200.000 | ||||
DN125 | 63 | 0.992 | 3.968 | 6.349 | 250.000 | 312.500 | ||||
DN150 | 63 | 1.587 | 6.349 | 10.159 | 400.000 | 500.000 | ||||

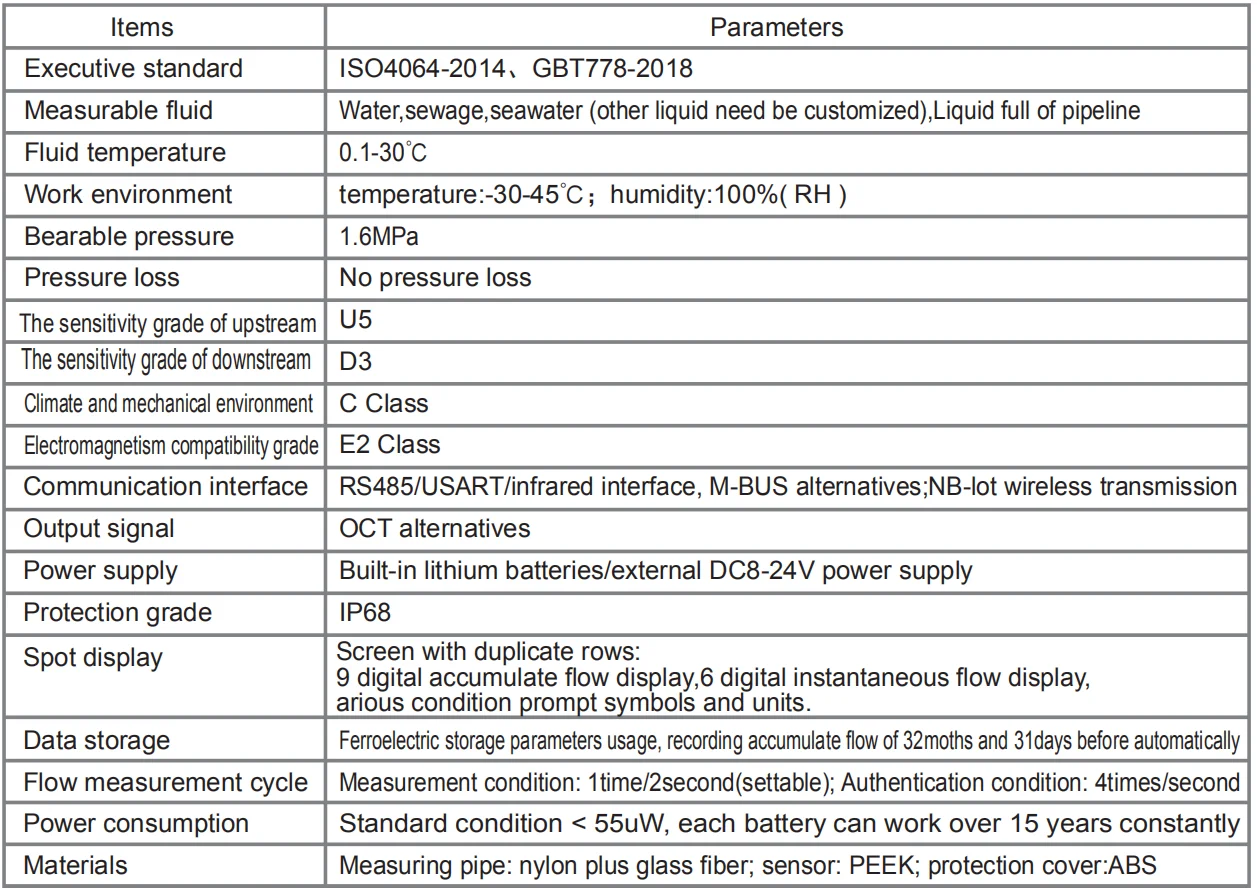

1.2 Technology Parameter

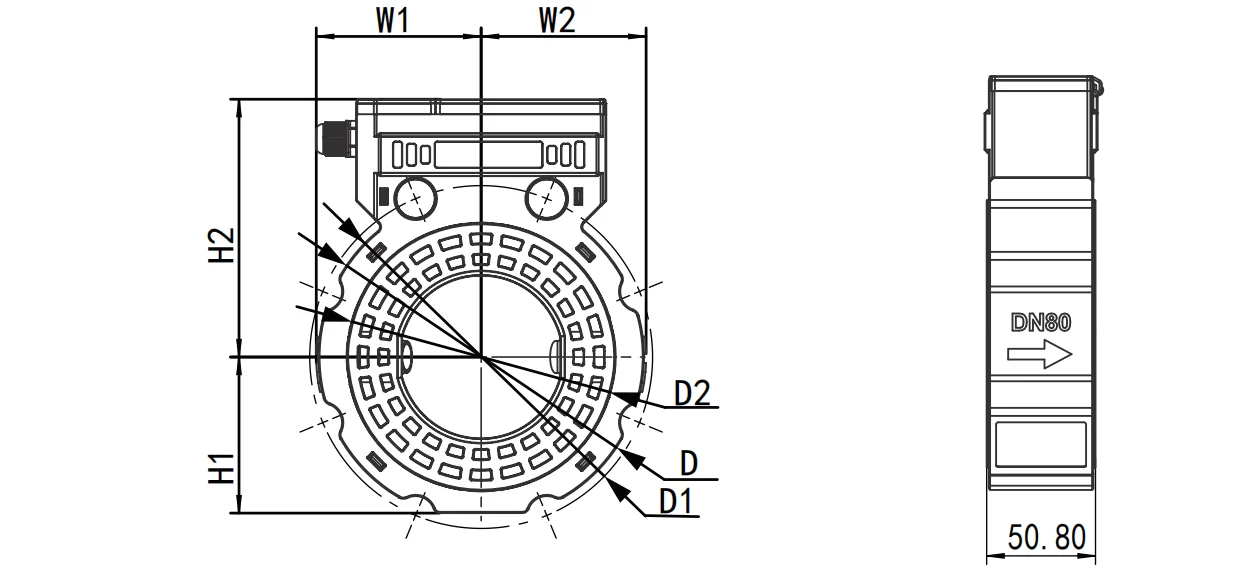

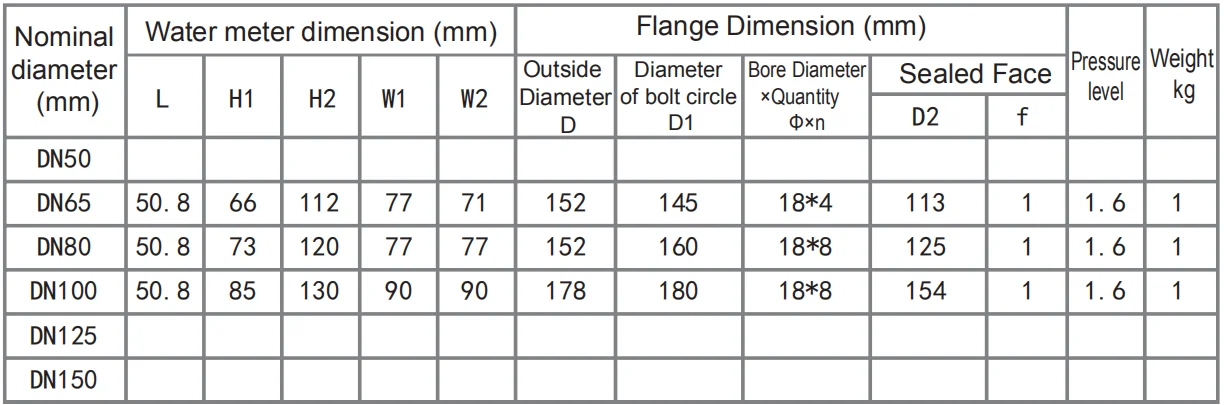

Water Meter Dimension

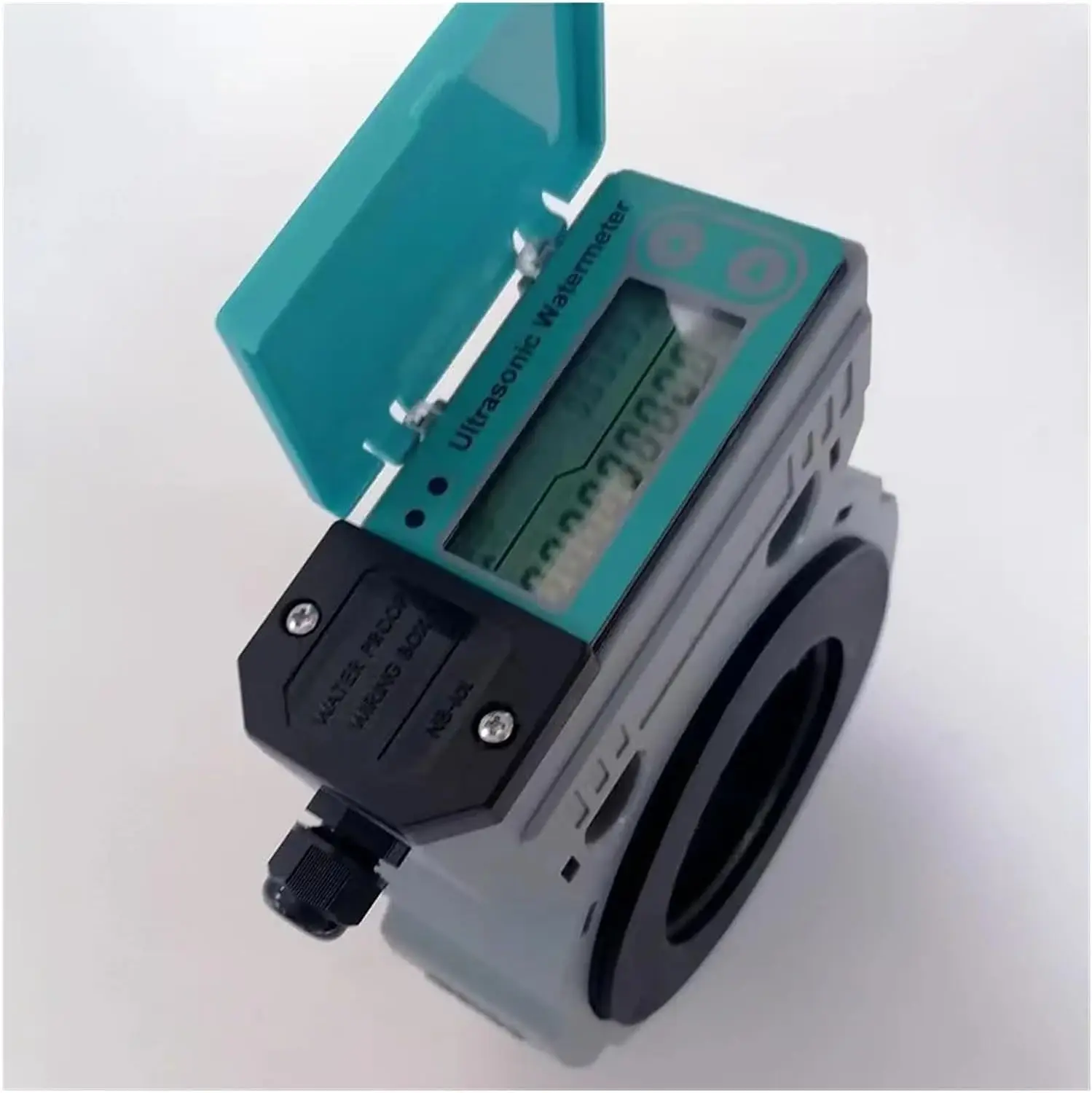

2.Parts Descriptions
The TEM-1-K ultrasonic water meter has wired type as the standard configuration, wireless type need to be customized.
3.Installation Instructions

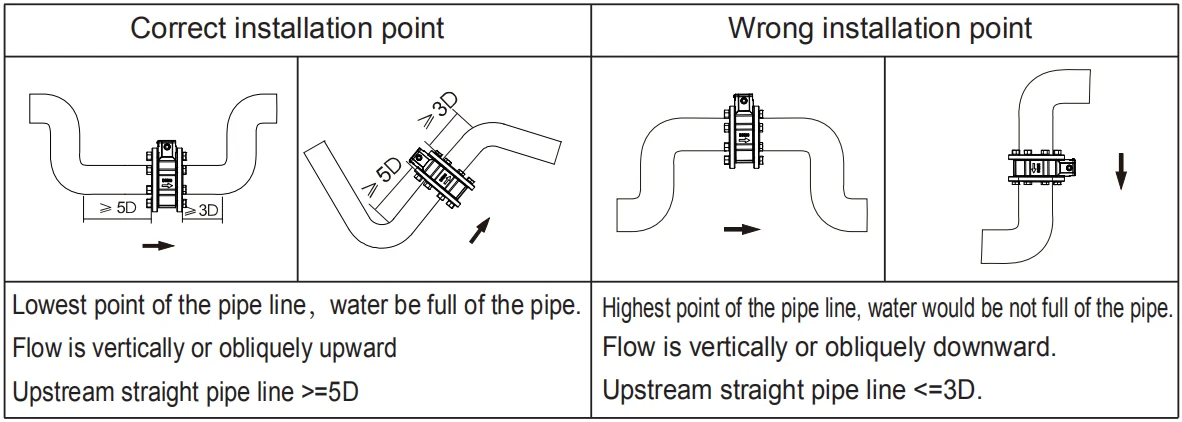

3.1 Choosing install position
When install the water meter,the upstream straight pipe line shgould be ≥5D, downstream straight pipe line should be ≥3D, 20D from the pump(D is the pipe diameter), and ensure water must be full of the pipe lines.

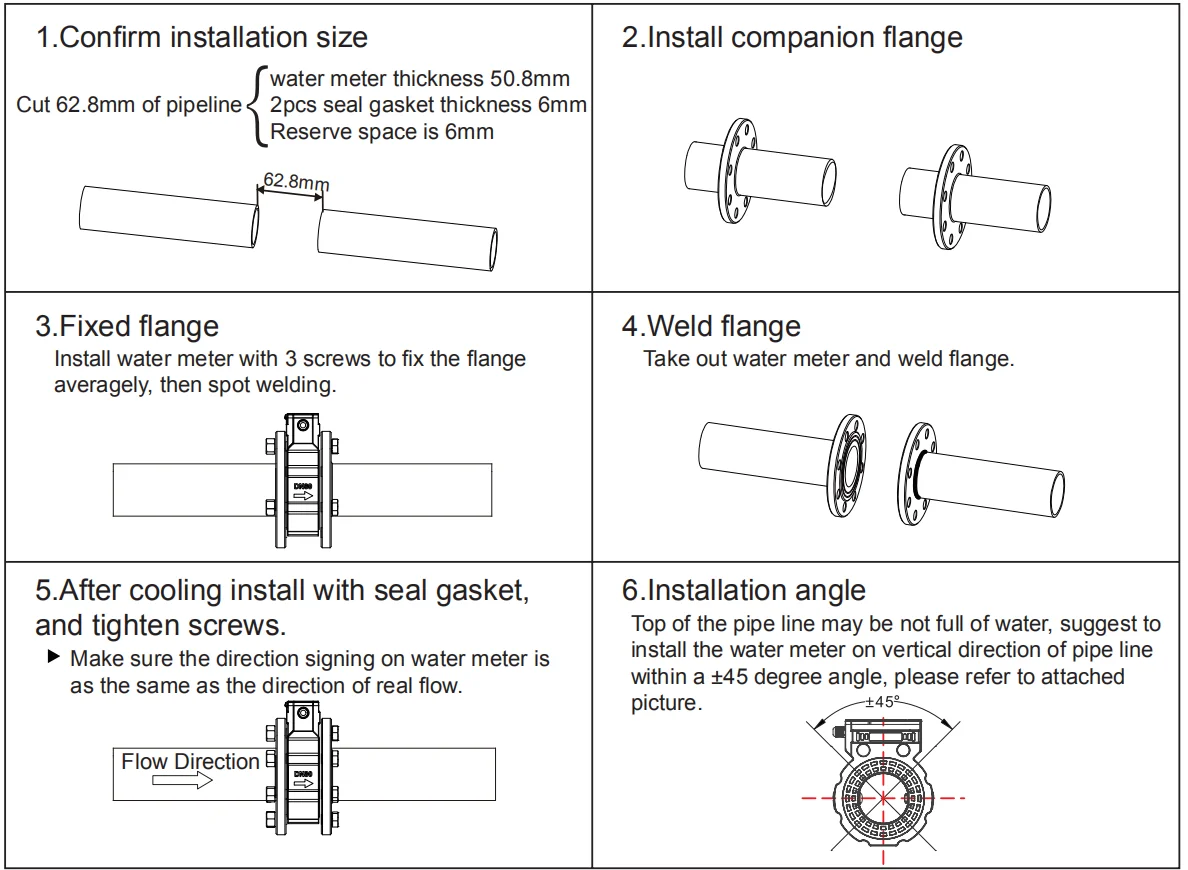

3.2 Installation Method
4 Calibration Method
The water meter is calibrated via constant-current method. &RQVWDQWFXUUHQWPHWKRGLVWRPDNHWKHFDOLEUDWLRQGHYLFH
VWDQGDUGZDWHUPHWHU DQGWHVWHG water meter into stable flow state at a set flow point, calibrate the water meter by measuring accumulative flow at the same time. Different calibration methods may cause errors. If use start-stop method to calibrate the water meter, it may cause errors. Try to extend calibrating time when you use start-stop method to calibrate water meter, and make sure the duration of each turn on time should be more than 60 seconds at least. The less time you calibrate, then bigger error you will get.
VWDQGDUGZDWHUPHWHU DQGWHVWHG water meter into stable flow state at a set flow point, calibrate the water meter by measuring accumulative flow at the same time. Different calibration methods may cause errors. If use start-stop method to calibrate the water meter, it may cause errors. Try to extend calibrating time when you use start-stop method to calibrate water meter, and make sure the duration of each turn on time should be more than 60 seconds at least. The less time you calibrate, then bigger error you will get.
Features
1.Protection Level IP68
Whole machine waterproof:whole machine sealed completely,reach IP68 protection level.
Parts waterproof: each part reach to IP68 separately,esnsure long term work even if the meter get into water.
2.Built-in Volume Controller,Built -in Time Accumulato
Automatically start the controller at the set time,achieve to supply water automatically,regularly and quantitatively.
Time-sharing flow accumulation within the set period of time,to achieve gradient rate.
3.Untrasound Measurement No rotation, No moving Parts
Ensure Long-term high measuring accuracy
Apply to varieties of water quality,including the water contain gravel and weeds.
Whole machine waterproof:whole machine sealed completely,reach IP68 protection level.
Parts waterproof: each part reach to IP68 separately,esnsure long term work even if the meter get into water.
2.Built-in Volume Controller,Built -in Time Accumulato
Automatically start the controller at the set time,achieve to supply water automatically,regularly and quantitatively.
Time-sharing flow accumulation within the set period of time,to achieve gradient rate.
3.Untrasound Measurement No rotation, No moving Parts
Ensure Long-term high measuring accuracy
Apply to varieties of water quality,including the water contain gravel and weeds.
