semi auto 5 gallon barrel bottle blow molding machine/20L pet machine blowing
- Category: >>>
- Supplier: ZHEJIANG HANYU AUTOMATION TECHNOLOGY CO. LTD
Share on (1601280174764):
Product Overview
Description
Product Description

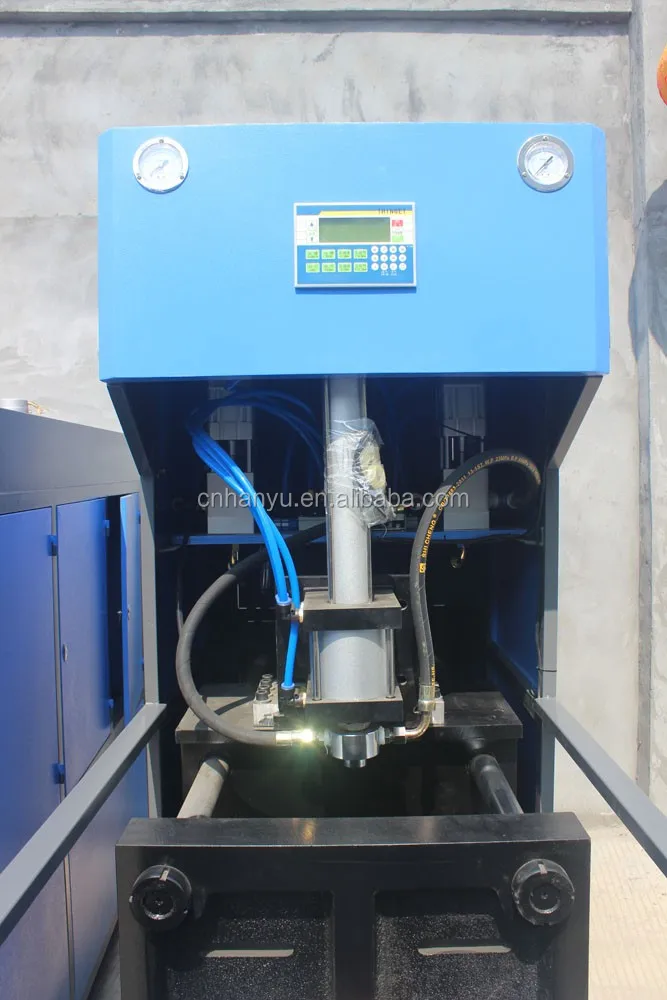

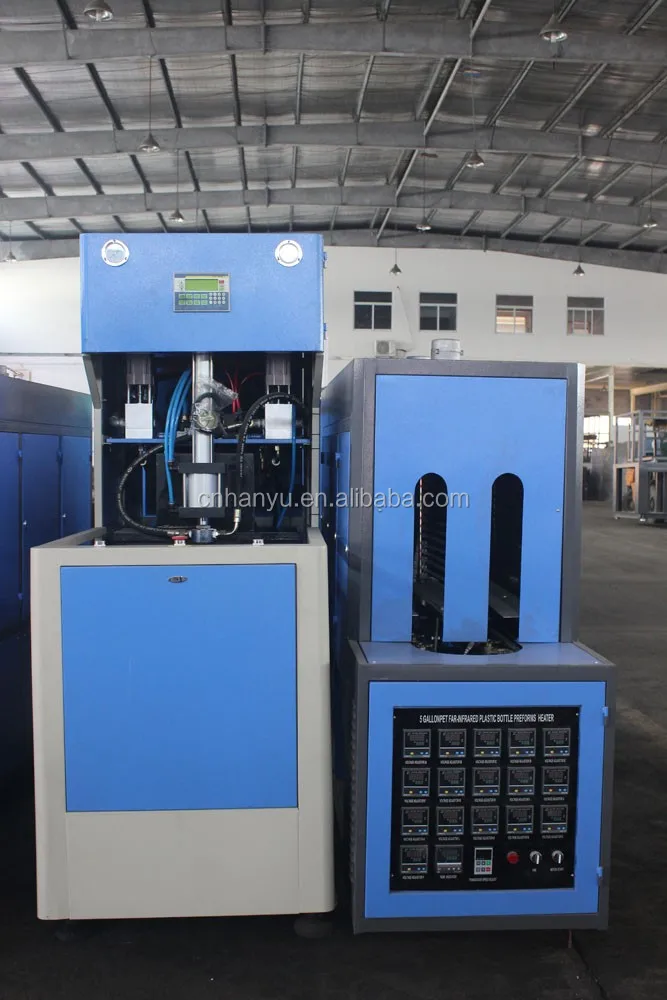

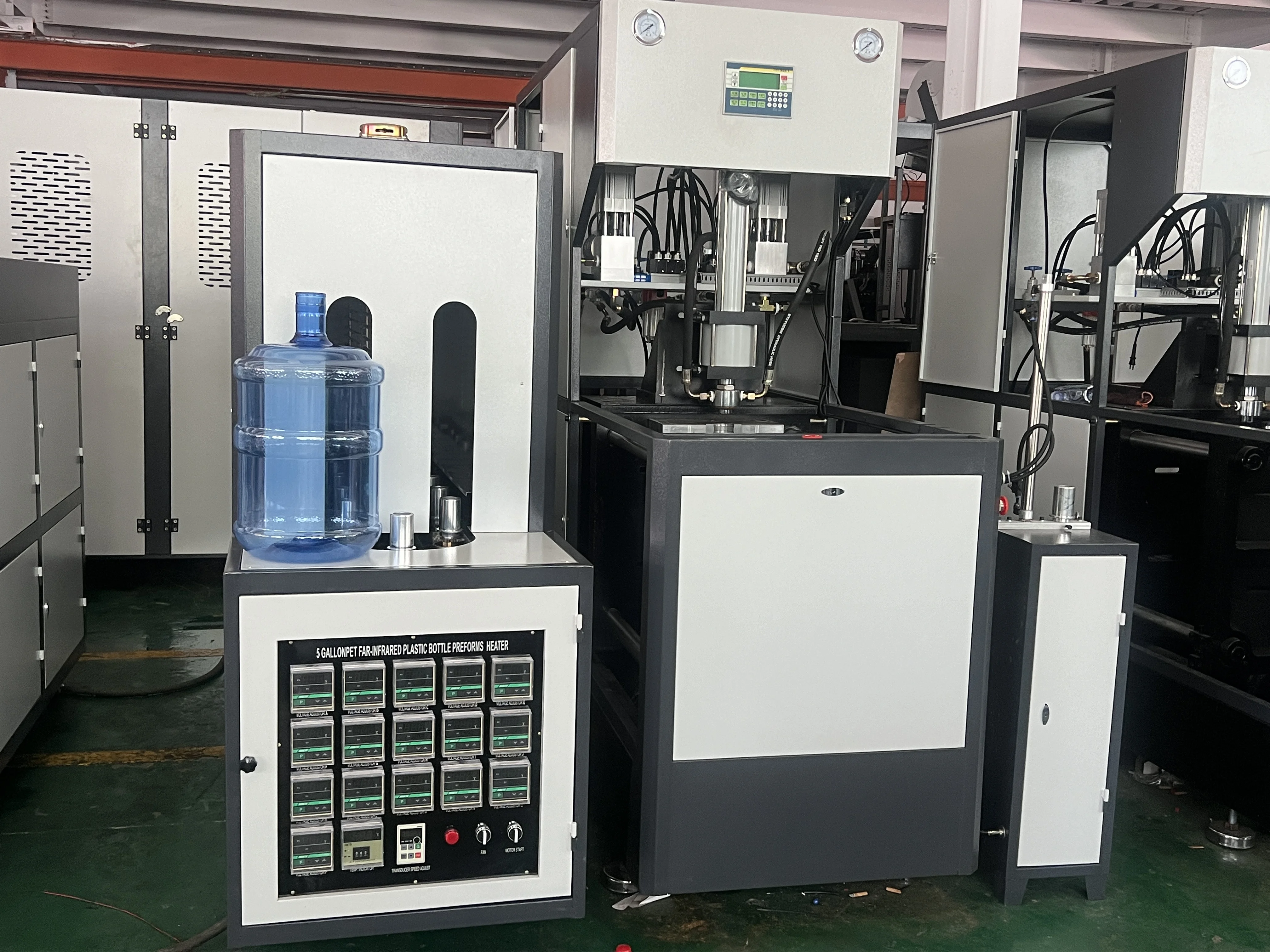

HY-Y Semiautomatic bottle blow molding machine( For 3-6gallon )
Specification:：
HY-Y blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .

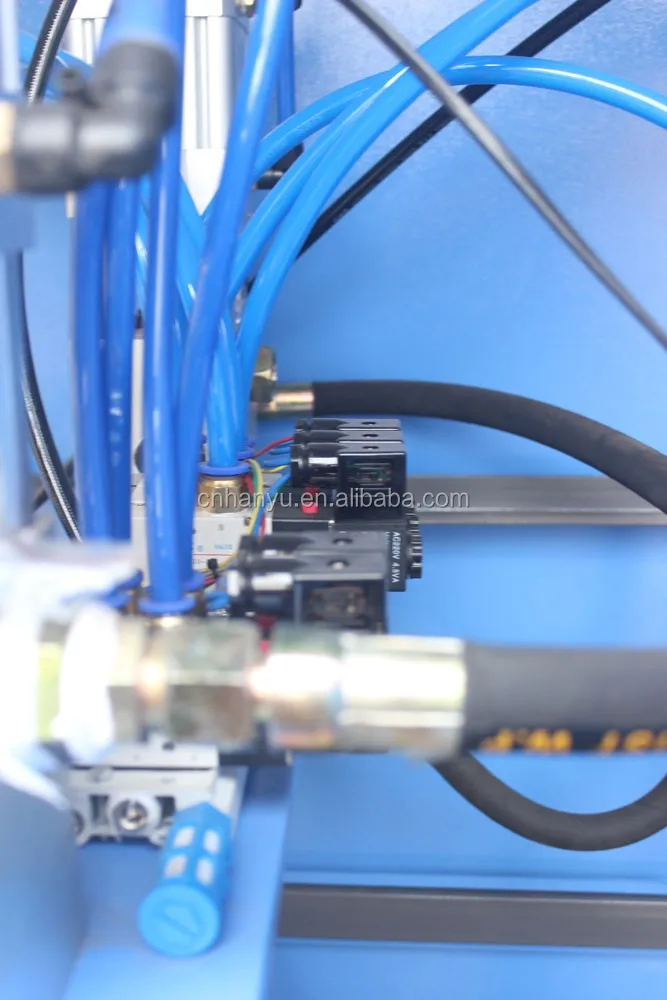

● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.
Name | Item | Unit | Details |
Blowing machine | Dimension | mm | 2300*750*2100 |
Bottle volume (max) | L | 22 | |
Bottle volume (min) | L | 5 | |
Bottle Neck Diameter (max) | mm | 90 | |
Bottle Neck Diameter (min) | mm | 38 | |
Body Diameter (max) | mm | 300 | |
Body Height( max) | mm | 550 | |
Number of Cavities | mold | 1 | |
Production output | pcs/h | 5GALLON:85-90PCS/HOUR | |
Clamping force | T | 20（200KN） | |
Mold thickness | mm | 450（max） | |
Mold width | mm | 430x530 | |
Space between Tie-bars | mm | 430*470 | |
Diameter of Tie-bars | mm | 63 | |
Scope of Tie-bars | mm | 405 | |
Mold stroke | mm | 170 | |
Stretching stroke (max) | mm | 420 | |
Working pressure | Mpa | 0.8-1.0Mpa | |
Blowing pressure | Mpa | 2.0-3.0Mpa | |
Voltage/Power | V/KW | 220V/1KW | |
Pre-heater | Dimension | mm | 2300*750*2100MM |
Weight | kg | 1600 | |
Voltage/Power | V/KW | 380V/28KW | |
Lamp | PCS | 32 | |
Working power | Kw | 15kw |
Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould
All moulds are designed by CAD/CAM.
333
Our services
We provide free bottle design services
We can draw the bottle design you want within 1-2 days
We can draw the bottle design you want within 1-2 days
We provide machine color customization services
You can choose your favorite color for customization
You can choose your favorite color for customization
FAQ
Q1: Where is your factory located? How can I visit there?
Yes warmly welcome to visit us ，we are in Taizhou City, Zhejiang Province, China.
Q2: How long is the warranty ?
A2: All of products have one years warranty.
Q3: How can I install my machine when it arrives?
A3: We will provide detailed installation videos for semi-automatic machine and provide 24-hour online support.
and if you need we will send our engineer to your side as soon as you get all your machines to testing and teaching your technicians how to run the machines.
Q4: How long is the delivery time?
Q4: How long is the delivery time?
A4: Under normal conditions, products are delivered within 45 working days for fully-auto machine，15days for semi-automatic machine
Q5: Where is the Shipping departure port?
Q5: Where is the Shipping departure port?
A5: Ningbo or shanghai port.
Q6: What’s the payment
Q6: What’s the payment
A6: T/T, L/C,Western Union, paypal.
Q7. What products does your company offer by yourself?
Q7. What products does your company offer by yourself?
A7: We are specialized in PET Blow Molding Machine, PET Blow Mold, Injection Machine, PET Preform Mold,Cap mold.
Q8: How about the quality of machine?
Q8: How about the quality of machine?
A8: We have been producing bottle blowing machines since 1996 with extensive experience and
undergo repeated testing and inspection before shipment
Packing & Delivery
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Factory
Zhejiang Hanyu Automation Technology Co., Ltd is a professional manufacturer of blow molding machines, Our team have been involved in blow molding machine and mould industry since 1996 Machine manufacturing. integrating development and production together. Our main products include P E T full- automatic blow molding machine, semi-automatic blow molding machine, B O P P blow molding machine, hot-filling bottle blow molding machine, 5 gallon blow molding machine, preform mold, cap mold, bottle mold, plastic mold, injection machine and other related products. Hanyu Machinery has perfect manufacturing equipment and manufacturing system, with a high-quality, professional , persistent team.we can provide all technology to the customers from design to successful install.
