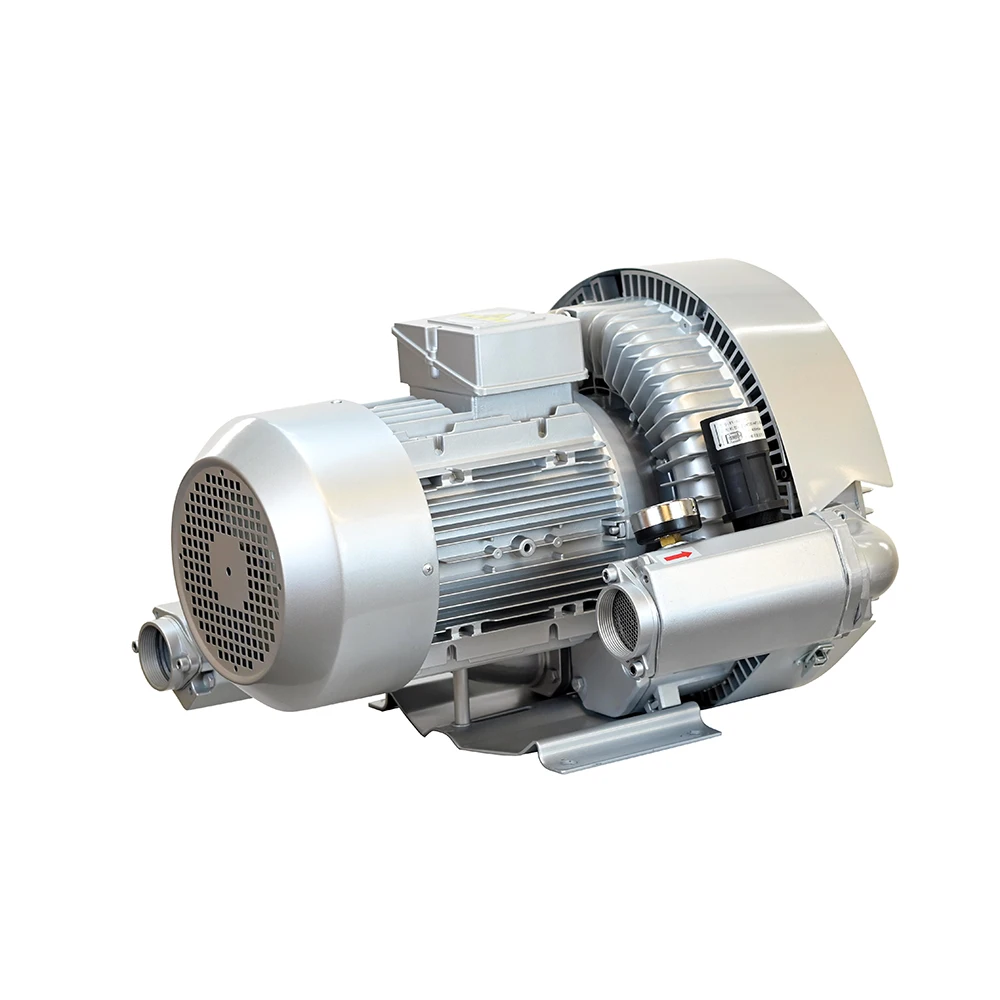

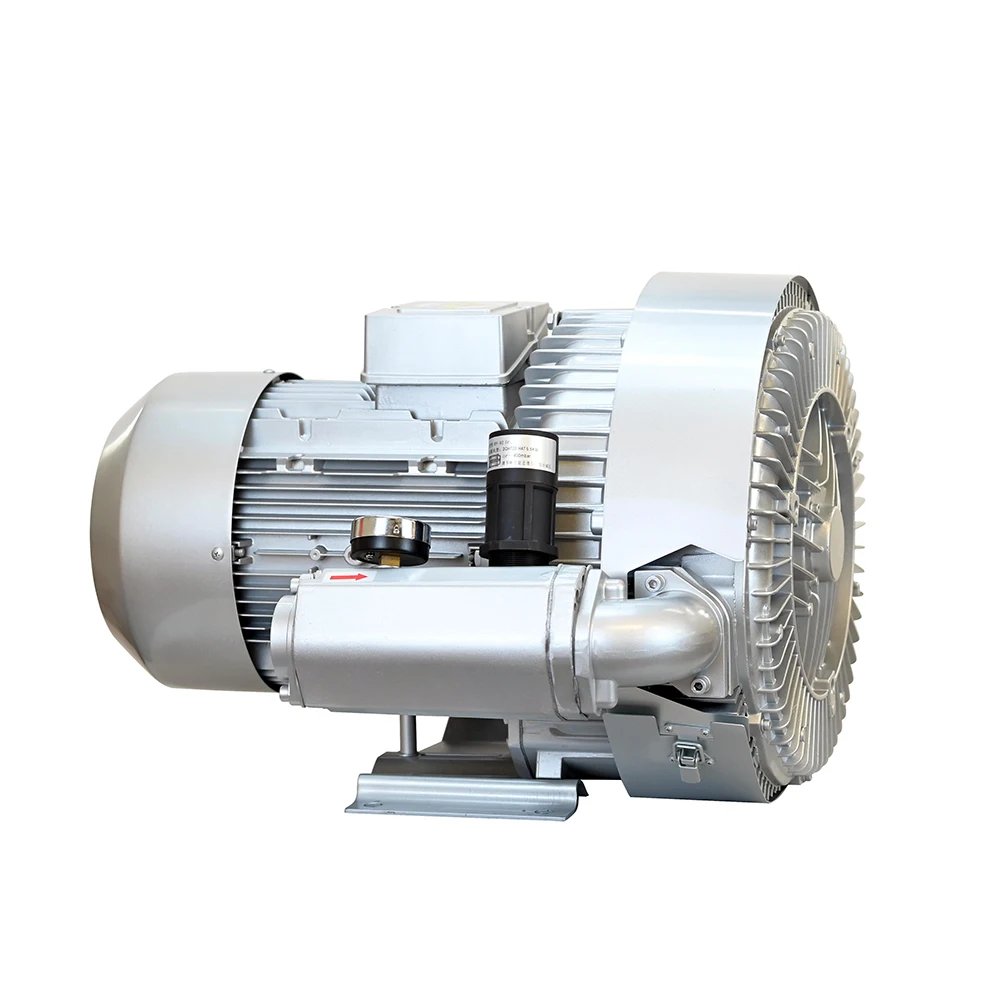

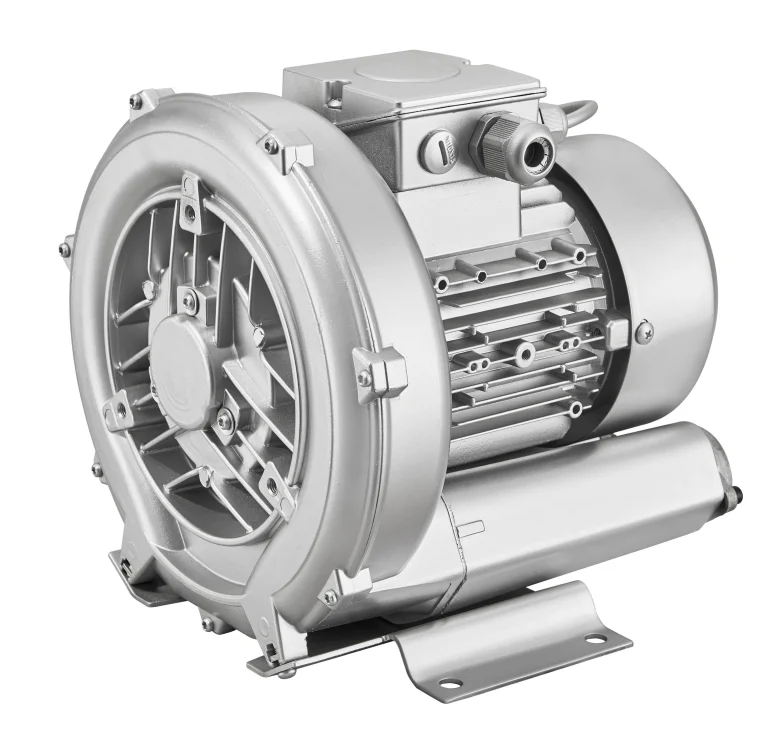

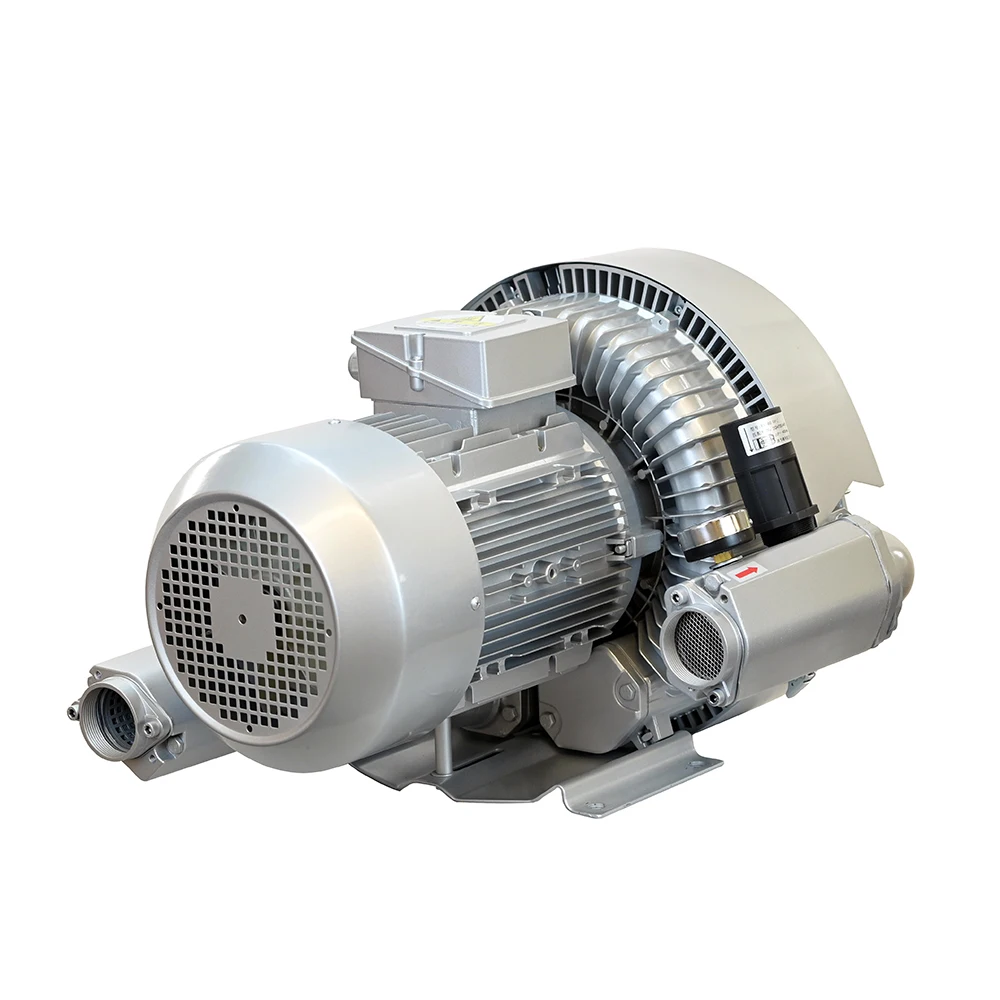

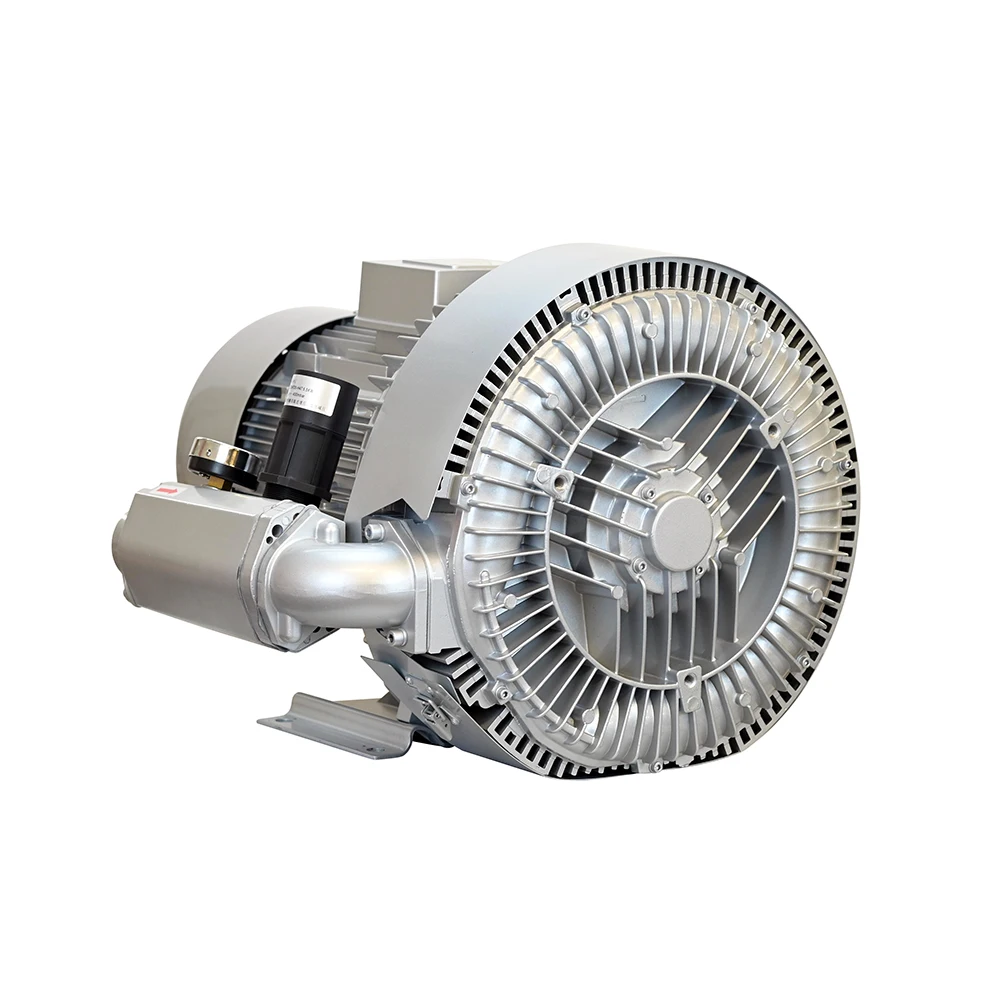

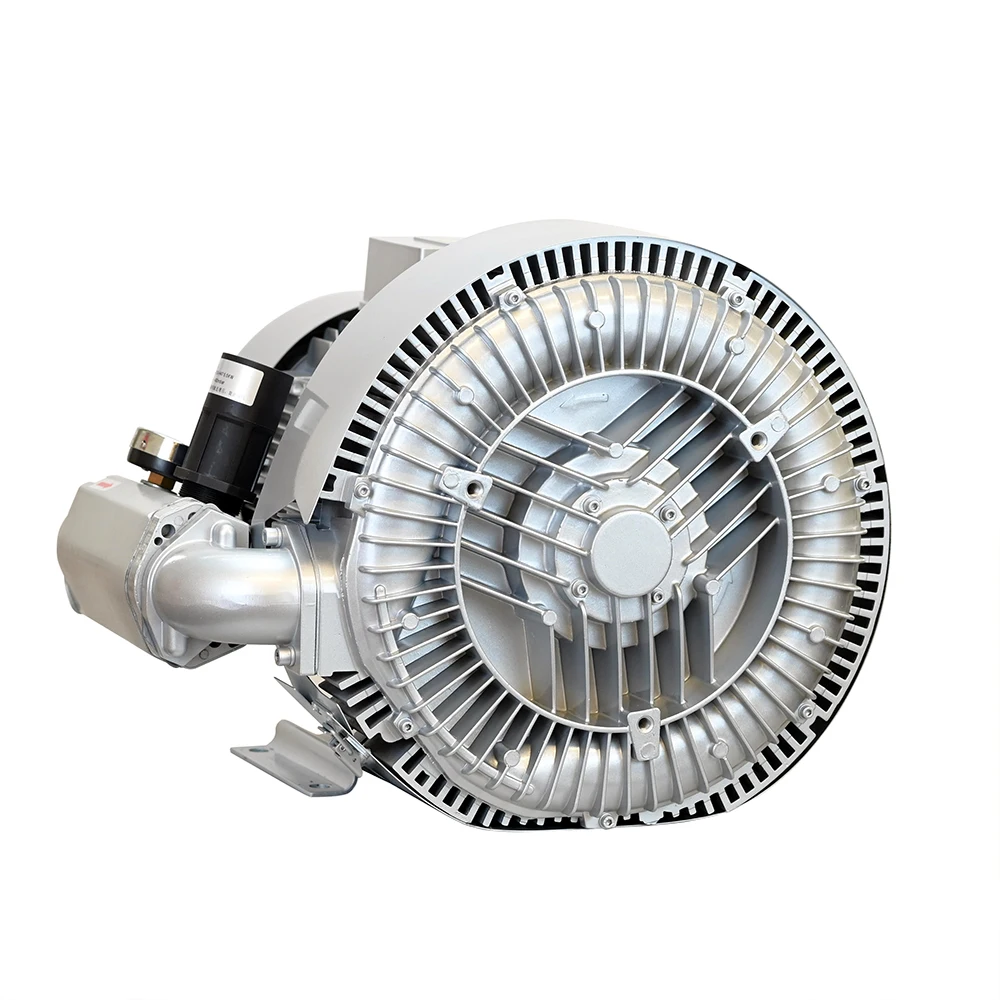

Double stage air vacuum pump JQT high pressure vacuum pump 10hp for wooden CNC machine
- Category: >>>
- Supplier: Jinan Golden Bridge Precision Machinery Co. Ltd.
Share on (1601280185341):
Product Overview
Description

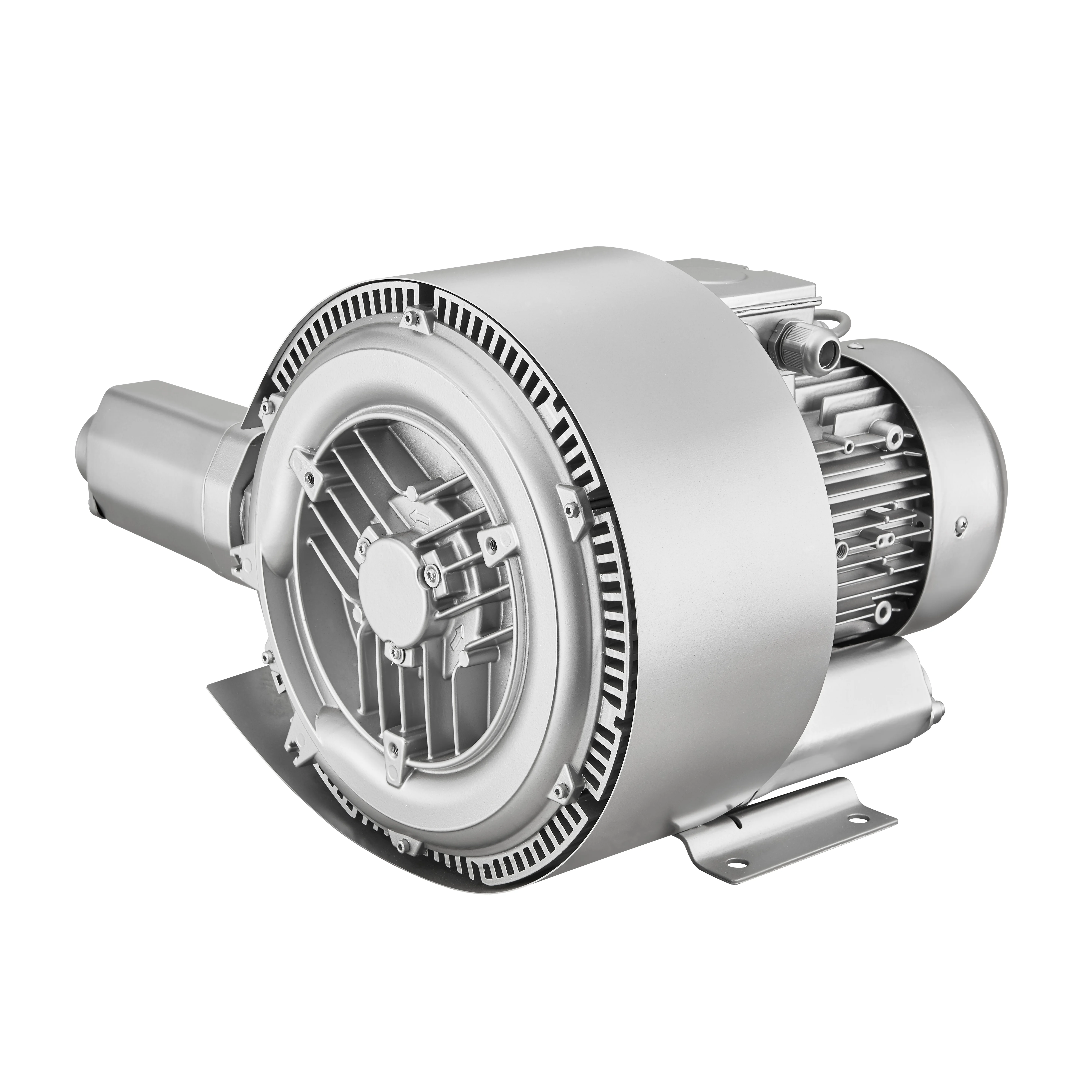

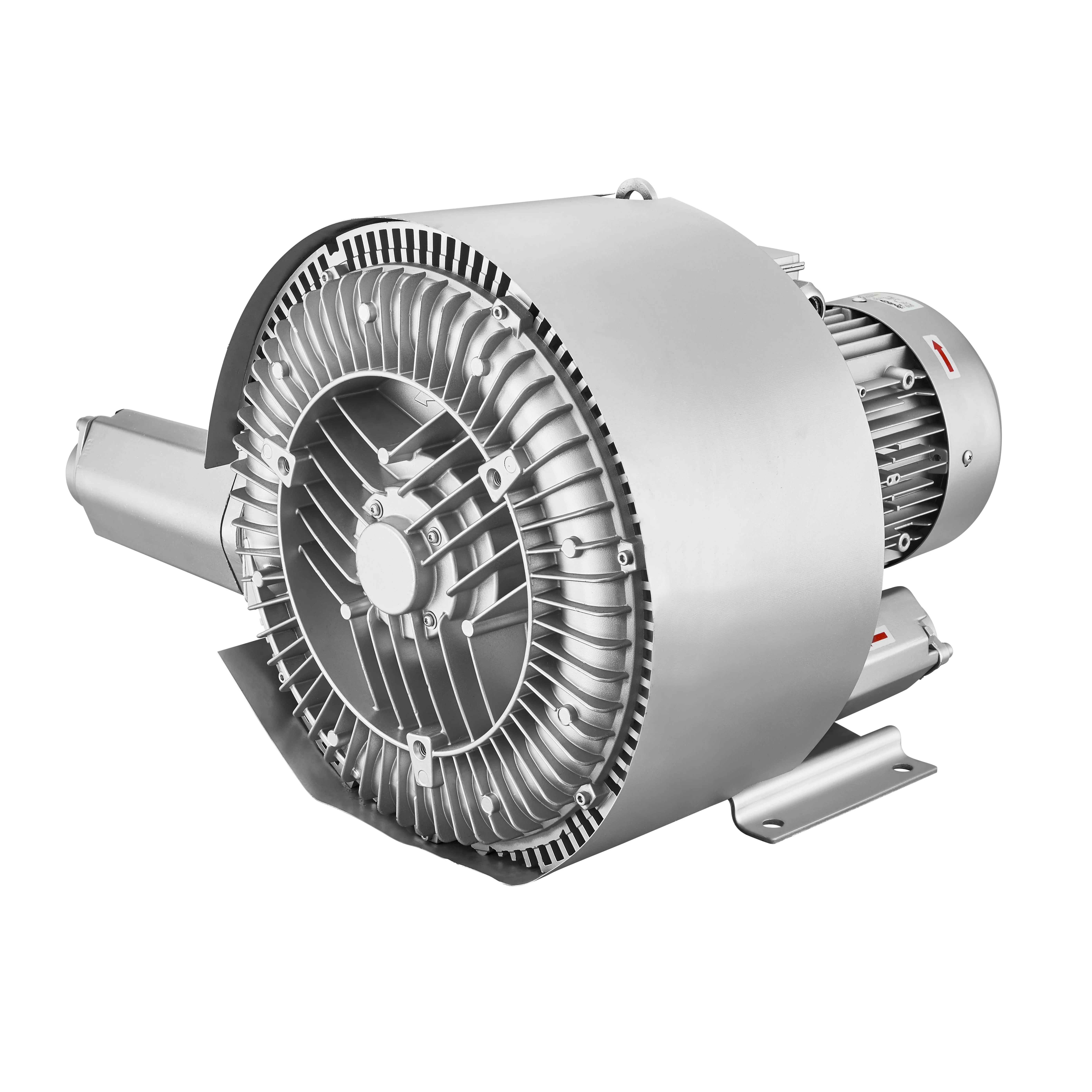

Double stage air vacuum pump JQT high pressure vacuum pump 10hp for wooden CNC machine
Company Profile
About Us
Since established in 1999, adhering to the enterprise culture of " Efficient, Pragmatic, Precise, Innovative", we have been committed to the development and innovation of national industry and devoted to creating the most qualified products in factory automation. So far, we have possessed advanced machining types of equipment such as imported machining centers, CNC lathes, NC milling machines, CNC cutting machines, etc. Our products, with an excellent reputation, have been not only used by many domestic famous enterprises, but also exported to Europe, America, Africa, the Middle East, and Asian countries, etc.
Certifications

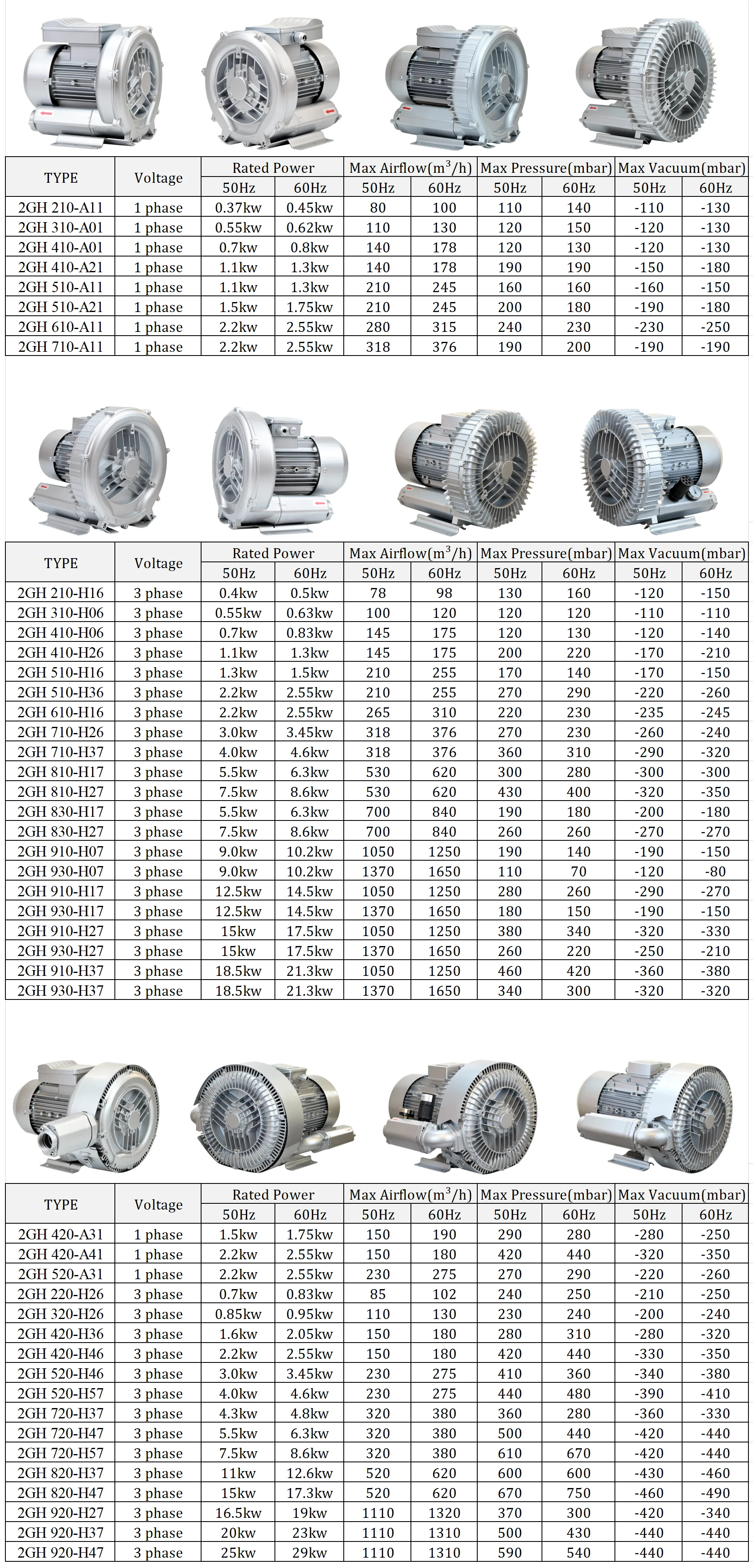

Products Description

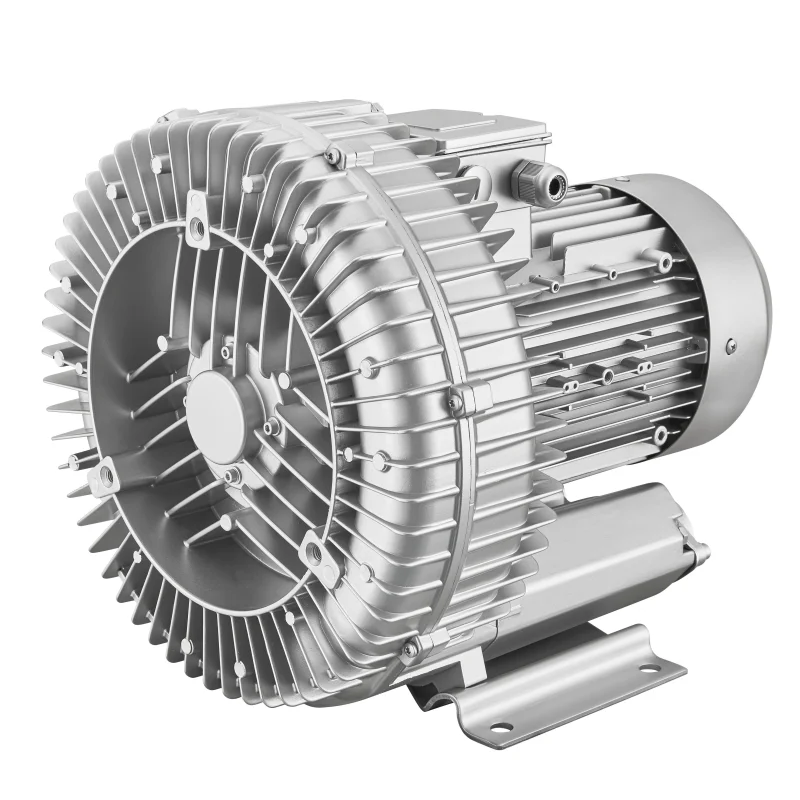

The impellers in the G_series machines are mounted directly on the motor shaft for noncontact compression entirely without friction. Maximum operational reliability,even at high differential pressures.is ensured by the arrangement of the bearings outside the compression chamber.

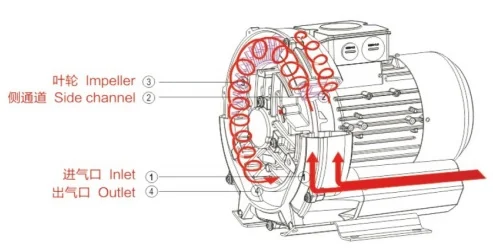

The gas it taken in through the inlet 1.As it enters the side channel 2,the rotating impeller 3 imparts velocity t o the gas in the direction of rotation. Centrifugal force in the imp eller blades accelerates the gas outward and the pressure increase.Every rotation adds kinetic energy.resulting in the further increase o f the pressure along the side cha nnel. The side channel narrow at the rotor,sweeping the gas off the impeller blades and discharging it through the outlet silencer 4 where it exits the side channel blower.
The gas it taken in through the inlet 1.As it enters the side channel 2,the rotating impeller 3 imparts velocity t o the gas in the direction of rotation. Centrifugal force in the imp eller blades accelerates the gas outward and the pressure increase.Every rotation adds kinetic energy.resulting in the further increase o f the pressure along the side cha nnel. The side channel narrow at the rotor,sweeping the gas off the impeller blades and discharging it through the outlet silencer 4 where it exits the side channel blower.
Operation
If the rated current of the motor is exceeded during operation, the voltage and frequency of the power supply should be checked and compared with data on the unit rating plate. Some blowers can’t be operated over the whole range of the performance curve. Overload of the motor may occur due to excessive system back-pressure. In applications where over-pressure conditions may occur, a relief valve must be installed. The ring blower must not be subjected to shock or vibration loads.
Maintenance
The ring blower has a non-contact operation and does not normally require maintenance. Wearing parts are subject to the recommended maintenance intervals and are a constituent part of the applicable warranty claims. The service life of bearing parts depends on the operating hours, load, and other Influences such as temperature and operating pressure.
Installation
A. Transportation
Check all parts from damage during transport.
B. Installation assembly

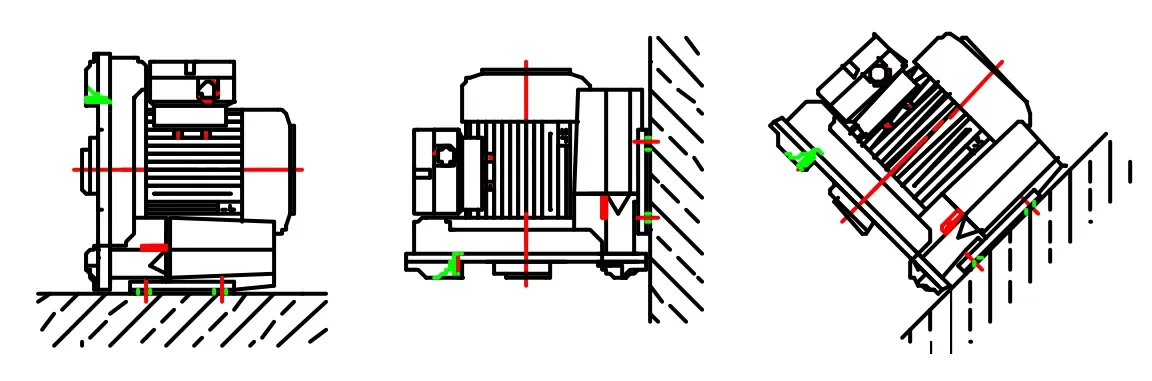

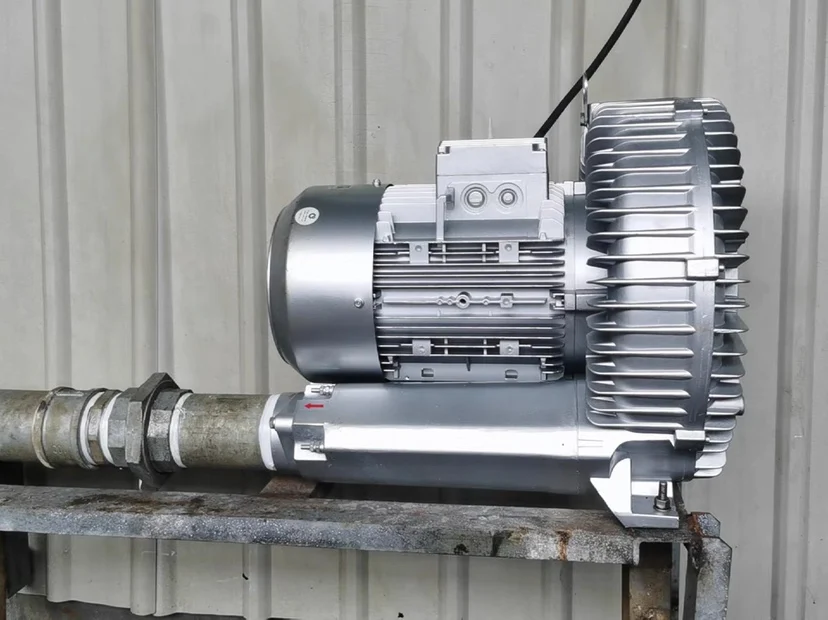

The blowers are to be installed weather protected and are not to be stored outdoors unprotected. When the blowers are installed outdoors they must be covered. Install ring blower horizontally or vertically. Do not subject blowers to vibrations or shocks. Blower with base should be secured tightly at the site of operation on solid, even ground. The Ring Compressors can be installed in any direction, but when mounted vertically, the motor side should be upward.
Check all parts from damage during transport.
B. Installation assembly
The blowers are to be installed weather protected and are not to be stored outdoors unprotected. When the blowers are installed outdoors they must be covered. Install ring blower horizontally or vertically. Do not subject blowers to vibrations or shocks. Blower with base should be secured tightly at the site of operation on solid, even ground. The Ring Compressors can be installed in any direction, but when mounted vertically, the motor side should be upward.
C. Electrical connection
Note! Work described here must be executed by a qualified electrician only. Connect the motor in accordance with the wiring diagram to be found in the terminal box. The blower has a single or three-phase motor as described on the motor plate. The motor should be protected with an overload switch.
D. Control of rotation direction
Startup the blower for a short moment, Check the rotation direction. The rotation direction on the impeller must be in accordance with the arrows on the motor. If incorrect rotation is experienced, then check the wiring circuit in the terminal box.
Note! Work described here must be executed by a qualified electrician only. Connect the motor in accordance with the wiring diagram to be found in the terminal box. The blower has a single or three-phase motor as described on the motor plate. The motor should be protected with an overload switch.
D. Control of rotation direction
Startup the blower for a short moment, Check the rotation direction. The rotation direction on the impeller must be in accordance with the arrows on the motor. If incorrect rotation is experienced, then check the wiring circuit in the terminal box.

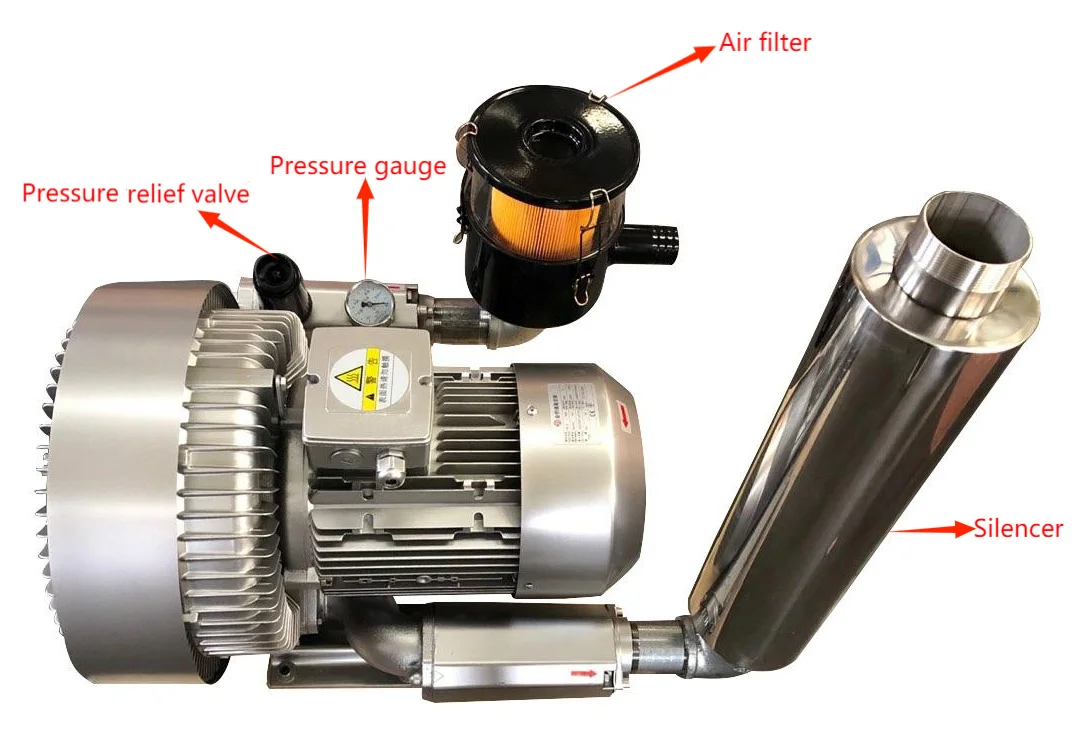

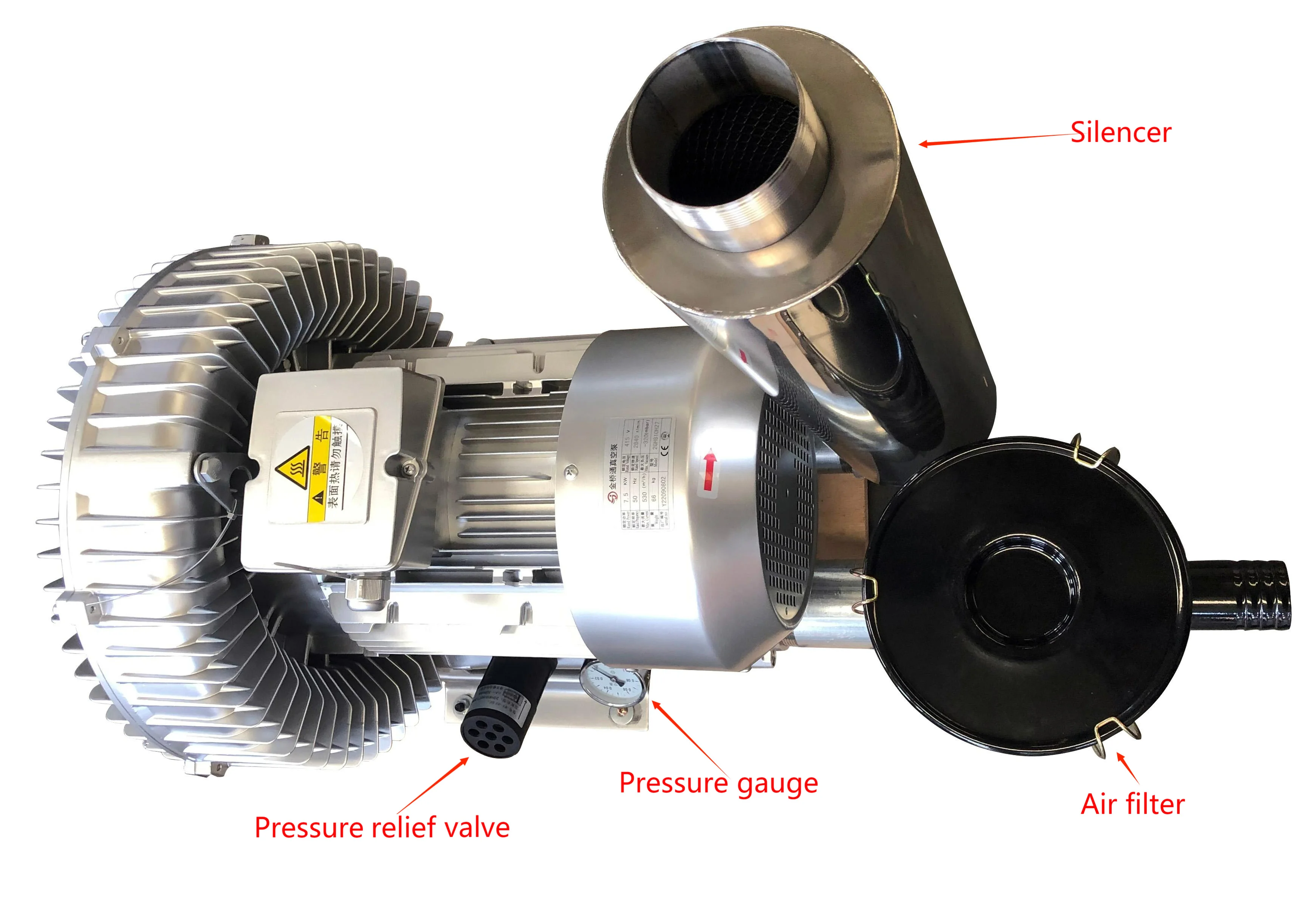

Accessories
Air filter
Filter the dust particles, apply to a bad environment

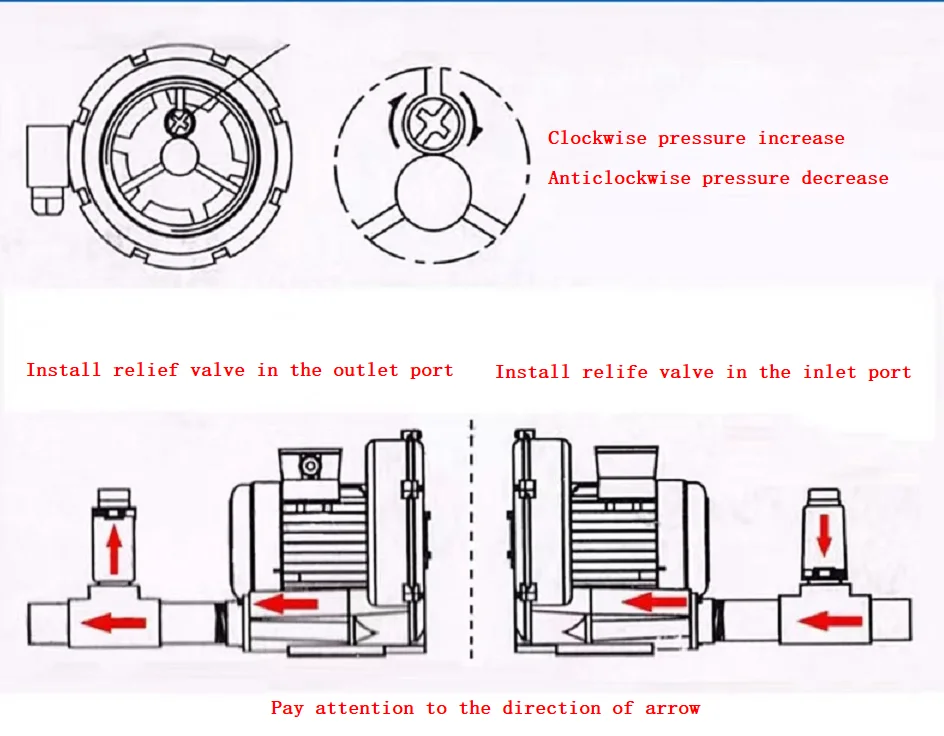

Pressure relief valve
Control gas pressure, prevent excessive pressure, damage the machine.
Silencer
Reduce blower noise 5-10db(A), apply to a quiet environment.

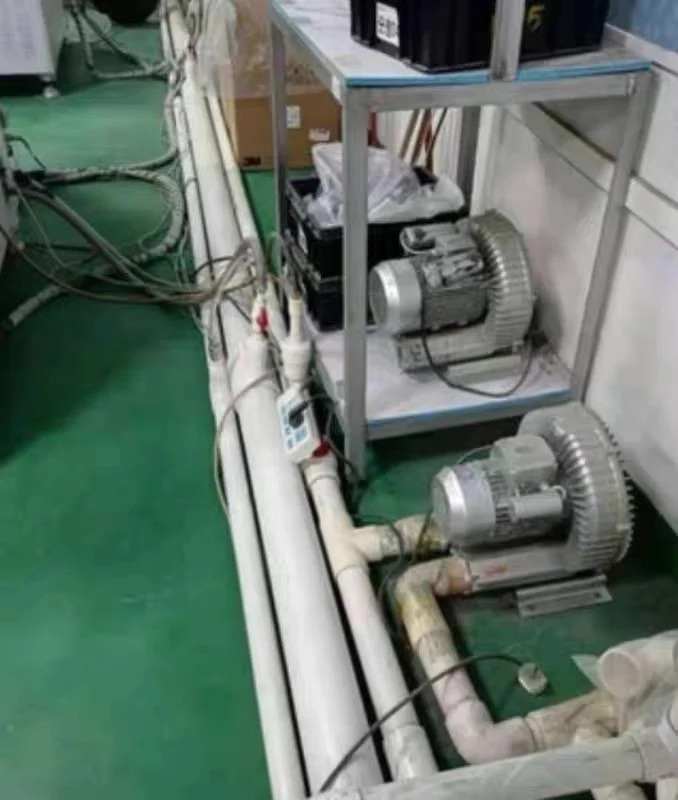

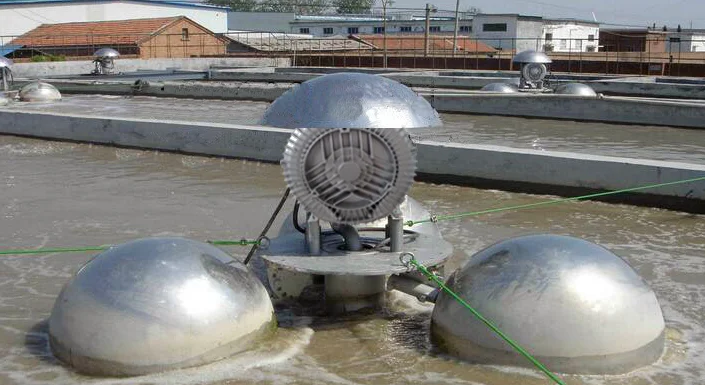

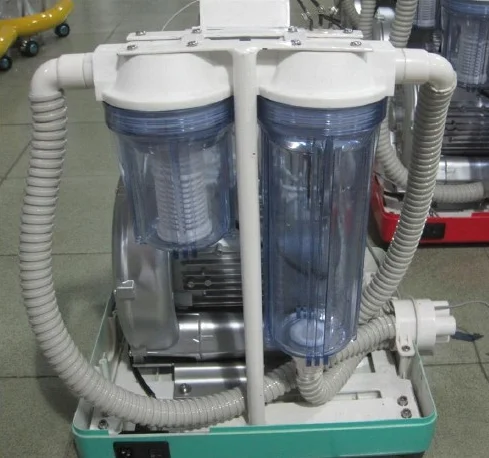

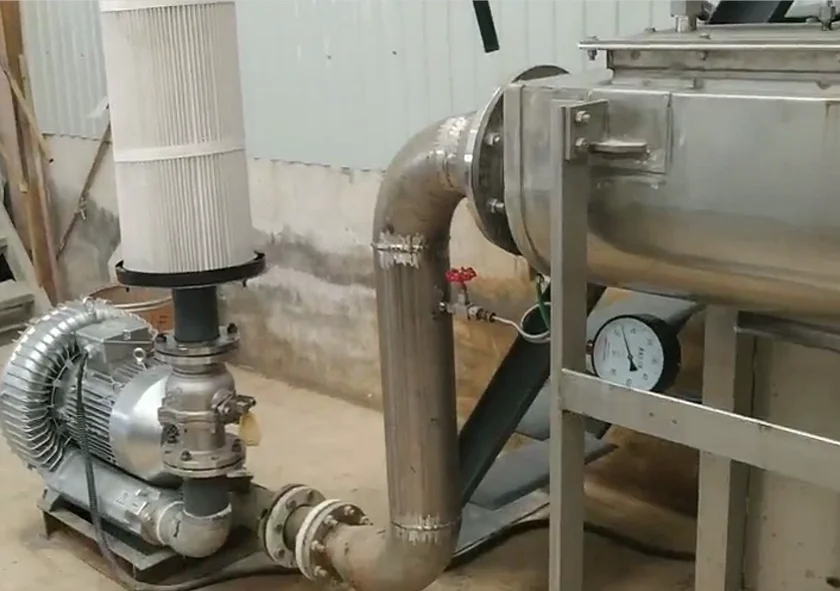

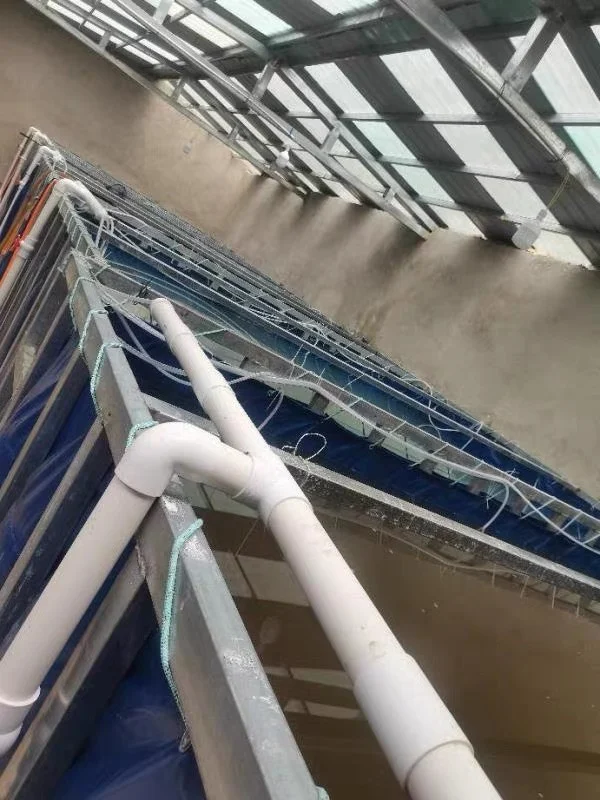

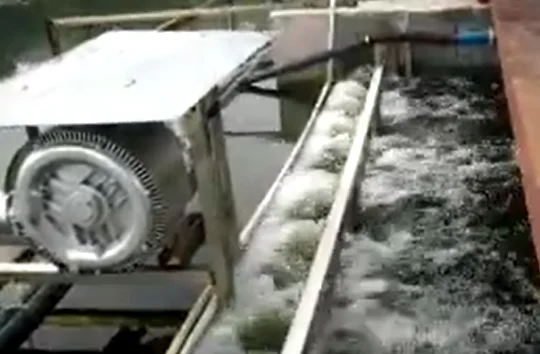

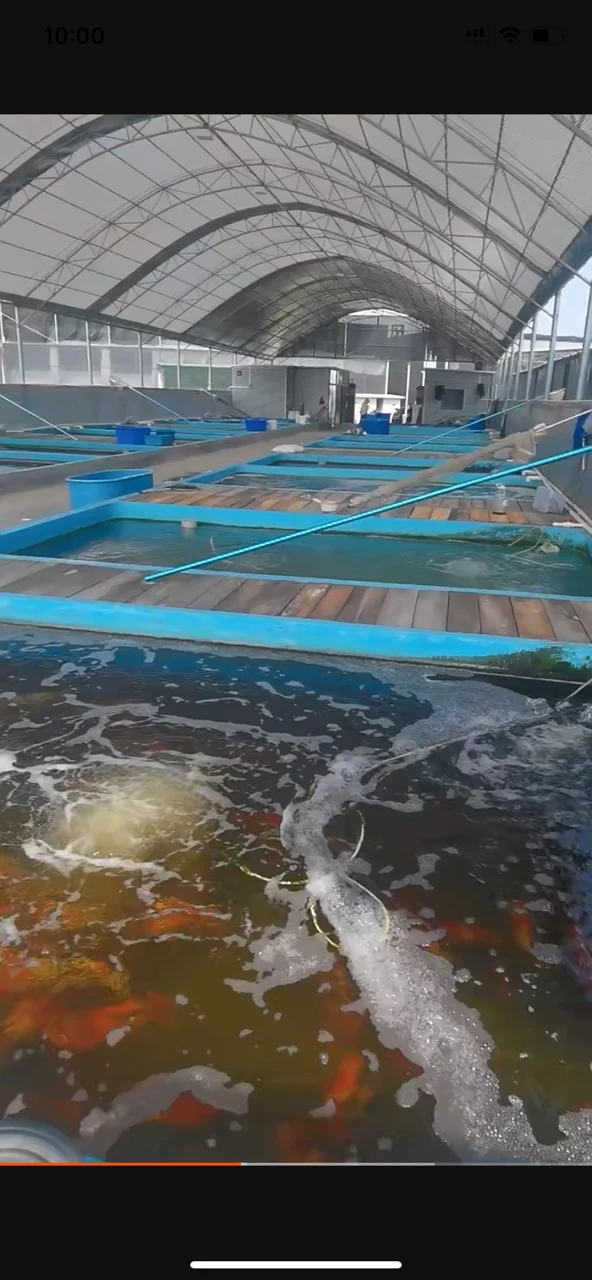

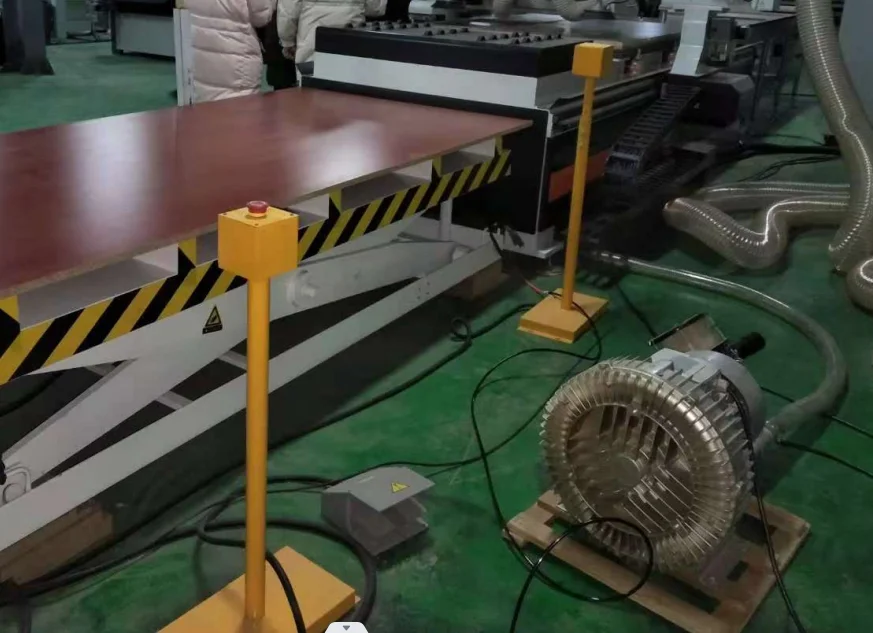

Application

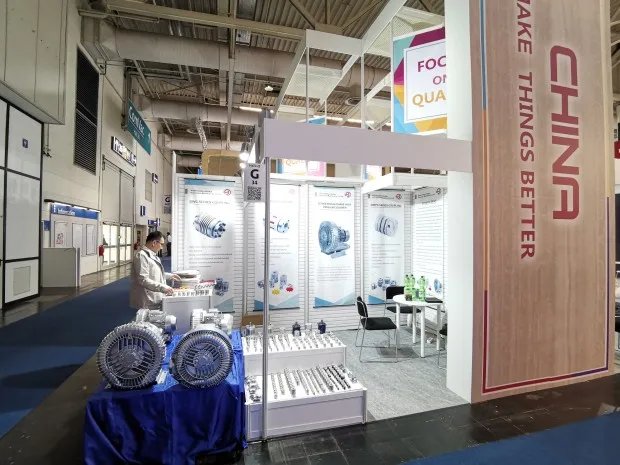

Exhibition
