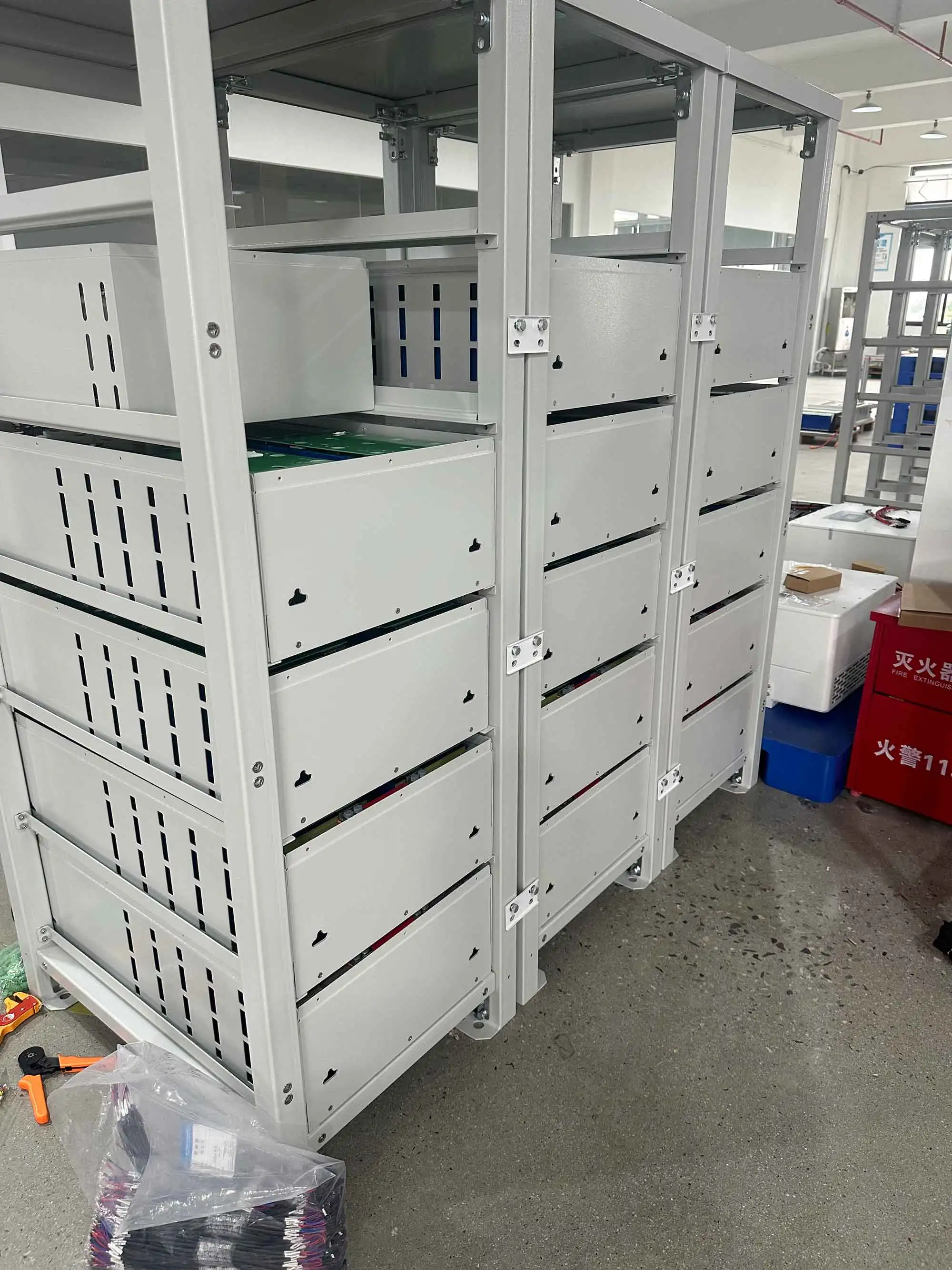

Eu Stock 280Ah High Voltage Home Rack Ess Stacked Hv Lithium Batterie Solar Lifepo4 Battery Storage Pack Charger
- Category: >>>
- Supplier: Eitai (Xiamen) New Energy Technology Co. Ltd.
Share on (1601280231830):
Product Overview
Description
Products Description
Solar Energy Storage
☆ Reliable
Lithium lron Phosphate (LFP) Battery,safety,high density,small self-discharge, no memory effect,etc.Equipped with protective cut-off switch.
☆ Flexible

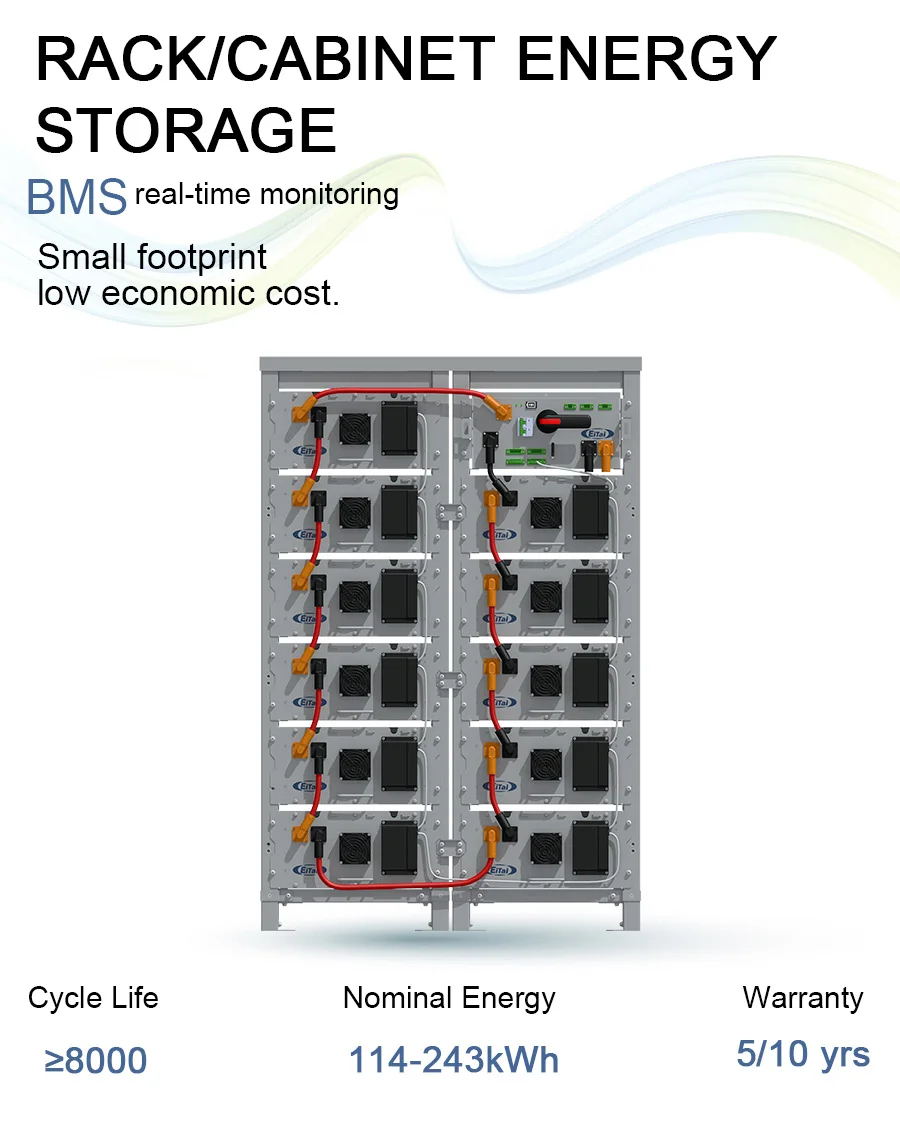

Modular design,single set can expand to 17units (243kWh capacity).Multiple battery units can be stacked.
☆ Smart
Equipped with BMS management
system,voltage,current,temperature collection,intelligent adjustment of charge and discharge power.Equipped WlFl module,can monitor remotely.Fan cooling system,with cooling shell,effectively reduce the battery heat.
☆ Cooperation
Supports customization,OEM/ODM.

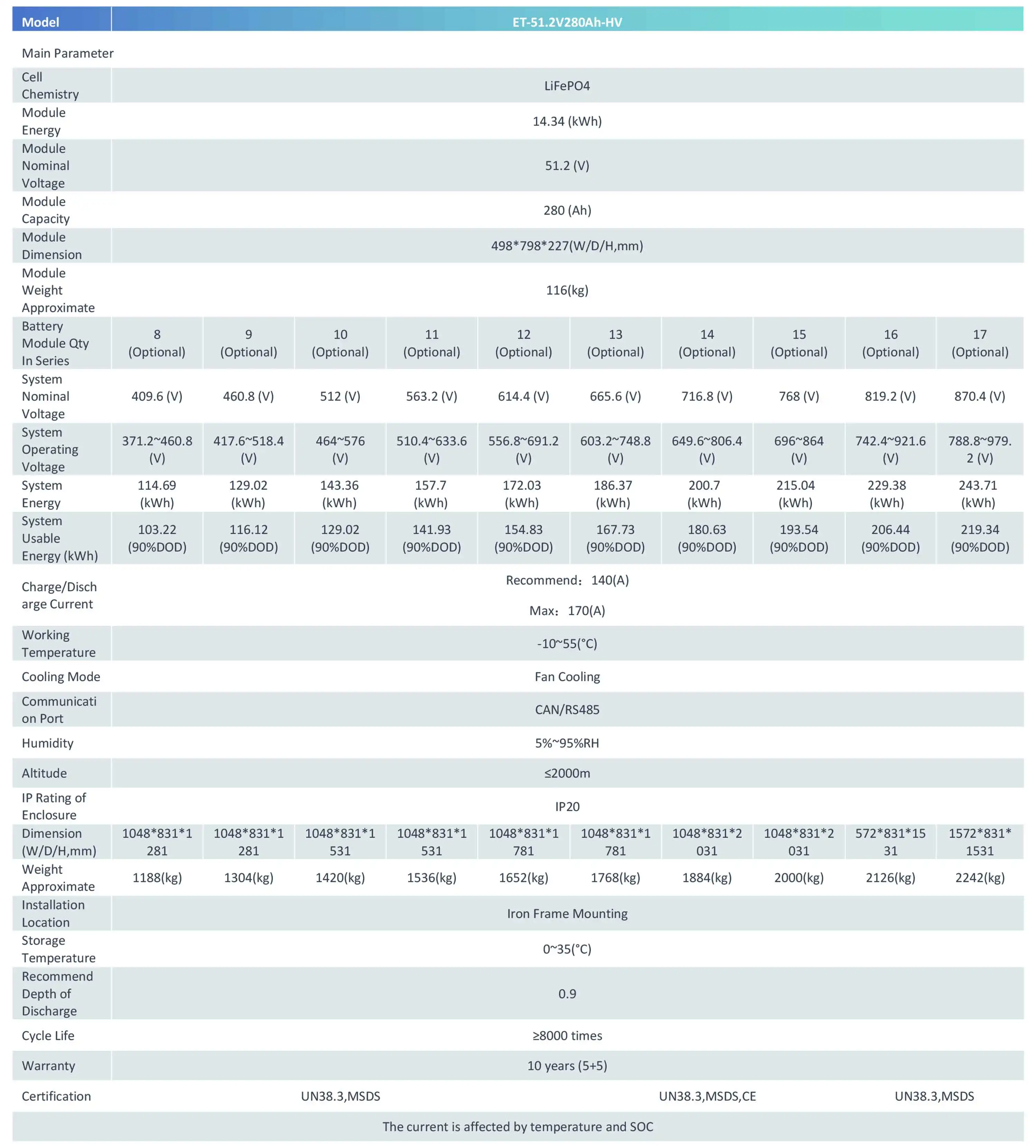

Technical Parameter
Product Feature
BCU PORT | ||||||
NO. | Name | NO. | Name | |||
1. | B- | 2. | B+ | |||
3. | RUN | 4. | ALM | |||
5. | SOC | 6. | Isolation switch | |||
7. | 24VDC | 8. | FAN-AC | |||
9. | UPS-AC | 10. | PC | |||
11. | PAR | 12. | Cut off protection switch | |||
13. | BAT | 14. | CAN | |||
15. | WIFI | 16. | P- | |||
17 | P+ | |||||

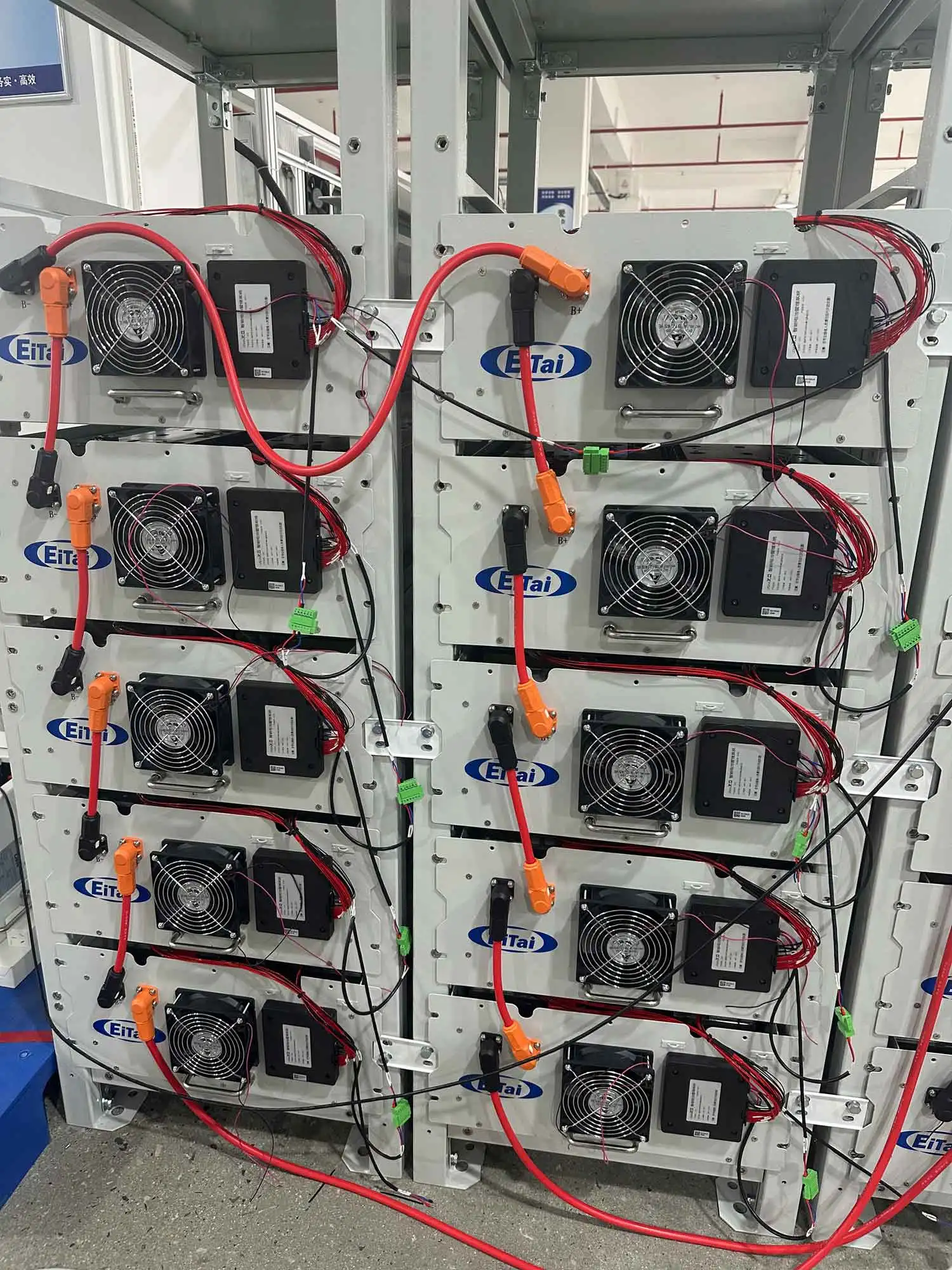

Battery module | ||||
NO. | Name | Description | ||
1. | B- | Battery module positive pole (orange) | ||
2. | B- | Battery module negative pole (black) | ||
3. | FAN | Cooling fan | ||
4. | BMU | Salve BMS | ||
Industrial And Commercial Energy Storage Echelon Utilization
