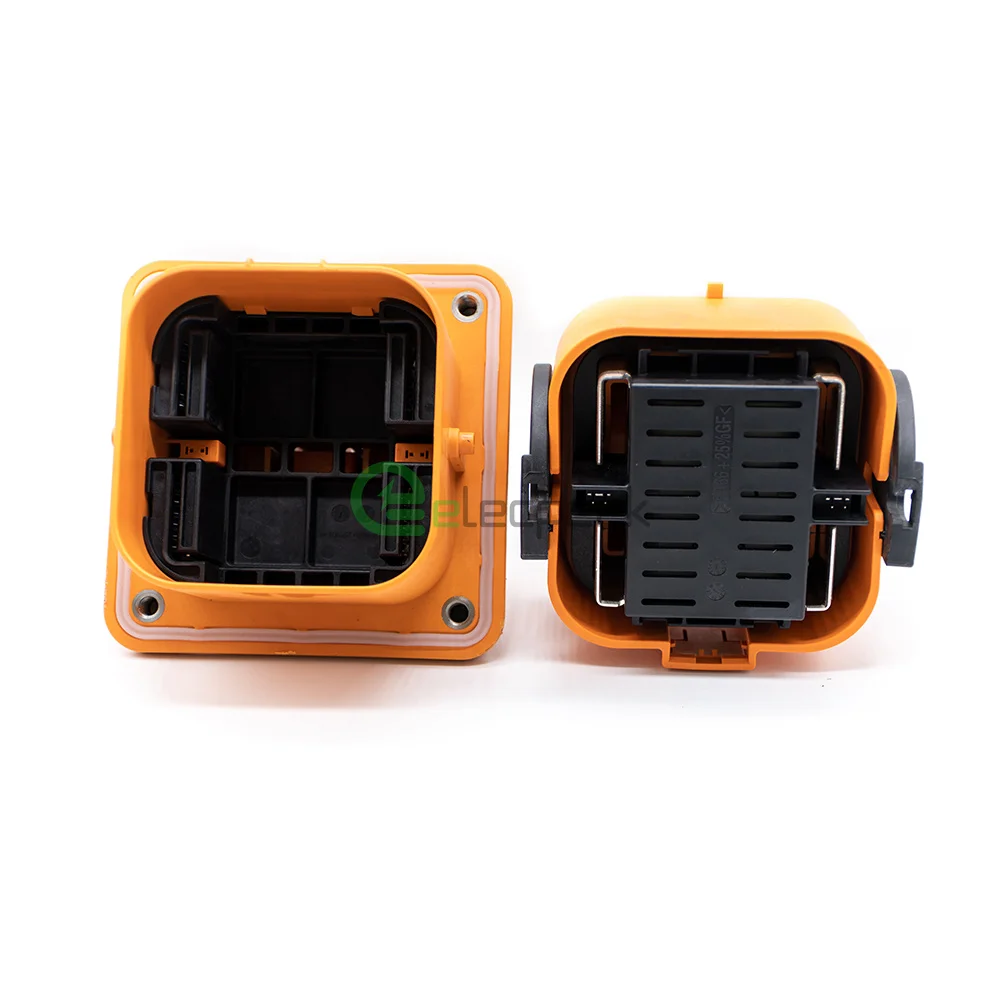

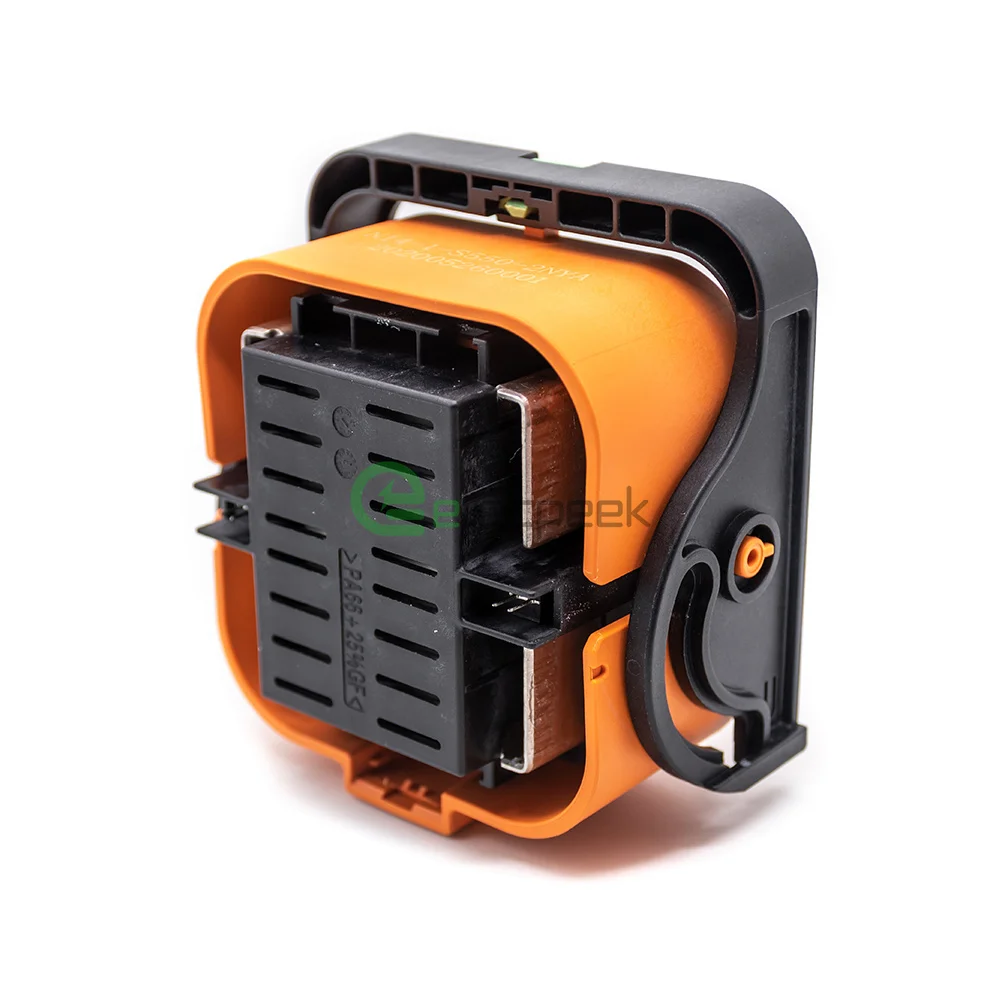

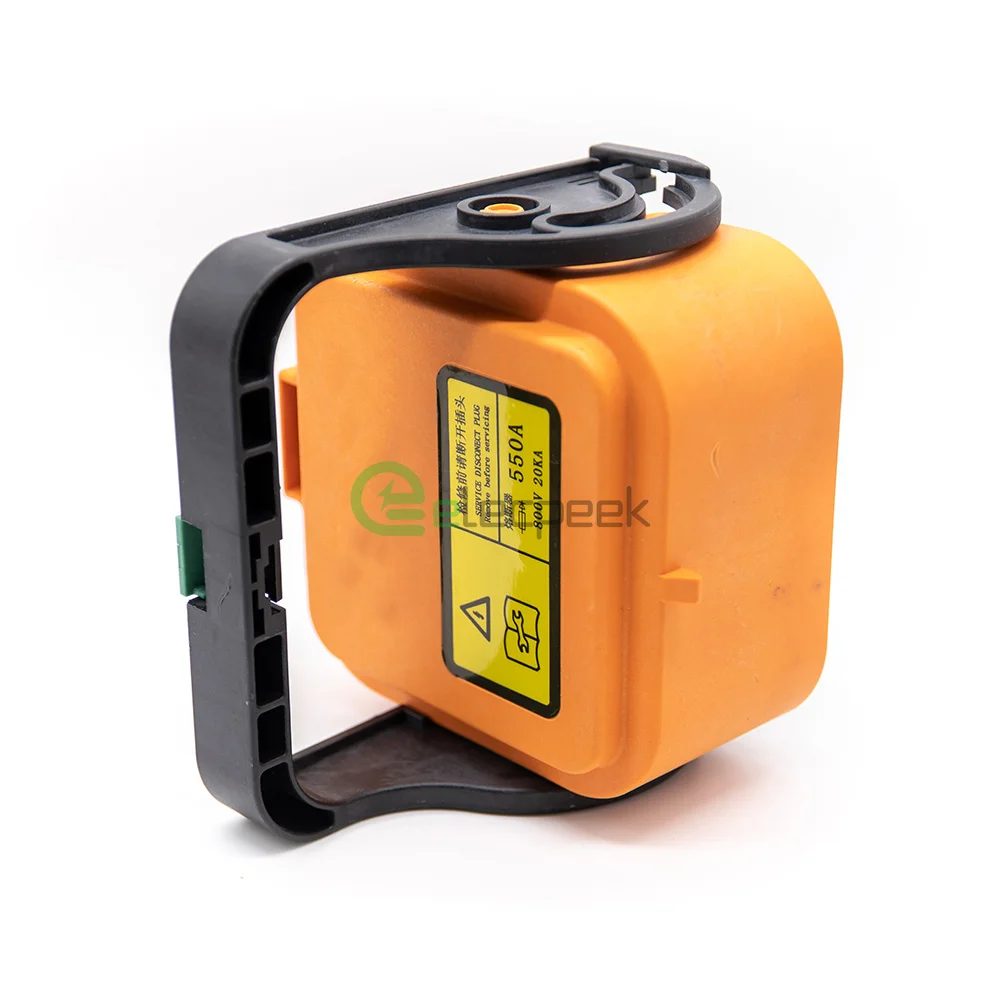

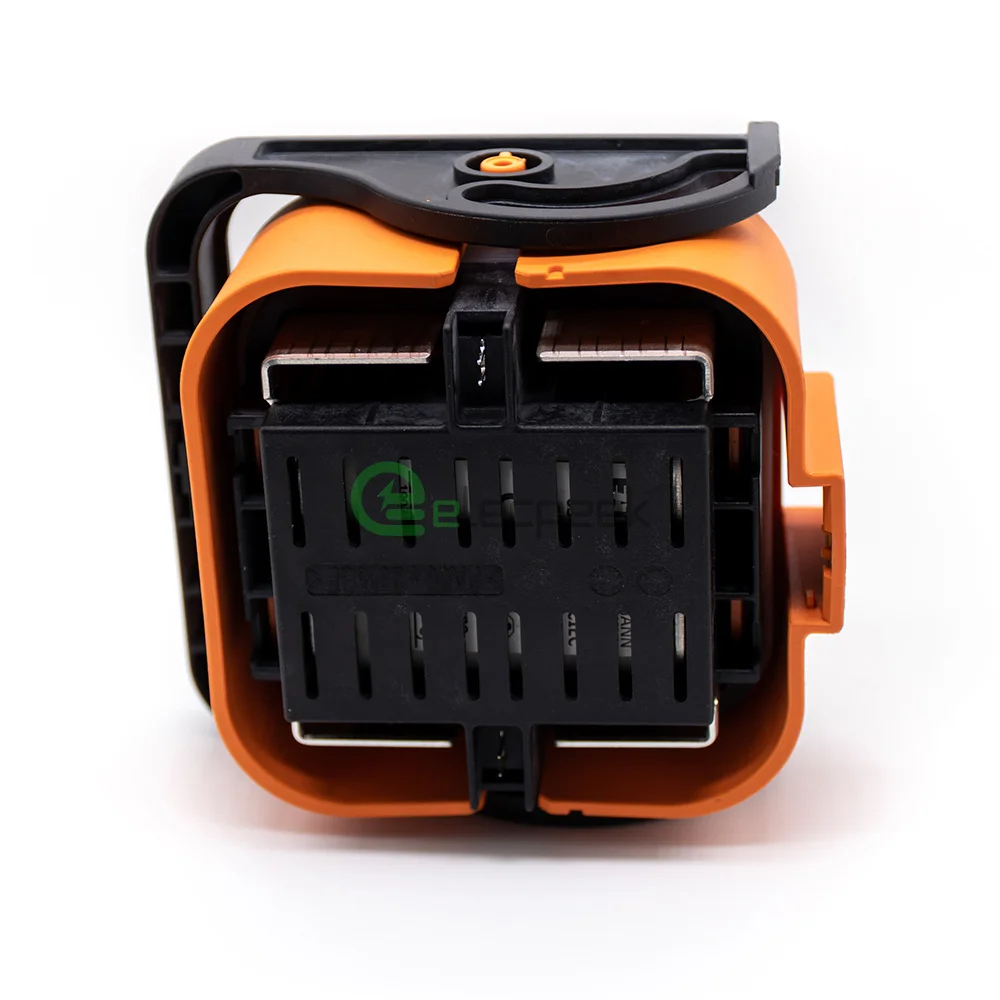

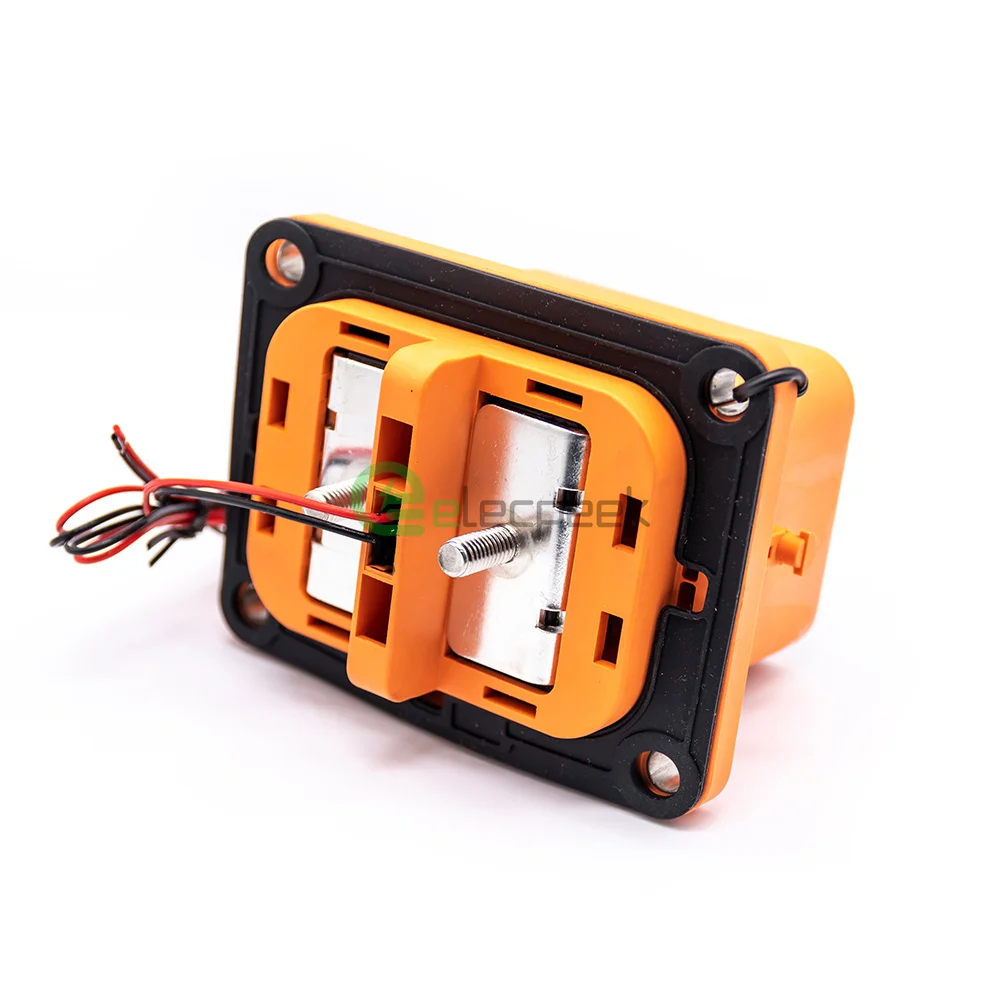

MSD Connector 450a 630a Socket Accurate and Dependable For Electrical Connections
- Category: >>>
- Supplier: Renhao Weiye Technology (wuhan) Co. Ltd.
Share on (1601280235845):
Product Overview
Description
Full Series MSD Connector (Manual Service Disconnect Connector)
Products Description
MSD ( Manual Service Disconnect ) | ||
Gender | Plug / Socket | |
Position | 2 Pin | |
Rated Current | 200A / 250A / 315A / 350A / 400A / 450A / 500A / 550A / 630A | |
Rated Voltage | 700V / 800V | |
Mount Method | Front Mount / Behind Mount | |
Color | Orange | |
Flammability Rating | UL94 V-0 | |
Feature | Waterproof | |
Protection Rating | IP67 / IP6K9K | |
Temperature Range | -40°C~ +125°C | |
MSD connector is a manual maintenance protection device with high-voltage interlocking function used in high-voltage boxes or battery boxes of electric vehicles. Mainly used to protect and control the internal main circuit of electric vehicles, preventing excessive current when the main circuit current is disconnected.

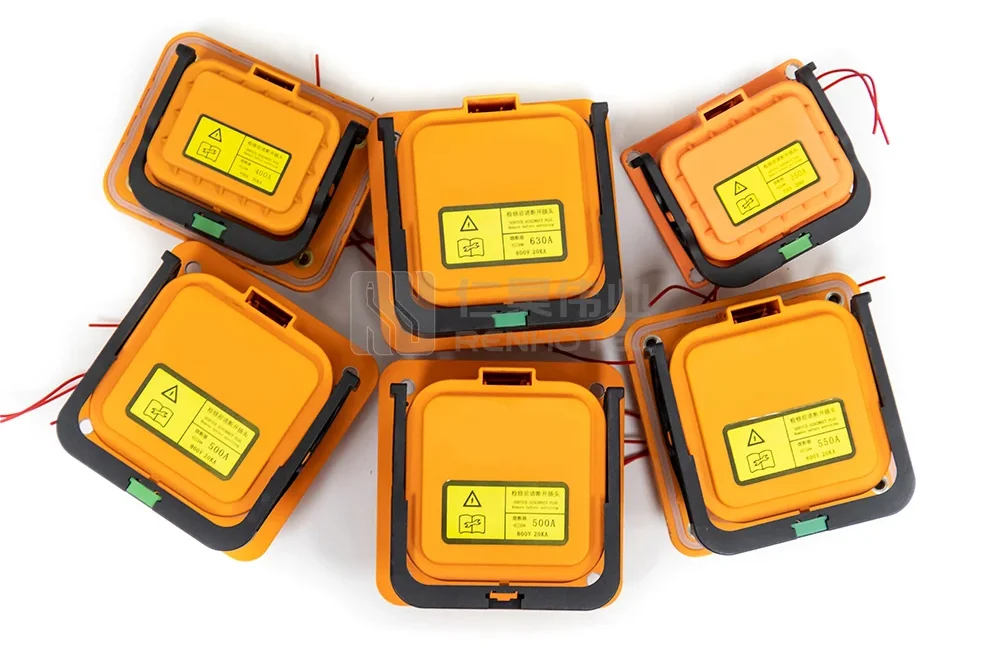

Products Detail
MINI MSD-P-400-1-H
MINIMSD-P-250-1-H
MINI MSD-R-000-F-H
NI4-0-H400-2NYA
NI4-0-S250-2NYA
NI4-0-S200-2NYA
NI4-1-S630-2NYA
NI4-1-H630-2NYA-S04A
NI4-1-S550-2NYA

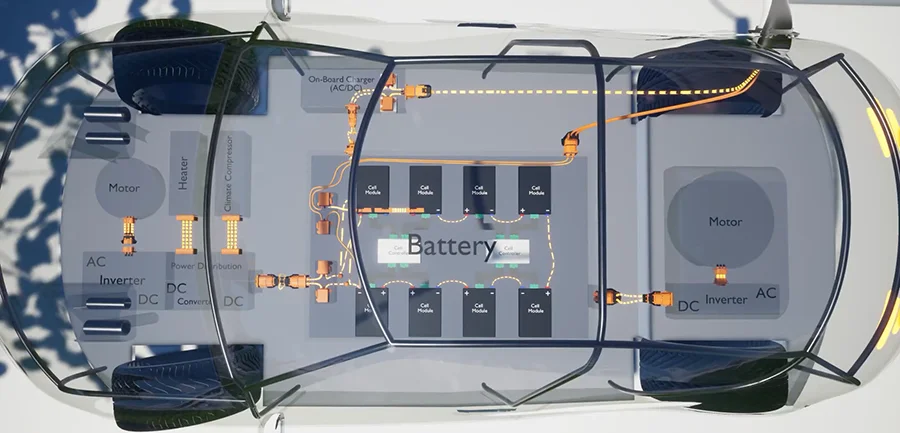

Applications
Packing & Delivery

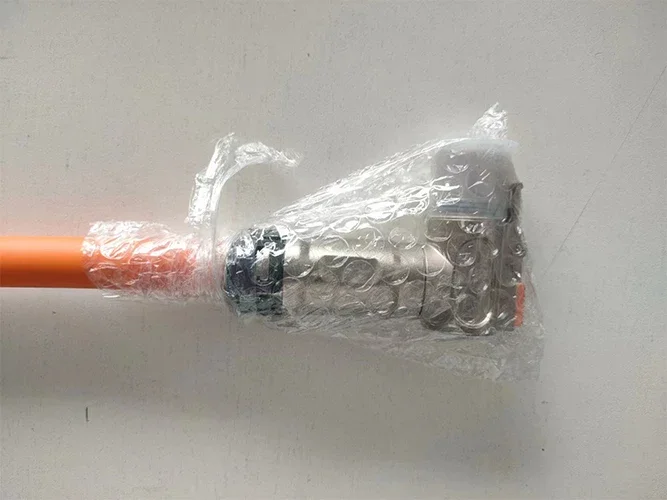

Packing Details:
1. Our standard packing: Individual part with transparent PE bag with label
2. OEM package available
Shipping Methods:
1. Samples and Small quantity order
FedEx/DHL/UPS/TNT/SF, Door to Door.
2. Batch goods: Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass.
1. Our standard packing: Individual part with transparent PE bag with label
2. OEM package available
Shipping Methods:
1. Samples and Small quantity order
FedEx/DHL/UPS/TNT/SF, Door to Door.
2. Batch goods: Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass.

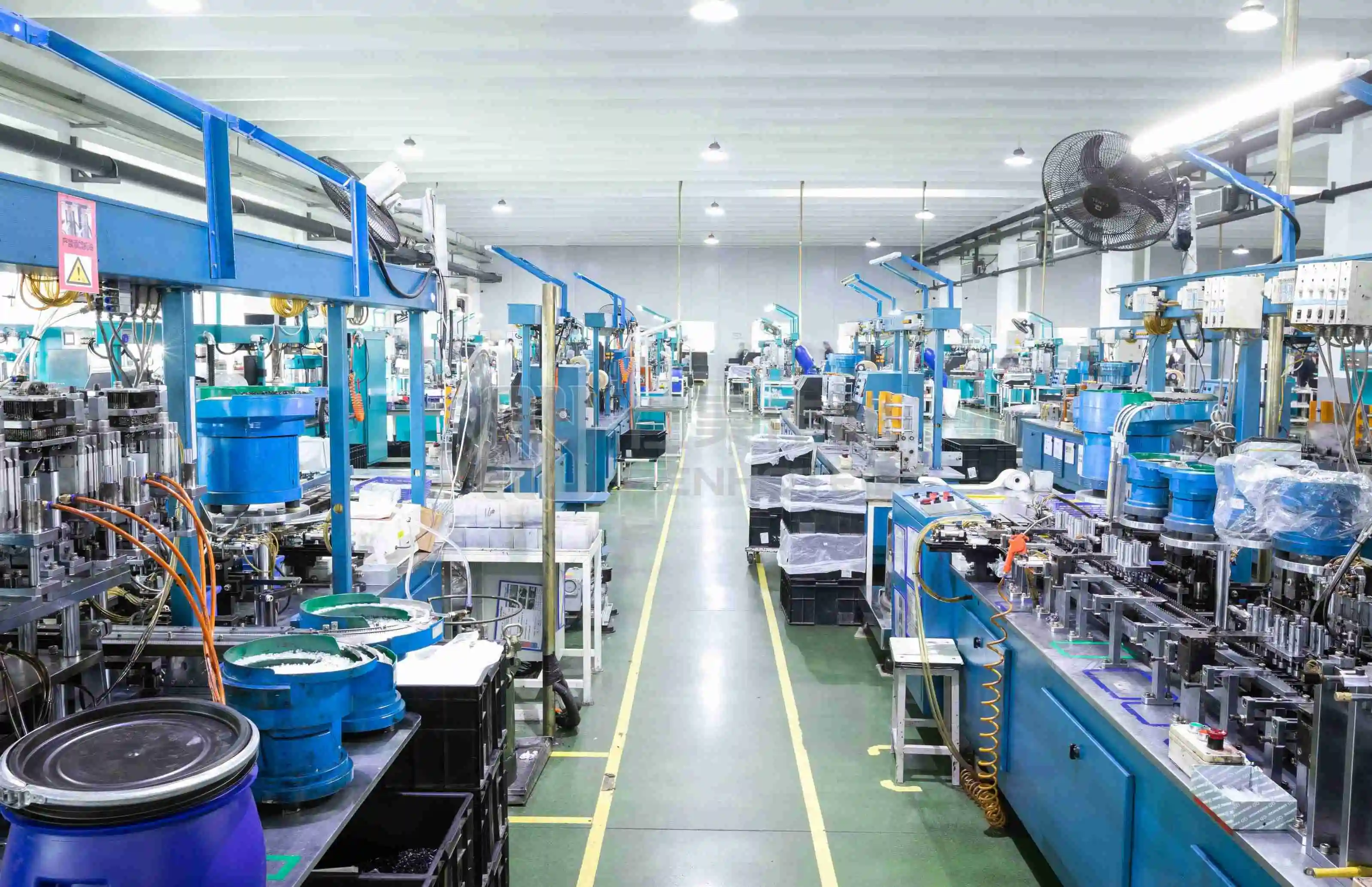

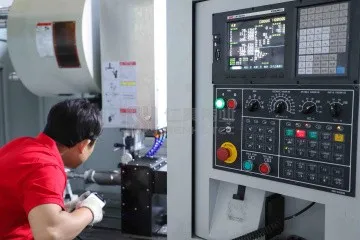

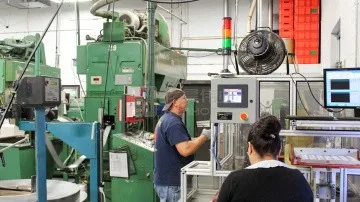

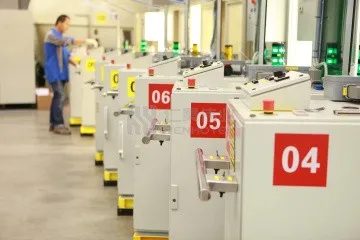

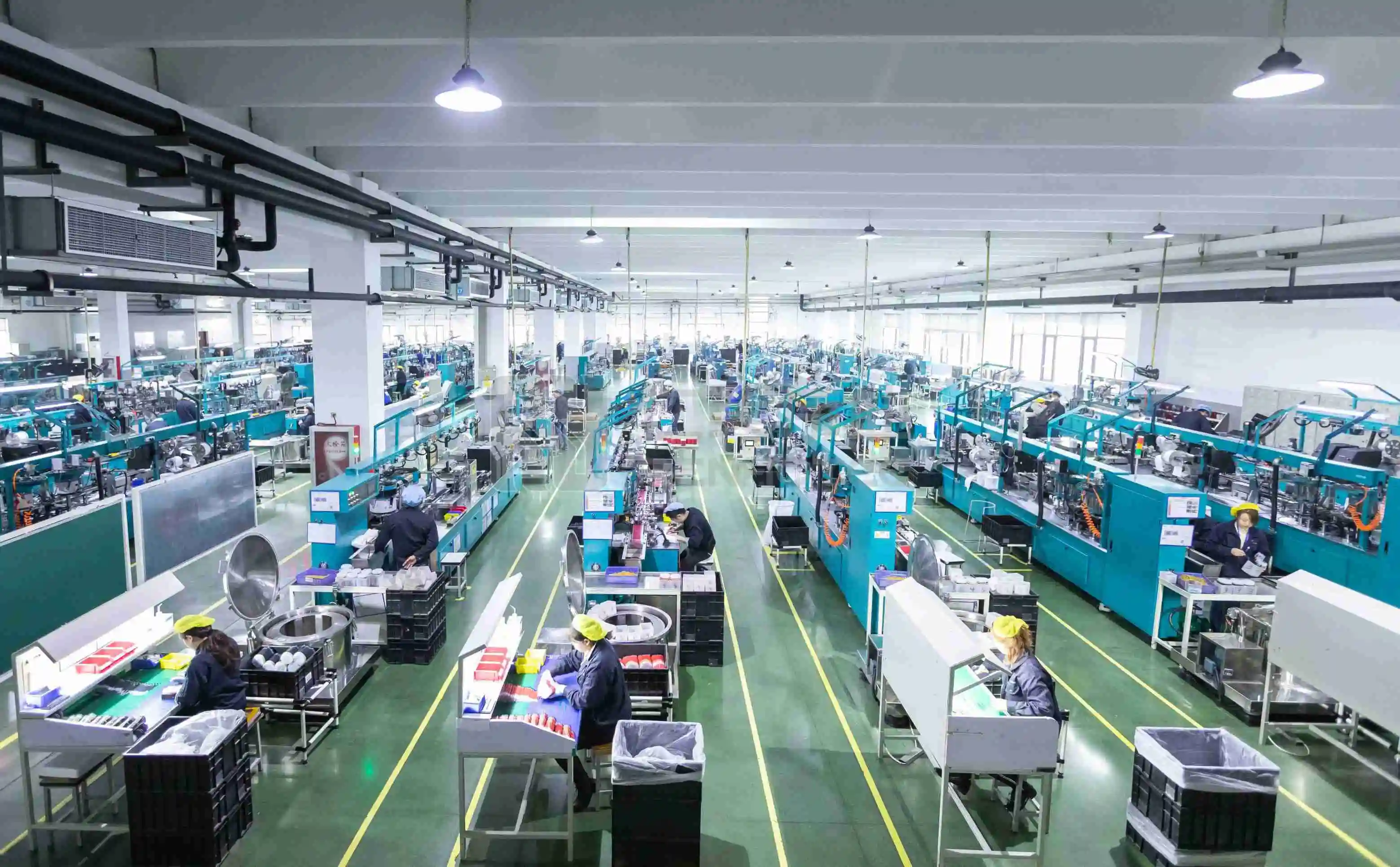

Production Equipment
Company Profile
- Acquired ISO9001, ISO14001, QC080000 and TS16949 certification.
- All items are in line with EU ROHS and REACH environmental requirements.
- Markets supported include automotive, medical, instrumentation, telecom and wireless etc.
- All items are in line with EU ROHS and REACH environmental requirements.
- Markets supported include automotive, medical, instrumentation, telecom and wireless etc.
FAQ
Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes, please contact us on line or Email us, then we would send the catalogue.
Q: What about your delivery time?
A: We have a lot of products in stocks, the delivery time would be within 15 working days, if any items are out of stocks , we will check the delivery time and advise you at first convenience.
Q: Which kind of payment do you accept?
A: T/T, PAYPAL or Western Uion.
Q: How to ship my order? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS. That’s Door to Door service. For big packages, we will send them by Air or By sea, ensure the package safety.
