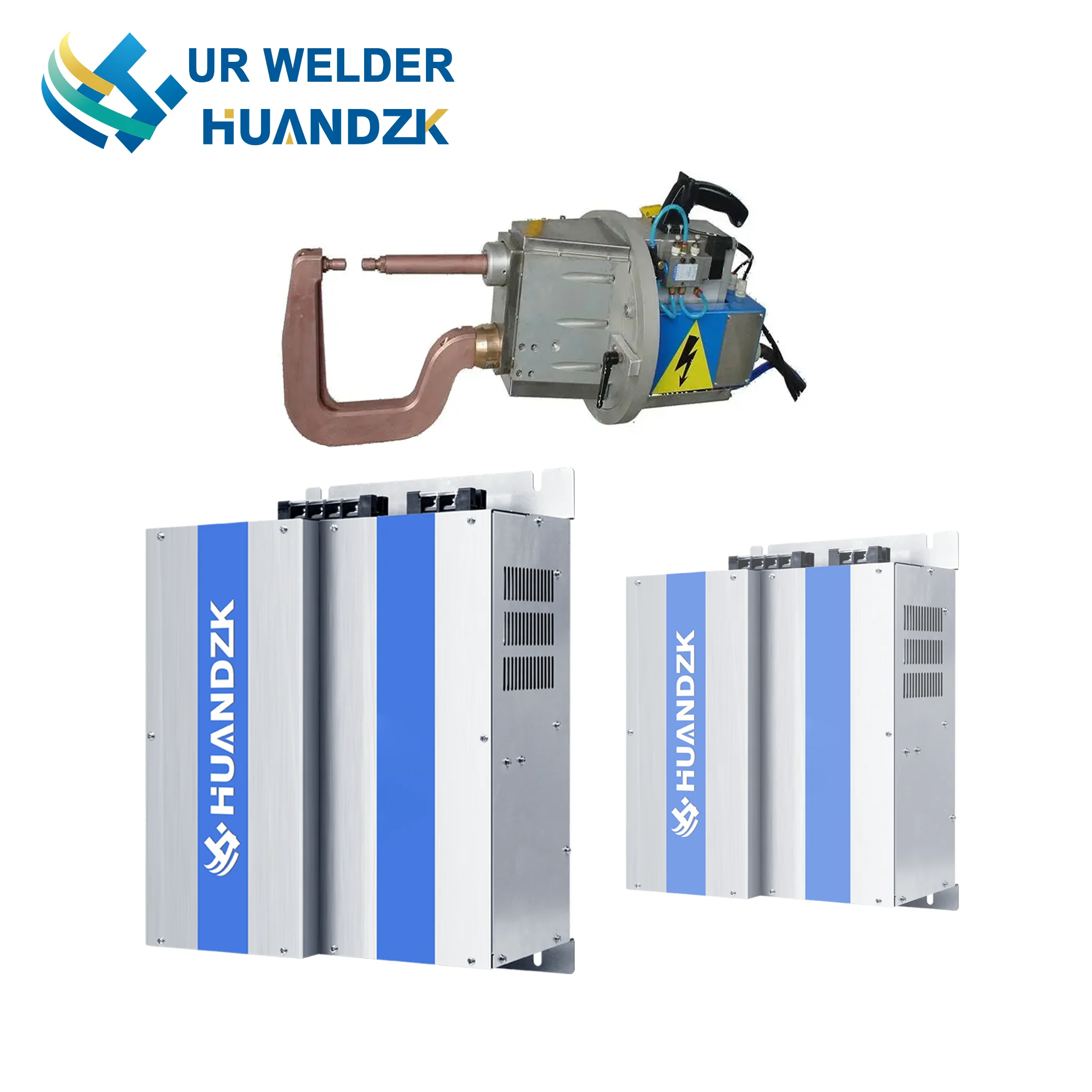

Welding Power Source for Seam Longitudinal Rolling Machineautomated Roll Horizontal Welding Power Source
- Category: >>>
- Supplier: Guangdong Scn Cnc Machine Co. Ltd.Guangdong Ltd.
Share on (1601280264502):
Product Overview
Description
Product Description
Power Supply Specifications：

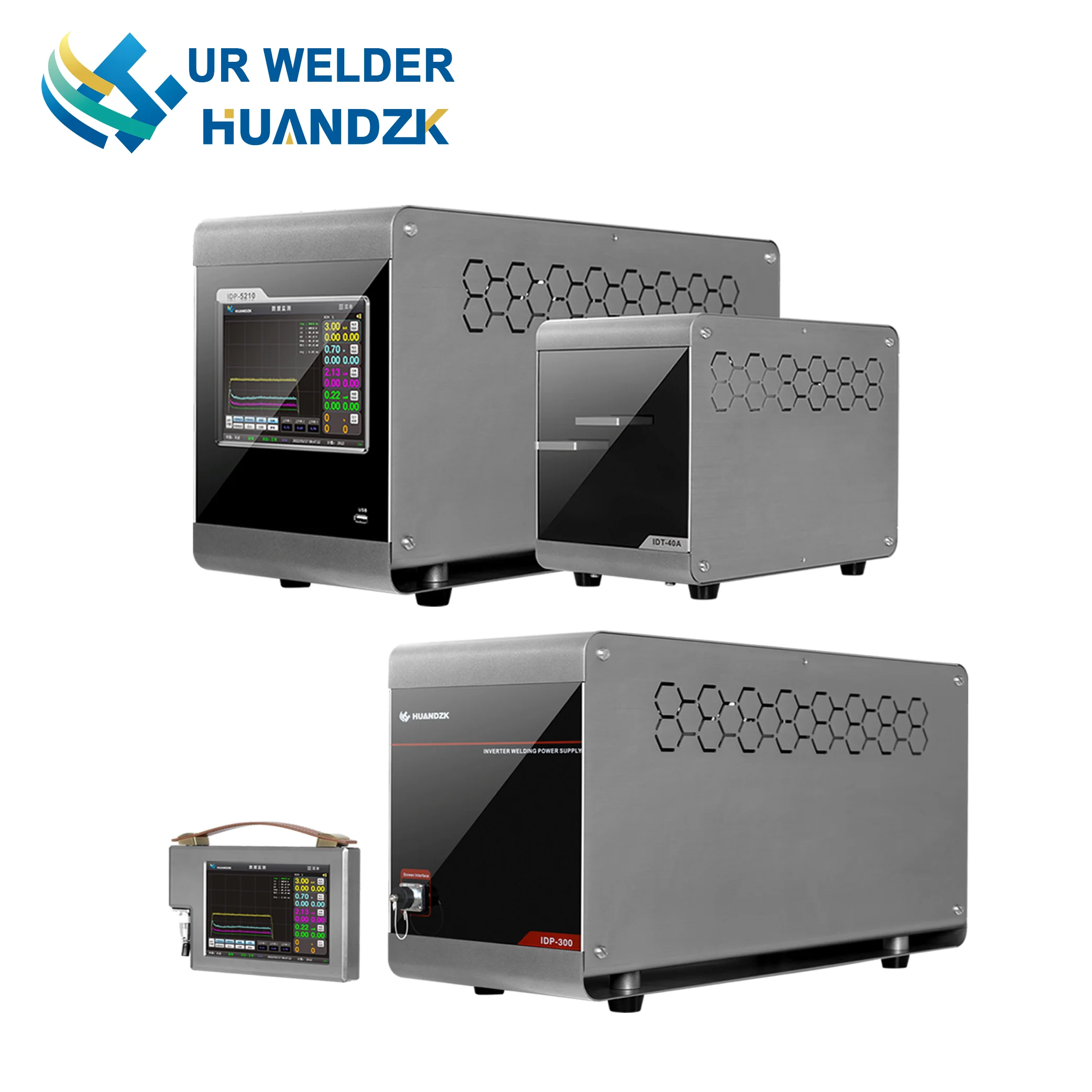

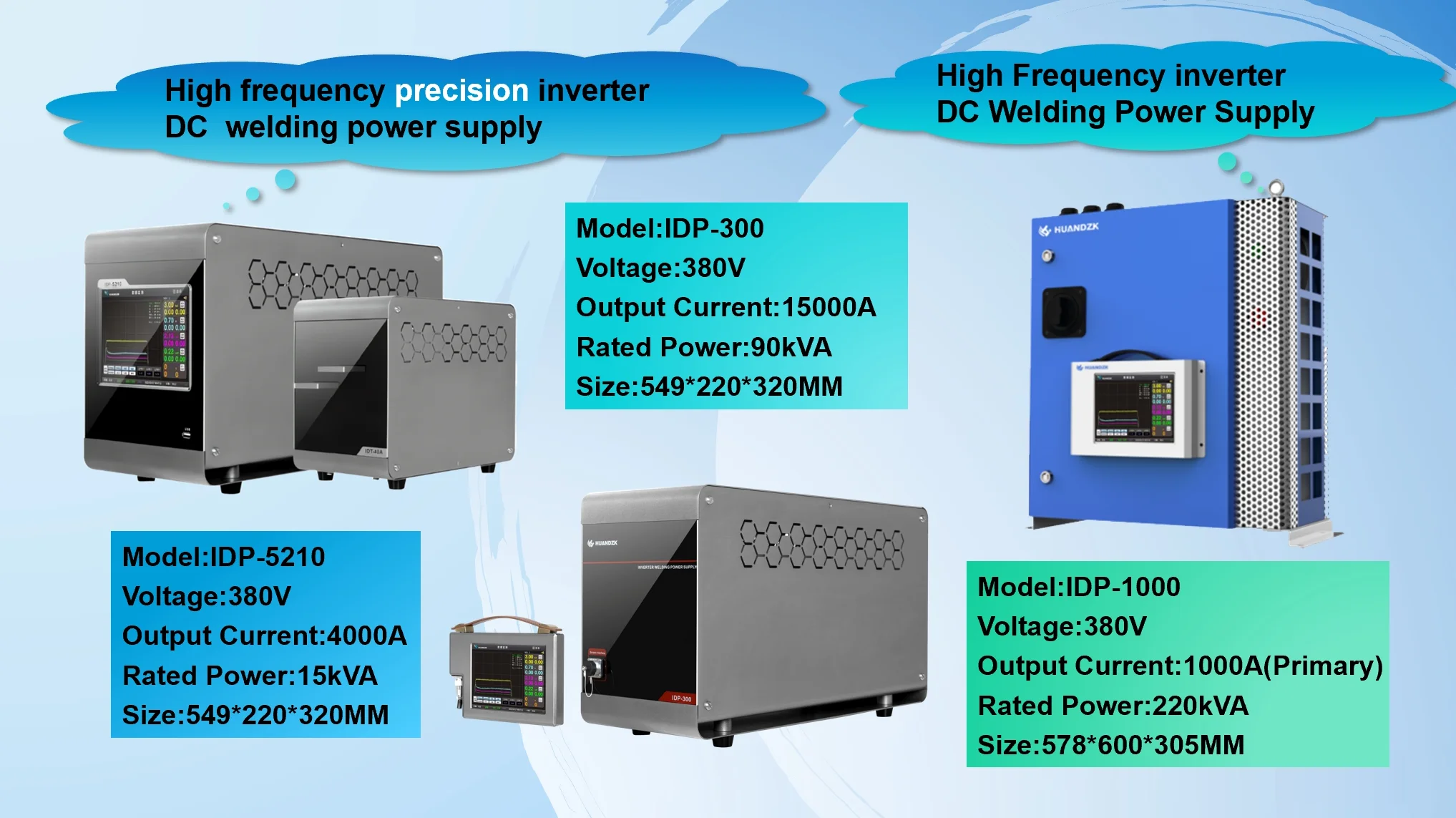

Model | IDP-5210 | IDP-8210 | IDP-300 | ||||
Supply Voltage | 3-phase 380V (50/60Hz) | ||||||
Control frequency | 1kHz/2kHz/3kHz/4kHz/5kHz | ||||||
Max. output current | 4000A | 8000A | 15000A | ||||
Rated power | 15kVA | 25kVA | 90kVA | ||||
Control method | Constant pulse width/peak primary/secondary current/secondary voltage/power/hybrid control | ||||||
Number of welding norms | 32 group norms | ||||||
Welding time setting | Pre-pressure time | 0-9999ms | |||||
Pressurization time | 0-9999ms | ||||||
Slow rise 1 time | 0-9999cyc | ||||||
Welding 1 time | 0-9999cyc | ||||||
Slow down 1 time | 0-9999cyc | ||||||
Cooldown | 0-9999cyc | ||||||
Slow rise 2 time | 0-9999cyc | ||||||
Welding 2 time | 0-9999cyc | ||||||
Slow down 2 time | 0-9999cyc | ||||||
Slow rise 3 time | 0-9999cyc | ||||||
Welding 3 time | 0-9999cyc | ||||||
Slow down 3 time | 0-9999cyc | ||||||
Holding time | 0-9999ms | ||||||
Rest period | 0-9999ms | ||||||
Finish time | 0-9999ms | ||||||
Number of cycles | 0-9 | ||||||
Setting range for secondary current | 0.1-4.00KA | 0.2-8.00KA | 0.3-15.00KA | ||||
Setting range of pulse width | 1%-100% | ||||||
Setting range for secondary voltage | 0.01-10V | ||||||
Power setting range | 0.1-15KW | 0.2-25KW | 0.2-60KW | ||||
Dimensions/mm(L*W*H) | 549*220*320 | ||||||
Weight | 22KG | ||||||
Matching Transformer | IDT-40A | IDT-80A | IDT-915C | ||||
Cooling method | air-cooling | water cooling | water cooling | ||||
Communication method | Support RS-232/RS-485/Ethernet ,etc. | ||||||
Transformer Specifications：
Model | IDT-40A | IDT-80A | IDT-915C | ||
Supply Voltage | PWM 500V | PWM 500V | PWM 500V | ||
Rated power | 15kVA | 25kVA | 90kVA | ||
Rated Primary Voltage | 500V | 500V | 500V | ||
No load secondary voltage | 10V | 11V | 11V | ||
Max. utilization rate | 4000A(5%) | 8000A(10%) | 15000A(10%) | ||
Cooling method | air-cooling | water-cooling | water-cooling | ||
Input frequency | 1-5kHz | ||||
Transformer volume ratio | 50:1 | 45:1 | 45:1 | ||
Dimension | 424*205*280 | 440*205*280 | 343*146*106 | ||
Weight | 18.5KG | 22KG | 17KG | ||
