  • 30hp 50hp 75hp 8 bar 37kw 75kw 10 bar 16 bar industrial air compressor screw air compressor for Laser machine
30hp 50hp 75hp 8 bar 37kw 75kw 10 bar 16 bar industrial air compressor screw air compressor for Laser machine
30hp 50hp 75hp 8 bar 37kw 75kw 10 bar 16 bar industrial air compressor screw air compressor for Laser machine
30hp 50hp 75hp 8 bar 37kw 75kw 10 bar 16 bar industrial air compressor screw air compressor for Laser machine
30hp 50hp 75hp 8 bar 37kw 75kw 10 bar 16 bar industrial air compressor screw air compressor for Laser machine
30hp 50hp 75hp 8 bar 37kw 75kw 10 bar 16 bar industrial air compressor screw air compressor for Laser machine
30hp 50hp 75hp 8 bar 37kw 75kw 10 bar 16 bar industrial air compressor screw air compressor for Laser machine
30hp 50hp 75hp 8 bar 37kw 75kw 10 bar 16 bar industrial air compressor screw air compressor for Laser machine

30hp 50hp 75hp 8 bar 37kw 75kw 10 bar 16 bar industrial air compressor screw air compressor for Laser machine

Share on (1601280281805):


Price:$1,600.00 - $2,800.00

Quantity:


Product Overview

Description



Store Reviews

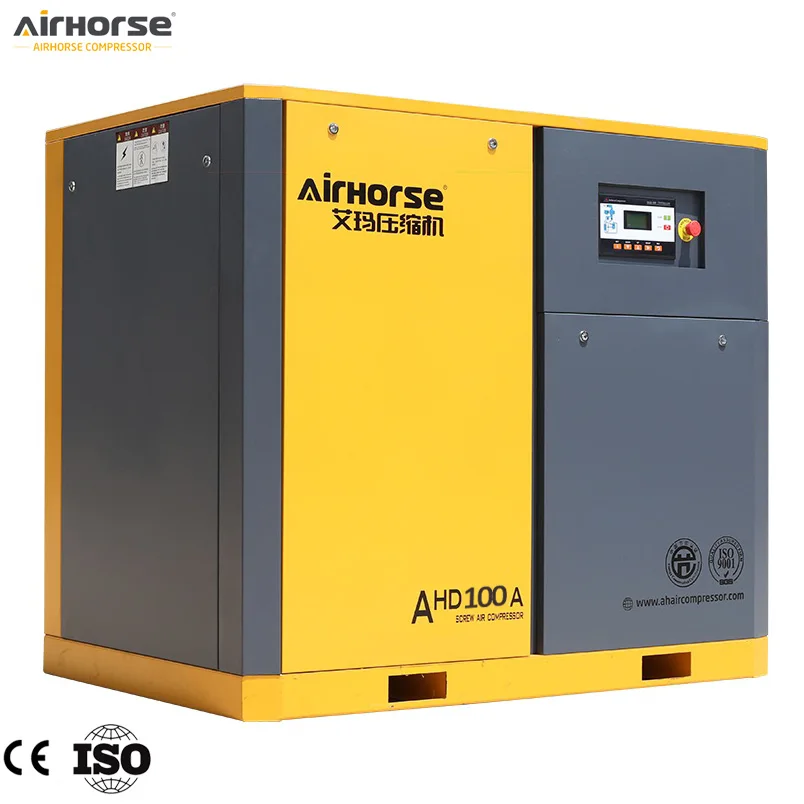

AirHorse Screw Air Compressor (Direct driven)
Model
AHD-100A
Free air deliver/Discharge pressure(m³/min/Mpa)
13.5/0.7
12.6/0.8
11.2/1.0
10.0/1.2
Free air deliver /Discharge pressure (CFM/PSI)
477/102
445/116
396/145
353/174
Compression stage
Single stage
Ambient temprerature
-5--+45℃
Cooling mode
Air cooling
Discharge temperature (0C)
Ambient temperature+15℃
Lubricant (L)
45L
Noise Level (Db)
68±2
Drive method
Direct driven
Electricity (V/ph/Hz)
380v/220v/customized voltage
Motor power (KW/HP)
75kw/100hp
Starting method
Y-△Starter (Star delta starting)
Dimension L*W*H (mm)
1800*1160*1490mm
Net Weight (kg)
900kg
Air outlet diameter (inch)
2''






 Model
Free air deliver (m3/min/bar)
Free air deliver (CFM/PSI)
Motor power (KW/HP)
Dimension
L*W*H (mm)
Net Weight (kg)
AHD-30A
3.8/7 bar
3.6/8 bar
3.2/10 bar
2.8/12 bar
134/102
127/116
113/145
99/174
22KW/30HP
1200*950*1150mm
415kg
AHD-50A
6.8/7 bar
6.2/8 bar
5.6/10 bar
4.9/12 bar
240/102
219/116
198/145
173/174
37KW/50HP
1500*990*1420mm
630kg
AHD-75A
10.0/7 bar
9.1/8 bar
8.5/10 bar
7.6/12 bar
353/102
322/116
300/145
269/174
55KW/75HP
1730*1100*1610mm
870kg
AHD-100A
13.5/7 bar
12.6/8 bar
11.2/10 bar
10.0/12 bar
477/102
445/116
396/145
353/174
75KW/100HP
1730*1100*1610mm
900kg
AHD-120A
16.1/7 bar
15.0/8 bar
13.8/10 bar
12.3/12 bar
569/102
530/116
488/145
435/174
90KW/120HP
2100*1400*1780mm
1900kg
AHD-150A
21/7 bar
19.8/8 bar
17.0/10 bar
15.3/12 bar
742/102 700/116
601/145
541/174
110KW/150HP
2500*1450*1800mm
2150kg
AHD-175A
25.2/7 bar
24.0/8 bar
21.0/10 bar
18.3/12 bar
890/102
848/116
742/145
647/174
132KW/175HP
2700*1550*1800mm
2750kg
AHD-220A
28.7/7 bar
27.6/8 bar
24.6/10 bar
21.5/12 bar
1014/102 975/116
869/145
760/174
160KW/220HP
2700*1550*1800mm
3150kg
AHD-250A
32.0/7 bar
30.5/8 bar
27.5/10 bar
24.8/12 bar
1131/102 1078/116 972/145
876/174
185KW/250HP
2800*1550*1950mm
3450kg
AHD-300A
36.7/7 bar
34.5/8 bar
30.2/10 bar
27.8/12 bar
1297/102 1219/116 1067/145 982/174
220KW/300HP
2800*1550*1950mm
3850kg
AHD-350A
42.0/7 bar
40.5/8 bar
38.1/10 bar
34.6/12 bar
1484/102 1431/116 1346/145 1223/174
250KW/350HP
3250*2100*2300mm
4250kg




Certificate




We have CE, UL, ISO, ASME certificate etc. Quality is our life, we pay high attention on quality controlled. Once you cooperate with us, you will know how professional we are. We can support you gain more and more market share.

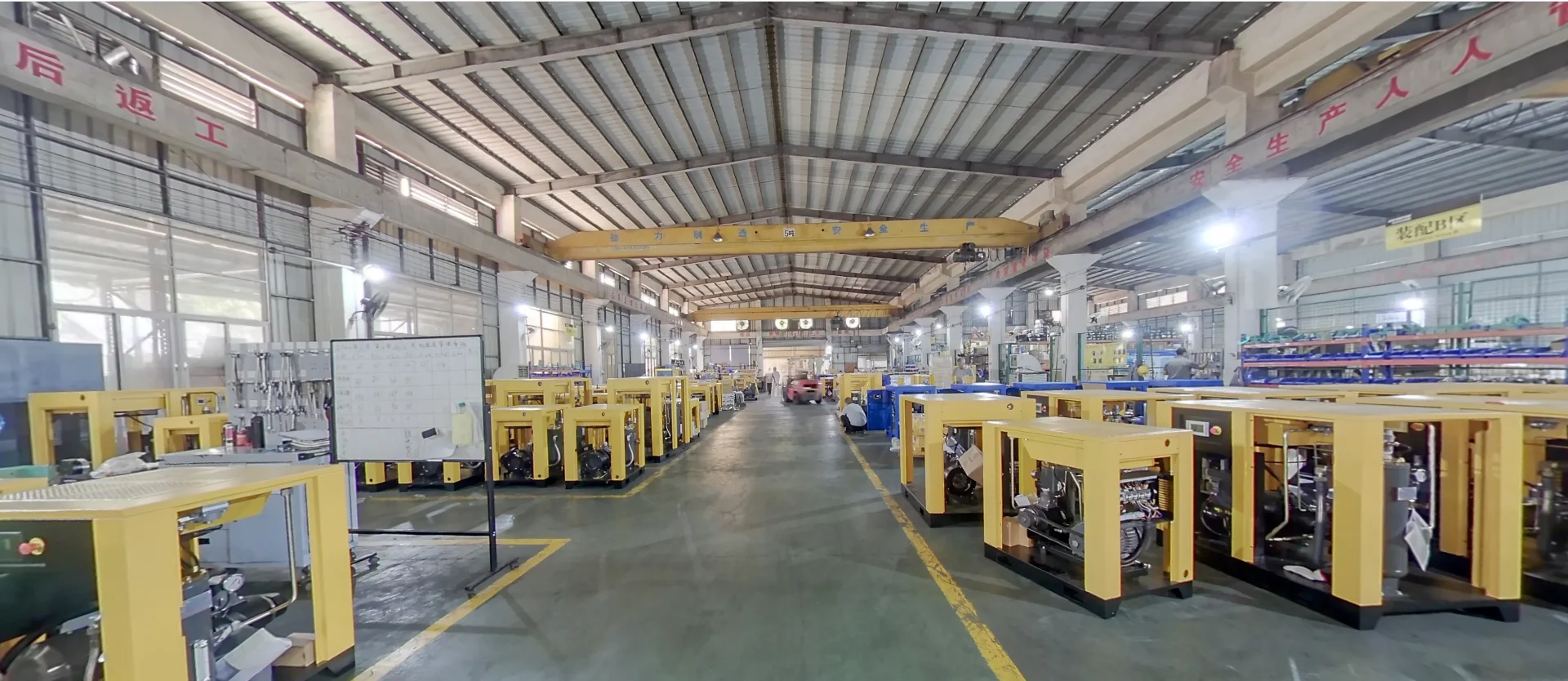

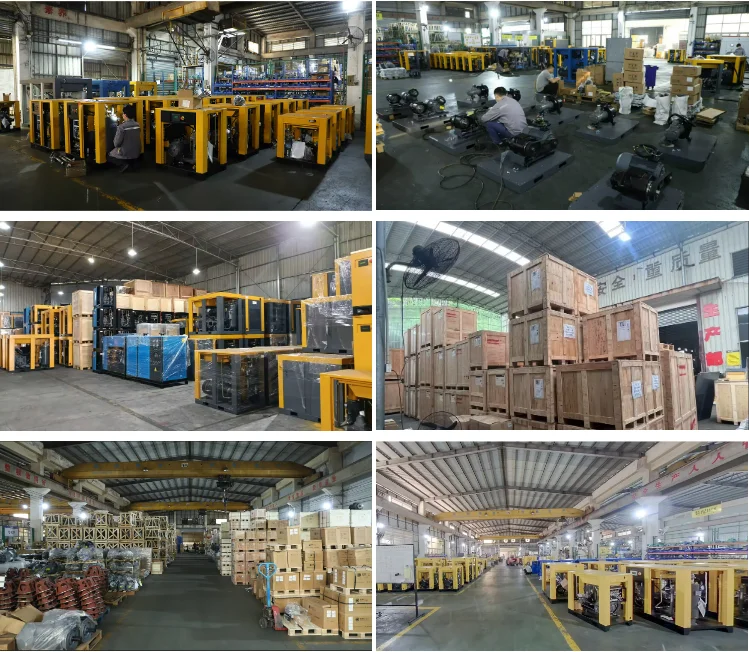

Guangzhou Airhorse Compressor Factory




Airhorse established in 2012, we have our own R & D, sales, production, and after -sales team. We mainly produce and sales oil injected screw air compressor, double screw air compressor, low pressure screw air compressor, oil free screw air compressor, oil free screw blower, Centrifugal compressor, vacuum pump etc，Our annual sales is more than 10,000 units and we have customers in 130 countries in the world. We have more than 30 Self -developed patents.




Exhibition




FAQ


Question: Why customer choose us?

Answer: Guangzhou Airhorse Compressor Co., Ltd. is a professional manufacturer for air compressor.We have more than 20 years experience in producing and exporting screw air compressor.


Question: Are you a screw air compressor manufacturer or trading company?

Answer: Our factory is located in Guangzhou China.We mainly produce and sales oil injected screw air compressor, double screw air compressor, low pressure screw air compressor,oil free screw air compressor, oil free screw blower, Centrifugal compressor, vacuum pump etc.


Question: What's your screw air compressor delivery time?

Answer: Generally 20 days, if urgently order, pls contact our sales in advance.


Question: How long is your air compressor warranty?

Answer: One year for the Whole machine and 18 months for Air end.


Question: How long could your screw air compressor be used?

Answer: AirHorse screw air compressor can work well more than 15 years.


Question: What's payment term?

Answer: T/T, L/C, Paypal and credit card etc. Also we could accept USD, RMB, Euro and other currency (Pls contact our sales for more information.


Question: How about your customer service?
Answer: 24 hours on-line service available.
