TUV Approved BIPV Solar Panel Roof 320W TOPCon Facade Double Glass Bifacial Half Mono crystalline Cell Photovoltaic PV Modules
- Category: >>>
- Supplier: Shenzhen Suns Energy Co. LimitedShenzhen Limited
Share on (1601280295141):
Product Overview
Description

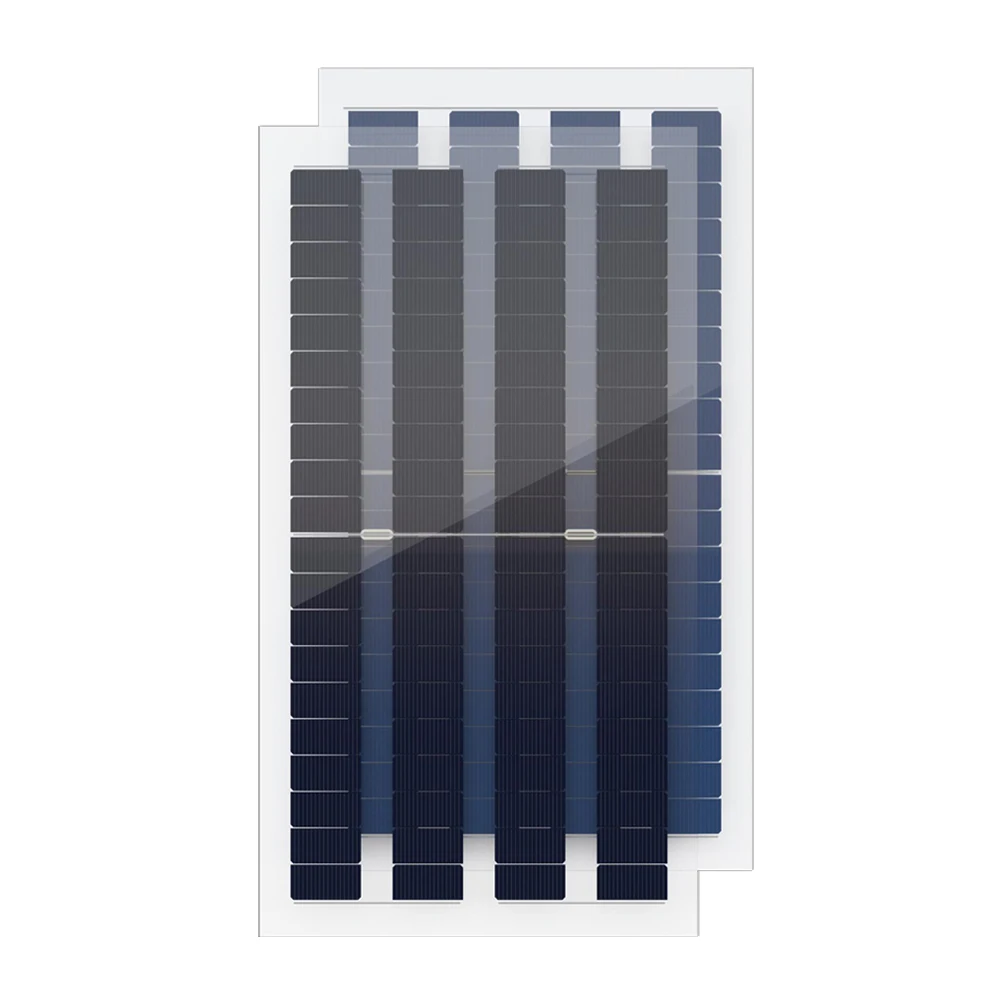

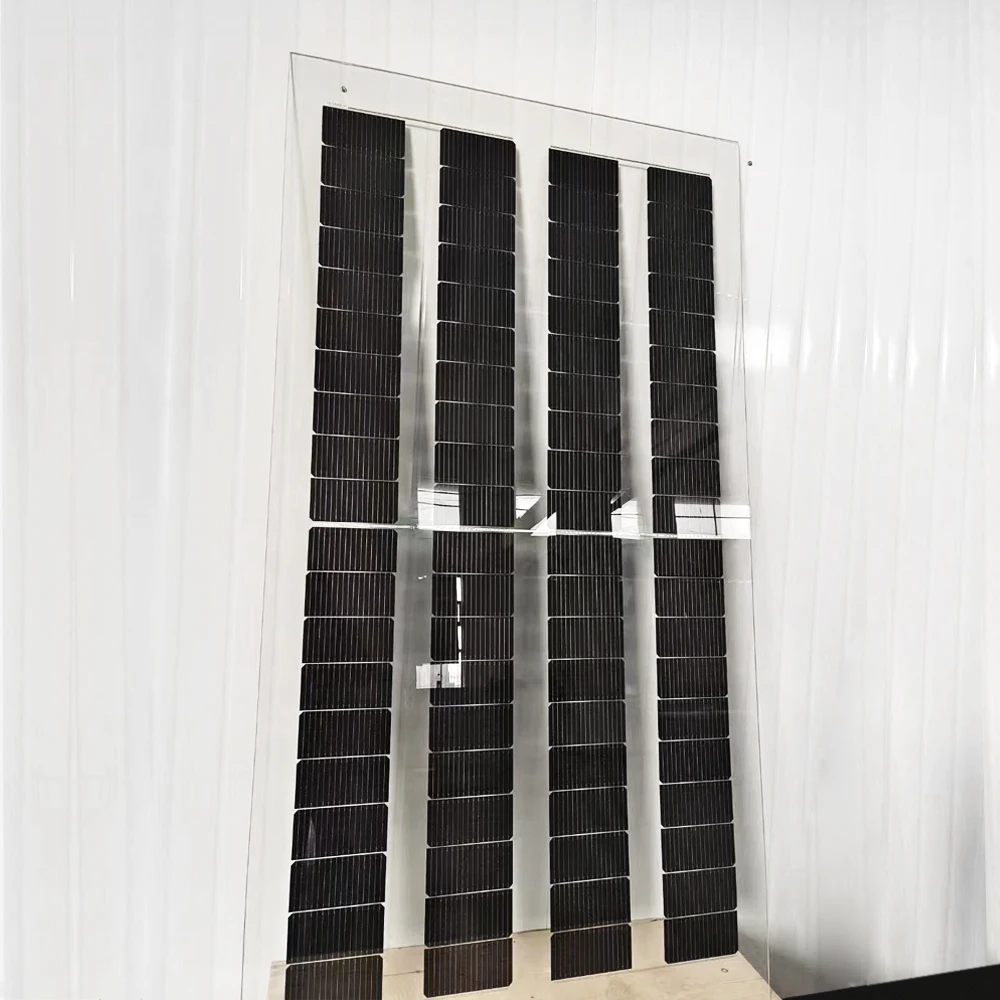

BIPV Solar Photovoltaic Panel Modules
Models: SS320M-BIPV / SS160M-BIPV
TUV Approved BIPV Solar Panel Roof 320W Frameless TOPCon Double Glass Bifacial Half Monocrystalline Cell Photovoltaic PV Modules
Description:
BIPV Solar Panels: The Ultimate Solution for Energy-Efficient and Eco-Friendly Buildings”. Half cell double glass bifacial frameless
BIPV solar panels are solar panels that are integrated into the building or envelope and serve some purposes. They can generate more energy, reduce environmental impact, and enhance the design of your building. Unlike conventional solar panels, BIPV solar panels are customized to fit the shape, size, and style of your building, making them more aesthetically pleasing and functional.
Specification
Electrical Characteristics (STC) | |
Module Type | SS320M-BIPV |
STC | |
Maximum Power-Pmax(W) | 320 |
Open Circuit Voltage-Voc(V) | 28.12 |
Short-Circuit Current-Isc(A) | 13.77 |
Voltage at Pmax-Vmp(V) | 24.6 |
Current at Pmax -Imp(A) | 13.01 |
Module Efficiency -nm(%) | 19.55 |
Power Tolerance(W) | (0,+4.99W0 |
Maximum System Voltage(V) | 700Vdc (IEC UL) |
Maximum Series Fuse Rating (A) | 25A |
STC Irradiance 1000W/m2, Cell Temperature 25℃, Air Mass 1.5
Mechanical Specifications | |

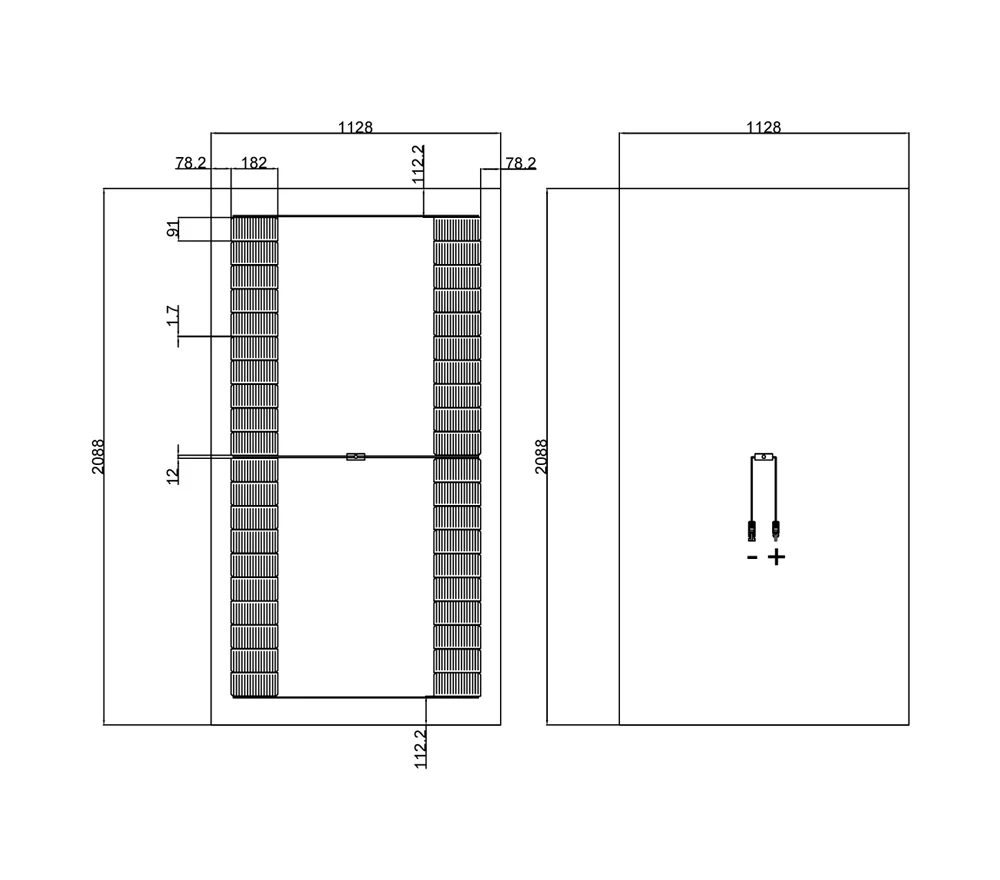

External Dimensions | 2088*1128*5mm |
Weight | 26.8kg |
Solar Cells | Mono crystalline 182mm(2x40pcs) |
Front Glass | 2+2 mm tempered glass |
Frame | Aluminum |
Junction Box | IP67 |
Output Cables | 4.0mm2,120cm(+),120cm(-), length can be customized |
Connector | MC4 Compatible |
Mechanical Load | Front Side Max.5400Pa,Rear Side Max.2400Pa |
Packing Configuration | |||
2088*1128*5mm | |||
Container | 20'GP | 40'HQ | |
Pieces per Pallet | 34 | 34 | |
Pallets per Container | 6 | 26 | |
Pieces per Container | 272 | 612 | |
Temperature Characteristics | |
Pmax Temperature Coefficient | -0.29%/°C |
Voc Temperature Coefficient | -0.250%/°C |
Isc Temperature Coefficient | +0.045%/°C |
Operating Temperature | -40~+85℃ |
Nominal Operating Cell Temperature(NOCT) | 45±2℃ |
Features:
1. Customized power and size: You can choose the power and size of your BIPV solar panels according to your building’s energy needs and available space. This allows you to optimize your energy production and consumption, and save money on your electricity bills.
2. Half cell mono-crystalline: BIPV solar panels use half cell mono-crystalline technology, which means they have higher efficiency, lower resistance, and better performance than other types of solar cells. This means you can generate more electricity with less solar panels, and reduce your carbon footprint.
3. Double glass bifacial: BIPV solar panels have double glass bifacial design, which means they can capture sunlight from both sides and generate more electricity than single-sided solar panels. This also makes them more durable, resistant to weather, and easy to maintain.
5. Color and pattern: BIPV solar panels can be customized with different colors and patterns to match the aesthetic and architectural design of your building. You can choose from a variety of colors and patterns, such as transparent, semi-transparent, opaque, solid, gradient, textured, or printed.
2. Half cell mono-crystalline: BIPV solar panels use half cell mono-crystalline technology, which means they have higher efficiency, lower resistance, and better performance than other types of solar cells. This means you can generate more electricity with less solar panels, and reduce your carbon footprint.
3. Double glass bifacial: BIPV solar panels have double glass bifacial design, which means they can capture sunlight from both sides and generate more electricity than single-sided solar panels. This also makes them more durable, resistant to weather, and easy to maintain.
4. Frameless: BIPV solar panels are frameless, which means they have no metal frames or edges that can cause shading, corrosion, or leakage. This also makes them lighter, safer, and more elegant than framed solar panels.
5. Color and pattern: BIPV solar panels can be customized with different colors and patterns to match the aesthetic and architectural design of your building. You can choose from a variety of colors and patterns, such as transparent, semi-transparent, opaque, solid, gradient, textured, or printed.
6. Flexibility and adaptability: BIPV solar panels can be designed with flexibility and adaptability to fit the shape and size of your building. You can use flexible and adaptable BIPV modules that can be bent, curved, or folded to conform to the contours and angles of your building.
