ZYB Series High Performance Electric Self Priming Waste Oil Pump Heavy Oil Pumps Wholesale Price
- Category: >>>
- Supplier: Hebei Shenghui Pump Co. Ltd.Hebei Ltd.
Share on (1601280302756):
Product Overview
Description
ZYB Series High Performance Electric Self-Priming Waste Oil Pump Heavy Oil Pumps Wholesale PriceFeature
Feature
Product Description
ZYB series gear pump adopts self-sealing lubrication bearing ,gap automatic regulation structure, the bearing and the conveying liquid with special anti-high temperature,anti-corrosion sealing isolation when use it,ensure the service life of the bearing.
Main parts select more high quality resistent material, after the heat treatment, it has high strength and hardness characters,while the structure use many original hydraulic balance technology, making the pump in high pressure, high efficiency, low noise, smooth operation, stable pressure, keeping long time pressure and other unique properties.
Application
ZYB series slag oil pump applies to the impurities and the worse performance lubricating medium such as coal tar, slag oil, soap, heavy oil, paint industry, grain and oil, chemmical industry building materials, daily chemical and other industries as well. The temperature of pump conveying liquid can be 260℃.
Advantage
This pump is equipped with gear side clearance adjustable structure, when the working pressure is goes down after working some time.We can through the external cover on the pump to do fine-tuning adjustment, so that the working pressure of pump was restored, and can be adjusted several times. Consequently it is better than general 5-10times longer service life of the gear pump.
In china, it is initiate creation with impurity burning oil under high pressure spray combustion situation,and reached the advanced level of similar products at home and abroad.
Technical Data
| ZYB functional data | |||||||
| flow | |||||||
| type | inlet and out diameter | m3/h | l/min | pressure(Mpa) | speed(r/min) | suction height(m) | power(kw) |
| ZYB4/0.6 | 25 | 4 | 66 | 0.6 | 960 | 5 | 1.5 |
| ZYB7/0.6 | 40 | 7 | 116 | 0.6 | 3 | ||
| ZYB13/0.6 | 50 | 13 | 216 | 0.6 | 4 | ||
| ZYB13/1.0 | 50 | 13 | 216 | 1 | 5.5 | ||
| ZYB18/0.6 | 70 | 18 | 300 | 0.6 | 7.5 | ||
| ZYB18/1.0 | 70 | 18 | 300 | 1 | 11 | ||
| ZYB30/0.6 | 80 | 30 | 500 | 0.6 | 7.5 | ||
| ZYB38/0.4 | 100 | 38 | 633 | 0.4 | 15 | ||
| ZYB45/0.4 | 100 | 45 | 750 | 0.4 | 18.5 | ||
| ZYB60/0.4 | 100 | 60 | 1000 | 0.4 | 22 | ||
(The above data is for reference,if you have any problems,pls contact us directly)

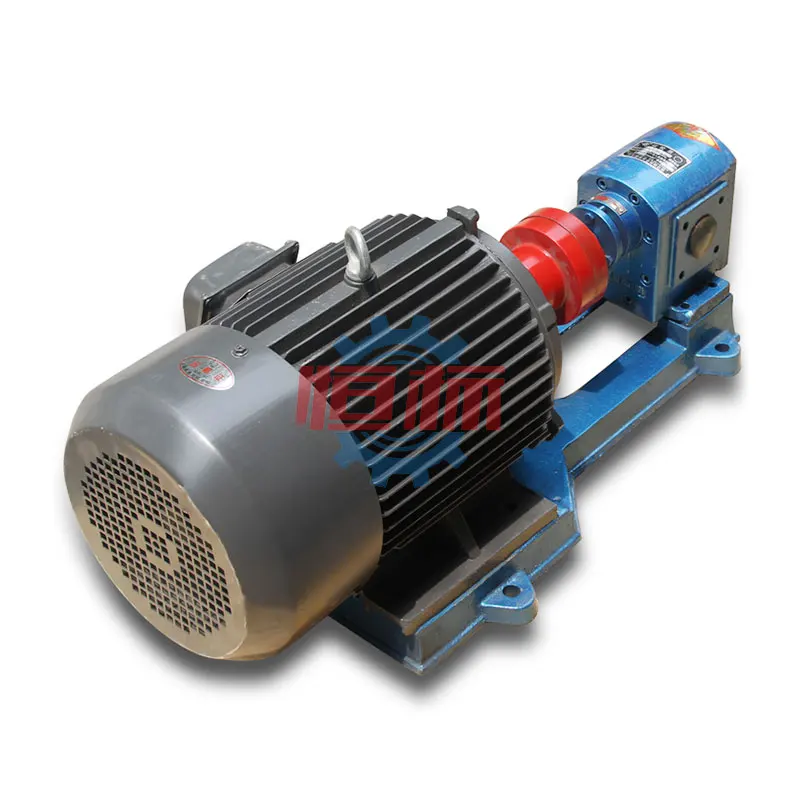

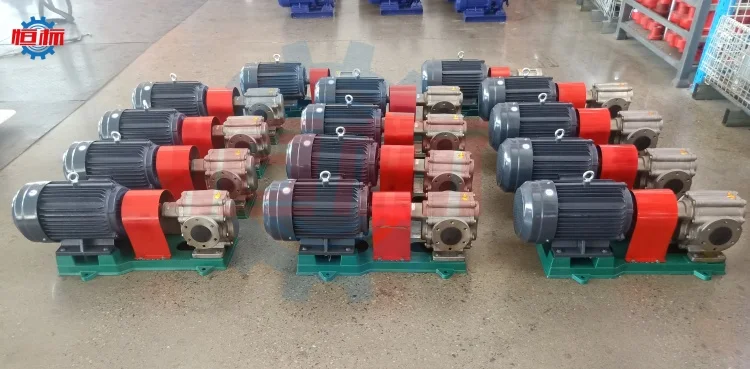

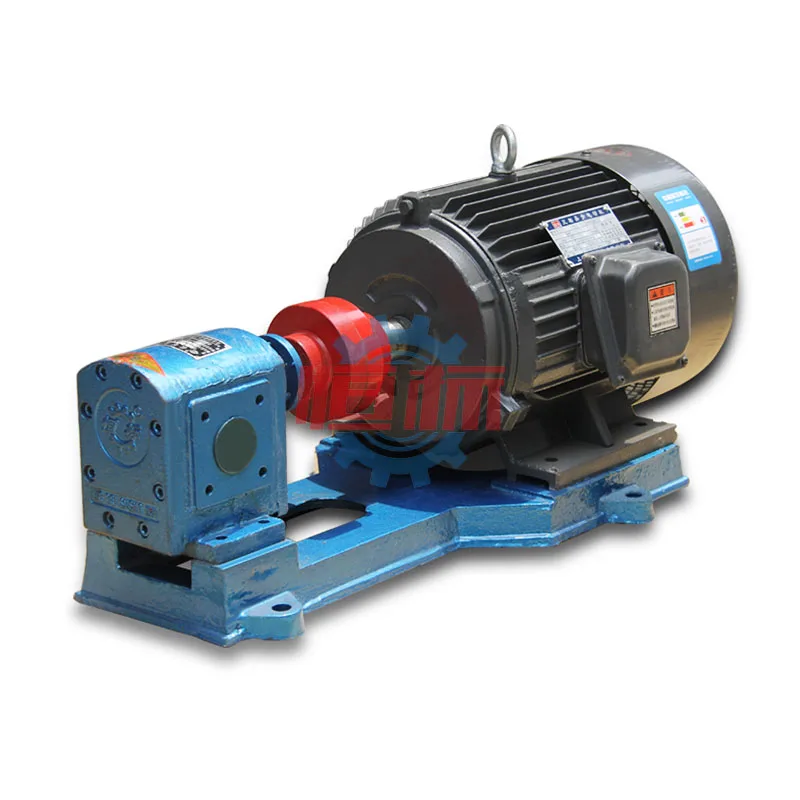

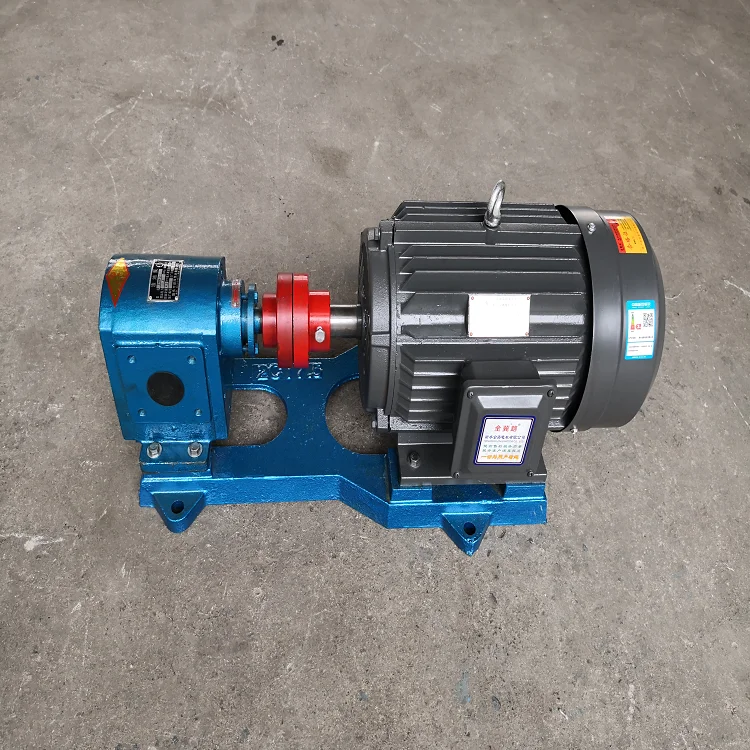

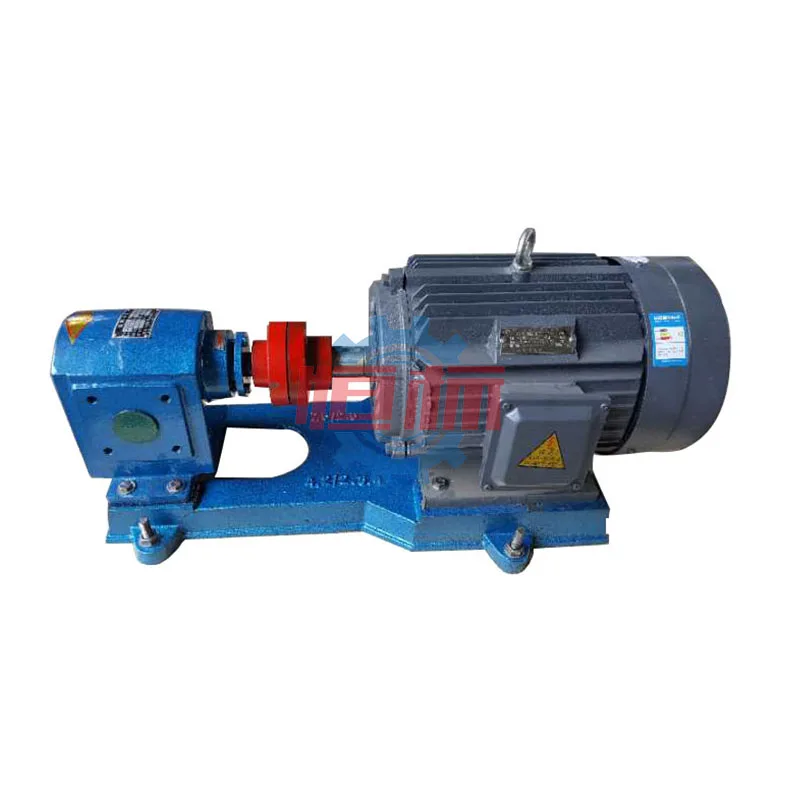

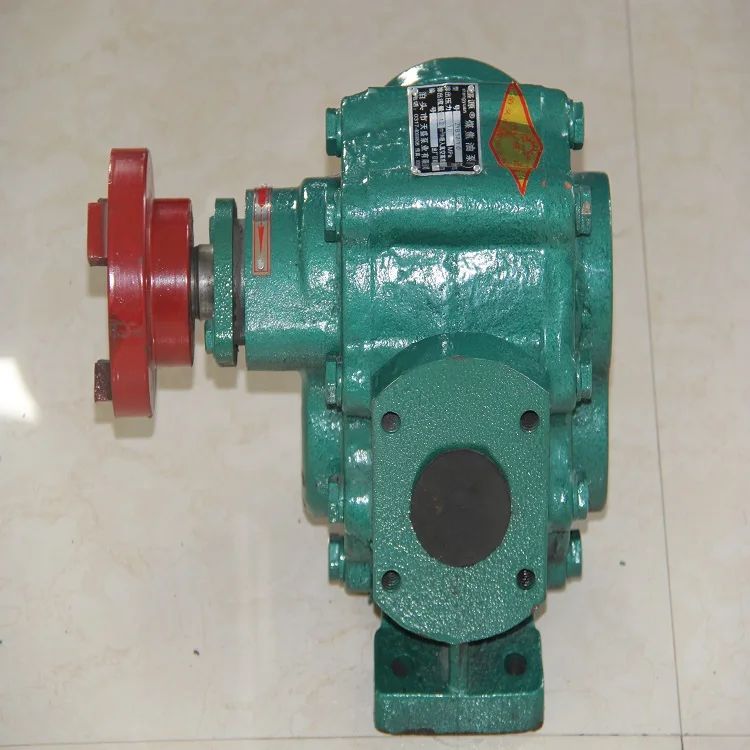

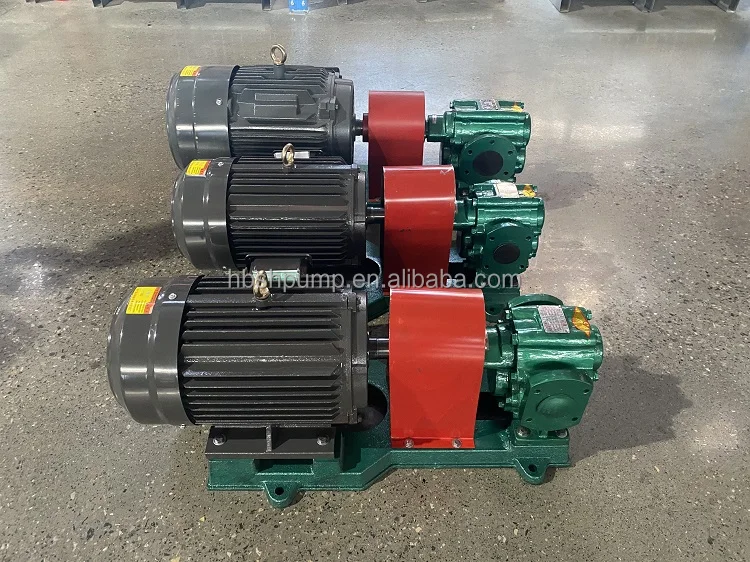

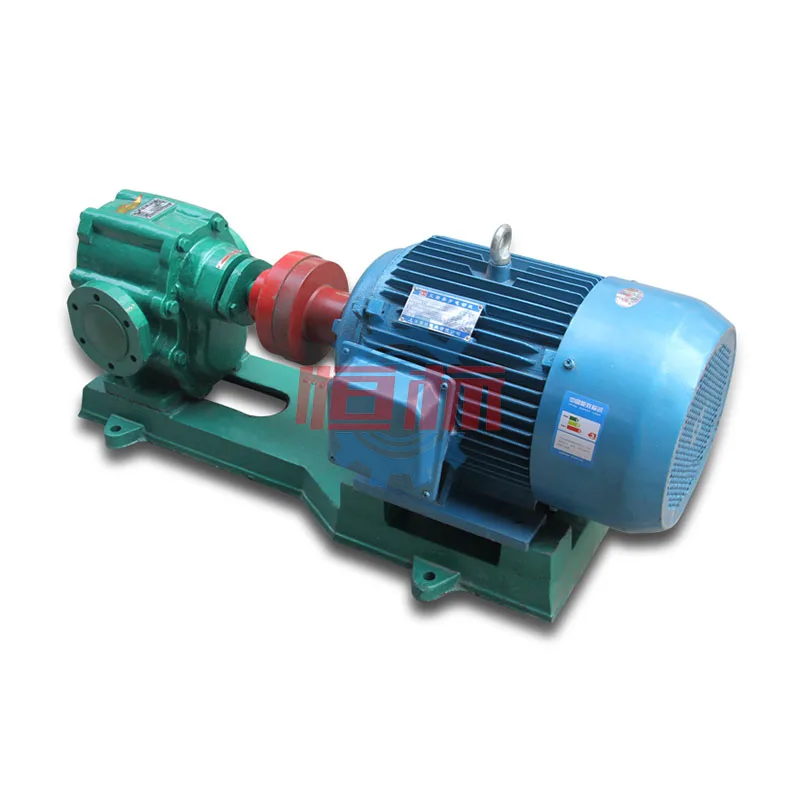

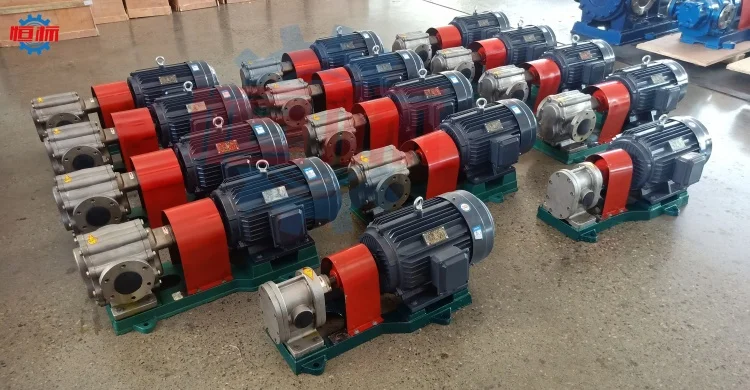

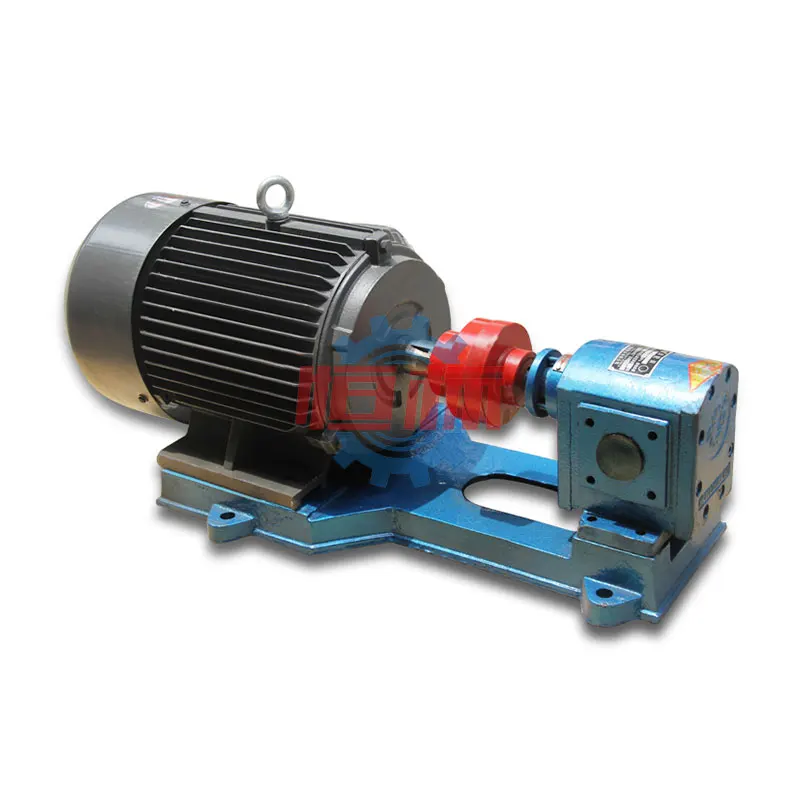

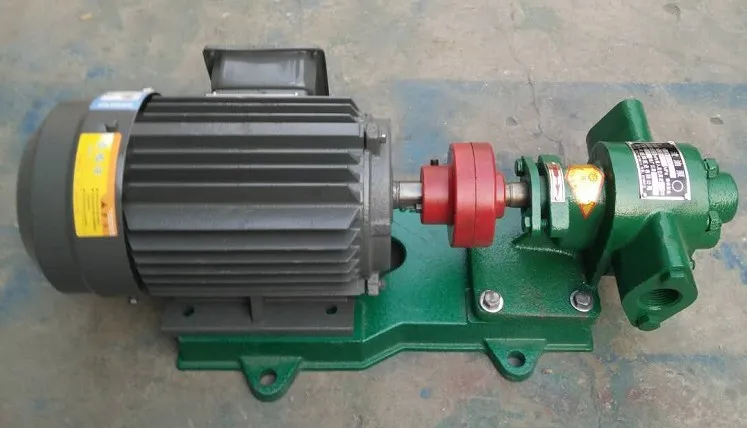

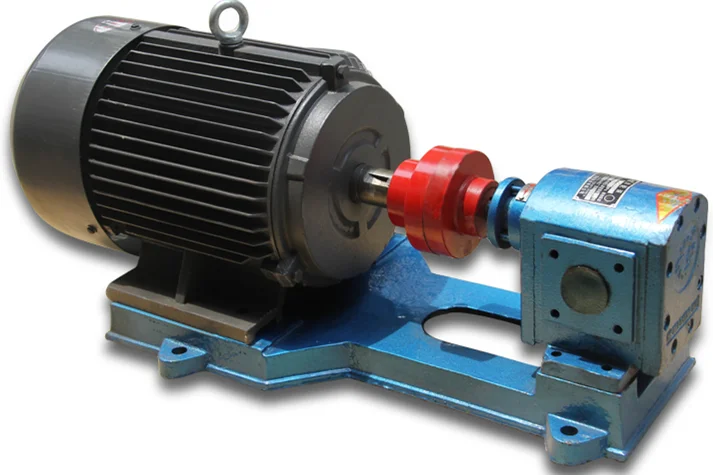

Physical display
More
Company Information

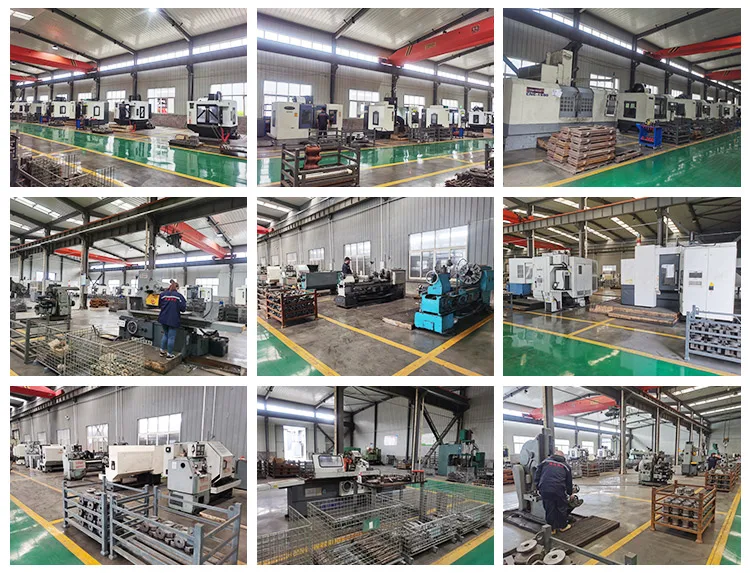

HEBEI SHENGHUI PUMP CO., LTD. is founded in 2010, is a manufacturer of pumps with integrating design, research and development, production, sales and installation in botou city Hebei Province. Standard industrial workshops 15,000m³, more than 50 imported equipment for processing and assembling with large and medium sizes, and more than 100 workers including over 20 administrators with intermediate and senior title and engineering technicians. Mainly produce: external&internal gear pumps, lobe pumps, centrifugal pumps, screw pumps, multi-stage pumps, chemical pumps, vacuum pumps and other series pump(about 4200 models), widely used in petroleum, chemical, food oil,marine industries, building use material and other liquid industries. SHENGHUI PUMP has passed the international ISO9001:2015 authentication, possessing the independent right to import and export since 2010. While expanding domestic market percentage constantly, our products are being exported to The United States, Canada, Mexico, Brazil, Chile, Peru, venezuela, Russia, Ukraine, England, France, Germany, Vietnam, Malaysia, Indonesia, the Philippines, Australia, Saudi Arabia, uzbekistan, kazakhstan, Cameroon, Tanzania and Nigeria and so on, more than 87 countries and regions totally.
FAQ
Q1. Are you trade company or manufacturer?
A1. We are a manufacturing vendor with an international sales department specialized in support for global distributors.
Q2. Which payment terms can be accepted?
A2. We accept Alibaba Trade Assurance Order, Western Union,also can T/T.
Q3. How long for your delivery time?
A3. It will take about 3-25days to finish an order, but the exact time is according to actual situation.
Q4.How long is the warranty?
A4. 12 Months, excluding the artificial damage.
Q5. Can we become your distributor in our country?
A5. Yes, we very welcome you! More details will be discussed if you are interested.
Any more questions, pls feel free to contact us.
