Vertical 5kw 10kw Wind Turbine Generator with Mppt Charge Controller Inverter Dynamo 24v 48v 120v for Farm Home Use
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.
Share on (1601280335505):
Product Overview
Description
You May Like
Recommended For
--Household,Garden,Farm,Urban,Rooftop
--Telecom sites
--Rural electrification programs.Island,sentry,island,sight lighting
--Automatic speed reduction protection
--Automatic speed reduction protection
Specification
Model | RX-XV600 | RX-XV1000 | RX-XV2000 | RX-XV3000 | RX-XV3500 | RX-XV4000 | |||||
Rated Power | 600W | 1000W | 2000W | 3000W | 3500W | 4KW | |||||
Max Power | 630W | 1100W | 2200W | 3200W | 4000W | 4.5KW | |||||
Blades Length | 1.0M | 1.0M | 1.35M | 1.65M | 1.65M | 2.1M | |||||
Wheel Diameter | 0.62M | 0.62M | 1.0M | 1.2M | 1.2M | 1.4M | |||||
Rated Voltage | 12V~24V | 12V~48V | 24V~48V | 24V~220V | 24V~220V | 24V~220V | |||||
Start Up Speed | 1.2m/s | 1.2m/s | 1.5m/s | 1.5m/s | 1.5m/s | 1.5m/s | |||||
Rated Speed | 10m/s | 10m/s | 11m/s | 11m/s | 11m/s | 11m/s | |||||
Cut-in Speed | 2.5m/s | 2.5m/s | 3.0m/s | 3.0m/s | 3.0m/s | 3.5m/s | |||||
Survival Speed | 40m/s | 45m/s | 45m/s | 40m/s | 40m/s | 40m/s | |||||
Blades Quantity | 3 | 3 | 3 | 3 | 3 Include inner boost drum | 3 pcs Include inner boost drum | |||||
Blades Material | Fiber glass | Fiber glass | Fiber glass | Fiber glass | Fiber glass | Fiber glads | |||||
Generator Type | Maglev Levitation Permanent magnet Generator | ||||||||||
Working Temperature | -40℃~+40℃ | ||||||||||
Protection Level | IP54 | ||||||||||
Working environment humidness | ≤90% | ||||||||||
Altitude | ≤4500m | ||||||||||
Install Height | 3~12m | ||||||||||
Overload Protection | Electromagnetic Brake | ||||||||||
Model | RX-XV5000 | RX-XV6000 | RX-XV8000 | RX-XV10K | RX-XV15K | RX-XV20K | RX-XV25K | ||||||
Rated Power | 5KW | 6KW | 8KW | 10KW | 10KW | 20KW | 25KW | ||||||
Max Power | 5.5KW | 6.5KW | 8.5KW | 11KW | 16KW | 22KW | 27KW | ||||||
Blades Length | 1.8M | 2.8M | 2.8M | 3.2M | 3.6M | 4.2M | 5.0M | ||||||
Wheel Diameter | 1.6M | 1.8M | 1.8M | 2.0M | 2.4M | 3.0M | 3.0M | ||||||
Rated Voltage | 48V~220V | 48V~220V | 48V~220V | 48V~380V | 96V~380V | 96V~380V | 96V~380V | ||||||
Start Up Speed | 1.5m/s | 1.5m/s | 1.5m/s | 1.5m/s | 1.5m/s | 1.5m/s | 1.5m/s | ||||||
Rated Speed | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s | ||||||
Cut-in Speed | 3.5m/s | 3.5m/s | 3.5m/s | 3.5m/s | 3.5m/s | 3.5m/s | 3.5m/s | ||||||
Survival Speed | 40m/s | 40m/s | 40m/s | 45m/s | 45m/s | 45m/s | 45m/s | ||||||
Blades Quantity | 3 PCS | 3 pcs Include boost drum | 3 pcs Include double boost drum | ||||||||||
Blades Material | Fiber glass | ||||||||||||
Generator Type | Maglev coreless generator | Iron-core generator | Axial flux coreless disc type permanent magnet generator | ||||||||||
Working Temperature | -40℃~+40℃ | ||||||||||||
Protection Level | IP54 | ||||||||||||
Working environment humidness | ≤90% | ||||||||||||
Altitude | ≤4500m | ||||||||||||
Install Height | 3~12m | ||||||||||||
Overload Protection | Electromagnetic Brake | ||||||||||||
Gross Weight | 141kg | 198kg | 260kg | 273kg | 350kg | 400kg | 500kg | ||||||
Packing List(cm) | 233*42*70 120*42*42 | 295*54*42 51*49*55 102*102*40 | 102*102*41 50*56*55 320*54*42 | 48*48*40 103*103*38 320*53*42 | 42*74*54 103*103*42.5 | 46*74*54 103*103*42.5 | 52*74*60 103*103*50 | ||||||

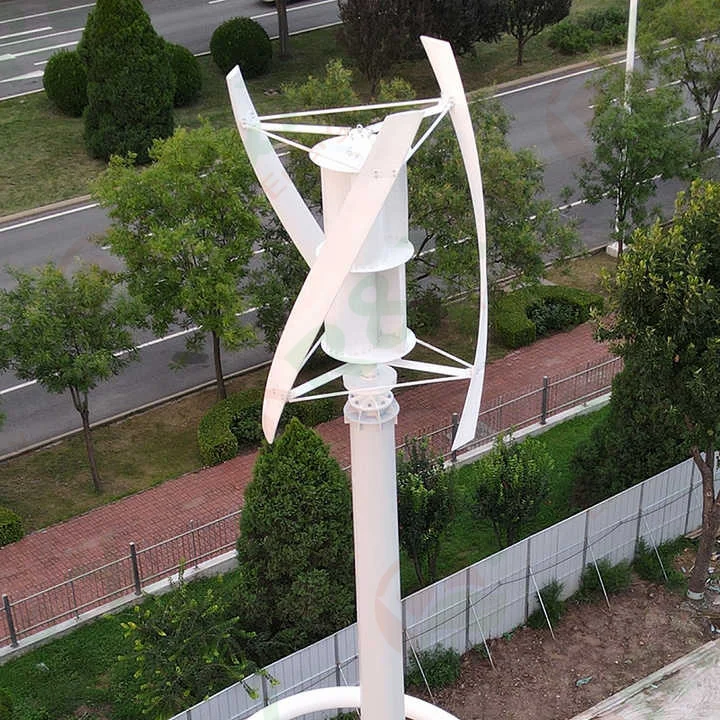

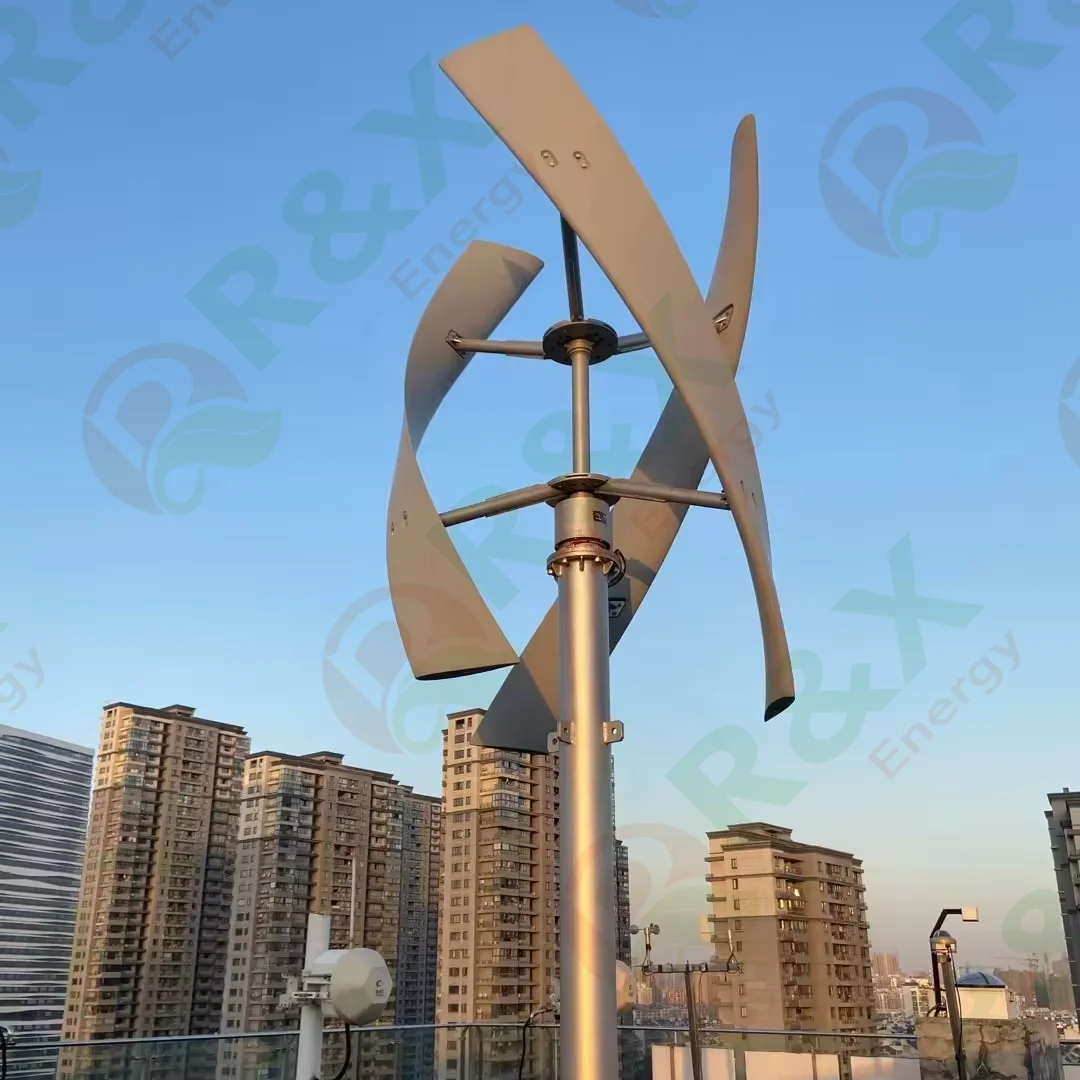

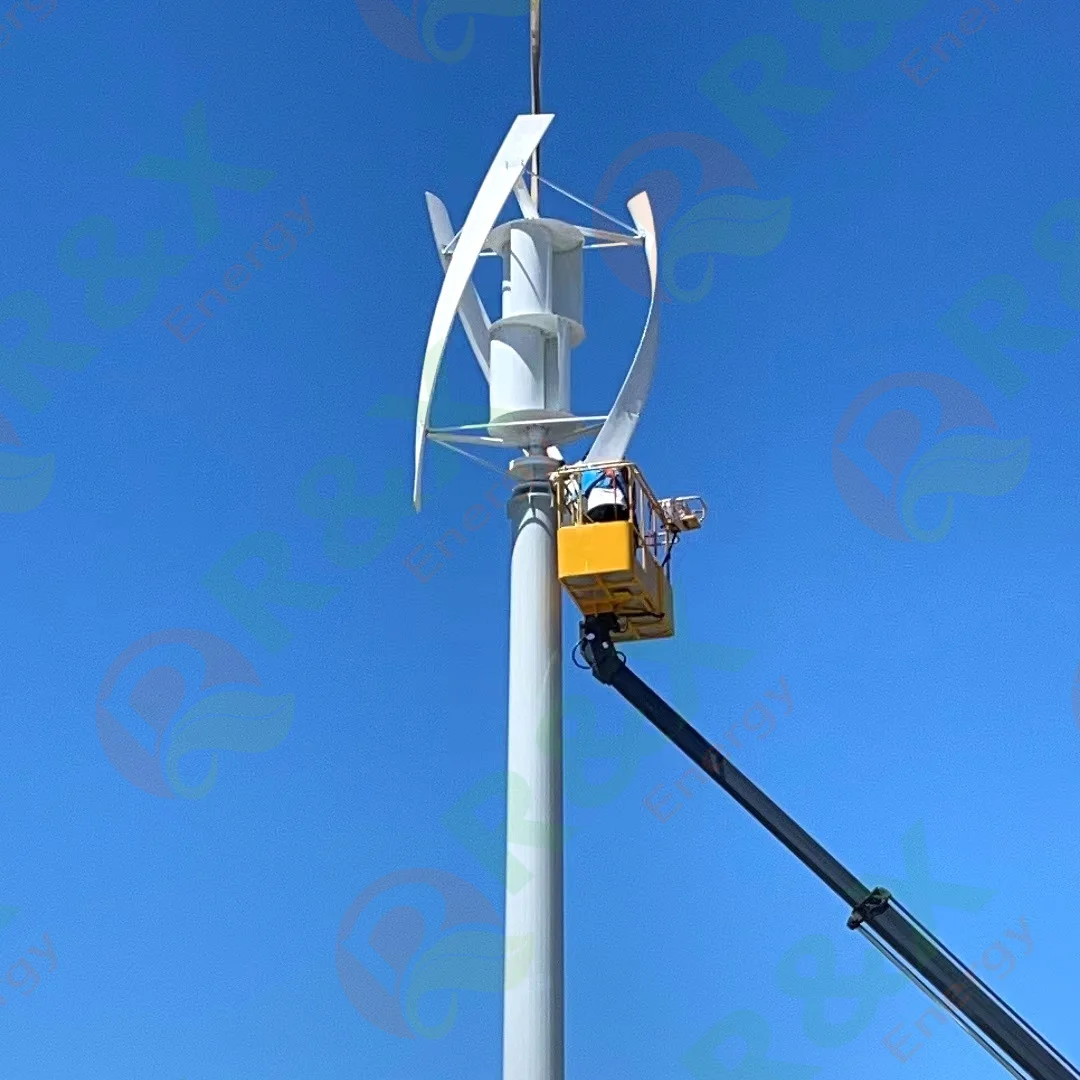

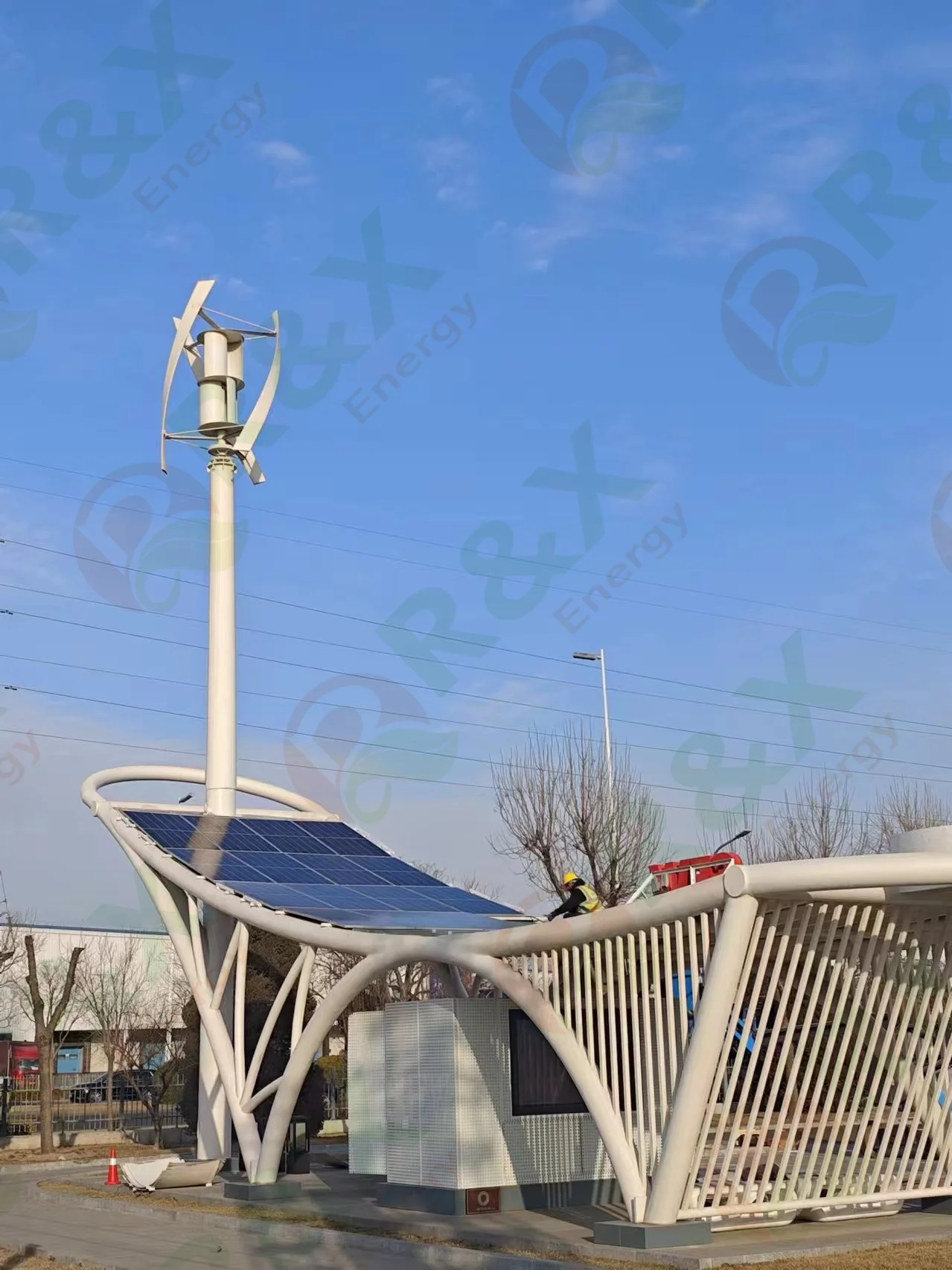

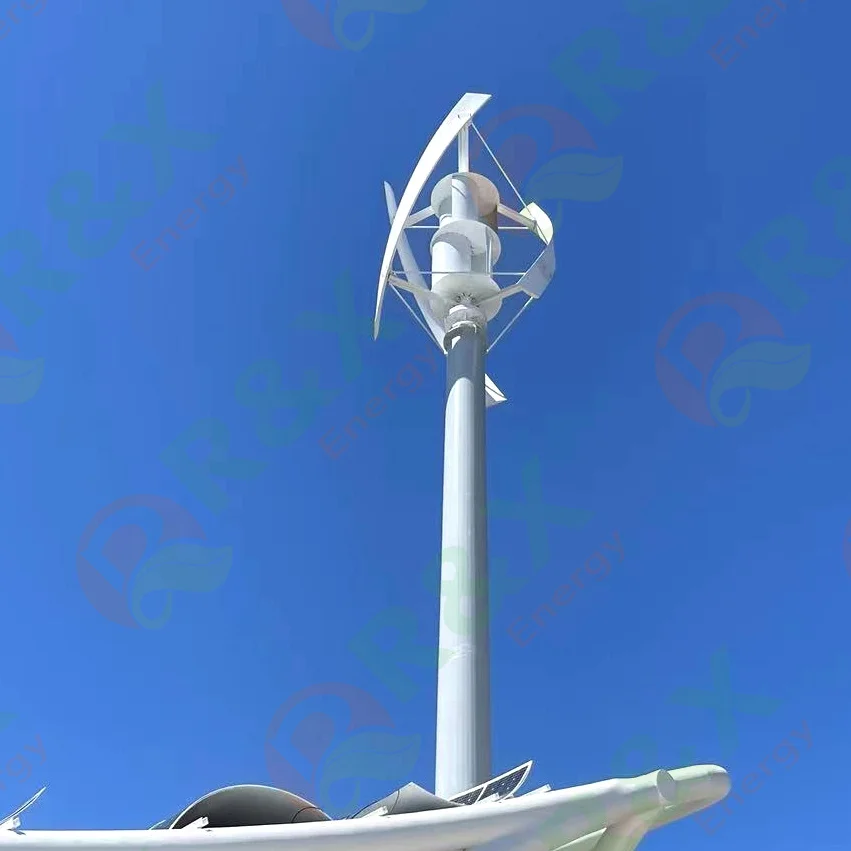

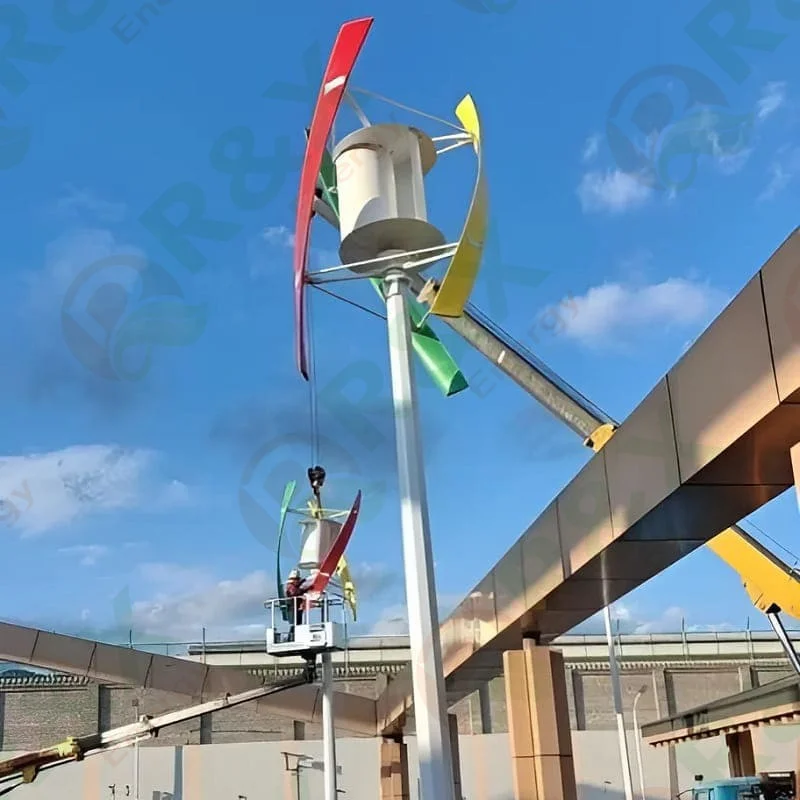

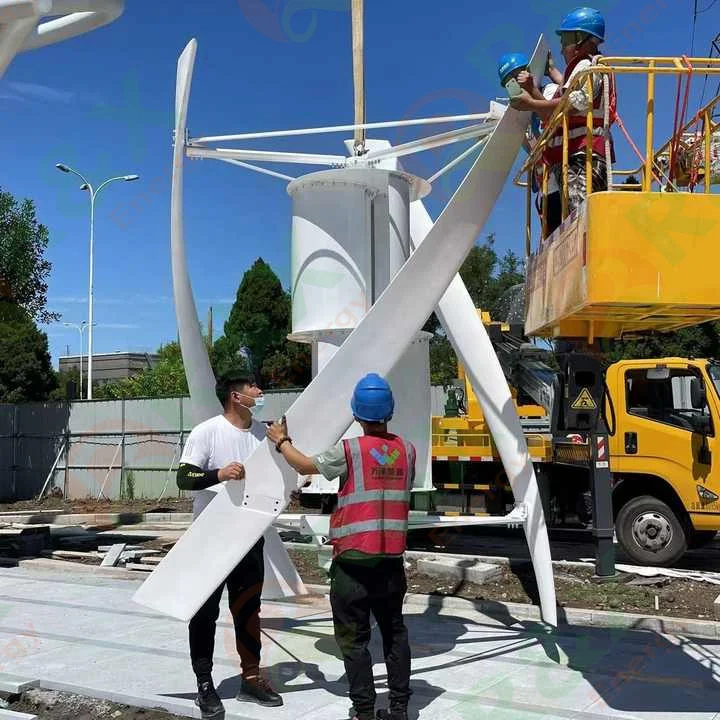

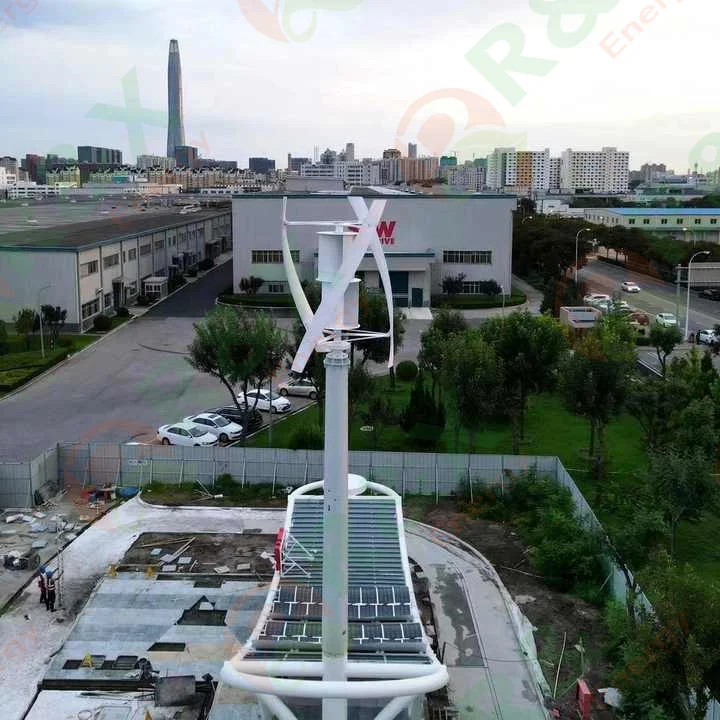

Project Photos Show

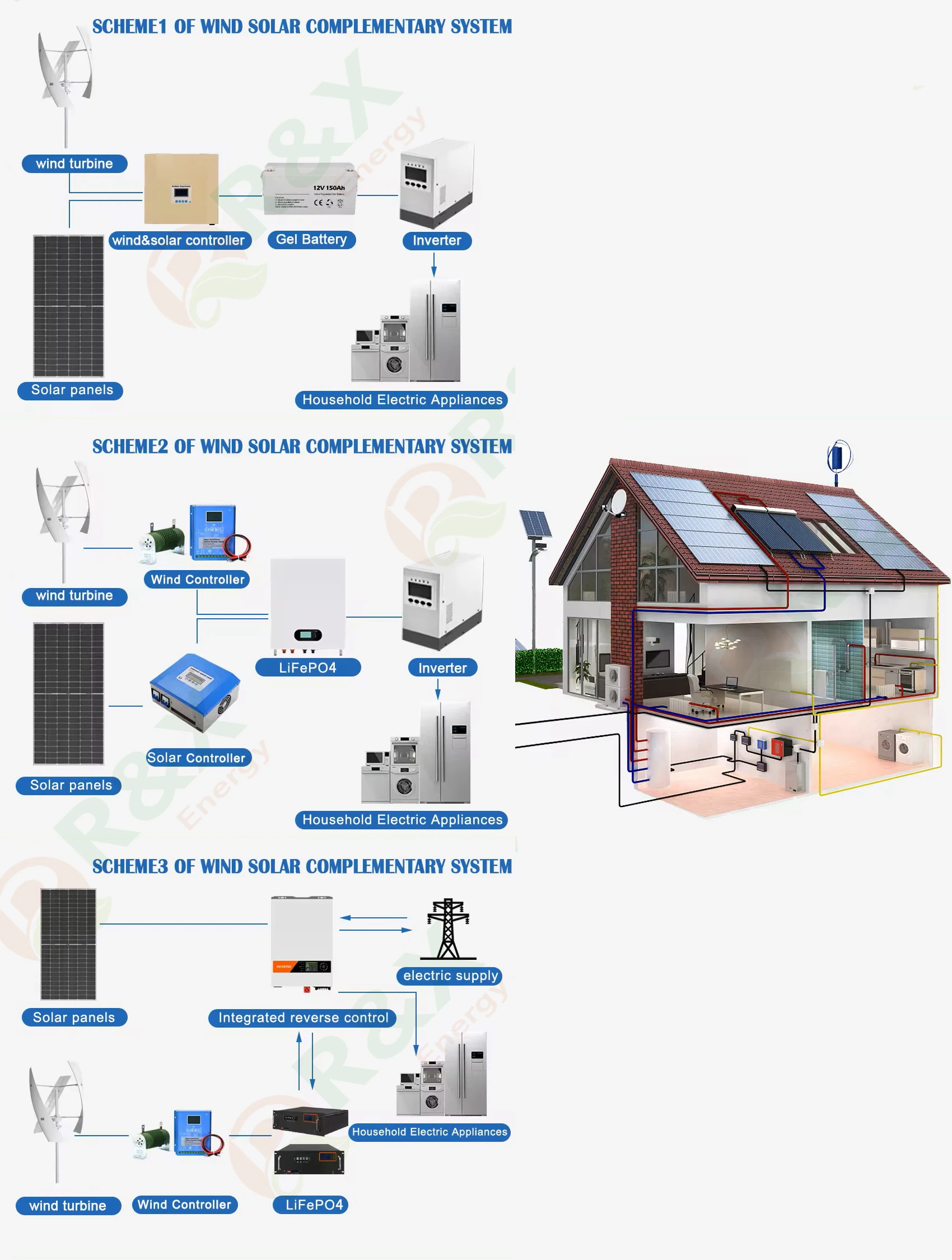

Wiring Diagram
