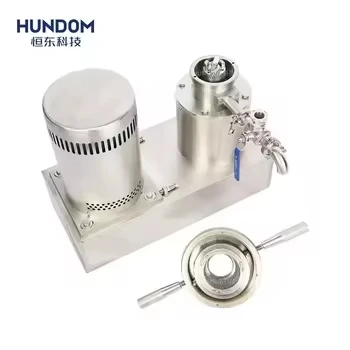

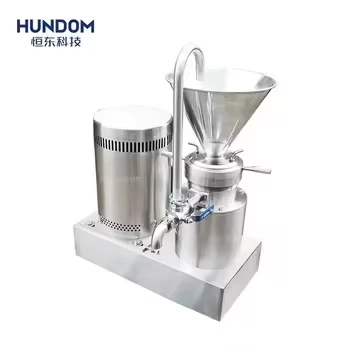

China Factory Stainless Steel Colloid Mill For Ketchup Chili Sauce Sesame Peanut Butter Making Machine
- Category: >>>
- Supplier: Zhejiang Hengdong Stainless Steel Co. Ltd.
Share on (1601280360551):
Product Overview
Description
Products Description
Working Principle:
Colloid mill is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative
movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed, vortex and others at the same time, so as to achieve the effect of fine and super micro.
movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed, vortex and others at the same time, so as to achieve the effect of fine and super micro.

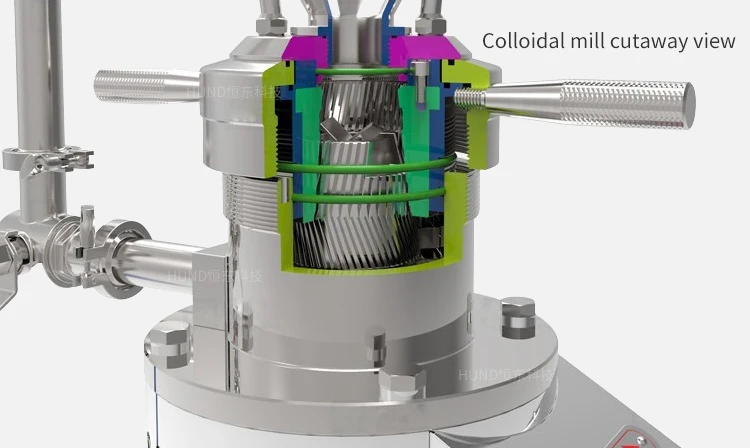

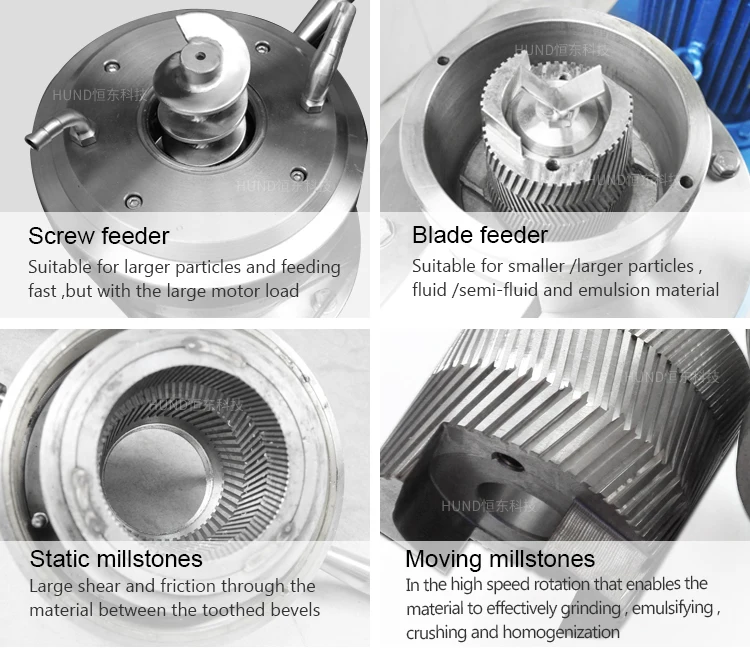

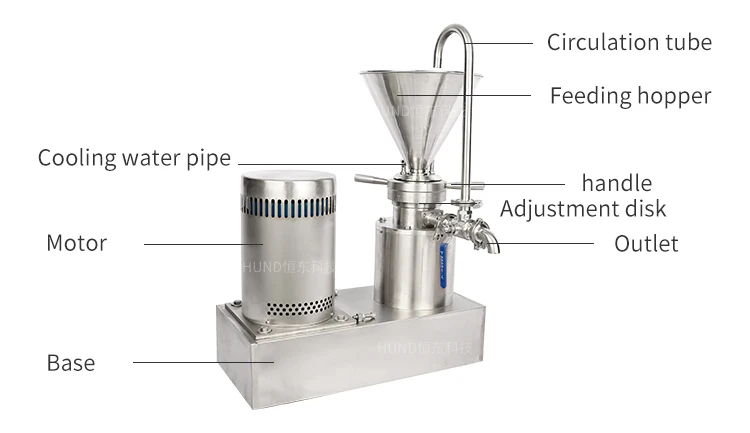

Structure:

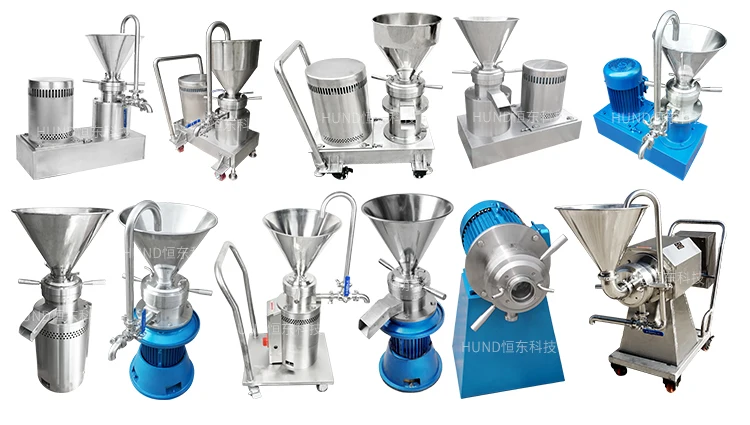

Styles：

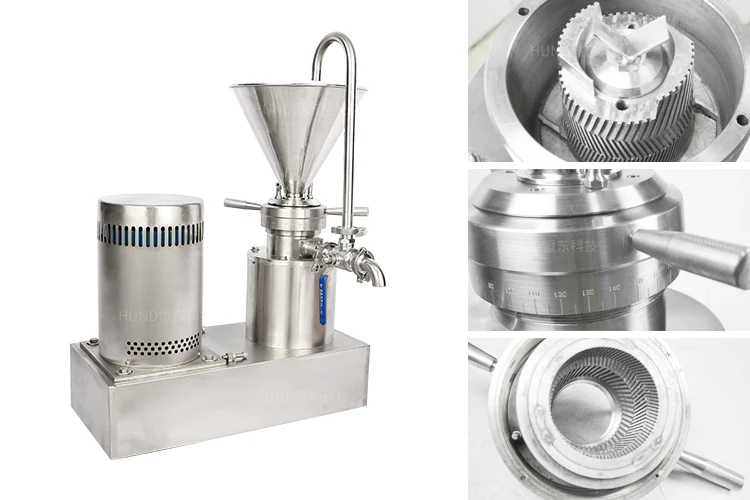

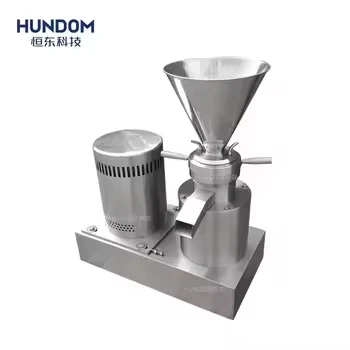

With stainless steel shell Painting
If the motor is exposed, the paint will fall off after a long time.
With a stainless steel shell can protect the motor, which is hygienic and convenient to clean.

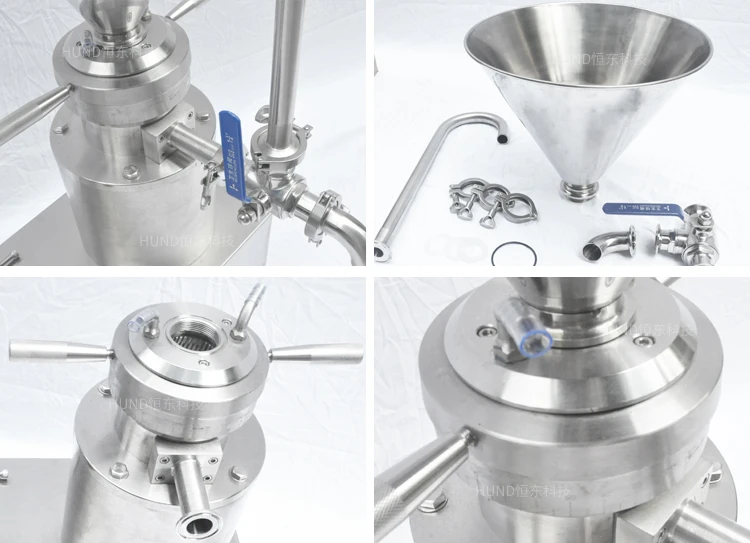

square mouth
circulation pipe
cart

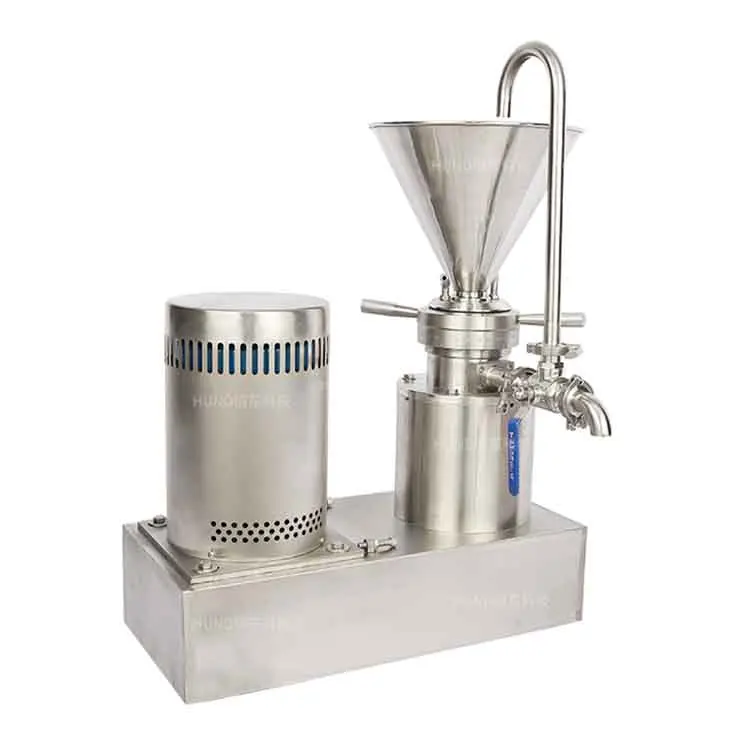

JML-Vertical
The motor and the grinding disc are integrated,compact construction, less area occupied,driven by the shaft.

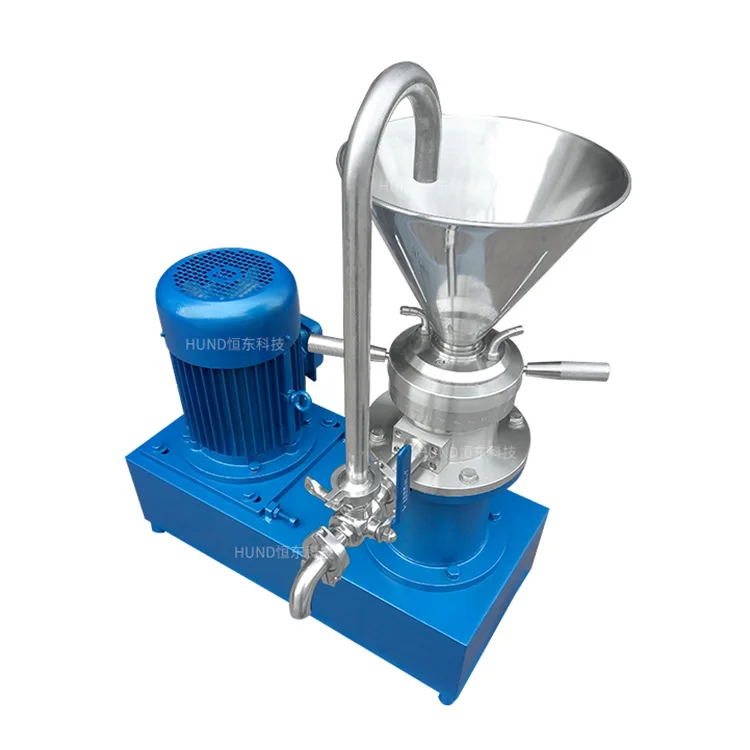

JMF-Split
The motor is separated from the grinding disc,even if the material water splashes out, the probability of the motor being burned is very low; driven by the belt pulley.
JMW-Horizontal
It is applicable to thin materials, which is connected with pipeline and directly transport the materials after grinding
Parameters：
Model | Motor power (KW) | Fineness (um) | Output (T/h) | Disc diameter (mm) | Cooling water pipe(mm) | Inlet/ Outlet (mm) | Speed (rpm) | Dimensions (mm) | weight (kg) |
JML-50 | 1.5(220V) | 2-40 | 0.01-0.1 | 50 | 10 | 2800 | 270*500*700 | 55 | |
JML-50 | 1.1(380V) | 255*500*700 | 50 | ||||||
JML-65 | 1.5 | 65 | 270*500*700 | 57 | |||||
JMF-65 | 2.2 | 500*345*675 | 70 | ||||||
JMW-80 | 3 | 0.3-1 | 80 | 12 | 48/25 | 630*380*790 | 75 | ||
JML-80 | 3 | 335*570*920 | 85 | ||||||
JMF-80 | 4 | 700*570*920 | 140 | ||||||
JMW-100 | 5.5 | 0.5-2 | 100 | 66/25 | 680*370*900 | 115 | |||
JML-100 | 5.5 | 390*645*980 | 145 | ||||||
JMF-100 | 5.5/7.5 | 800*645*980 | 230 | ||||||
JMW-120 | 7.5 | 0.5-3 | 120 | 66/32 | 680*370*900 | 120 | |||
JML-120 | 7.5 | 0.5-3 | 390*645*980 | 150 | |||||
JMF-120 | 7.5 | 800*645*980 | 240 | ||||||
JMW-140 | 7.5 | 140 | 680*370*900 | 160 | |||||
JML-140 | 7.5 | 390*745*1020 | 180 | ||||||
JMF-140 | 7.5/11 | 800*750*1020 | 290 | ||||||
JMF-180 | 15 | 1-7 | 180 | 100/38 | 900*850*1200 | 360 | |||
JMF-200 | 18.5/22 | 1-10 | 200 | 900*850*1200 | 400 |

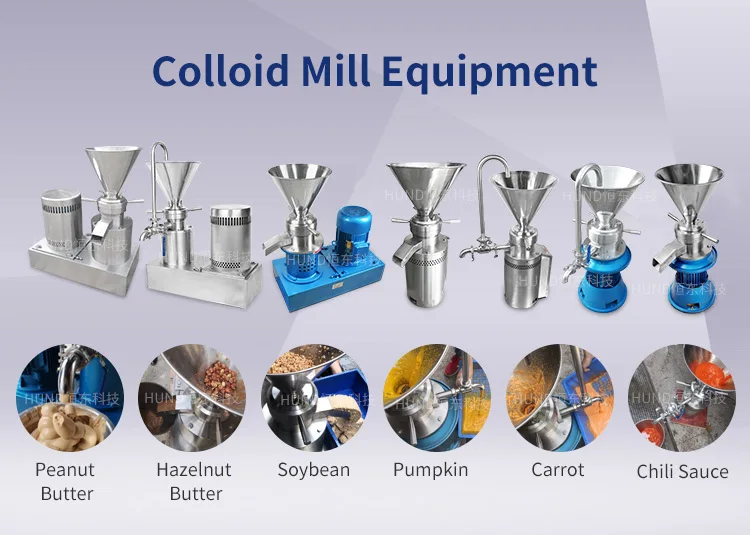

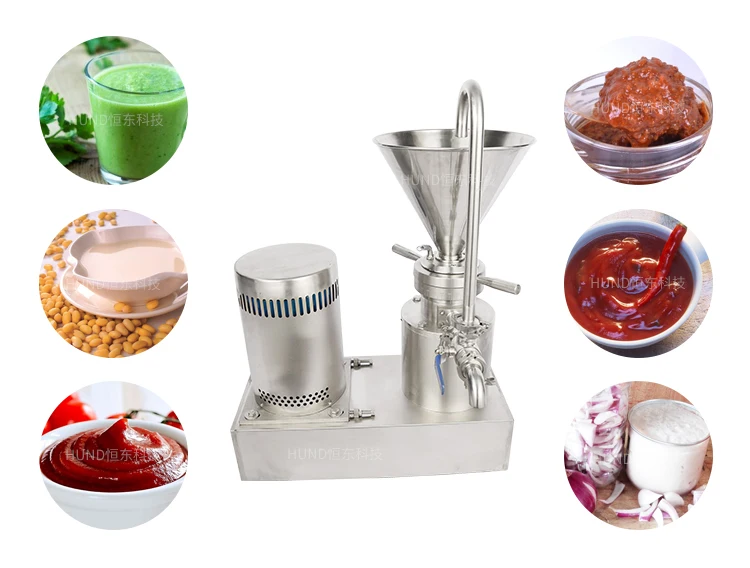

Food industry: aloe vera, tea, ice cream, butter, jam, fruit juice, tomato paste, soybean paste, peanut butter, sesame, chili
sauce, red bean, protein milk, soy milk, dairy products, variety of drinks, chicken emulsion mud, emulsion pigskin and other
animal skins, animal organs and so on.
Chemical industry: paint, pigment, dye, lubricants, grease, diesel, petroleum catalyst, emulsified asphalt, adhesives, plastics,glass steel, leather, emulsion explosives, etc.
Daily Chemical industry: toothpaste, detergent, shampoo, shoe polish, cosmetics, bath essence, soap, balsam, etc.
Pharmaceutical industry: all kinds of syrup, nutrition, medicinal paste pharmaceutical, biological products, cod liver oil,
pollen, royal jelly, vaccines, various creams, a variety of oral, injection, pancreatic enzyme preparations, etc.
sauce, red bean, protein milk, soy milk, dairy products, variety of drinks, chicken emulsion mud, emulsion pigskin and other
animal skins, animal organs and so on.
Chemical industry: paint, pigment, dye, lubricants, grease, diesel, petroleum catalyst, emulsified asphalt, adhesives, plastics,glass steel, leather, emulsion explosives, etc.
Daily Chemical industry: toothpaste, detergent, shampoo, shoe polish, cosmetics, bath essence, soap, balsam, etc.
Pharmaceutical industry: all kinds of syrup, nutrition, medicinal paste pharmaceutical, biological products, cod liver oil,
pollen, royal jelly, vaccines, various creams, a variety of oral, injection, pancreatic enzyme preparations, etc.

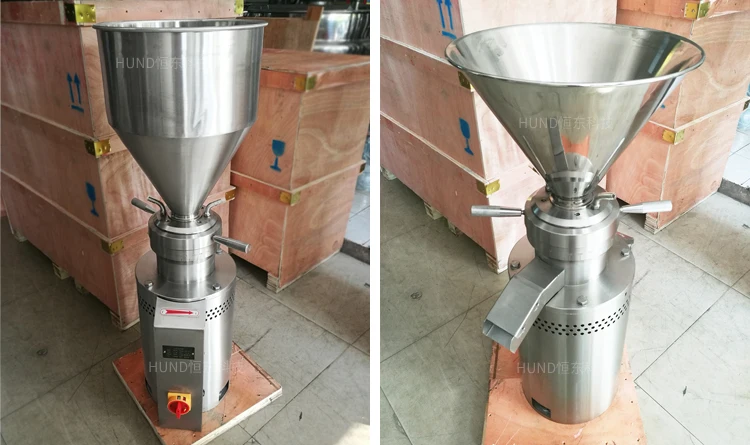

Product showing:
Recommend Products

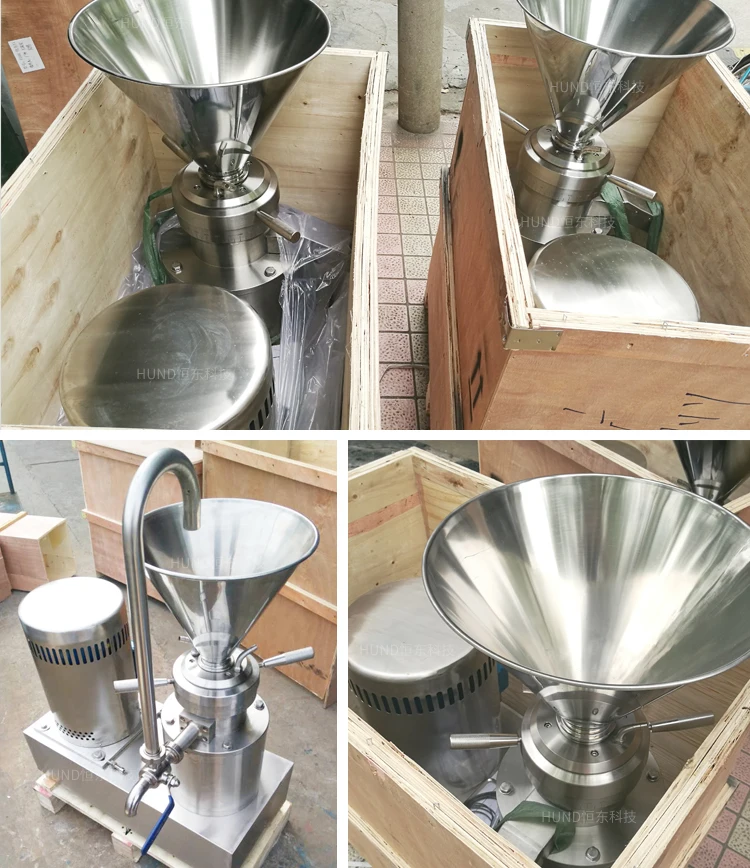

Packing and shipping
Company Profile
HUNDOM is a high-tech enterprise integrating R&D, production and sales. We have more than 18 years of mechanical manufacturing experience. Main production: stainless steel mixing tank,homogeneous emulsion tank, in-line high shear pump,transfer pump,colloid mill, filters etc. HUNDOM has mature technology and high quality products to meet various requirements in the field of food, pharmaceutical and chemical industry.
With a high level of R&D system, HUNDOM constantly strives to improve product quality and technical standards, constantly develops product functions to enhance product life and adherence to precision manufacturing. The ex-factory products need to undergo strict quality inspection procedures to ensure that they meet the quality requirements and inspection standards of all walks of life. The mature technology and rigorous attitude are the guarantee of HUNDOM Technology’s product quality, to think what the customer thinks, and pleased what the customer likes. Provide a reasonable and effective equipment solution.
With a high level of R&D system, HUNDOM constantly strives to improve product quality and technical standards, constantly develops product functions to enhance product life and adherence to precision manufacturing. The ex-factory products need to undergo strict quality inspection procedures to ensure that they meet the quality requirements and inspection standards of all walks of life. The mature technology and rigorous attitude are the guarantee of HUNDOM Technology’s product quality, to think what the customer thinks, and pleased what the customer likes. Provide a reasonable and effective equipment solution.
Why Choose Us
FAQ
1. About Delivery term
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
