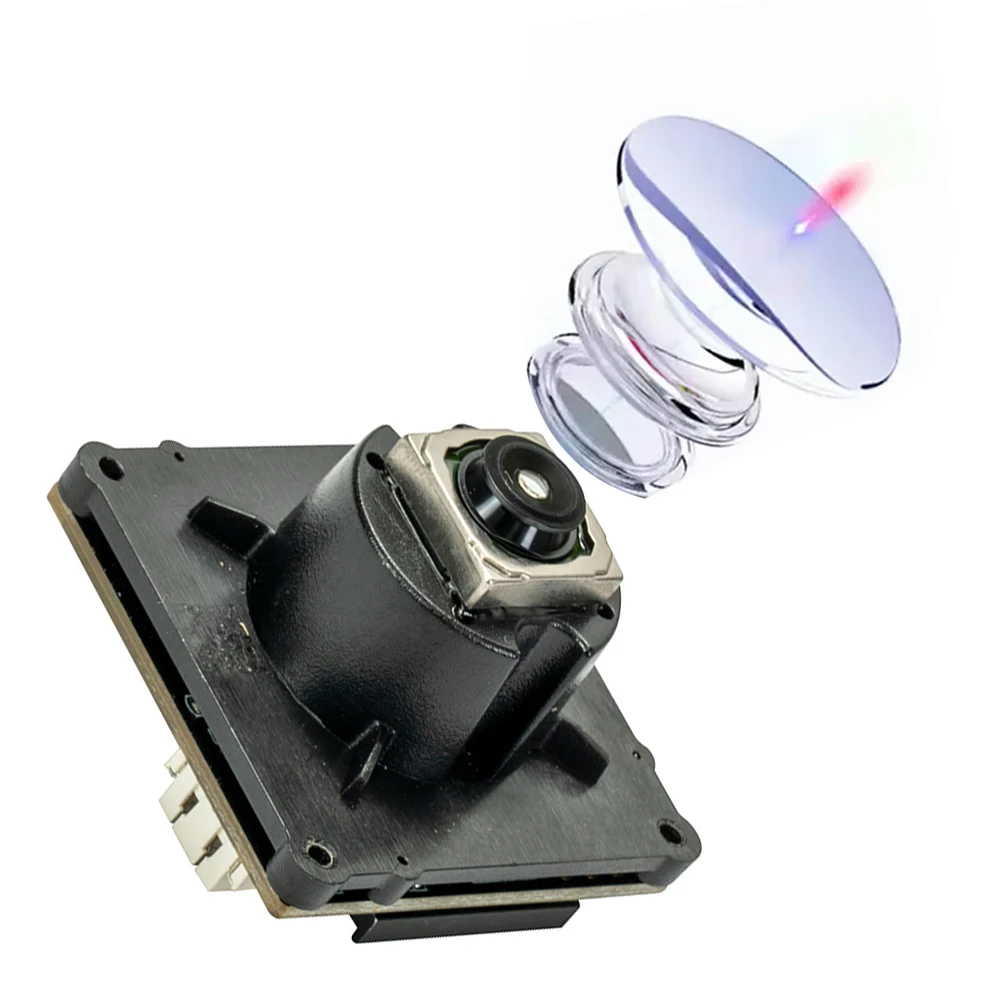

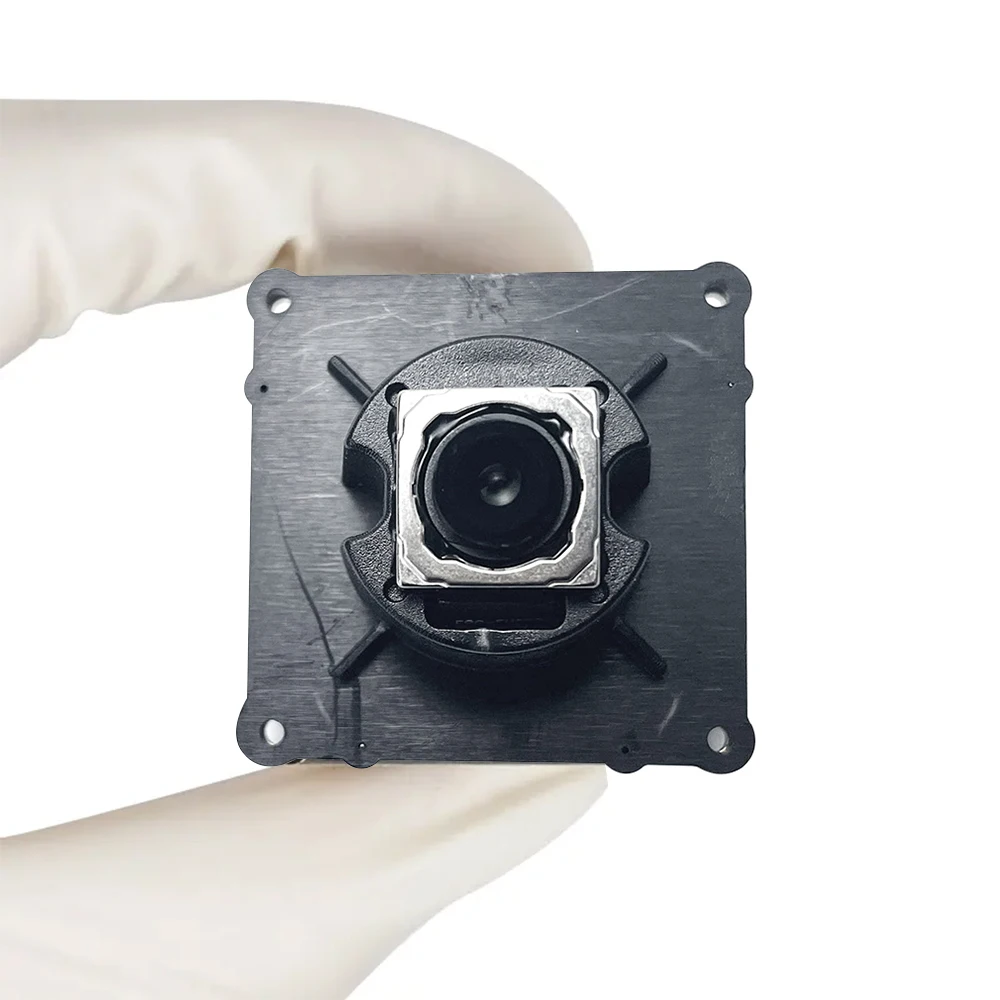

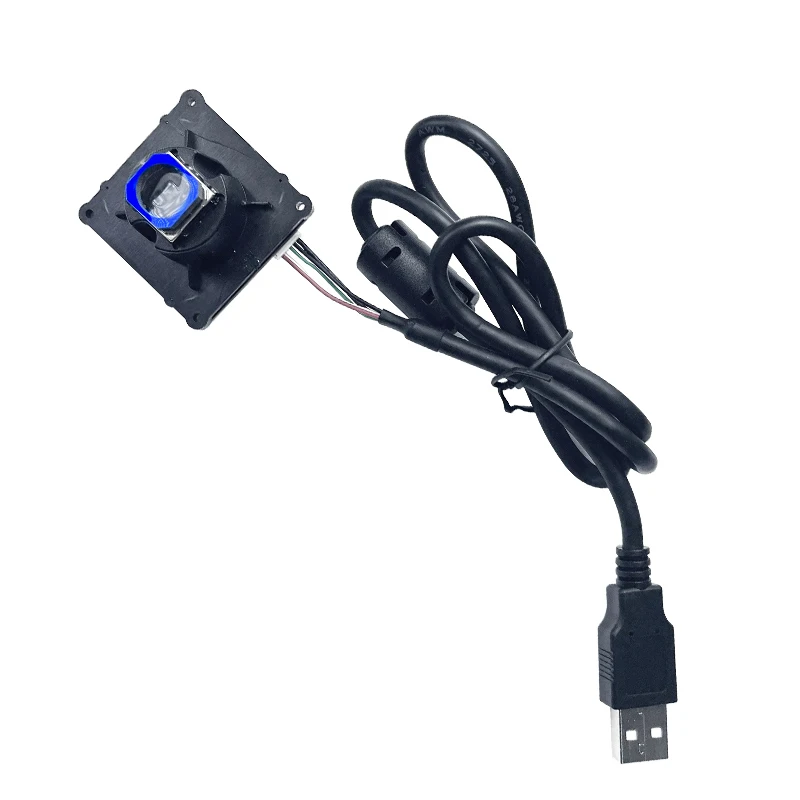

Custom Micro High Pixels Auto Focus 50MP IMX766 Camera Sensor USB 2.0 IMX 766 CMOS Sensor Mini Drone FPV USB Camera Module Hd
- Category: >>>
- Supplier: Shenzhen Wanling Electronics Co. Ltd.
Share on (1601280385398):

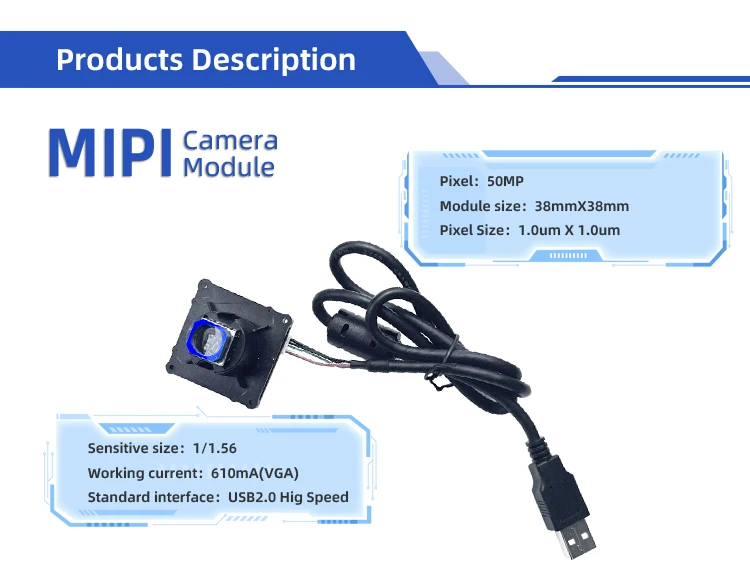

Product Overview
Description
Sensitive type | Sony IMX766 |

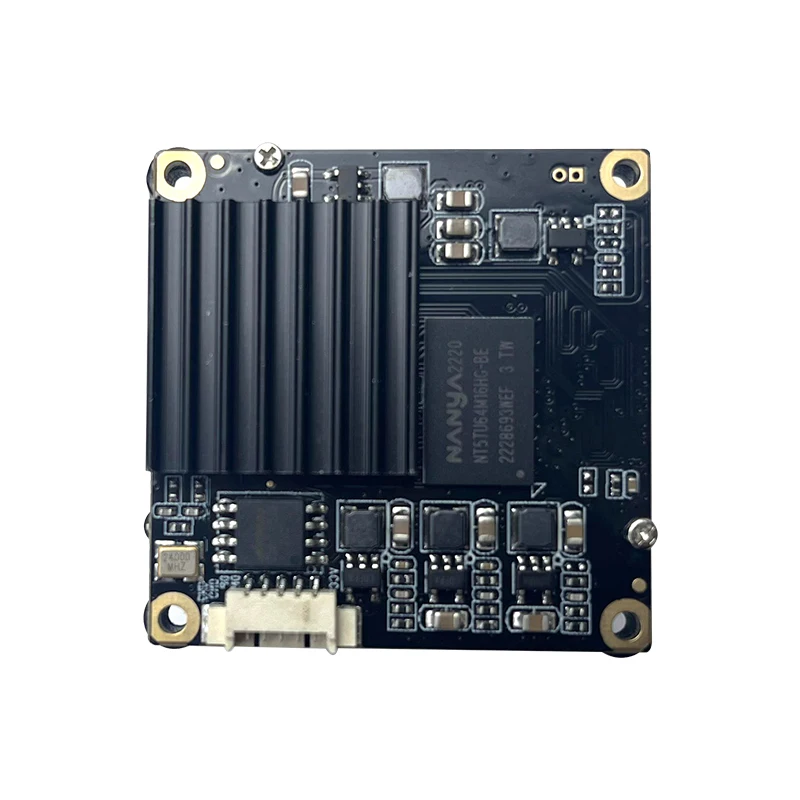

Module size | Double layer 38mmX38mm |
Sensitive size | 1/1.56 |
Pixel Size | 1.0um X 1.0um |
Production technology | SMT (ROSH) |
Imaging distance | 15CM~∞ |
Standard interface | USB2.0 Hig Speed |
Working current | 610mA(VGA) |
Operating voltage | USB-DC5V |
No-drive agreement | USB Video Class (UVC) |
Operating system | WindowsXP/7/8/10, UVC protocol support for Linux, Android, MAC-ios, Raspberry PI, etc. |
Adjustable parameter | Brightness,contrast,tone,saturation,sharpness, white balance,backlight contrast,exposure value |
Automatic exposure ABC | support |
Automatic white balance AEB | support |
Output format | MJPG /YUY2 |
Resolution frame rate | 5fps |
Shutter mode | Rolling shutter |
Driving mode | non-flooding |
Operating temperature | -20°c to 70°C |
Steady temperature | 0°C to 50°C |

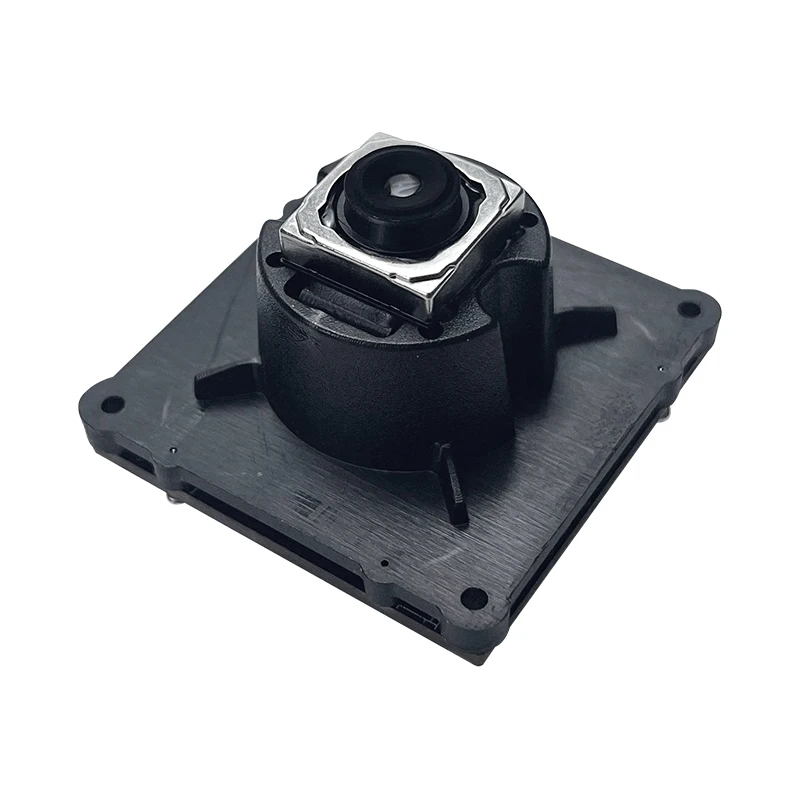

Lens support | 1/1.56-inch autofocus |
FOV | (HFOV) about 72 degrees |
(VFOV) About 55 degrees | |
(DFOV) about 84 degrees | |
Whether it is waterproof or not | No |
Whether SDK is provided | Can provide SDK to provide the code to take the image, C++ format |
Can support development interface | Windows,DirectShow,Halcon,OpenCV,LabView, etc. |
Development language | Unlimited, support for multiple development languages |
