Professional source factory make metal encoder disks chemical etching
- Category: >>>
- Supplier: Shenzhen Xinhaisen Technology Limited
Share on (1601280405441):
Product Overview
Description
CProfessional source factory make metal encoder disks chemical etching
Product Description

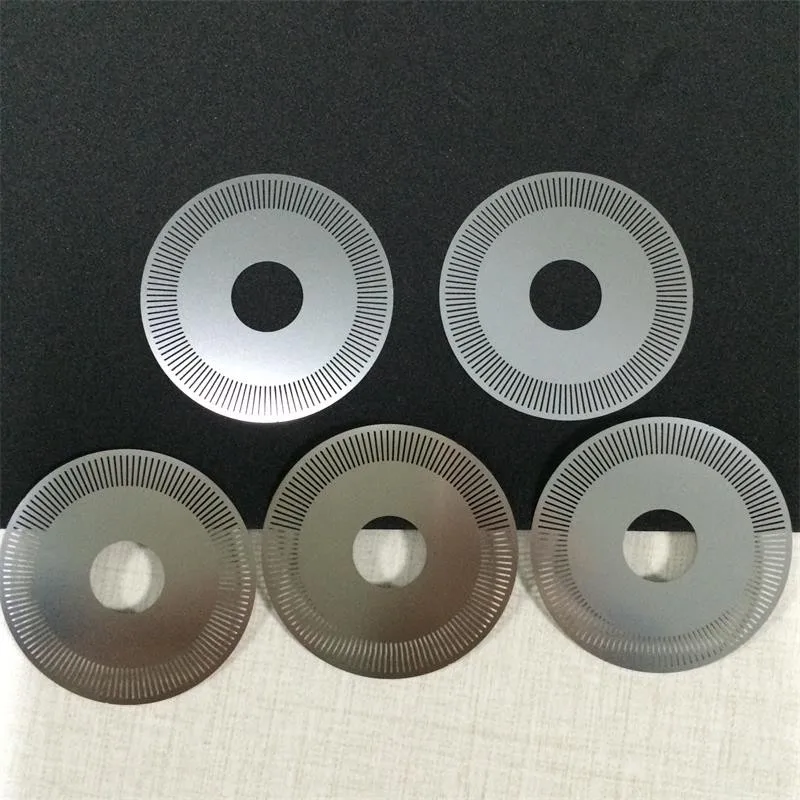

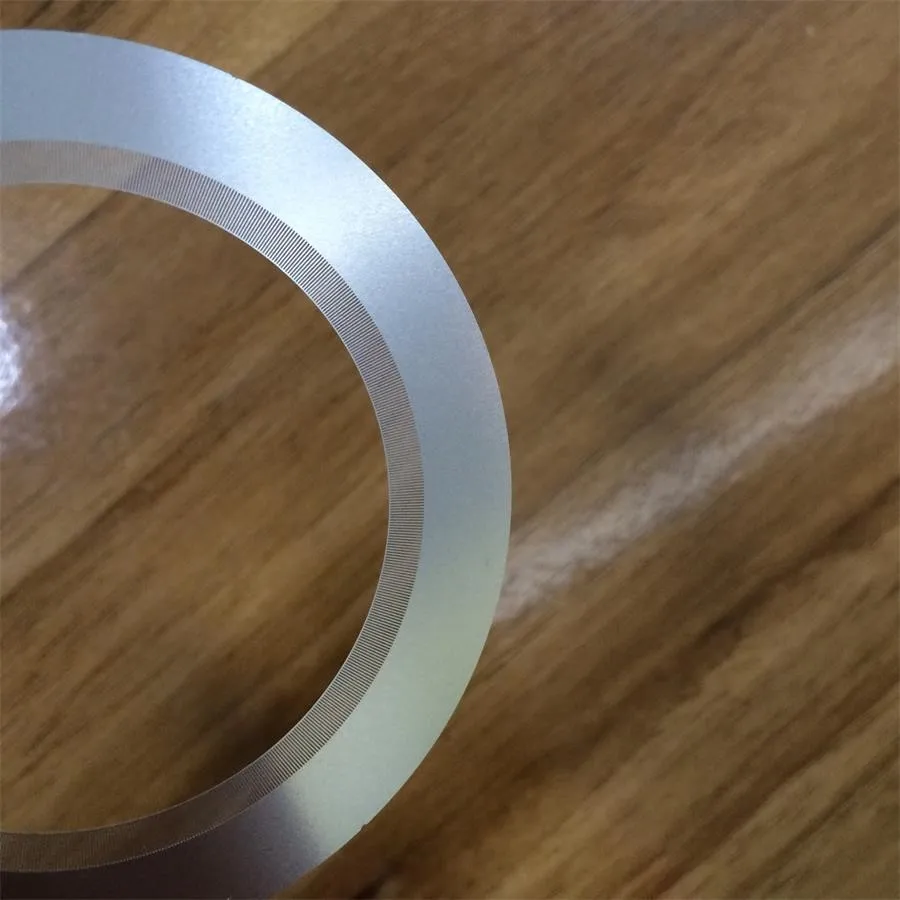

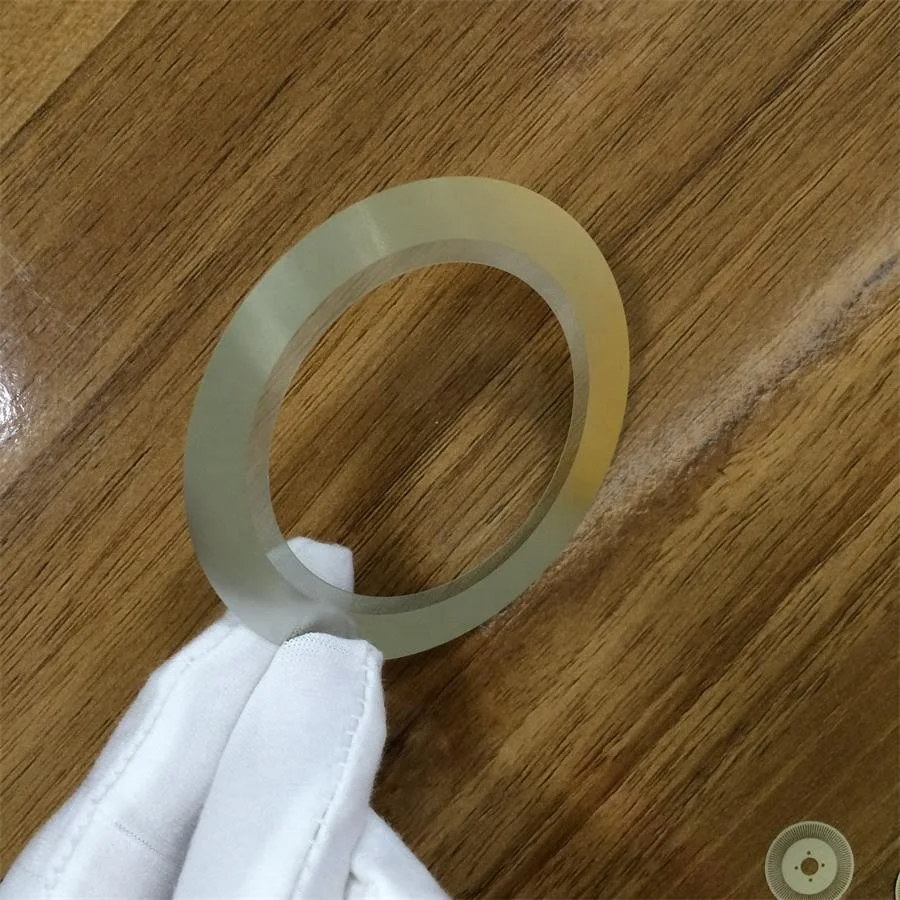

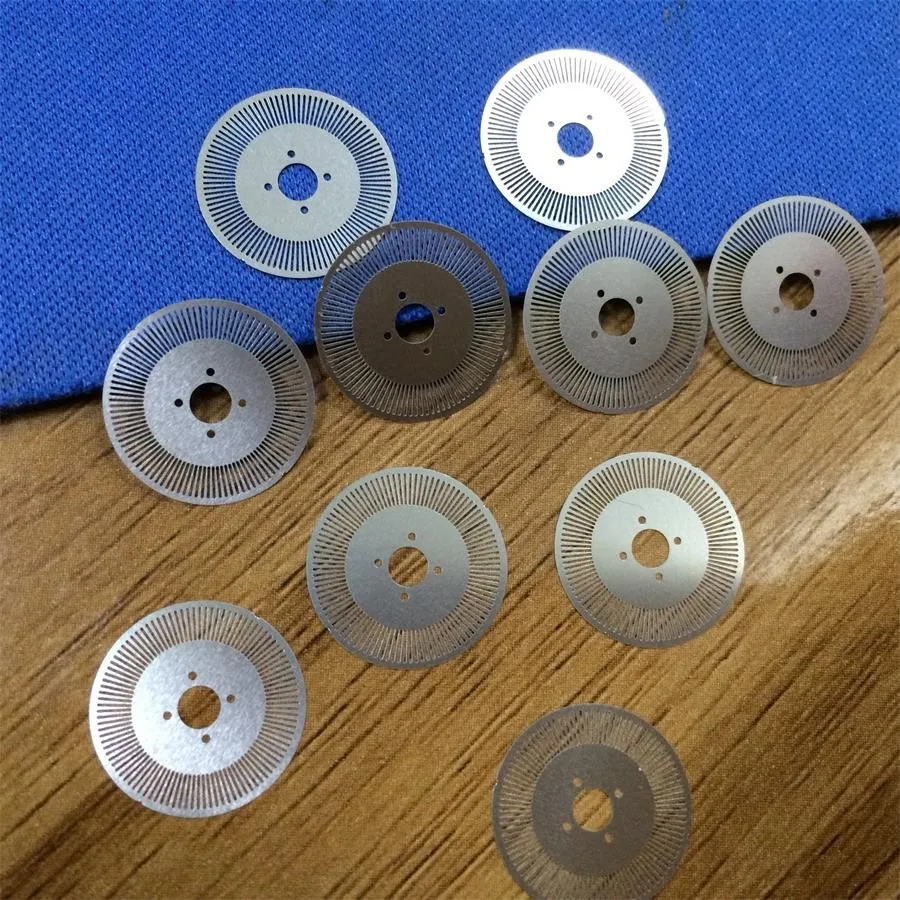

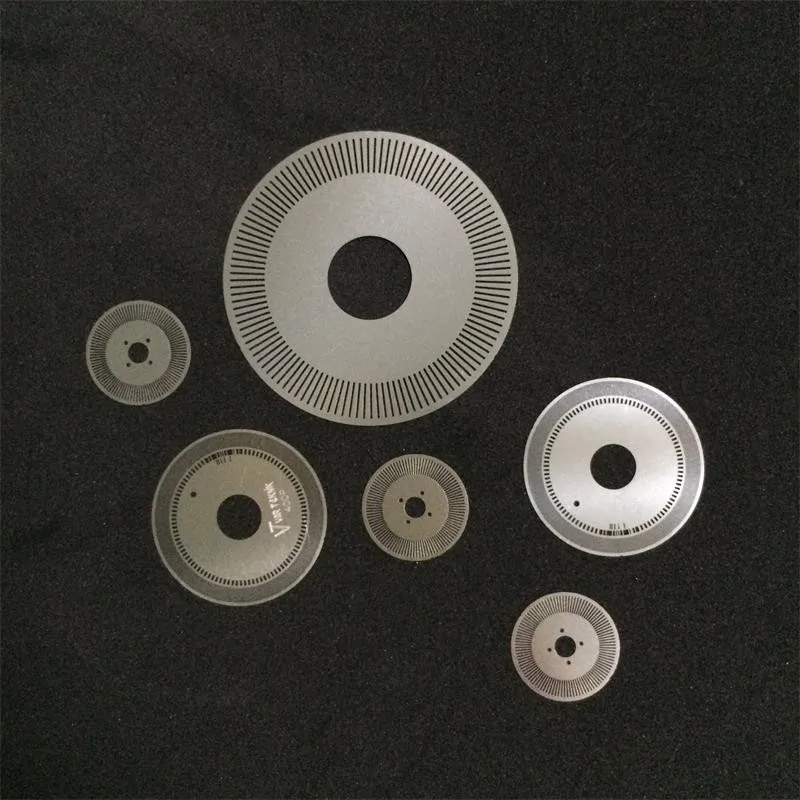

Optical encoder disk :
Chemical etching can be used to make your most challenging encoder disks. Slots can be as small as 1.2 times the thickness of the material. Therefore on .03thick material the openings can be as small as .036. Etching can also create webs that are as small as 60% of the material thickness. On a .03thick encoder disk the webs can be as small as .018wide.
Because our etching process dissolves the extra material, it does not add any extra stress to the metal. This will allow the disks to stay as flat as the material with which we started. Chemical etching does not create any burrs on parts thus leaving no extra obstruction on the part.
The main materail of our precise photo etching metal optical encoder disc we use is stainless steel imported from Janpan,including SUS304,SUS306 etc.
Usually,we make the encoder disks for the Original Equipment Manufacturer.Please send your CAD
file to us firstly,we will give a quotation for you as soon as possible according to your customized product.
Technique ability:
The Min. Size | 1mm*1mm |
The Max. Size | 700mm*600mm |
Thickness | 0.03mm-1.5mm |
Thickness Tolerance | +/-0.005mm |
The Min. Opening precision | Φ 0.02mm |
The smallest diameter | 0.01mm |
Dimension Tolerance | +/-0.008mm |
Elastic line tolerances | +/-0.005mm |
The shallowest depth | 0.01mm |
Depth accuracy tolerance | +/-0.005mm |
Special Technique | Second on the bit,No connection point,etching and stamping |
Product Description | |
Product Name | optical rotary encoder disk |
Material | Stainless steel, copper, silicon steel plate,or customize |
Thickness | 0.03mm-1.5mm |
Tolerance | +/-0.01mm |
size | 1*1mm2 - 300*500mm2 |
Smallest Open Hole | 0.1mm |
Smallest Line Width | +/-0.025mm |
Certificate | Rohs, ISO9001:2008, ISO14001:2004 |
Price | According to specific products, FOB shenzhen |
Package Options | PE bags, paper cases, wooden case or customize |
Delivery | DHL, EMS, Fedex, By Sea or by Air |
MOQ | 500PCS |
Payment | T/T,L/C,Moneygram,Paypal,West Union |
Supply Ability | 1000pcs/day |
Lead Time | Within 6-10 days |
Machine Type | Chemical etching / photo etching, Laser cutting, stamping |
Notes: | |
1,We will do our best to meet your special requirements | |
2,No need open tooling or moulding can change the dots as requirements in any condition with low cost | |
3,Half etching can be achieved and Company Logo can be added | |
4,High tolerance standard with tolerance +/-0.01mm | |
5,Complex out shape can be etched without extra cost | |
6,No burrs,No dents,No deformed,No broken point | |
7,Material can be customized | |
8,Nearly all kind of metal can be etched and no limited to the drawing | |
9,Etching can be achieved on parts of the product you made | |
Images:

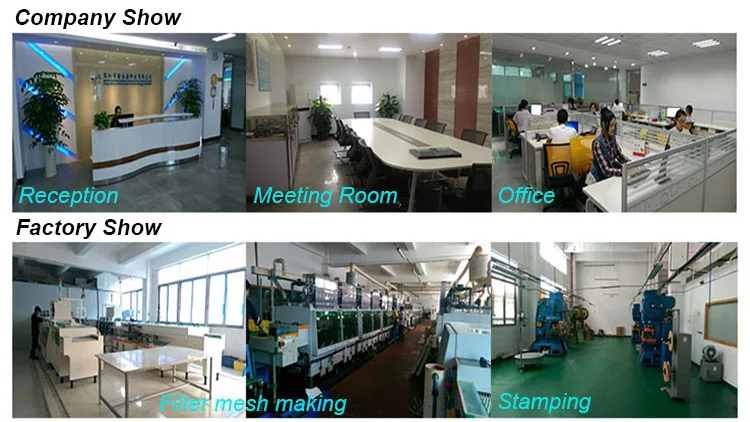

Company Information
Shenzhen Xinhaisen Technology Ltd.
We are a leading manufacturer handling in Chemical Etching for 8 years,still with ability to do stamping or Electroplating things.We adhere to do business on the basis of WIN-WIN and pay much attention to quality and cost control. Products:EMI/RF shield,Metal mesh,Encoder disc,VCM spacer,Metal cards,arts and crafts,logo,sign,label,some other etched things,Etc.
Sending us your drawing,We will back to you the high precision and finest products!We are always ready to be on service of you!
Company Basic Information | |
Company Name | Shenzhen Xinhaisen Technology Ltd. |
Business Type | Manufacturer,Trading |
Business Scope | Chemical etching,stamping, High precision metal mesh,Encoder disc, VCM,EMI/TF shield,Filter mesh,Coffee Filter mesh,Metal Cards,Metal Crafts,Metal bookmark,logo,label,sign,tags,Etc. |
Location | Guangdong, Shenzhen, China |
Year Established | 2012 |
Year Export | 2006 |
Employees | 100-200 |
Engineers | 10 |
Total Revenue | US$2.5 Million-US$5 Million |
Main Market | China mainland,America,Eastern Europe,Eastern Asia,Etc. |
Factory Area | 3000 m2 |
Certificate | ROHS, ISO9001:2008, ISO14001:2004 |
Process Capability | |
The Min. Size | 1mm*1mm |
The Max. Size | 700mm*600mm |
Thickness | 0.03mm-1.5mm |
Thickness Tolerance | +/-0.005mm |
The Min. Opening precision | Φ 0.02mm |
The smallest diameter | 0.01mm |
Dimension Tolerance | +/-0.008mm |
Elastic line tolerances | +/-0.005mm |
The shallowest depth | 0.01mm |
Depth accuracy tolerance | +/-0.005mm |
Special Technique | Second on the bit,No connection point,etching and stamping |
Our Advantages:
1. Low cost for molding or tooling
2. Advanced & Standardization workshops and facilitates.
3. High-tech and high precision manufacturing equipment.
4. Strict ISO14001:2004 , ISO9001:2008 standards.
5. ROHS compliant & enviroment friendly products.
6. Professional technical specialists and management personel

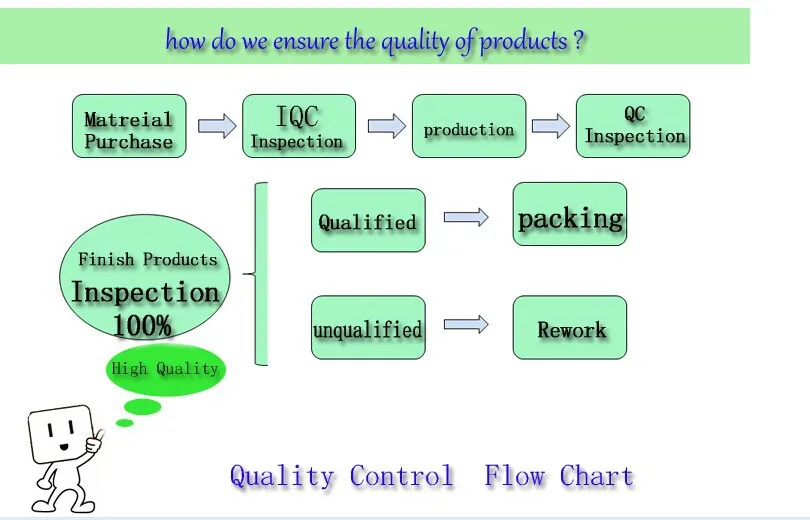

7. 100% in house inspection before delivery
8. All OEM/EDM is welcomed
Our Services
1,Your inquiry related to our products or prices will be replied in 12 hours
2,We will do our best to meet all kinds of your demands
3,OEM&ODM are available
4,Free samples are available
5,Quality control are strictly according to ROHS,ISO and our own standard
6,Stable output and prompt delivery
7,Distributorship are offered for your unique design and some our current models
8,Protection of your sales area,ideas of design and all your private information
Any comments will be highly appreciated,please feel free to contact me,We will do our best to
help you.
