China factory Fiber Glass Geogrids Ground Grid Fiberglass Geogrid for Road Construction High Strength Biaxial Fiberglass Geogrid
- Category: >>>
- Supplier: Taian Lin Yuan Engineering Materials Co. Ltd.
Share on (1601280442822):
Product Overview
Description
Product Description

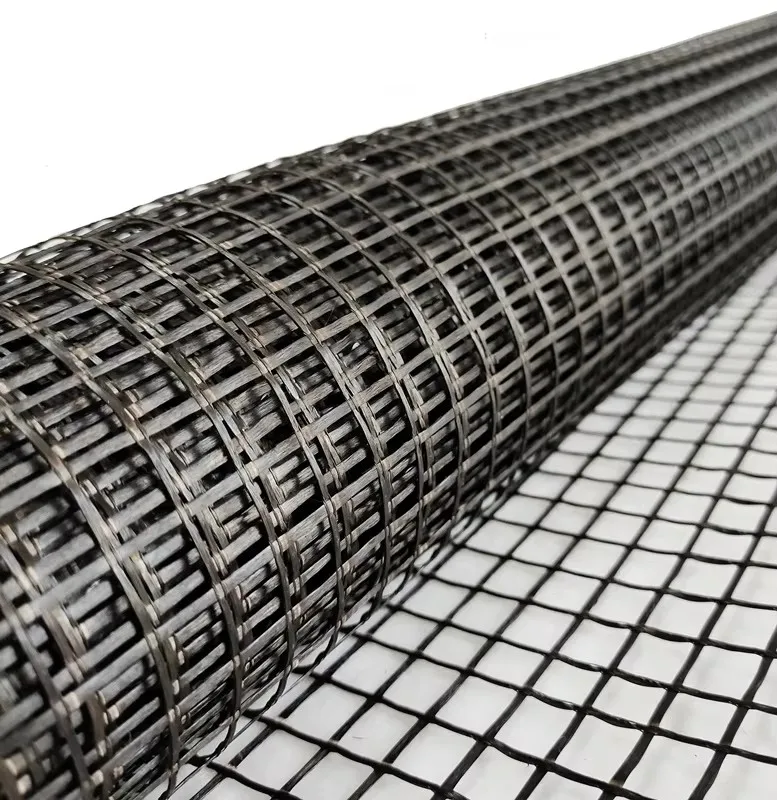

Lin Yuan fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to provide
a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life of pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.
a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life of pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.
Product Name | Fiberglass Geogrid |
Tensile Strength | 50/50 100/100 120/120 kN/m |
Mesh Size | 12.5x12.5, 25.4x25.4mm |
Roll Width | 1.5/2/2.5/3.95/5.95 m |
Roll Length | 50/100 m |
Standard | ASTM, ISO |
Spec | EGA 30-30 | EGA 50-50 | EGA 80-80 | EGA 100-100 | EGA 120-120 | EGA 150-150 | EGA 200-200 | EGA 300-300 | |||||||||
Mesh size (mm) | 25.4x25.4 or 12.5x12.5 or 50.8x50.8 | ||||||||||||||||
Breaking strength ≥（kN/m） | warp direction | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | ||||||||
across warp | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | |||||||||
warp direction | 3 | ||||||||||||||||
across warp | 3 | ||||||||||||||||
Thernal tolerance(℃） | -100~280 | ||||||||||||||||
Width(m） | 2/2.5/3.95/5.95 m | ||||||||||||||||
Fiberglass Geogrid 100-100kN/m
Mesh size 25.4x25.4mm
Fiberglass Geogrid 100-100kN/m
Mesh size 12.5x12.5mm
Fiberglass Geogrid 50-50kN/m
Mesh size 25.4x25.4mm
Application
Fiberglass geogrid is eigineered for road, highways, airport runways, road widening, road maintenance and repair, composite pavements,etc.

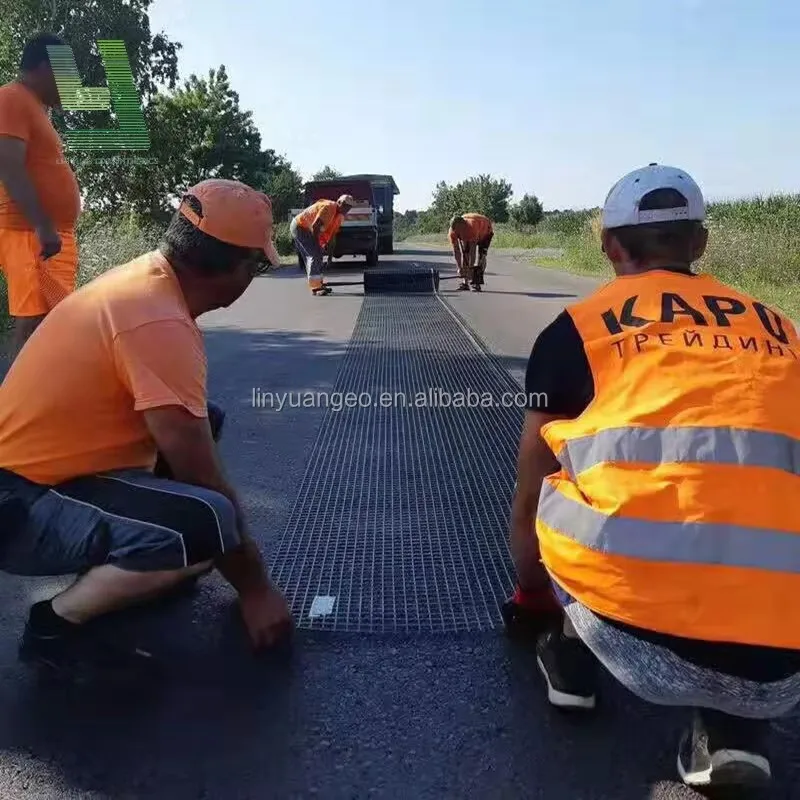

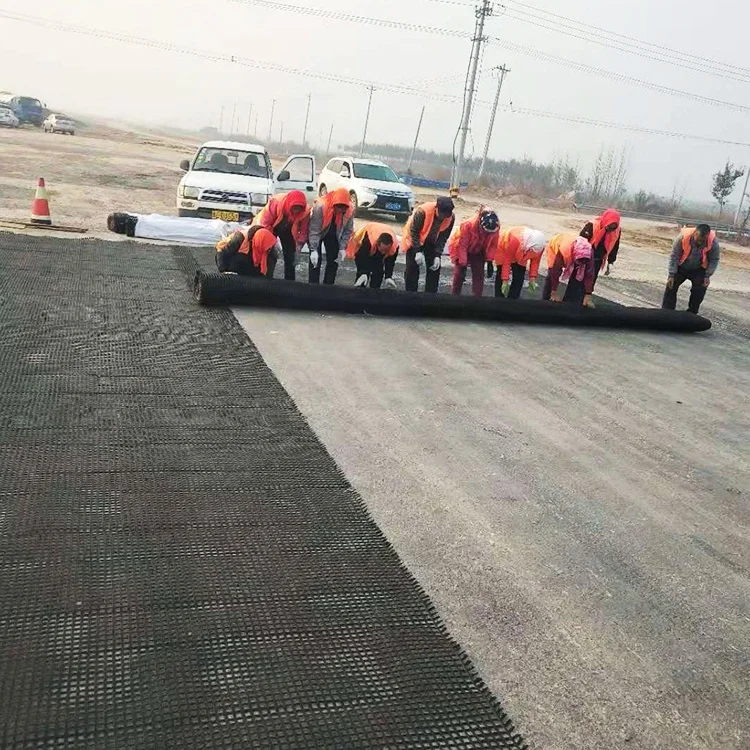

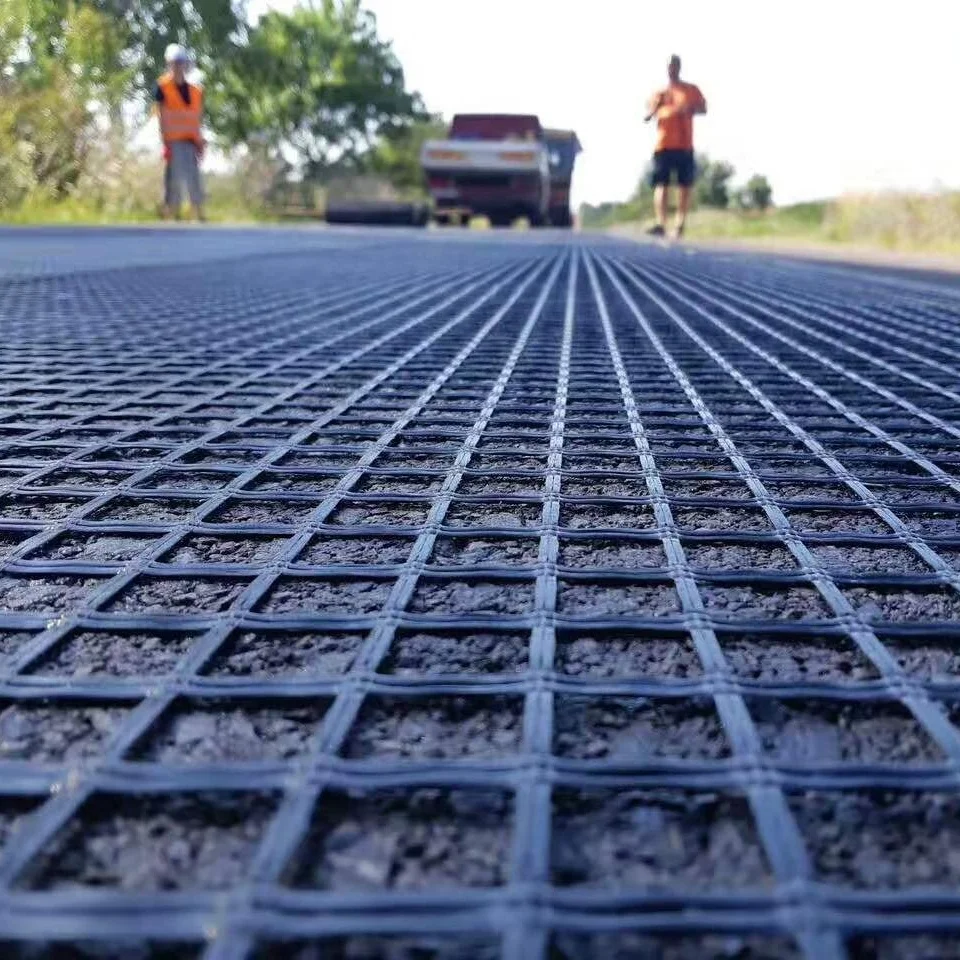

Road Pavement Reinforcement

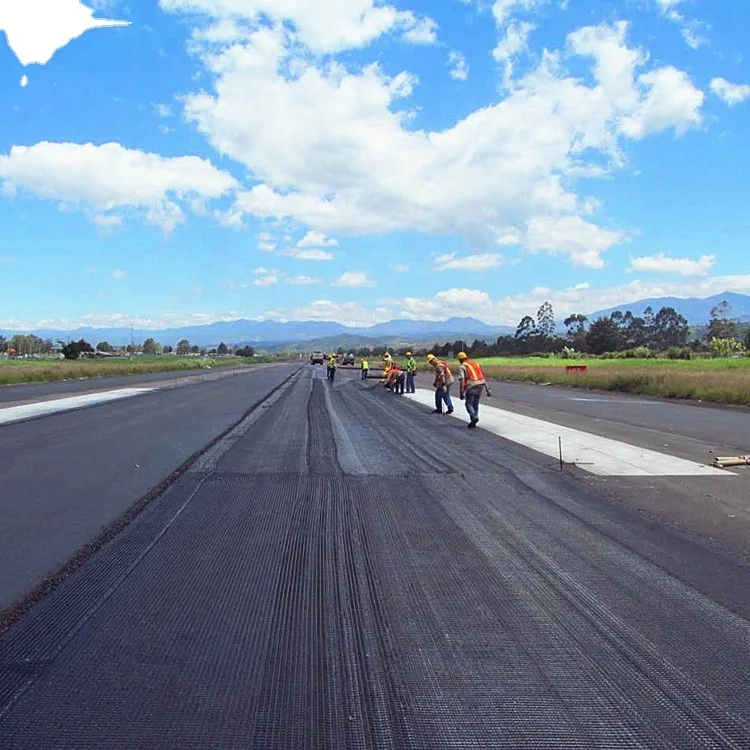

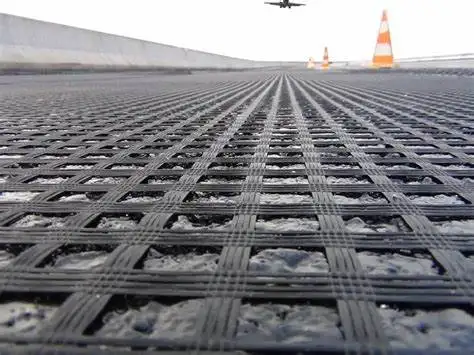

Airport Reinforcement

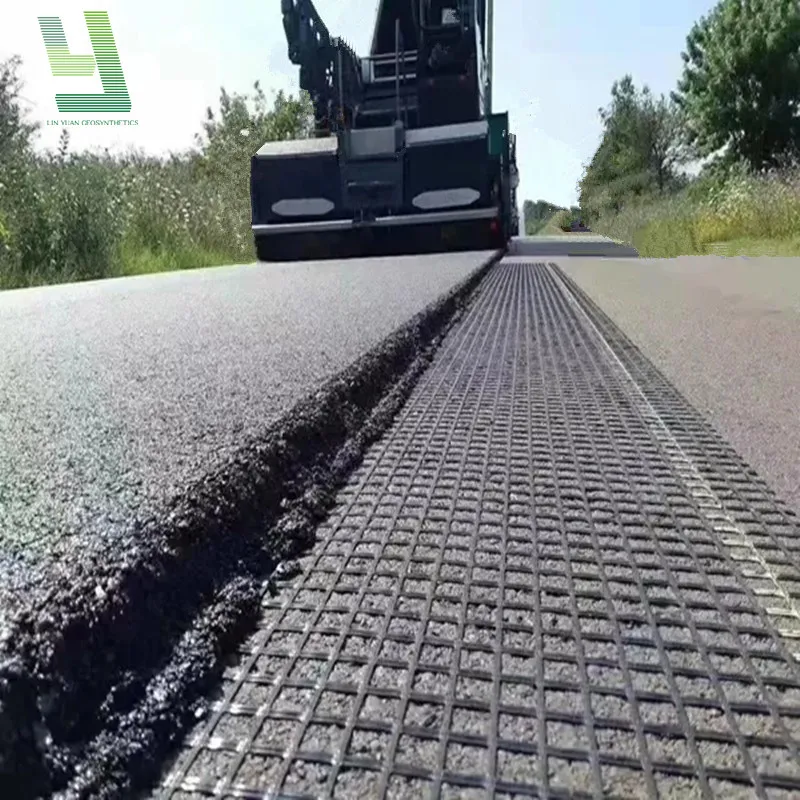

Highway Reinforcement
Best Seller Products

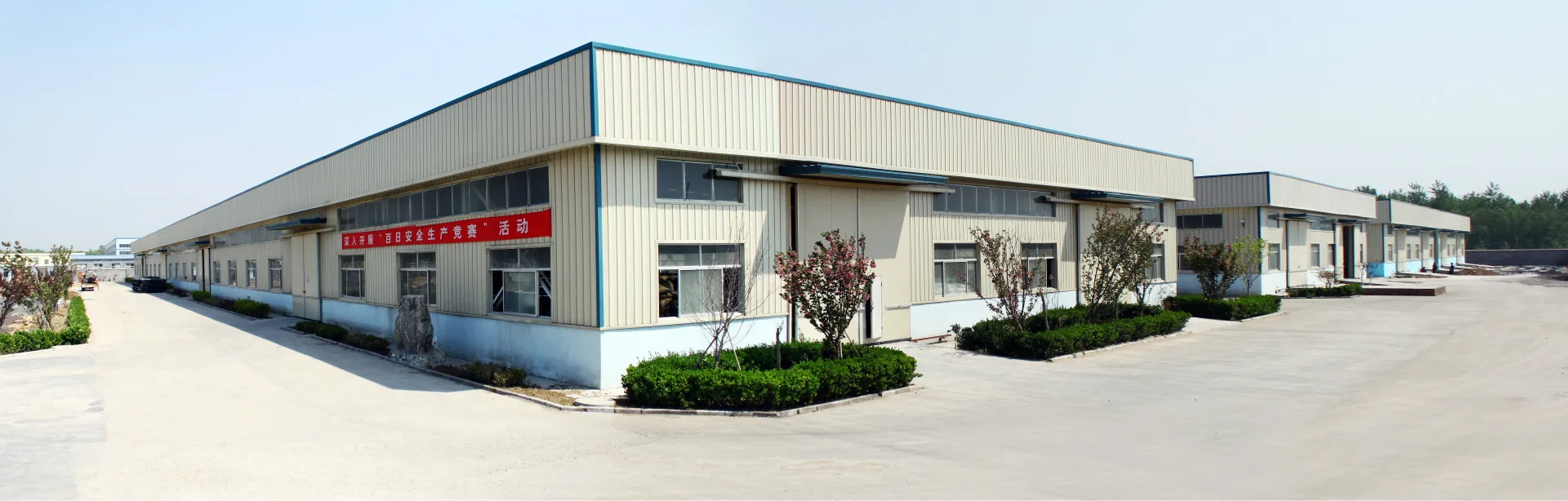

Company Introduction
Company Introduction
Taian Lin Yuan Engineering Materials Co., Ltd., established in 2014. We are focusing on earthwork materials and many relevent products. We always offer customization to every customer for different demands, which means we can offer different width and length. different materials quality, different using fields. Our products include Polyester warp knitting geogrids, glass fiber geogrids, plastic geogrids, geotextiles, geomembrane, composite geomembrane, new three-dimensional geogrids, geogrids etc. Which can be applied to a wide ranges like Railway, highway subgrade reinforcement, water conservancy dam reinforcement, tunnel, subway and other engineering fields. Our annual outputs have exceeded 300 million square meters, exporting to more than 30 countries.
Engineering materials products are mainly used in highway, railway, water conservancy, electric power, water and soil conservation and environmental greening and other infrastructure areas, has been widely applied to tongsan expressway, shanghai-hangzhou inter-city railway, basis of high-speed railways, the qinghai-tibet railway, beijing-shanghai expressway, the beijing-shanghai high-speed railway, mansion deep railway, Shi Wuke designed, shanghai-nanjing intercity railway and hangzhou customer designed, an hundreds of national key projects such as railway; The company has successively won the bidding of various national key projects; Our products are well known by the engineering experts and the majority of users; We are using complete and scientific quality management system. Please trust us!

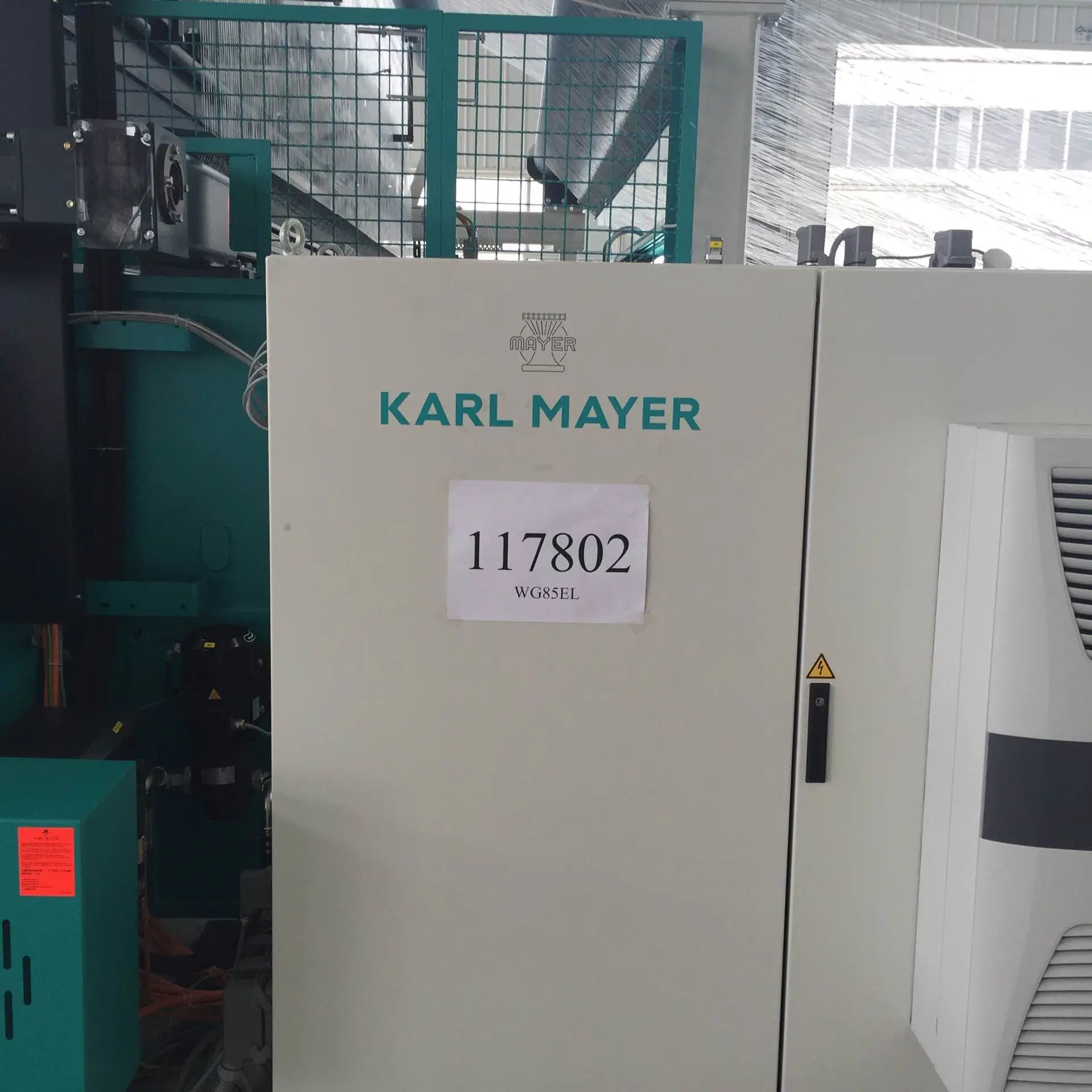

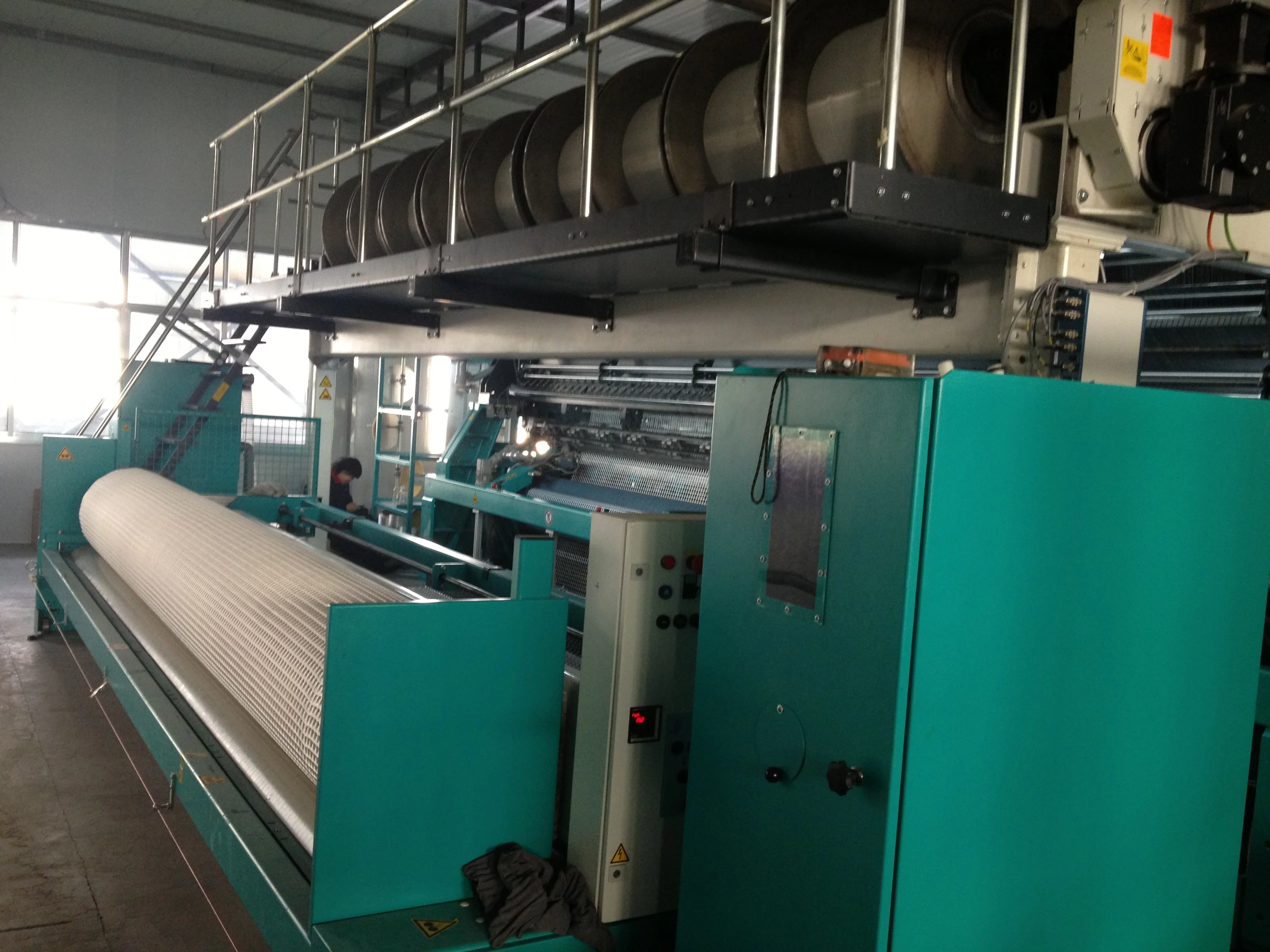

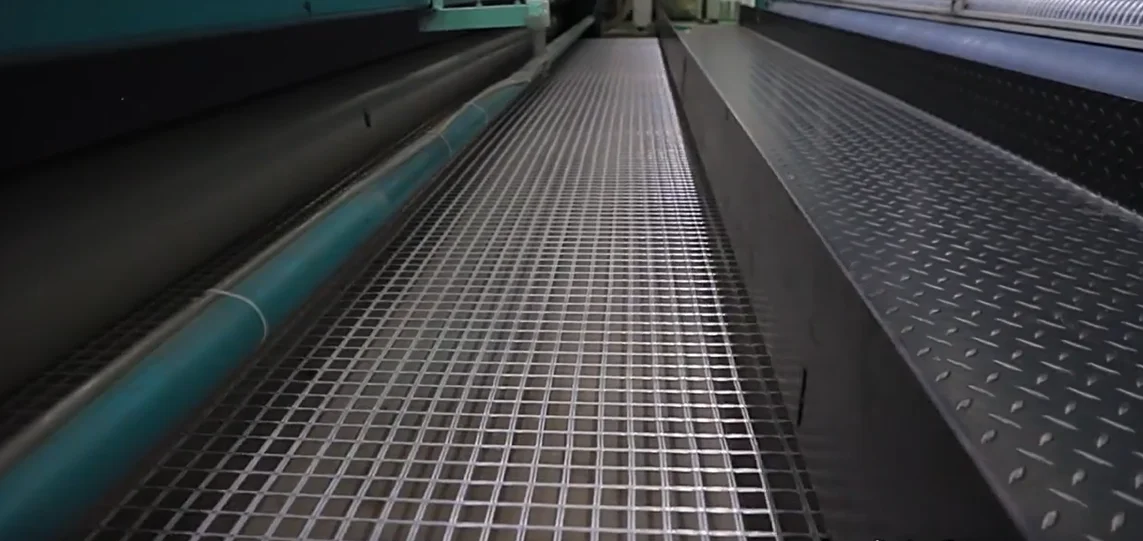

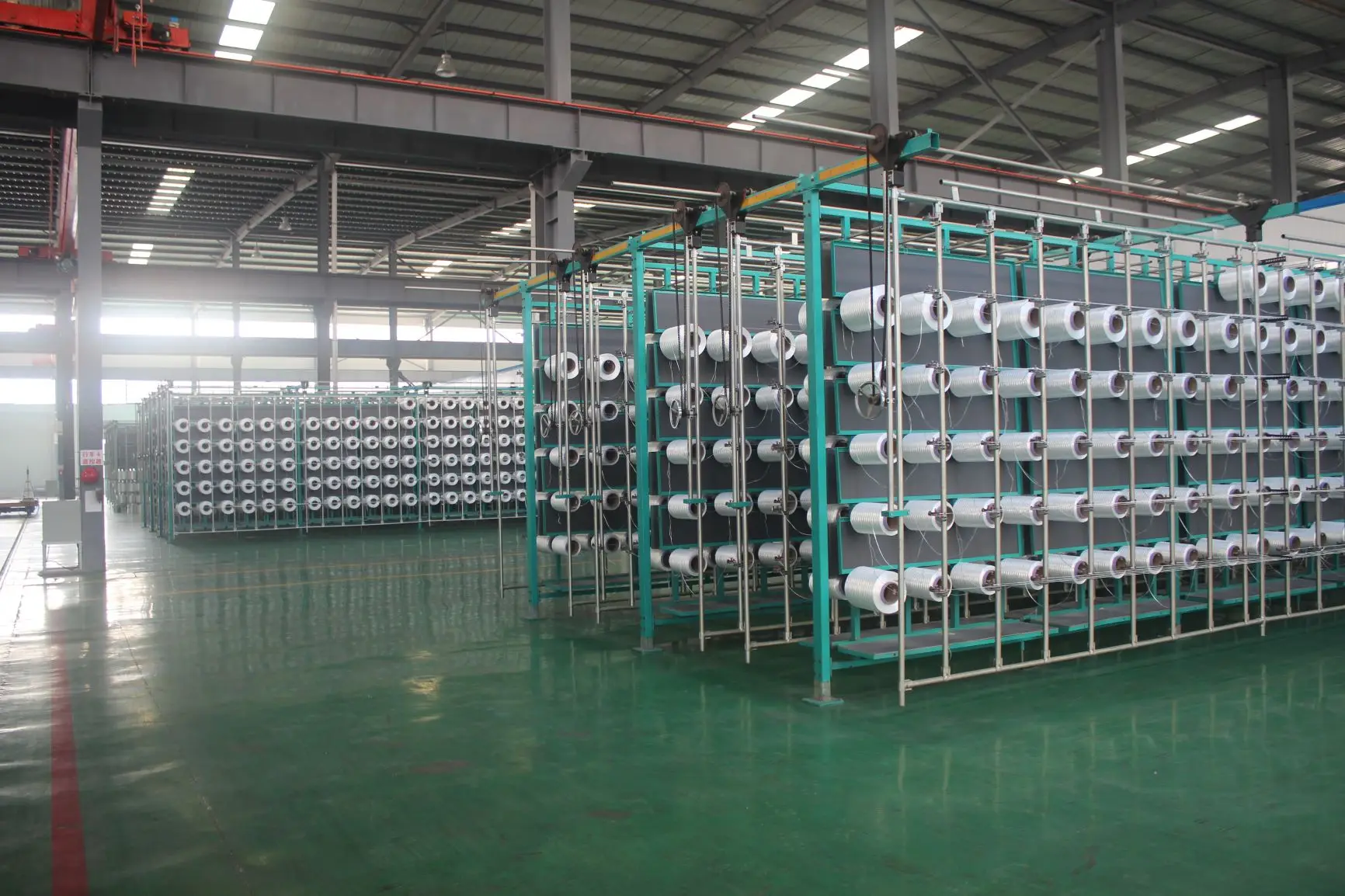

Production Display
Packaging & Shipping
FAQ
Q: What can you buy from us?
A: Geocell, Geotextile, Geomembrane, Geogrid, Geocomposite, Geonet 3D Geomat etc.
Q: Can I have a sample?
A: Yes. And sample for free.
Q: What's the payment terms?
A: T/T or L/C. Others could be negotiated.
Q: What's the delivery time?
A: 3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
A: Geocell, Geotextile, Geomembrane, Geogrid, Geocomposite, Geonet 3D Geomat etc.
Q: Can I have a sample?
A: Yes. And sample for free.
Q: What's the payment terms?
A: T/T or L/C. Others could be negotiated.
Q: What's the delivery time?
A: 3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
